Sterilization Room Design Tips for Small Spaces: Fast-Track Guide to a Functional, Safe, and Space-Saving Sterilization Room

Designing a sterilization room in a tight footprint demands precision: clear flows for dirty-to-clean processing, robust ventilation, and ergonomic work zones. In small clinics and dental practices, every inch works twice as hard. I prioritize an unbroken decontamination-to-packaging-to-sterilization-to-cooling-and-storage sequence, minimizing cross-traffic and contamination risk while keeping turnaround times short.

Two data points guide my baseline: task lighting at instrument inspection tables should meet Illuminating Engineering Society recommendations for detailed visual tasks, typically around 750–1,000 lux, and glare must be controlled to prevent errors (IES standards). On the health side, WELL v2 highlights that adequate ventilation and filtration support reduced pathogen transmission; I aim for dedicated exhaust in decontam areas and MERV-13 or higher filtration for recirculated air to align with best-practice health guidance (WELL v2).

Plan the Flow: Dirty to Clean Without Cross-Over

Even in 80–120 sq ft rooms, I separate process zones: receiving/soaking, manual/ultrasonic cleaning, rinsing/drying, inspection/packaging, sterilizer bank, cooling, and sterile storage. If walls are fixed, I use marked linear runs; in tighter spaces, a U-shaped sequence keeps movement clockwise from dirty to clean. To visualize variants and confirm clearances before committing millwork, I often mock up options with a room layout tool that lets me test aisle widths and bench depth under equipment constraints.

Right-Size Work Surfaces and Clearances

Bench depths of 24–30 inches accommodate ultrasonic baths and wrapping stations without crowding elbows. Maintain at least 36 inches of aisle clearance for safe pass-through even with carts. For small spaces, I choose compact sterilizers stacked on reinforced shelves with front service access, and keep inspection stations at 40–42 inches high for comfortable standing work. Anti-fatigue mats and height-adjustable stools improve ergonomics during long wrapping cycles.

Lighting for Precision and Comfort

Instrument inspection benefits from neutral white light (3,500–4,000K) to reveal debris without color cast. Task lights with high CRI (90+) and shielded lenses reduce eye strain. Overhead ambient lighting can sit at 300–500 lux; task layers should raise local illuminance to the IES-recommended range for detailed tasks. Keep luminaires outside splash zones; sealed fixtures with smooth lenses simplify wipe-downs.

Ventilation, Zoning, and Air Quality

Create negative pressure in the decontamination zone and positive pressure in sterile storage to direct airflow away from clean areas. Where mechanical systems are limited, add localized exhaust hoods above ultrasonic cleaners and ensure makeup air is tempered. Filtration at MERV-13 is a practical minimum; use tight-sealing doors and continuous sweeps to keep pressure regimes effective. Monitor with simple differential pressure indicators to confirm performance.

Wet Work and Material Choices

Surfaces should be non-porous, chemical-resistant, and easy to disinfect: stainless steel benches for wet zones, solid surface or compact laminate in dry areas. Cove bases, integral backsplashes, and sealed seams reduce microbial harborage. Avoid open-grain wood and textured laminates near sinks. Flooring with slip resistance and welded seams resists moisture intrusion during spill events.

Storage That Protects Sterility

Separate sterile storage from packaging by a clear physical boundary—ideally a cabinet with doors. Use closed shelving or drawers with smooth interiors; label zones for instruments, wraps, indicators, and biological tests. Cooling racks should be wire or perforated to allow airflow, placed outside traffic lines. Keep frequently used supplies at mid-height (knee to shoulder) to minimize strain and accidental drops.

Acoustics and Behavioral Comfort

Ultrasonic cleaners and sterilizers generate low hums and intermittent alarms. I add absorptive ceiling tiles (where cleaning protocols allow) and rubber flooring to damp impact noise. Clear visual cues—floor arrows, color-banded counters, and task signage—guide behavior and reduce mistakes under time pressure.

Workflow Discipline and Visual Management

Small rooms succeed when the process is bulletproof. Color-code bins: red for dirty intake, blue for cleaned but unwrapped, green for sterilized and cooling, white for sterile storage. Mount checklists at eye level: PPE, cleaning cycles, packaging standards, sterilizer parameters, and biological indicator schedules. A simple kanban board for consumables prevents stock-outs that stall the line.

Utilities and Equipment Integration

Plan for dedicated circuits and power strips with medical-grade surge protection. Place sterilizers with clearance for door swing and maintenance; route water supply and drains with backflow prevention. Where floor space is tight, wall-mount racks for wraps and indicators, and use under-bench pullouts for heavy bins to reduce lift risk.

Sustainability Without Compromising Safety

Choose durable, repairable equipment and low-VOC sealants to limit indoor pollutants. LED lighting decreases energy load and heat gain (helpful in compact rooms). Reusable trays and washable PPE elements reduce waste while maintaining infection control standards—always validated against your sterilization protocol.

Compact Layout Example

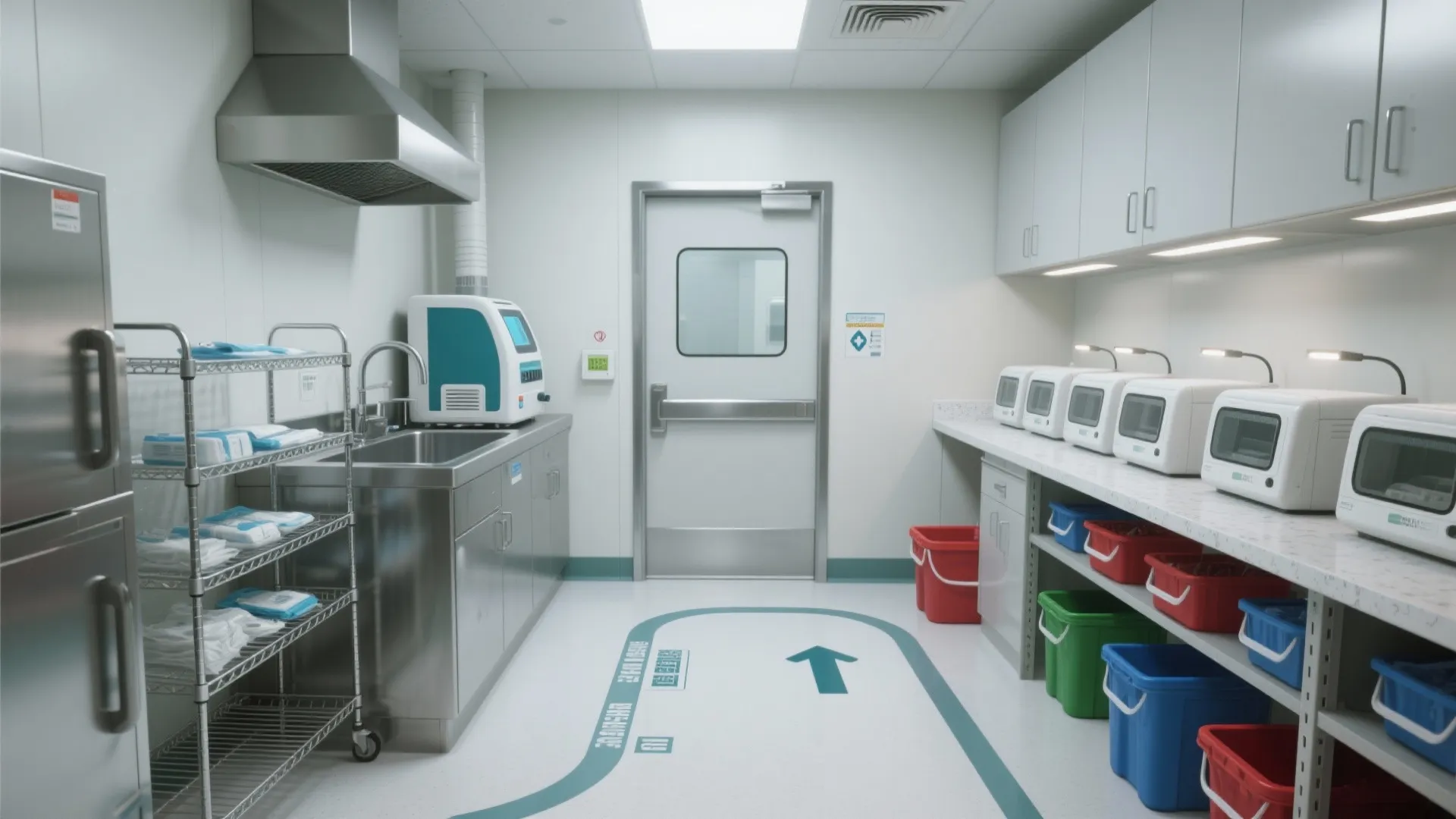

In a 100 sq ft suite, I’ve run a clockwise U: 24-inch deep wet bench with sink and ultrasonic (negative pressure side), adjacent drying rack, then a 30-inch inspection/packaging bench with task lights, followed by two counter-top sterilizers on a reinforced shelf stack, and finally wire cooling racks leading into closed upper cabinets for sterile storage (positive pressure side). Aisles stayed at 36 inches, and the linear sequence eliminated backtracking.

Validated Standards and Further Reading

For lighting and task performance targets, see the Illuminating Engineering Society reference values for detailed tasks. WELL v2 provides guidance on filtration, ventilation, and environmental quality that supports safer, healthier rooms in clinical contexts.

FAQ

Q1: How much lighting do I need at the inspection station?

A: Provide 750–1,000 lux with high-CRI (90+) task lights and neutral 3,500–4,000K color temperature to reveal contaminants without glare, aligned with IES guidance.

Q2: Can I fit a compliant workflow in under 120 sq ft?

A: Yes. Use a linear or U-shaped sequence with 36-inch aisles, clear dirty-to-clean zoning, and closed storage for sterile items. Compact, stackable sterilizers help preserve flow.

Q3: What pressure regimes should I aim for?

A: Negative pressure in decontamination to capture aerosols; positive pressure in sterile storage to protect packaged instruments. Seal doors and monitor differential pressure to maintain directionality.

Q4: Which materials are best for counters and cabinets?

A: Stainless steel in wet zones; solid surface or compact laminate in dry packaging. Use coved bases, sealed joints, and smooth interiors for quick disinfection.

Q5: How do I control noise from ultrasonic cleaners?

A: Use absorptive ceiling tiles where allowed, rubber or cushioned flooring, and locate noisy equipment away from inspection tasks. Maintain equipment to prevent rattles.

Q6: What’s the minimum aisle width for safe movement?

A: Maintain at least 36 inches to allow pass-through with carts and avoid elbow collisions at active benches.

Q7: Which storage keeps instruments sterile longest?

A: Closed cabinets with smooth, cleanable interiors. Keep items off the floor, away from vents, and separate cooling racks from sterile shelves to prevent recontamination.

Q8: How do I prevent cross-contamination in a single-room setup?

A: Enforce directional flow with color-coded bins, floor arrows, and distinct counter segments. Avoid backtracking; keep PPE and waste disposal at the dirty intake end.

Q9: What filtration level is practical in small clinics?

A: MERV-13 or higher for recirculated air balances capture efficiency and HVAC compatibility. Pair with localized exhaust at wet workstations.

Q10: Are task chairs necessary?

A: Adjustable stools at wrapping stations reduce fatigue. Combine with anti-fatigue mats and 40–42 inch bench heights to support neutral posture.

Q11: How do I plan utilities in tight rooms?

A: Map dedicated circuits, access panels, and backflow-protected water lines. Keep power and plumbing outside splash zones and allow service clearances at the front.

Q12: Do I need separate rooms for sterile storage?

A: Not always. A sealed, positively pressurized zone or enclosed cabinetry within the same room can work if airflow, boundaries, and protocols are rigorously maintained.
