Stilt Floor vs Basement Parking: Key Differences in Building Design: A practical comparison of stilt floor structures and basement parking to help developers choose the right solution for residential projects.

Direct Answer

Stilt floor parking is built at ground level on columns, leaving the area open for vehicles, while basement parking is constructed below ground level. Stilt floors are generally cheaper and easier to ventilate, while basements provide better land utilization in dense urban areas but require higher construction costs and waterproofing.

Quick Takeaways

1. Stilt floors are cheaper and faster to construct than basement parking.
2. Basement parking maximizes usable land area in dense urban developments.
3. Flood risk and drainage challenges affect basement structures more than stilt floors.
4. Stilt floors offer simpler ventilation and lower maintenance requirements.
5. Basements provide better aesthetics and security in premium residential projects.

Introduction

In many residential developments I’ve worked on, the debate around stilt floor vs basement parking comes up earlier than most people expect. Clients often assume the basement option is automatically more “premium,” while builders lean toward stilt structures for speed and cost. The truth is more nuanced.

Over the past decade designing apartment buildings and mid-rise housing projects, I’ve seen both solutions succeed—and fail—depending on the site conditions. Soil type, flood risk, construction budget, and even local parking regulations can completely change which option makes sense.

If you’re still exploring layout options, it helps to first visualize how parking integrates with the rest of the building. Many developers start by mapping circulation using a step-by-step workflow for visualizing parking layouts in 3Dbefore deciding whether the structure should go above or below ground.

In this guide, I’ll break down the real differences between stilt floor and basement parking—based on practical design decisions, cost implications, and safety factors that often get overlooked.

save pin

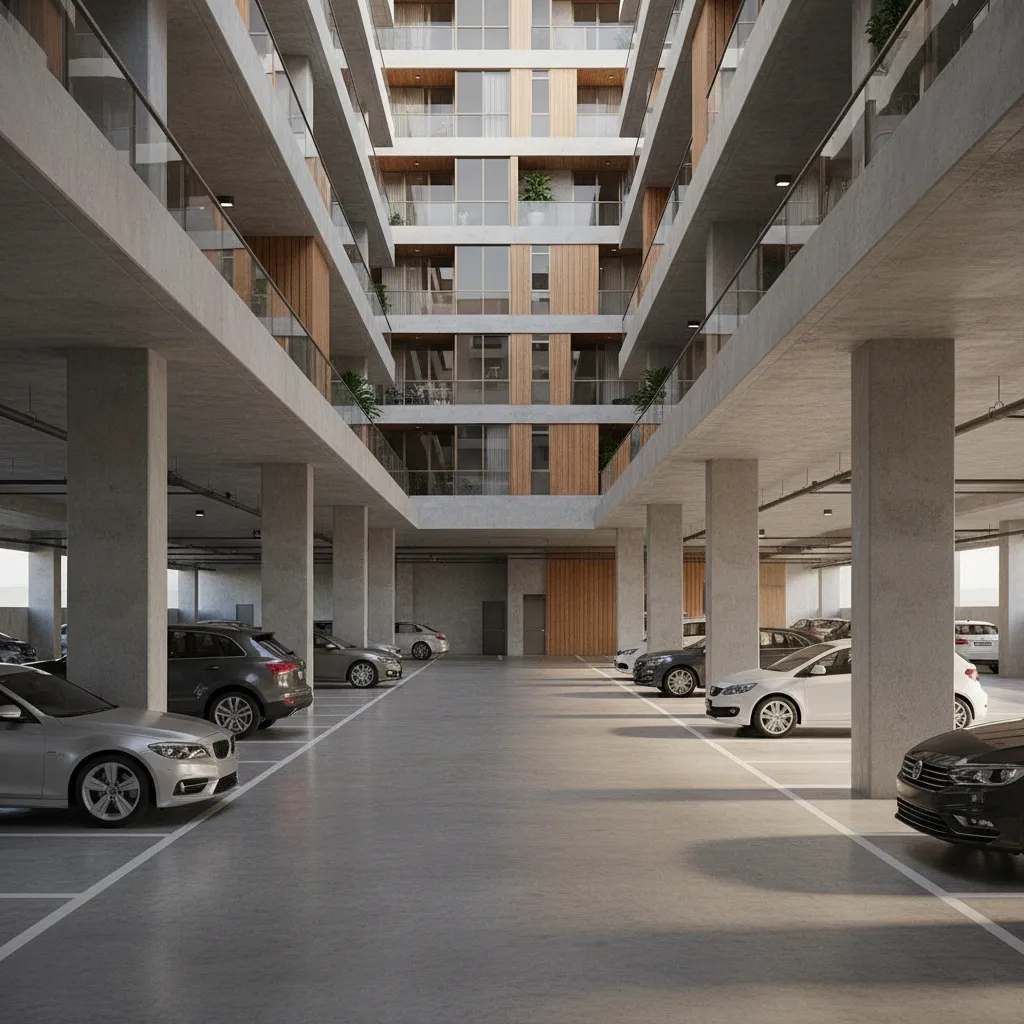

What Is a Stilt Floor in Building Design

Key Insight: A stilt floor is essentially an open ground level supported by columns, commonly used for parking while the residential floors start above it.

In architectural terms, a stilt floor is not a separate enclosed level—it’s a structural frame. The building’s columns elevate the main structure, leaving the ground floor partially or completely open.

From a design perspective, stilt floors are extremely common in mid-rise apartment buildings across Asia, Australia, and parts of Europe because they reduce construction complexity.

Typical characteristics of stilt floor parking:

1. Open or semi-open parking at ground level
2. Columns supporting residential floors above
3. Minimal excavation required
4. Natural ventilation instead of mechanical systems
5. Lower waterproofing requirements

Hidden design issue most developers miss: column spacing. If structural columns are placed too close together, parking maneuverability becomes a nightmare. I’ve seen projects where residents constantly complain because SUVs simply cannot turn properly.

That’s why many architects prototype circulation early using a simple workflow to sketch and test parking circulation layouts before finalizing structural grids.

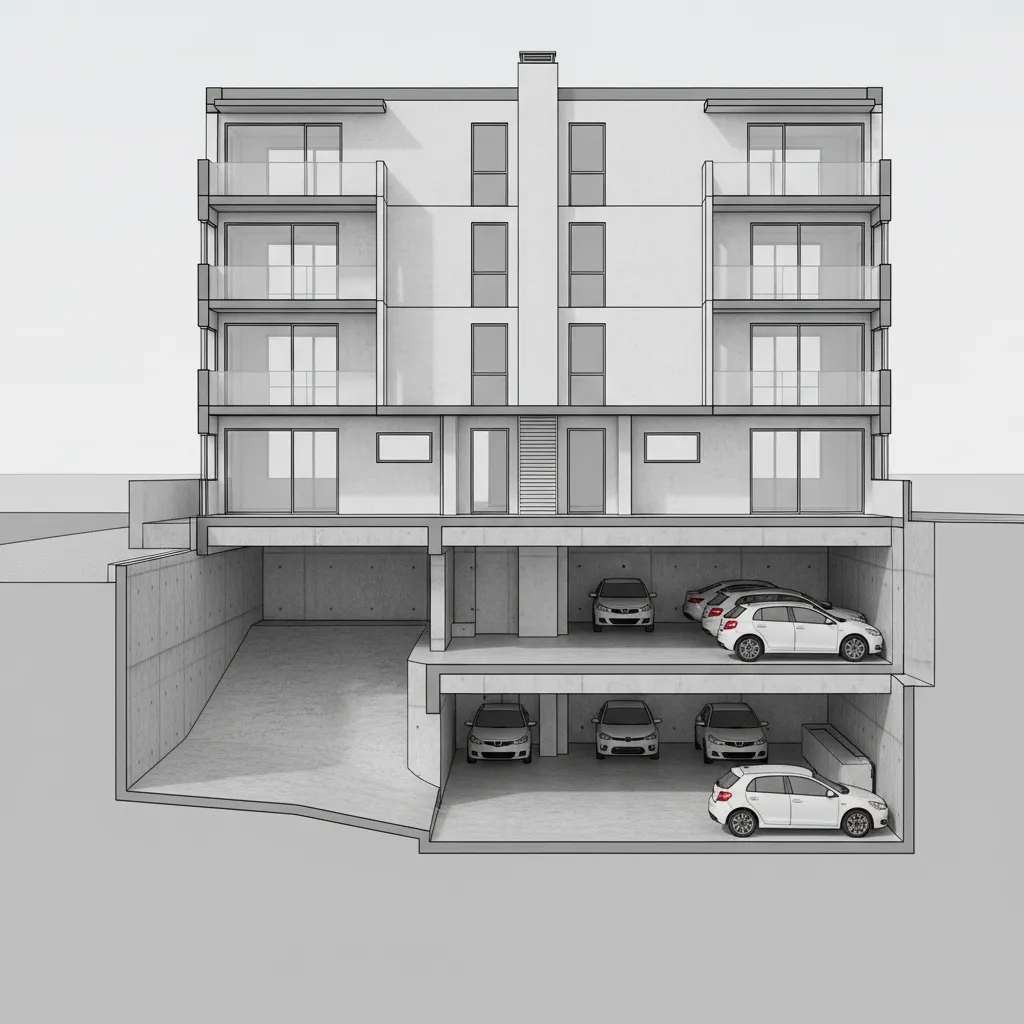

How Basement Parking Structures Work

Key Insight: Basement parking places vehicles below ground level, allowing the building footprint above to be used entirely for residential or commercial space.

Basement structures require excavation, retaining walls, and reinforced waterproofing systems. This makes them more expensive but also much more space-efficient in dense cities.

In high-value urban areas—think Singapore, Tokyo, or central London—basements are often the only way to meet parking requirements without sacrificing valuable ground-level real estate.

Key components of basement parking design:

1. Excavated underground slab
2. Retaining walls for soil pressure
3. Mechanical ventilation systems
4. Drainage and sump pump systems
5. Fire-rated access ramps and stair cores

One important reality: basement parking is rarely just one level anymore. In large developments, two or even three underground levels are common to maximize density.

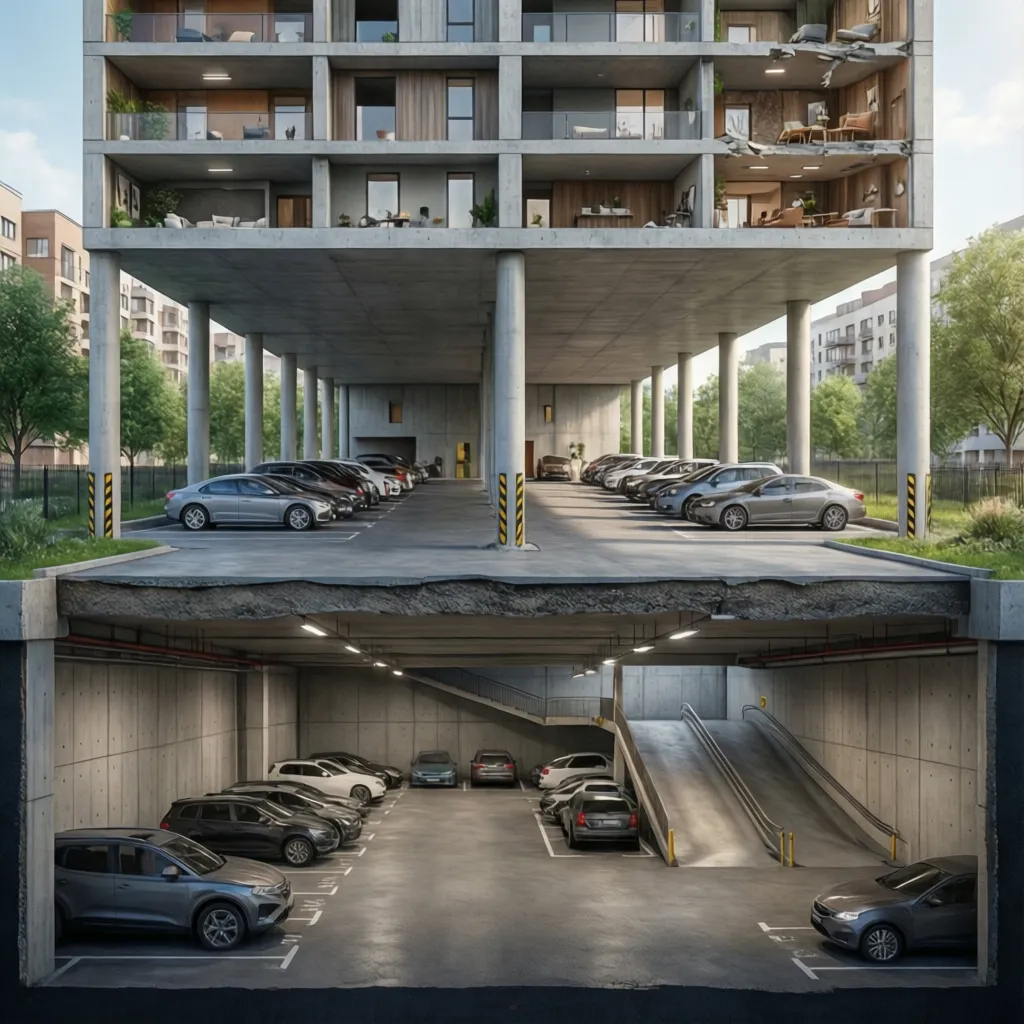

Key Structural Differences Between Stilt Floors and Basements

Key Insight:The primary structural difference lies in load transfer and earth pressure—stilt floors deal with vertical loads only, while basements must resist both vertical and lateral soil pressure.

This structural distinction dramatically changes engineering requirements.

save pin

Main structural comparison:

1. Stilt floor: Column-supported open ground level
2. Basement: Reinforced concrete box resisting soil pressure

Design implications:

1. Basements require thicker retaining walls
2. Waterproof membranes become critical
3. Foundation systems are more complex
4. Construction timelines increase significantly

In one residential project I consulted on in California, the basement structure alone accounted for nearly 22% of the total structural cost—mostly due to waterproofing and retaining walls.

Cost and Construction Considerations

Key Insight: Stilt floors typically cost 30–50% less than basement parking for mid-rise residential buildings.

The difference comes down to excavation, waterproofing, and structural reinforcement.

Typical cost factors:

1. Excavation and soil removal
2. Retaining wall construction
3. Waterproofing membranes
4. Mechanical ventilation systems
5. Drainage infrastructure

Approximate cost comparison (varies by region):

1. Stilt parking: lower construction cost and faster timeline
2. Basement parking: higher upfront cost but better land efficiency

However, there’s a hidden trade-off that many articles ignore: maintenance. Basement pumps, ventilation systems, and waterproofing repairs can create long-term operating costs that stilt structures simply don’t have.

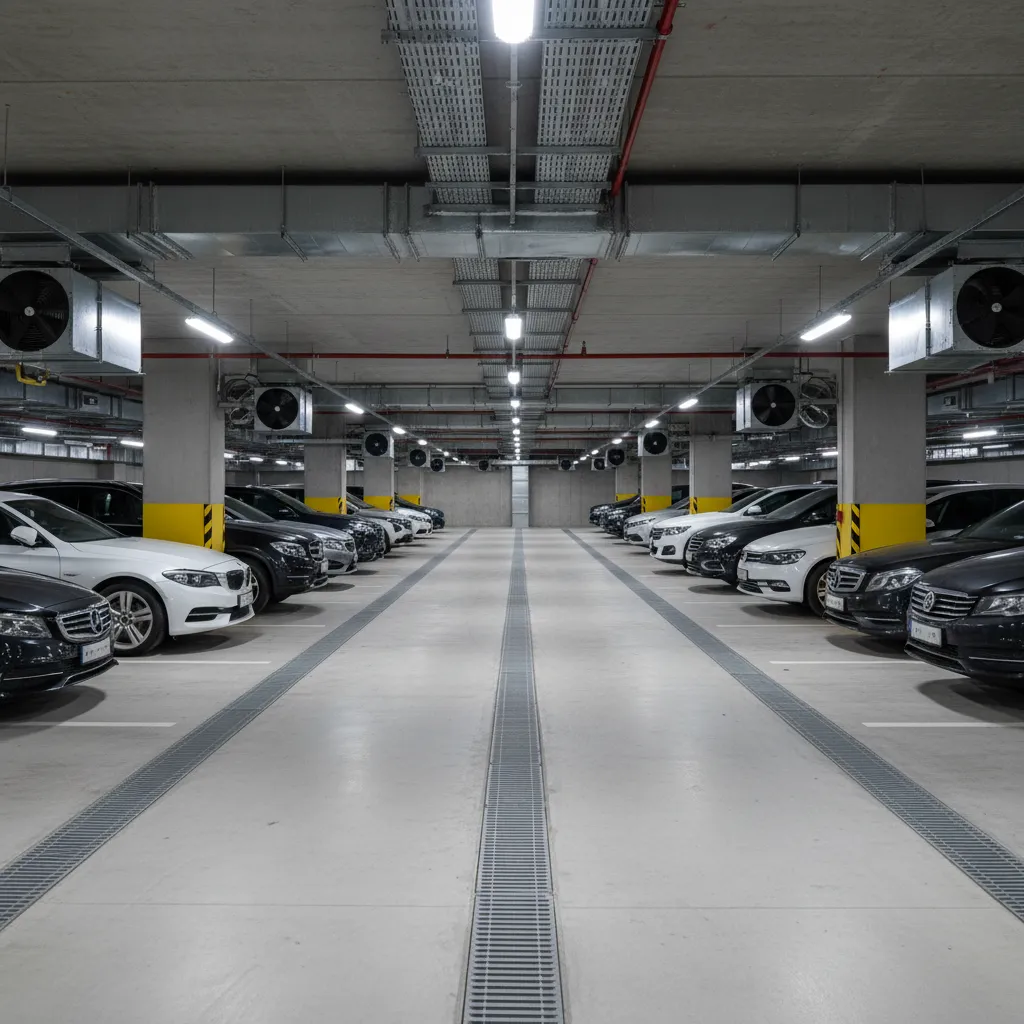

Safety, Ventilation, and Flood Risk Factors

Key Insight:Basement parking requires mechanical ventilation and flood protection, while stilt floors rely mostly on natural airflow and elevation.

Ventilation is the biggest operational difference.

save pin

Stilt floor ventilation:

1. Natural cross-ventilation
2. Minimal mechanical systems
3. Lower energy use

Basement ventilation:

1. Mechanical exhaust fans
2. Carbon monoxide monitoring
3. Fire-rated ventilation shafts

Flood risk is another critical factor. In coastal cities or regions with heavy rainfall, basement structures require sump pumps and drainage systems. When those systems fail, the entire parking area can flood.

I’ve personally seen underground garages completely submerged during storms—while the nearby stilt buildings remained unaffected.

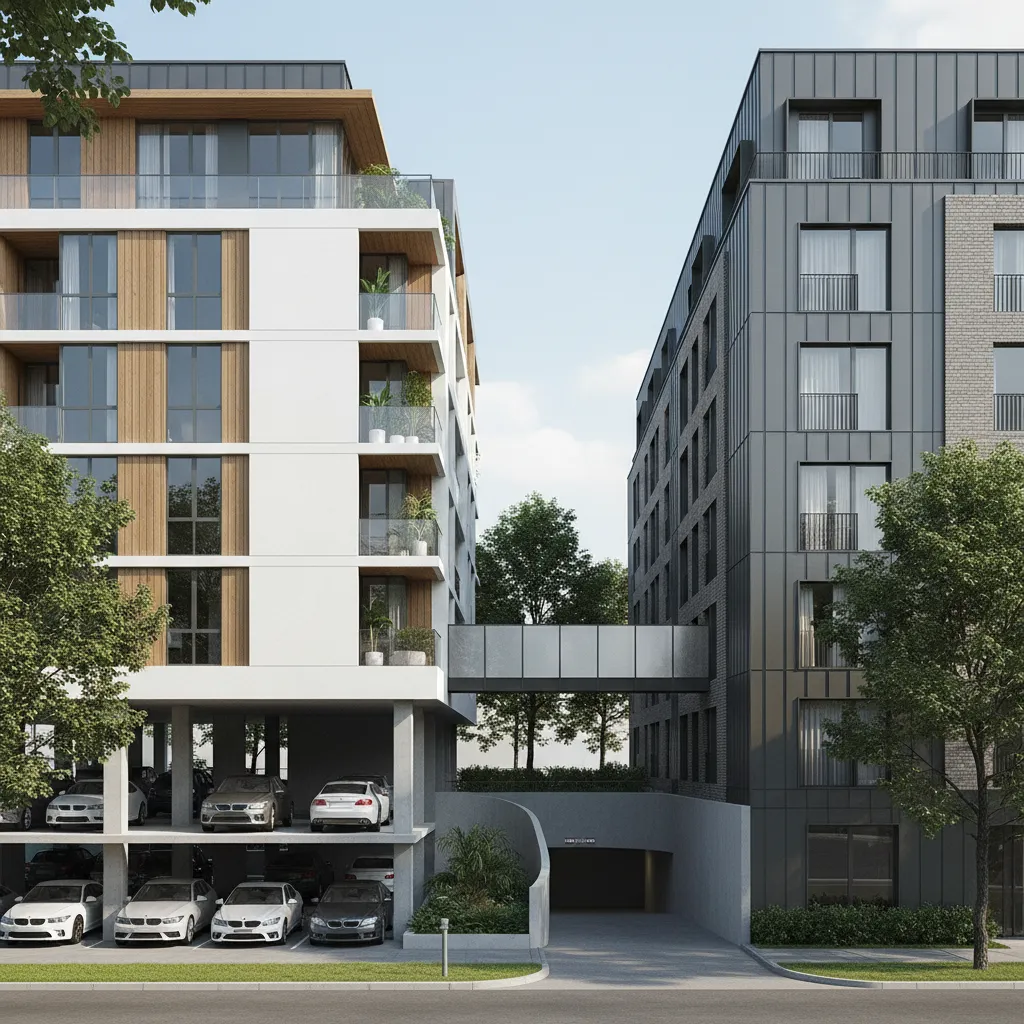

Which Option Is Better for Urban Residential Projects

Key Insight:Stilt floors work best for mid-density housing, while basement parking becomes more practical in high-density urban developments where land value is extremely high.

Here’s how most architects evaluate the decision.

save pin

Choose stilt parking when:

1. Land availability is moderate
2. Construction budgets are tight
3. Flood-prone areas require elevated structures
4. Buildings are under 8–10 stories

Choose basement parking when:

1. Urban land costs are extremely high
2. Maximum ground-level usage is needed
3. Luxury residential aesthetics are prioritized
4. Parking capacity requirements are large

If you’re planning early design concepts, a useful approach is to first map the circulation, ramps, and vehicle turning radius using a visual planning method for testing different parking floor layouts before committing to either structural strategy.

Answer Box

Stilt floors are generally cheaper, simpler, and safer in flood-prone areas. Basement parking is more space-efficient and visually cleaner for dense urban developments. The best choice depends on land cost, site conditions, and parking capacity requirements.

Final Summary

1. Stilt floors provide cost-effective parking with simpler construction.
2. Basements maximize usable land area in dense urban projects.
3. Flood risk and ventilation challenges affect basement structures more.
4. Maintenance costs are typically higher for basement parking systems.
5. Site conditions and land value ultimately determine the best option.

FAQ

1. What is the main difference between stilt floor and basement parking?

Stilt parking is located at ground level supported by columns, while basement parking is constructed below ground level through excavation.

2. Which is cheaper: stilt floor or basement parking?

In most residential projects, stilt floor construction is significantly cheaper because it avoids excavation and complex waterproofing systems.

3. Is stilt floor safer than basement parking?

Stilt floors can be safer in flood-prone regions because they are elevated above ground and less vulnerable to water accumulation.

4. Does basement parking increase property value?

In dense cities, basement parking often increases property value because it frees the ground level for landscaping, amenities, or retail space.

5. Can stilt floors support high-rise buildings?

Yes, but column spacing and structural design must be carefully planned to support the additional loads.

6. Why is ventilation important in basement parking?

Basement parking requires mechanical ventilation systems to remove vehicle exhaust gases and maintain safe air quality.

7. What are common problems in stilt floor buildings?

Poor column spacing, limited maneuvering space, and inadequate lighting are common issues in poorly designed stilt parking areas.

8. Which is better: stilt floor vs basement parking?

The best option depends on land value, flood risk, construction budget, and building density. Both solutions serve different development contexts.
