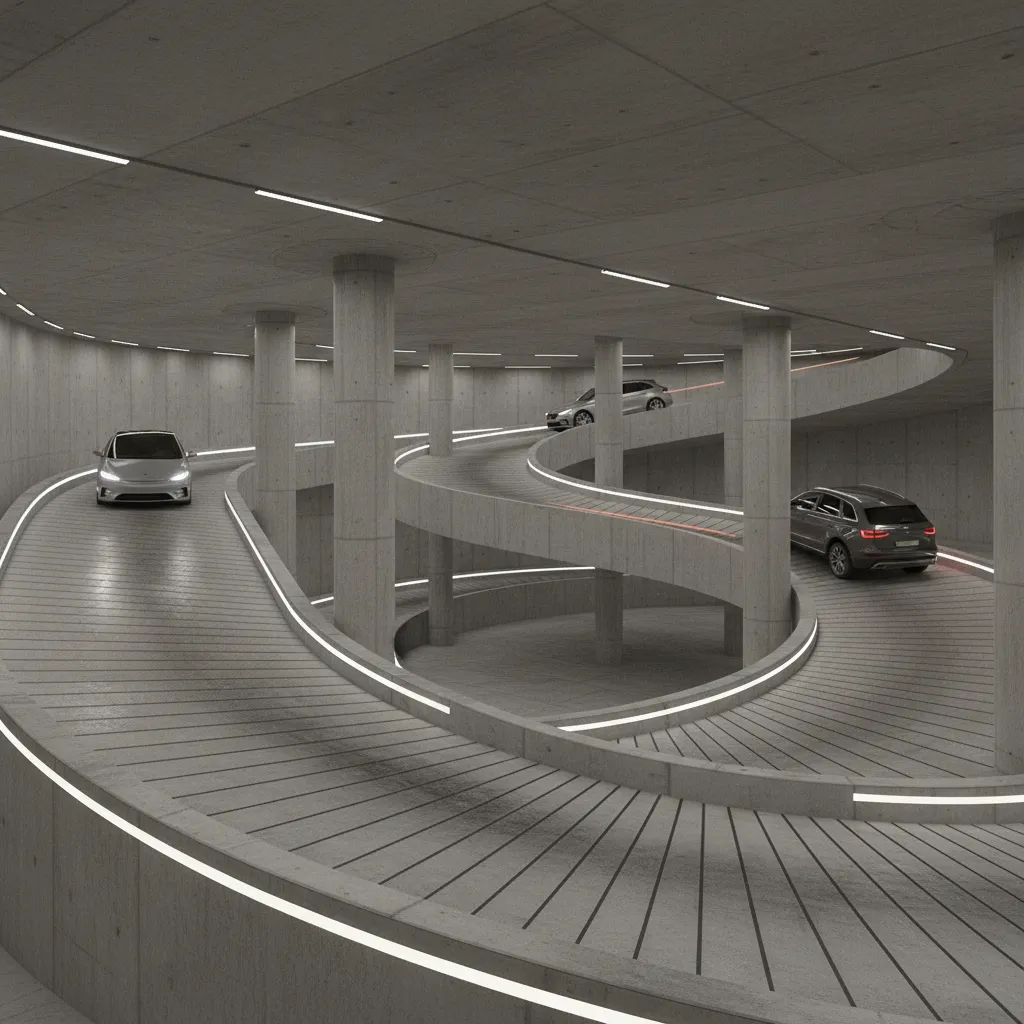

Straight vs Curved Basement Parking Ramps: Design Tradeoffs and Space Efficiency: A practical comparison of straight and curved parking ramps to help architects and developers choose the most space‑efficient basement entrance design.

Direct Answer

Straight basement parking ramps are simpler, cheaper, and easier for drivers, while curved or helical ramps save ground-level footprint and improve circulation on tight urban sites. The best option depends on available land area, structural constraints, and traffic flow inside the garage.

On large plots, straight ramps are usually more economical. On compact city sites, curved or helical ramps often deliver better space efficiency.

Quick Takeaways

1. Straight ramps are cheaper to build and easier for drivers to navigate.
2. Curved or helical ramps use less horizontal site space.
3. Tight urban projects often benefit from curved ramps.
4. Vehicle comfort depends more on radius and slope than ramp type.
5. Structural complexity is the biggest cost driver in curved ramp designs.

Introduction

In many projects I’ve worked on, the argument about straight vs curved basement parking ramp design comes up surprisingly late in the planning phase. By then, the building footprint is already locked in—and suddenly the parking entrance becomes a spatial puzzle.

After designing parking layouts for residential towers, office buildings, and mixed‑use developments over the past decade, I’ve noticed something interesting: many teams default to straight ramps simply because they’re familiar. But on tight urban plots, that decision can quietly consume a huge amount of usable floor area.

When clients are evaluating early concepts, I often recommend modeling both ramp options using a visual planning workflow like this step‑by‑step process for visualizing parking circulation layouts in 3D. Seeing the ramp in context with columns, turning radii, and parking bays usually changes the conversation quickly.

This guide breaks down how straight and curved basement ramps actually perform in real projects—covering space efficiency, driver comfort, construction complexity, and the hidden tradeoffs most articles ignore.

save pin

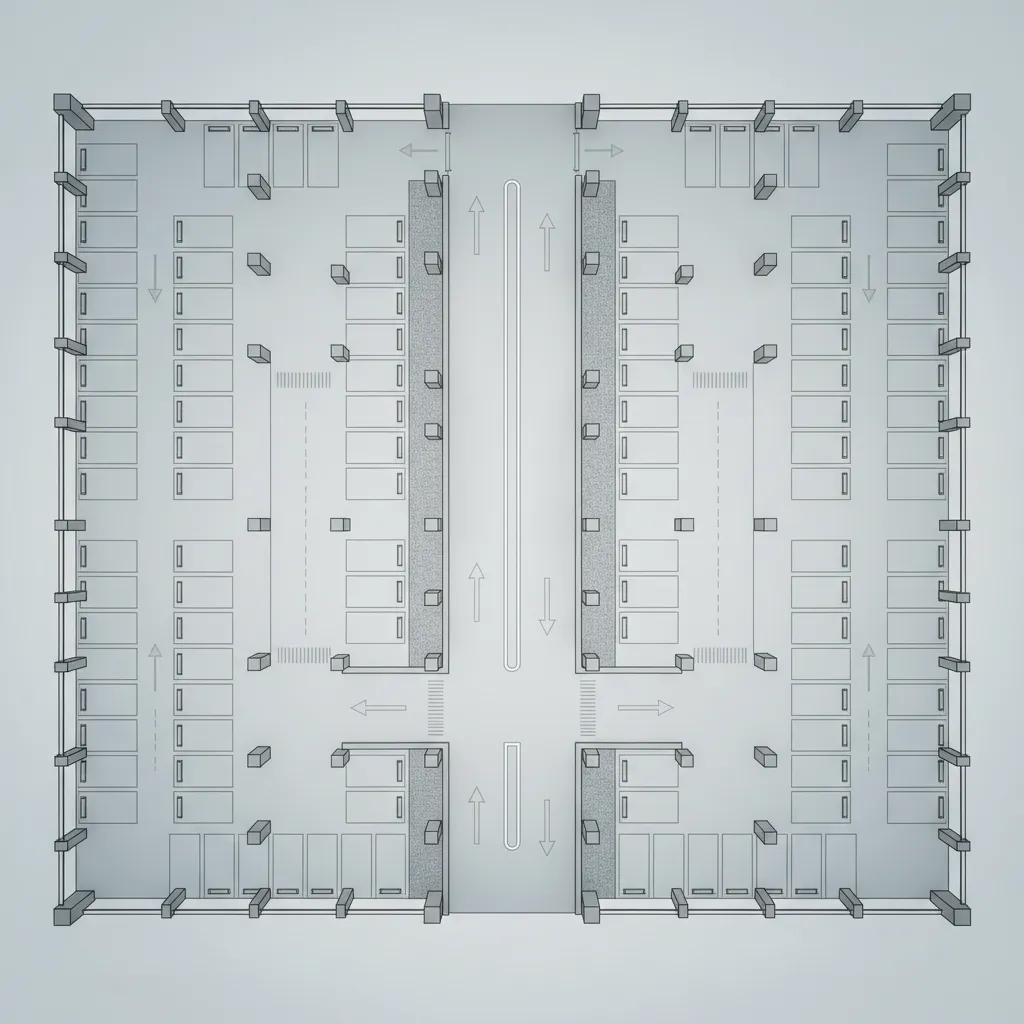

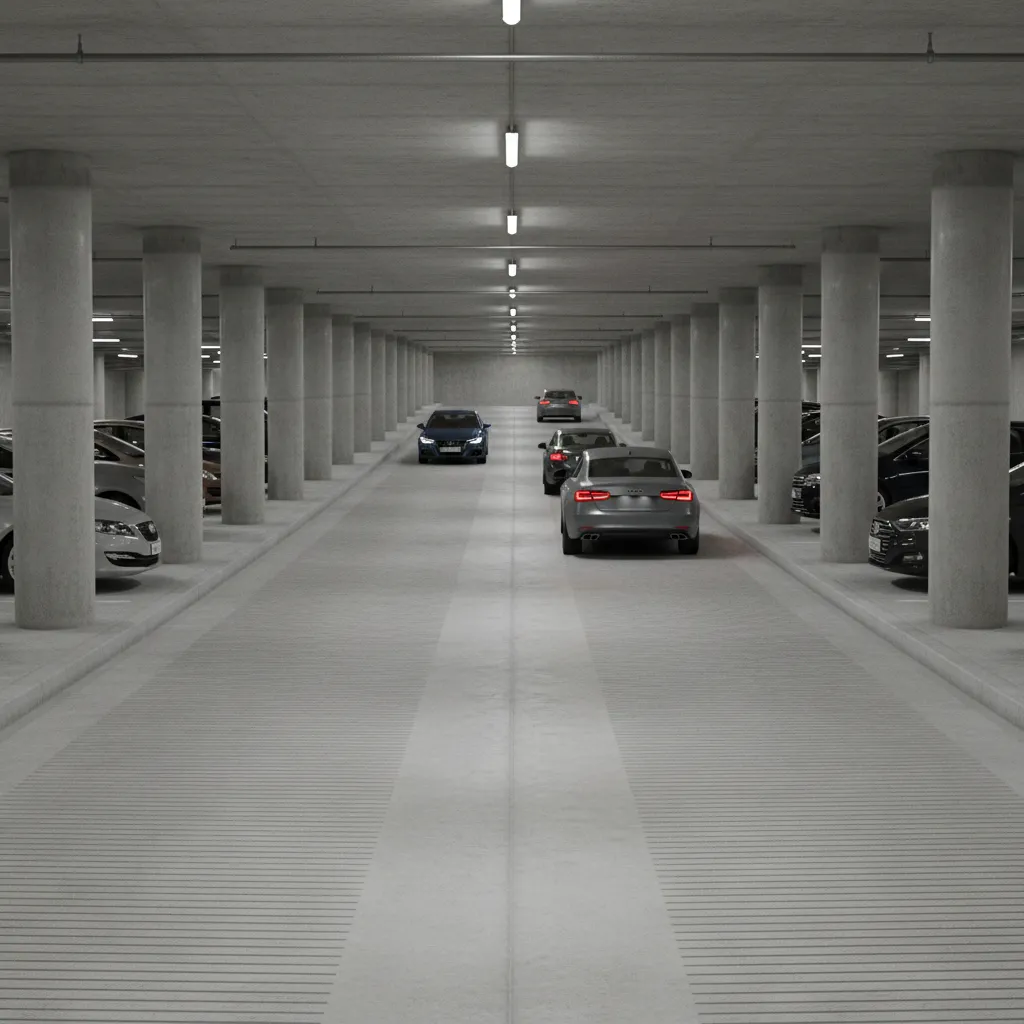

What Is a Straight Basement Parking Ramp?

Key Insight: A straight parking ramp is the simplest and most construction‑friendly solution, but it consumes more horizontal space than most developers expect.

A straight basement ramp connects levels using a linear slope, typically positioned along the perimeter of a parking floor or near the entrance driveway. Structurally, it’s straightforward: one consistent incline with retaining walls and standard slab construction.

From a design standpoint, straight ramps work best when the site has enough depth to accommodate the required ramp length.

Typical characteristics include:

1. Linear slope between parking levels
2. Separate up and down ramps in larger garages
3. Usually placed along a building edge
4. Compatible with standard structural grids

Industry parking guidelines typically recommend slopes between 10% and 15% for comfort. For a 3‑meter level difference, that means a ramp length of roughly 20–30 meters.

In practical terms, this is why straight ramps often stretch across large portions of a basement floor plan.

save pin

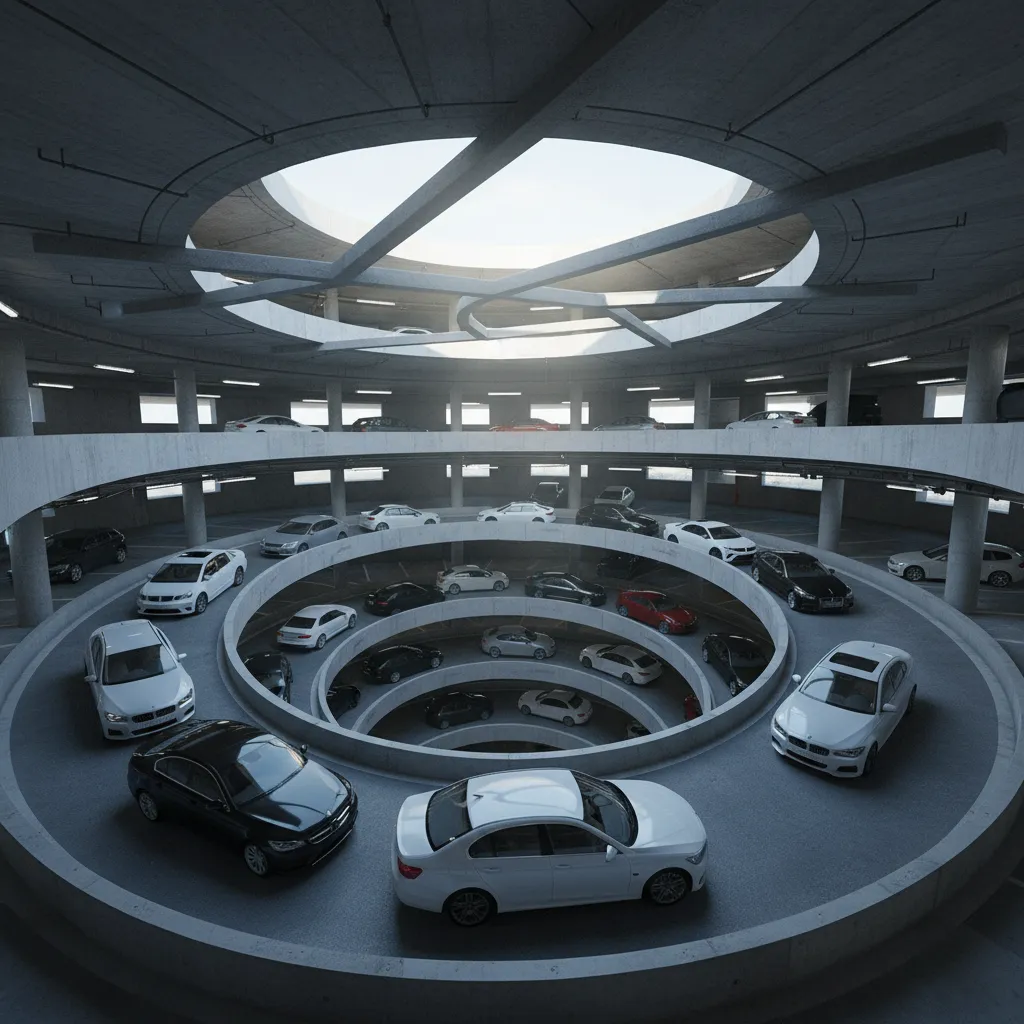

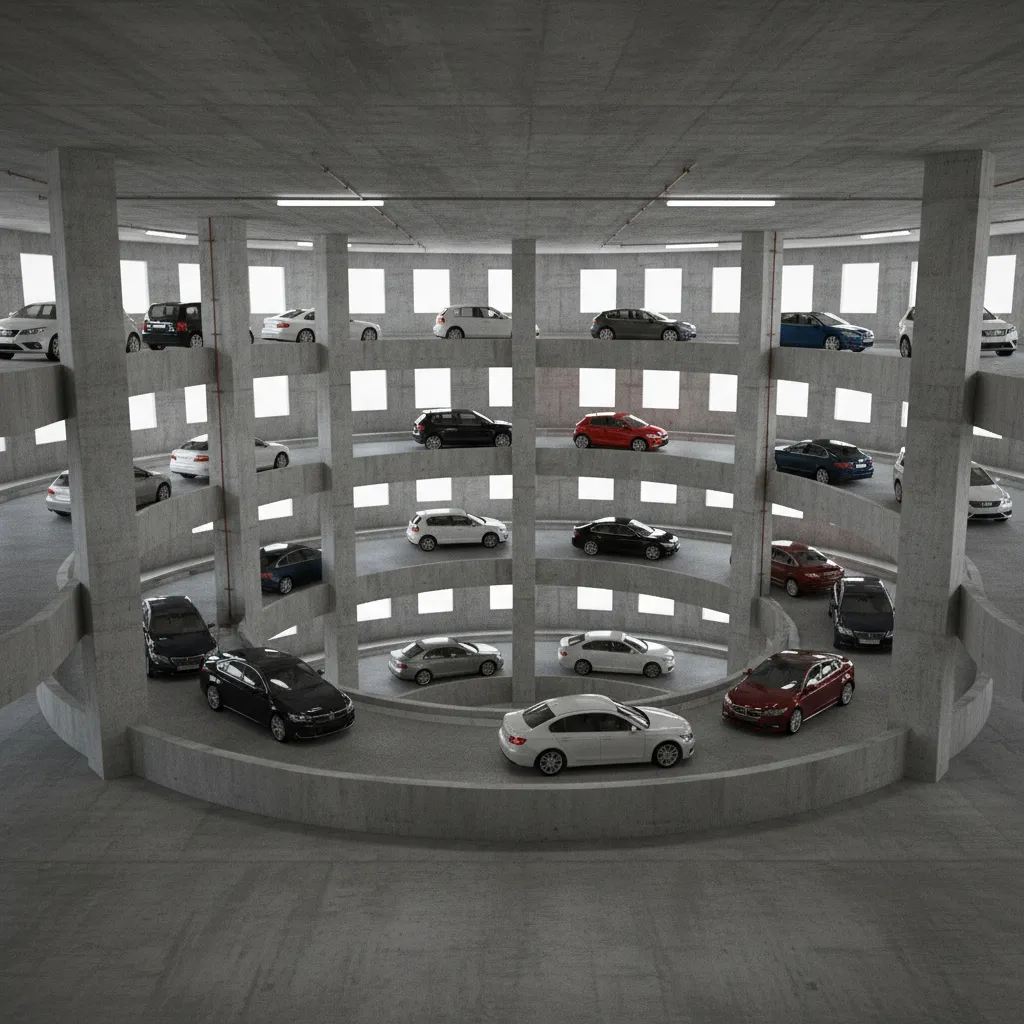

What Is a Curved or Helical Parking Ramp?

Key Insight: Curved or helical ramps compress vertical circulation into a compact footprint, making them ideal for dense developments.

A curved ramp follows a circular or spiral path rather than a straight line. The most compact version is the helical ramp, which wraps continuously around a central core.

Instead of consuming long horizontal distance, the ramp rotates upward within a circular footprint.

Common curved ramp configurations include:

1. Quarter‑circle entry ramps
2. Half‑circle turning ramps
3. Full helical spiral ramps

From a structural standpoint, these ramps require more complex reinforcement and formwork. However, they dramatically reduce the area needed to move vehicles between levels.

Urban parking structures in cities like Tokyo, Seoul, and New York frequently use helical ramps for exactly this reason—land is simply too valuable to allocate long linear ramps.

save pin

Space Efficiency Comparison for Small Urban Sites

Key Insight: Curved ramps often reduce ramp footprint by 30–50% compared to straight ramps on compact sites.

Space efficiency is where the straight vs curved parking ramp debate becomes practical rather than theoretical.

Consider a typical scenario with a 3.2 m level difference.

Straight ramp requirement

1. Ramp length: ~22–28 m
2. Width (two‑way): ~6 m
3. Approximate footprint: 130–170 m²

Helical ramp requirement

1. Radius: 7–9 m typical
2. Circular footprint: ~90–120 m²
3. Vertical circulation stacked within same space

The hidden benefit is not just ramp area reduction—it’s layout flexibility.

A compact ramp often frees up several additional parking bays. On high‑value urban developments, that alone can justify the extra structural complexity.

When teams test both configurations early using digital planning tools—like this workflow for quickly generating alternative parking floor plans with automated layout tools—the spatial difference becomes obvious within minutes.

Vehicle Maneuverability and Driver Comfort

Key Insight: Driver comfort depends more on ramp radius and slope transitions than whether the ramp is straight or curved.

A common misconception is that curved ramps are harder to drive. In reality, poorly designed straight ramps can feel far more uncomfortable.

Comfort factors include:

1. Ramp slope percentage
2. Transition zones at top and bottom
3. Turning radius
4. Visibility and lighting

Typical design guidelines:

1. Minimum inner radius: 6–7 m
2. Preferred inner radius: 7.5–8.5 m
3. Slope: ideally under 12%

In my experience, drivers adapt quickly to curved ramps as long as the radius is generous and sightlines are clear.

The real driver frustration usually comes from tight entry turns combined with steep slopes—not from curvature itself.

Answer Box

For large sites, straight ramps are usually the most economical and simplest solution. For tight urban developments, curved or helical ramps deliver better space efficiency and often improve internal traffic circulation.

save pin

Construction Complexity and Cost Differences

Key Insight: Curved ramps cost more structurally, but the land savings can outweigh the construction premium.

Straight ramps are easy for contractors. The structure follows standard concrete slab geometry with predictable reinforcement.

Curved ramps introduce several cost factors:

1. Custom formwork
2. Complex reinforcement geometry
3. Higher precision construction
4. Additional structural analysis

However, the cost equation changes in high‑density cities.

If a curved ramp allows three or four additional parking spaces—or frees ground floor retail frontage—the financial upside can exceed the construction premium.

That’s why developers increasingly test multiple ramp scenarios using quick layout prototypes such as tools that generate and compare parking layouts during early design stages.

When to Choose Straight vs Curved Ramp Layouts

Key Insight: The best ramp layout is determined by site geometry, parking demand, and structural constraints—not aesthetics.

After working on dozens of parking projects, I typically apply the following rule of thumb.

Choose a straight ramp when:

1. The site has generous depth
2. Construction budget is tight
3. The garage serves low traffic volumes
4. Structural simplicity is a priority

Choose a curved or helical ramp when:

1. The site footprint is small
2. Multiple basement levels exist
3. Land value is extremely high
4. Parking circulation needs to be compact

One overlooked factor is column placement. In dense structural grids, curved ramps often integrate better because they avoid long linear clearances.

Final Summary

1. Straight ramps are simpler and cheaper to build.
2. Curved ramps are significantly more space efficient.
3. Driver comfort depends on slope and radius.
4. Urban developments often benefit from helical ramps.
5. Early layout testing prevents expensive redesigns.

FAQ

1. Which is more space efficient: straight or curved parking ramps?

Curved or helical ramps are usually more space efficient because they stack vertical circulation within a circular footprint.

2. Are curved parking ramps harder to drive?

Not necessarily. If the turning radius is adequate and slopes are moderate, curved ramps feel smooth and predictable.

3. What slope is recommended for basement parking ramps?

Most guidelines recommend slopes between 10% and 15% depending on vehicle types and local building codes.

4. Do curved ramps cost more to build?

Yes. Curved ramps require more complex formwork and structural detailing, increasing construction costs.

5. When should architects choose a helical ramp?

Helical ramps work best on compact sites with multiple basement levels where horizontal ramp length is limited.

6. Is straight vs curved parking ramp design important for traffic flow?

Yes. Straight vs curved parking ramp design directly affects circulation efficiency, driver visibility, and ramp entry alignment.

7. What radius is needed for curved basement ramps?

A minimum inner radius of about 6–7 meters is common, while 7.5–8.5 meters improves comfort.

8. What is the best ramp layout for basement parking?

The best ramp layout for basement parking depends on site size, number of levels, traffic flow, and structural constraints.

References

1. International Parking & Mobility Institute (IPMI)
2. Architectural Graphic Standards – Parking Design
3. Urban Land Institute Parking Structure Guidelines
