Structural Risk Management for Heavy Bathroom Installations: How to evaluate floor capacity, water load, and hidden structural risks before installing heavy bathtubs, spa tubs, or stone fixtures.

Direct Answer

Heavy bathroom installations such as freestanding bathtubs, spa tubs, and stone surfaces can exceed the structural load limits of residential floors if the combined weight of the fixture, water, and occupants is not calculated beforehand. Proper structural risk management involves assessing floor load capacity, accounting for dynamic water weight, and reinforcing joists or subfloor systems when necessary.

Quick Takeaways

1. A filled spa bathtub can exceed 1,000 pounds, often far heavier than homeowners expect.
2. Water weight creates dynamic load that changes as occupants move.
3. Older homes frequently have lower floor load margins than modern construction.
4. Structural assessment should occur before purchasing heavy bathroom fixtures.
5. Reinforcing joists or redistributing loads can dramatically reduce structural risk.

Introduction

Structural risk is one of the most overlooked aspects of bathroom renovations involving heavy fixtures. After working on dozens of residential remodels over the past decade, I've seen the same mistake repeated: homeowners choose a stunning freestanding tub or spa bathtub without checking whether the bathroom floor can safely support it.

The structural risk of heavy bathtub installation isn't just about the tub itself. The real load includes water weight, the bather, tile systems, stone countertops, and cabinetry. When these loads stack together, the total can approach or exceed the weight limits for residential bathroom floors.

Before committing to a renovation plan, I often recommend visualizing the layout and fixture placement using tools that help homeowners map out a bathroom floor layout and fixture placement. Seeing the full spatial arrangement makes it easier to evaluate where structural loads concentrate.

In this guide, we'll break down the real structural risks behind heavy bathroom fixtures, how to assess floor capacity, and when professional structural evaluation becomes necessary.

save pin

Why Heavy Bathroom Installations Create Structural Risk

Key Insight: Structural risk increases when heavy fixtures concentrate load in a small floor area that was originally designed for lighter distributed weight.

Most residential floors are designed for a live load of about 40 pounds per square foot plus roughly 10 pounds per square foot of dead load. That assumption works for furniture and typical bathroom fixtures—but not necessarily for oversized tubs or spa installations.

A common misconception is that the tub's listed weight is the only number that matters. In reality, structural risk comes from the combined load of:

1. Bathtub weight
2. Water weight
3. Occupant weight
4. Tile or stone finishes
5. Subfloor and mortar bed systems

For example, a stone freestanding tub weighing 300 pounds might hold 80 gallons of water. Water alone adds around 670 pounds. Add a person and surrounding tile structure, and the localized load may exceed 1,100 pounds.

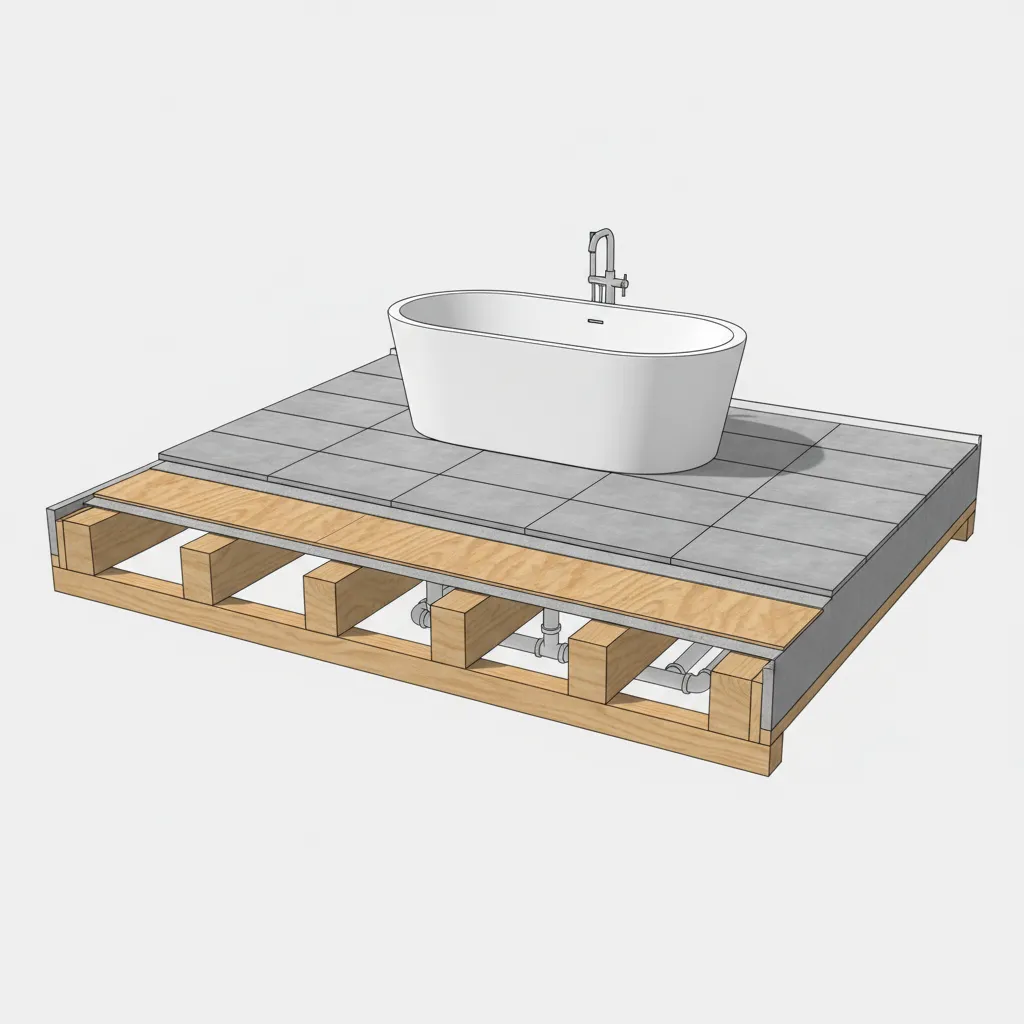

That concentrated load sitting between two floor joists is where structural problems begin.

Load Risks from Freestanding Tubs and Spa Bathtubs

Key Insight: Freestanding tubs and spa bathtubs produce highly concentrated point loads that are far heavier than standard alcove bathtubs.

Standard acrylic alcove tubs are relatively lightweight and distribute their load across framing members. Freestanding and spa tubs behave very differently.

Typical weight comparison:

1. Standard acrylic tub: 70–100 lbs
2. Cast iron tub: 300–400 lbs
3. Stone resin tub: 300–500 lbs
4. Large whirlpool spa tub (empty): 350–600 lbs

Once filled with water, spa tubs may exceed 1,200 pounds. This is where bathroom floor load risk assessment becomes essential.

Another overlooked factor is the base footprint. Freestanding tubs often rest on four small feet or a narrow pedestal, concentrating the load into a tiny structural area.

save pin

Water Weight and Dynamic Load Considerations

Key Insight: Water introduces dynamic load—meaning the weight shifts as the occupant moves, creating stress cycles in the floor structure.

Many renovation plans assume water weight is static, but it rarely behaves that way.

When someone enters a filled tub:

1. Water displacement increases total load.
2. Movement causes shifting forces across joists.
3. Splashing creates small dynamic impact loads.

In structural engineering terms, this converts a static load scenario into a partially dynamic one.

While residential framing typically tolerates moderate dynamic loads, older homes with undersized joists may experience:

1. Floor deflection
2. Tile cracking
3. Subfloor flexing
4. Long-term structural fatigue

Assessing Structural Capacity Before Installation

Key Insight: The safest way to avoid structural risk is calculating expected loads before selecting heavy bathroom fixtures.

Before installing a heavy tub or stone surface, I typically walk through a quick structural capacity review.

Basic structural assessment checklist:

1. Identify joist size and spacing
2. Measure joist span
3. Locate load-bearing walls below
4. Evaluate subfloor thickness
5. Estimate total fixture and water weight

Design planning also helps reveal where loads concentrate. Many designers now use visual planning tools that allow them to experiment with bathroom fixture layouts before renovation. Seeing fixture placement relative to structural framing often reveals problems early.

Hidden structural risks appear most often when:

1. Tubs sit between joists
2. Bathrooms are located over long-span framing
3. Large format tile adds extra dead load

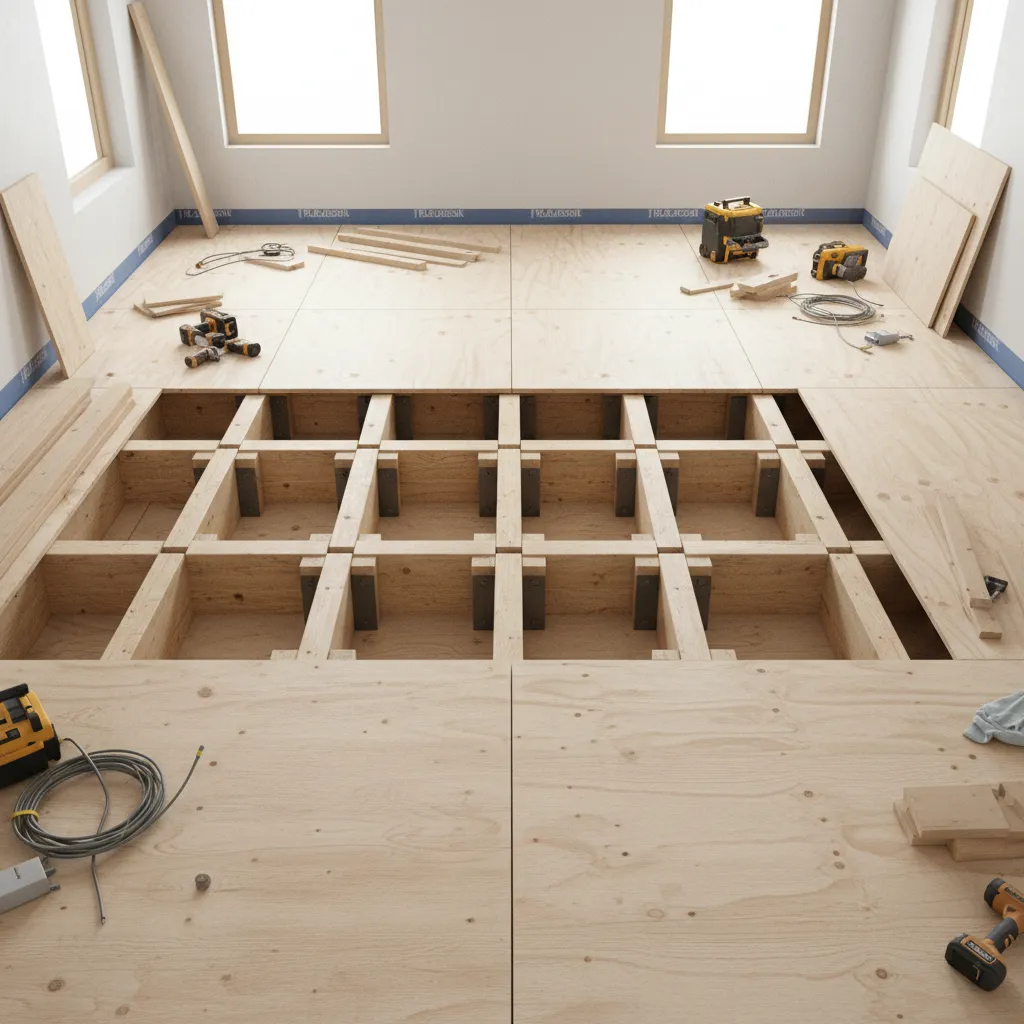

Risk Mitigation Strategies for Bathroom Renovations

Key Insight: Most structural risks can be solved by redistributing loads or reinforcing framing before installation.

In practice, structural mitigation usually involves fairly straightforward construction changes.

Common risk mitigation methods:

1. Sistering additional joists
2. Installing blocking beneath heavy fixtures
3. Adding steel support brackets
4. Reducing joist span with mid-support beams
5. Using lighter fixture materials

In one project I worked on in Pasadena, a planned stone bathtub exceeded the floor's load tolerance. Instead of abandoning the design, we redistributed the load by reinforcing two joists and installing cross blocking beneath the tub base.

The cost of reinforcement was minor compared with repairing structural damage later.

save pin

Answer Box

Heavy bathroom fixtures create structural risk when the combined weight of the fixture, water, and occupants exceeds the load capacity of the floor structure. The safest approach is calculating load distribution and reinforcing joists before installation.

When to Consult a Structural Engineer

Key Insight: If a fixture exceeds roughly 800–1,000 pounds when filled, professional structural review is strongly recommended.

Many homeowners ask whether their bathroom floor can support a spa tub. In many cases, the answer depends on framing details that aren't visible without inspection.

Situations that justify structural engineering input:

1. Large spa or jetted tubs
2. Stone or concrete bathtubs
3. Second-floor bathroom installations
4. Older homes with unknown framing
5. Tile systems with thick mortar beds

Visualizing final layouts can also help contractors and engineers communicate design intent. Many teams create preview renders that show how heavy fixtures integrate into the full bathroom environment before construction begins.

Final Summary

1. Heavy bathroom fixtures can exceed standard residential floor load assumptions.
2. Water weight and occupant movement introduce dynamic load conditions.
3. Freestanding tubs concentrate weight more than alcove tubs.
4. Early structural assessment prevents costly renovation failures.
5. Joist reinforcement is often a simple and effective solution.

FAQ

Can a bathroom floor support a spa tub?

Sometimes. Spa tubs filled with water can exceed 1,000 pounds, so floor framing must be evaluated before installation.

What is the weight limit for residential bathroom floors?

Most residential floors are designed for around 40 pounds per square foot live load plus structural dead load.

How heavy is a bathtub when filled with water?

A typical 70–80 gallon tub adds 580–670 pounds of water weight, not including the tub itself.

How do I check floor capacity for a bathtub?

Inspect joist size, spacing, and span. Then compare the estimated fixture load to structural capacity.

Are freestanding tubs heavier than regular tubs?

Yes. Many freestanding tubs use thicker materials and concentrate weight at the base.

Is tile weight a structural concern?

Large tile systems and mortar beds add significant dead load to bathroom floors.

Do older homes have lower floor load limits?

Often yes. Older homes sometimes use smaller joists or longer spans.

What creates the biggest structural risk in bathrooms?

The biggest risk is the combined load of water, fixtures, tile, and occupants concentrated in a small floor area.

References

International Residential Code (IRC) – Floor Load Design Standards

American Wood Council – Residential Structural Design Guidelines
