Structural Systems Used in Modern Event Venue Construction: Understanding the structural frameworks that allow banquet halls and event venues to span wider spaces safely and efficiently

Direct Answer

Modern event venue construction typically relies on three main structural systems: reinforced concrete frames, steel structural frames, and pre engineered building systems. Each approach supports large open spans, heavy occupancy loads, and flexible interior layouts required for banquet halls and event venues.

In practice, the best structural system depends on span requirements, construction speed, local material costs, and long term flexibility for event operations.

Quick Takeaways

1. Steel frames are preferred for large column free banquet halls exceeding 20 meter spans.
2. Reinforced concrete structures provide durability and acoustic mass for high occupancy venues.
3. Pre engineered buildings significantly reduce construction time for mid size event venues.
4. Hybrid systems often combine concrete cores with steel roof structures.
5. Structural span planning directly impacts seating capacity and interior layout flexibility.

Introduction

After working on multiple hospitality and event venue projects over the past decade, I have noticed that structural decisions are often made too late in the design process. By that point, architects are already trying to force ballrooms, stages, kitchens, and circulation paths into a structural grid that was never designed for large gatherings.

The reality is that structural systems used in modern event venue construction determine almost everything about how a hall functions: column spacing, ceiling height, lighting rigs, acoustic treatments, and even how efficiently guests move through the space.

In large banquet hall projects I have collaborated on, the difference between a steel long span frame and a conventional concrete grid can mean the difference between an elegant open ballroom and a forest of columns interrupting guest views.

If you're planning a venue or evaluating early stage concepts, it helps to first understand the structural logic behind these spaces. I often recommend clients explore layout simulations before finalizing structural decisions, such as using tools that help visualize large venue layouts with a 3D floor planning workflow. Seeing column placement early can prevent extremely expensive structural revisions later.

In this guide, I’ll walk through the structural systems most commonly used in banquet halls and event venues, where each system performs best, and a few costly mistakes I repeatedly see in early venue planning.

save pin

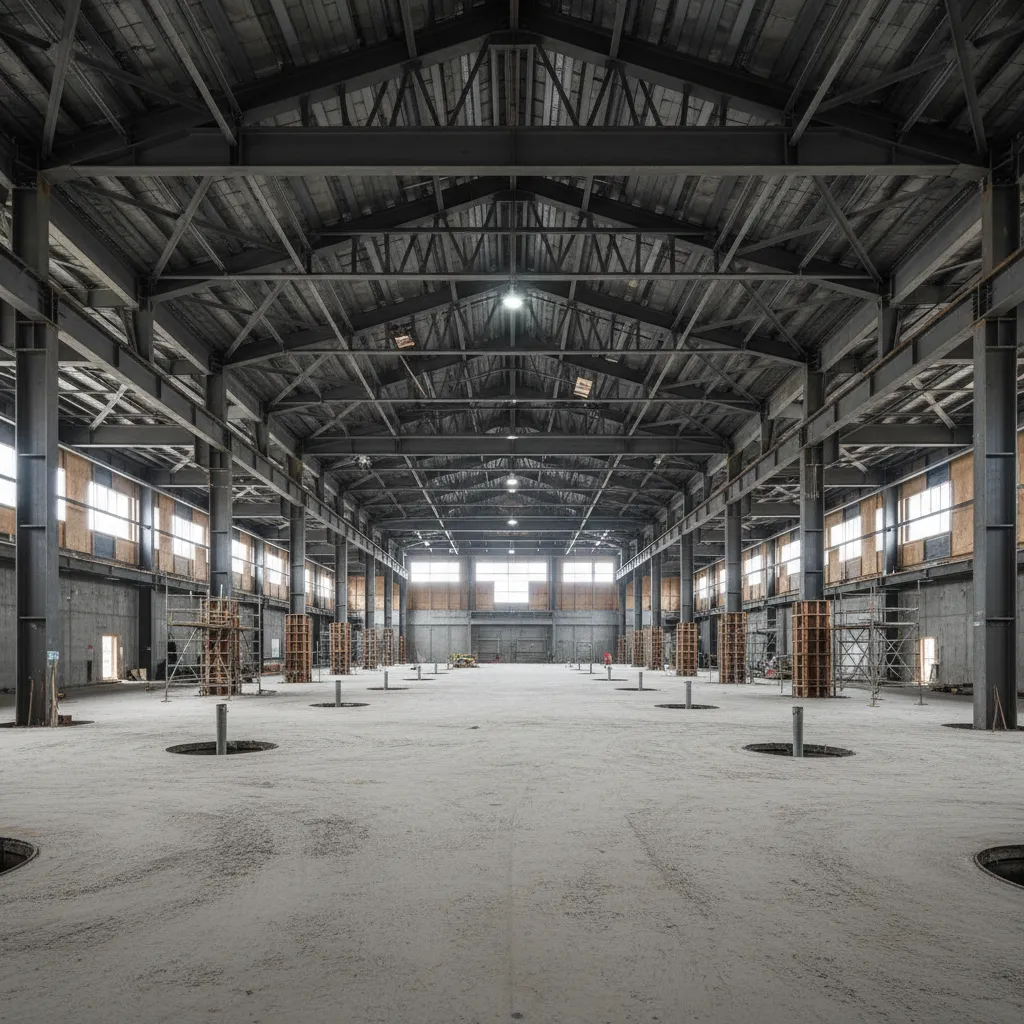

Overview of Structural Systems for Event Venues

Key Insight: Event venues prioritize wide spans, high ceilings, and flexible interior layouts, which directly influence the structural system selection.

Unlike residential or office buildings, event spaces must support dense occupancy loads while maintaining unobstructed sightlines. This is why structural engineers approach banquet halls differently from typical commercial buildings.

Most modern venues rely on one of three structural approaches.

1. Reinforced concrete frame systems – widely used in permanent hospitality facilities.
2. Steel structural frames – ideal for long span event spaces.
3. Pre engineered building systems – efficient for fast construction and large footprints.

In larger developments, hybrid systems combine these approaches to balance cost, speed, and structural performance.

According to the American Institute of Steel Construction, steel framing systems dominate large span structures such as arenas, exhibition halls, and banquet facilities because they allow greater clear spans with less structural depth.

save pin

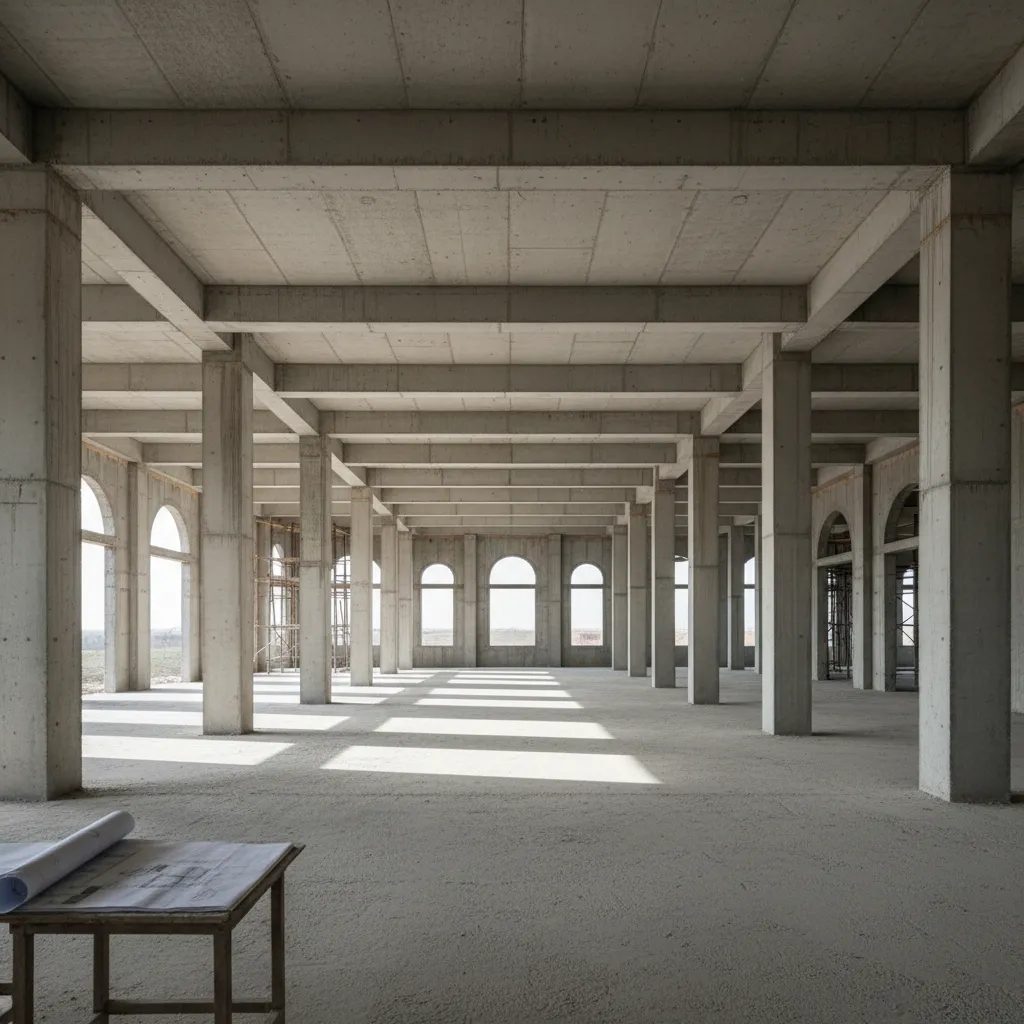

Reinforced Concrete Frame Systems for Banquet Halls

Key Insight: Reinforced concrete structures provide durability and acoustic stability but often require tighter column spacing.

Concrete frame construction remains one of the most common structural systems for banquet halls integrated into hotels, mixed use buildings, or convention complexes.

Concrete offers several advantages.

1. Excellent fire resistance
2. High structural mass that improves acoustics
3. Long lifecycle durability
4. Compatibility with multi story developments

However, one hidden issue I often encounter is column density. Many developers assume concrete frames will allow wide open halls, but unless post tension slabs or transfer structures are introduced, typical column spacing ranges between 8 and 10 meters.

That spacing can interrupt seating layouts or stage sightlines.

For example, in a 1200 seat banquet hall project I reviewed, the original concrete grid produced twelve interior columns across the ballroom. Switching the roof structure to steel trusses reduced that number to four perimeter supports.

save pin

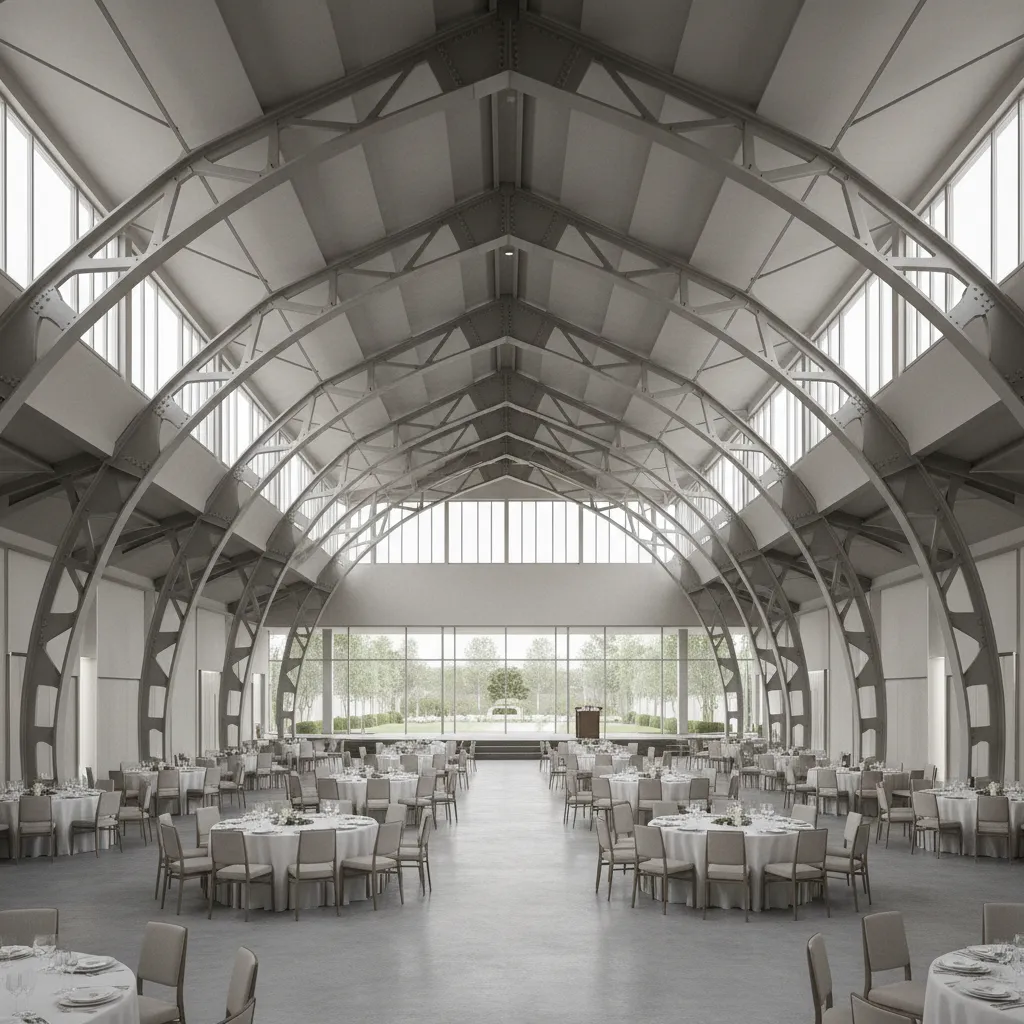

Steel Structural Frames for Large Span Buildings

Key Insight: Steel structural systems are the preferred solution when event venues require long column free spans.

Steel frames allow engineers to achieve significantly larger spans than typical reinforced concrete systems. In banquet halls, this translates into cleaner interior layouts and flexible event configurations.

Typical steel span ranges for event spaces include:

1. 15–25 meters using standard steel beam systems
2. 25–40 meters using steel trusses
3. 40+ meters using space frames or long span trusses

These systems are widely used in convention centers, wedding halls, and exhibition venues where uninterrupted floor space is essential.

If you want to test how different column spacing scenarios affect guest circulation and table arrangements, many designers experiment with layouts before structural engineering begins. Tools that help plan banquet seating and circulation layouts in a room planning environment can reveal layout conflicts early.

One tradeoff worth noting is that steel structures typically require more intensive fire protection measures such as intumescent coatings or fire rated encasement.

Pre Engineered Building Systems for Event Spaces

Key Insight: Pre engineered building systems offer the fastest construction timeline for mid size event venues.

Pre engineered buildings (PEBs) are factory fabricated steel systems designed for rapid on site assembly. They are increasingly common for standalone banquet halls, community event centers, and wedding venues.

The key advantages include:

1. Shorter construction timelines
2. Lower structural fabrication costs
3. Large clear span capabilities
4. Predictable engineering performance

Typical spans for PEB event halls range between 20 and 50 meters depending on frame type and roof system.

However, a common design mistake is treating PEB structures as purely industrial buildings. Without thoughtful architectural integration, they can feel visually flat or warehouse like.

Modern event venues often solve this by combining PEB structures with upgraded facade systems, high ceilings, and interior acoustic treatments.

Hybrid Structural Systems in Modern Hall Design

Key Insight: Many contemporary event venues combine multiple structural systems to balance span performance and construction efficiency.

Hybrid structures are increasingly common in large hospitality developments.

A typical hybrid configuration might include:

1. Concrete columns and foundations
2. Steel roof trusses for long spans
3. Composite steel concrete floor decks

This combination reduces structural weight while preserving durability where it matters most.

From my experience reviewing venue layouts, hybrid systems often deliver the best balance of cost and spatial flexibility.

Before finalizing these systems, teams usually run multiple spatial studies to test stage placement, seating density, and service corridors. Many developers begin with early concept layouts that generate scalable floor plans for large event spaces before engaging structural engineers.

Answer Box

The most common structural systems used in modern event venue construction are reinforced concrete frames, steel structural frames, and pre engineered steel buildings. Steel and hybrid systems dominate large span banquet halls because they allow column free interiors and flexible event layouts.

Choosing the Right Structural System for Your Project

Key Insight: The right structural system is determined primarily by span requirements, construction schedule, and long term venue flexibility.

When evaluating structural options for an event venue, engineers typically compare the following factors.

1. Required span width – larger ballrooms require steel or truss systems.
2. Construction speed – pre engineered buildings accelerate delivery.
3. Future flexibility – column free interiors support multiple event types.
4. Budget constraints – material and labor costs vary regionally.
5. Integration with other buildings – hotel attached venues often favor concrete.

In many projects I’ve reviewed, the structural decision that ultimately determines venue success is column spacing. A poorly planned grid can permanently limit how the hall operates.

Final Summary

1. Steel structural frames are best for large column free banquet halls.
2. Concrete structures offer durability but often require tighter column spacing.
3. Pre engineered buildings enable faster construction for standalone venues.
4. Hybrid systems balance cost, span capability, and architectural flexibility.
5. Early layout planning prevents expensive structural revisions later.

FAQ

What structural system is best for a banquet hall?

Steel structural frames are typically best for banquet halls requiring large column free spaces and flexible seating layouts.

How wide can a banquet hall span without columns?

Steel truss systems commonly achieve spans between 25 and 40 meters without interior columns in modern event venue construction.

Are steel structures better than concrete for event venues?

Steel structures are better for large spans, while concrete works well for multi story buildings or hotel integrated venues.

What is a pre engineered building for banquet halls?

A pre engineered building is a factory fabricated steel structure designed for fast assembly and large clear span spaces.

Why do banquet halls require large spans?

Large spans allow flexible seating arrangements, better stage visibility, and unobstructed event layouts.

Can hybrid structural systems be used in event venue construction?

Yes. Many modern venues combine concrete columns with steel roof systems to balance cost and span performance.

How tall are typical banquet hall structures?

Most banquet halls range between 6 and 12 meters in ceiling height depending on lighting rigs and stage requirements.

What affects structural design in event venues?

Span length, occupancy load, stage equipment weight, and architectural layout all influence event venue structural engineering solutions.
