Tail Light vs Brake Light: Key Differences in Function, Brightness, and Wiring: A clear breakdown of how tail lights and brake lights differ in purpose, brightness, and vehicle wiring systems.

Direct Answer

The difference between a tail light and a brake light comes down to purpose and brightness. Tail lights stay on whenever the vehicle’s headlights are active to make the car visible at night, while brake lights illuminate only when the driver presses the brake pedal and are significantly brighter to signal deceleration.

Although they often share the same rear housing and sometimes even the same bulb, their circuits and functions are different.

Quick Takeaways

1. Tail lights remain on whenever headlights or parking lights are active.
2. Brake lights activate only when the brake pedal is pressed.
3. Brake lights are intentionally brighter for safety signaling.
4. Many vehicles use dual‑filament bulbs to support both functions.
5. Tail lights and brake lights usually run on separate electrical circuits.

Introduction

The tail light vs brake light difference seems simple until you start troubleshooting a car or replacing bulbs. I’ve seen plenty of drivers—and even a few new technicians—assume they’re basically the same component.

After working on multiple vehicle lighting systems and helping design automotive visualization projects, I’ve noticed that confusion usually comes from one thing: the lights often sit in the same red housing. But functionally, they serve very different roles in road safety.

If you're diagnosing a rear light issue, planning a modification, or simply trying to understand how your vehicle communicates with drivers behind you, knowing how these two lights operate is essential.

Interestingly, visual planning tools are often used in automotive design studios the same way designers map spatial lighting in architecture. For example, teams sometimes simulate lighting placement with tools similar to a visual layout planning environment used for complex spatial designsbefore finalizing vehicle lamp assemblies.

In this guide, I’ll break down exactly how tail lights and brake lights work, why their brightness differs, how wiring circuits are designed, and the most common misconceptions drivers have about rear lighting.

save pin

What Tail Lights Do in a Vehicle

Key Insight: Tail lights exist primarily for visibility, not signaling.

Tail lights illuminate whenever your headlights or parking lights are turned on. Their purpose is simple: make the rear of your vehicle visible in low‑light conditions such as nighttime, rain, fog, or tunnels.

Unlike brake lights, tail lights are not meant to grab attention. They are intentionally dimmer so that when the brake lights activate, the change in brightness becomes obvious to drivers behind you.

Typical characteristics of tail lights:

1. Low-intensity red illumination
2. Activated with headlights or parking lights
3. Remain constantly on while driving at night
4. Often integrated with the rear lamp assembly

From an engineering perspective, tail lights are part of the vehicle’s exterior lighting system rather than its signaling system. That distinction becomes important when diagnosing electrical issues.

In most cars, tail lights draw relatively low power and operate through the lighting control module or headlight switch.

Automotive safety studies from the National Highway Traffic Safety Administration (NHTSA) consistently emphasize that rear visibility dramatically reduces nighttime rear‑end collisions, which is why functioning tail lights are legally required in nearly every country.

What Brake Lights Do and When They Activate

Key Insight: Brake lights are a communication signal, not just illumination.

Brake lights activate the moment the brake pedal is pressed. Their entire purpose is to warn drivers behind you that your vehicle is slowing down.

This immediate signaling gives following drivers critical reaction time. At highway speeds, even half a second of early warning can prevent a collision.

How brake lights activate:

1. The driver presses the brake pedal.
2. A brake pedal switch closes the electrical circuit.
3. Power flows directly to the rear brake light circuit.
4. The brake lights illuminate at full brightness.

Modern vehicles may also route this signal through electronic control units so systems like adaptive cruise control and collision detection know the car is braking.

In other words, brake lights are not just lights—they’re part of the vehicle’s safety communication system.

save pin

Brightness and Visibility Differences

Key Insight: Brake lights are intentionally much brighter so the human eye can instantly detect braking.

One of the most noticeable aspects of the tail light vs brake light difference is brightness. Engineers design brake lights to be significantly more intense than tail lights.

The reason comes down to human perception. Our eyes detect changes in brightness faster than subtle motion changes.

Typical brightness comparison:

1. Tail lights: low-intensity constant illumination
2. Brake lights: high-intensity illumination
3. Brightness difference: often 4–6 times stronger

This contrast ensures that when a driver presses the brake pedal, the sudden brightness spike immediately grabs attention.

Interestingly, automotive lighting engineers test these brightness thresholds under different weather and distance conditions to ensure brake lights remain visible even in rain, glare, or highway environments.

Answer Box

Tail lights provide constant low‑intensity visibility when headlights are on, while brake lights activate only during braking and shine much brighter to signal deceleration. Although they may share a bulb or housing, they operate through different electrical triggers.

How Wiring Circuits Differ Between Tail and Brake Lights

Key Insight: Tail lights and brake lights usually operate on separate circuits even when they share a bulb.

This is one of the most misunderstood aspects of rear lighting.

Even when both lights use the same bulb, they are controlled by different electrical pathways.

Typical circuit design:

1. Tail light circuit connected to the headlight switch
2. Brake light circuit connected to the brake pedal switch
3. Independent fuses in many vehicles
4. Shared ground connection

Because the circuits are separate, it’s entirely possible for one light to work while the other fails. That’s why drivers often encounter issues like "brake lights work but tail lights don't."

Engineers often prototype electrical layouts visually during early vehicle development stages using spatial planning tools similar to a digital environment used for mapping complex system layouts before integrating final wiring harnesses.

Do Tail Lights and Brake Lights Ever Share the Same Bulb

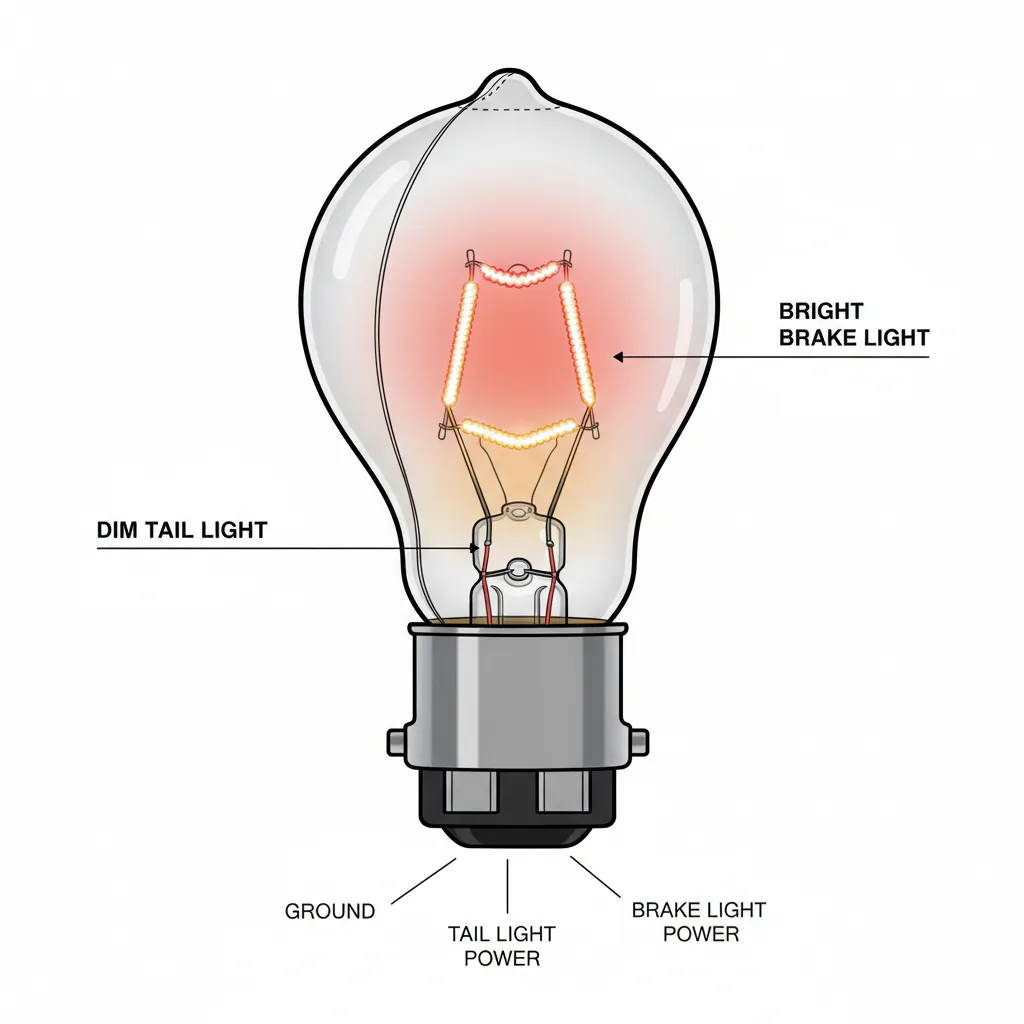

Key Insight: Many cars use a dual‑filament bulb so one bulb can perform both functions.

Yes—this is actually very common.

Traditional halogen rear lamps often use a dual‑filament bulb. Inside the bulb are two separate filaments:

1. A dim filament for tail lights
2. A bright filament for brake lights

Each filament connects to a different circuit, allowing the same bulb to perform two functions.

Advantages of dual‑filament bulbs:

1. Reduced manufacturing cost
2. Fewer components inside the housing
3. Simplified replacement

However, modern vehicles increasingly use LED modules instead of filament bulbs. LEDs allow engineers to control brightness electronically without separate filaments.

save pin

Common Misconceptions Drivers Have About Rear Lights

Key Insight: Many drivers misunderstand how rear lights operate, which leads to missed safety issues.

After years of working with vehicle lighting systems, I’ve noticed a few recurring misconceptions.

Misconception #1: If brake lights work, tail lights must also work.

Not true. They run on separate circuits.

Misconception #2: All rear red lights are brake lights.

Some are tail lights, some are brake lights, and some are rear fog lights.

Misconception #3: A single bulb means a single function.

Dual‑filament bulbs prove otherwise.

In vehicle design visualization, engineers frequently test light placement and visibility angles with tools similar to a high‑fidelity rendering environment used to simulate lighting and visibility before finalizing rear lamp designs.

These simulations help ensure brake lights remain visible at different angles and distances, especially in SUVs and larger vehicles.

Final Summary

1. Tail lights provide constant nighttime visibility.
2. Brake lights signal deceleration to drivers behind you.
3. Brake lights are significantly brighter than tail lights.
4. Most vehicles use separate electrical circuits.
5. Many cars combine both functions using dual‑filament bulbs.

FAQ

Are brake lights brighter than tail lights?

Yes. Brake lights are intentionally several times brighter so drivers behind you instantly notice when the vehicle is slowing down.

What is the main tail light vs brake light difference?

Tail lights stay on with headlights for visibility, while brake lights activate only when braking and shine much brighter.

Do tail lights and brake lights use the same bulb?

Many vehicles use dual‑filament bulbs that allow one bulb to serve both functions.

Do tail lights and brake lights use the same circuit?

No. They usually run on separate electrical circuits even when sharing the same housing.

Why do my brake lights work but tail lights don't?

This usually indicates a blown tail light fuse, faulty headlight switch, or damaged wiring in the tail light circuit.

Is a stop light the same as a brake light?

Yes. "Stop light" is simply another term for brake light.

Can LED lights replace traditional tail and brake bulbs?

Yes. Many modern vehicles use LED modules that control brightness electronically for both tail and brake functions.

Is it illegal to drive with broken tail lights?

In most regions, yes. Functional tail lights are required for nighttime visibility and road safety.
