The Fascinating Architecture of 3D Rendering Software: Exploring the intricate design behind 3D rendering software

Direct Answer

The architecture of 3D rendering software is built around a pipeline that converts 3D scene data into a final image through stages such as geometry processing, lighting simulation, shading, and pixel output. Modern rendering engines combine real‑time rasterization and physically based ray tracing to balance visual realism and performance. Understanding this architecture helps designers choose tools that produce faster, more realistic visualizations.

Quick Takeaways

1. Most rendering engines follow a pipeline that processes geometry, lighting, materials, and camera data.
2. Rasterization powers real‑time previews while ray tracing delivers higher realism.
3. Physically based rendering models real‑world light behavior for accurate materials.
4. GPU acceleration dramatically reduces rendering time for architectural visualization.
5. Scene optimization often matters more than raw hardware power.

Introduction

After more than a decade working in interior design and architectural visualization, I’ve spent thousands of hours inside rendering tools. Whether it’s producing client presentations or testing lighting before construction begins, 3D rendering software has become an essential design instrument. Yet many designers treat it like a black box. They tweak materials, hit render, and hope the result looks good.

The reality is that the architecture of 3D rendering software follows a surprisingly logical structure. Once you understand how geometry, lighting, and shading flow through the system, your renders become faster, cleaner, and far more predictable. In this guide I’ll break down how rendering engines actually work and what that means for designers who rely on them every day.

save pin

What Is the Core Architecture of 3D Rendering Software?

Key Insight: Nearly every rendering engine operates through a multi‑stage pipeline that transforms scene data into pixels.

At its core, rendering software processes information about objects, materials, light sources, and camera position. These inputs travel through a pipeline where geometry is prepared, lighting interactions are calculated, and the final image is assembled.

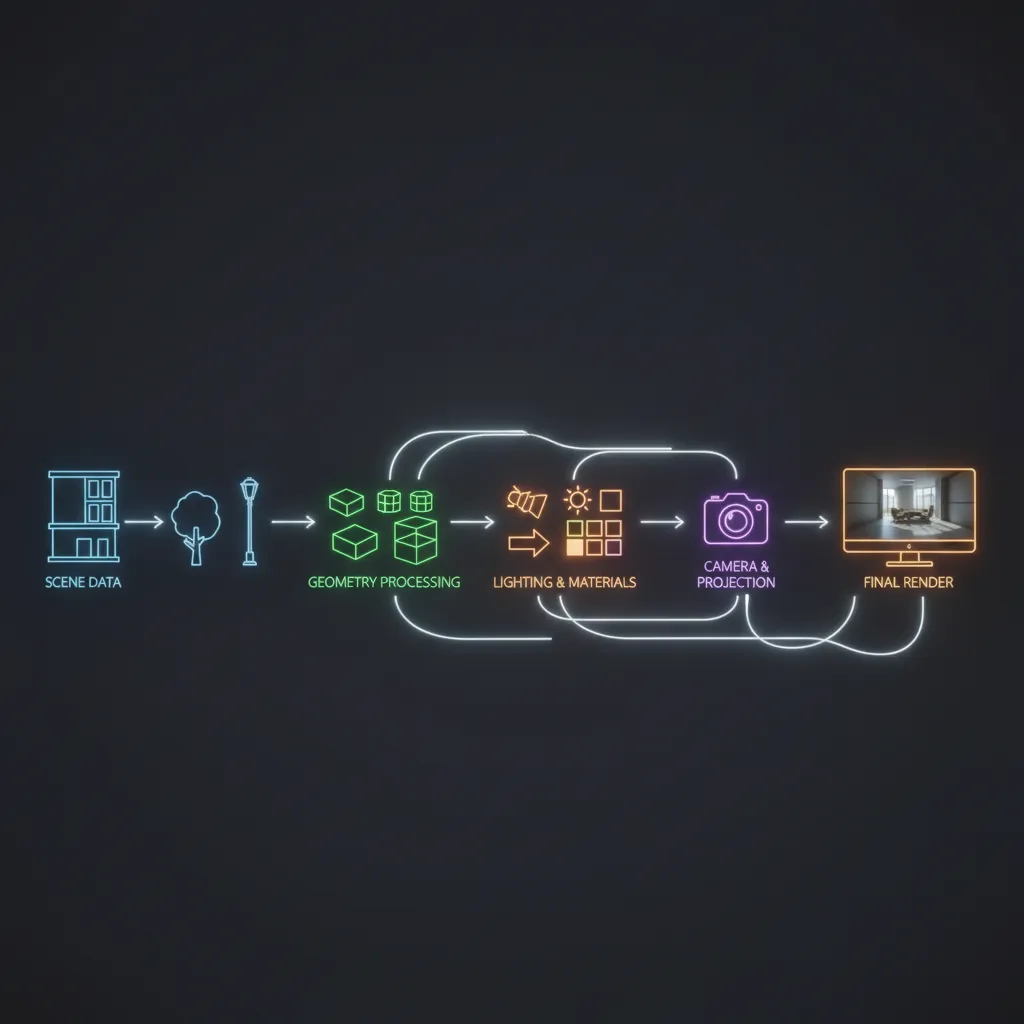

Typical rendering pipeline stages include:

1. Scene setup: objects, cameras, lights, and materials are defined.
2. Geometry processing: 3D models are transformed into triangles and spatial data.
3. Shading and lighting calculations determine how surfaces interact with light.
4. Rendering stage converts that information into visible pixels.
5. Post‑processing applies effects such as bloom, depth of field, or tone mapping.

Most modern engines—from Unreal Engine to V‑Ray and Blender Cycles—use variations of this architecture. The differences lie in how accurately light is simulated and how efficiently the system processes calculations.

Why Do Rendering Engines Use Both Rasterization and Ray Tracing?

Key Insight: Combining rasterization and ray tracing allows software to balance speed and realism.

Rasterization was the backbone of graphics for decades because it converts geometry into pixels extremely quickly. This is why game engines can render scenes in real time.

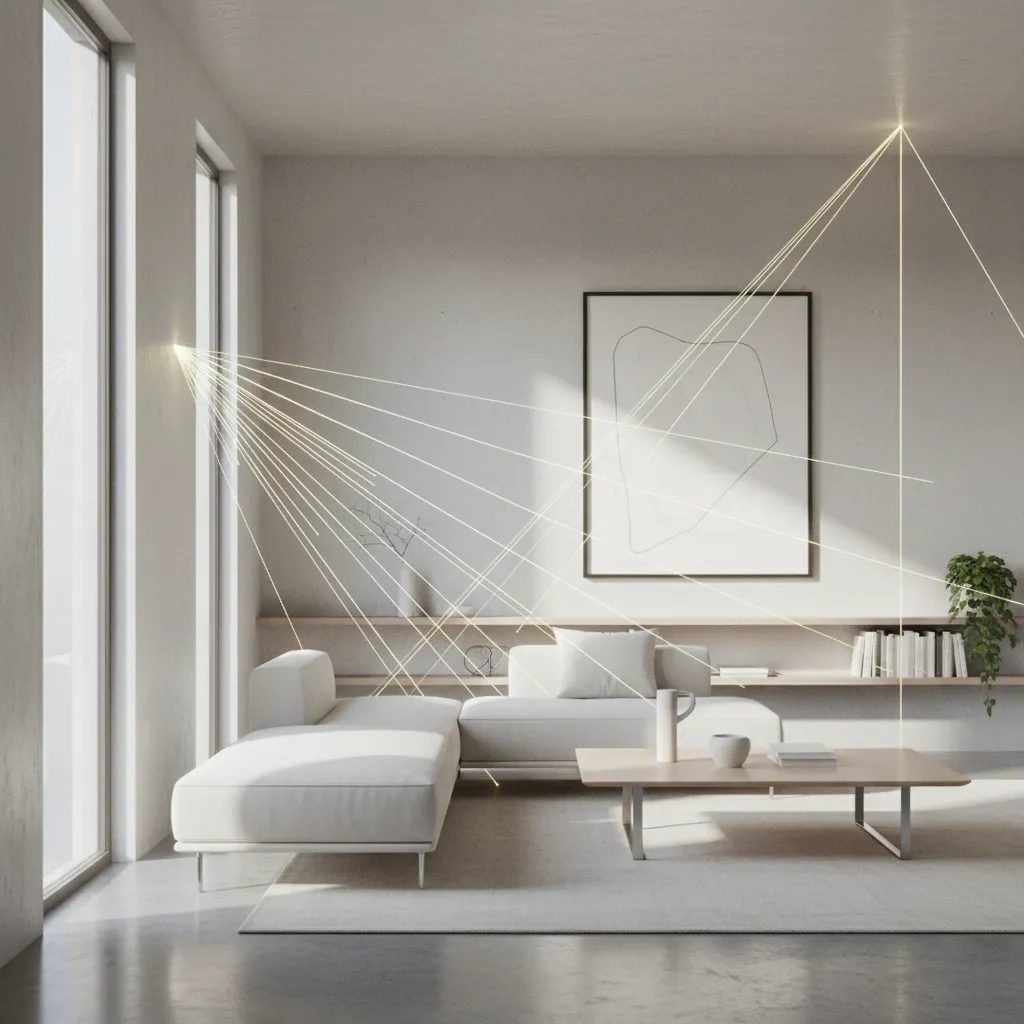

Ray tracing, however, simulates the physical behavior of light. Rays bounce between surfaces, creating realistic shadows, reflections, and global illumination.

In architectural visualization workflows today:

1. Rasterization provides real‑time viewport previews.
2. Ray tracing calculates final lighting accuracy.
3. Hybrid rendering mixes both approaches.

GPU technology from NVIDIA and AMD accelerated this shift dramatically. According to NVIDIA’s developer documentation, dedicated ray‑tracing cores can perform billions of light intersection calculations per second.

save pin

How Do Materials and Shaders Create Realistic Surfaces?

Key Insight: Physically based rendering models materials using measurable properties such as roughness, metallic value, and light absorption.

Earlier rendering systems relied on artistic approximations. Today most software uses physically based rendering (PBR), which follows the physics of real light interaction.

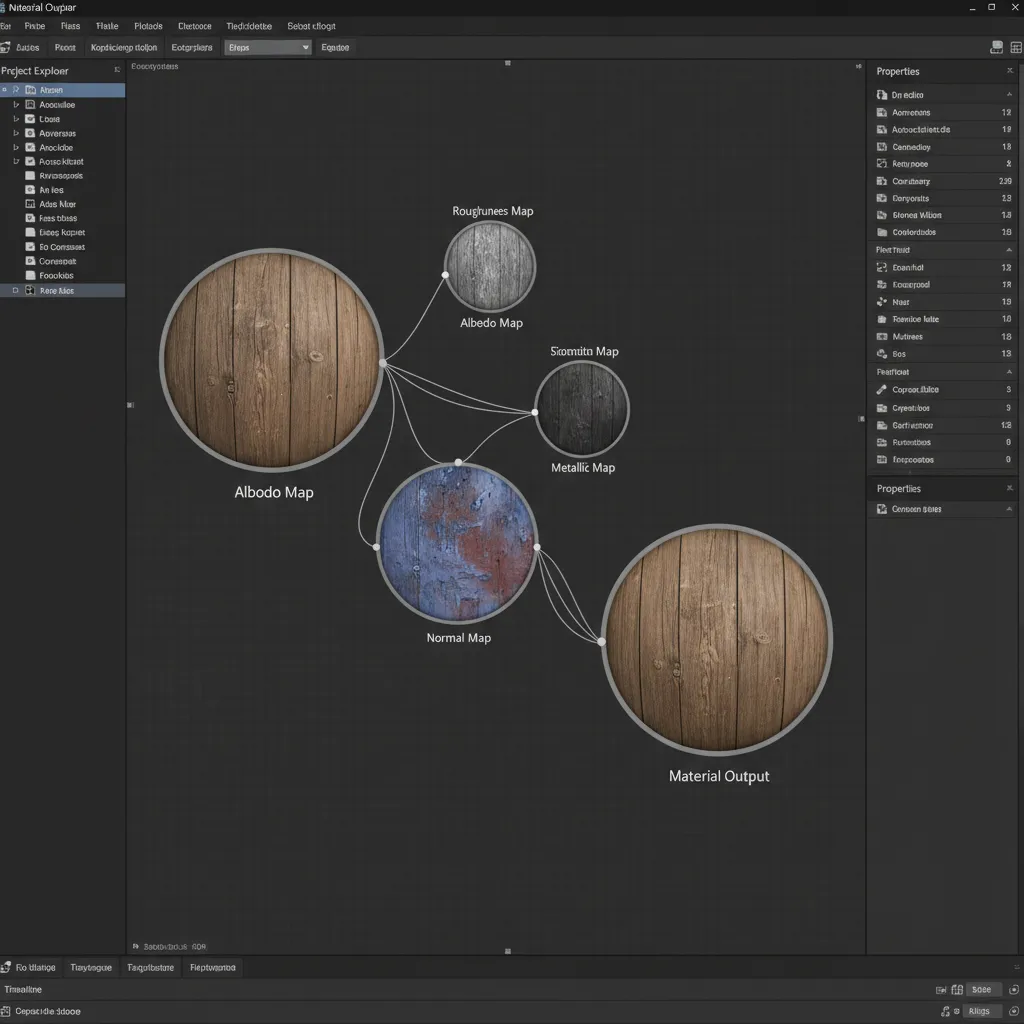

A typical PBR material includes:

1. Base color or albedo map
2. Roughness map controlling surface microtexture
3. Metallic value determining reflective behavior
4. Normal maps adding surface detail
5. Ambient occlusion maps for subtle shadowing

In practical design work, this means a marble countertop or oak floor behaves predictably under different lighting conditions. When I build interior renderings, properly calibrated PBR materials often make a bigger difference than increasing render resolution.

What Role Does the GPU Play in Modern Rendering?

Key Insight: GPU parallel processing allows rendering engines to compute millions of lighting calculations simultaneously.

Rendering is computationally expensive because each pixel may require multiple lighting samples. GPUs solve this by processing thousands of operations in parallel.

Advantages of GPU rendering include:

1. Massively parallel computation
2. Real‑time viewport rendering
3. Faster global illumination calculations
4. Interactive lighting adjustments

In studio practice, switching from CPU‑only rendering to GPU acceleration can reduce render time from hours to minutes. That speed fundamentally changes how designers iterate on ideas.

save pin

Hidden Bottlenecks Most Designers Don’t Realize

Key Insight: Scene complexity and poorly optimized assets often slow rendering more than hardware limitations.

One pattern I’ve seen across dozens of projects is that slow rendering rarely comes from the engine itself. Instead, it’s usually caused by asset management problems.

Common performance killers include:

1. Overly dense geometry from imported models
2. 4K textures used where 1K would suffice
3. Too many light sources
4. Unoptimized displacement maps
5. Large vegetation libraries loaded unnecessarily

Professional visualization teams often spend significant time optimizing assets before rendering even begins. This step is rarely mentioned in tutorials but dramatically improves performance.

save pin

How Rendering Architecture Shapes Interior Design Workflows

Key Insight: Understanding rendering architecture helps designers make better creative and technical decisions.

When designers understand how rendering engines work internally, they stop guessing and start controlling outcomes.

Practical advantages include:

1. Choosing appropriate lighting setups
2. Optimizing material complexity
3. Reducing render times during client revisions
4. Producing more realistic architectural visualization

In my own studio workflow, knowing how light bounces in a ray‑traced environment often changes how I place windows, reflective materials, and artificial lighting during concept design.

Answer Box

The architecture of 3D rendering software relies on a structured pipeline that processes geometry, lighting, materials, and camera data. Modern engines combine GPU acceleration, ray tracing, and physically based rendering to create photorealistic images efficiently.

Final Summary

1. Rendering software converts 3D scene data into images through a structured pipeline.
2. Hybrid rendering combines rasterization speed with ray tracing realism.
3. Physically based materials dramatically improve visual accuracy.
4. GPU acceleration enables faster and more interactive rendering workflows.
5. Scene optimization often matters more than hardware upgrades.

FAQ

1. What is 3D rendering software used for?

3D rendering software converts digital 3D models into realistic images or animations. It is widely used in architecture, interior design, product design, and film production.

2. What is the rendering pipeline?

The rendering pipeline is the sequence of steps that converts scene data into pixels, including geometry processing, shading, lighting calculation, and image output.

3. What is the difference between ray tracing and rasterization?

Rasterization converts geometry to pixels quickly for real‑time rendering, while ray tracing simulates realistic light behavior for higher visual accuracy.

4. Why is GPU rendering faster?

GPUs process thousands of calculations simultaneously, which makes them ideal for complex lighting and shading tasks used in rendering engines.

5. What is physically based rendering?

Physically based rendering is a shading model that simulates real‑world light behavior using parameters like roughness, metallic value, and energy conservation.

6. Can beginners learn 3D rendering software easily?

Yes. Tools like Blender, Twinmotion, and Lumion are designed to make architectural visualization accessible while still offering advanced rendering capabilities.

7. Why do some renders take hours?

High resolution images, complex geometry, global illumination calculations, and multiple light bounces can significantly increase rendering time.

8. Which industries rely most on 3D rendering software?

Architecture, interior design, gaming, film production, and product design are among the industries that depend heavily on rendering technologies.
