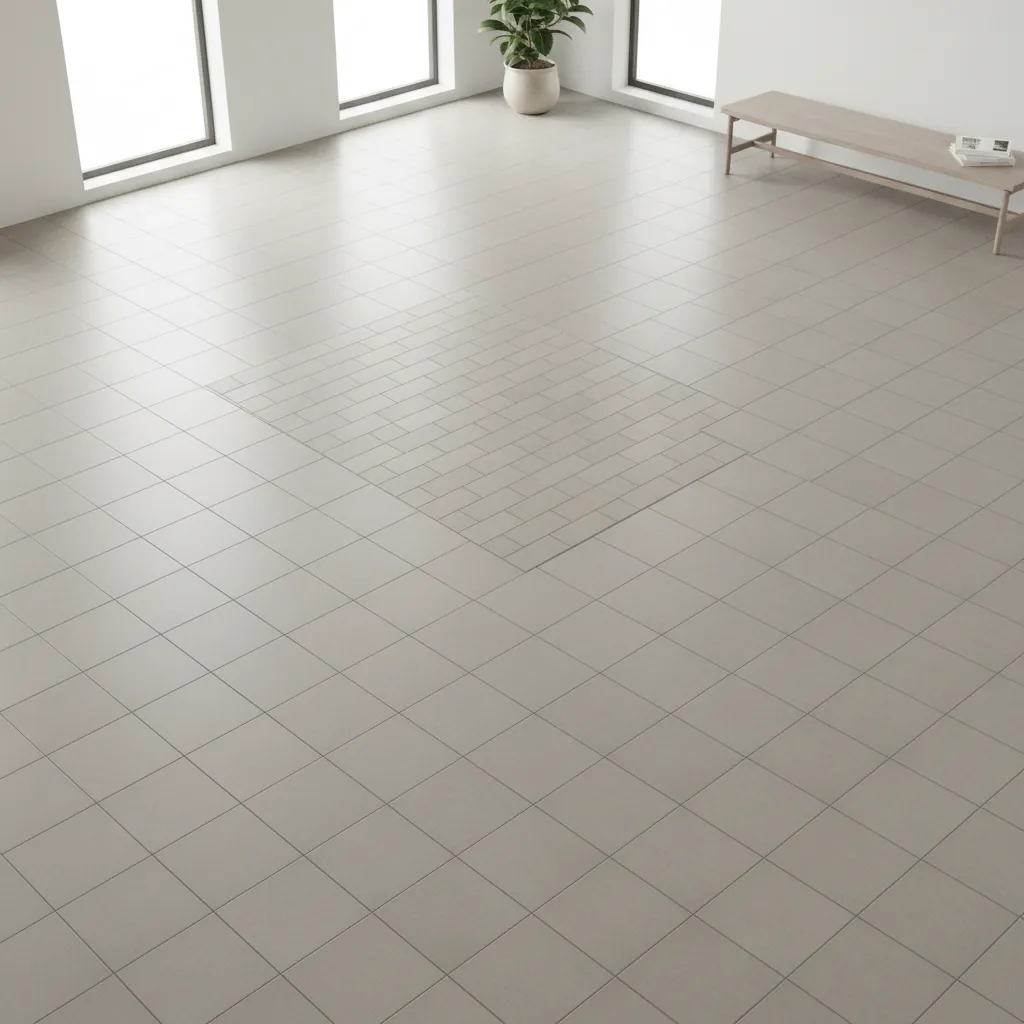

Tile Layout Patterns Compared: Grid vs Brick vs Diagonal: A practical guide to choosing the best tile layout pattern for room size, tile shape, and visual impact.

Direct Answer

The best tile layout pattern depends on room shape, tile size, and the visual effect you want. A straight grid layout feels clean and modern, a brick (running bond) layout hides alignment flaws and adds movement, while a diagonal layout can make small rooms appear larger but requires more planning and cuts.

Quick Takeaways

1. Straight grid layouts create the cleanest look and are easiest to install.
2. Brick layouts hide small alignment mistakes and work well with rectangular tiles.
3. Diagonal layouts visually widen narrow rooms but increase cutting and waste.
4. Room proportions should influence tile layout pattern choice more than style trends.
5. Choosing a layout before marking reference lines prevents costly installation errors.

Introduction

After working on dozens of residential remodels, I can say that choosing the right tile layout pattern often matters more than the tile itself. Homeowners usually spend weeks picking the tile color or finish, but the layout decision happens five minutes before installation. That’s where many projects go wrong.

When people compare tile layout patterns like grid vs brick vs diagonal, they usually focus on aesthetics. But from a design and installation perspective, layout patterns influence visual balance, material waste, and even how large a room feels.

In several of my projects, simply switching from a grid layout to a diagonal pattern made a narrow hallway look noticeably wider without changing the tile size. And in kitchens, a running bond layout often hides subtle wall irregularities that would otherwise become obvious.

If you want to visualize layout ideas before committing, tools that help you experiment with different floor tile layouts in a scaled room plancan make pattern decisions much easier.

In this guide, I’ll break down the three most common tile layout patterns, explain when each one works best, and share a few overlooked trade‑offs that most tutorials never mention.

save pin

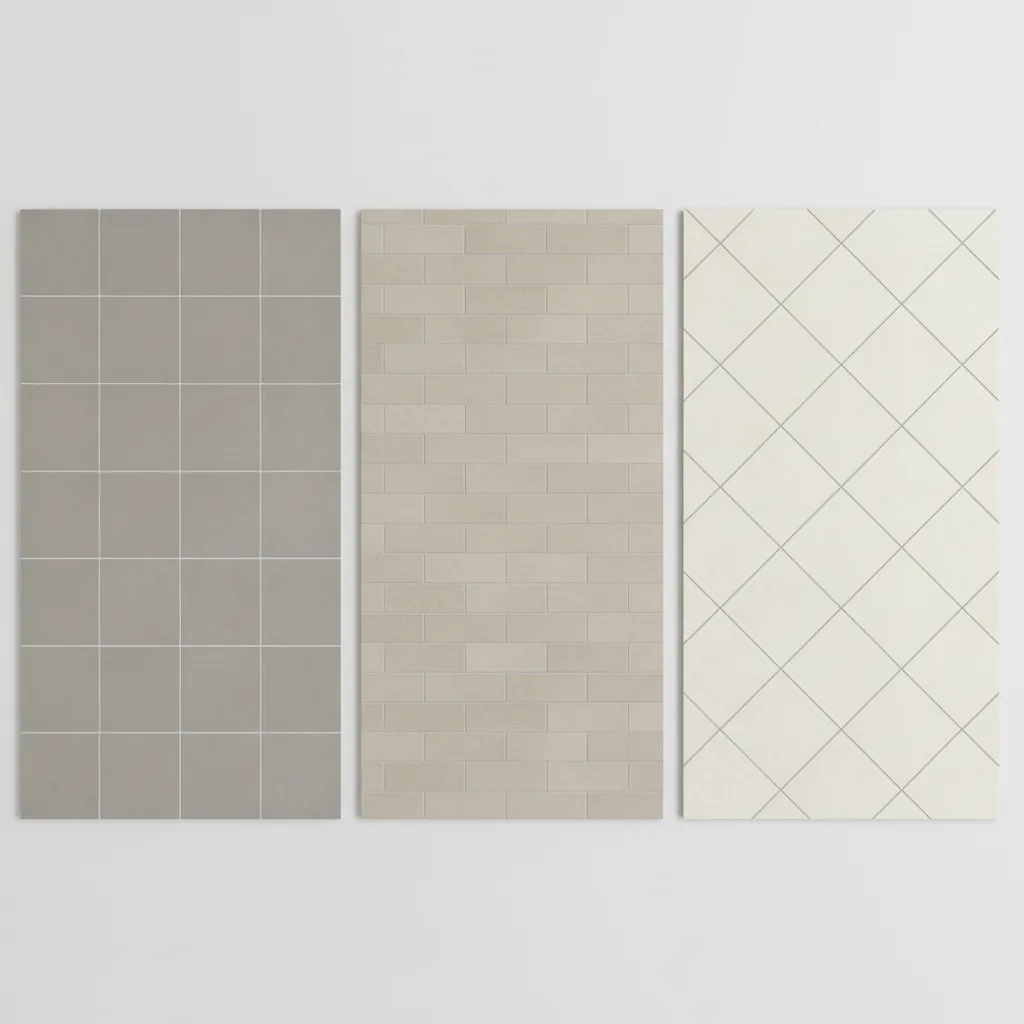

Overview of the Most Common Tile Layout Patterns

Key Insight: Most residential floors rely on three foundational tile layout patterns: straight grid, brick (running bond), and diagonal.

Despite the endless inspiration photos online, about 80–90% of tile floors I see during residential installations use one of these three patterns. Each pattern solves a different design problem.

Main Tile Layout Patterns

1. Straight Grid – tiles align vertically and horizontally.
2. Brick / Running Bond – each row offsets half a tile.
3. Diagonal – tiles rotate 45 degrees relative to the walls.

Professional installers often choose the layout based on room geometry rather than style. According to the Tile Council of North America installation guidelines, layout planning should prioritize symmetry, balanced edge cuts, and alignment with architectural features.

A pattern that looks great in a square showroom can feel awkward in a narrow bathroom or irregular kitchen.

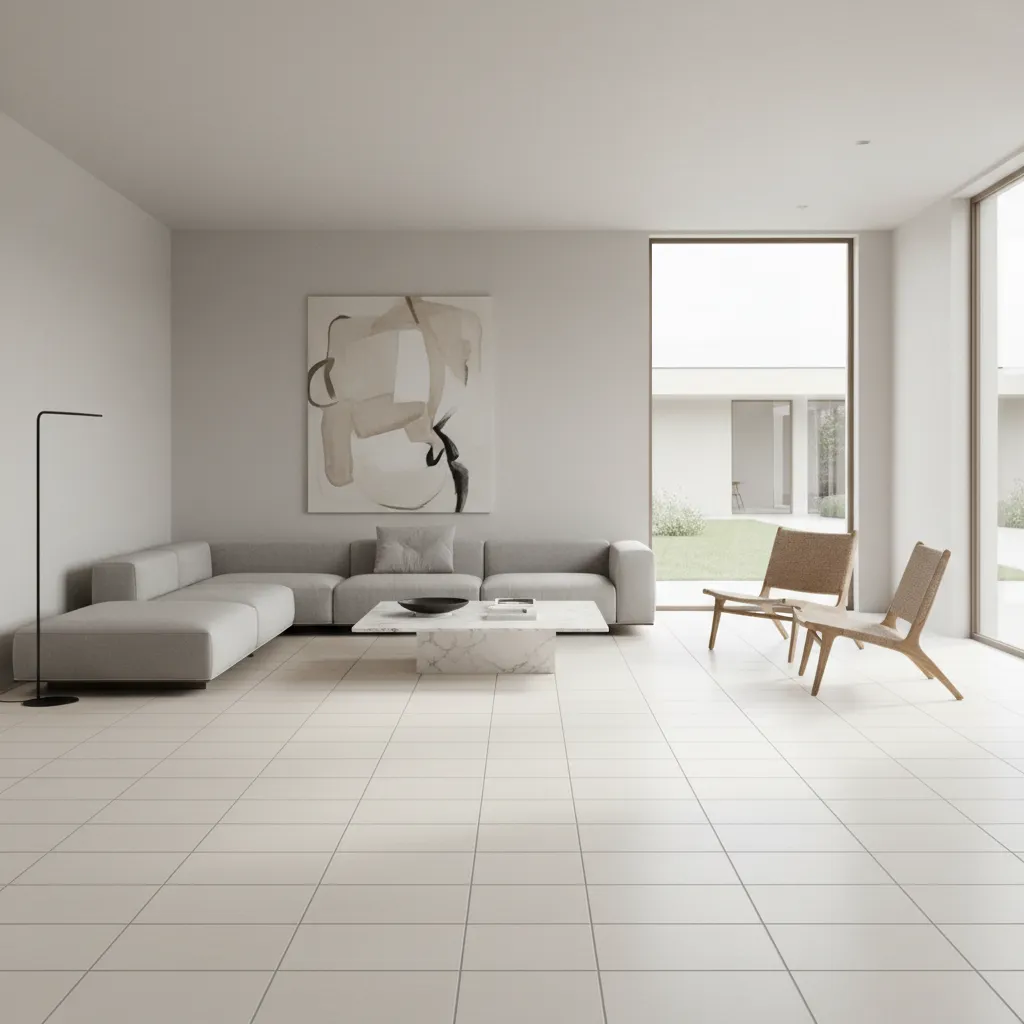

Straight Grid Layout: Pros, Cons, and Ideal Use Cases

Key Insight: A straight grid layout is the cleanest and easiest pattern but exposes alignment mistakes and wall irregularities.

The grid pattern is the most common tile layout for modern interiors. Tiles align directly with walls, forming a simple checkerboard grid.

Designers often choose this pattern when they want the tile itself to stand out rather than the layout.

Advantages

1. Fastest installation method
2. Minimal tile cutting
3. Works with square or large-format tiles
4. Clean, modern visual structure

Hidden Drawbacks

1. Reveals crooked walls or uneven spacing
2. Any misalignment becomes obvious across the floor
3. Less visual movement in large spaces

In my experience, grid layouts work best in:

1. Open living spaces
2. Large format tile installations
3. Modern minimalist interiors

If the room has uneven walls or inconsistent framing (common in older homes), installers often avoid grid layouts because the flaws become visible.

save pin

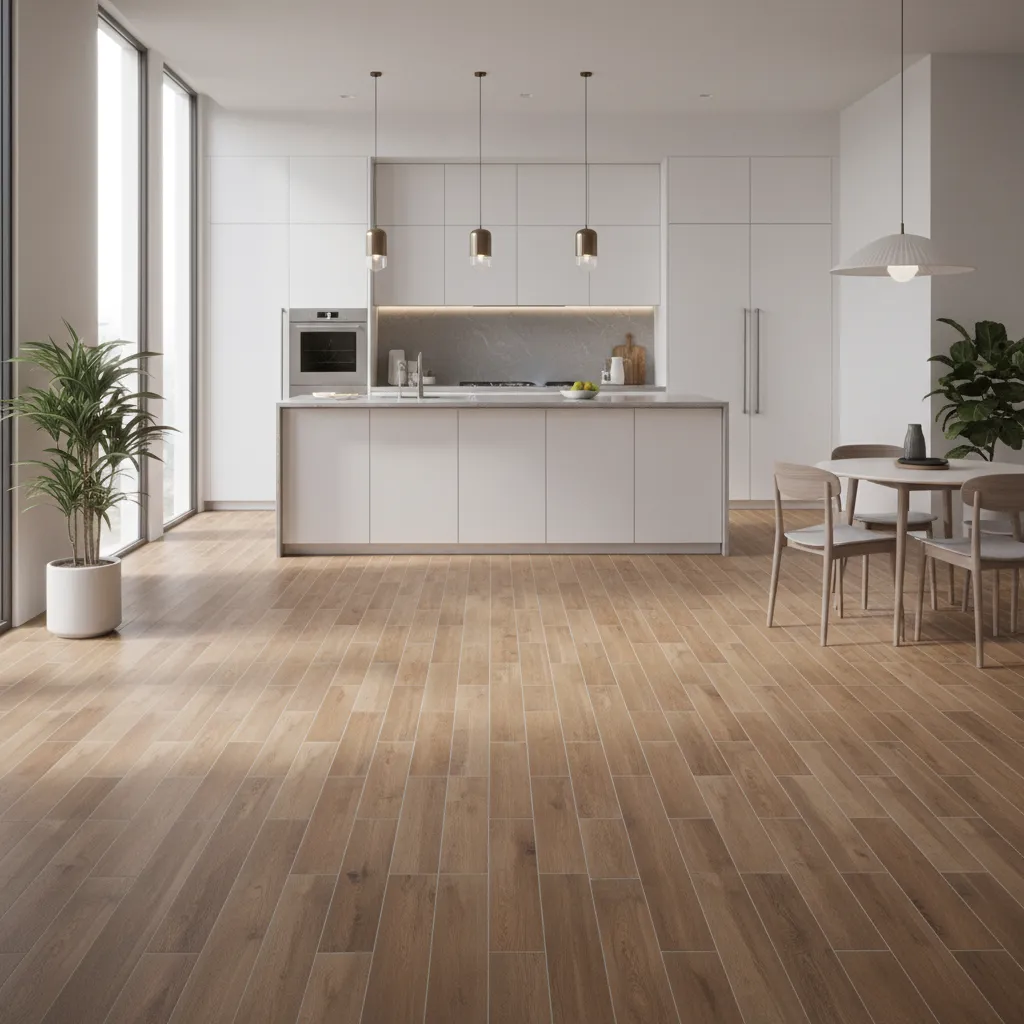

Brick or Running Bond Layout Explained

Key Insight: The running bond pattern hides imperfections and adds movement, which is why it’s widely used with rectangular tiles.

The brick layout offsets each tile row, usually by 50%. This pattern mimics traditional brick masonry, which is where it gets its name.

In residential projects, running bond is particularly popular for wood‑look porcelain tiles.

Why Installers Often Recommend It

1. Breaks up long grout lines
2. Reduces visibility of slight tile size variation
3. Creates subtle visual movement

A Common Mistake

Many people assume a perfect 50% offset always looks best. But large-format tiles can warp slightly during firing. Because of this, the Tile Council of North America often recommends a maximum offset of 33% for tiles longer than 15 inches.

Ignoring this guideline can create uneven edges known as "lippage," where one tile sits slightly higher than the next.

Before finalizing a pattern, it helps to test tile patterns inside a digital room layoutso you can see how grout lines interact with cabinets, doors, and walls.

save pin

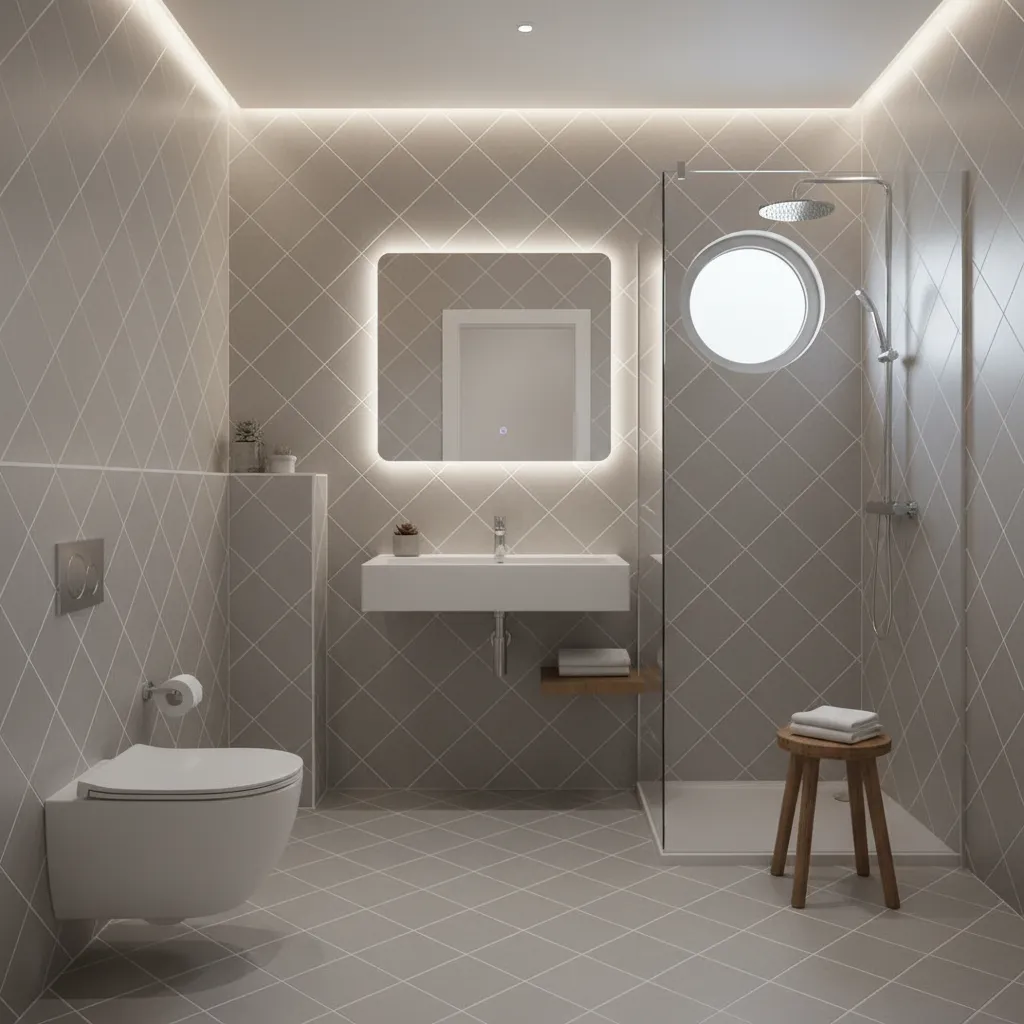

Diagonal Tile Layout and When It Works Best

Key Insight: A diagonal tile layout visually expands space but increases installation complexity and material waste.

Diagonal layouts rotate tiles 45 degrees relative to the room walls. Designers often use this technique in smaller rooms where straight lines would emphasize narrow proportions.

Where Diagonal Layout Works Well

1. Small bathrooms
2. Narrow hallways
3. Entryways

Benefits

1. Makes rooms feel wider
2. Creates dynamic visual movement
3. Hides slightly crooked walls

Trade‑Offs

1. More tile cutting
2. Higher installation cost
3. 10–15% more tile waste

Professional installers usually reserve diagonal layouts for rooms where the visual payoff outweighs the added labor.

How Room Shape Influences Pattern Choice

Key Insight: Room proportions often matter more than tile style when choosing a layout pattern.

One of the biggest design mistakes I see is selecting a layout based purely on inspiration photos rather than the actual room geometry.

Pattern Recommendations by Room Shape

1. Square rooms: grid or diagonal patterns work well.
2. Narrow rooms: diagonal or staggered layouts help reduce tunnel effect.
3. Large open spaces: grid layouts maintain visual calm.

Before installers snap chalk lines on the floor, I usually create a quick scaled plan to check grout alignment and cut sizes. Tools that let you map tile layouts directly on a floor planmake it easier to avoid awkward edge cuts near walls or cabinets.

save pin

Choosing the Right Layout Pattern Before Marking Reference Lines

Key Insight: Layout pattern decisions must happen before reference lines are marked, not during installation.

Once chalk lines are snapped on the floor, the tile pattern is essentially locked in. Changing the layout later usually means restarting the installation.

Professional Planning Steps

1. Measure room dimensions precisely.
2. Identify the visual center of the room.
3. Dry‑lay several rows of tiles.
4. Check edge cuts along walls.
5. Adjust pattern to balance tile sizes.

This preparation stage often prevents the most common installation issues: tiny sliver cuts along walls and misaligned grout lines.

Answer Box

The best tile layout pattern depends on room shape and tile format. Straight grid layouts are clean and simple, brick layouts hide imperfections, and diagonal layouts make small rooms feel larger but require more cutting.

Final Summary

1. Grid layouts provide the cleanest and most modern appearance.
2. Running bond patterns hide imperfections and suit rectangular tiles.
3. Diagonal layouts expand visual space in small rooms.
4. Room shape should guide layout decisions more than design trends.
5. Always finalize the layout before marking tile reference lines.

FAQ

Which tile layout pattern is most popular?

The straight grid layout is the most common because it is easy to install and works with almost any tile size.

What is the difference between grid and running bond tile layout?

A grid layout aligns tiles in straight rows and columns, while a running bond layout offsets each row, creating a staggered brick‑like appearance.

Does diagonal tile layout make a room look bigger?

Yes. A diagonal tile layout can visually widen small rooms because the angled grout lines break the perception of narrow walls.

Is a brick tile layout harder to install?

Not significantly. Running bond layouts are slightly more complex than grid layouts but still considered standard installation patterns.

Which tile pattern hides uneven walls best?

Running bond and diagonal patterns hide wall irregularities better than straight grid layouts.

What tile layout pattern works best with rectangular tiles?

The running bond layout is widely considered the best floor tile layout pattern for rectangular or wood‑look tiles.

Do diagonal layouts waste more tile?

Yes. Diagonal installations usually require 10–15% more tile due to corner cuts and edge trimming.

Should I choose the tile pattern before installation begins?

Absolutely. Choosing the tile layout pattern before marking reference lines ensures balanced cuts and a professional final result.

References

Tile Council of North America (TCNA) Installation Guidelines

National Tile Contractors Association (NTCA) Best Practices
