Toilet Flange Installation Standards Used by Professional Plumbers: Industry guidelines plumbers follow to position, secure, and install a closet flange correctly for leak‑free toilets.

Direct Answer

Professional plumbers install a toilet flange so the bottom of the flange sits flush with the finished floor and the top edge rests roughly 1/4 inch above it. The flange must be rigidly anchored to the subfloor and aligned with the drain pipe to ensure the wax seal compresses properly and prevents leaks.

Quick Takeaways

1. The toilet flange should sit on top of the finished floor, not below it.
2. Ideal flange height is about 1/4 inch above tile or finished flooring.
3. Professionals secure the flange directly to the subfloor using corrosion‑resistant screws.
4. Modern plumbing standards favor PVC, ABS, or stainless‑reinforced flanges.
5. Incorrect flange height is the most common cause of recurring toilet leaks.

Introduction

After working on dozens of bathroom remodels over the past decade, I’ve noticed something interesting: many toilet problems blamed on "bad wax rings" are actually caused by poor toilet flange installation. The flange is a small part, but it controls the seal, alignment, and structural stability of the entire toilet.

When plumbers follow proper toilet flange installation standards, the toilet sits stable, the wax ring compresses evenly, and leaks almost never occur. When those standards are ignored—especially during flooring upgrades—the flange ends up too low or poorly anchored.

In several renovation projects where we redesigned layouts using a step‑by‑step bathroom space planning workflow, correcting the flange height was the difference between a toilet that rocked for years and one that stayed solid after installation.

Below are the professional standards plumbers typically follow for flange height, materials, anchoring, and code‑compliant installation.

save pin

What a Closet Flange Does in a Plumbing System

Key Insight: The closet flange performs two critical jobs: sealing the drain connection and physically anchoring the toilet to the floor.

Many homeowners assume the wax ring does most of the work. In reality, the wax ring only creates the seal; the flange provides the structure that allows the seal to work.

If the flange is weak, loose, or positioned incorrectly, the wax ring compresses unevenly and leaks eventually follow.

Core functions of a toilet flange:

1. Connects the toilet outlet to the drain pipe
2. Provides mounting points for closet bolts
3. Transfers toilet weight to the subfloor
4. Keeps the wax seal evenly compressed

Professional plumbers treat the flange as a structural component, not just a pipe fitting. That mindset alone prevents many common installation failures.

Standard Flange Height Above Finished Floor

Key Insight: Professional plumbing standards place the flange on top of the finished floor with about 1/4 inch of height above it.

This detail becomes critical when homeowners install new tile or luxury vinyl flooring. If the flange stays at the old subfloor height, it ends up too low.

That gap causes three problems:

1. The wax ring cannot fully compress
2. The toilet base may rock
3. Leaks can develop over time

Professional height guidelines:

1. Bottom of flange: flush with finished floor
2. Top lip of flange: ~1/4 inch above finished floor
3. Closet bolts positioned at 3 and 9 o'clock

One hidden issue I see often in remodels is tile installers raising the floor without adjusting the flange. Plumbers usually correct this by adding flange extenders or replacing the flange entirely.

When planning layout changes with tools like a

save pin

3D bathroom layout visualization for renovation planning, accounting for finished floor height early helps prevent this problem.

Approved Materials for Closet Flanges

Key Insight: Modern plumbing standards favor corrosion‑resistant materials with metal reinforcement for durability.

Older homes often have cast iron or all‑plastic flanges. Many of those fail over time because the bolt slots crack.

Common flange materials used by professionals:

1. PVC flange with stainless steel ring
2. ABS flange with steel reinforcement
3. Cast iron flange (common in older drain systems)
4. Brass flange for heavy‑duty applications

Material comparison:

1. PVC + stainless ring: most common in modern construction
2. ABS: lightweight and affordable
3. Cast iron: extremely durable but harder to install
4. Brass: premium option in commercial installations

In my experience, the reinforced metal ring is the real difference maker. It prevents bolt slot fractures when toilets are tightened or moved.

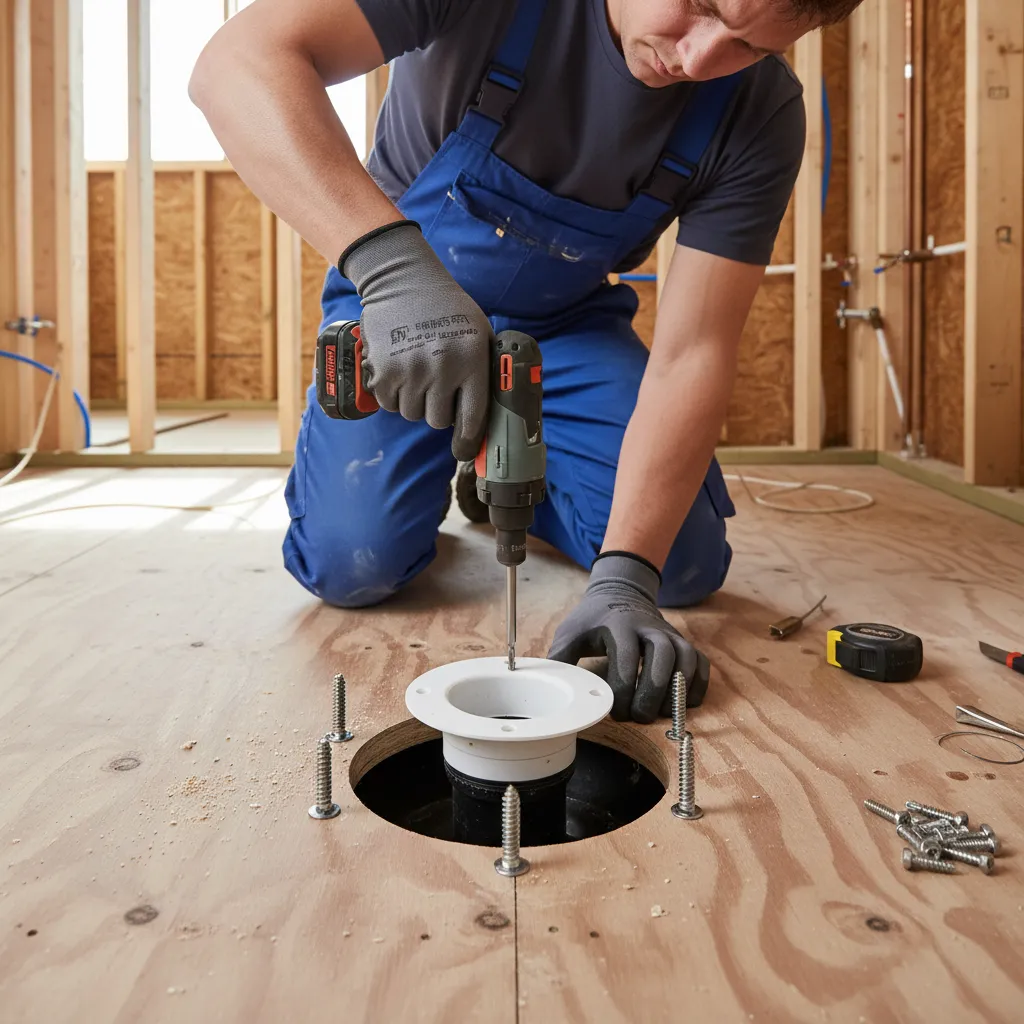

How Professionals Anchor Flanges to the Subfloor

Key Insight: A flange must be mechanically fastened to the subfloor, not just glued to the pipe.

This is one of the biggest hidden installation mistakes. Some installers rely only on the drain pipe connection to hold the flange in place.

Professional plumbers always anchor the flange through the mounting holes.

Standard installation process:

1. Dry fit the flange over the drain pipe
2. Align bolt slots at 3 and 9 o'clock
3. Place flange on finished floor
4. Drill pilot holes into the subfloor
5. Secure with stainless or brass screws
6. Insert closet bolts

This anchoring step prevents toilet movement, which is the leading cause of wax seal failure according to many plumbing repair contractors.

save pin

Common Code Guidelines for Toilet Flange Installation

Key Insight: Plumbing codes focus primarily on flange height, pipe connection, and structural attachment.

While specific language varies by jurisdiction, most building codes follow similar principles.

Typical plumbing code expectations:

1. Flange must connect securely to the drainage system
2. Flange must sit on top of finished flooring
3. Toilet must be secured using closet bolts
4. Connection must allow a watertight seal

Organizations like the International Association of Plumbing and Mechanical Officials (IAPMO) and International Code Council publish standards used by many municipalities.

During layout planning stages, designers sometimes forget plumbing clearances. When reviewing floor layouts with an interactive floor plan layout builder for bathroom remodeling, verifying toilet placement against these code guidelines early can prevent costly repositioning later.

Mistakes Professionals Avoid During Installation

Key Insight: Most toilet leaks happen not because parts fail, but because installation shortcuts were taken.

Across multiple renovation projects, the same installation errors show up repeatedly.

Common mistakes professionals avoid:

1. Installing the flange below finished floor level
2. Using plastic rings that crack under stress
3. Failing to screw the flange to the subfloor
4. Over‑tightening closet bolts
5. Misaligning the flange with the toilet outlet

One overlooked issue is "floor stacking" during remodels. New tile, underlayment, and heating mats can raise the floor nearly an inch, leaving the flange buried below surface level.

Professionals either raise the flange or install extenders before setting the toilet.

save pin

Answer Box

The professional standard for toilet flange installation is simple: the flange sits on top of the finished floor, extends about 1/4 inch above it, and is securely fastened to the subfloor. Following this guideline ensures proper wax ring compression and prevents long‑term leaks.

Final Summary

1. Toilet flanges must sit on top of finished flooring.
2. Ideal flange height is about 1/4 inch above floor level.
3. Reinforced metal‑ring flanges offer the best durability.
4. Anchoring the flange to the subfloor prevents toilet movement.
5. Incorrect flange height is the most common installation error.

FAQ

What is the correct height for a toilet flange above tile?

Professional toilet flange installation standards place the flange about 1/4 inch above the finished tile surface.

Should the toilet flange sit on top of the finished floor?

Yes. Plumbing guidelines recommend installing the flange directly on top of the finished flooring for proper sealing.

What happens if a toilet flange is too low?

A low flange prevents proper wax ring compression and often leads to leaks or toilet rocking.

Are plastic toilet flanges reliable?

Pure plastic flanges can crack. Most professionals prefer PVC or ABS flanges with stainless steel reinforcement rings.

Do plumbers screw the flange to the floor?

Yes. A professional toilet flange installation method always anchors the flange to the subfloor using corrosion‑resistant screws.

Can a toilet flange be installed after tile?

Yes. In fact, installing the flange after tile ensures it sits at the correct finished floor height.

How many bolts hold a toilet to the flange?

Two closet bolts secure the toilet to the flange at the 3 o'clock and 9 o'clock positions.

What plumbing code covers closet flange installation?

Local codes typically follow guidelines from the International Plumbing Code or Uniform Plumbing Code regarding toilet flange placement.
