Top Loading Washer Cabinet Layouts Side Cabinets or Overhead Storage: A practical comparison to help you choose cabinet placement that preserves washer lid clearance while maximizing storage in a small laundry room.

Direct Answer

The best top-loading washer cabinet layout depends on lid clearance and room width. Side cabinets offer easier access and flexible storage, while overhead cabinets maximize vertical space but must be mounted high enough to allow the washer lid to open fully. In very small laundry rooms, a hybrid layout often delivers the most usable storage.

Quick Takeaways

1. Side cabinets provide easier daily access but require more horizontal space.
2. Overhead cabinets maximize vertical storage but must maintain washer lid clearance.
3. Narrow side cabinets paired with upper cabinets often create the most efficient layout.
4. Ignoring washer lid swing space is the most common small laundry room mistake.
5. Ultra-small rooms benefit from vertical storage more than wide cabinetry.

Introduction

Designing cabinets around a top-loading washer sounds simple until you actually measure the lid swing. I’ve worked on dozens of compact laundry rooms where homeowners installed beautiful cabinetry—only to realize the washer lid couldn’t open all the way.

The challenge with any top-loading washer cabinet layout is balancing two competing needs: preserving vertical clearance for the washer lid while still squeezing in enough storage for detergents, baskets, and cleaning supplies.

In small homes, apartments, and laundry closets, the difference between side cabinets and overhead cabinets can completely change how usable the room feels. Sometimes the wrong cabinet choice doesn’t just reduce storage—it makes the washer uncomfortable to use.

When I’m helping clients experiment with layouts, we usually start by sketching the space using a simple interactive room layout tool to test cabinet positions. Seeing the washer lid arc in relation to cabinets immediately reveals what will and won’t work.

In this guide, I’ll compare side cabinets, overhead cabinets, and hybrid layouts based on real-world installations and small laundry room constraints.

save pin

Why Cabinet Placement Matters with Top Loading Washers

Key Insight: The biggest constraint in a top-loading washer cabinet layout isn’t wall space—it’s the vertical swing path of the washer lid.

Unlike front-load washers, top-load models require a large upward opening arc. Most lids open between 70° and 90°, which can easily collide with poorly placed cabinets.

Here’s what designers typically evaluate before placing cabinets:

1. Washer height
2. Lid opening angle
3. Wall depth and cabinet depth
4. User reach distance
5. Clear working space

Typical measurements from major manufacturers:

1. Washer height: 38–42 inches
2. Lid open height: 52–58 inches
3. Comfortable reach height: under 72 inches

Ignoring these numbers leads to the most common hidden mistake I see: cabinets that technically fit on the wall but block the washer during daily use.

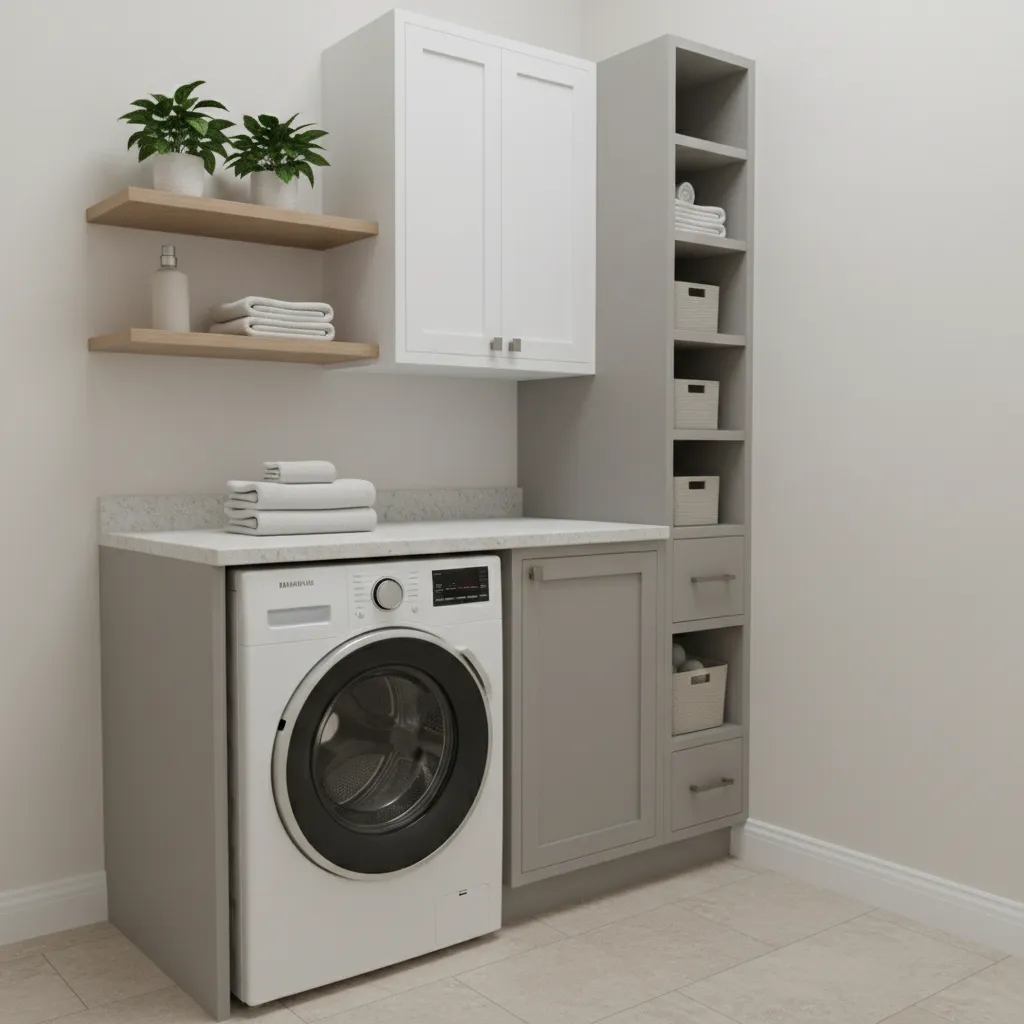

Side Cabinets Next to the Washer Pros and Limitations

Key Insight: Side cabinets provide the most ergonomic storage but only work when you have at least 12–15 inches of extra width beside the washer.

Side cabinets are the most intuitive solution because everything stays within arm’s reach while loading laundry.

Typical advantages include:

1. Easy access while standing at the washer
2. No lid clearance conflicts
3. Room for pull-out laundry hampers
4. Space for tall cleaning bottles

However, in small laundry rooms, side cabinets introduce two common problems:

1. They make the room feel visually cramped.
2. They eliminate space for folding surfaces.

I’ve found that narrow vertical cabinets—around 9 to 12 inches wide—work much better than full pantry cabinets in tight spaces.

save pin

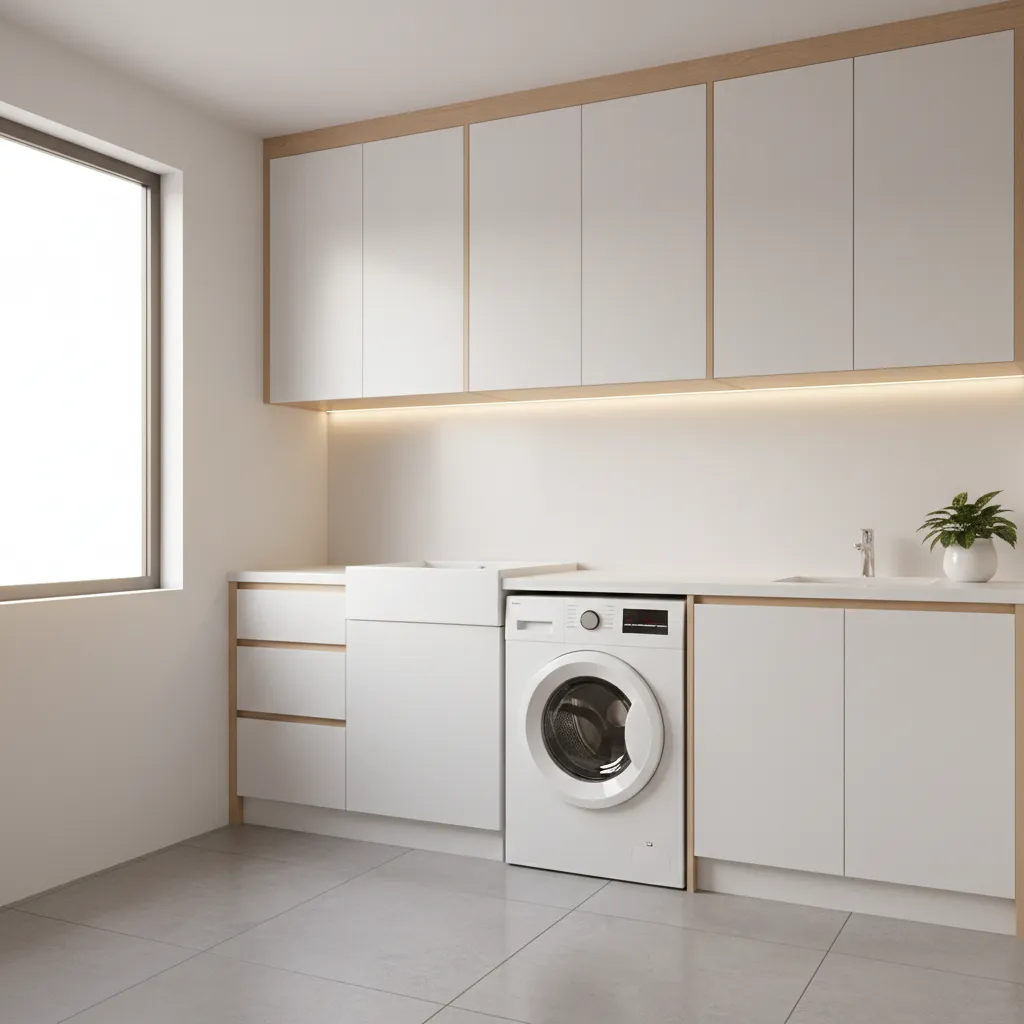

Overhead Cabinets Above the Washer Area

Key Insight: Overhead cabinets maximize storage without consuming floor width, but mounting height determines whether they work or fail.

Overhead cabinets are extremely popular in compact laundry rooms because they use vertical space efficiently.

When properly installed, they offer:

1. Large storage capacity
2. Clean wall organization
3. Extra space for detergent stock and linens

But the biggest mistake homeowners make is mounting them too low.

Recommended installation heights:

1. Cabinet bottom at least 18–24 inches above washer top
2. Cabinet depth limited to 12–14 inches

Anything deeper starts interfering with the washer lid or your ability to reach inside the drum comfortably.

Many homeowners test different cabinet heights using a free floor plan creator to experiment with vertical storage layoutsbefore committing to installation.

save pin

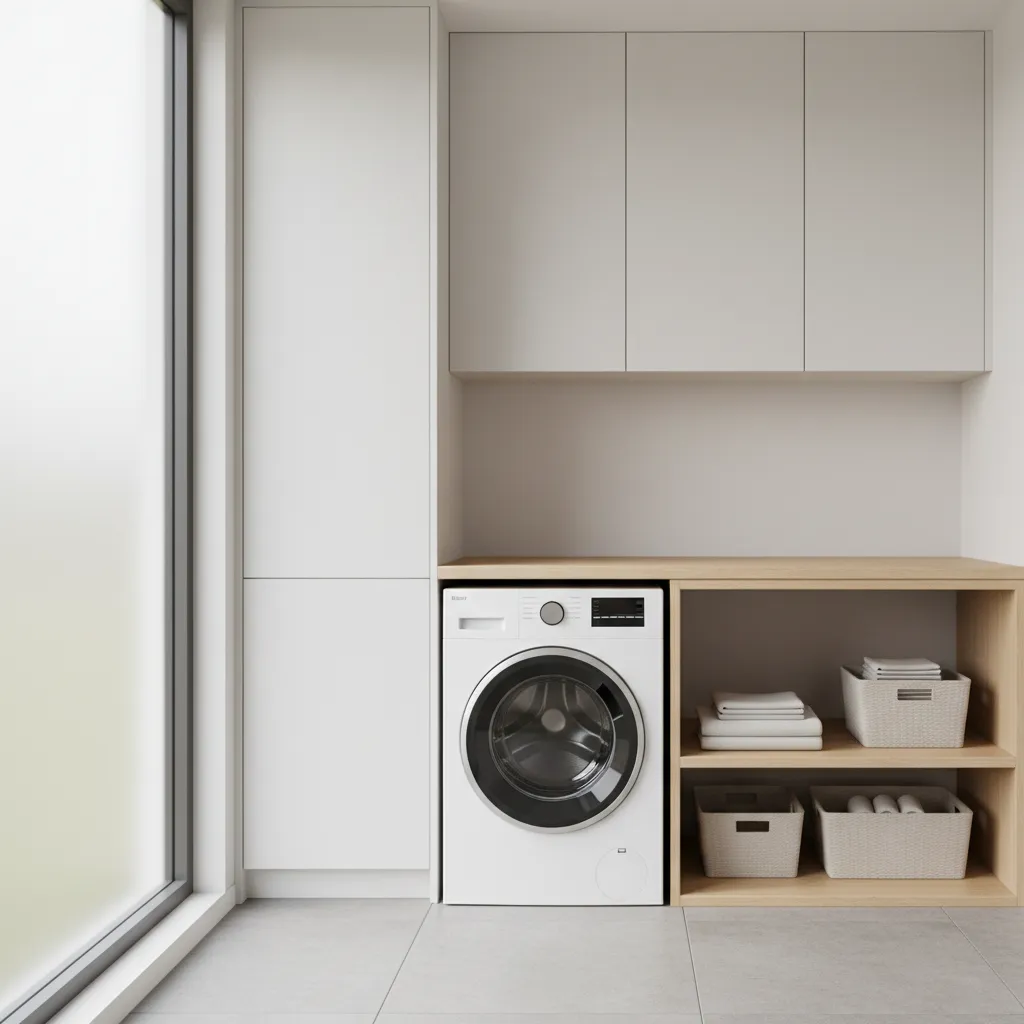

Hybrid Layout Combining Narrow Side Cabinets and Upper Storage

Key Insight: The most efficient small laundry rooms rarely choose between side or overhead cabinets—they combine both strategically.

After designing many small laundry rooms, I’ve noticed that hybrid layouts consistently deliver the best balance between access and storage.

A common configuration looks like this:

1. Narrow side cabinet (9–12 inches)
2. Washer centered below
3. Overhead cabinet mounted higher than standard
4. Optional open shelf for daily-use items

This arrangement works because:

1. Side cabinet stores tall bottles
2. Upper cabinets store bulk supplies
3. The washer lid opens freely

Visually, it also keeps the room balanced rather than creating a heavy wall of cabinetry.

save pin

Clearance Requirements for Washer Lid Opening

Key Insight: A functional top-loading washer cabinet layout always begins with lid clearance calculations.

Before installing any cabinetry, measure the washer with the lid fully open.

Use this quick planning checklist:

1. Measure washer height.
2. Open the lid completely.
3. Measure the total open height.
4. Add 2–3 inches of safety clearance.

Typical clearance guideline:

1. Minimum open height: 55–60 inches
2. Comfortable working height: 62 inches or more

Designers also account for arm movement while loading clothes. Even if the lid technically opens, cabinets placed too low can still make laundry awkward.

Answer Box

The best cabinet layout for a top-loading washer usually combines vertical storage with strategic side cabinets. Ensuring at least 18–24 inches above the washer prevents lid interference while maintaining usable storage.

Which Cabinet Layout Works Best for Ultra Small Laundry Rooms

Key Insight: In extremely tight spaces, vertical storage almost always outperforms wide cabinetry.

If your laundry room is under 40 inches wide, overhead cabinets are typically the safest option.

Best layout strategies for ultra-small rooms:

1. Use shallow upper cabinets
2. Install open shelving instead of doors
3. Add narrow pull-out storage beside the washer
4. Keep cabinet depth under 14 inches

Many homeowners preview the finished space using realistic previews such as high quality 3D renderings of laundry room layouts to ensure cabinet placement feels comfortable before construction.

Final Summary

1. Side cabinets improve access but require extra room width.
2. Overhead cabinets maximize vertical storage.
3. Hybrid layouts often work best in small laundry rooms.
4. Washer lid clearance should always guide cabinet placement.
5. Shallow cabinets reduce interference in tight spaces.

FAQ

1. What cabinet layout works best with a top-loading washer?

A hybrid layout with narrow side cabinets and higher overhead storage usually provides the best balance of accessibility and storage.

2. How much space should be above a top-loading washer?

Most manufacturers recommend at least 18–24 inches above the washer to allow the lid to open comfortably.

3. Can cabinets be installed directly above a top-loading washer?

Yes, but they must be mounted high enough to avoid interfering with the washer lid when fully open.

4. Are side cabinets better than overhead cabinets in laundry rooms?

Side cabinets are easier to access, but overhead cabinets save space in smaller rooms.

5. What depth should overhead laundry cabinets be?

Most designers recommend keeping overhead cabinets between 12 and 14 inches deep.

6. What is the biggest mistake in a top-loading washer cabinet layout?

Installing cabinets too low above the washer, preventing the lid from opening fully.

7. Can you install shelves above a top-loading washing machine?

Yes, open shelves often work better than cabinets in very tight spaces.

8. What cabinet layout works best for a very small laundry room?

Vertical storage such as overhead cabinets with shallow depth usually works best.

References

Whirlpool Appliance Installation Guidelines

NKBA Kitchen and Laundry Planning Standards

American Institute of Architects Residential Design Guidelines
