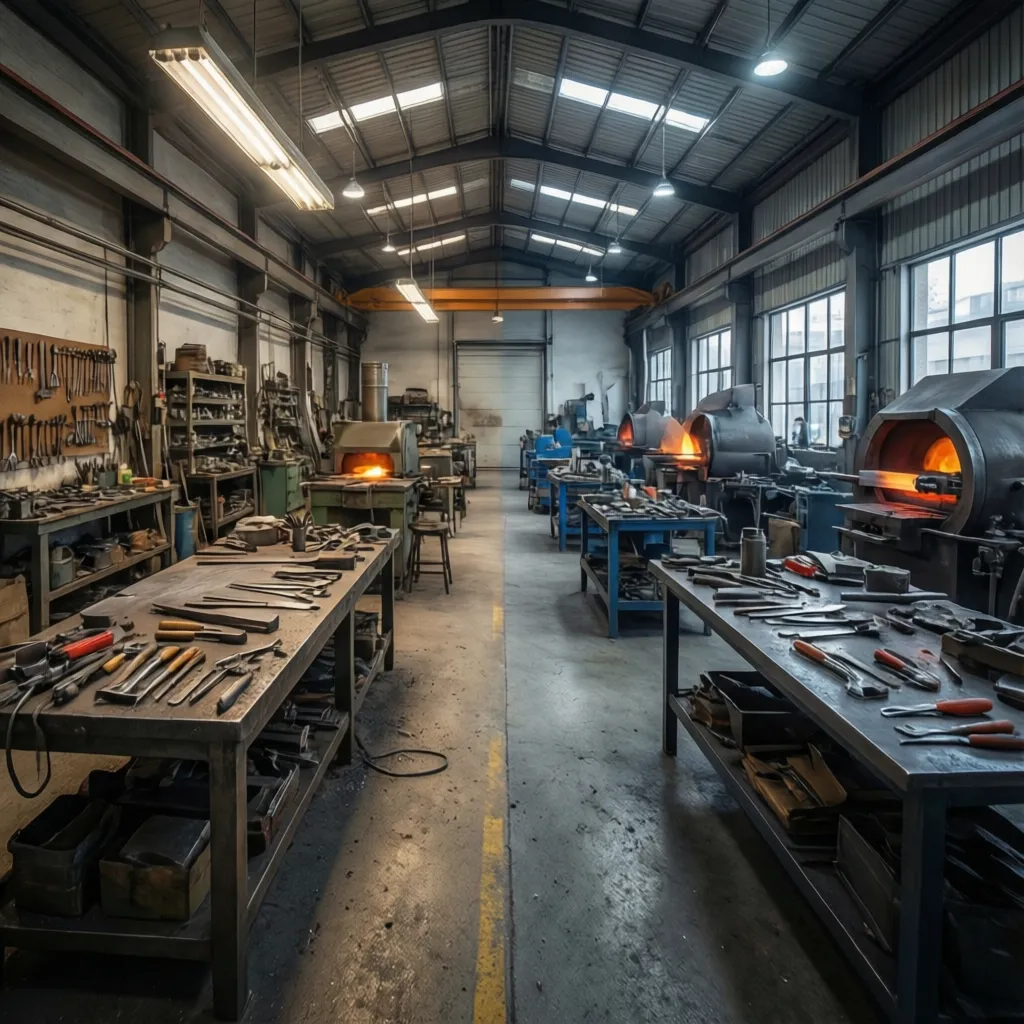

Traditional vs Modern Back Casting Room Layouts: A practical comparison to help workshops choose the most efficient casting room layout before renovation

Direct Answer

Traditional back casting room layouts prioritize fixed workstations and linear workflows, while modern layouts focus on flexible zones, better equipment access, and optimized movement. In most renovations today, modern layouts significantly improve workflow efficiency and space utilization, especially in small or multi‑purpose workshops.

However, traditional layouts still work well for stable production environments with repetitive processes and minimal layout changes.

Quick Takeaways

1. Traditional layouts rely on fixed stations and predictable production flow.
2. Modern layouts prioritize flexible zones and efficient movement.
3. Modern designs usually improve space utilization in smaller workshops.
4. Traditional setups can still outperform modern layouts in stable, high‑volume workflows.
5. Renovation complexity often determines which layout is practical.

Introduction

After working on dozens of workshop redesigns over the past decade, I've learned that the biggest mistake owners make when planning a renovation is focusing only on equipment—while ignoring the overall casting room layout. The arrangement of workstations, material flow, and equipment placement often determines whether a room runs smoothly or becomes a daily bottleneck.

When clients ask me about traditional vs modern casting room layout decisions, they're usually facing the same dilemma: keep the familiar layout that everyone understands, or redesign the space to improve efficiency. Both approaches can work—but they serve different operational realities.

In many projects, we start by mapping the existing workflow using a simple digital planning tool. Visualizing movement paths early prevents costly mistakes later. If you're evaluating different spatial arrangements, exploring interactive 3D layouts for planning workshop floor organizationis often the fastest way to spot workflow issues before construction begins.

In this guide, I'll break down how traditional and modern back casting room layouts differ in workflow, space efficiency, cost, and renovation complexity—based on real project experience rather than theoretical diagrams.

save pin

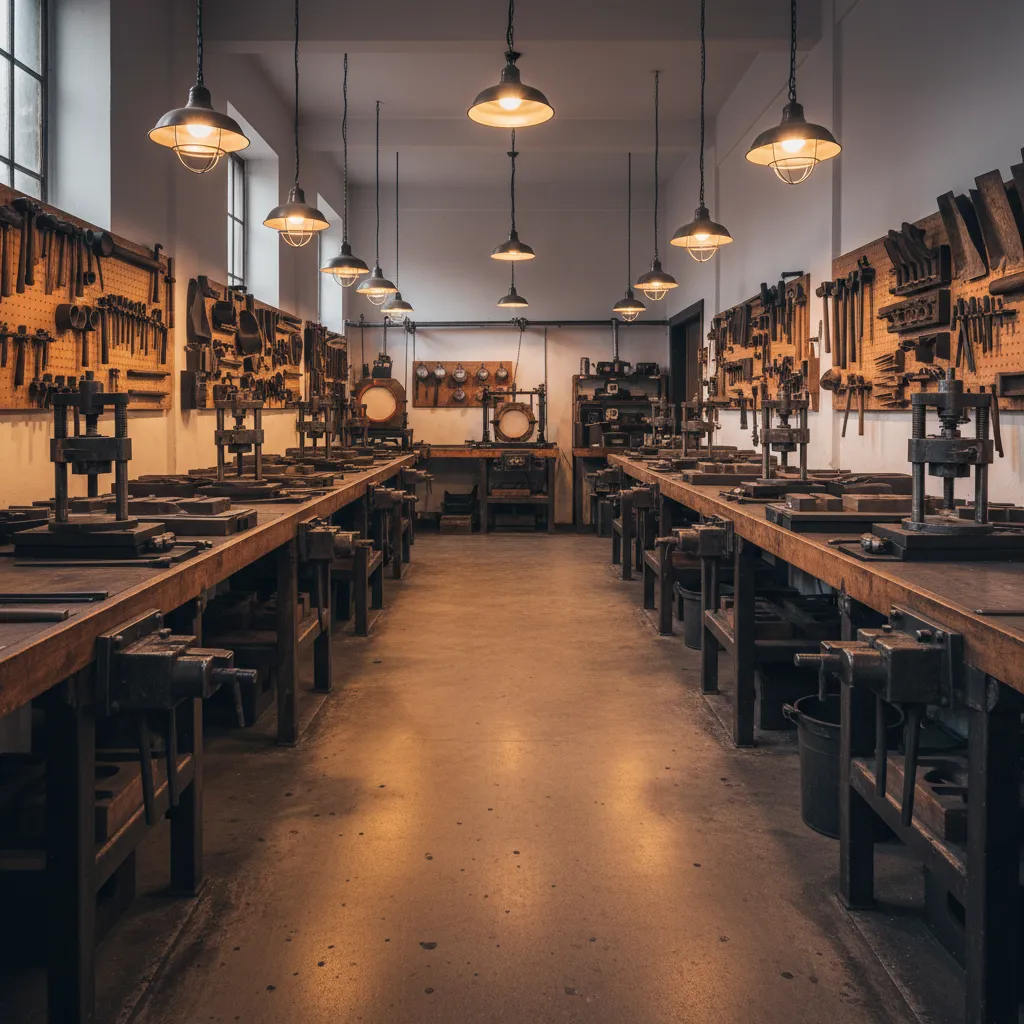

What Defines a Traditional Back Casting Room Layout

Key Insight: Traditional casting room layouts follow a fixed, linear workflow where each workstation performs a single dedicated function.

Historically, most casting rooms were designed around the equipment rather than the people using it. Machines were installed first, and workstations formed around them. The result was a straightforward but rigid layout.

Typical characteristics include:

1. Permanent equipment positions
2. Linear workflow from preparation to finishing
3. Dedicated workstations for each step
4. Limited flexibility for future changes

This system works surprisingly well in stable environments. In one jewelry casting workshop I redesigned in Los Angeles, the owner initially wanted a modern layout—but their production was highly standardized. Keeping the traditional sequence actually preserved efficiency.

The hidden drawback appears when production needs evolve. Fixed stations often create congestion points once additional tools or processes are introduced.

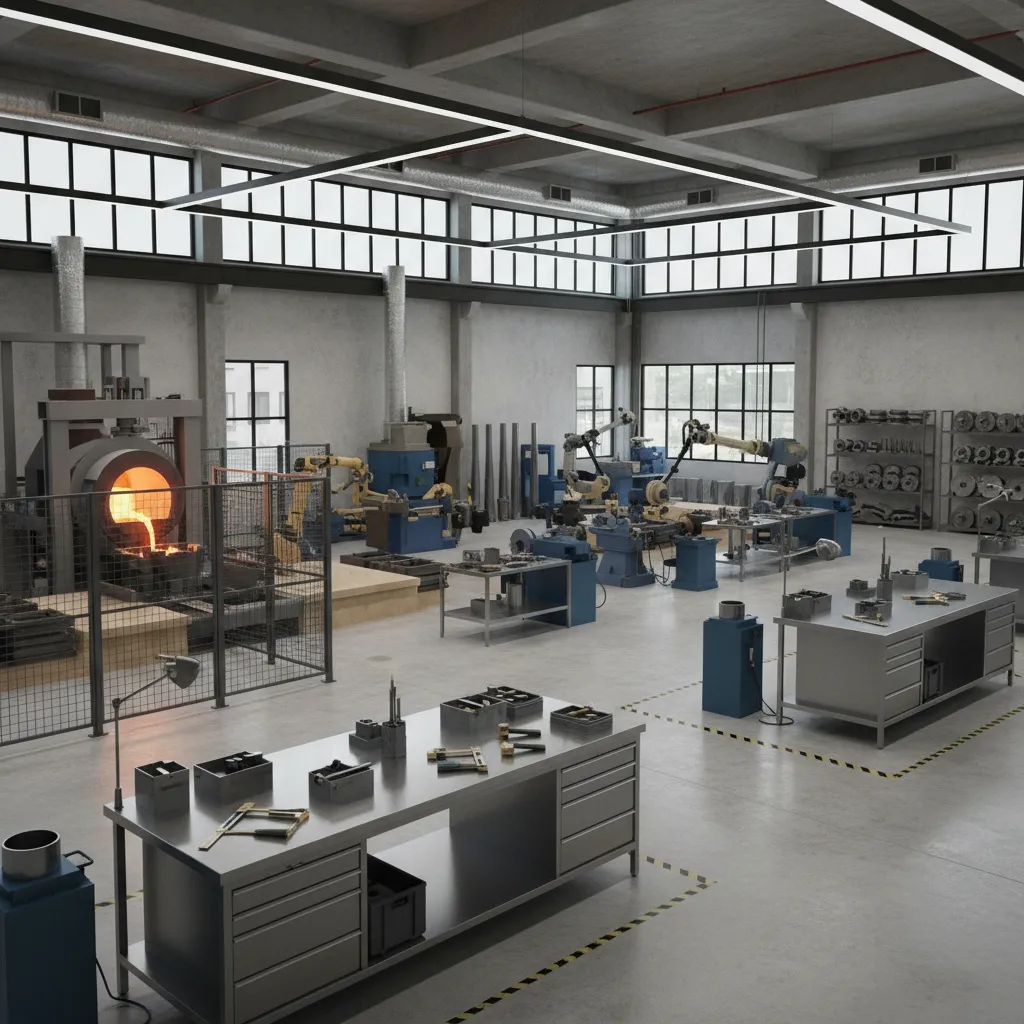

Characteristics of Modern Casting Room Design

Key Insight: Modern casting room layouts prioritize workflow zones instead of rigid workstation sequences.

Instead of locking equipment into permanent positions, modern designs organize the space around functional zones. Each zone supports multiple tasks and allows flexible equipment arrangement.

A typical modern layout includes:

1. Preparation zone
2. Pouring and casting area
3. Cooling and finishing section
4. Storage and material staging area

The biggest benefit is adaptability. Workshops can add tools or rearrange stations without redesigning the entire space.

Many designers now simulate these layouts digitally before construction. Visualizing workflow in advance—such as testing different workstation positions with simple digital floor plan layouts for workshop planning—helps teams reduce renovation risk.

save pin

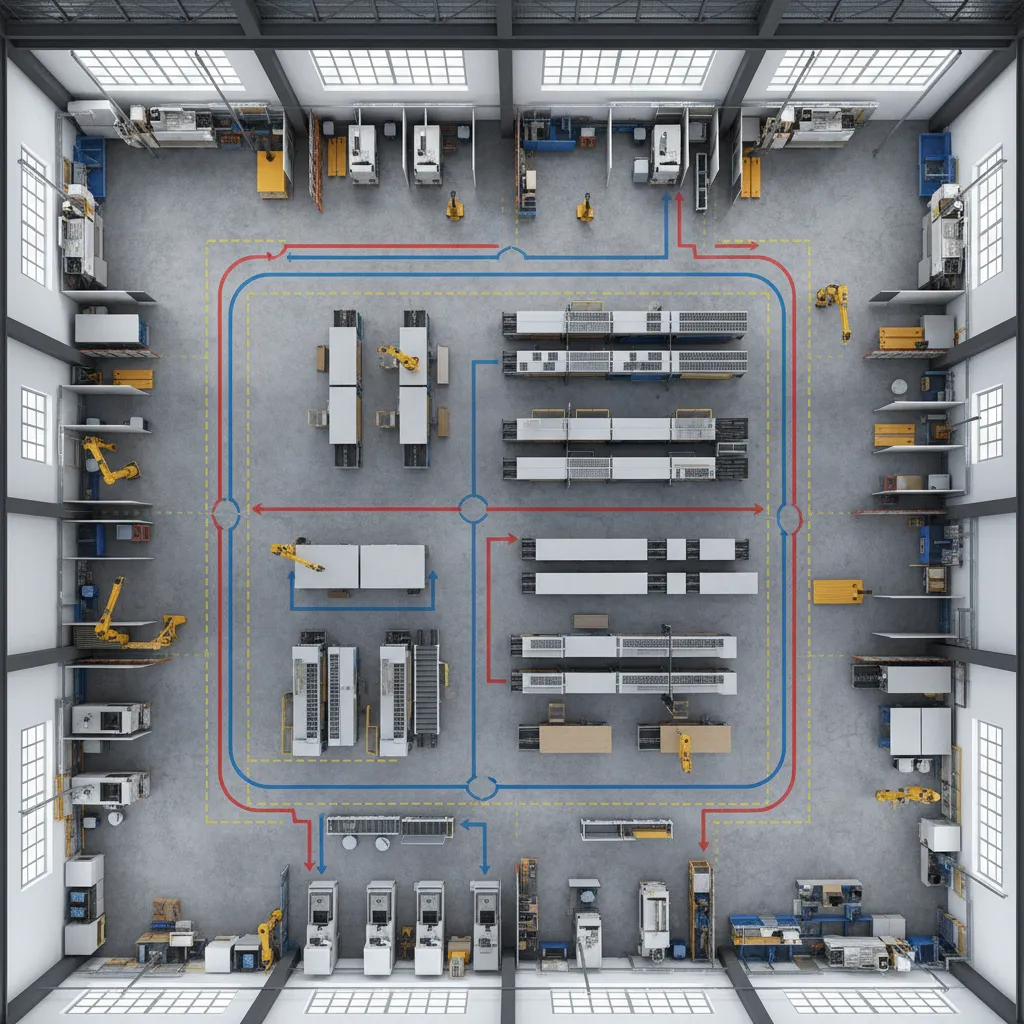

Workflow Efficiency Differences Between Layouts

Key Insight: Modern layouts typically reduce unnecessary movement, which directly improves production efficiency.

One pattern I've noticed repeatedly is that traditional layouts often force workers to cross the room multiple times during a single process cycle.

In contrast, modern layouts focus on minimizing travel distance.

Workflow comparison:

1. Traditional layout: step‑by‑step movement between fixed stations
2. Modern layout: clustered work zones that reduce walking distance

In a mid‑size metal casting workshop renovation we completed in 2023, reorganizing stations into zones reduced operator walking distance by nearly 40%. That translated into measurable production gains within the first month.

However, this efficiency only appears when zoning is carefully planned. Poorly designed "modern" layouts can actually create confusion instead of clarity.

save pin

Space Utilization and Equipment Placement

Key Insight: Modern layouts usually achieve higher space efficiency because they prioritize circulation and shared equipment zones.

Traditional layouts often leave large gaps between stations simply because machines were installed one by one over time.

Modern layouts intentionally manage three spatial elements:

1. Primary work zones
2. Equipment access clearance
3. Material flow paths

Instead of isolating machines, modern layouts often group related tools together. This allows workers to complete multiple tasks without leaving the zone.

In compact workshops, planning these spatial relationships early can make the difference between a cramped room and a highly functional one.

save pin

Answer Box

Modern casting room layouts generally outperform traditional designs in flexibility, workflow efficiency, and space utilization. However, traditional layouts remain effective for stable, repetitive production processes where equipment positions rarely change.

Cost and Renovation Complexity Comparison

Key Insight: Traditional layouts are cheaper to maintain, while modern layouts usually require higher upfront renovation investment.

Renovation costs typically vary in three categories:

1. Equipment relocation
2. Electrical and ventilation adjustments
3. Workflow redesign planning

Traditional upgrades often involve replacing equipment while keeping the same spatial structure.

Modern layout renovations may require:

1. Moving heavy machinery
2. Rebuilding work surfaces
3. Updating ventilation and safety zones

Because of these structural changes, planning the redesign carefully—sometimes even testing ideas using AI‑assisted workspace layout visualization for renovation planning—can prevent expensive trial‑and‑error construction.

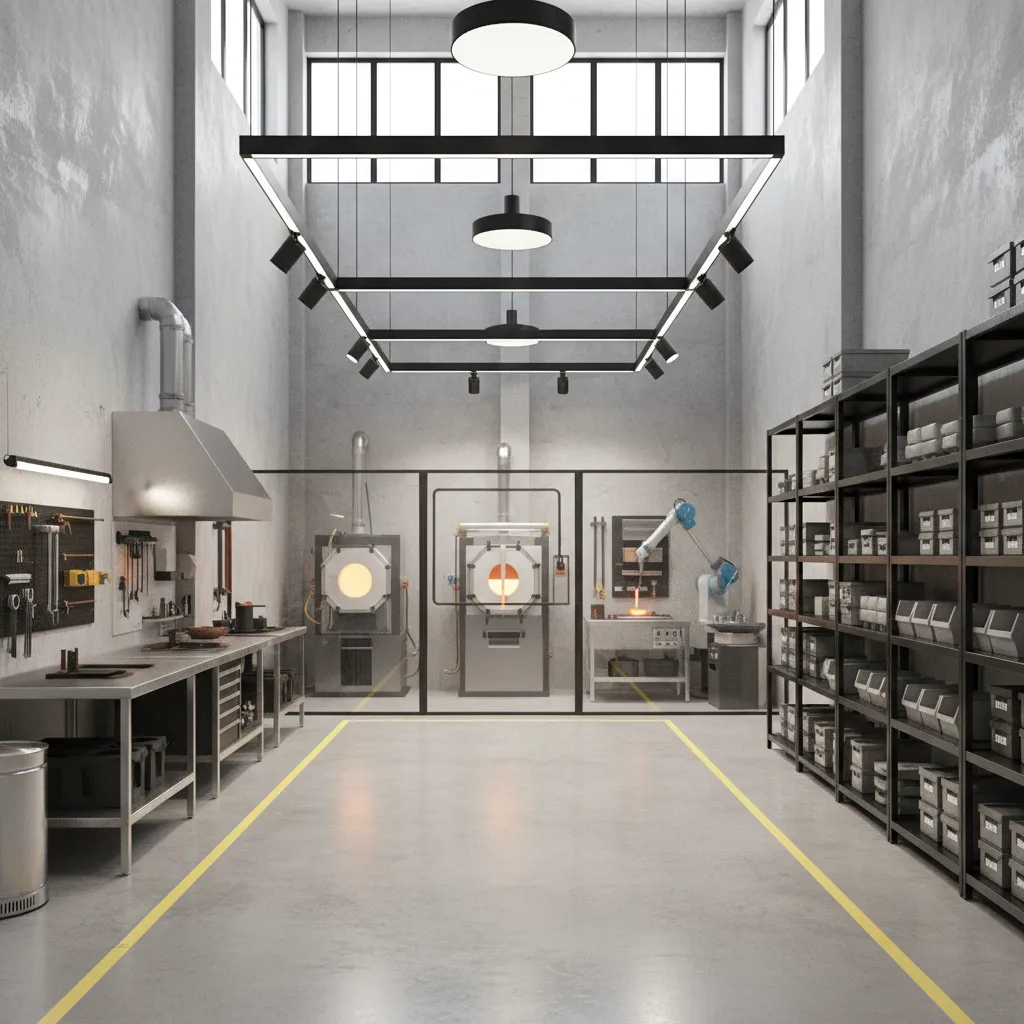

Which Layout Works Best for Small Workshops

Key Insight: Small workshops almost always benefit from modern zoning layouts rather than traditional workstation rows.

When floor space is limited, rigid workstation sequences quickly create congestion. Modern layouts allow overlapping functions and shared equipment areas.

Design priorities for small casting rooms:

1. Flexible work surfaces
2. Compact equipment grouping
3. Clear circulation paths
4. Vertical storage solutions

In several small workshop renovations I've worked on, simply reorganizing stations into zones freed up enough floor space to add additional equipment without expanding the room.

The key takeaway is simple: small spaces need flexibility more than rigid order.

Final Summary

1. Traditional casting room layouts prioritize fixed workflow and stability.
2. Modern layouts emphasize flexible zones and improved movement efficiency.
3. Modern designs typically use space more efficiently in small workshops.
4. Traditional layouts can still work well for stable production systems.
5. Renovation cost and workflow needs should guide the final decision.

FAQ

1. What is the main difference between traditional and modern casting room layouts?

Traditional layouts use fixed workstations arranged in sequence, while modern layouts organize flexible work zones that improve workflow and adaptability.

2. Is a modern casting room layout always better?

Not always. If production processes are stable and repetitive, a traditional casting room layout may remain efficient and easier to maintain.

3. Do modern layouts improve workflow efficiency?

In most cases yes. Zoning reduces unnecessary movement and allows workers to complete multiple tasks within a single area.

4. Are traditional casting rooms cheaper to maintain?

Generally yes. Because equipment positions remain fixed, maintenance and upgrades usually require fewer structural changes.

5. What layout works best for small workshops?

A modern casting workshop layout with flexible zones typically maximizes limited floor space.

6. How much space does a casting room need?

It depends on equipment and workflow, but clear circulation paths and ventilation areas are critical for safety.

7. Can a traditional casting room be upgraded gradually?

Yes. Many workshops transition step‑by‑step by reorganizing stations into zones without full reconstruction.

8. What should be planned first in a casting room renovation?

Start with workflow mapping—understanding material movement and operator paths before relocating equipment.

References

1. Occupational Safety and Health Administration (OSHA) workshop safety guidelines
2. American Foundry Society workspace planning resources
3. Industrial workshop layout optimization studies
