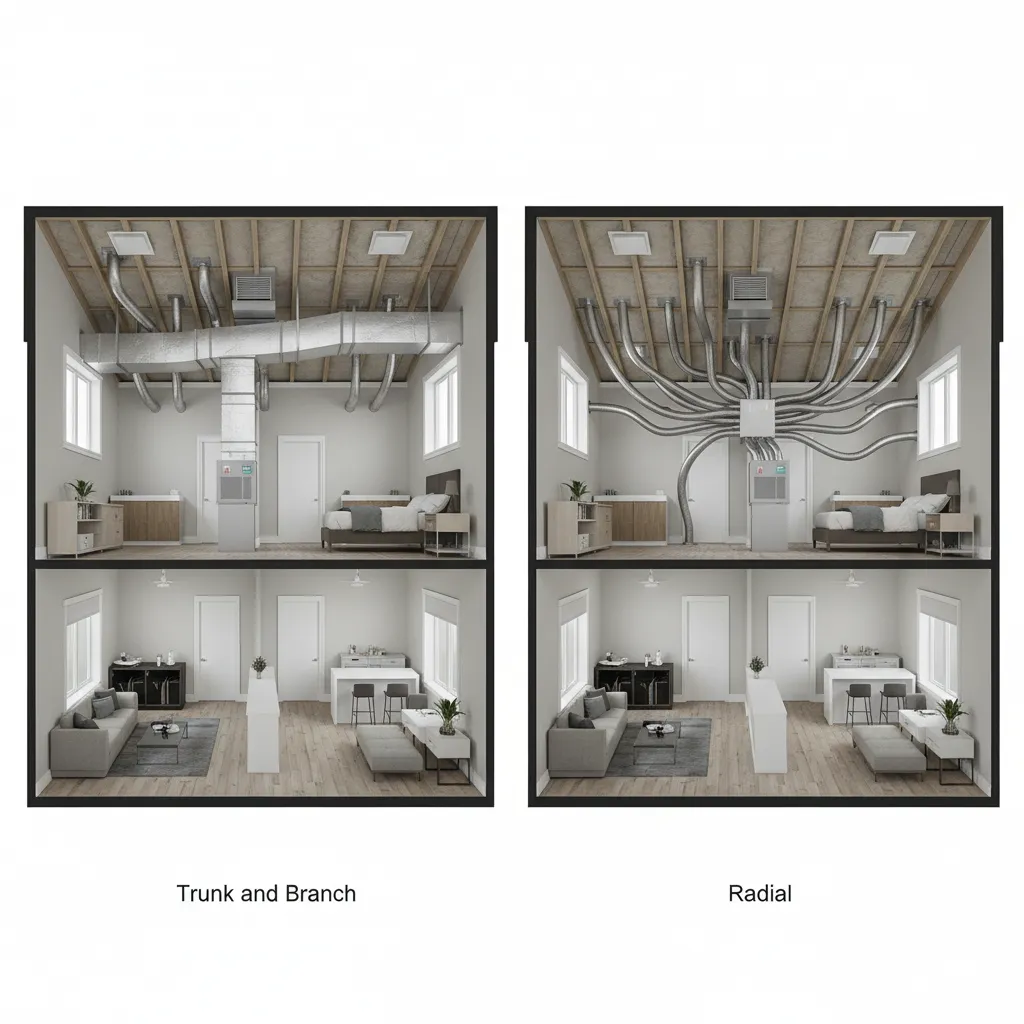

Trunk and Branch vs Radial Ductwork Layout Which Is Better for Homes: Understand airflow performance, installation cost, and real design tradeoffs before choosing a residential duct layout

Direct Answer

When comparing trunk and branch vs radial duct systems, trunk-and-branch is usually better for larger homes or multi-room layouts, while radial ductwork works well in smaller or tightly sealed homes that prioritize balanced airflow. The best duct layout depends on house size, mechanical room location, and how evenly you want air distributed.

Quick Takeaways

1. Trunk-and-branch ductwork is flexible and widely used in medium to large homes.
2. Radial duct systems provide more balanced airflow but require careful planning.
3. Radial layouts often reduce noise because each room has its own duct run.
4. Installation costs are usually higher for radial systems due to additional duct runs.
5. The most efficient system depends more on layout design than the duct type itself.

Introduction

Homeowners comparing trunk and branch vs radial duct system layouts are usually trying to answer a practical question: which one actually delivers better comfort in a real house.

After working on residential HVAC coordination across dozens of remodels and new builds, I've noticed something interesting. The duct layout itself rarely causes problems. Poor planning does. A perfectly designed radial system can perform worse than a well-planned trunk system if the airflow paths aren't considered early in the floor plan.

This is why duct planning should start while the house layout is still flexible. When I work with architects or builders, we often visualize mechanical routes early using tools that help map airflow paths directly onto a 3D home layout. Seeing where trunks, returns, and mechanical rooms sit relative to bedrooms immediately reveals which duct system makes sense.

In this guide I'll break down how trunk-and-branch and radial duct systems actually perform in real homes, where each one shines, and the hidden tradeoffs most comparison articles skip.

save pin

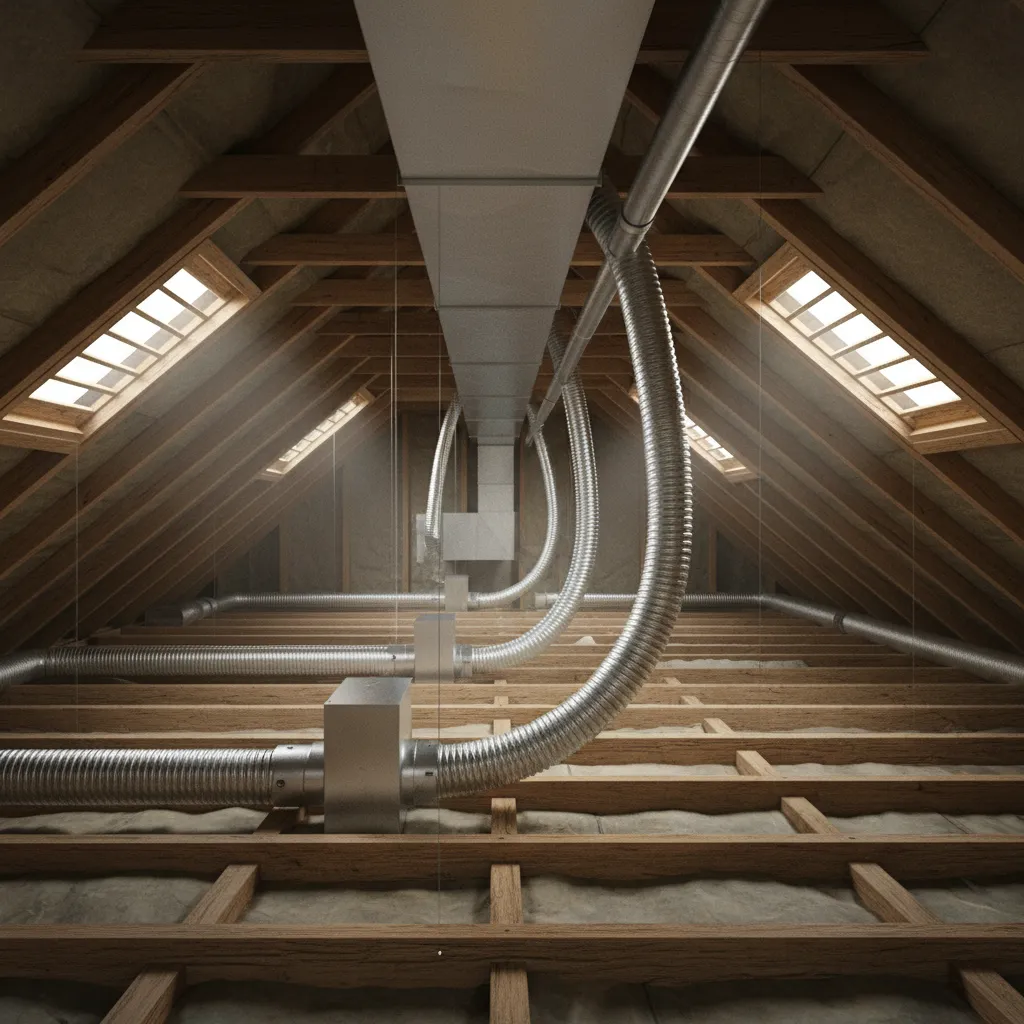

Overview of Residential Duct Layout Systems

Key Insight: Most residential HVAC systems use either trunk-and-branch or radial layouts, but both are simply different strategies for distributing air from the same central equipment.

In both systems, a furnace or air handler pushes conditioned air through supply ducts and pulls air back through return ducts. The difference lies in how the supply air travels from the equipment to each room.

1. Trunk-and-branch: One main trunk duct runs through the house with smaller branches feeding individual rooms.
2. Radial system: Each room receives its own dedicated duct directly from a central plenum.

Think of trunk-and-branch like a highway with exits, while radial ducts resemble spokes on a wheel. Both designs can work well when sized properly, but they behave differently in terms of airflow balance and installation complexity.

According to the ACCA Manual D duct design standard used across North America, airflow performance depends primarily on duct sizing, friction loss, and layout length rather than the layout style itself.

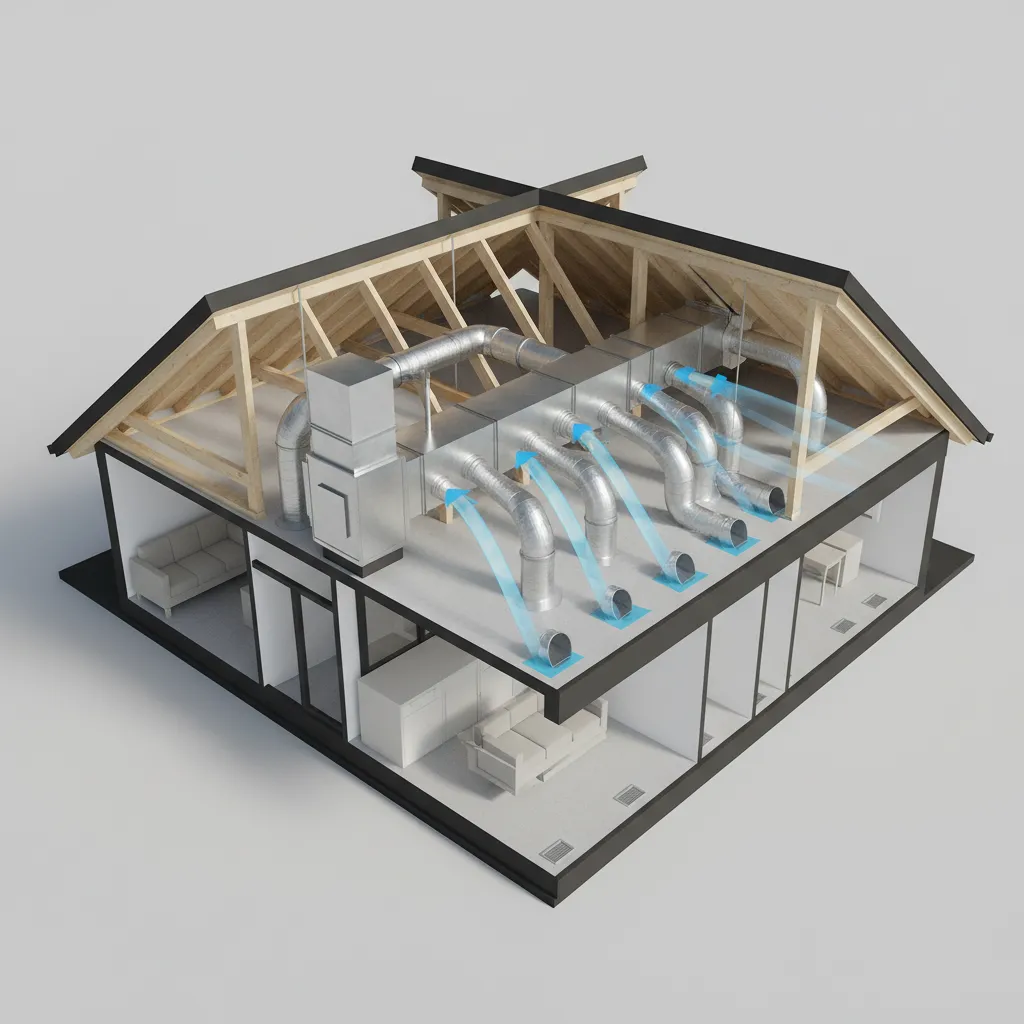

What Is a Trunk-and-Branch Duct System

Key Insight: Trunk-and-branch ductwork prioritizes flexibility and construction efficiency, which is why it remains the most common residential system.

This layout starts with a large rectangular or round trunk duct leaving the air handler. Smaller branch ducts split off along the trunk to deliver air into each room.

Typical structure includes:

1. Main supply trunk running through attic, basement, or crawlspace
2. Branch ducts connecting individual rooms
3. Dampers for airflow balancing
4. Central return ducts

In many of the suburban homes I've worked on, trunk systems are easier to route around structural beams and plumbing lines. Builders also prefer them because they require fewer long duct runs.

Advantages:

1. Lower installation cost
2. Flexible routing during construction
3. Easier to retrofit in existing homes

Common hidden problem:

1. Rooms at the end of the trunk often receive weaker airflow if balancing isn't carefully tuned.

save pin

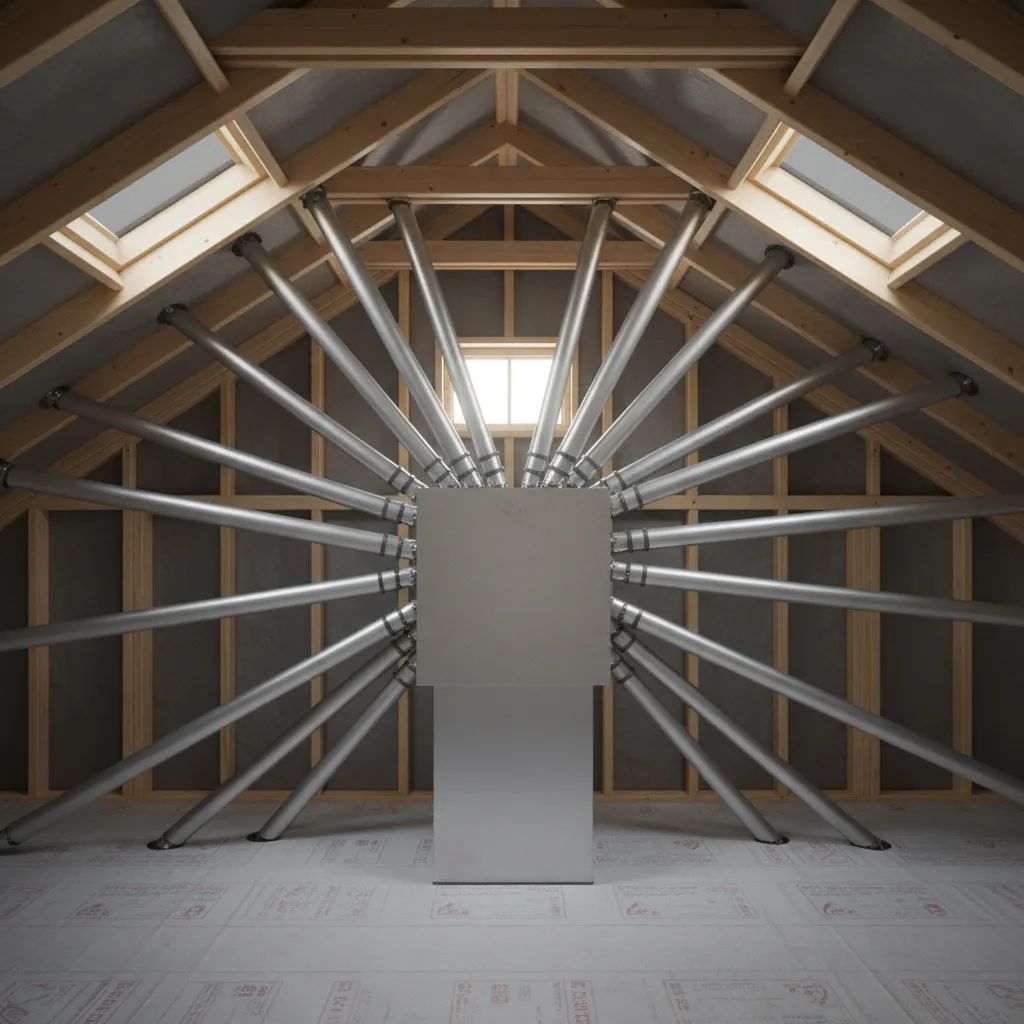

What Is a Radial Duct System

Key Insight: Radial duct systems deliver more consistent airflow because each room receives air through its own dedicated duct run.

Instead of branching off a main trunk, a radial system uses a central supply plenum connected to multiple individual ducts. Each duct runs directly to a room vent.

This approach is common in high-performance homes and modern energy-efficient construction.

Typical components include:

1. Central distribution box or plenum
2. Individual flexible or rigid duct lines
3. Dedicated supply line for each room

Benefits often include:

1. More balanced airflow between rooms
2. Less cross-room pressure interference
3. Reduced airflow noise

However, radial systems require careful layout planning. If the mechanical room sits far from certain rooms, the number of long duct runs increases quickly.

When evaluating layouts, I often sketch duct paths during early planning using tools that help visualize room distribution before HVAC routing begins. This prevents extremely long radial runs that reduce efficiency.

save pin

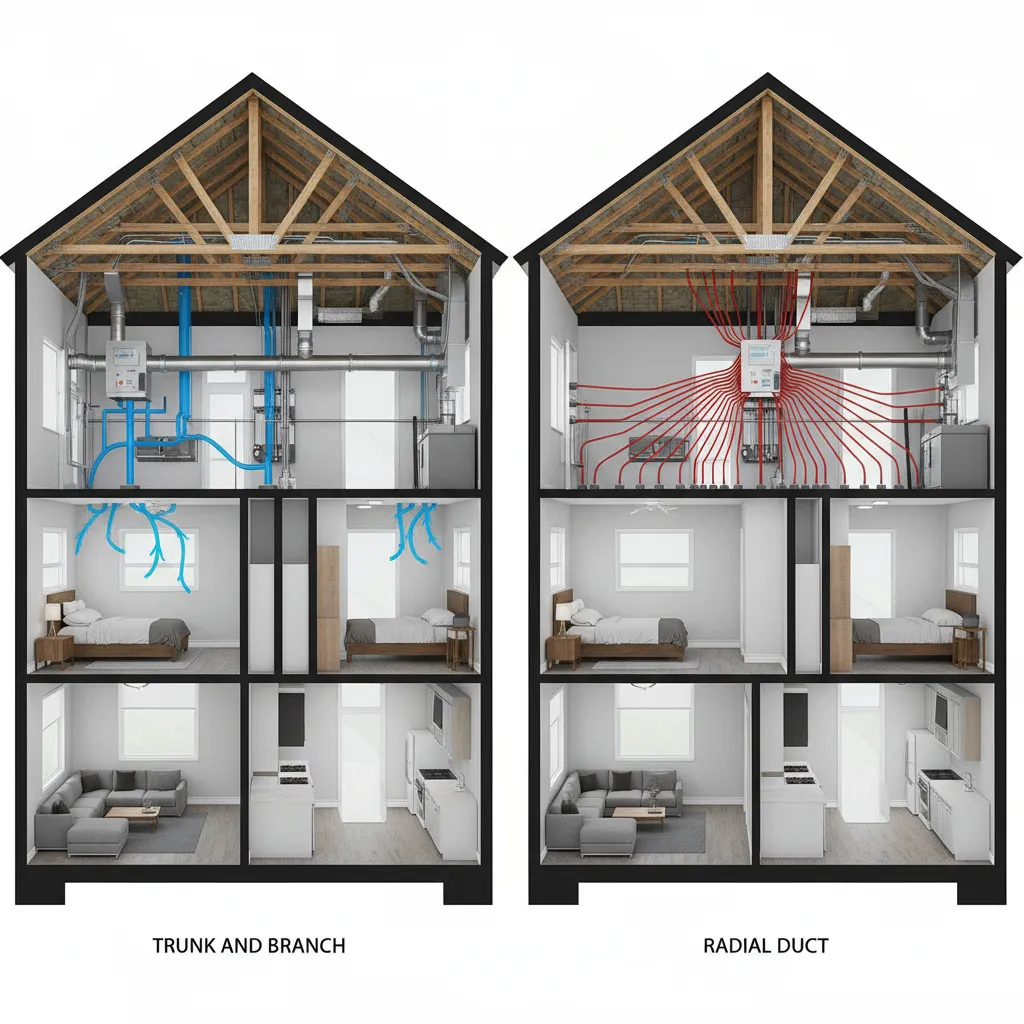

Performance Differences Airflow Noise and Efficiency

Key Insight: Radial systems often deliver better airflow balance, but trunk systems can achieve similar efficiency with proper duct sizing.

The real performance differences show up in three areas.

1. Airflow balance

1. Radial: Each room receives predictable airflow.
2. Trunk: Rooms near the air handler may receive stronger airflow.

2. Noise

1. Radial ducts isolate airflow noise.
2. Trunk systems can transmit sound along the main duct.

3. Energy efficiency

1. Radial ducts often reduce pressure loss.
2. Trunk ducts perform well when sized using Manual D calculations.

Lawrence Berkeley National Laboratory research on residential duct performance shows that duct leakage and insulation typically affect efficiency far more than layout style.

save pin

Installation Cost and Complexity Comparison

Key Insight: Radial systems usually cost more to install because they require more duct material and longer runs.

Typical cost factors include:

1. Total duct length
2. Number of vents
3. Accessibility of attic or crawlspace
4. Labor complexity

General comparison:

1. Trunk-and-branch: fewer ducts, simpler installation.
2. Radial system: more ducts, more labor, cleaner airflow distribution.

One hidden cost many homeowners miss is planning time. Radial systems require careful spacing and routing to avoid duct congestion in ceilings or attic framing.

Which Layout Works Best for Different Home Types

Key Insight: The best duct layout depends more on home size and mechanical placement than on the duct type itself.

Based on projects I've worked on, here are the situations where each layout tends to perform best.

Trunk-and-branch works best for:

1. Larger multi-story homes
2. Homes with long floor plans
3. Retrofits and remodels

Radial duct systems work best for:

1. Compact modern homes
2. High-performance or passive houses
3. Homes with centrally located mechanical rooms

Before deciding, I strongly recommend mapping vents and duct paths against the floor plan first. Many layout mistakes become obvious once you experiment with room layouts and mechanical zones on a digital floor plan.

That step alone often determines which duct system will perform better.

Answer Box

Trunk-and-branch duct systems are typically more affordable and flexible, making them ideal for larger homes. Radial duct systems provide more balanced airflow and quieter operation but require more planning and material.

Final Summary

1. Trunk-and-branch ductwork is the most common residential system.
2. Radial layouts deliver more consistent airflow between rooms.
3. Home size and equipment location determine the best layout.
4. Poor duct sizing causes more problems than layout type.
5. Planning duct routes early improves efficiency dramatically.

FAQ

Is radial ductwork more efficient than trunk and branch?

Not necessarily. Radial systems balance airflow better, but efficiency depends mainly on duct sealing, insulation, and proper sizing.

Which duct system is quieter?

Radial systems are generally quieter because airflow is separated into individual ducts rather than traveling through a shared trunk.

Is trunk and branch ductwork outdated?

No. It remains the most widely used residential duct layout because it is flexible and cost‑effective.

What is the best ductwork layout for residential homes?

The best ductwork layout for residential homes depends on house size, floor plan shape, and where HVAC equipment is located.

Does radial ductwork require more space?

Yes. Multiple ducts must run from the central plenum, which can crowd attic or ceiling spaces.

Can a trunk system deliver balanced airflow?

Yes, if ducts are properly sized and dampers are installed for airflow balancing.

Which system is cheaper to install?

Trunk-and-branch systems usually cost less because they require fewer ducts and simpler routing.

What causes poor airflow in a trunk duct system?

Undersized ducts, excessive length, or poor balancing are the most common causes.
