Turn Your Floor Plan into 3D Designs: Transforming 2D Floor Plans into Stunning 3D Visuals

Direct Answer

To turn your floor plan into 3D designs, you import or redraw the 2D layout in a 3D interior design tool, assign wall heights, add doors and windows, then apply furniture, materials, and lighting. The software converts the flat layout into a realistic spatial model that lets you walk through the design before building or renovating.

Quick Takeaways

1. Most 3D tools convert a 2D floor plan into a model within minutes once walls are traced.
2. Accurate wall height and window placement are critical for realistic 3D results.
3. Furniture scale mistakes are the most common issue beginners face.
4. Lighting simulation dramatically changes how a 3D interior feels.
5. 3D visualization helps avoid costly renovation mistakes.

Introduction

After more than a decade working as an interior designer, one thing I’ve learned is that most people struggle to read a floor plan. Lines on paper don’t easily translate into a real space in your mind. That’s exactly why designers turn a floor plan into 3D designs before construction begins. A good 3D model shows proportion, lighting, circulation, and furniture placement in ways a 2D drawing never can.

In many of my residential projects, clients completely changed layout decisions after seeing the 3D version. Hallways suddenly felt too narrow, sofas looked oversized, or a kitchen island blocked natural light. In this guide I’ll explain how professionals convert a floor plan into 3D designs, which tools work best, and what mistakes people usually miss.

save pin

Why Designers Turn Floor Plans Into 3D Designs Before Building

Key Insight: A 3D model reveals spatial problems that a 2D floor plan hides.

When you look at a flat drawing, your brain fills in the missing dimensions. But in real homes, ceiling height, window placement, and furniture depth all affect how the space feels. Turning a floor plan into 3D designs exposes issues early.

In one Los Angeles renovation project I worked on, the client insisted on a large kitchen island based on the floor plan. Once we converted it into a 3D walkthrough, the circulation path between the island and dining table shrank to less than 30 inches. The design looked fine on paper but completely impractical in reality.

Key advantages of 3D conversion include:

1. Understanding room proportions
2. Testing furniture layouts
3. Previewing natural light
4. Evaluating traffic flow
5. Reducing renovation mistakes

Architectural firms increasingly rely on visualization tools for this reason. According to industry reports from the American Institute of Architects, visualization workflows significantly improve client decision speed during residential projects.

How Do You Convert a Floor Plan Into a 3D Model

Key Insight: The process is mostly about rebuilding walls accurately and then layering design elements.

Even professionals follow a surprisingly simple workflow when converting a floor plan into 3D designs.

Typical workflow:

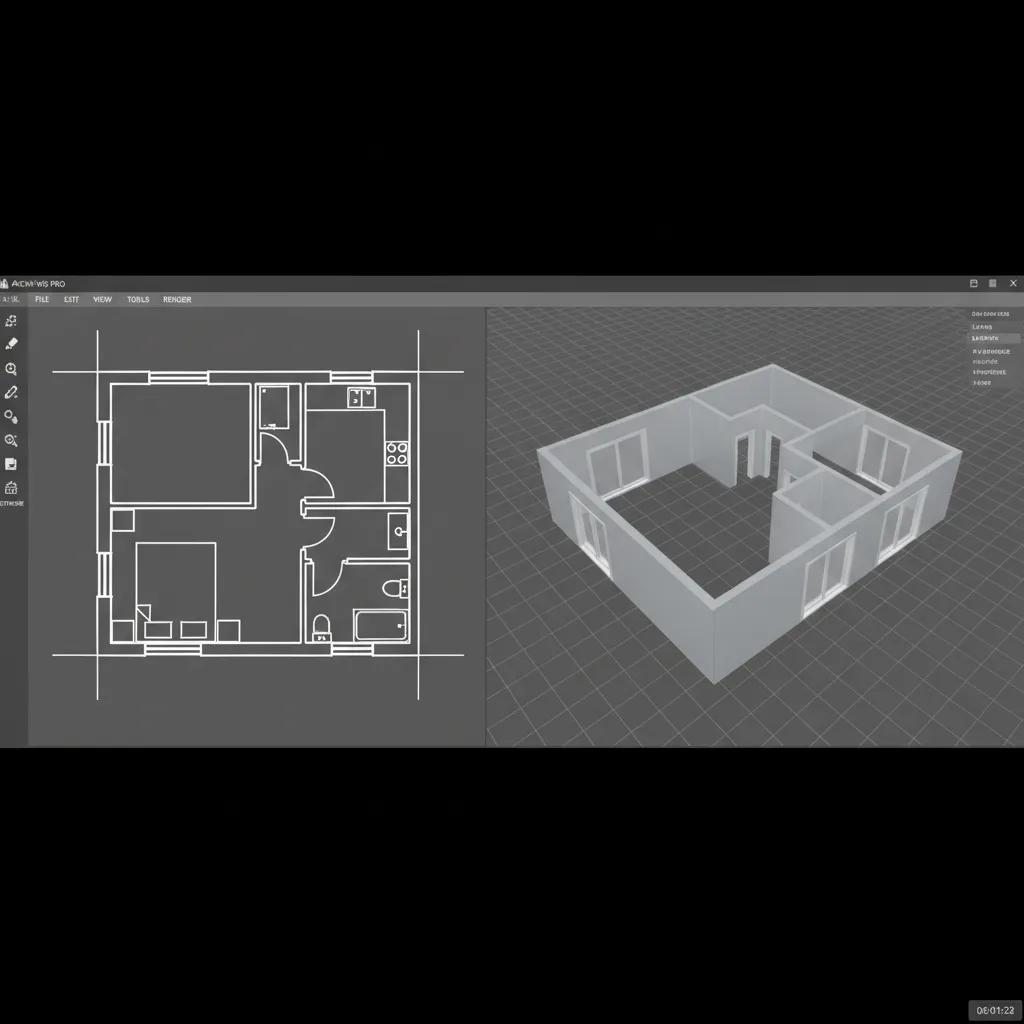

1. Import the floor plan image or CAD drawing.
2. Trace walls using exact dimensions.
3. Set wall height and ceiling structure.
4. Add doors, windows, and openings.
5. Insert furniture and built‑in cabinetry.
6. Apply materials like wood, stone, or paint.
7. Adjust lighting and render the scene.

The biggest mistake beginners make is skipping accurate measurements. If wall thickness or ceiling height is wrong, the entire 3D environment feels unrealistic.

save pin

What Tools Help Turn a Floor Plan Into 3D Designs

Key Insight: The best tool depends on whether you prioritize speed, realism, or professional documentation.

Over the years I’ve tested dozens of visualization tools while working on residential interiors. They generally fall into three categories.

1. Beginner tools – fast learning curve and drag‑and‑drop furniture
2. Interior design platforms – balanced realism and workflow
3. Architectural software – detailed construction modeling

Examples professionals often use:

1. SketchUp for flexible modeling
2. Planner‑style apps for quick layouts
3. Revit for architectural projects
4. Rendering tools for photorealistic output

Interestingly, faster tools often produce clearer design decisions early in a project. Hyper‑realistic rendering matters less during the planning stage than layout clarity.

save pin

Hidden Mistakes People Make When Creating 3D Interiors

Key Insight: Most 3D visualization errors come from scale and lighting assumptions.

When homeowners first turn a floor plan into 3D designs, the model often looks impressive but still feels "off." That usually comes from a few predictable mistakes.

Common hidden problems:

1. Furniture scaled incorrectly
2. Ignoring door swing clearance
3. Overfilling small rooms with decor
4. Using unrealistic lighting brightness
5. Forgetting wall thickness

I’ve seen beautifully rendered rooms that couldn’t physically exist because the furniture dimensions were wrong. Always compare furniture measurements to real manufacturer specifications.

Can 3D Design Actually Save Renovation Costs

Key Insight: Visualizing layouts in 3D often prevents expensive structural changes later.

One overlooked benefit of converting a floor plan into 3D designs is financial. Design mistakes caught before construction are dramatically cheaper than fixing them during renovation.

Examples where 3D models help reduce costs:

1. Adjusting kitchen layout before plumbing installation
2. Correcting cabinet heights before fabrication
3. Identifying blocked windows or sightlines
4. Testing multiple furniture arrangements

In several remodeling projects I’ve managed, a quick 3D simulation avoided re‑ordering cabinetry or moving electrical outlets — changes that can easily cost thousands during construction.

Answer Box

Turning a floor plan into 3D designs allows homeowners and designers to test layouts, lighting, and furniture scale before building. Accurate dimensions and realistic lighting are the two most important factors for believable 3D visualization.

How Professionals Make 3D Designs Look Realistic

Key Insight: Realism comes from lighting, materials, and empty space — not just detailed furniture.

Beginners tend to overfill rooms with objects, assuming more detail equals realism. In professional interior visualization, the opposite is true.

Techniques designers use:

1. Natural light simulation from window direction
2. Real material textures like oak, marble, and linen
3. Soft shadow rendering
4. Balanced empty space around furniture

Architectural visualization studios often spend more time adjusting lighting than modeling objects. Light defines mood, depth, and realism.

save pin

Final Summary

1. 3D visualization makes floor plans easier to understand.
2. Accurate dimensions are essential for believable models.
3. Lighting and materials create realism in interior renders.
4. 3D models often prevent expensive renovation mistakes.
5. Even simple tools can produce useful spatial previews.

FAQ

1. What is the easiest way to turn a floor plan into 3D designs?

Import the floor plan into a home design app and trace the walls. Most tools automatically generate the 3D model once wall height is defined.

2. Do architects always convert floor plans into 3D?

Many modern architecture and interior design firms create 3D visualizations because clients understand spatial layouts more easily.

3. Can beginners create 3D interior designs?

Yes. Many design tools offer drag‑and‑drop furniture libraries that make it easy for beginners to visualize spaces.

4. How long does it take to turn a floor plan into 3D designs?

A simple apartment model can take 30–60 minutes. Detailed houses may require several hours depending on materials and furniture.

5. Do I need exact measurements?

Yes. Accurate measurements are essential when converting a floor plan into 3D designs because scale errors quickly distort the space.

6. What file types work best for importing floor plans?

CAD files, PDFs, and high‑resolution images are commonly used as references for tracing walls.

7. Are 3D floor plan tools free?

Some platforms offer free versions, though advanced rendering features usually require a subscription.

8. Why does my 3D room look unrealistic?

The most common causes are incorrect lighting, unrealistic furniture scale, or overly cluttered layouts.
