Ultimate Shower Floor Plan Creator: Design Your Perfect Shower Space with Ease

Direct Answer

A shower floor plan creator is a planning method or digital tool used to design the size, slope, drain placement, and layout of a shower area before construction. The goal is to ensure proper drainage, comfortable movement, and efficient use of bathroom space.

In professional bathroom design, the shower floor plan determines how water flows, how large the shower feels, and whether the space will age well over time.

Quick Takeaways

1. A well designed shower floor plan improves drainage and prevents long term water damage.
2. Drain placement affects tile layout, slope direction, and cleaning difficulty.
3. Curbless showers require different floor planning than traditional enclosed showers.
4. Most homeowners underestimate the space needed for comfortable movement.
5. Planning the shower floor early prevents costly plumbing adjustments later.

Introduction

After working on residential bathroom projects for more than a decade, I can say one thing clearly: most bathroom problems start with a poor shower floor plan. People obsess over tile colors and fixtures, but the actual layout of the shower floor often gets decided far too late.

A good shower floor plan creator process helps you decide where the drain goes, how the floor slopes, and how much space the shower truly needs. When these decisions happen early, the bathroom feels larger, drains better, and stays easier to maintain for years.

In this guide, I’ll walk through the practical decisions designers make when creating a shower floor plan, including several mistakes I repeatedly see homeowners make during remodels.

save pin

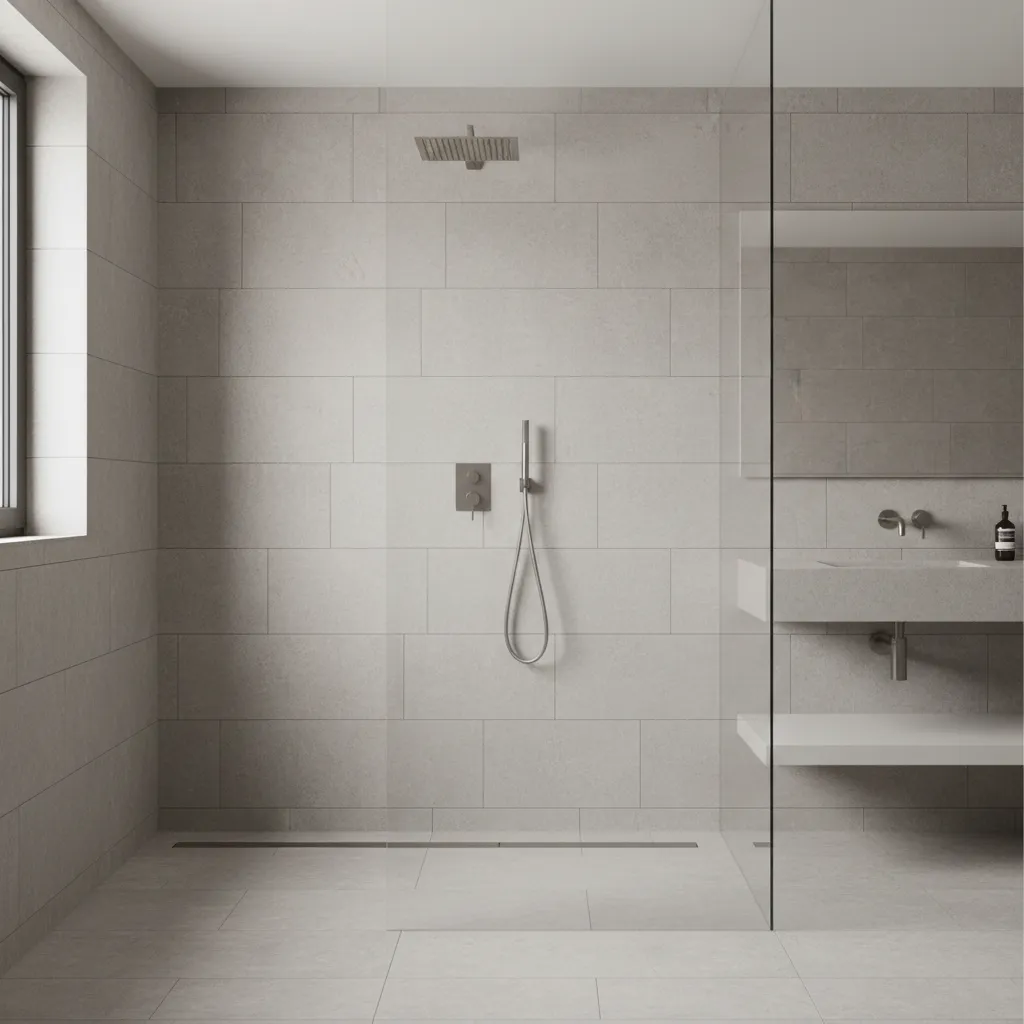

What Is a Shower Floor Plan Creator and Why Does It Matter

Key Insight: The shower floor plan determines how water moves, how safe the space feels, and how large the shower appears.

In simple terms, a shower floor plan creator is any method used to map the layout of the shower base before construction. That can be a digital planning tool, a floor sketch, or professional bathroom design software.

But the real value isn't the drawing itself. It’s the decisions behind it.

Key elements included in a proper shower floor plan:

1. Drain location
2. Shower footprint size
3. Slope direction
4. Entry location
5. Glass or wall boundaries
6. Tile grid alignment

According to the National Kitchen and Bath Association planning guidelines, proper drainage slope should be about 1/4 inch per foot toward the drain. When this isn’t accounted for in the floor plan stage, installers often compensate later with uneven tile lines.

I’ve seen beautiful bathrooms ruined by something as simple as a poorly positioned center drain.

How Big Should a Shower Floor Be for Comfort

Key Insight: Most homeowners underestimate the minimum comfortable shower floor size.

Building codes typically allow showers as small as 30 by 30 inches. In practice, that size almost always feels cramped.

From my project experience, these sizes work much better:

1. 36 by 36 inches — acceptable minimum
2. 42 by 42 inches — noticeably more comfortable
3. 48 by 36 inches — ideal for most bathrooms
4. 60 by 36 inches — luxury walk in shower

One hidden issue rarely discussed online is shoulder clearance. When users turn or bend, small showers feel restrictive even if they technically meet code.

save pin

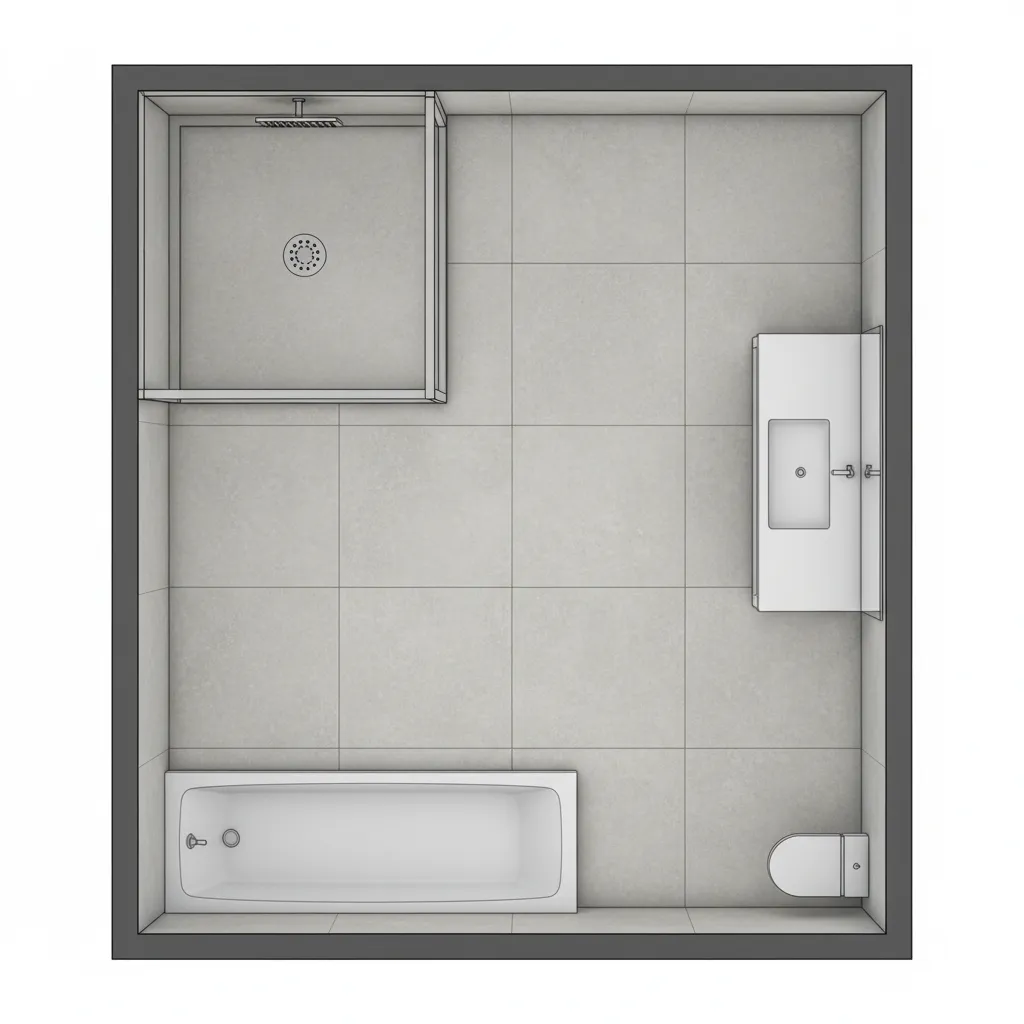

Where Should the Shower Drain Be Placed

Key Insight: Drain location affects tile installation complexity, maintenance, and visual symmetry.

There are three common drain placement strategies designers use.

1. Center drain

1. Traditional solution
2. Requires four directional slopes
3. Works best with small tiles or mosaics

2. Linear drain along wall

1. Allows single slope floor
2. Works with large format tiles
3. Popular for curbless showers

3. Offset drain

1. Useful in remodels
2. Reduces plumbing relocation
3. Requires careful slope planning

Many homeowners choose drains based only on appearance. In reality, installation complexity can vary significantly depending on tile size and slope direction.

save pin

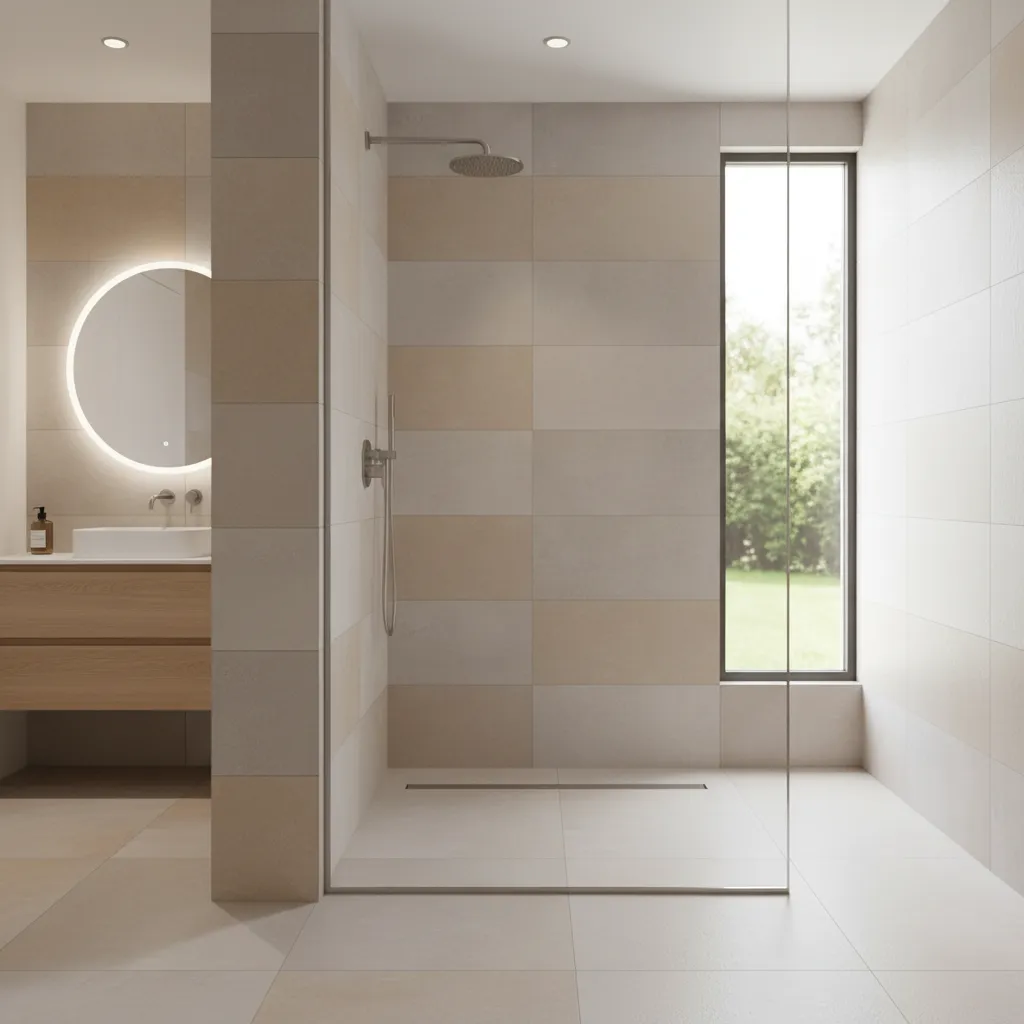

Can a Shower Floor Plan Make a Small Bathroom Feel Bigger

Key Insight: The right shower layout can visually expand a small bathroom without changing its footprint.

In small bathrooms, layout decisions matter more than finishes.

Three layout strategies I frequently recommend:

1. Corner walk in showers with glass panels

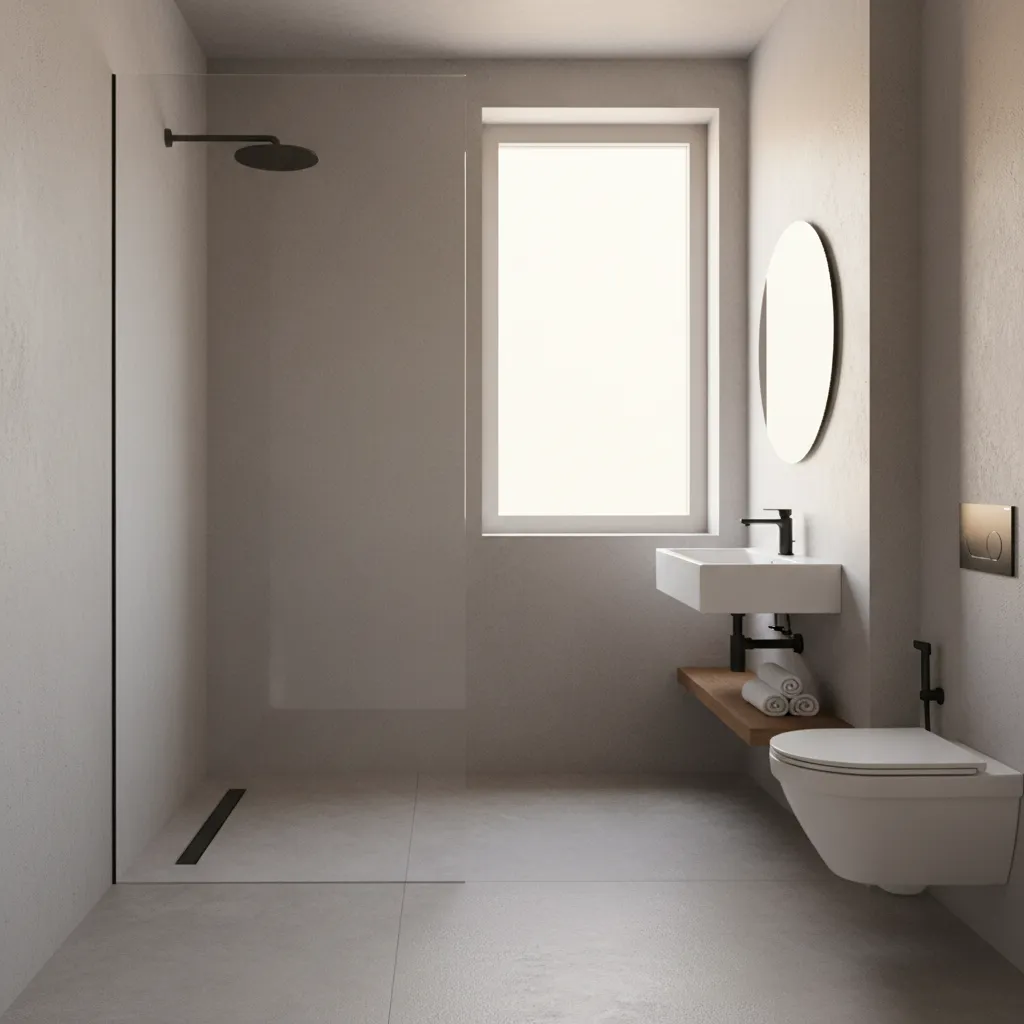

2. Curbless shower floors extending into the room

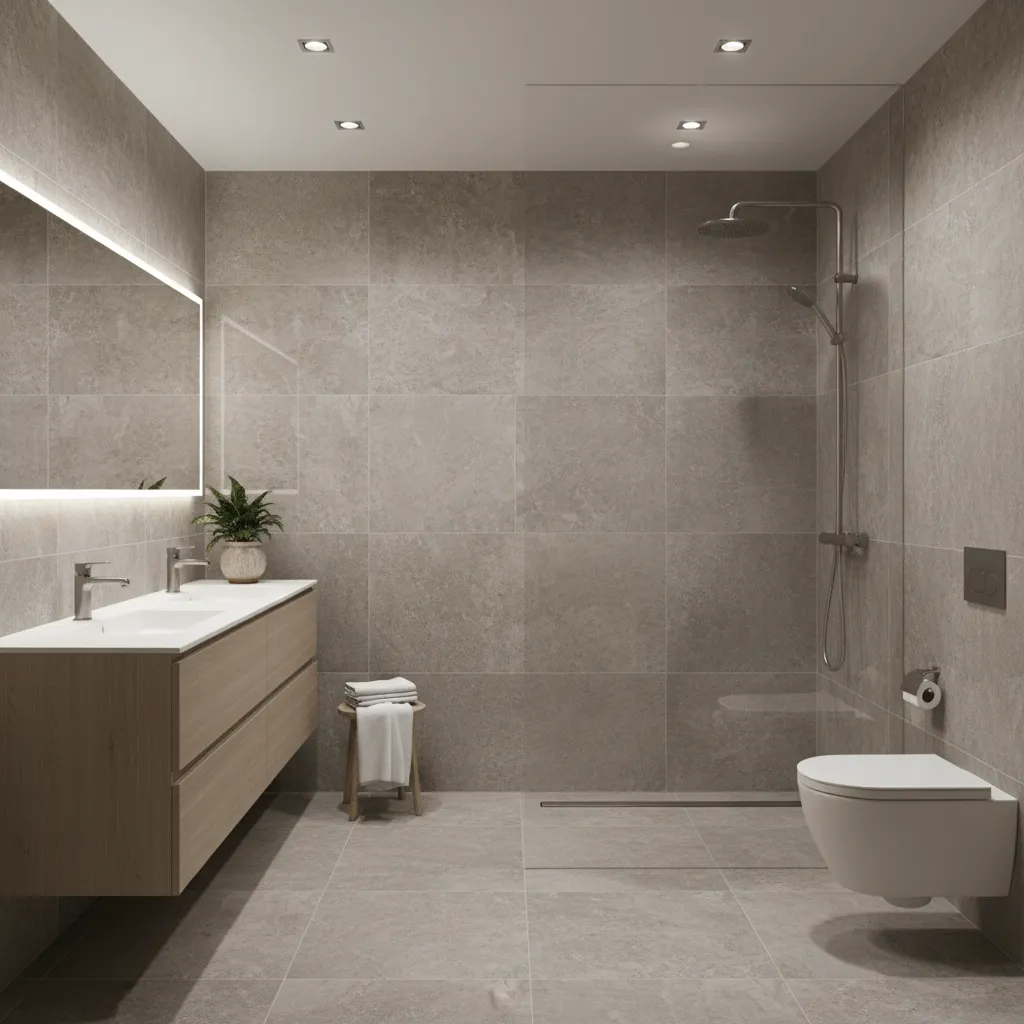

3. Linear drains that allow large continuous floor tiles

Large continuous tile across the bathroom floor and shower area creates visual continuity. That trick alone can make a 50 square foot bathroom feel significantly larger.

save pin

Hidden Mistakes Most Shower Floor Plans Ignore

Key Insight: The biggest shower floor problems come from details most guides never mention.

Here are mistakes I see repeatedly in real projects.

Common overlooked issues:

1. Incorrect slope direction toward glass panels
2. Drain placed under foot traffic path
3. Tile size incompatible with slope geometry
4. Insufficient waterproofing transition at bathroom floor
5. Door swing interfering with shower entry

One example from a Los Angeles remodel: the original plan placed the drain directly where users stand under the shower head. Over time, soap buildup made the drain uncomfortable to step on. A small 12 inch shift would have solved it.

How Professionals Design Shower Floor Plans

Key Insight: Designers start with plumbing constraints and user movement before choosing finishes.

Here is the simplified process I follow when designing a shower floor.

Step by step planning method:

1. Map existing plumbing locations
2. Define shower footprint
3. Select drain type
4. Determine slope direction
5. Align tile layout with slope
6. Plan entry and glass placement

This order matters. When homeowners reverse it and start with tile patterns or Pinterest inspiration, layouts often become impractical.

Answer Box

A shower floor plan creator helps designers determine the shower size, drain placement, and floor slope before construction begins. Proper planning improves drainage, prevents waterproofing issues, and makes the shower more comfortable to use.

Final Summary

1. A shower floor plan determines drainage performance and long term maintenance.
2. Comfortable showers usually start at 36 by 36 inches or larger.
3. Linear drains simplify slope design and work well with large tiles.
4. Small layout changes can significantly improve bathroom usability.
5. Planning the shower floor early prevents costly renovation mistakes.

FAQ

What is a shower floor plan creator?

A shower floor plan creator is a planning method or tool used to design the size, slope, and drain placement of a shower before construction.

What is the ideal shower floor size?

Most designers recommend at least 36 by 36 inches, while 48 by 36 inches provides noticeably better comfort and movement.

Where should a shower drain be placed?

Drain placement depends on tile size and slope design. Linear drains along the wall are increasingly popular for modern showers.

Can I design a shower floor plan myself?

Yes, but you must account for slope, waterproofing layers, and plumbing access. Many homeowners underestimate these factors.

Is a linear drain better than a center drain?

Linear drains allow a single slope floor and work well with large tiles, while center drains require four directional slopes.

What tile size works best for shower floors?

Small mosaic tiles adapt better to slopes, while large tiles usually require linear drains.

Do curbless showers need a different floor plan?

Yes. Curbless showers require precise slope design and often use linear drains to control water flow.

Why does shower floor planning matter so much?

A well designed shower floor plan prevents water pooling, improves safety, and makes cleaning easier over time.
