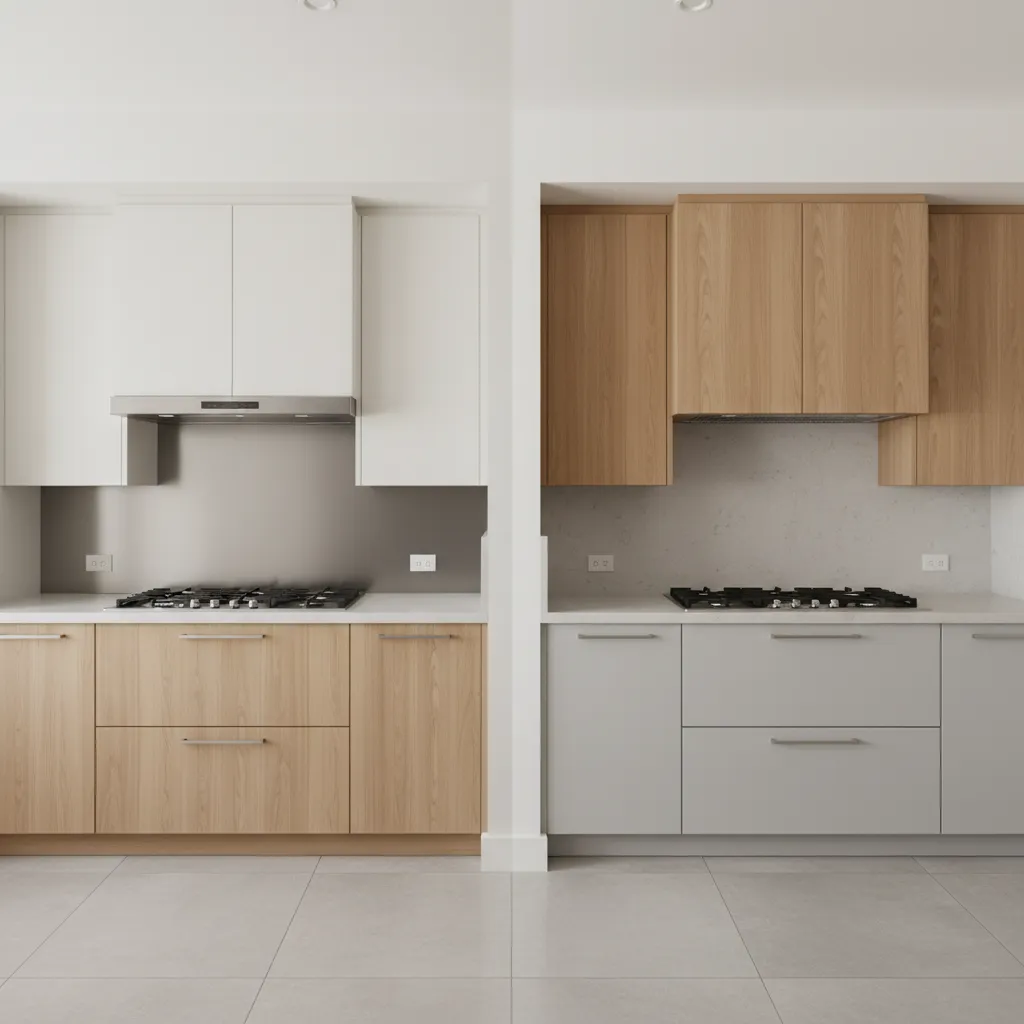

Under Cabinet vs Insert Range Hood Cabinets Design and Performance Comparison: Understand how cabinet structure, airflow, and installation differences affect kitchen ventilation and long term usability.

Direct Answer

Under-cabinet range hood cabinets mount a complete hood unit beneath a standard wall cabinet, while insert range hood cabinets hide a blower insert inside a custom-built hood enclosure. The main difference lies in cabinet construction, airflow routing, and visual integration with the kitchen design.

Under-cabinet models are simpler and cheaper to install, while insert hood cabinets deliver stronger ventilation and a more seamless built-in appearance.

Quick Takeaways

1. Under-cabinet hoods attach to the bottom of a cabinet and are easier to install.
2. Insert range hoods sit inside custom cabinetry and create a seamless built-in look.
3. Insert systems usually allow stronger blowers and better airflow paths.
4. Under-cabinet designs are typically more affordable and quicker to retrofit.
5. Kitchen layout and cabinet depth often determine which option works best.

Introduction

When homeowners ask me about kitchen ventilation, the question that comes up surprisingly often is the difference between an under cabinet vs insert range hood cabinet. On paper they sound similar, but after working on dozens of kitchen remodels across Los Angeles, I can tell you they behave very differently once installed.

The confusion usually starts during cabinet planning. Many people assume the hood itself is the decision, when in reality the cabinet structure around the hood affects airflow, installation cost, and even long-term maintenance.

I have seen beautiful kitchens end up with weak ventilation simply because the cabinet type restricted airflow. I have also seen homeowners overspend on custom inserts when a simple under-cabinet hood would have worked perfectly.

If you are still planning your layout, it helps to visualize how ventilation integrates with cabinetry early. Tools that help you experiment with different kitchen layout configurations before constructioncan reveal where hood size and cabinet depth start to matter.

In this guide, I'll break down the real differences between these two cabinet styles—from structure and airflow to cost and maintenance—based on what actually works in real kitchens.

save pin

Overview of Under-Cabinet and Insert Range Hood Cabinets

Key Insight: Under-cabinet hoods prioritize simplicity and cost efficiency, while insert hood cabinets prioritize design integration and ventilation power.

Both solutions remove smoke, grease, and cooking odors, but they approach the job from different architectural directions.

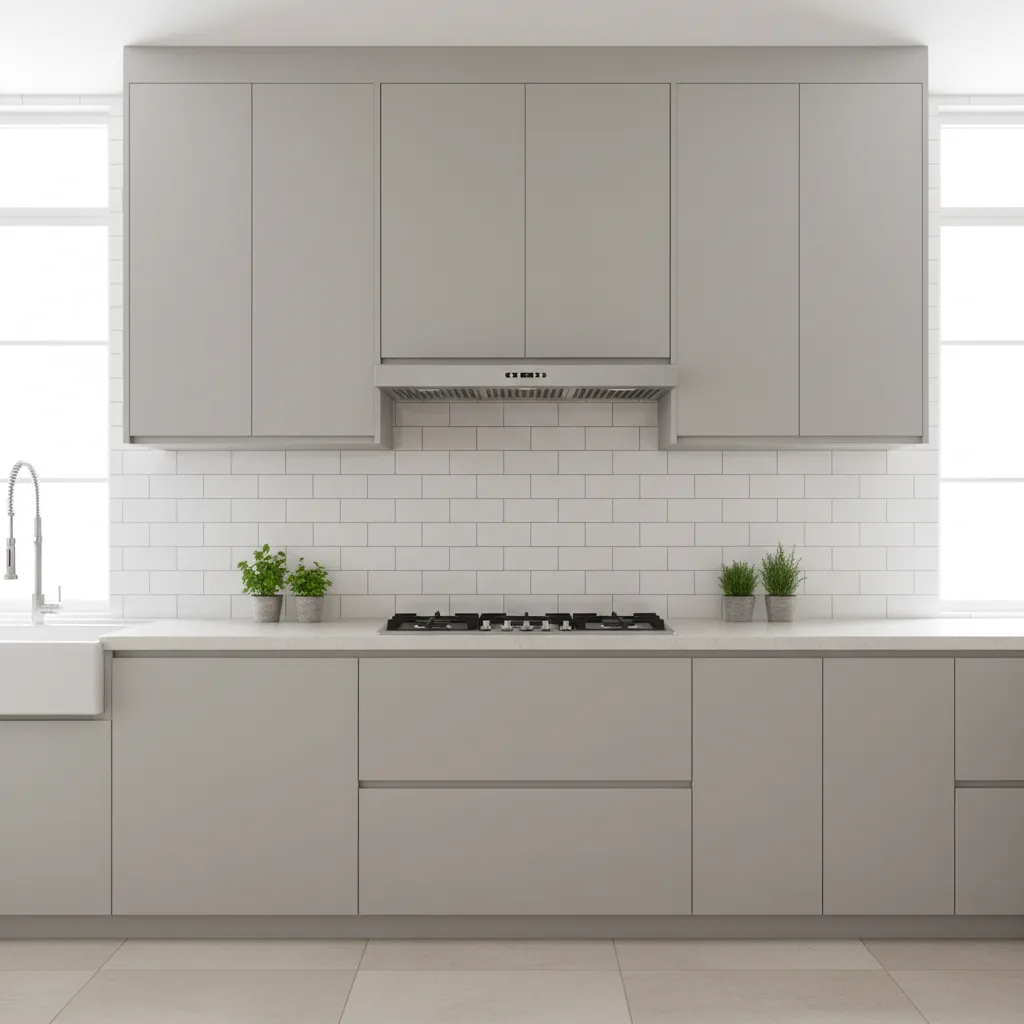

An under-cabinet range hood is a self-contained appliance mounted directly beneath a wall cabinet. The cabinet itself remains mostly standard, which keeps installation simple.

An insert range hood, on the other hand, is only the internal ventilation component. The blower and filters sit inside a custom-built hood enclosure or decorative cabinet structure.

Typical configuration differences:

1. Under-cabinet hood: Appliance mounted under a standard cabinet.
2. Insert hood: Ventilation insert mounted inside a custom hood box.
3. Cabinet modification: Minimal for under-cabinet, structural for insert.
4. Visual impact: Appliance visible vs concealed.

According to the National Kitchen and Bath Association (NKBA), built-in hood enclosures have become increasingly popular in custom kitchens because they allow designers to align ventilation with cabinetry aesthetics.

Structural Differences in Cabinet Construction

Key Insight: The biggest difference between under cabinet vs insert range hood cabinet setups is how the cabinet itself is built.

Under-cabinet installations rely on standard wall cabinets with a cutout for ducting. The hood attaches directly to the cabinet base or wall.

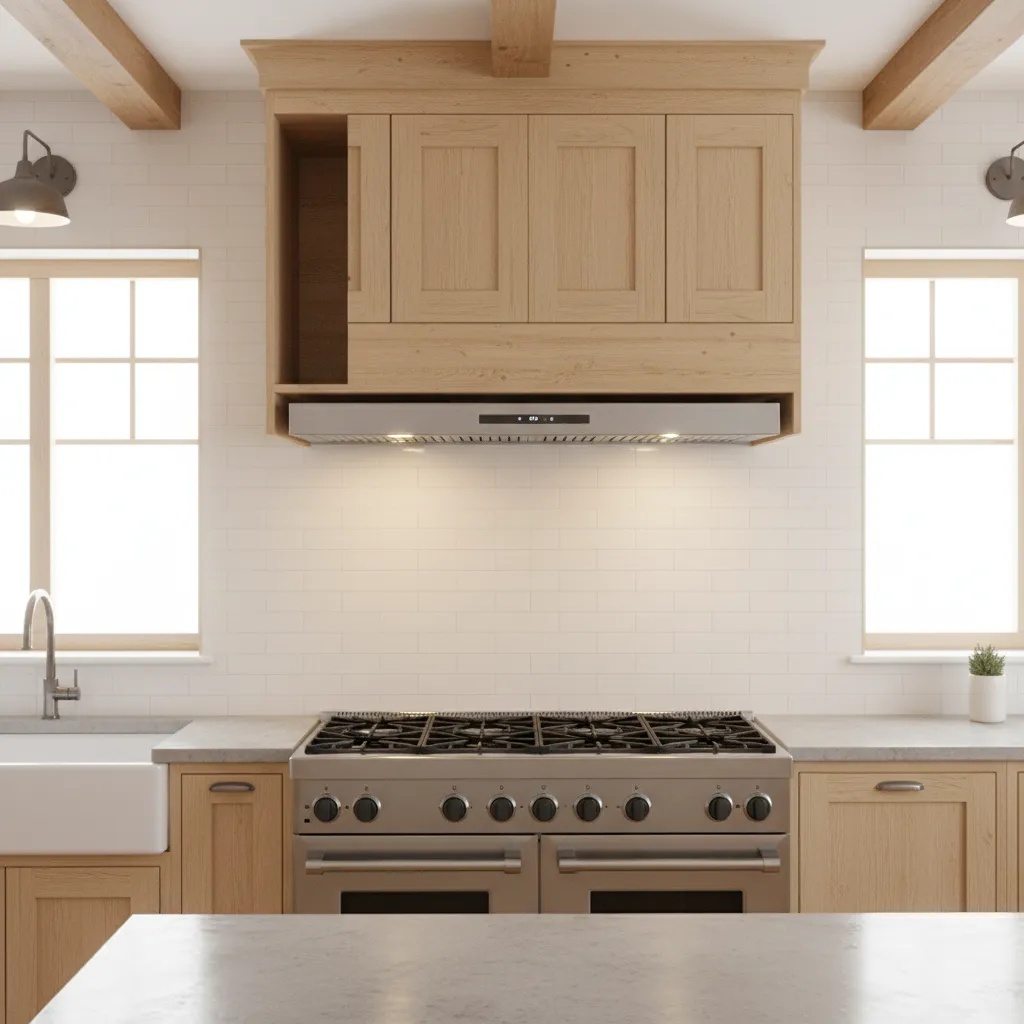

Insert hood cabinets require a reinforced enclosure designed specifically to house the ventilation insert and blower.

Typical structural comparison:

1. Under-cabinet cabinet depth: usually 12–15 inches
2. Insert hood enclosure depth: often 18–24 inches
3. Support structure: insert hoods need internal framing
4. Front profile: under-cabinet hoods remain visible

A common mistake I see is designers choosing an insert hood without increasing cabinet depth. When the enclosure is too shallow, airflow becomes restricted and grease capture suffers.

save pin

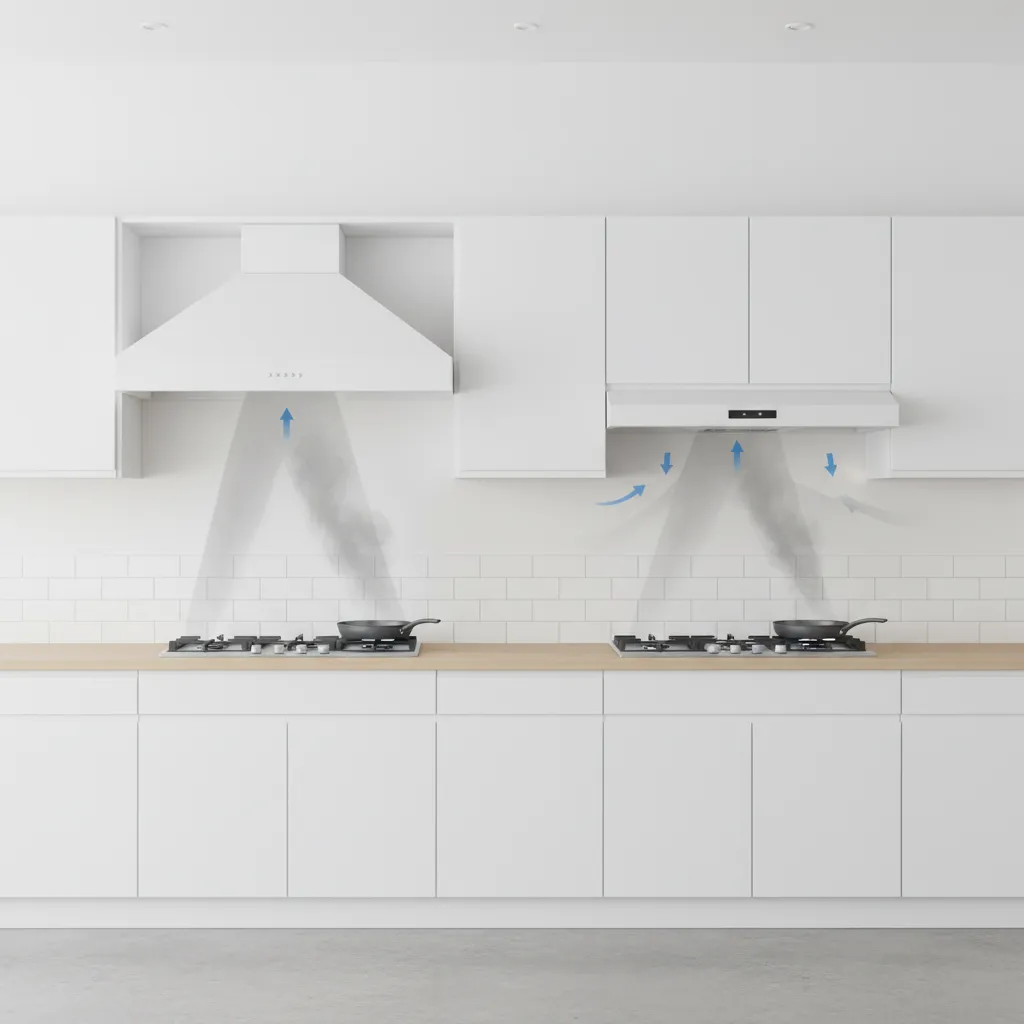

Ventilation Efficiency and Airflow Path Comparison

Key Insight: Insert hood cabinets often achieve better airflow because they allow larger capture areas and more direct duct routing.

Ventilation performance is influenced by three factors:

1. Capture area above the cooktop
2. Fan power (CFM rating)
3. Duct path resistance

Insert hood systems typically extend beyond the cooking surface, creating a larger capture zone. This makes a noticeable difference when cooking with high heat.

Under-cabinet models can still perform well, but they rely on compact fan assemblies and tighter duct space.

Real-world comparison from kitchen installations:

1. Under-cabinet hoods: commonly 250–400 CFM
2. Insert hood systems: commonly 400–900 CFM
3. Capture area: insert designs often extend 1–3 inches further

If you want to test airflow coverage visually, it helps to preview ventilation placement with a realistic 3D kitchen rendering before finalizing cabinetry dimensions.

Answer Box

Insert range hood cabinets generally deliver stronger ventilation and cleaner visual integration. Under-cabinet range hoods remain the most practical option for budget remodels and standard cabinet layouts.

Installation Complexity and Cost Factors

Key Insight: Insert hood cabinets cost more mainly because the cabinet structure becomes part of the ventilation system.

Under-cabinet installations are straightforward. Most installers can mount the hood, connect ducting, and finish the job in a few hours.

Insert hoods require additional carpentry work, which increases labor and planning complexity.

Typical cost considerations:

1. Under-cabinet hood unit: $150–$900
2. Insert hood insert: $300–$1,500+
3. Custom hood enclosure: $500–$2,500 depending on materials
4. Installation labor: higher for inserts due to cabinet modification

Hidden cost many homeowners miss: duct routing. Insert hood designs often require larger duct diameters to support higher airflow.

Best Kitchen Layouts for Each Hood Cabinet Type

Key Insight: Kitchen layout often determines which cabinet style will perform best.

Through years of kitchen remodel projects, I have noticed predictable patterns in where each option works best.

Under-cabinet hoods work well for:

1. Small kitchens
2. Apartment renovations
3. Standard 12-inch wall cabinets
4. Quick remodel projects

Insert hood cabinets work best for:

1. Large kitchens
2. High-output gas ranges
3. Custom cabinetry
4. Statement hood designs

Designers often mock up cabinet volumes early to confirm proportions. If you want to explore variations quickly, you can generate multiple kitchen cabinet concepts and hood styles automaticallybefore committing to millwork.

save pin

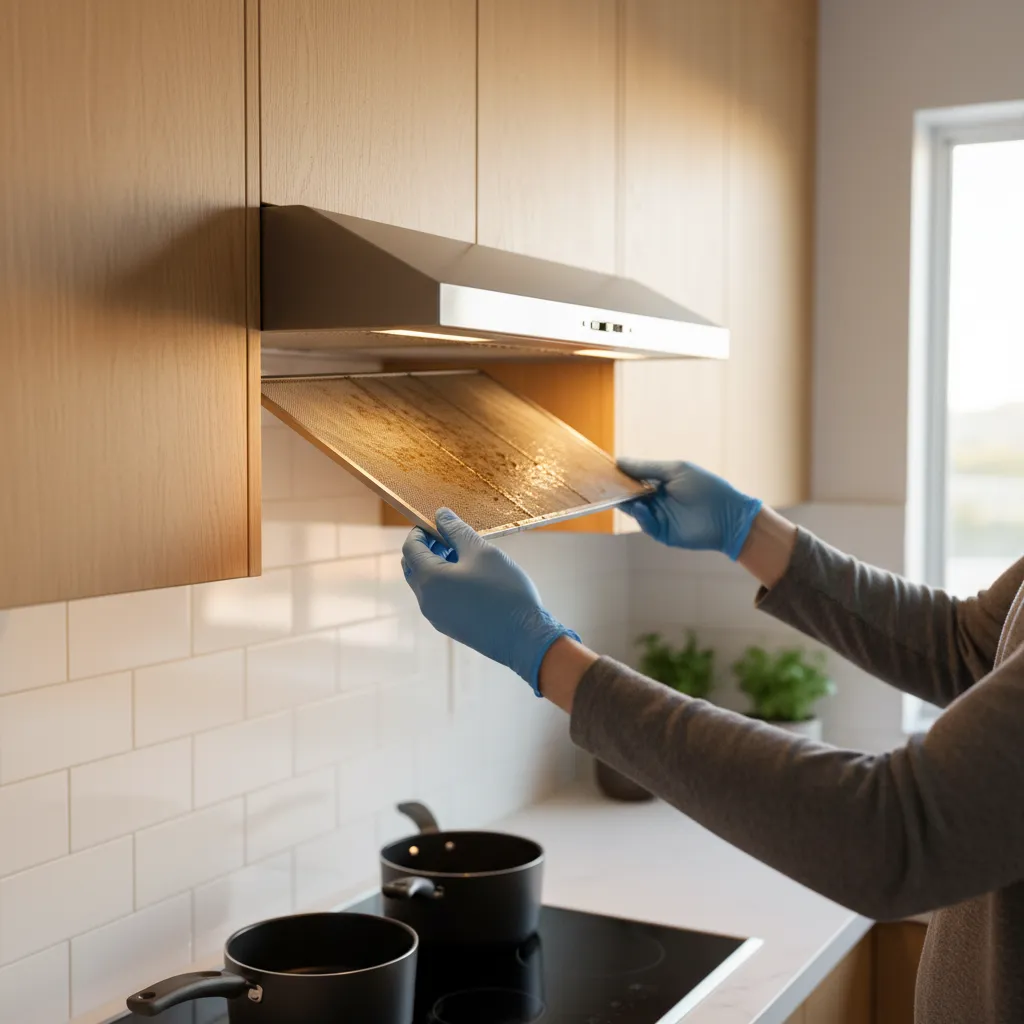

Maintenance and Cleaning Considerations

Key Insight: Insert hood cabinets often hide grease better visually but can be harder to access for cleaning.

Ventilation maintenance is one of the most overlooked aspects of kitchen design.

Under-cabinet hoods are easier to service because filters and controls remain fully exposed.

Insert hoods integrate into cabinetry, which improves aesthetics but adds maintenance complexity.

Cleaning comparison:

1. Under-cabinet: quick filter access and easier wipe-down.
2. Insert hood: cleaner look but deeper interior surfaces.
3. Grease buildup: more hidden in insert enclosures.
4. Filter removal: varies by insert brand and enclosure design.

save pin

Final Summary

1. Under-cabinet range hoods are simpler and cheaper to install.
2. Insert hood cabinets provide stronger ventilation and a custom look.
3. Cabinet depth and airflow routing strongly affect hood performance.
4. Insert systems require more planning during kitchen design.
5. Kitchen size and cooking style should guide the final choice.

FAQ

What is the main difference between insert and under cabinet range hood?

An under-cabinet hood is a complete appliance mounted under a cabinet, while an insert hood is a ventilation insert installed inside a custom hood enclosure.

Which is better under cabinet vs insert range hood cabinet?

Insert hood cabinets usually provide stronger airflow and a built-in look, while under-cabinet hoods are cheaper and easier to install.

Do insert range hoods require custom cabinets?

Yes. Most insert range hoods need a dedicated hood enclosure or modified cabinet structure to house the ventilation insert.

Are insert hoods more powerful?

Many insert systems support higher CFM ratings and larger capture areas, which improves smoke and grease removal.

Can you replace an under-cabinet hood with an insert hood?

Yes, but it usually requires replacing or modifying the cabinet above the cooktop.

Which cabinet works best for range hood inserts?

A deeper custom hood enclosure (18–24 inches) typically works best for proper airflow and grease capture.

Do insert hoods cost more to install?

Yes. The insert itself plus custom cabinetry and installation labor often increases total cost.

Is an insert hood quieter than an under cabinet hood?

Often yes. Larger inserts can use bigger fans and ducting, which can reduce noise at similar airflow levels.

References

National Kitchen and Bath Association Kitchen Planning Guidelines

ASHRAE Residential Kitchen Ventilation Recommendations
