Under-Deck Roof Systems Compared: Which Designs Reduce Joist Rot Risk?: A practical comparison of panel, gutter, and membrane under‑deck systems—and which ones actually protect deck framing from moisture damage.

Direct Answer

The best under‑deck roof systems for reducing joist rot risk are designs that keep water above the framing while allowing airflow below the deck boards. Membrane systems installed above joists typically perform best, while poorly ventilated panel ceilings can trap moisture around wood framing.

Systems that combine proper drainage slope, airflow gaps, and inspection access are the most reliable way to prevent long‑term rot.

Quick Takeaways

1. Membrane systems above the joists usually provide the best protection against moisture and rot.
2. Panel ceiling systems often trap humid air unless ventilation is intentionally designed.
3. Gutter-style systems are easier to retrofit but can leave framing exposed to moisture.
4. Climate, deck height, and airflow matter more than the brand of drainage system.
5. Poor drainage slope is a hidden cause of long-term joist deterioration.

Introduction

Homeowners usually install an under deck roof system to create a dry patio space below their deck. But after working on dozens of outdoor renovation projects over the past decade, I've noticed something surprising: the wrong drainage design can actually increase the chance of joist rot.

The issue isn't just water. It's trapped moisture, lack of airflow, and hidden leaks that slowly saturate deck framing. Many homeowners don't notice the problem until structural repairs are already needed.

In several recent projects, clients used visualization tools similar to interactive deck layout planning examples for outdoor spacesto rethink drainage placement before construction. Planning drainage paths early dramatically reduces hidden moisture problems later.

This guide compares the three most common under‑deck roof system designs—panel ceilings, gutter systems, and membrane systems—and explains which ones actually protect joists from rot.

save pin

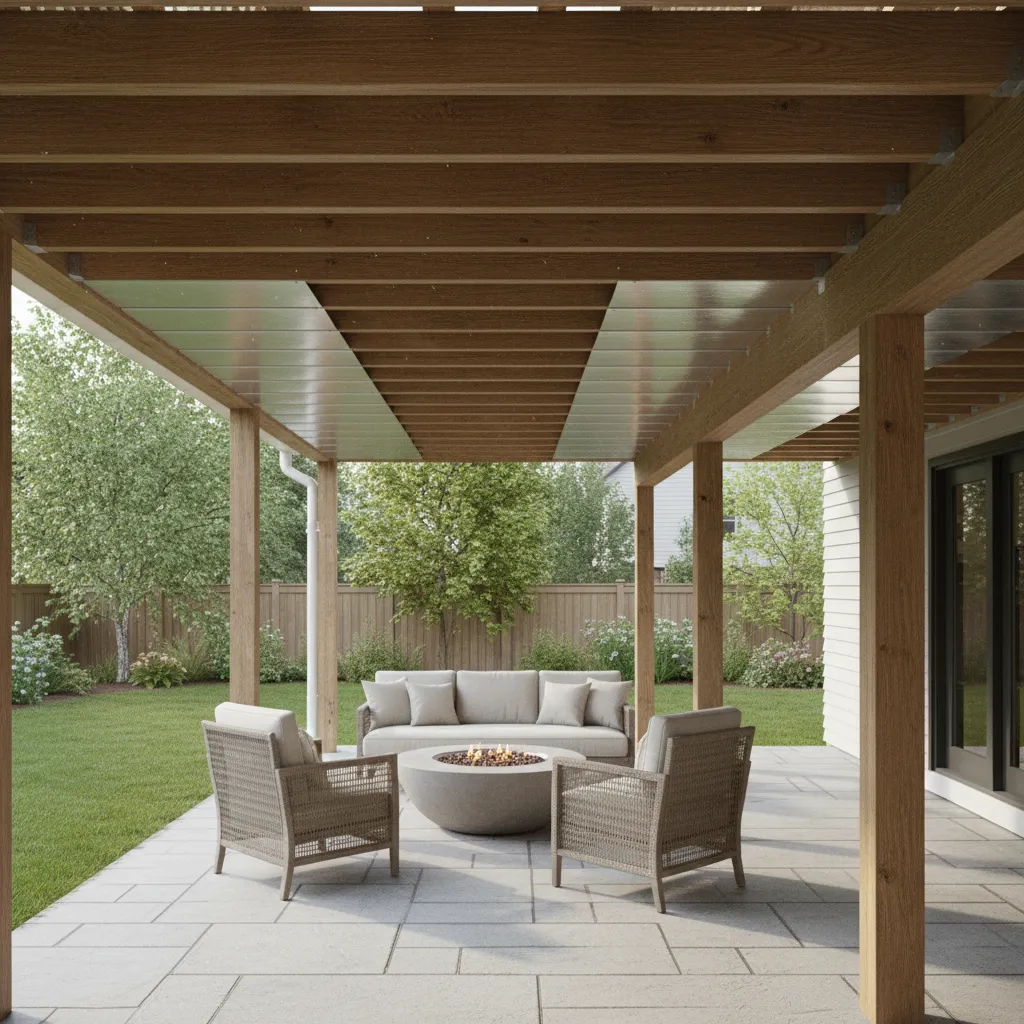

How Under-Deck Roof Systems Manage Water

Key Insight: Every under‑deck system works by redirecting rainwater away from the area below—but where that water travels determines how wet your framing becomes.

In most residential decks, rainwater falls through deck boards. An under‑deck roof system captures that water and channels it to a gutter or edge drain. The major difference between systems is where the drainage layer sits relative to the joists.

1. Below‑joist systems: Installed underneath framing; water flows across panels or gutters.
2. Between‑joist systems: Channels water between joists before redirecting it.
3. Above‑joist membranes: Installed on top of framing under the decking boards.

In practice, systems installed below the framing leave joists exposed to dripping water and humid air. Systems installed above the framing isolate the wood from moisture entirely.

This difference alone often determines whether joists remain dry or slowly deteriorate.

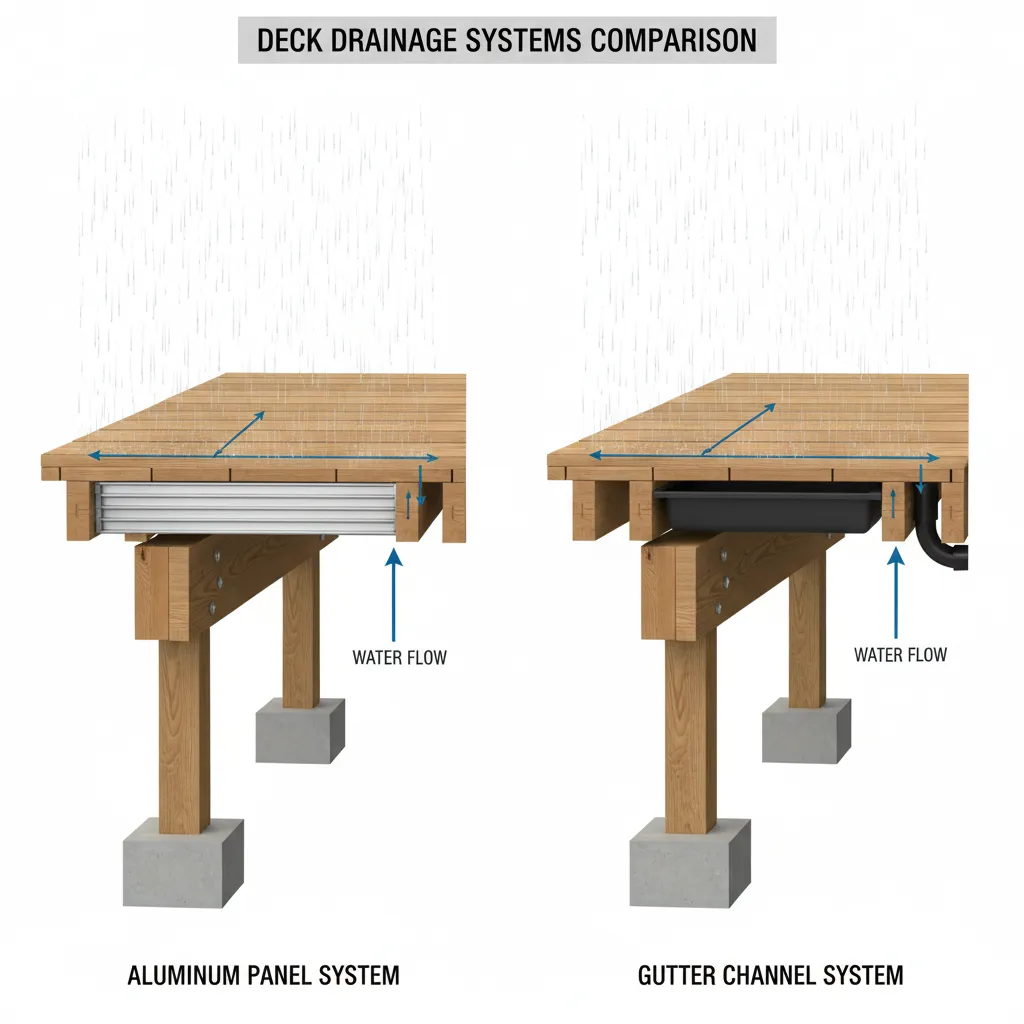

Panel Systems vs Gutter Systems vs Membrane Systems

Key Insight: Membrane systems protect framing best, gutter systems are easiest to retrofit, and panel systems create the cleanest finished ceiling—but also the highest moisture risk if poorly ventilated.

Here's how the three designs compare in real-world deck construction.

1. Panel ceiling systemsInstall beneath joists
2. Create finished ceiling appearance
3. Water runs across sloped panels
4. Gutter systemsAttach channels between joists
5. Water drains into troughs
6. Minimal ceiling finish
7. Membrane systemsInstalled above joists before decking
8. Diverts water before it touches framing
9. Often paired with composite decking

In projects where clients wanted a finished patio ceiling, we often mocked up drainage options using visual room layout simulations for covered outdoor living areasto understand how much ceiling structure would block airflow.

save pin

Ventilation Differences Between Under-Deck Designs

Key Insight: Airflow—not just drainage—is what determines whether an under‑deck system stays dry over time.

One of the biggest mistakes I see in under‑deck installations is treating them like waterproof roofs instead of ventilated outdoor assemblies.

Panel ceiling systems often create a sealed cavity between the decking above and the ceiling below. When warm humid air enters this space, condensation forms on joists and hardware.

Better-performing systems include:

1. Open perimeter gaps for airflow
2. Vent strips along beams
3. Drainage slopes that prevent standing water
4. Inspection access for maintenance

According to building science guidance from the U.S. Forest Products Laboratory, persistent wood moisture levels above about 20% significantly increase decay risk.

save pin

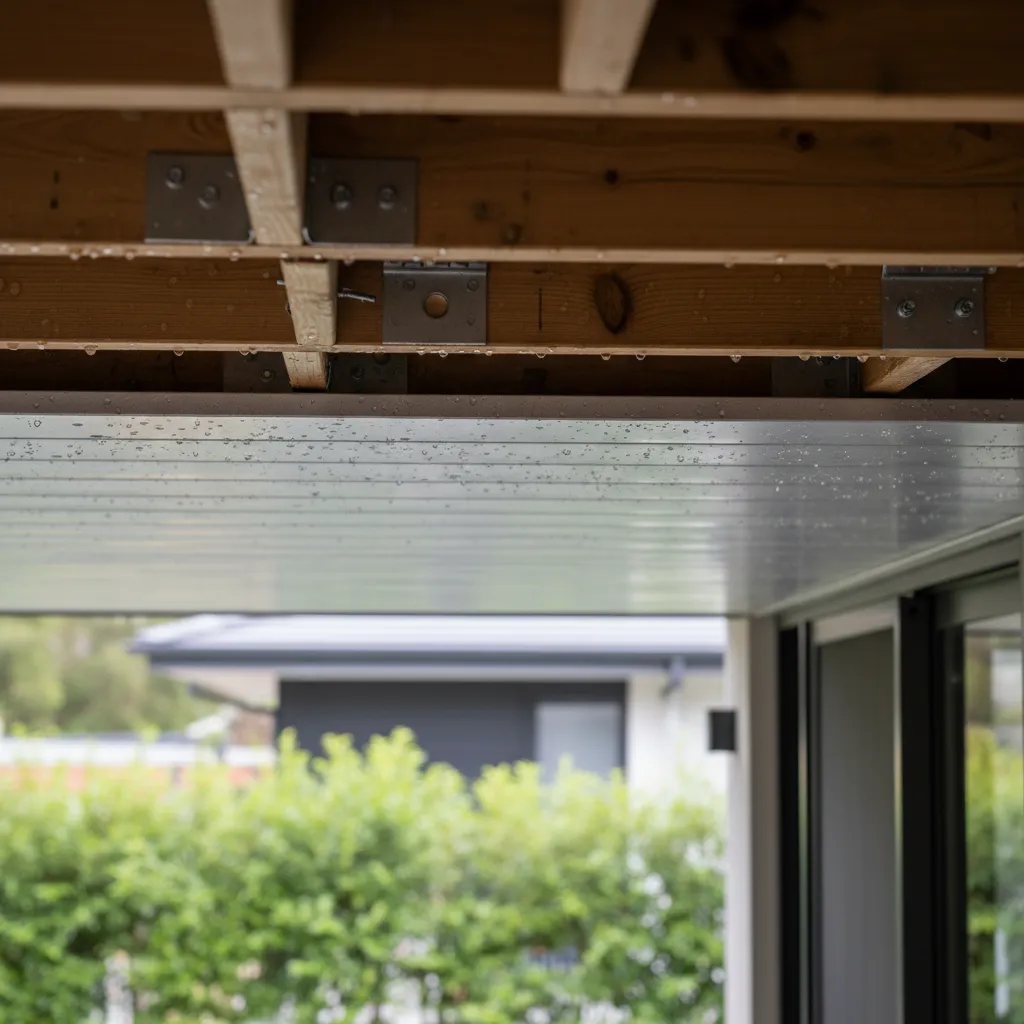

Which Systems Trap Moisture Around Joists

Key Insight: Fully enclosed under‑deck ceilings can unintentionally trap humidity against wood framing.

These conditions often lead to hidden rot problems:

1. Sealed soffit-style ceilings
2. No ventilation openings
3. Flat drainage panels with minimal slope
4. Debris clogging the drainage system

One renovation project I worked on involved a five‑year‑old deck where joists were already softening near fasteners. The culprit wasn't heavy rainfall—it was a sealed aluminum ceiling that trapped warm humid air after storms.

The deck looked perfect from below. Structurally, it was already failing.

Best System Types for Rot Prevention

Key Insight: The safest designs keep water away from wood framing while still allowing airflow.

Based on project experience and building science guidance, these systems generally perform best.

1. Above‑joist membrane systemsProtect framing directly
2. Prevent water contact
3. Low hidden moisture risk
4. Ventilated gutter systemsAllow airflow around joists
5. Moderate protection
6. Sealed ceiling panel systemsHighest rot risk if poorly ventilated

When homeowners want the look of a finished patio ceiling, I recommend designing inspection access panels and ventilation openings early. Many people preview these design details using simple deck and patio layout planning examples before committing to construction.

Answer Box

The under‑deck roof systems that reduce joist rot risk most effectively are membrane systems installed above the framing. They keep water off the wood entirely while allowing the deck structure to dry naturally.

Below‑joist ceiling systems can work, but only if ventilation and drainage slope are carefully designed.

Choosing the Right System for Climate and Deck Design

Key Insight: The best under‑deck system depends heavily on rainfall patterns, humidity, and deck height.

Different climates create different moisture challenges.

1. Wet climates: Above‑joist membrane systems perform best.
2. Humid regions: Ventilation becomes critical.
3. Cold climates: Systems must avoid freeze‑thaw water buildup.
4. Low decks: Airflow is limited, so moisture protection matters more.

Another overlooked factor is maintenance access. If a system hides joists completely, inspecting for leaks becomes difficult.

Designs that allow visual inspection and airflow consistently outperform sealed systems over time.

Final Summary

1. Membrane systems above joists offer the strongest protection against rot.
2. Panel ceilings can trap moisture without proper ventilation.
3. Drainage slope is critical for preventing standing water.
4. Climate and airflow influence system performance more than brand choice.
5. Accessible designs make long‑term maintenance easier.

FAQ

Do under deck roof systems cause wood rot?

They can if they trap moisture or block ventilation. Systems installed below joists are more likely to create humid cavities that accelerate decay.

What is the best under deck drainage system to prevent rot?

Above‑joist membrane systems are typically the best under deck drainage system to prevent rot because they keep framing dry.

Do under deck ceilings trap moisture?

Yes, sealed ceiling systems can trap humidity if airflow openings are not included.

Are gutter under deck systems safe for wood framing?

They are generally safe if water drains quickly and joists remain ventilated.

Which under deck system allows ventilation?

Open gutter systems and ventilated panel designs allow the most airflow.

Can an under deck system be added to an existing deck?

Yes. Gutter and panel systems are commonly retrofitted to existing decks.

How long do under deck drainage systems last?

Most aluminum or PVC systems last 15–25 years with proper maintenance.

Does an under deck ceiling trap moisture in humid climates?

It can. Proper ventilation and drainage slope are essential in humid regions.

References

U.S. Forest Products Laboratory – Wood Handbook: Wood as an Engineering Material

North American Deck and Railing Association (NADRA) deck construction guidelines
