Understanding MTL Files in 3D Modeling: Learn how MTL files control materials, textures, and realism in OBJ based 3D models

Direct Answer

An MTL file is a material definition file used alongside OBJ 3D models. It stores information about surface appearance such as color, reflectivity, and texture maps so that the model renders with the correct visual materials.

Without the MTL file, a 3D model will usually load as plain gray geometry because the rendering software has no instructions about how surfaces should look.

Quick Takeaways

1. MTL files define the visual materials applied to OBJ 3D models.
2. They store texture references, color values, transparency, and reflectivity.
3. An OBJ file references its MTL file using a simple material library link.
4. Missing MTL files usually cause models to appear gray or untextured.
5. Editing an MTL file can quickly change how a model looks without altering geometry.

Introduction

In many of the interior visualization projects I've worked on over the last decade, OBJ models are still one of the most common formats clients send over. Furniture libraries, scanned assets, and marketplace downloads often arrive as a bundle of files: an OBJ file, several textures, and something called an MTL file.

For beginners, the OBJ loads but looks completely flat or gray. The geometry is there, but the realism is gone. That confusion usually comes down to not understanding how the MTL file works.

This guide breaks down what MTL files do, how they connect to OBJ models, and the practical mistakes I see designers and 3D artists make when managing them in real production environments.

save pin

What Is an MTL File in 3D Modeling?

Key Insight: An MTL file acts as a visual instruction sheet that tells rendering software how the surfaces of an OBJ model should appear.

Think of the OBJ file as the skeleton of a model and the MTL file as the skin. The OBJ stores geometry: vertices, faces, and coordinates. The MTL file describes how those surfaces should look.

Typical information stored inside an MTL file includes:

1. Diffuse color values
2. Specular highlights
3. Transparency levels
4. Texture map locations
5. Reflection or illumination properties

In practical terms, when rendering a 3D sofa model in a living room scene, the OBJ defines the shape of the sofa while the MTL file tells the renderer which fabric texture, color tone, and glossiness should appear on its surface.

Most major tools such as Blender, Maya, 3ds Max, and SketchUp recognize this pairing automatically when both files are present.

How Do OBJ and MTL Files Work Together?

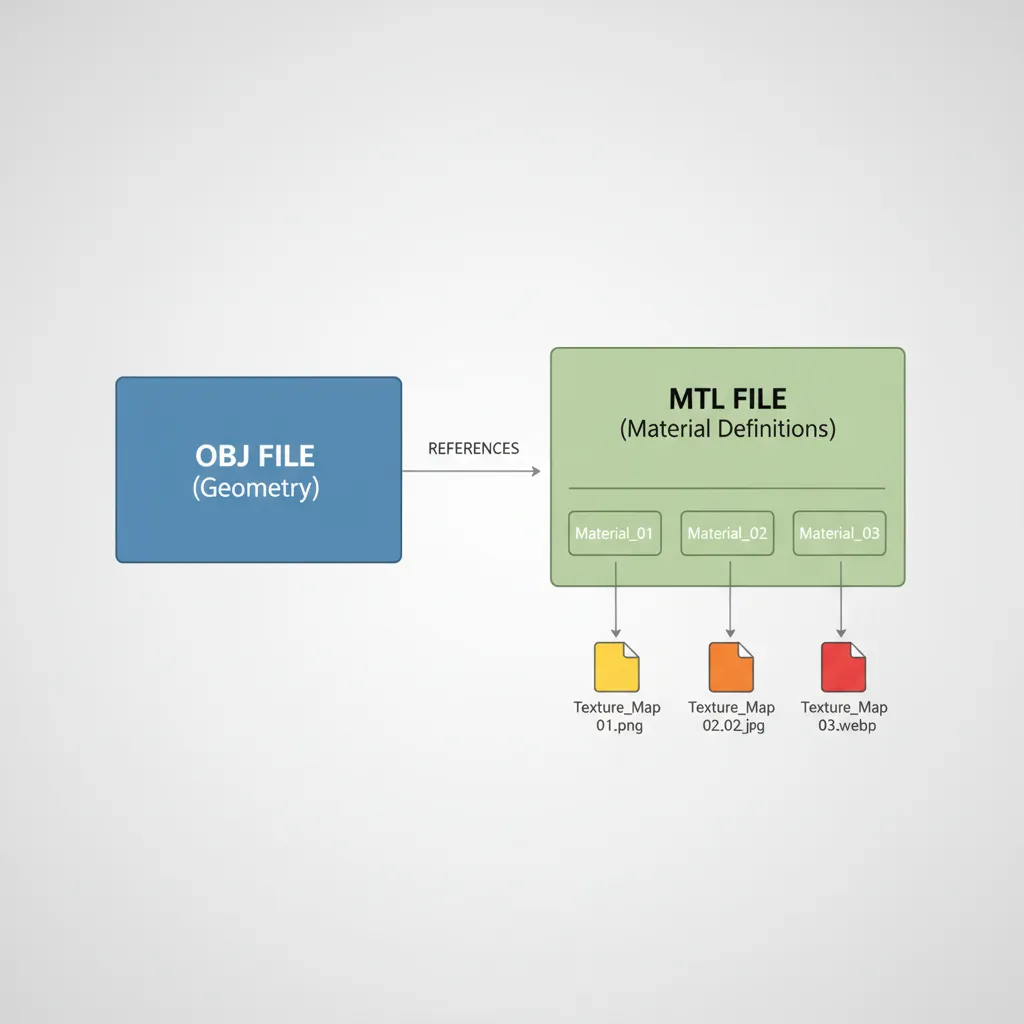

Key Insight: The OBJ file references the MTL file through a material library link that tells the software where to find surface definitions.

Inside the OBJ file, you'll usually see a line like this:

mtllib model.mtl

This line simply means: load materials from the file named model.mtl.

The typical workflow looks like this:

1. 3D geometry is stored in the OBJ file.
2. The OBJ references a material library.
3. The MTL file defines multiple materials.
4. Each mesh surface uses one of those materials.

From a production standpoint, this separation is useful. Designers can modify materials without touching the geometry. In large architectural scenes, that flexibility saves a surprising amount of time.

save pin

What Information Is Stored Inside an MTL File?

Key Insight: MTL files store material properties using simple text commands that most rendering engines can interpret.

Unlike many modern formats, MTL files are actually readable text files. If you open one in a text editor, you'll see lines describing each material.

Common parameters include:

1. newmtl – defines a new material
2. Kd – diffuse color
3. Ks – specular color
4. Ns – shininess
5. d – transparency
6. map_Kd – diffuse texture map

A simplified example might look like this:

newmtl WoodSurface Kd 0.64 0.50 0.36 map_Kd wood_texture.jpg This tells the renderer to create a material called "WoodSurface" using a wood texture image.

Even though the format is decades old, its simplicity is why it still appears in asset libraries across the industry.

save pin

Why Do 3D Models Sometimes Load Without Textures?

Key Insight: Missing textures usually happen because file paths in the MTL file no longer match the location of the texture images.

This is one of the most common problems I see when importing downloaded assets.

Typical causes include:

1. Texture images stored in a different folder
2. Renamed texture files
3. Broken file paths after moving the project
4. Export errors from the original software

Simple fixes usually solve the issue:

1. Keep OBJ, MTL, and textures in the same folder.
2. Avoid renaming texture files after export.
3. Relink textures inside the 3D software.
4. Open the MTL file and correct texture paths manually.

In visualization pipelines, artists often reorganize downloaded assets into standardized folders specifically to avoid these problems.

Can You Edit MTL Files Manually?

Key Insight: Yes, and in some cases manually editing an MTL file is faster than fixing materials inside a 3D program.

Because the file is plain text, small adjustments are easy:

1. Swap texture references
2. Adjust brightness values
3. Replace low resolution textures
4. Remove unused materials

For example, changing a single line:

map_Kd fabric_old.jpg

to

map_Kd fabric_highres.jpg

instantly upgrades the material when the model reloads.

However, modern physically based rendering systems often ignore some classic MTL parameters. That means results can vary depending on the renderer.

Hidden Limitations of MTL Files Most Beginners Miss

Key Insight: MTL files were designed long before modern rendering workflows, so they cannot represent many advanced material properties.

This limitation explains why assets exported as OBJ sometimes lose realism compared with formats like FBX or GLTF.

Common limitations include:

1. No native support for PBR workflows
2. Limited reflection and roughness control
3. Inconsistent interpretation across software
4. Weak support for layered materials

In my own interior visualization work, I usually treat MTL materials as placeholders. After importing the model, materials are rebuilt using physically based shaders inside the rendering engine.

That extra step often improves realism dramatically.

Answer Box

An MTL file defines the surface materials for an OBJ 3D model. It stores references to textures, colors, and shading properties so rendering software can display the model with the correct visual appearance.

If the MTL file or its textures are missing, the model will typically appear gray or untextured.

Final Summary

1. MTL files define materials for OBJ 3D models.
2. They store color, texture, and shading information.
3. OBJ files reference MTL files through a material library link.
4. Missing textures usually come from broken file paths.
5. Modern renderers often replace MTL materials with PBR shaders.

FAQ

What is an MTL file used for?

An MTL file defines materials for OBJ 3D models, including textures, colors, transparency, and surface reflection properties.

Can you open an MTL file?

Yes. An MTL file is a plain text file and can be opened with any text editor such as Notepad or VS Code.

Why is my OBJ model missing textures?

This usually happens when the MTL file cannot find the texture images referenced inside it.

Is an MTL file necessary?

The geometry will still load without it, but the model will appear without materials or textures.

Can Blender open MTL files?

Yes. When importing an OBJ file, Blender automatically reads the associated MTL file if it exists.

What happens if the MTL file is missing?

The 3D model will load but will typically appear as plain gray geometry without surface materials.

Are MTL files still used today?

Yes, mainly in asset libraries and simple OBJ workflows, although newer formats support more advanced material systems.

Can I convert an MTL file to another format?

You typically convert the entire OBJ model into formats like FBX or GLTF, which embed more advanced material data.
