Understanding Official Baseball Field Dimensions for Accurate 3D Modeling: Precise MLB measurements, layout logic, and practical tips for building a realistic baseball field model in 3D environments.

Direct Answer

Official baseball field dimensions define the exact distances, elevations, and layout relationships required to accurately model a baseball stadium in 3D. Key measurements include a 90‑foot distance between bases, a 60 feet 6 inches pitcher’s mound distance, and a mound height of 10 inches in Major League Baseball. Using these standardized measurements ensures a baseball field model maintains realistic proportions and playable scale.

Quick Takeaways

1. The distance between all bases in professional baseball is exactly 90 feet.
2. The pitcher’s mound sits 60 feet 6 inches from home plate.
3. MLB pitcher’s mound height is 10 inches above home plate level.
4. Outfield fence distances vary widely between stadiums.
5. Accurate scaling is critical when translating measurements into 3D environments.

Introduction

When people start building a digital stadium, the first thing they usually search for is official baseball field dimensions for 3D modeling. And after working on dozens of sports visualization projects over the past decade, I can tell you the biggest mistake beginners make isn’t modeling skill — it’s scale accuracy.

A baseball field looks simple at first glance: a diamond, a mound, an outfield fence. But the moment you begin translating that layout into a 3D environment, tiny measurement errors compound quickly. If your bases are even a few feet off, the entire infield feels wrong. Player scale becomes awkward. Camera angles stop matching real broadcasts.

In real stadium design, architects rely on strict dimensional standards published by Major League Baseball and amateur leagues. The same discipline applies when building a digital model. I often recommend that beginners start by studying realistic stadium layouts or interactive references like interactive 3D layout examples used to visualize spatial proportionsbefore placing their first polygon.

In this guide, I’ll break down the official measurements, explain why certain dimensions exist, and show how to translate real‑world baseball geometry into clean, accurate 3D models.

save pin

Why Accurate Baseball Field Dimensions Matter in 3D Modeling

Key Insight: Even small dimensional errors distort player scale, gameplay realism, and camera framing in a 3D baseball environment.

From a design perspective, baseball fields are deceptively mathematical. The diamond forms a perfect square rotated 45 degrees relative to the outfield. That geometry drives everything else — baselines, pitching distance, mound placement, and defensive positioning.

Inaccurate dimensions cause several common modeling problems:

1. Players appear too large or too small relative to bases.
2. Pitching distance looks unnatural in animations.
3. Broadcast camera angles fail to match real MLB framing.
4. Ball trajectory physics become unrealistic.

During one stadium visualization project I worked on, a modeler accidentally scaled the field using a 100‑foot baseline instead of 90 feet. The difference seemed small visually — until we placed player rigs. Suddenly the field felt like a softball stadium. Fixing it required rebuilding the entire infield.

This is why professional sports visualizations always start with verified dimensional references before any modeling begins.

Official MLB and Standard Baseball Field Measurements

Key Insight: Major League Baseball uses a fixed infield geometry, while outfield dimensions remain flexible between stadiums.

Most baseball modeling accuracy comes from correctly building the infield first. Fortunately, MLB rules specify clear measurements.

Standard MLB infield measurements:

1. Distance between bases: 90 feet
2. Home plate to second base: 127 feet 3⅜ inches
3. Pitcher’s rubber to home plate: 60 feet 6 inches
4. Pitcher mound diameter: 18 feet
5. Pitcher mound height: 10 inches
6. Base size (MLB modern standard): 18 inches square

The infield grass edge typically forms a circle with a 95‑foot radius from the mound center. While not strictly mandatory, many stadiums follow this convention because it produces balanced defensive spacing.

For digital environments, I recommend building the entire field from a single base unit — usually feet — to avoid conversion errors later in the modeling process.

save pin

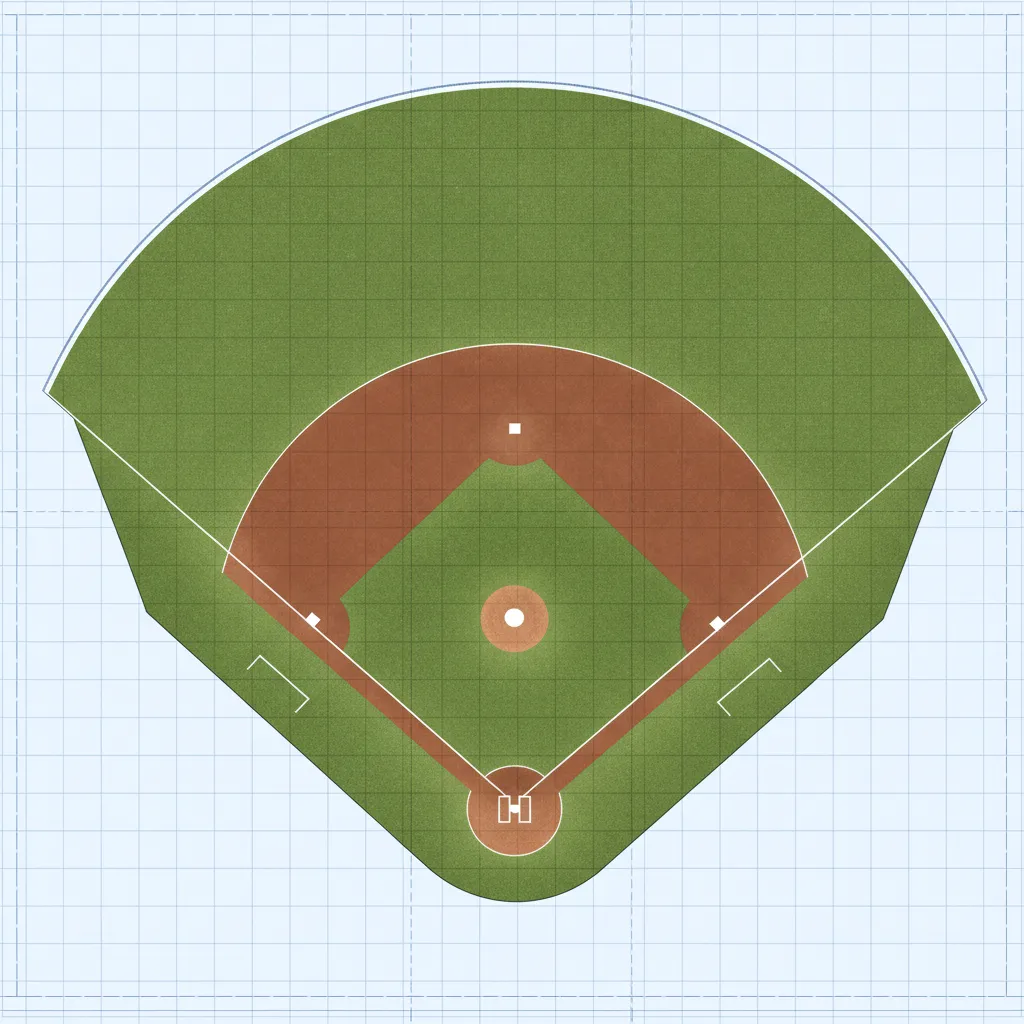

Key Layout Elements of the Baseball Diamond

Key Insight: The baseball diamond is a rotated square, and maintaining this geometry is essential for accurate defensive alignment and player animation.

The diamond layout is built from four bases forming a perfect square:

1. Home plate
2. First base
3. Second base
4. Third base

Each side measures exactly 90 feet. When rotated 45 degrees relative to the outfield fence, it creates the recognizable baseball field orientation.

Important geometric relationships:

1. First‑to‑third diagonal: ~127 ft 3 in
2. Mound center sits directly on the line between home and second
3. Home plate is not a square — it’s a five‑sided shape

A subtle modeling mistake I often see is incorrectly shaping home plate. Many beginners model it as a square, which breaks the baseline alignment. The rear triangle actually determines foul line angles.

If you're visualizing the diamond inside a digital stadium layout, studying examples of scaled layout planning workflows used for spatial designcan help you understand how professionals structure geometric references before building complex scenes.

save pin

Pitcher Mound and Base Distance Specifications

Key Insight: The pitcher’s mound is the most dimensionally sensitive element on a baseball field because elevation and slope affect gameplay realism.

The mound isn’t just a raised circle — it has a carefully regulated profile.

Pitcher mound specifications:

1. Diameter: 18 feet
2. Height above home plate: 10 inches
3. Rubber width: 24 inches
4. Rubber depth: 6 inches
5. Slope begins 6 inches in front of the rubber

From that point, the mound slopes downward toward home plate at roughly one inch per foot.

Why does this matter in 3D modeling?

Because pitching animations rely heavily on mound elevation. If the mound is flat, the pitcher’s motion looks wrong and the ball trajectory appears unnatural.

In high‑fidelity sports simulations, this elevation difference is often exaggerated slightly to preserve readability on camera.

Outfield Fence and Stadium Boundary Variations

Key Insight: Unlike the infield, outfield fence distances are intentionally inconsistent across professional stadiums.

This surprises many first‑time modelers.

There is no single "official" outfield distance.

Typical MLB ranges:

1. Left field line: 310–340 feet
2. Center field: 390–420 feet
3. Right field line: 310–350 feet

Famous stadium examples:

1. Fenway Park – 310 ft left field (Green Monster)
2. Dodger Stadium – 395 ft center
3. Yankee Stadium – 314 ft right field

This variation is actually part of baseball’s charm. Stadium architects intentionally design asymmetrical outfields to create unique gameplay characteristics.

For 3D artists building a generic baseball field, a balanced default configuration is often:

1. Left field: 330 ft
2. Center field: 400 ft
3. Right field: 330 ft

Answer Box

The official baseball field dimensions used in professional play include a 90‑foot base path, 60 feet 6 inches pitching distance, and a 10‑inch mound height. While the infield geometry is fixed, outfield fence distances vary between stadiums. Accurate 3D baseball field models rely on maintaining these proportions and scaling them consistently inside the modeling software.

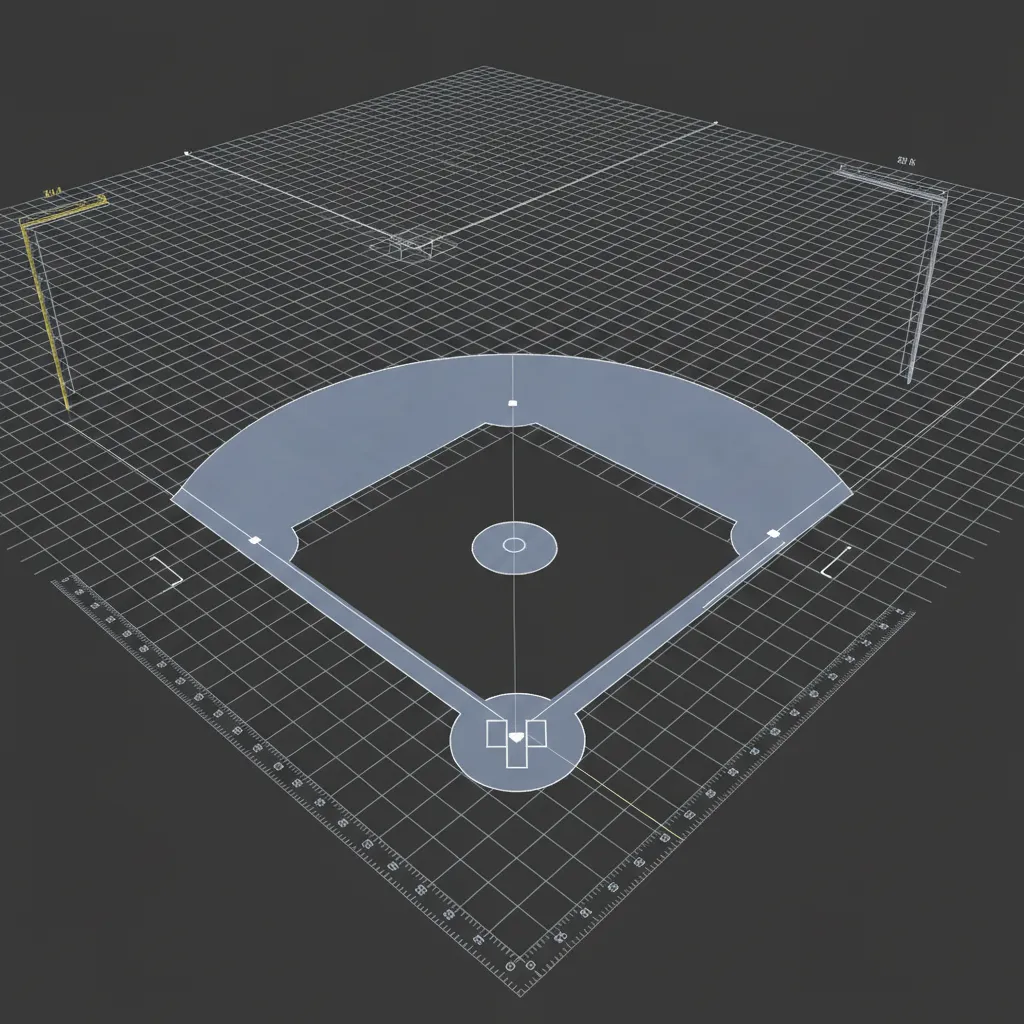

Applying Real Measurements in 3D Modeling Software

Key Insight: Accurate baseball field models start with correct scale units before any geometry is created.

Professional modelers usually follow a simple workflow when translating field measurements into 3D.

Recommended modeling process:

1. Set scene units to feet or meters
2. Create the 90‑foot base square first
3. Place the pitcher mound at 60'6" from home
4. Add the 18‑foot mound circle
5. Extend foul lines into the outfield
6. Build fence boundaries last

One trick I often use is to block out the entire field as simple guide curves before creating any detailed geometry. This keeps proportions correct while adjusting camera composition.

If you're experimenting with digital stadium layouts or sports environments, tools used for creating scaled floor plans that translate real measurements into visual layoutscan also help you prototype the field geometry before moving into full 3D modeling software.

save pin

Final Summary

1. MLB base paths measure exactly 90 feet.
2. The pitching distance is 60 feet 6 inches.
3. Pitcher mound height is precisely 10 inches.
4. Outfield fences vary widely between stadiums.
5. Correct scale setup is essential for realistic 3D baseball models.

FAQ

What are the official baseball field dimensions for 3D modeling?

The official baseball field dimensions include 90 feet between bases, 60 feet 6 inches from pitcher’s rubber to home plate, and a mound height of 10 inches.

How far apart are bases on a professional baseball field?

In Major League Baseball, the distance between each base is exactly 90 feet, forming a perfect square diamond layout.

What is the diameter of a pitcher’s mound?

The pitcher’s mound has a diameter of 18 feet with a pitching rubber centered on the mound.

How high is the pitcher’s mound?

The mound sits 10 inches above home plate level and gradually slopes downward toward the plate.

Do all baseball stadiums have the same outfield dimensions?

No. Outfield fence distances vary widely between stadiums, which creates unique ballpark characteristics.

What scale should I use when modeling a baseball field?

Use real‑world units such as feet or meters. This ensures accurate baseball field scale for 3D environments.

What is the distance from home plate to second base?

The diagonal distance from home plate to second base is approximately 127 feet 3⅜ inches.

Why are official baseball field dimensions important in 3D modeling?

Using official baseball field dimensions for 3D modeling ensures realistic player scale, accurate gameplay spacing, and believable stadium visuals.
