Understanding Roofing Membranes for Durable Modern Roofs: Learn how roofing membranes work, where they fail, and how to choose the right system for long term roof protection

Direct Answer

Roofing membranes are waterproof layers installed beneath or on top of roofing systems to prevent water infiltration and protect the building structure. They act as a continuous barrier that seals seams, penetrations, and vulnerable areas where traditional roofing materials alone cannot provide reliable protection.

Modern roofing membranes are typically made from synthetic rubber, thermoplastics, or modified bitumen and are widely used on flat and low slope roofs.

Quick Takeaways

1. Roofing membranes create a continuous waterproof barrier beneath roofing materials.
2. They are essential for flat and low slope roofs where water cannot drain quickly.
3. Common membrane types include EPDM, TPO, PVC, and modified bitumen.
4. Installation quality often matters more than the membrane brand itself.
5. Most membrane failures come from seams, penetrations, and poor detailing.

Introduction

In more than a decade of working on residential and mixed‑use building projects, one thing has become clear: roofing membranes are the quiet workhorses of modern roof systems. Homeowners often focus on shingles, tiles, or metal panels, but the membrane underneath is usually what determines whether the roof actually stays waterproof.

I have inspected beautiful roofs that failed within five years because the membrane was poorly installed, and I've also seen modest buildings stay leak‑free for decades thanks to a properly designed membrane system.

This guide breaks down what roofing membranes are, how they work, and how to choose the right type depending on your roof design.

save pin

What Is a Roofing Membrane and Why Does It Matter

Key Insight: A roofing membrane is the primary waterproof barrier of a roof system, especially on flat or low‑slope roofs.

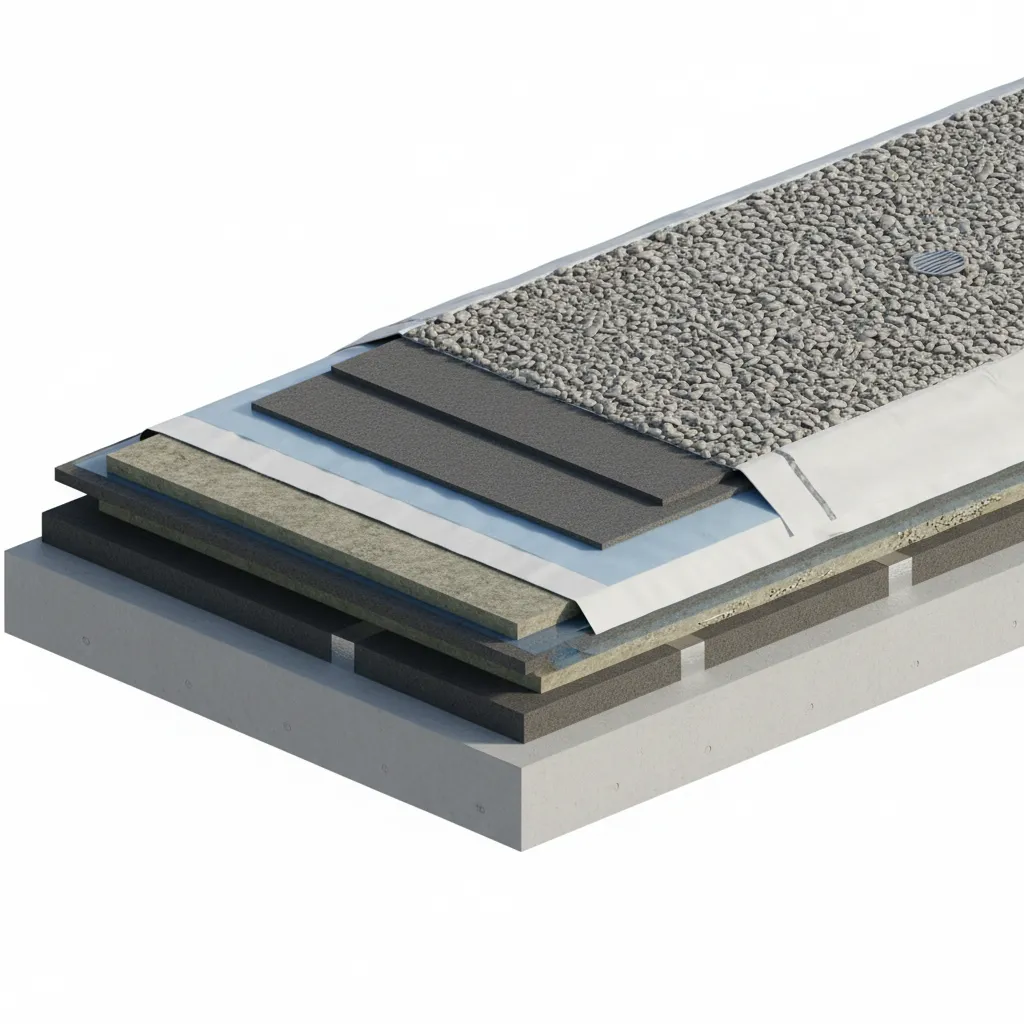

Unlike shingles or tiles that rely on overlapping layers to shed water, membranes form a continuous sealed surface. That continuous surface is what stops water from penetrating seams, nail holes, and flashing points.

In practice, roofing membranes serve three critical roles:

1. Waterproofing the structural roof deck
2. Protecting insulation layers from moisture
3. Providing a durable surface that tolerates thermal movement

According to guidance from the National Roofing Contractors Association (NRCA), membrane systems are the most reliable waterproofing solution for low‑slope roofing because they eliminate the multiple exposed seams common in traditional roofing materials.

A common misconception I see with homeowners is assuming shingles alone provide waterproofing. In reality, shingles are water shedding layers. The membrane underneath is what stops leaks.

What Types of Roofing Membranes Are Most Common

Key Insight: Most modern roofing membranes fall into three categories: synthetic rubber, thermoplastic sheets, and asphalt‑based systems.

Each material behaves differently in terms of flexibility, durability, and installation complexity.

1. EPDM (Ethylene Propylene Diene Monomer)
2. A synthetic rubber membrane known for flexibility and long lifespan. Common on commercial roofs.
3. TPO (Thermoplastic Polyolefin)
4. A reflective white membrane popular for energy efficiency and heat resistance.
5. PVC (Polyvinyl Chloride)
6. Highly durable and chemically resistant. Often used on commercial buildings and restaurants.
7. Modified Bitumen
8. An asphalt based membrane reinforced with fiberglass or polyester.

From my project experience, TPO and EPDM dominate modern flat residential roofs, while modified bitumen still appears on older buildings and renovations.

save pin

How Do Roofing Membranes Prevent Roof Leaks

Key Insight: Roofing membranes prevent leaks by creating sealed seams and continuous waterproof coverage across the roof deck.

Water rarely enters through the center of a roof surface. It almost always enters at transitions.

The most vulnerable areas include:

1. Roof edges
2. Skylights

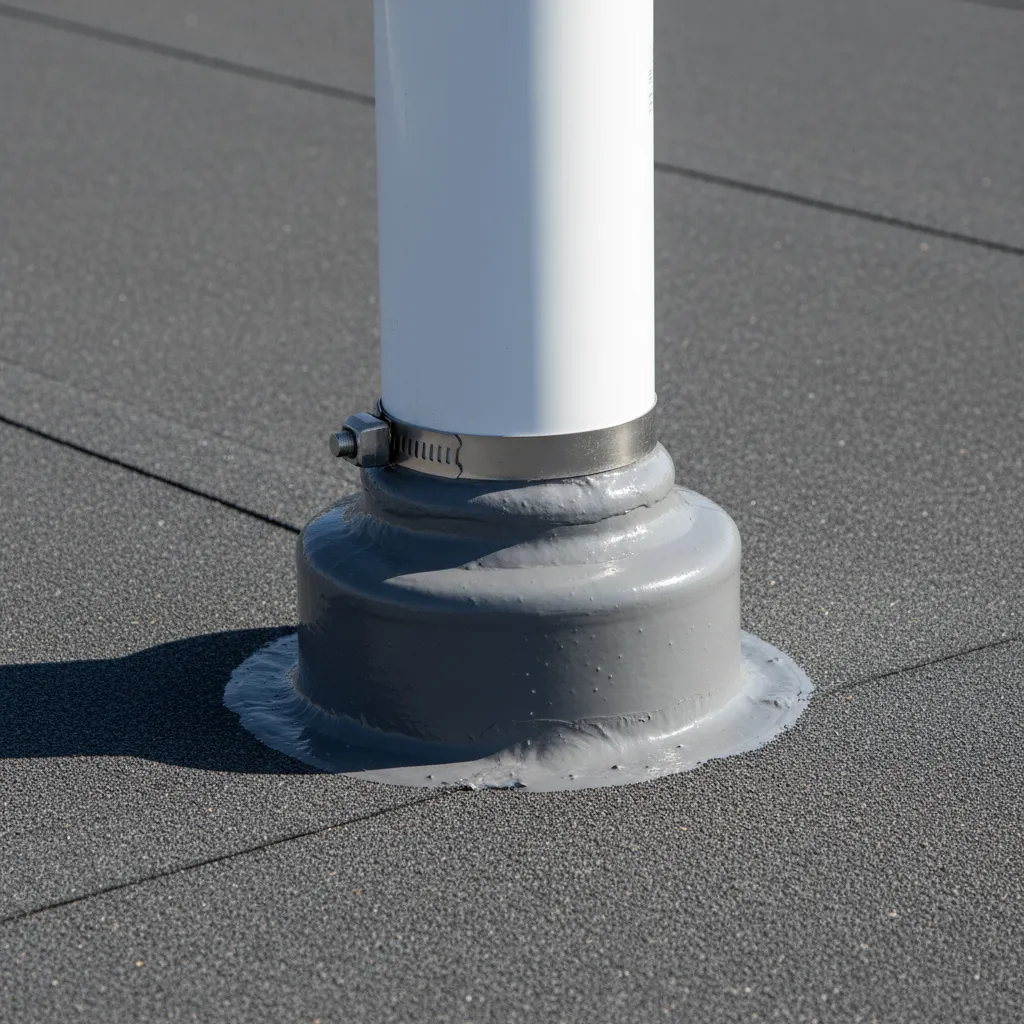

3. HVAC penetrations
4. Parapet walls

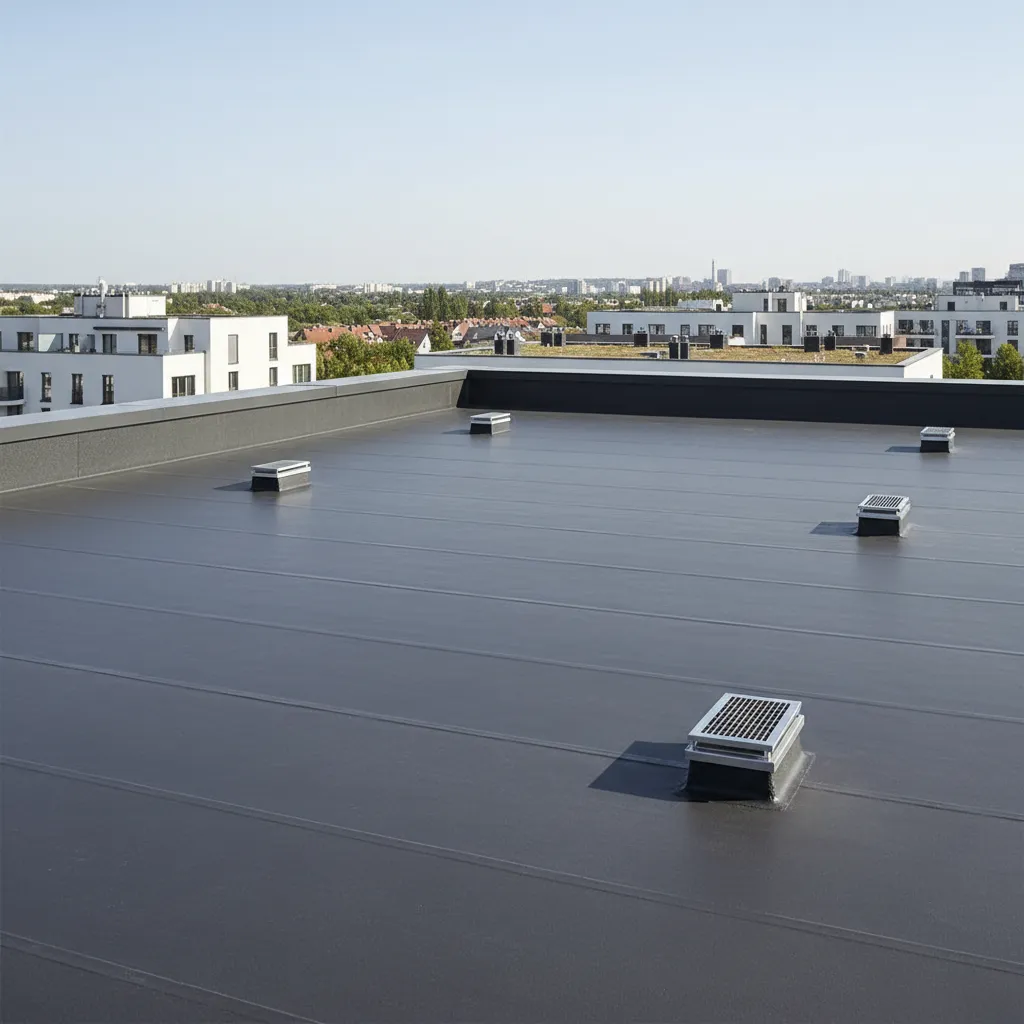

5. Drain openings

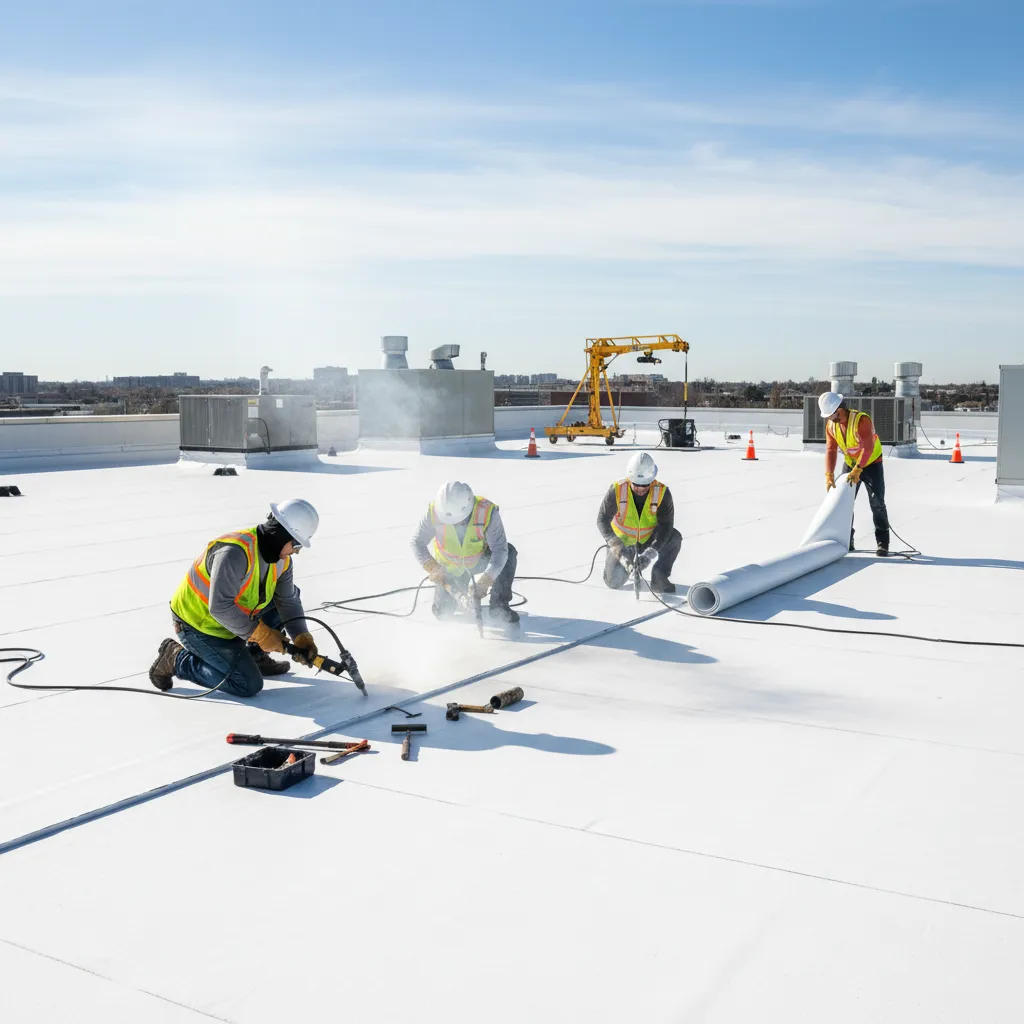

Membrane systems are designed to wrap and seal these areas using heat welding, adhesives, or torch‑applied bonding.

In one multi‑family project I worked on in Los Angeles, the original leaks weren't caused by the membrane sheet itself. The issue was poorly sealed pipe penetrations. Once the detailing was corrected, the roof stopped leaking entirely.

This is why experienced installers focus heavily on flashing details rather than just laying membrane sheets.

Are Roofing Membranes Only Used on Flat Roofs

Key Insight: Roofing membranes are most common on flat roofs, but they are increasingly used beneath sloped roofing systems as secondary protection.

Modern residential roofs often include membrane layers even when using shingles or metal panels.

Common applications include:

1. Ice and water shield under shingles
2. Full synthetic underlayment systems
3. Valley and edge waterproofing layers
4. Green roofs and rooftop terraces

In colder climates, building codes frequently require membrane protection along roof edges to prevent ice dam leaks.

This hybrid approach is becoming standard because it adds redundancy to the roof system.

save pin

What Are the Hidden Problems With Roofing Membranes

Key Insight: Most membrane failures are not material failures but installation and detailing mistakes.

Over the years I've noticed a pattern: when membrane roofs fail early, the root cause is usually one of these overlooked issues.

1. Poor seam welding
2. Heat‑welded seams must be perfectly fused or water will eventually find its way in.
3. Improper slope design
4. Flat roofs still require drainage. Standing water shortens membrane lifespan.
5. Penetration overload
6. Every vent or pipe adds risk if not detailed carefully.
7. UV exposure on wrong materials
8. Some membranes degrade faster when exposed to sunlight without coatings.

The biggest hidden cost is actually labor quality. A premium membrane installed poorly will perform worse than a mid‑range product installed correctly.

save pin

How Do You Choose the Right Roofing Membrane

Key Insight: The best roofing membrane depends more on climate, roof design, and installation expertise than brand selection.

When advising clients, I typically evaluate four factors first.

1. Roof slope
2. True flat roofs usually require single‑ply membranes like TPO or EPDM.
3. Climate exposure
4. Hot climates benefit from reflective membranes that reduce heat absorption.
5. Roof traffic
6. Maintenance walkways may require reinforced membranes.
7. Contractor experience
8. The installer should specialize in the specific membrane system.

Architectural studies from building science research consistently show that installer experience has a larger impact on roof lifespan than the membrane brand itself.

Answer Box

Roofing membranes are continuous waterproof layers designed to protect roof structures from moisture infiltration. They are most commonly used on flat roofs but are increasingly installed beneath sloped roofing systems for additional protection and durability.

Final Summary

1. Roofing membranes provide the true waterproof barrier in modern roof systems.
2. EPDM, TPO, PVC, and modified bitumen are the most widely used membrane types.
3. Installation quality often determines roof lifespan more than material choice.
4. Membranes are increasingly used under both flat and sloped roofs.
5. Proper detailing at seams and penetrations prevents most leaks.

FAQ

What is a roofing membrane?

A roofing membrane is a waterproof layer installed on a roof deck to prevent water penetration and protect structural components.

How long do roofing membranes last?

Most roofing membranes last 20 to 30 years depending on material, installation quality, and climate exposure.

Is a roofing membrane necessary?

Yes. On flat roofs, a roofing membrane is essential because traditional roofing materials cannot shed water effectively.

What is the best roofing membrane material?

TPO and EPDM are among the most widely used roofing membrane materials due to durability and flexibility.

Can roofing membranes be installed over existing roofs?

In some cases yes, but it depends on structural condition and local building codes.

Are roofing membranes energy efficient?

Reflective membranes like TPO can reduce roof surface temperatures and improve building energy efficiency.

Do roofing membranes require maintenance?

Yes. Regular inspections help detect seam separation, punctures, or flashing problems early.

What causes roofing membrane failure?

The most common causes are poor seam welding, bad flashing details, standing water, and improper installation.
