Understanding Standing Seam Metal Roof Gauge for Better Roof Performance: Learn how metal roof gauge affects durability cost and installation decisions before choosing a standing seam roofing system

Direct Answer

Standing seam metal roof gauge refers to the thickness of the metal panels used in the roofing system. Lower gauge numbers mean thicker metal, which generally delivers better durability, wind resistance, and long term performance. For most residential projects, 24 gauge and 26 gauge standing seam panels are the most common choices.

Quick Takeaways

1. Lower gauge numbers indicate thicker and stronger metal roofing panels.
2. 24 gauge standing seam metal roofs are typically more durable than 26 gauge.
3. Thicker panels reduce oil canning and improve wind resistance.
4. Gauge choice influences cost, installation difficulty, and lifespan.
5. Most residential homes perform well with either 24 or 26 gauge metal.

Introduction

When homeowners start researching metal roofing, one question comes up almost immediately: what does standing seam metal roof gauge actually mean?

After working on residential projects across California and the Southwest for more than a decade, I’ve noticed that gauge is one of the most misunderstood parts of metal roofing. Many people assume thicker metal is always necessary, while others unknowingly choose thinner panels that struggle in high wind or snow regions.

The truth is more nuanced. The right standing seam metal roof gauge depends on climate conditions, roof structure, installation method, and even visual expectations.

In this guide, I’ll break down how gauge works, when thicker panels are worth the investment, and the hidden tradeoffs most roofing guides never mention.

save pin

What Does Standing Seam Metal Roof Gauge Mean

Key Insight: Standing seam metal roof gauge measures the thickness of the metal panel, and it directly affects strength, durability, and resistance to deformation.

Gauge numbers follow a slightly counterintuitive rule: the lower the number, the thicker the metal.

For example, a 24 gauge steel panel is thicker than a 26 gauge panel.

Most standing seam metal roofing systems fall within this range:

1. 22 gauge – very thick commercial grade
2. 24 gauge – premium residential and commercial
3. 26 gauge – common residential standard
4. 29 gauge – typically used for corrugated or exposed fastener systems

According to guidance from the Metal Construction Association, thicker metal panels typically provide better resistance to:

1. wind uplift
2. impact damage
3. oil canning (visual waviness)
4. thermal movement stress

However, thickness alone doesn’t determine performance. Panel profile, clip system, and installation quality often matter just as much.

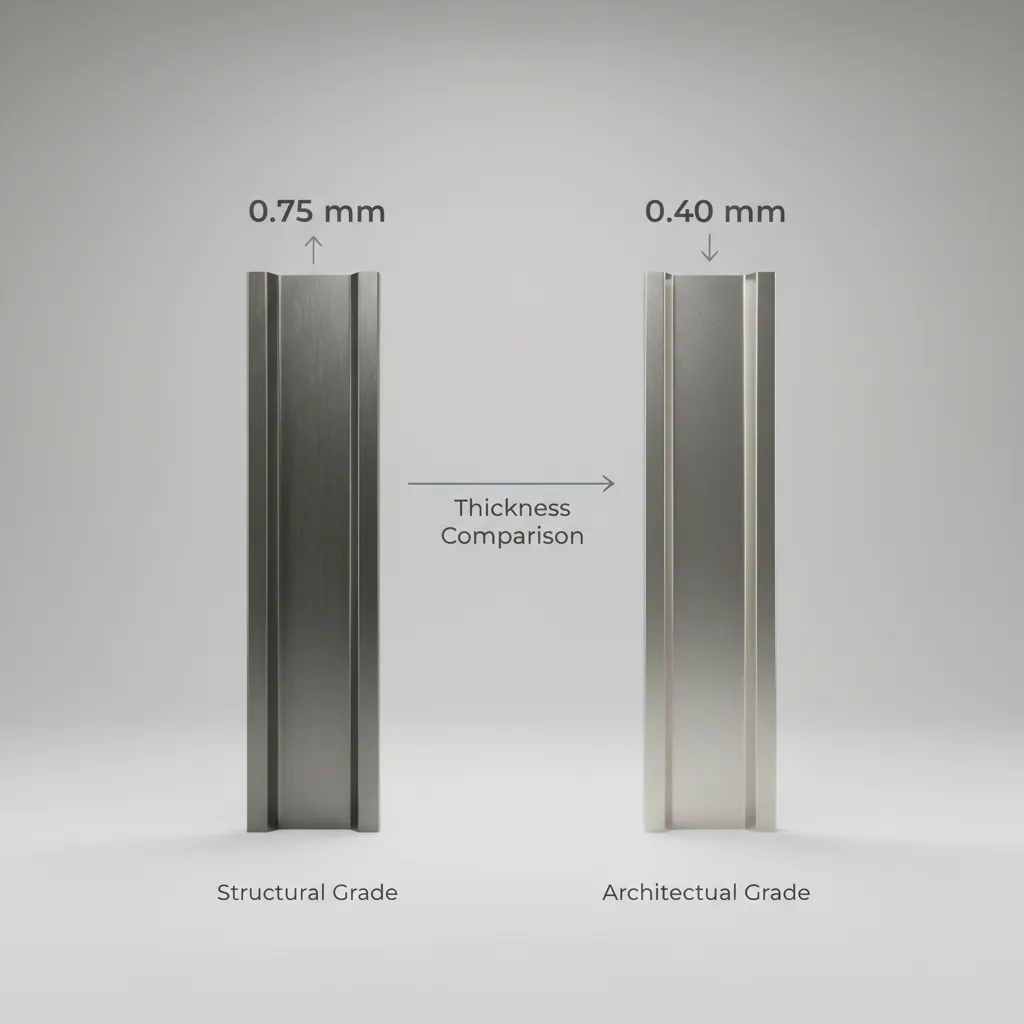

24 Gauge vs 26 Gauge Standing Seam Metal Roof

Key Insight: The real world difference between 24 and 26 gauge standing seam roofing is durability and visual stability, not just strength.

This comparison comes up constantly in projects. Homeowners often ask if paying for thicker panels is worth it.

Here’s the practical difference I explain to clients:

1. 24 gaugeThicker steel
2. Better resistance to oil canning
3. Higher wind performance
4. Longer structural rigidity
5. 26 gaugeMore affordable
6. Easier to handle during installation
7. Common in residential builds
8. Still very durable when installed correctly

In high end residential design projects, I typically recommend 24 gauge because smoother panels photograph better and hold visual lines longer.

save pin

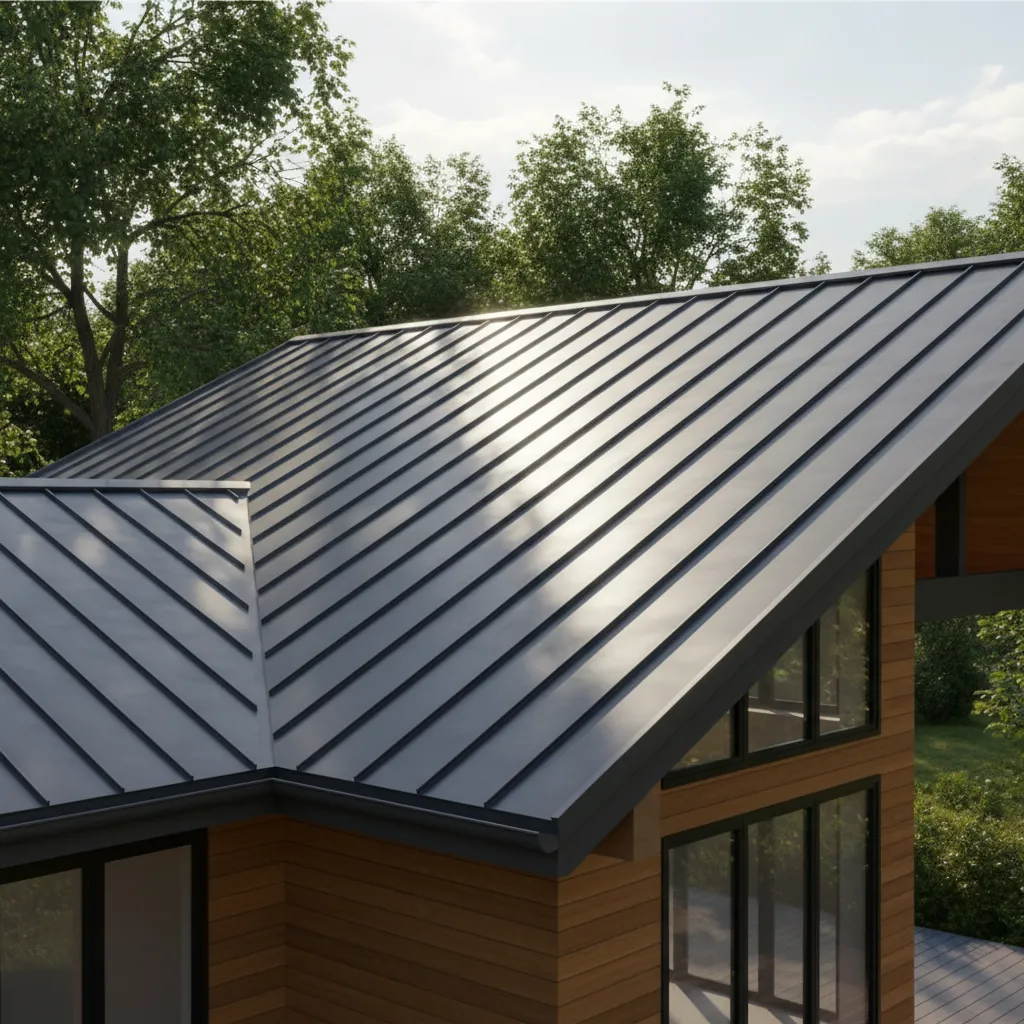

Why Thicker Metal Panels Reduce Oil Canning

Key Insight: Oil canning occurs when thin metal panels expand unevenly under temperature changes, and thicker gauge panels reduce that visual distortion.

Oil canning is one of the biggest aesthetic complaints with standing seam roofs. It appears as subtle waviness across large metal panels.

Common causes include:

1. thin panel material
2. improper clip spacing
3. uneven roof decking
4. thermal expansion

Thicker 24 gauge panels resist bending and tension better than thinner panels, which helps maintain a flat appearance.

However, here's a detail many roofing guides skip: even 24 gauge panels can show oil canning if the substrate isn't perfectly flat.

In several projects I worked on in Los Angeles hillside homes, the biggest improvement came from correcting deck leveling before installing panels—not simply switching gauge.

save pin

How Climate Affects the Right Metal Roof Gauge

Key Insight: The ideal standing seam metal roof gauge depends heavily on local wind loads, snow weight, and temperature swings.

Different environments stress roofing materials in different ways.

Here are general guidelines used by many roofing contractors:

1. Hurricane or high wind regions24 gauge recommended
2. Heavy snow climates24 gauge preferred for structural rigidity
3. Mild climates26 gauge usually performs well
4. Architectural showpiece homes24 gauge improves visual stability

Engineering tests from the Metal Roofing Alliance consistently show thicker panels improve wind uplift ratings when paired with proper clip spacing.

Hidden Costs of Choosing the Wrong Metal Roof Gauge

Key Insight: The real cost of thinner metal panels often appears years later through visual distortion, repairs, or reduced lifespan.

Many homeowners focus only on upfront price. But in practice, gauge choice influences several long term factors:

1. panel longevity
2. maintenance frequency
3. structural stability
4. resale perception

Hidden tradeoffs include:

1. More visible oil canning with thinner panels
2. Higher chance of denting from hail
3. Slightly lower wind ratings

On the other hand, thicker panels also bring tradeoffs:

1. higher material cost
2. more difficult installation
3. heavier shipping loads

That balance is why many contractors still recommend 26 gauge for standard homes.

save pin

Answer Box

The best standing seam metal roof gauge for most homes is either 24 gauge or 26 gauge steel. Thicker 24 gauge panels offer better durability and reduced oil canning, while 26 gauge provides a more affordable option with reliable performance when installed correctly.

Should You Choose 24 or 26 Gauge Standing Seam Roofing

Key Insight: The right gauge depends more on project priorities than on a universal rule.

When helping clients choose between gauges, I usually walk through three questions:

1. Is the home located in a high wind or snow region?
2. Is the roof highly visible from the street or nearby buildings?
3. Is long term durability worth a higher upfront cost?

If the answer is yes to two or more of those, 24 gauge usually makes sense.

If budget is tight and climate is mild, 26 gauge is still an excellent standing seam metal roof gauge for residential use.

Final Summary

1. Standing seam metal roof gauge measures panel thickness.
2. Lower gauge numbers mean thicker metal panels.
3. 24 gauge offers better durability and visual stability.
4. 26 gauge remains the most common residential option.
5. Climate and installation quality matter as much as thickness.

FAQ

What is the best standing seam metal roof gauge?

Most homes use either 24 gauge or 26 gauge panels. 24 gauge provides better durability and reduced oil canning, while 26 gauge is a cost effective residential standard.

Is 24 gauge metal roofing worth it?

For high wind areas or architecturally visible roofs, 24 gauge is often worth the added cost because it improves panel stability and long term performance.

Is 26 gauge standing seam metal roof strong enough?

Yes. A properly installed 26 gauge standing seam metal roof performs well in many residential climates and can last several decades.

Does thicker metal roofing last longer?

Generally yes. Thicker panels resist denting, wind uplift, and deformation better than thinner metal panels.

What gauge metal roof is used for residential homes?

The most common residential standing seam metal roof gauge is 26 gauge, with 24 gauge used for premium or high performance projects.

Does metal roof gauge affect oil canning?

Yes. Thicker panels like 24 gauge reduce oil canning because they resist thermal expansion and panel bending better.

Is thicker metal roofing harder to install?

Yes. Thicker metal panels require more effort to cut, bend, and fasten, which can slightly increase installation time.

Can thin metal roofing dent from hail?

Thinner panels are more susceptible to dents from hail or impact, which is one reason some homeowners prefer thicker gauges.
