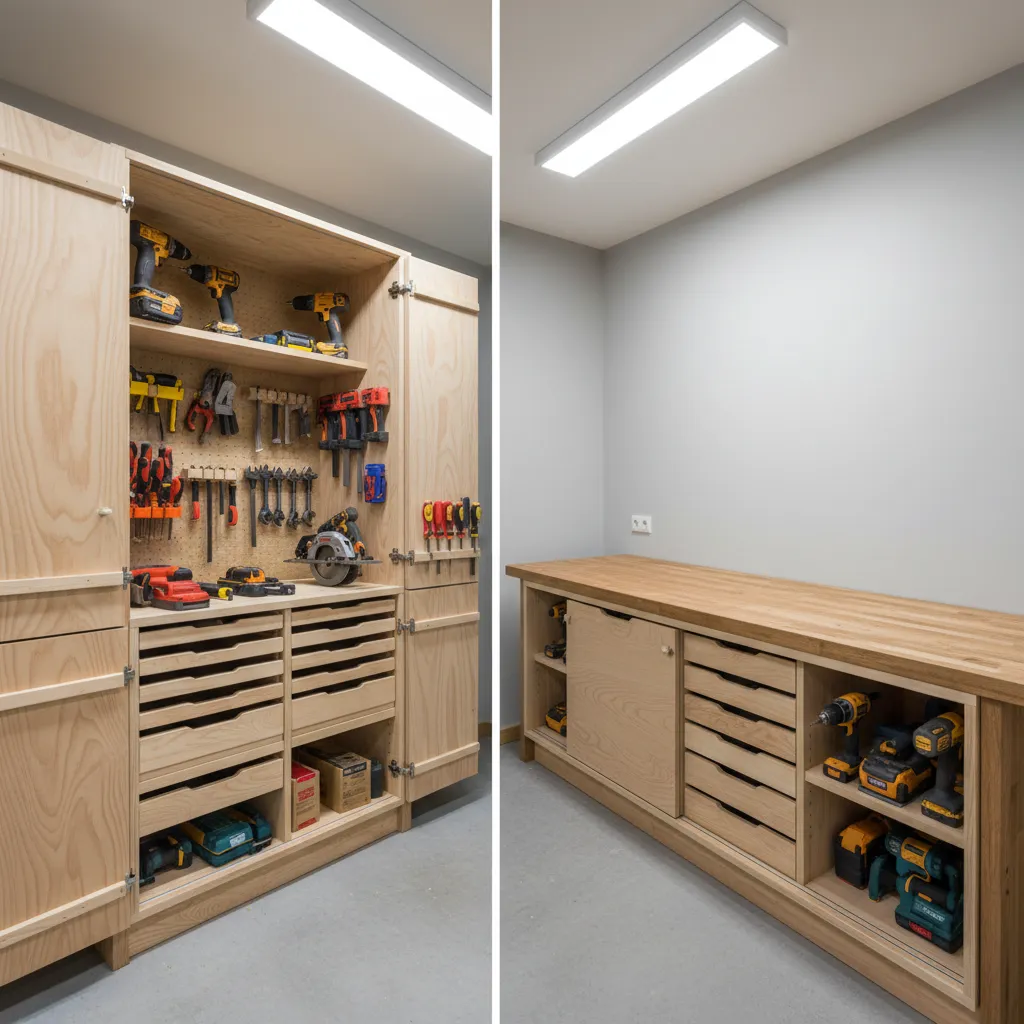

Vertical vs Horizontal Power Tool Cabinet Layouts for Small Workshops: Understand which cabinet structure saves space, improves workflow, and fits the reality of compact workshops.

Direct Answer

In small workshops, vertical power tool cabinet layouts usually maximize storage because they use wall height efficiently. Horizontal layouts, however, often improve accessibility and workflow for frequently used tools. The best option depends on ceiling height, tool size, and how often you access each tool.

Quick Takeaways

1. Vertical layouts maximize storage in tight workshops by using wall height.
2. Horizontal cabinets provide faster access to frequently used tools.
3. Vertical storage works best when tools vary greatly in size.
4. Horizontal layouts improve workflow in bench‑centered workspaces.
5. Many efficient workshops combine both approaches.

Introduction

Choosing between a vertical vs horizontal tool cabinet layout is one of the most overlooked decisions in a small workshop. Over the past decade working with compact garages, basement shops, and city workshops, I have seen well‑intentioned storage designs fail simply because the cabinet structure didn’t match how the space was actually used.

Most people assume the goal is simply fitting more tools. In reality, the best cabinet layout for a small workshop balances three things at once: storage density, accessibility, and workflow. A layout that stores 30% more tools but forces you to unload three drills just to reach a sander quickly becomes frustrating.

Before committing to a cabinet design, I often recommend sketching the shop using a simple digital planning approach similar to the method shown in this step‑by‑step workshop layout planning example. Seeing the storage system in relation to benches and walking space usually reveals which orientation makes more sense.

In this guide, I’ll compare vertical and horizontal cabinet layouts based on real workshop design constraints: space efficiency, workflow, expandability, and long‑term usability.

save pin

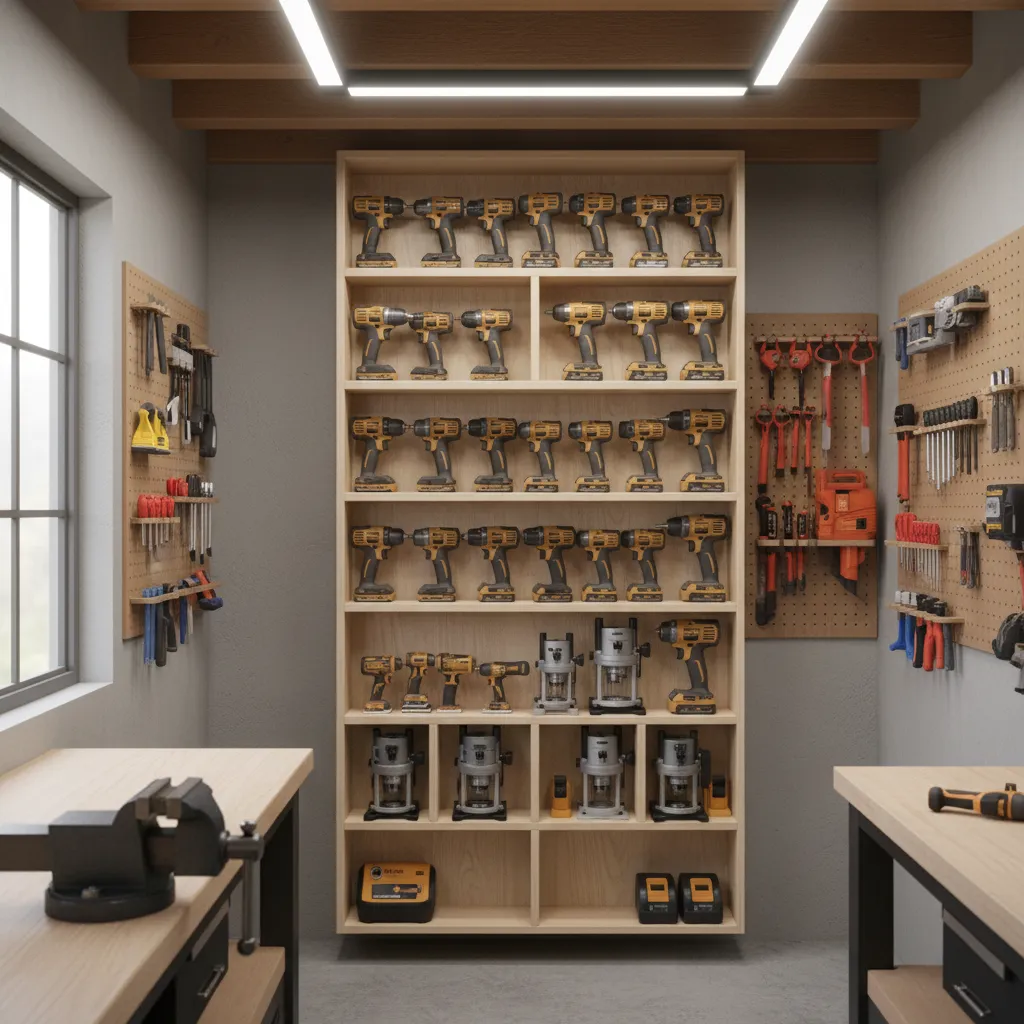

Understanding Vertical Storage for Power Tools

Key Insight: Vertical storage maximizes limited floor space by stacking tools upward instead of outward.

Vertical power tool storage ideas are common in compact workshops because walls are often underused. By building cabinets that extend upward, you can store large numbers of tools while keeping the floor clear.

In projects where the workshop footprint is under 120 square feet, vertical systems almost always outperform horizontal ones in raw storage capacity.

Typical Vertical Cabinet Structure

1. Upper shelves for lightweight or rarely used tools
2. Middle compartments for daily tools like drills or sanders
3. Lower pull‑out drawers for heavier equipment
4. Side rails or pegboards for accessories

Advantages

1. Uses wall height efficiently
2. Frees up valuable floor area
3. Allows narrow cabinets in tight spaces
4. Scales easily with additional vertical modules

Hidden Mistake Many Builders Make

They make cabinets too tall without planning access. Once shelves go above eye level, people stop using them efficiently. In practice, anything above about 78 inches becomes "dead storage" unless pull‑down systems are added.

Professional workshops often avoid this by dividing tall cabinets into stacked modular sections.

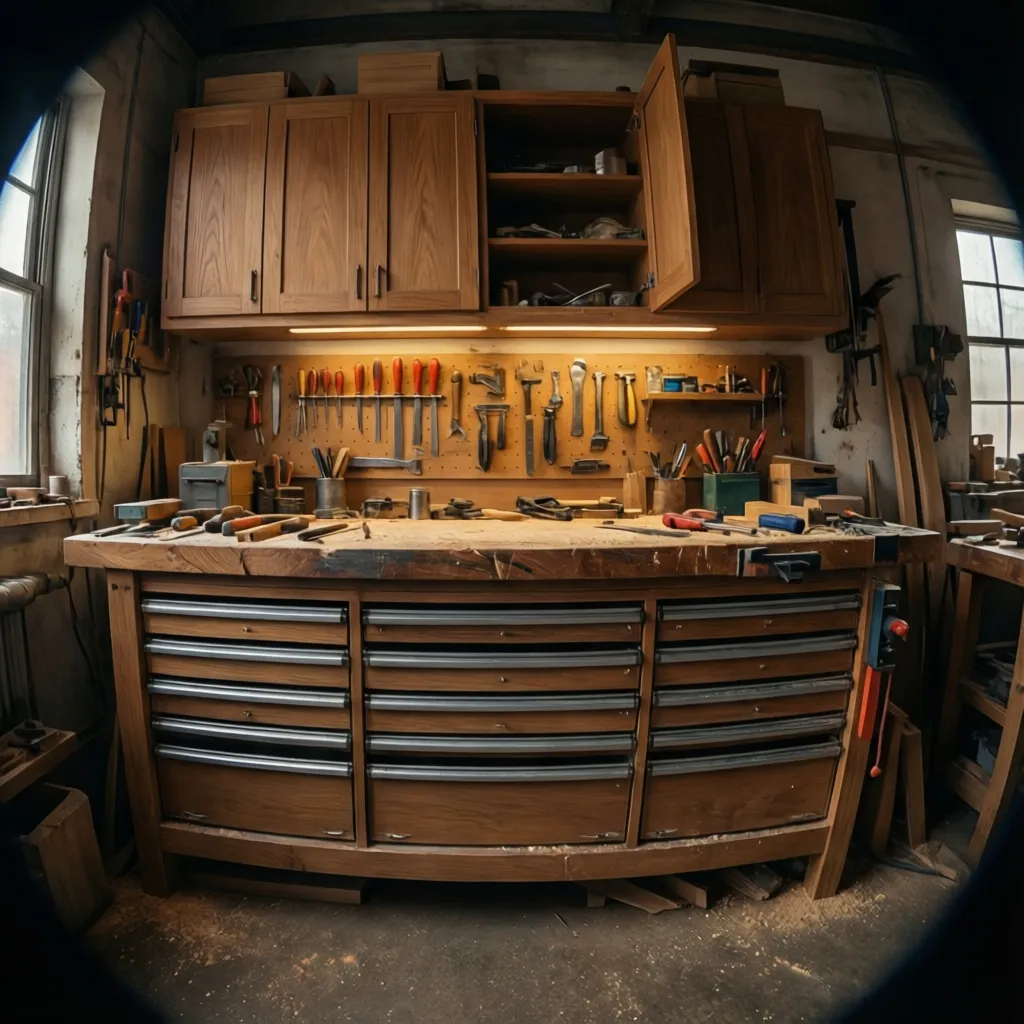

Horizontal Cabinet Layouts and When They Work Best

Key Insight: Horizontal layouts prioritize accessibility and workflow instead of maximum storage density.

Horizontal tool cabinet design spreads tools across wider cabinets, typically positioned along a workbench wall. While this approach uses more wall width, it keeps most tools at a comfortable reach height.

This layout is especially effective when tools are used frequently during projects.

Typical Horizontal Layout Structure

1. Long base cabinets beneath a workbench
2. Shallow wall cabinets above the bench
3. Drawer systems for small tools and accessories
4. Dedicated tool bays for larger equipment

Where Horizontal Layouts Excel

1. Bench‑focused woodworking shops
2. Spaces where tools are used repeatedly in sequence
3. Workshops with lower ceilings
4. Users who prioritize speed over capacity

In fact, many professional furniture makers prefer horizontal layouts because tools remain visible and reachable without repositioning ladders or step stools.

save pin

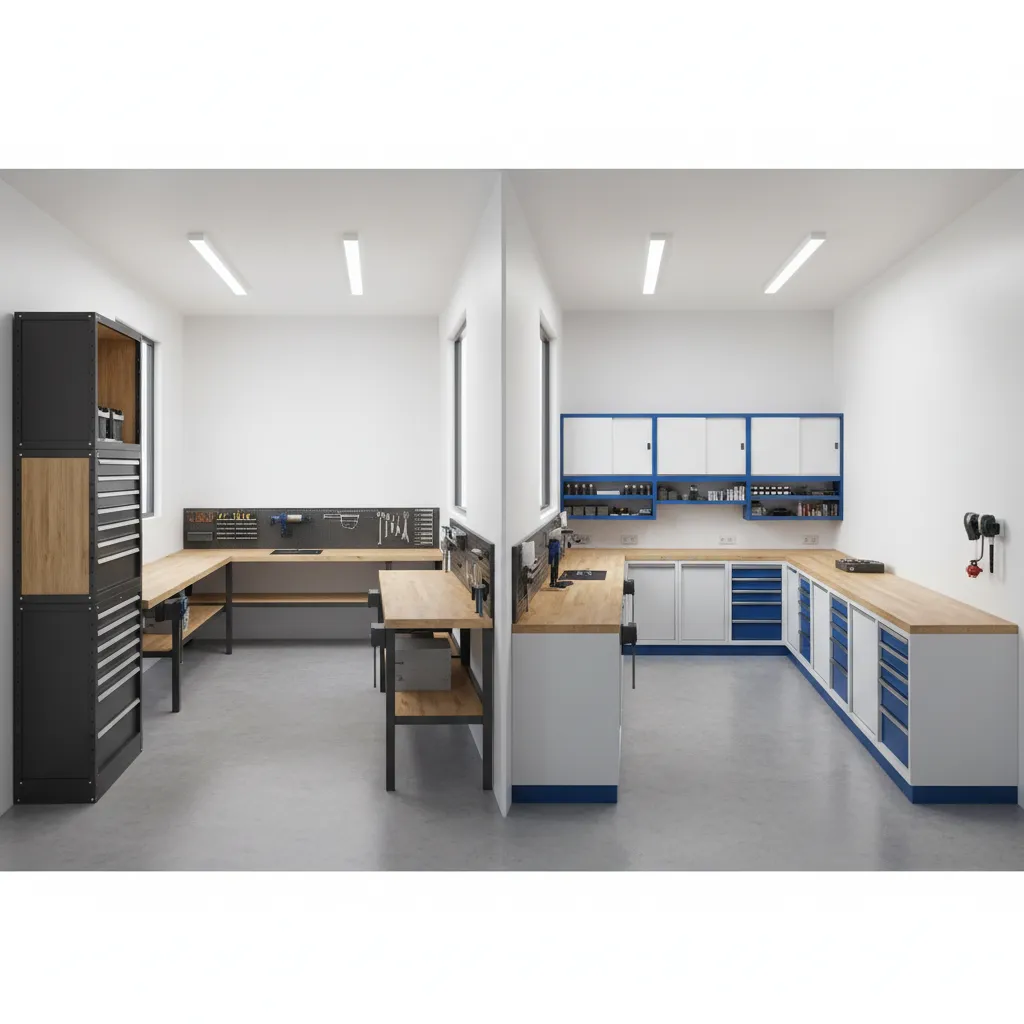

Space Efficiency Comparison in Small Workshops

Key Insight: Vertical cabinets win on storage density, but horizontal cabinets often create more usable working space.

When comparing a vertical vs horizontal tool cabinet layout, the key metric isn’t just how many tools fit inside—it’s how the layout affects the rest of the workshop.

Typical Comparison

1. Vertical cabinet depth: 18–24 inches
2. Horizontal cabinet depth: 12–18 inches
3. Vertical storage capacity: Higher
4. Horizontal accessibility: Higher

One surprising issue I frequently encounter is that extremely tall cabinets visually shrink small workshops. Even if they save space mathematically, they can make a shop feel cramped.

Planning cabinet placement inside a scaled layout can help avoid that problem. This interactive room layout planning workflowdemonstrates how wall storage affects circulation and movement.

save pin

Answer Box

Vertical tool cabinets maximize storage capacity in small workshops, while horizontal cabinets improve accessibility and workflow. The most practical solution for many compact shops is a hybrid system combining both orientations.

Accessibility and Workflow Differences

Key Insight: Accessibility determines how usable a cabinet system feels during real projects.

In real workshop conditions, the difference between vertical and horizontal storage becomes obvious the moment a project begins.

Vertical Workflow

1. Tools stacked above each other
2. May require removing items to access lower tools
3. Works best with clearly labeled compartments

Horizontal Workflow

1. Tools arranged side‑by‑side
2. Faster visual identification
3. Minimal tool movement required

In workshops where multiple tools are used in rapid succession—drill, sander, router, clamp—horizontal systems typically save time.

However, vertical systems can close this gap by integrating pull‑out trays and sliding shelves.

Tool Capacity and Expandability

Key Insight: Expandability matters more than initial capacity when designing a workshop cabinet.

One design mistake I repeatedly see is building cabinets that perfectly fit today's tools but leave no room for future additions.

Power tool collections almost always grow.

Vertical System Expansion

1. Add additional stacked cabinet modules
2. Extend wall storage upward
3. Add side accessory panels

Horizontal System Expansion

1. Add additional base cabinets
2. Extend workbench length
3. Integrate drawer units

Visualizing how cabinets expand over time can be surprisingly helpful. Many designers now preview storage systems using realistic layout models similar to this 3D interior visualization example, which helps test cabinet proportions before building anything.

save pin

Which Layout Is Best for Your Workspace

Key Insight: The best cabinet layout depends more on workshop workflow than on tool quantity.

After working on dozens of compact workshops, I typically recommend the following decision framework.

Choose Vertical Cabinets If:

1. Your workshop is under 100 square feet
2. Ceiling height exceeds 8 feet
3. You own many rarely used specialty tools
4. Floor space is extremely limited

Choose Horizontal Cabinets If:

1. Your workflow revolves around a central workbench
2. You frequently rotate between tools
3. Ceiling height is low
4. Accessibility matters more than maximum storage

Professional Tip

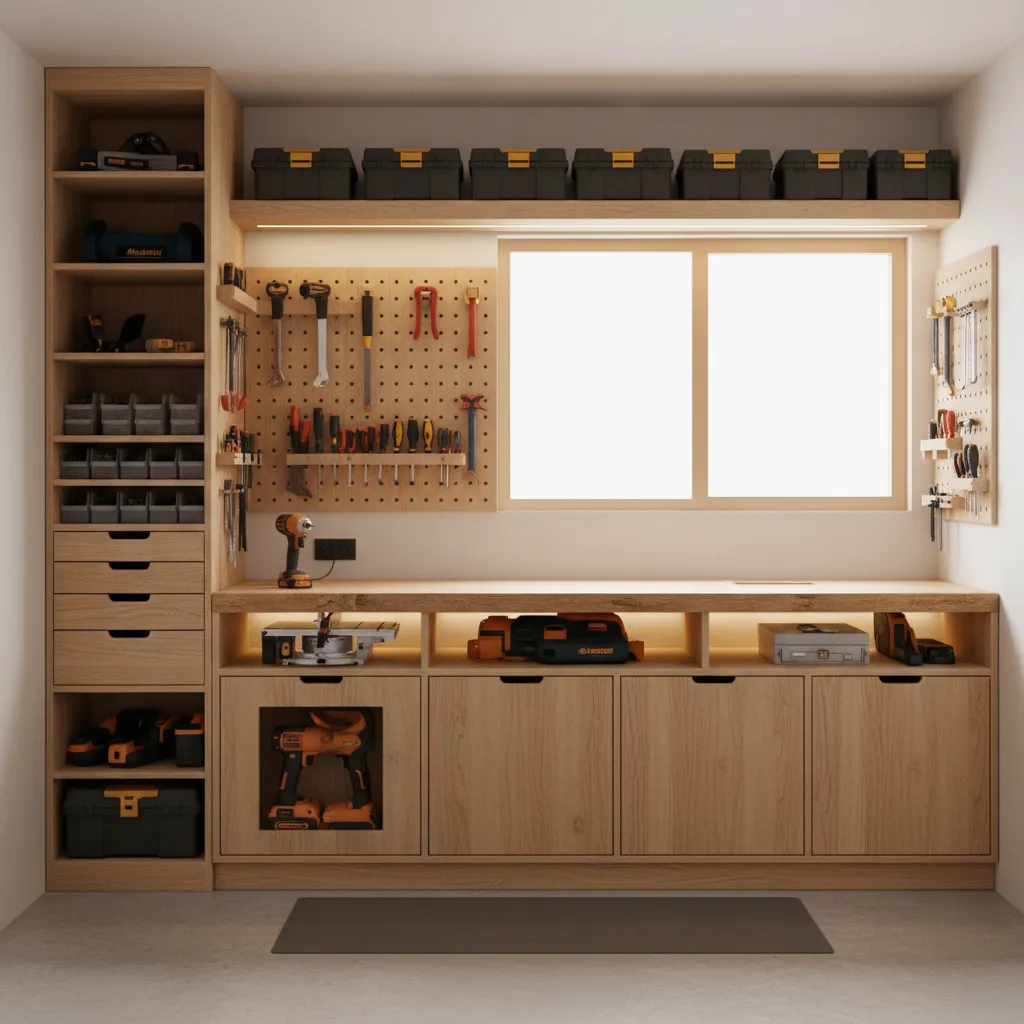

The most efficient compact workshops combine vertical wall towers for storage with horizontal workbench cabinets for daily tools. This hybrid approach balances capacity and usability.

Final Summary

1. Vertical cabinets maximize storage capacity in small workshops.
2. Horizontal layouts improve tool accessibility and workflow.
3. Very tall cabinets often create hidden accessibility problems.
4. Hybrid cabinet systems offer the most balanced solution.
5. Planning layouts before building prevents expensive mistakes.

FAQ

Is vertical or horizontal tool storage better for a small workshop?

Vertical storage is usually better for maximizing capacity, while horizontal layouts improve accessibility and workflow.

What is the best cabinet layout for a small workshop?

The best cabinet layout for a small workshop often combines vertical storage towers with horizontal workbench cabinets.

How tall should a vertical tool cabinet be?

Most practical vertical cabinets stay below 78 inches for frequently used tools. Higher shelves should store rarely used equipment.

Do horizontal cabinets waste wall space?

They can use more wall width, but they often improve accessibility and daily workflow efficiency.

How deep should a power tool cabinet be?

Most power tool cabinets range from 16 to 24 inches deep depending on tool size.

Can I combine vertical and horizontal cabinet layouts?

Yes. Many efficient workshops use vertical storage towers alongside horizontal workbench cabinets.

What tools benefit most from vertical storage?

Larger tools such as circular saws, routers, and sanders often store well in vertical compartments.

What is the biggest mistake when designing a tool cabinet?

Building cabinets that maximize storage but ignore accessibility and workflow.
