Wall Mixer Height Standards in Hotels and Commercial Bathrooms: Professional placement guidelines for wall-mounted faucets in hotels, hospitals, and public restrooms.

Direct Answer

Wall mixer height in commercial bathrooms typically ranges from 1000–1100 mm (39–43 inches) from finished floor level to the faucet outlet. However, hotels, hospitals, and public facilities adjust this height depending on basin type, accessibility regulations, and user ergonomics.

Most hospitality projects coordinate faucet height with basin rim height, splash control, and accessibility codes rather than using a single universal measurement.

Quick Takeaways

1. Typical commercial wall mixer height is 1000–1100 mm from finished floor.
2. Hotels prioritize aesthetics and guest comfort when setting faucet height.
3. Healthcare sinks often require higher splash clearance and hygiene-focused placement.
4. Public restroom faucets must follow accessibility and reach guidelines.
5. Basin depth and splashback design strongly influence final mixer placement.

Introduction

Wall mixer height in commercial bathrooms is one of those details that seems minor—until you walk into a hotel or airport restroom where the faucet splashes everywhere. I’ve worked on hospitality and commercial interiors for over a decade, and incorrect wall mixer height is surprisingly common even in expensive projects.

The reason is simple: many contractors copy residential measurements. But commercial environments operate differently. Basin types vary widely, traffic volume is higher, accessibility rules apply, and maintenance teams care about durability and cleaning.

When planning hospitality projects, designers often test faucet and basin relationships digitally before construction. Tools that allow teams to visualize professional bathroom layouts before installationcan prevent costly repositioning later.

This guide breaks down how wall mixer placement changes across hotels, hospitals, restaurants, and public restrooms—and what experienced designers actually consider when setting installation height.

save pin

Why Commercial Bathrooms Use Different Mixer Heights

Key Insight: Commercial bathrooms adjust wall mixer height based on basin depth, usage frequency, and maintenance—not just comfort.

Residential bathrooms are designed for a small group of consistent users. Commercial spaces serve hundreds or thousands of people daily. That changes how fixtures are positioned.

Three major factors influence commercial faucet height decisions:

1. Basin depth and splash control – Deeper commercial basins require higher faucet outlets.
2. Cleaning efficiency – Maintenance teams need clearance for fast sanitation.
3. Durability – High traffic increases wear on improperly positioned fixtures.

One hidden issue I see often is splashback damage. When the faucet outlet is too low relative to basin depth, water hits the drain aggressively and sprays outward. Over time, this damages walls and countertops.

Large hotel brands increasingly test these relationships during digital layout planning using tools that help teams map bathroom fixture placement inside a 3D floor layoutbefore construction begins.

save pin

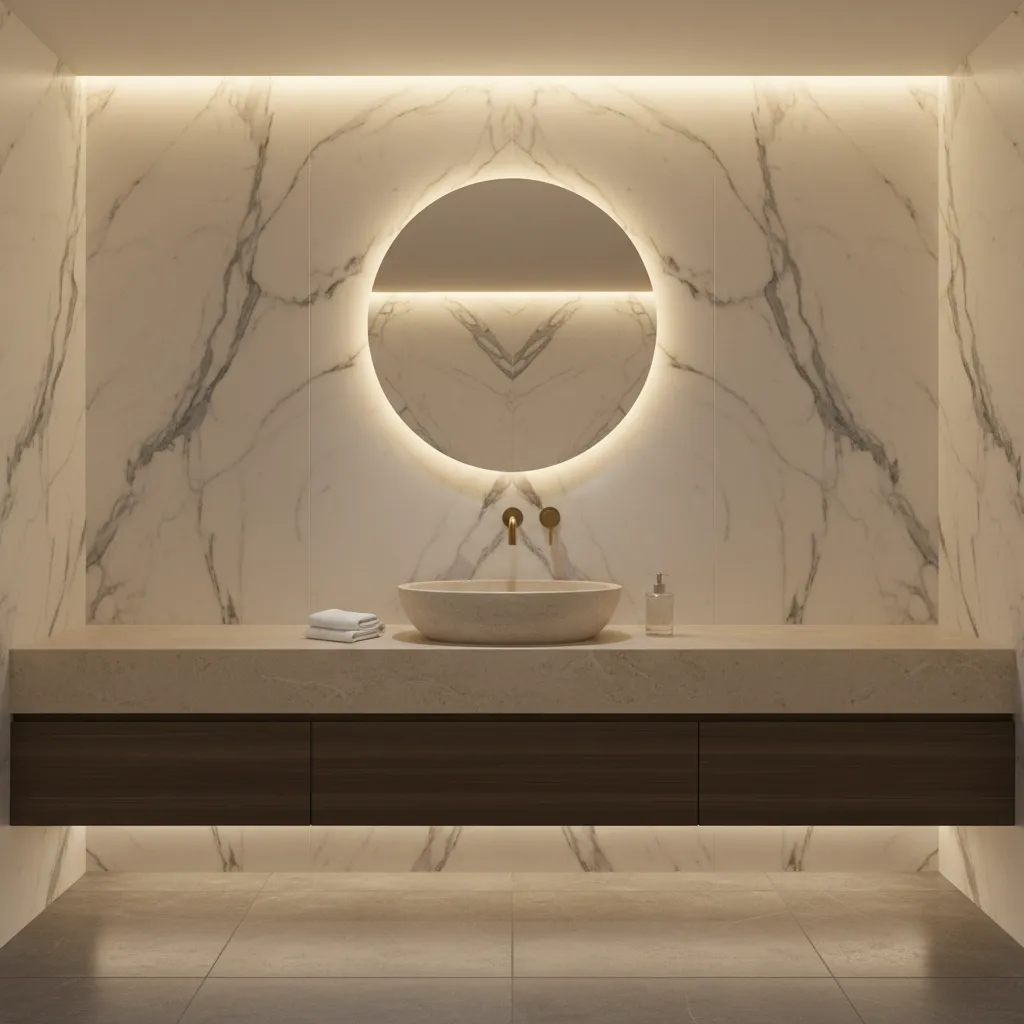

Wall Mixer Placement Standards in Hotels

Key Insight: Hotels typically position wall mixers between 1020–1080 mm (40–42.5 inches) from finished floor level.

Hotel bathrooms balance guest comfort with visual symmetry. Designers usually coordinate three elements together:

1. Basin rim height
2. Mirror alignment
3. Faucet outlet clearance

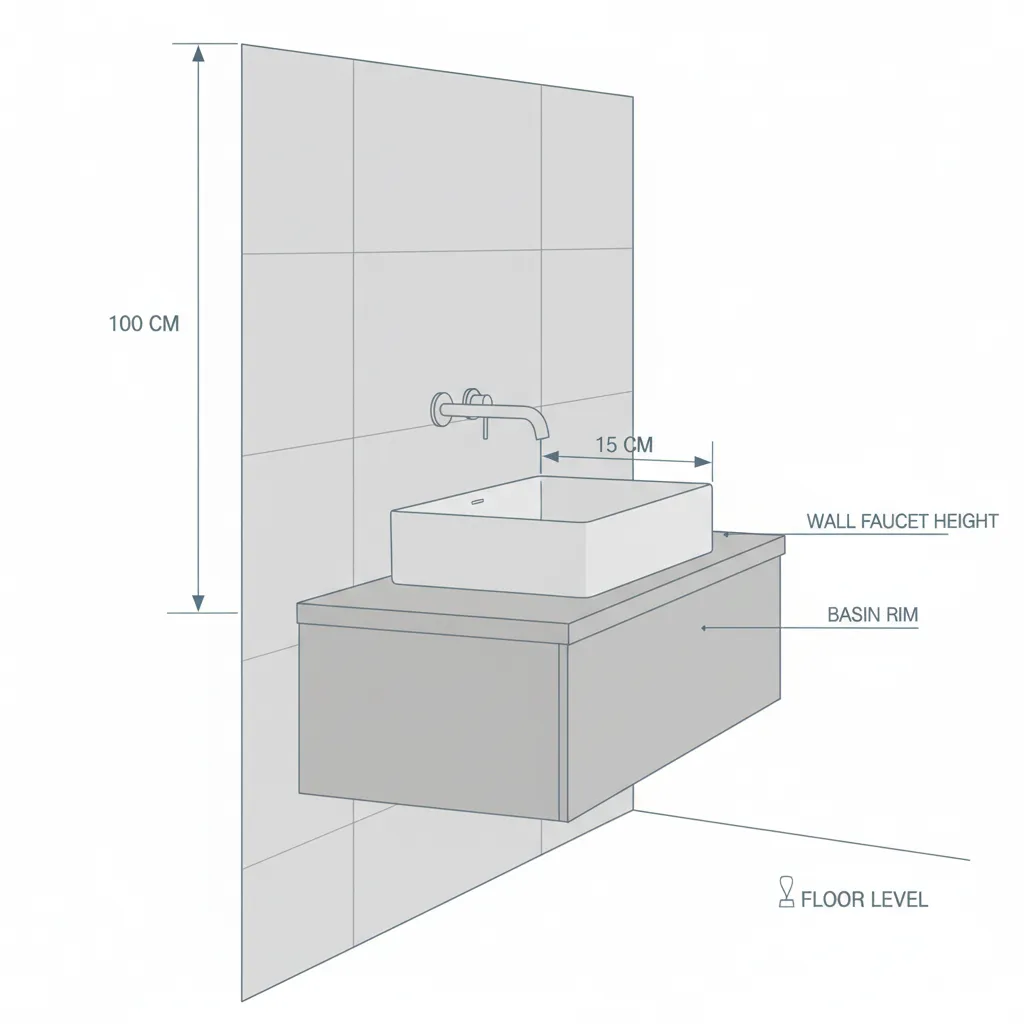

Typical hospitality configuration:

1. Basin rim height: 850–900 mm
2. Faucet outlet above basin rim: 120–180 mm
3. Wall mixer center height: 1020–1080 mm

But here’s a detail rarely discussed online: luxury hotels often raise faucet height slightly. Deeper stone or vessel basins create a stronger visual impact, which requires additional clearance.

Without adjusting the faucet height, guests struggle to wash hands comfortably under the spout.

save pin

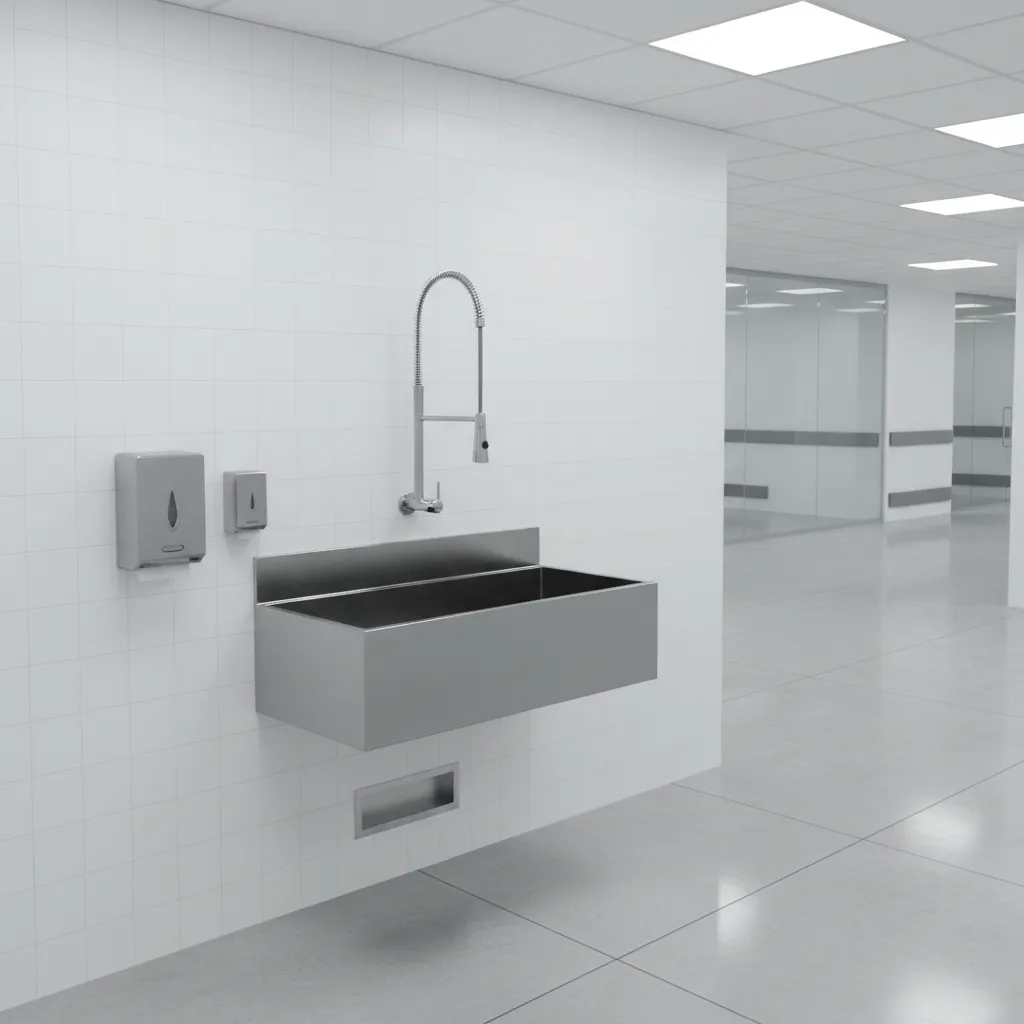

Healthcare and Hospital Sink Mixer Height Requirements

Key Insight: Hospital sinks typically place wall faucets higher—around 1050–1150 mm—to improve hygiene and reduce splash contamination.

Healthcare environments follow stricter sanitation principles. Faucet placement must support infection control and hands‑free operation.

Common hospital sink design considerations:

1. Higher faucet clearance to prevent hand contact with spout
2. Deeper basins to contain splash
3. Sensor or elbow-operated mixers
4. Large rear deck area for hygiene protection

Guidelines from healthcare facility planners emphasize minimizing splash zones because contaminated water droplets can spread pathogens around the sink area.

As a result, hospital sinks are usually deeper and faucets mounted higher than in hospitality environments.

Restaurant and Public Restroom Faucet Placement

Key Insight: Public restrooms prioritize durability and universal usability, leading to faucet heights around 1000–1050 mm.

Restaurants, airports, malls, and stadiums design restrooms for extremely high turnover. Fixtures must accommodate a wide range of users.

Typical placement guidelines:

1. Faucet center: 1000–1050 mm from floor
2. Basin rim: 850–880 mm
3. Spout reach: 100–130 mm from wall

Designers also prioritize vandal resistance. Wall-mounted faucets reduce countertop penetrations and simplify cleaning.

Another overlooked factor is water pressure. High-flow commercial systems can increase splash if faucets are positioned too low relative to the basin.

Accessibility Guidelines for Commercial Wall Mixers

Key Insight: Accessible restrooms must ensure faucets are reachable and operable without tight grasping or excessive reach.

Accessibility standards in the United States are largely guided by ADA restroom requirements.

Key considerations include:

1. Maximum reach depth for wheelchair users
2. Lever or sensor controls instead of twist handles
3. Clear knee space beneath the sink

Typical accessible sink configuration:

1. Sink rim height: maximum 34 inches (865 mm)
2. Faucet operable with one hand
3. Forward reach distance within ADA limits

The faucet itself may remain around standard commercial height, but the basin is often lowered to meet accessibility requirements.

Answer Box

The standard commercial wall mixer height is usually 1000–1100 mm from finished floor level. Final placement depends on basin depth, accessibility codes, and splash control requirements.

Hotels, hospitals, and public restrooms all adjust these measurements slightly to meet operational needs.

How Designers Adapt Residential Standards for Commercial Projects

Key Insight: Commercial bathroom design starts with residential principles but adjusts measurements for traffic, durability, and compliance.

Many designers begin with residential faucet placement logic and then refine it for public use.

Typical adaptation process:

1. Select basin model and measure depth.
2. Determine desired clearance above basin rim.
3. Check accessibility requirements.
4. Adjust height for splash control.
5. Validate alignment with mirror and wall finishes.

Digital layout planning is increasingly common for this stage. Many teams now plan commercial restroom layouts alongside the overall facility floor plan to coordinate plumbing walls and service routes early in design.

Final Summary

1. Commercial wall mixer height usually ranges from 1000–1100 mm.
2. Hotels adjust faucet height based on basin design and guest comfort.
3. Hospitals raise faucet placement to improve hygiene and splash control.
4. Public restrooms balance durability, accessibility, and maintenance needs.
5. Proper basin depth coordination prevents long‑term splash issues.

FAQ

What is the standard commercial bathroom wall mixer height?

Most commercial bathrooms install wall mixers between 1000 and 1100 mm from the finished floor.

Do hotel bathrooms use the same faucet height as homes?

No. Hotel sink wall faucet installation height often differs because basins are deeper and designed for guest comfort.

Why are hospital faucets mounted higher?

Higher placement reduces splash contamination and keeps hands from touching the faucet outlet.

What affects commercial bathroom wall mixer height the most?

Basin depth, splash control, accessibility requirements, and maintenance considerations all influence placement.

Are wall-mounted faucets better for public restrooms?

Yes. They simplify cleaning, reduce countertop damage, and improve durability in high‑traffic spaces.

What is the ADA recommendation for sink height?

The maximum sink rim height for accessible bathrooms is 34 inches (865 mm).

How far above the basin should a wall faucet sit?

Typically 120–180 mm above the basin rim depending on basin depth.

Do deeper basins require higher faucet placement?

Yes. Deeper basins need additional clearance to prevent splashing and improve usability.

References

1. Americans with Disabilities Act (ADA) Accessibility Guidelines
2. International Plumbing Code (IPC)
3. Facility Guidelines Institute – Healthcare Design Standards

Meta TDK

Meta Title: Wall Mixer Height Standards in Commercial Bathrooms

Meta Description: Learn the correct wall mixer height for hotels, hospitals, and public restrooms with professional placement standards and design insights.

Meta Keywords: commercial bathroom wall mixer height, hotel sink wall faucet installation height, public restroom wall mounted faucet standards, ADA wall faucet height recommendations

Featured Image

fileName: commercial-bathroom-wall-mixer-height.jpg

size: 1920x1080

alt: modern commercial bathroom sink with wall mounted mixer faucet at correct installation height

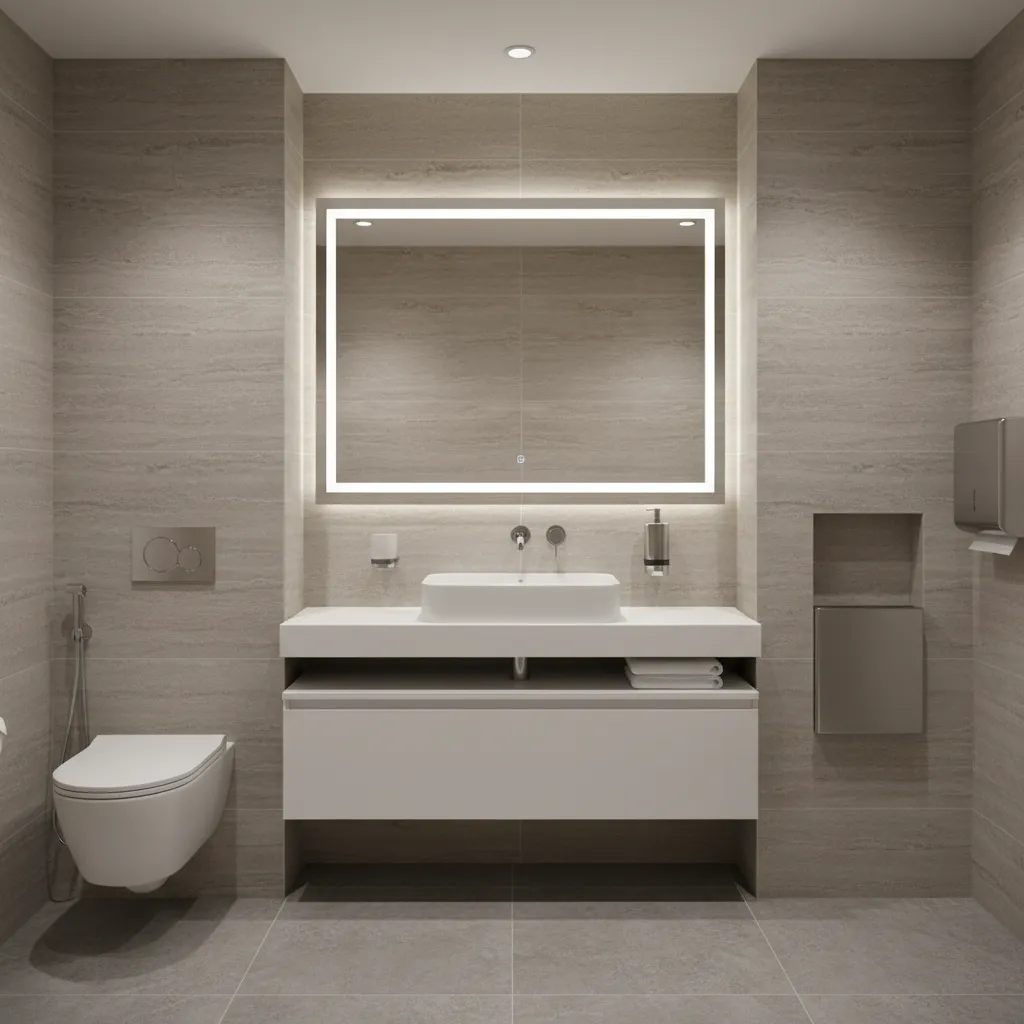

caption: Standard wall mixer placement in a commercial bathroom.
