Warehouse and Workshop Floor Plan Design With Roll-Up Doors: Practical warehouse and workshop layout strategies that integrate roll-up doors for efficient loading, storage flow, and safer industrial operations.

Direct Answer

A warehouse floor plan with roll up doors works best when doors align directly with loading zones, vehicle circulation paths, and staging areas. In well-designed industrial layouts, roll-up doors create clear logistics flow between exterior access, loading docks, storage aisles, and production or workshop zones.

Proper placement reduces forklift congestion, improves safety, and shortens loading cycles—three factors that strongly affect warehouse productivity.

Quick Takeaways

1. Roll-up doors should align with loading paths, not just exterior walls.
2. Separate vehicle access doors from staff entry points whenever possible.
3. Storage aisles should run perpendicular to loading doors for faster pallet movement.
4. Workshops benefit from roll-up doors that connect fabrication areas to outdoor staging zones.
5. Door placement decisions affect safety, forklift traffic, and operational efficiency.

Introduction

In many industrial projects I've worked on, the biggest inefficiency in a warehouse floor plan with roll up doors isn't the storage system—it's the door placement. Companies often install overhead doors wherever construction allows, instead of planning them around logistics flow.

After designing layouts for fabrication workshops, logistics warehouses, and light manufacturing facilities, I’ve noticed a pattern: when roll-up doors align with loading paths and staging zones, operations feel effortless. When they don’t, forklifts zigzag across the building and productivity quietly drops.

If you're planning a warehouse or workshop layout, it helps to visualize the building before construction. I often recommend starting with a digital layout where you can experiment with industrial layouts using a visual 3D floor planning workflow. Seeing vehicle paths and storage zones early prevents costly redesigns later.

In this guide, I’ll walk through how industrial buildings actually use roll-up doors—from warehouse loading bays to workshop garages—and the design decisions that make them work in real operations.

save pin

Why Roll-Up Doors Are Common in Warehouses and Workshops

Key Insight: Roll-up doors dominate industrial building design because they maximize access width while preserving interior wall space.

Unlike swing or sliding doors, roll-up doors retract vertically. That simple mechanism solves several operational problems at once: wide equipment access, minimal obstruction, and compatibility with loading docks.

In warehouses especially, overhead doors allow forklifts, pallet jacks, and delivery vehicles to move quickly between exterior and interior spaces.

Operational advantages include:

1. Wide openings for palletized freight
2. No interior swing clearance required
3. Compatibility with loading dock bumpers
4. Better sealing for climate-controlled facilities
5. Durability for high-cycle industrial use

According to industrial building standards from the Material Handling Institute, loading efficiency and forklift travel distance are two of the largest contributors to warehouse productivity. Door placement directly affects both.

Typical Warehouse Layouts Using Roll-Up Doors

Key Insight: The most efficient warehouse floor plan places roll-up doors directly along a dedicated loading wall connected to staging space.

In modern distribution centers, the wall with overhead doors becomes the "logistics spine" of the building. Trucks approach from outside while staging zones sit immediately inside the doors.

Typical layout structure:

1. Exterior truck maneuvering area
2. Roll-up loading doors
3. Interior staging zone
4. Main pallet storage aisles
5. Picking or packing areas

This arrangement minimizes forklift travel distance. Goods enter through the door, move briefly through staging, then travel into storage aisles that run perpendicular to the doors.

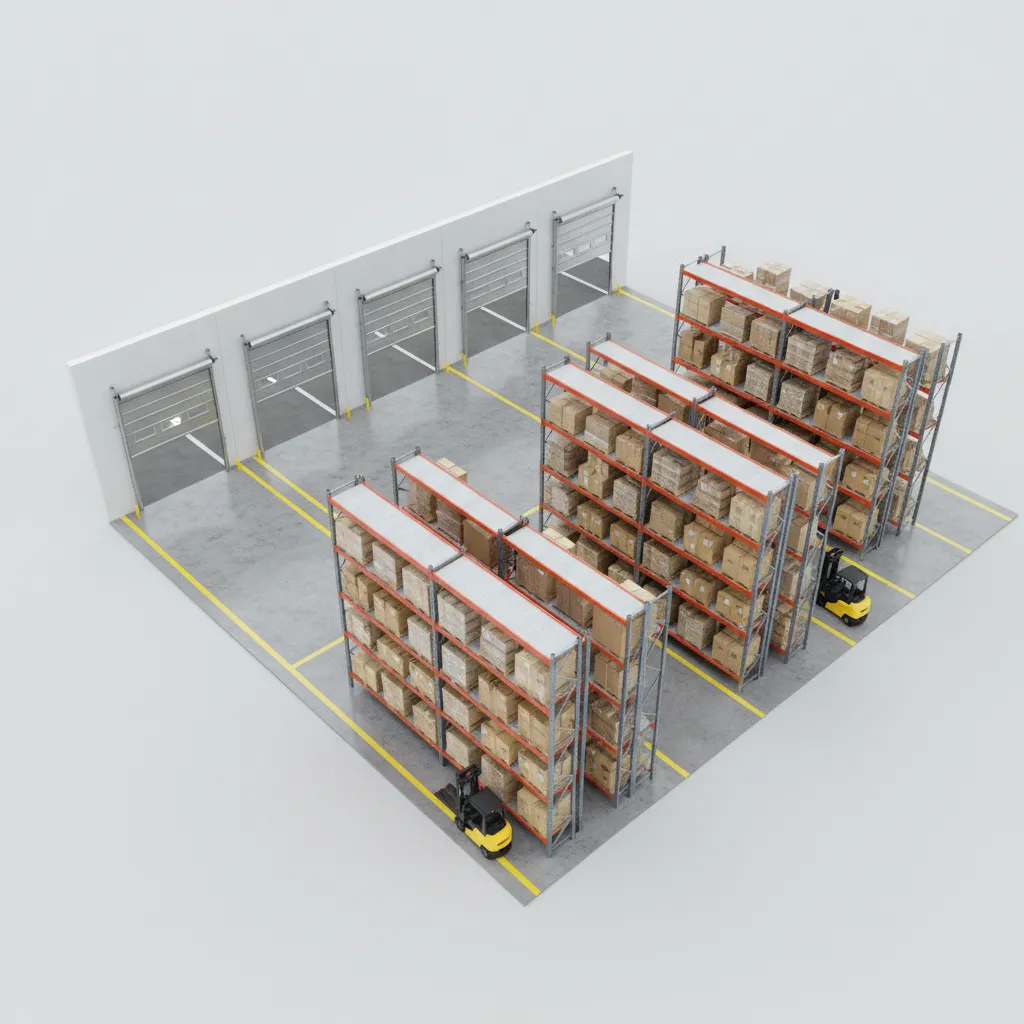

When planning this structure, designers often use a digital planning model to

save pin

map equipment routes and loading zones before construction begins. Visualizing the relationship between dock doors and storage aisles can reveal bottlenecks early.

Workshop and Garage Floor Plan Configurations

Key Insight: Workshops benefit from roll-up doors that connect fabrication areas directly to outdoor work or delivery zones.

While warehouses prioritize logistics flow, workshops often focus on equipment access and ventilation. In fabrication shops, auto garages, and machine workshops, overhead doors act as flexible workspace extensions.

Common workshop configurations:

1. Single-bay workshop with front roll-up access
2. Drive-through workshop with doors on opposite walls
3. Multi-bay service garage layouts
4. Fabrication shops with exterior staging yards

One design detail many guides overlook: door height must match equipment height plus safety clearance. I've seen multiple garages where tall service vehicles couldn't fully enter because designers underestimated door clearance.

save pin

Loading Dock and Storage Area Placement

Key Insight: Efficient industrial layouts separate loading docks, staging areas, and long-term storage to prevent congestion.

When roll-up doors open directly into storage aisles, forklifts compete with workers picking inventory. Over time this becomes both a productivity problem and a safety risk.

A better zoning approach:

1. Dock doors along one exterior wall
2. 10–15 ft staging depth immediately inside
3. Dedicated forklift travel lanes
4. Storage racks deeper inside the building

Many planners now simulate this process digitally to generate and test industrial floor plan concepts automaticallybefore committing to construction drawings.

save pin

Safety and Operational Considerations

Key Insight: Poor roll-up door placement creates hidden safety risks—especially where pedestrian paths cross loading zones.

One of the most common industrial layout mistakes is mixing foot traffic with forklift circulation near overhead doors.

Safety design checklist:

1. Separate pedestrian entrances from loading doors
2. Use marked forklift lanes
3. Maintain clear door opening zones
4. Install dock bumpers and safety lights
5. Provide weather seals for climate-sensitive goods

According to OSHA warehouse safety guidelines, clear traffic separation is one of the most effective ways to reduce workplace accidents.

Real-World Layout Examples From Industrial Buildings

Key Insight: Successful warehouse layouts treat roll-up doors as part of the logistics system—not just an exterior access point.

Across many industrial projects, several layout patterns appear repeatedly.

Example configurations:

1. Distribution warehouses with 6–20 dock doors along one wall
2. Automotive workshops with three front-facing service bays
3. Fabrication facilities with large rear equipment doors
4. Storage buildings with alternating door and rack zones

The best facilities align door placement with vehicle turning radius, storage rack direction, and staging capacity. When those three elements work together, the entire building runs more smoothly.

Answer Box

The most effective warehouse floor plan with roll up doors aligns doors with loading zones, staging areas, and forklift travel paths. This reduces congestion, shortens loading time, and improves operational safety across the facility.

Final Summary

1. Roll-up doors are essential for efficient warehouse and workshop access.
2. Door placement should align with loading docks and staging zones.
3. Storage aisles work best when perpendicular to loading doors.
4. Separate pedestrian access improves safety around loading areas.
5. Early layout planning prevents expensive operational bottlenecks.

FAQ

What is the ideal warehouse floor plan with roll up doors?

The best design places roll-up doors along a dedicated loading wall with staging space inside and storage aisles perpendicular to the doors.

How many roll-up doors should a warehouse have?

It depends on throughput. Small warehouses may use 2–4 doors, while distribution centers can have 20 or more loading dock doors.

Are roll-up doors better than sliding doors for warehouses?

Yes. Roll-up doors require less clearance, open faster, and work better with loading docks and forklift traffic.

What door height is typical for warehouse loading doors?

Most warehouse overhead doors range between 12 and 16 feet high to accommodate delivery trucks and forklifts.

How do workshops use rolling garage doors?

A workshop layout with rolling garage doors typically connects fabrication areas to outdoor staging zones or vehicle service bays.

Should warehouse doors face the truck yard?

Yes. Doors should align directly with truck maneuvering space to simplify loading and unloading.

What is the biggest mistake with roll-up door layouts?

Placing doors without considering forklift paths and staging areas often leads to congestion and inefficient operations.

Can a commercial building floor plan include both dock doors and drive-in doors?

Yes. Many industrial buildings combine raised loading docks with ground-level drive-in doors for flexible access.
