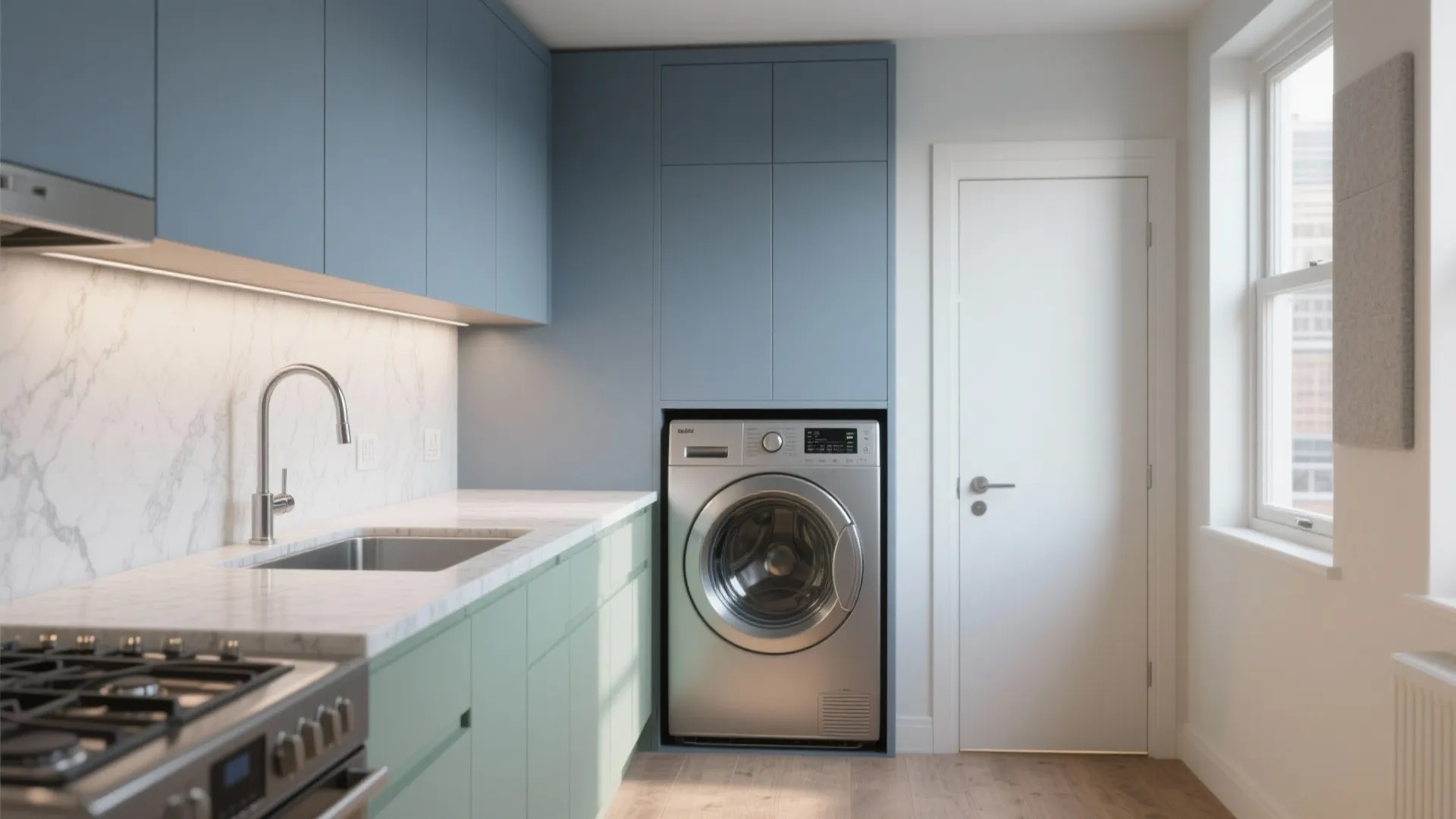

Washer Dryer in Small Kitchen: Space-Saving Solutions: Fast-Track Guide to Fitting Laundry in a Tiny Kitchen

I’ve integrated washer-dryers into dozens of tight urban kitchens, from 55–90 sq ft galley plans to micro-studios with a single wet wall. The key isn’t just finding the inches; it’s orchestrating ventilation, noise, workflow, and clearances so cooking stays effortless while laundry becomes invisible. A combined washer-dryer can save up to 30–40% footprint over side-by-side units, but success depends on careful layout sequencing and services planning.

Real performance metrics matter when compressing two zones into one. WELL v2 references encourage continuous background noise under 40 dBA for focus areas; practically, I target sub-55 dBA appliance selections for kitchens in open-plan studios to keep perceived sound comfortable during cycles. On productivity and spatial quality, Gensler’s Workplace Research highlights the impact of acoustic control on task performance—translating at home to choosing damped cabinetry, resilient flooring underlayment, and decoupled plinths around laundry modules. For broader design guidance on environments that support wellness and acoustics, see WELL v2 resources at WELL v2.

Color behavior is also part of the equation. Verywell Mind’s insights on color psychology associate soft, cool neutrals (blue-gray, sage) with lower arousal and perceived cleanliness—useful when a laundry façade sits inside a busy cooking envelope. Paired with 2700–3000K task lighting and 3500K ambient lighting, the kitchen reads warm enough for dining while staying bright enough for sorting or folding.

Compact Integration Strategies

In small kitchens, I prioritize a single services wall. Stack hot/cold supply, drain, venting, and dedicated circuits along the same run as the sink and dishwasher. A 24-inch combined washer-dryer can slip under-counter next to the sink, sharing the trap and minimizing added plumbing. If ventilation allows, a vented dryer provides faster cycles; otherwise, pick a high-quality condensing unit with robust moisture management. Keep a minimum 1-inch side clearance and 3-inch rear clearance for hoses and power.

Layout Tactics That Preserve Cooking Flow

Work triangles still apply. Place the washer-dryer outside the sink–hob–fridge triangle to avoid laundry conflicts with hot pans and refrigerated items. In a galley, position laundry at the entry end; in an L-shape, tuck it at the short leg near the door. If you need rapid layout testing, a room layout tool helps simulate clearances and traffic before cabinetry is ordered: room layout tool.

Under-Counter vs Tall Pantry Housing

Under-counter integrates seamlessly, but tall pantry housing unlocks a more ergonomic loading height (28–32 inches to drum center reduces stooping). Aim for a 24-inch deep cabinet with vent gaps at toe kick and top, plus a service panel. A bifold or pocket door prevents door clashes with the appliance. If doors must be hinged, set a 110–155° hinge to clear the drum door and maintain a 36-inch minimum standing zone.

Noise, Vibration, and Acoustic Comfort

Choose units rated below 55–60 dBA during wash cycles. Add a high-density rubber mat beneath the appliance to decouple vibration, and reinforce the subfloor if you’re in a pre-war building with springy joists. Soft-close hardware and felt-lined cabinet gaskets keep airborne noise down. For open-plan studios, a sliding panel with acoustic core (STC 32–38) shields laundry noise during evening runs.

Moisture and Venting

Condensing dryers put moisture into the room without ducting; mitigate with a 50–70 CFM continuous exhaust and a door undercut of 1/2 inch to encourage make-up air. If vented, route the duct with two or fewer elbows and smooth-wall pipe. Keep the washer’s standpipe height within manufacturer spec (usually 30–42 inches) to prevent siphoning and smells.

Electrical and Safety Planning

Provide a dedicated 20A circuit for combined units, GFCI protection within 6 feet of the sink, and metal braided hoses with shutoff valves accessible without removing cabinetry. If space permits, a flood tray and leak sensor add peace of mind. Pull the appliance out via a removable plinth or rear service hatch, not through a fragile finished panel.

Material Choices for Durability

Moisture-resistant plywood carcasses and thermally fused laminate fronts resist steam and occasional splashes. Choose quartz or compact laminate tops over the laundry bay to withstand vibration and heat. Matte finishes hide fingerprints around daily loading; specify edge banding that won’t chip when baskets brush surfaces.

Smart Storage Around the Drum

Use the 6–8 inches above or beside the machine for a slide-out vertical caddy holding detergent, stain sticks, and dryer sheets. Add a flip-down shelf at 36 inches for quick folding that also serves as extra prep space. Hooks inside the laundry door keep mesh bags handy for delicates.

Lighting and Visibility

Task lighting at 300–500 lux over the loading zone reduces sorting errors; ambient at 200–300 lux keeps the kitchen comfortable. Limit glare by shielding under-cabinet LEDs with diffusers, and choose 90+ CRI lamps so whites don’t read dingy next to stainless or dark cabinets. Maintain consistent color temperature across the room to prevent visual clutter.

Color Psychology to Calm the Utility Zone

Keep the laundry façade in the same palette as kitchen fronts. Cool neutrals promote the perception of cleanliness; a muted green or blue accent on a narrow panel can signal the laundry zone without visual noise. Handle-less doors enhance the “vanish” effect when the appliance is not in use.

Ergonomics and Human Factors

Set drum center between 26–32 inches above the floor for average users; add a pull-out platform if the machine is very low. Maintain a 36-inch standing depth for loading and a 24-inch lateral clearance for basket swing. Ensure controls are legible from 20–24 inches away; avoid placing controls behind a tall counter overhang.

Workflow Patterns in Tight Kitchens

Run laundry during cooking downtimes and avoid cross-traffic with meal prep. Place a small collapsible basket in the toe-kick niche to keep the floor clear. If you frequently air-dry, integrate a retractable rail under a high cabinet; don’t let damp fabrics block prep lighting or vents.

Sustainability and Water Management

Opt for high spin speeds (1200–1600 rpm) to reduce dryer energy, and choose cold-water cycles for everyday loads. Capture graywater only where codes permit; otherwise, focus on detergent dosing to protect drains. Durable cabinetry and serviceable panels extend lifecycle and reduce renovation waste.

2024–2025 Design Trends Worth Considering

Compact 24-inch integrated washer-dryers are getting quieter and smarter, with auto-dosing and moisture sensors that help in small spaces. Concealed utility bays behind fluted or slab doors are popular, and multi-function counters that switch from prep to folding are a hallmark of micro-living projects.

FAQ

What size washer-dryer works best in a small kitchen?

Compact 24-inch combined units fit under standard counters and typically require 24–25 inches depth plus rear clearance. They balance capacity with manageable vibration.

Can a condensing dryer work without external venting?

Yes. It condenses moisture into the drain or tank. Plan for adequate make-up air and a continuous 50–70 CFM exhaust to control humidity.

How do I reduce noise in an open-plan studio?

Pick units under 55–60 dBA, add a rubber isolation mat, use soft-close cabinetry with gaskets, and consider a sliding acoustic panel if cycles run at night.

Where should the washer-dryer sit within the kitchen layout?

Place it outside the primary cooking triangle, ideally near the sink to share plumbing, and close to the entry end of a galley to keep prep areas clear.

Is under-counter or tall cabinet housing better?

Tall housing improves ergonomics and access, while under-counter integrates cleanly with standard counters. Decide based on ceiling height, service access, and circulation.

What lighting levels do I need for laundry tasks in the kitchen?

Provide 300–500 lux task lighting near the drum and 200–300 lux ambient. Use diffusers to limit glare and 90+ CRI lamps for accurate color.

How do I manage water leaks safely?

Install braided hoses, accessible shutoff valves, a flood tray, and a leak sensor. Keep a removable plinth for quick pull-out and maintenance.

Which materials resist moisture and wear around laundry?

Moisture-resistant plywood, thermally fused laminate fronts, quartz or compact laminate tops, and durable edge banding handle steam and vibration.

What about color choices to make laundry less noticeable?

Use cool, calm neutrals aligned with kitchen fronts; avoid high-contrast doors. A subtle accent can cue the utility zone without visual clutter.

Can I share the sink drain with the washer?

Yes, with a proper standpipe and trap per local code. Keep hose runs short and respect manufacturer height specifications to prevent siphoning.
