WH vs HWT vs HW on Floor Plans: Understanding Plumbing Abbreviations: Learn the real differences between WH, HWT, and HW labels on construction drawings so you can read plumbing plans with confidence.

Direct Answer

On floor plans, WH usually means Water Heater, HWT typically stands for Hot Water Tank, and HW refers to a Hot Water supply line or connection. These abbreviations appear on architectural or plumbing drawings to quickly indicate equipment and water distribution points.

While they look similar, they serve different purposes: WH identifies the appliance, HWT highlights the storage tank system, and HW marks the hot‑water plumbing path.

Quick Takeaways

1. WH usually labels the physical water heater unit.
2. HWT often indicates a hot water tank or storage-based heater.
3. HW typically marks hot water supply lines or connections.
4. Architects use these abbreviations to simplify complex plumbing drawings.
5. Context on the floor plan determines the exact meaning.

Introduction

If you've ever studied a construction drawing and wondered about the difference between WH vs HWT vs HW on floor plans, you're not alone. I run into this confusion all the time when clients review plans during early design meetings. The abbreviations look almost identical, but they refer to completely different things in a plumbing layout.

After working on residential interior projects for more than a decade, I've learned that many misunderstandings about plumbing symbols happen long before construction starts. Homeowners often assume every label refers to the same device. In reality, architects and plumbers use shorthand so drawings remain readable even when dozens of systems overlap.

If you're new to reading construction drawings, it helps to first look at how layouts are organized. A simple interactive floor plan layout example that shows room structures clearlycan make it easier to see where mechanical systems like water heaters and supply lines are placed.

In this guide, I'll break down what WH, HWT, and HW mean, why different professionals prefer different abbreviations, and how to avoid misreading them when reviewing blueprints.

save pin

Why Plumbing Abbreviations Appear on Floor Plans

Key Insight: Plumbing abbreviations exist because full equipment names would overwhelm technical drawings.

Architectural floor plans already contain dimensions, materials, structural elements, electrical layouts, and furniture references. Writing "water heater" every time would clutter the drawing and reduce clarity.

Instead, construction documents rely on standardized shorthand. Most firms maintain a legend sheet explaining every symbol used.

Common reasons abbreviations are used:

1. Improve drawing readability
2. Save space on complex plans
3. Standardize communication across contractors
4. Speed up plan review and inspections

According to guidelines from the American Institute of Architects (AIA), construction documents prioritize clarity and efficiency, which is why abbreviations remain a core convention in professional drawings.

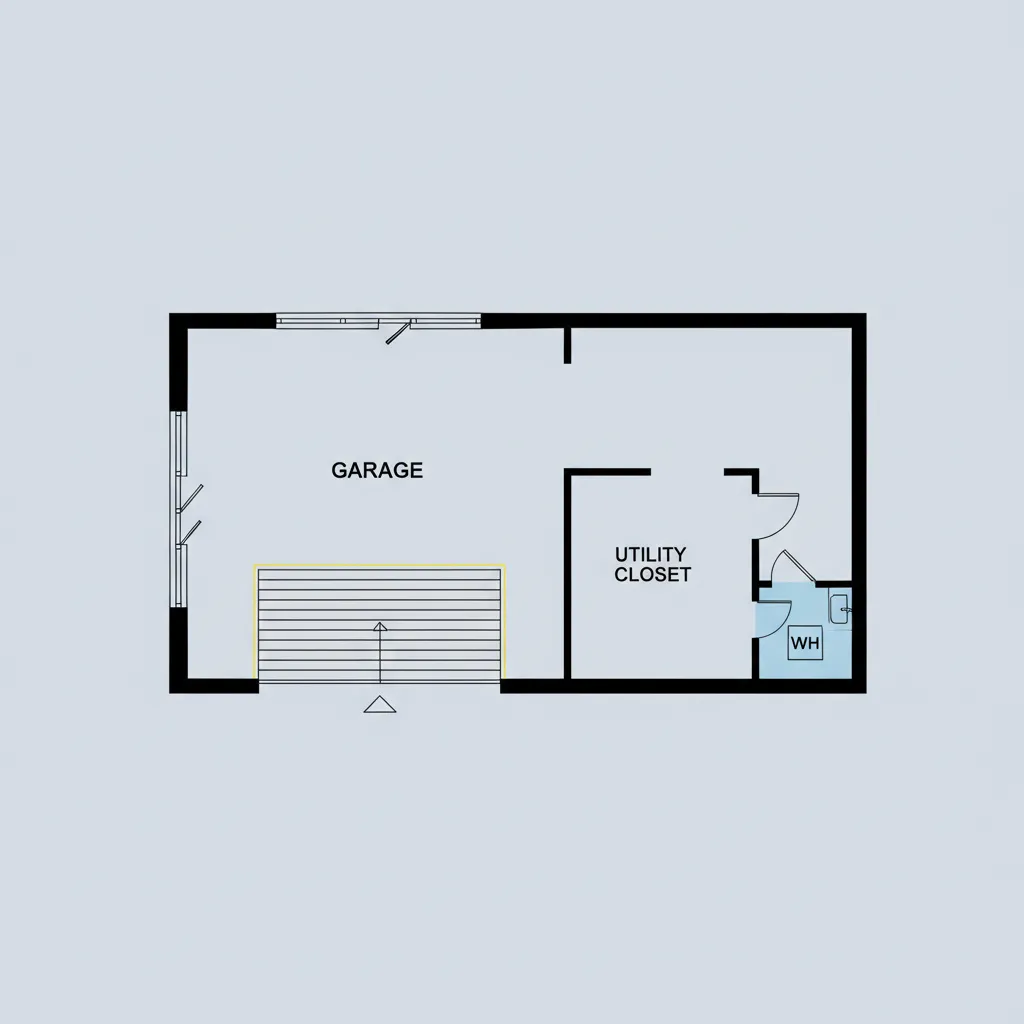

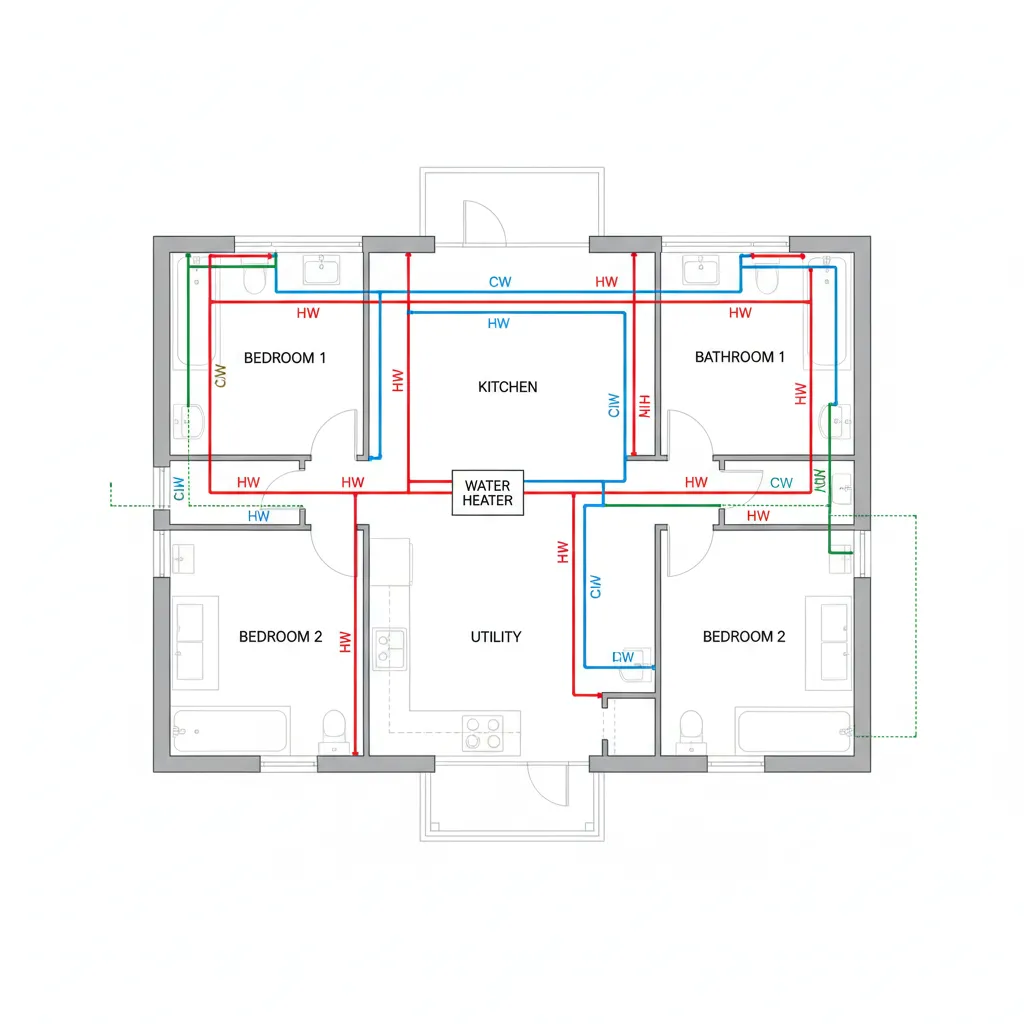

What WH Means on Architectural Drawings

Key Insight: WH almost always identifies the location of the water heater appliance.

In residential floor plans, "WH" typically appears inside a closet, garage corner, mechanical room, or utility area. It marks where the water heater unit is installed.

In many of the homes I've worked on, the label appears inside a small box representing the equipment footprint.

Typical places you'll see WH:

1. Garage utility wall
2. Laundry room mechanical closet
3. Basement mechanical space
4. Outdoor service area in warm climates

Modern projects sometimes include tankless systems, but architects still label them WH even when the equipment isn't technically a tank heater.

When visualizing how mechanical areas fit within a layout, a 3D home layout visualization showing mechanical room placementhelps reveal why the water heater location matters for plumbing efficiency.

save pin

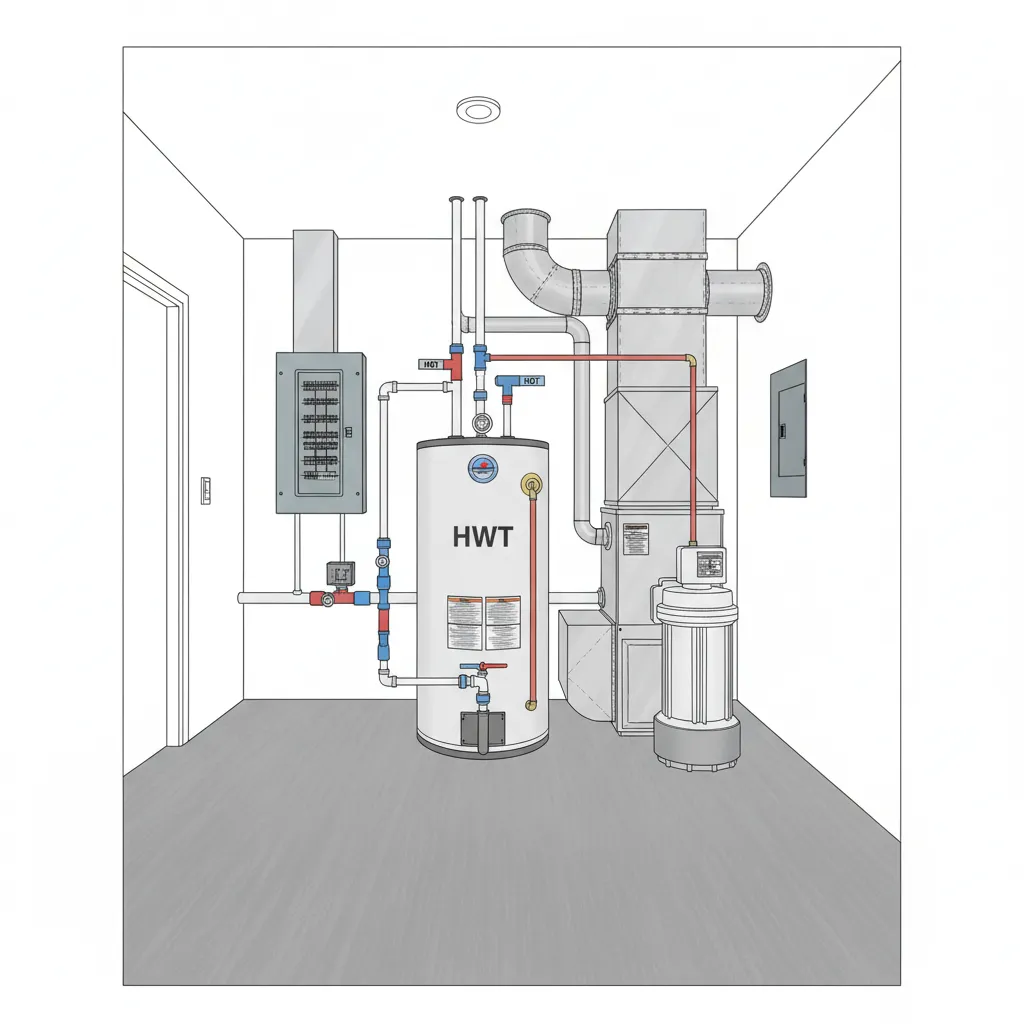

What HWT and HW Typically Represent

Key Insight: HWT refers to the storage tank system, while HW usually marks hot-water plumbing lines or outlets.

These two abbreviations are where confusion usually happens.

Here's the practical difference I see across architectural drawings:

1. HWT – Hot Water Tank
2. Used when the plan specifically references a tank-style heater or the tank component in a system.
3. HW – Hot Water
4. Used for the plumbing supply line delivering heated water throughout the house.

In plumbing diagrams, HW is often paired with "CW" (cold water). These labels help contractors identify supply directions and pipe routing.

Mechanical engineers often prefer HW because it relates to the system rather than the appliance.

save pin

Key Differences Between WH, HWT, and HW Labels

Key Insight: The difference comes down to equipment vs storage vs distribution.

The easiest way to remember these abbreviations is to think of the plumbing system in layers.

1. WH: The device that heats water
2. HWT: The tank storing heated water
3. HW: The hot water piping running through the house

Practical comparison:

1. WH → Equipment location marker
2. HWT → Tank specification or mechanical reference
3. HW → Pipe labeling on plumbing diagrams

One hidden mistake I see homeowners make is assuming HW means "water heater." It doesn't. On many drawings it simply marks the hot-water supply route.

How Builders and Architects Use These Terms

Key Insight: Different professionals use slightly different abbreviations depending on drawing discipline.

Architectural plans, plumbing schematics, and mechanical drawings often use different shorthand even within the same project.

Typical usage by discipline:

1. Architects: WH for appliance placement
2. Plumbers: HW and CW for pipe labeling
3. Mechanical engineers: HWT when specifying tank equipment
4. Builders: often follow whichever system appears in the construction legend

This is why professional drawings always include a symbol legend page.

Answer Box

WH, HWT, and HW are related but not interchangeable. WH labels the water heater appliance, HWT refers to the hot water tank component, and HW indicates the hot-water supply system within the plumbing layout.

Tips for Reading Plumbing Abbreviations Correctly

Key Insight: Context on the drawing matters more than the abbreviation itself.

When reviewing plans with clients, I recommend a few simple checks before assuming what a label means.

1. Look at the symbol legend on the drawing set
2. Check whether the label sits on equipment or piping
3. Compare nearby plumbing abbreviations like CW or DWV
4. Review mechanical sheets if the architectural plan is unclear

If you're trying to visualize plumbing placement during kitchen or bathroom planning, it helps to explore a layout planning guide that shows how appliances connect to plumbing zones.

Understanding these abbreviations makes it much easier to review renovation plans, communicate with contractors, and avoid expensive plumbing relocations later in the project.

Final Summary

1. WH identifies the water heater appliance on a floor plan.
2. HWT usually refers to a hot water storage tank system.
3. HW labels hot-water plumbing lines rather than equipment.
4. Always confirm meanings using the plan's symbol legend.
5. Context within the drawing determines the exact interpretation.

FAQ

1. What does WH mean on a floor plan?

WH usually stands for Water Heater and marks the appliance location on architectural drawings.

2. What does HW mean on a blueprint?

HW typically refers to Hot Water supply lines in plumbing diagrams rather than the heater itself.

3. What is the difference between WH and HWT on a floor plan?

WH labels the water heater appliance, while HWT refers specifically to a hot water tank system.

4. Is HWT the same as a water heater?

Not exactly. HWT usually refers to the tank component of a water heating system.

5. Why are plumbing abbreviations used on construction drawings?

They save space and make technical drawings easier for contractors to read.

6. Can WH refer to a tankless water heater?

Yes. Many plans still use WH even when the installed system is tankless.

7. Where is the water heater usually located on a floor plan?

Common locations include garages, utility closets, basements, or mechanical rooms.

8. How can I learn common blueprint plumbing abbreviations?

Start by reviewing the legend sheet included in most construction drawing sets.
