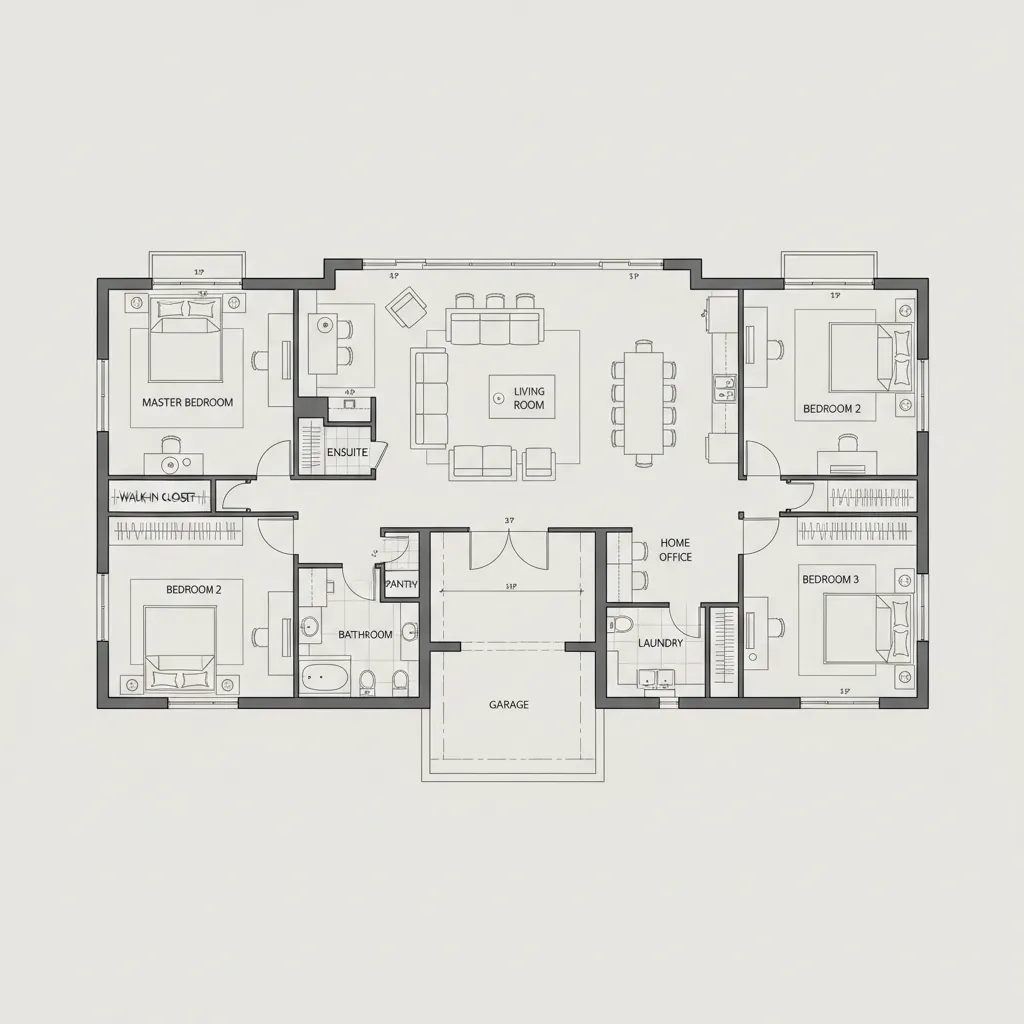

What Does A Floor Plan Show: Understanding the Purpose and Benefits of Floor Plans in Interior Design

Direct Answer

A floor plan shows the layout of a space from a top down perspective, including room locations, wall placement, doors, windows, and circulation paths. It helps visualize how rooms connect and how people move through a home before construction or renovation begins.

Most floor plans also indicate dimensions, built in elements, and sometimes furniture placement to clarify how the space functions.

Quick Takeaways

1. A floor plan shows the spatial layout of rooms, walls, doors, and windows.
2. It represents a building as if viewed from directly above.
3. Dimensions and circulation paths help understand usability.
4. Furniture layouts are sometimes included to demonstrate scale.
5. Designers use floor plans to test functionality before construction.

Introduction

After working on residential projects for more than a decade, I can tell you that many homeowners misunderstand what a floor plan actually communicates. When clients first look at a floor plan, they often focus only on room names or square footage. But a floor plan shows far more than that. It reveals how the home works.

In interior design, the floor plan is the foundation of every decision that follows. Lighting, furniture layout, storage planning, and even how comfortable a home feels all start with the information inside the plan. Once you know what to look for, a simple drawing suddenly becomes incredibly powerful.

save pin

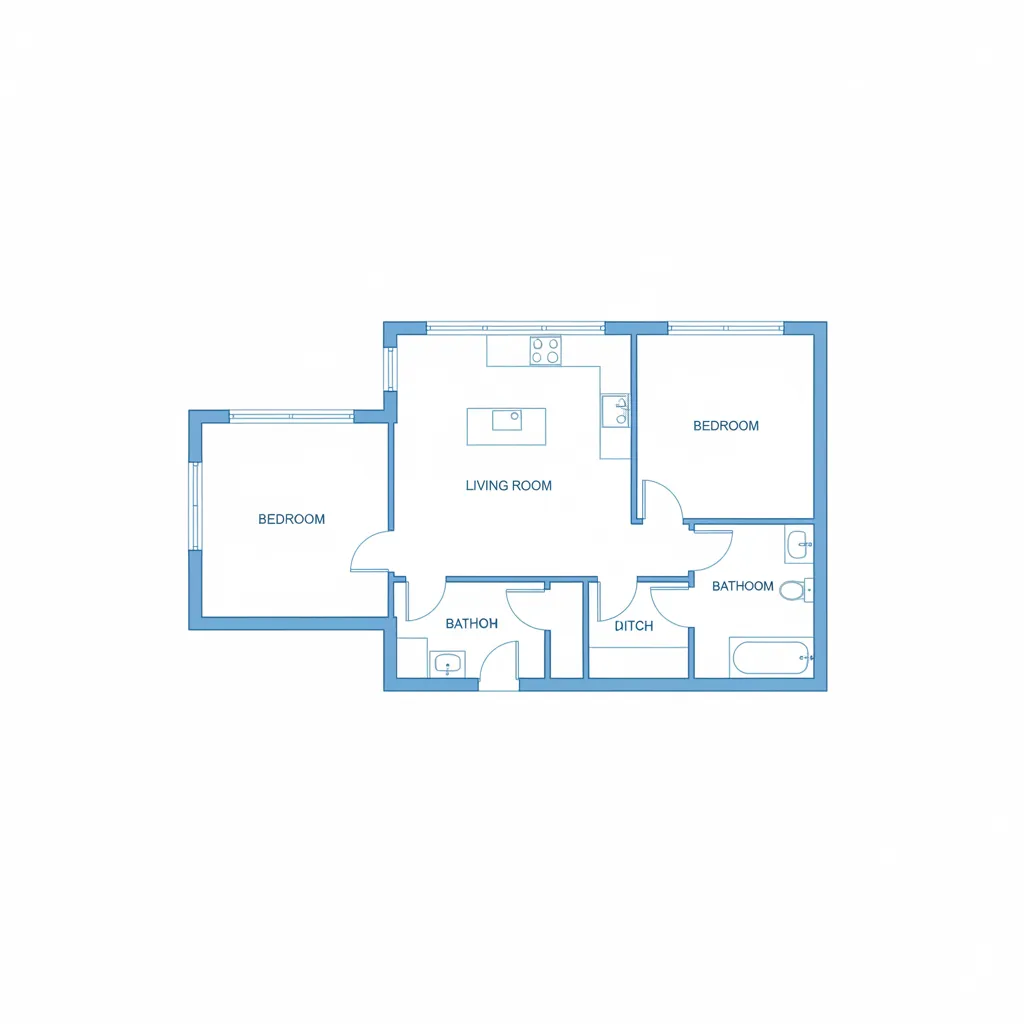

What Elements Does a Floor Plan Show

Key Insight: A floor plan shows both the structure of a home and the functional relationships between its spaces.

In professional design drawings, a floor plan is not just a map of rooms. It communicates structure, circulation, and scale. When I review plans with clients, I usually guide them through several key components that reveal how the home will actually live.

1. Walls and partitions showing structural and interior divisions
2. Doors and door swings indicating movement and clearance space
3. Windows revealing natural light and ventilation points
4. Room labels defining intended functions
5. Dimensions specifying the size of rooms and structural elements
6. Stairs and vertical circulation for multi level homes
7. Built in elements such as cabinets, counters, and fixtures

According to the American Institute of Architects drawing standards, floor plans typically represent the building as if cut about four feet above the floor. This allows designers to show windows, doors, and major fixtures clearly.

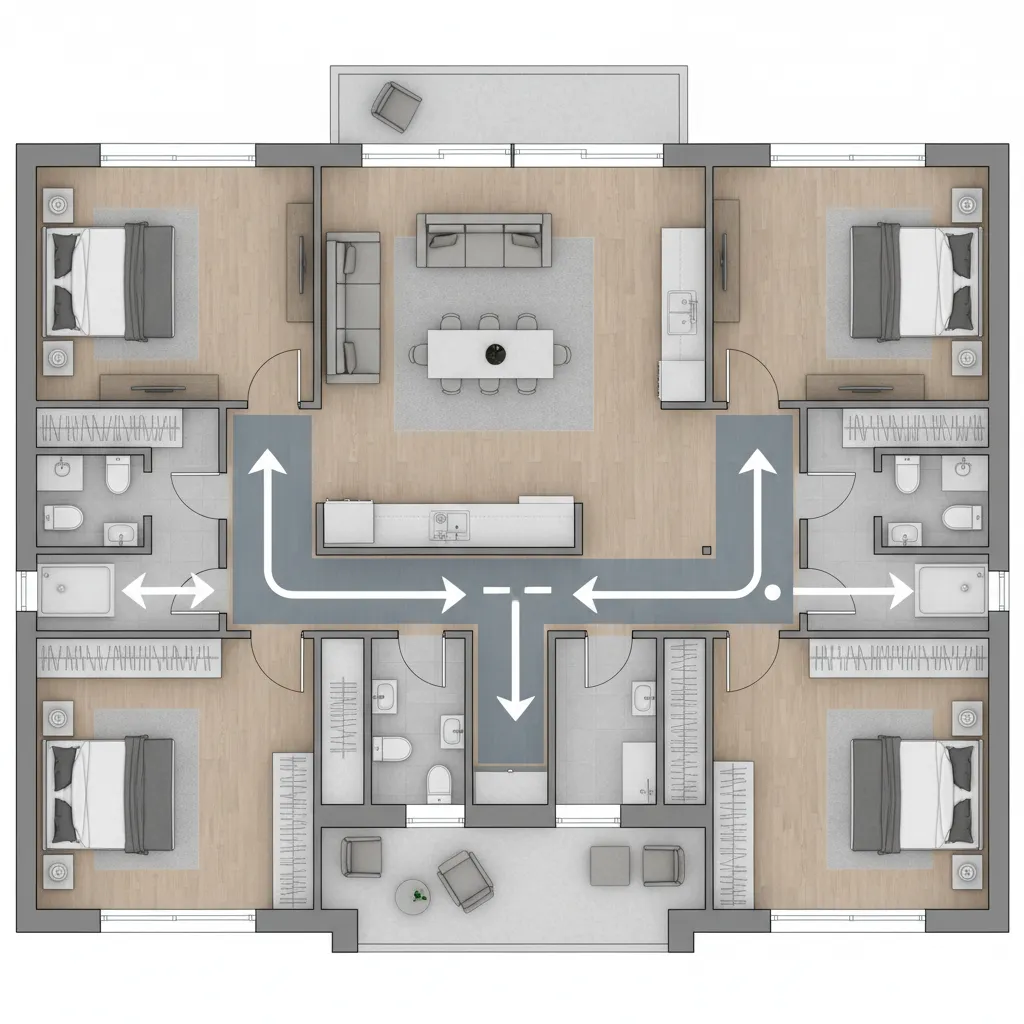

How Do Designers Use Floor Plans to Evaluate Space

Key Insight: Designers read floor plans primarily to understand flow and usability rather than just room sizes.

One of the biggest mistakes homeowners make is judging a design purely by square footage. In reality, the circulation pattern matters more than the size of individual rooms.

When I analyze a layout, I usually examine three things:

1. Circulation paths which show how people move between rooms
2. Sightlines determining what you see when entering a space
3. Zoning separating private areas from social areas

For example, a 2,000 square foot house with poor circulation can feel smaller than a 1,700 square foot home with a smart floor plan. That difference is something you can immediately see on the drawing.

save pin

What Information Is Usually Missing From a Floor Plan

Key Insight: A floor plan shows layout but often hides important spatial qualities like height, lighting mood, and material texture.

This is something I constantly explain to clients. A floor plan is powerful, but it is not the full picture.

Things a standard floor plan usually does not show include:

1. Ceiling height and vertical volume
2. Material finishes such as wood, stone, or tile
3. Lighting atmosphere
4. Interior styling and decoration
5. Acoustic or privacy quality

That is why architects pair floor plans with sections, elevations, and 3D visualizations. In recent years, many studios also use AI powered interior rendering to help homeowners understand how the space will actually feel.

save pin

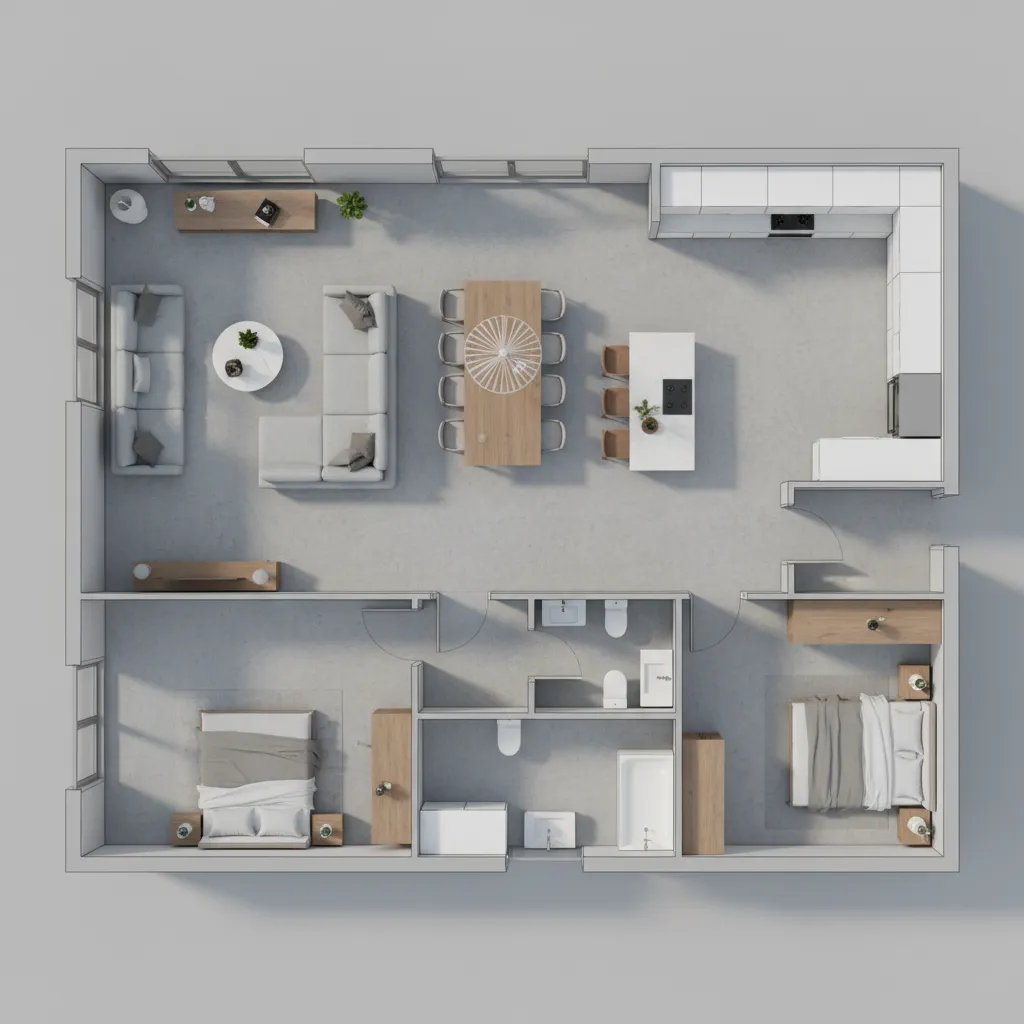

Why Furniture Layout Matters on a Floor Plan

Key Insight: Furniture placement on a floor plan reveals whether a room truly works or just looks good on paper.

In my own design process, I rarely approve a floor plan until furniture layouts are tested. Without furniture, a room can appear spacious while actually being unusable.

Here is what furniture planning reveals:

1. Whether a living room seating arrangement fits comfortably
2. Clear walking paths between furniture pieces
3. Dining table size limitations
4. Bed clearance and bedside space
5. Storage opportunities and wall usage

A good rule many designers follow is maintaining at least 30 to 36 inches of circulation clearance in main walkways. That detail often determines whether a layout feels effortless or cramped.

Can You Understand a House Without Seeing the Floor Plan

Key Insight: Photos show aesthetics but the floor plan explains how a home actually functions.

Real estate listings often highlight beautiful interior photos, but experienced buyers immediately search for the floor plan. That single drawing reveals things photos cannot.

1. Room proportions and relationships
2. Dead spaces or wasted corridors
3. Privacy between bedrooms
4. Kitchen to dining connectivity
5. Overall layout efficiency

In fact, several real estate studies have shown that listings with floor plans receive significantly higher engagement because buyers can mentally map the home before visiting.

Why Small Details in a Floor Plan Matter More Than Most People Think

Key Insight: Small elements like door swings and hallway widths often determine whether a design feels comfortable or frustrating.

Over the years I have seen beautiful homes ruined by tiny planning mistakes that were visible in the floor plan from the beginning.

Some commonly overlooked issues include:

1. Door swings blocking furniture placement
2. Hallways narrower than comfortable circulation
3. Kitchen work triangles that are too stretched
4. Bathrooms lacking proper clearance around fixtures
5. Closets positioned where doors collide

These are the kinds of design problems that rarely appear in inspiration photos but show up instantly when you read the floor plan carefully.

Answer Box

A floor plan shows the structural layout and functional organization of a home, including rooms, walls, doors, windows, and circulation paths. It allows designers and homeowners to evaluate how space works before construction begins.

While it explains layout clearly, a floor plan does not fully represent height, materials, or interior atmosphere.

Final Summary

1. A floor plan shows the spatial layout of a home from a top down view.
2. Walls, doors, windows, and room connections are the core elements.
3. Circulation flow is often more important than room size.
4. Furniture layouts reveal whether rooms truly function.
5. Floor plans explain usability better than interior photos.

FAQ

What does a floor plan show in architecture?

A floor plan shows the layout of rooms, walls, doors, windows, and circulation paths from a top down perspective.

Does a floor plan show furniture?

Some floor plans include furniture to demonstrate scale and functionality, but structural plans may omit it.

What is the main purpose of a floor plan?

The main purpose is to visualize spatial layout and evaluate how people move through a building before construction.

Do floor plans show measurements?

Yes. Most professional floor plans include room dimensions, wall lengths, and sometimes ceiling heights.

Can you design a house using only a floor plan?

A floor plan provides the layout, but full design also requires elevations, sections, and material specifications.

What does a floor plan show that photos cannot?

A floor plan shows spatial relationships, circulation flow, and room proportions that photos rarely reveal.

How do beginners read a floor plan?

Start by identifying the entrance, then follow circulation paths between rooms while checking dimensions and door swings.

Why are floor plans important in real estate?

They help buyers understand how the home functions and how rooms connect before visiting in person.
