What Structural Engineers Look for When a Second Floor Shakes: Professional insight into how engineers diagnose floor vibration and what actually fixes a shaking second floor.

Direct Answer

When a second floor shakes, structural engineers evaluate vibration frequency, joist deflection, span length, load distribution, and structural stiffness. The goal is to determine whether the movement falls within acceptable engineering limits or indicates a structural design weakness that needs reinforcement.

Most inspections focus on joist sizing, support spacing, connections, and dynamic vibration behavior rather than cosmetic issues.

Quick Takeaways

1. Engineers measure vibration frequency and structural deflection to determine if floor movement is acceptable.
2. Long joist spans and undersized framing are the most common causes of noticeable shaking.
3. Dynamic loads like walking amplify vibration even when static loads appear safe.
4. Most fixes involve stiffening the structure rather than replacing the entire floor.
5. Professional assessments often cost far less than unnecessary remodeling.

Introduction

In more than a decade of residential design projects, I've seen homeowners panic when the second floor shakes during normal activity. In many cases, the structure isn’t actually unsafe—it’s simply designed at the edge of acceptable vibration limits.

The reality is that structural engineers approach floor movement very differently than homeowners or contractors. They’re not just asking “Is the floor moving?” They’re asking why it moves, how often it moves, and whether the movement exceeds engineering tolerances.

If you're trying to understand the bigger picture behind vibration issues, it's helpful to first look at a broader breakdown of common causes behind second‑floor structural movement in homes. That context explains why some floors feel solid while others bounce noticeably.

In this guide, I’ll walk through what engineers actually evaluate during a structural inspection, the standards they use, the tools involved, and the most common fixes when a floor vibration problem is confirmed.

save pin

How Structural Engineers Evaluate Floor Vibration

Key Insight: Engineers evaluate vibration by measuring structural stiffness, frequency response, and load transfer across the framing system.

Unlike a visual inspection alone, a proper structural assessment treats floor vibration as a performance problem. Engineers analyze how the entire framing system behaves under movement.

Typical evaluation areas include:

1. Joist span length versus joist size
2. Spacing between floor joists
3. Subfloor thickness and fastening pattern
4. Beam and load‑bearing wall placement
5. Connection rigidity between structural members

One important factor many homeowners overlook is vibration frequency. Floors that vibrate at lower frequencies tend to feel "bouncy" even if they meet structural safety limits.

The American Institute of Steel Construction and several wood engineering guides note that human perception of vibration often begins around 8–10 Hz frequency ranges—meaning a floor can technically pass structural requirements but still feel uncomfortable.

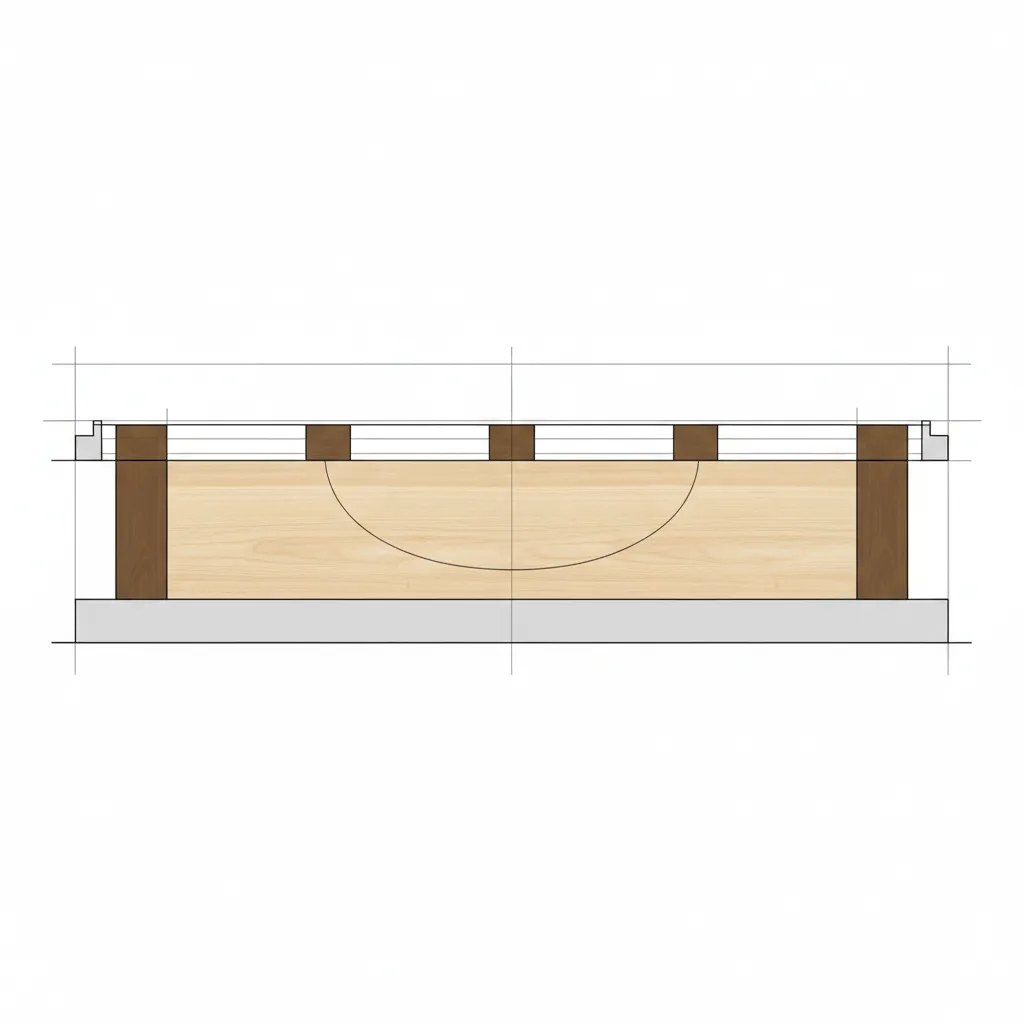

Engineering Standards for Floor Deflection

Key Insight: Most residential floors are designed around an L/360 deflection limit, but vibration comfort often requires stiffer performance than code minimums.

Structural design standards define how much a floor is allowed to bend under load. The most common benchmark in residential construction is:

1. L/360 for live load deflection

This means the floor can deflect one unit for every 360 units of span length. For example:

1. 12‑foot span → allowed deflection ≈ 0.4 inches

However, here’s a detail many articles miss: deflection limits were developed primarily to prevent structural damage and cracking finishes—not to eliminate vibration.

That’s why engineers often recommend stiffer targets like:

1. L/480
2. L/600

Higher stiffness dramatically reduces the “springy” feeling homeowners notice.

save pin

Common Structural Design Mistakes That Cause Shaking

Key Insight: Most floor vibration issues come from design trade‑offs rather than outright structural failure.

After reviewing dozens of residential framing plans over the years, a few patterns appear repeatedly when second floors shake.

Common design mistakes include:

1. Joists pushed to their maximum allowable span
2. Wide joist spacing such as 19.2" or 24" centers
3. Thin subfloor panels that lack stiffness
4. Missing blocking or bridging between joists
5. Large open floor plans with minimal load‑bearing walls

Modern open‑concept homes are a major contributor. Removing interior structural walls increases span length, which dramatically reduces stiffness.

Many homeowners exploring layout changes run into this issue when experimenting with plans using tools like a 3D floor planner that visualizes structural layout options. The design may look great visually but still require structural reinforcement.

Tools and Measurements Used in Inspections

Key Insight: Engineers rely on vibration measurement tools and structural calculations rather than guesswork.

During a professional inspection, several diagnostic tools may be used to quantify floor movement.

Common inspection tools include:

1. Laser levels to measure vertical deflection
2. Accelerometers to detect vibration frequency
3. Dial gauges for precise displacement readings
4. Structural span tables for joist capacity analysis
5. Load simulation through controlled walking tests

Engineers sometimes perform what’s informally called a “walk test.” One person walks across the floor while instruments measure vibration amplitude.

save pin

Answer Box

Structural engineers determine whether a shaking second floor is a safety issue by measuring joist deflection, vibration frequency, and structural stiffness. Most problems stem from long spans or flexible framing systems rather than structural failure.

Solutions typically focus on stiffening the structure rather than rebuilding the floor.

Typical Engineering Fixes for Floor Vibration

Key Insight: The most effective fixes increase stiffness and reduce joist movement.

Once the root cause is identified, engineers usually recommend targeted reinforcement instead of full structural replacement.

Typical solutions include:

1. Sistering additional joists alongside existing ones
2. Installing blocking or cross‑bridging
3. Adding mid‑span support beams
4. Upgrading subfloor thickness
5. Installing engineered beams such as LVL supports

In many projects I’ve seen, adding a properly placed support beam reduces vibration by more than half because it shortens the joist span dramatically.

save pin

Cost Expectations for Structural Assessments

Key Insight: A professional structural evaluation is often the cheapest step in solving floor vibration problems.

Typical price ranges in the U.S. include:

1. Structural engineer inspection: $300–$800
2. Full structural analysis report: $600–$1,500
3. Targeted reinforcement design plan: $500–$1,200

Compared to trial‑and‑error remodeling, this step saves money by identifying the exact cause first.

If you're evaluating potential fixes, you can also visualize reinforcement ideas and structural layout adjustments with a simple floor plan creator for testing support placement concepts before committing to construction.

Final Summary

1. Structural engineers focus on vibration frequency, stiffness, and joist deflection.
2. Most shaking floors meet safety codes but fail comfort expectations.
3. Long spans and open layouts are common vibration causes.
4. Reinforcement solutions typically involve stiffening rather than rebuilding.
5. A professional inspection prevents unnecessary renovations.

FAQ

Is a shaking second floor structurally dangerous?

Usually not. Many vibrating floors still meet structural safety standards. Engineers check whether deflection and vibration exceed acceptable limits.

When should I hire a structural engineer for floor vibration?

If vibration is worsening, causing visible cracks, or feels excessive during normal walking, a structural engineer floor vibration inspection is recommended.

How do engineers measure floor vibration?

They use accelerometers, laser levels, and deflection gauges to measure movement and frequency.

What is acceptable floor deflection in homes?

Most building codes use L/360 deflection limits, though engineers often prefer stiffer designs for comfort.

Can undersized joists cause a shaking second floor?

Yes. Joists that are too small for their span are one of the most common causes of noticeable vibration.

How do engineers fix vibrating floors?

Common engineering solutions for bouncy floors include sistering joists, adding beams, installing blocking, or shortening spans.

How much does a professional inspection for shaking second floor cost?

Most inspections range between $300 and $800 depending on location and structural complexity.

Will adding furniture reduce floor vibration?

Heavy furniture can slightly dampen vibration but does not solve structural stiffness problems.
