When to Use Extrusion for Converting 2D Floor Plans to 3D Models: Learn how to decide if extrusion is the right method for turning a flat floor plan into a usable 3D architectural model.

Direct Answer

Extrusion is the best method for converting a 2D floor plan to a 3D model when the building geometry is simple, walls follow consistent heights, and the layout is already cleanly defined in CAD. It works especially well for residential layouts, conceptual models, and early‑stage architectural visualization.

If the structure includes complex roof shapes, curved geometry, or varying wall heights, extrusion alone usually becomes inefficient and other modeling techniques should be used.

Quick Takeaways

1. Extrusion works best when walls share consistent heights and straight boundaries.
2. Clean 2D drawings dramatically reduce modeling time when extruding.
3. Complex geometry often requires additional modeling tools beyond extrusion.
4. Extrusion is ideal for fast architectural visualization and early design studies.
5. Always evaluate building complexity before committing to an extrusion workflow.

Introduction

After more than a decade working with residential CAD models, I’ve seen one mistake repeated constantly: designers jump straight into 3D modeling without deciding whether extrusion is actually the right approach.

The idea seems obvious. You take a 2D floor plan, select the wall outlines, and extrude them vertically to create a 3D structure. When the drawing is clean and the building geometry is simple, this method is incredibly fast. In many residential projects I can turn a flat plan into a full spatial model in under an hour.

But here’s the part most tutorials skip: extrusion is not universally efficient. If the plan contains inconsistent wall lines, curved geometry, or multiple height levels, extrusion can actually create more cleanup work than building the model manually.

I often recommend starting with a structured workflow like creating a visual layout using a 3D floor planning workflowso you can evaluate geometry before committing to modeling decisions.

In this guide, I’ll walk through how experienced designers decide when extrusion makes sense, when it doesn’t, and how to evaluate a floor plan before turning it into a 3D model.

save pin

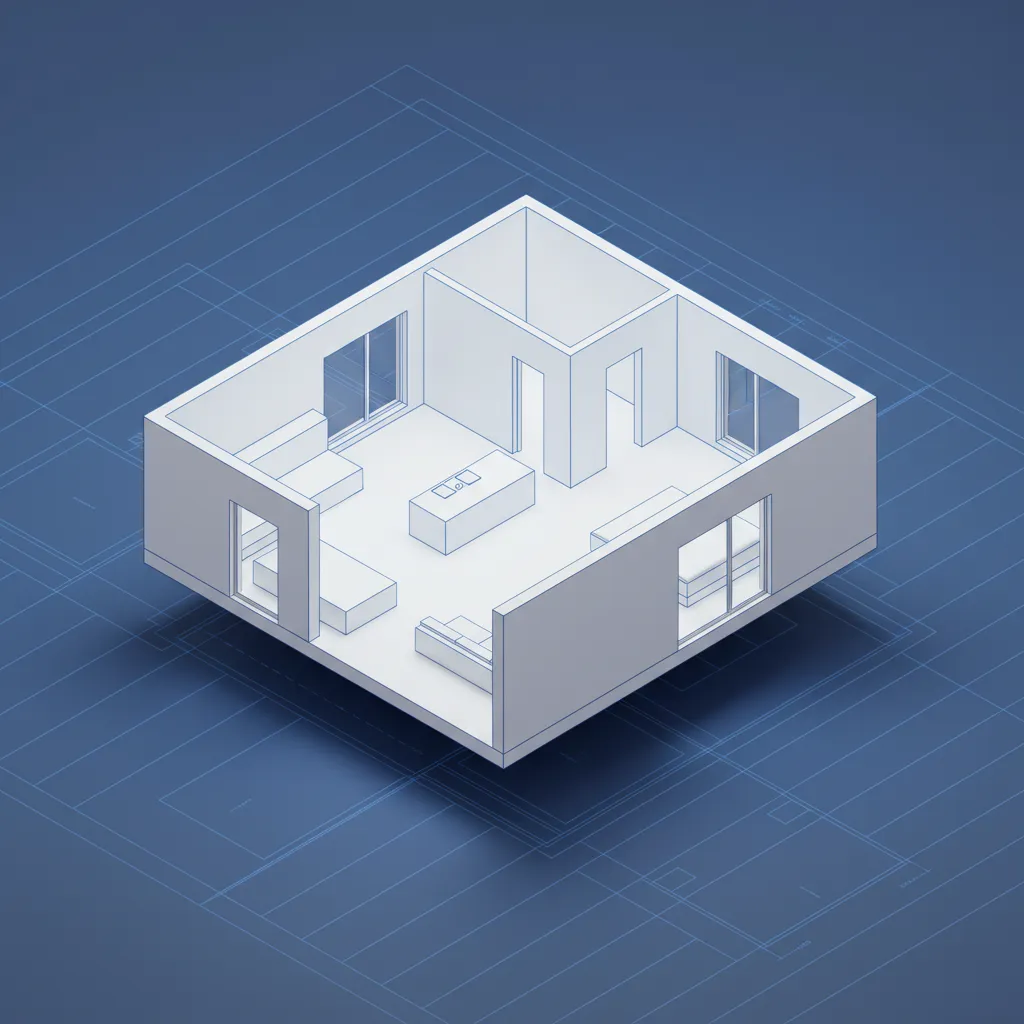

Understanding the Extrusion Method in CAD

Key Insight: Extrusion converts closed 2D shapes into 3D volumes by extending them vertically along a single axis.

In architectural CAD workflows, extrusion is typically used to transform wall outlines, structural boundaries, or room footprints into vertical elements. The method is fast because it relies on the accuracy of the 2D plan rather than manual 3D construction.

Most architectural software uses the same basic principle: select a closed polyline, define a height value, and generate a 3D solid.

Typical elements created with extrusion:

1. Exterior and interior walls
2. Building masses
3. Floor slabs
4. Simple structural volumes

According to Autodesk architectural modeling guidelines, extrusion remains one of the fastest ways to produce conceptual massing models because it reduces modeling steps and preserves drawing accuracy.

The key requirement, however, is that the 2D drawing must be clean. Open polylines, overlapping lines, or gaps often cause extrusion failures.

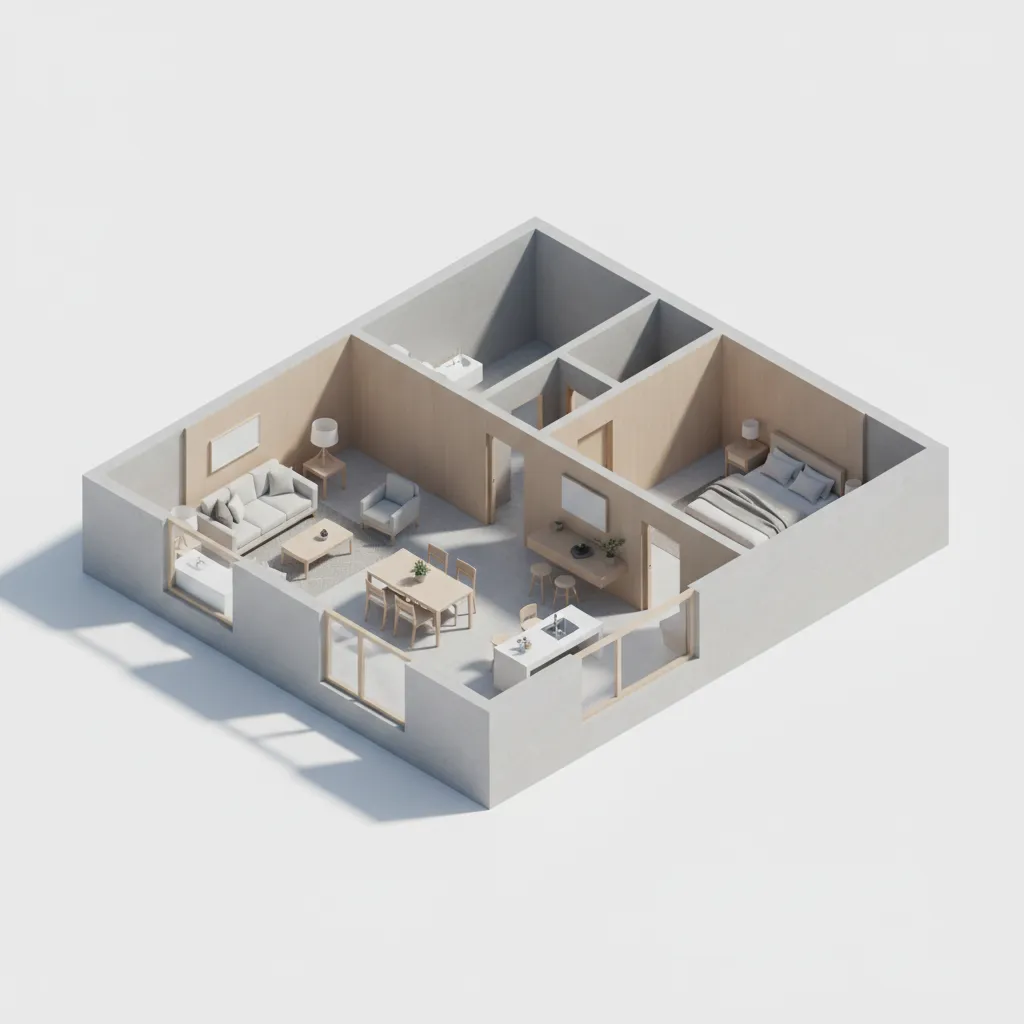

Situations Where Extrusion Works Best for Floor Plans

Key Insight: Extrusion works best when the floor plan is simple, consistent, and already structured with closed shapes.

In my own projects, extrusion performs best in three common scenarios.

1. Standard residential layouts

1. Rectangular room shapes
2. Consistent wall heights
3. Simple exterior boundaries

Most single‑family homes and apartments fall into this category.

2. Early design massing studies

1. Testing building volume
2. Checking sunlight or shadow behavior
3. Evaluating spatial proportions

Extrusion is often used for quick concept models before detailed architectural elements are added.

3. Clean CAD drawings from professional plans

Architectural construction drawings usually contain properly closed wall boundaries, which makes extrusion extremely efficient.

When designers want to visualize a layout quickly, many start by building a quick digital floor plan layout for visualizationbefore applying extrusion in modeling software.

save pin

Cases Where Other Modeling Methods Are Better

Key Insight: When geometry becomes irregular or multi‑layered, extrusion alone often becomes inefficient.

One of the biggest hidden problems with extrusion is that it assumes uniform vertical geometry. Real buildings often break that assumption.

Situations where extrusion struggles:

1. Sloped or vaulted roofs
2. Curved architectural walls
3. Multi‑level interior spaces
4. Complex stair structures
5. Organic or sculptural architecture

In these situations, designers often switch to techniques such as sweeps, lofts, or direct surface modeling.

A good rule I use in practice: if more than 30% of the building elements require editing after extrusion, the method probably wasn’t the best starting point.

Evaluating Building Complexity Before Extrusion

Key Insight: The fastest models come from evaluating plan complexity before starting the 3D process.

Before extruding any plan, I run through a quick diagnostic checklist. This takes less than two minutes and prevents hours of cleanup.

Quick evaluation checklist:

1. Are all walls represented by closed polylines?
2. Do most walls share a consistent height?
3. Are curved walls limited or absent?
4. Does the building use standard room geometry?
5. Are structural elements clearly separated in layers?

If most answers are yes, extrusion will probably work smoothly.

Professional visualization teams frequently test layouts first using tools like generating an initial AI assisted floor layout previewto understand room proportions before building full 3D geometry.

save pin

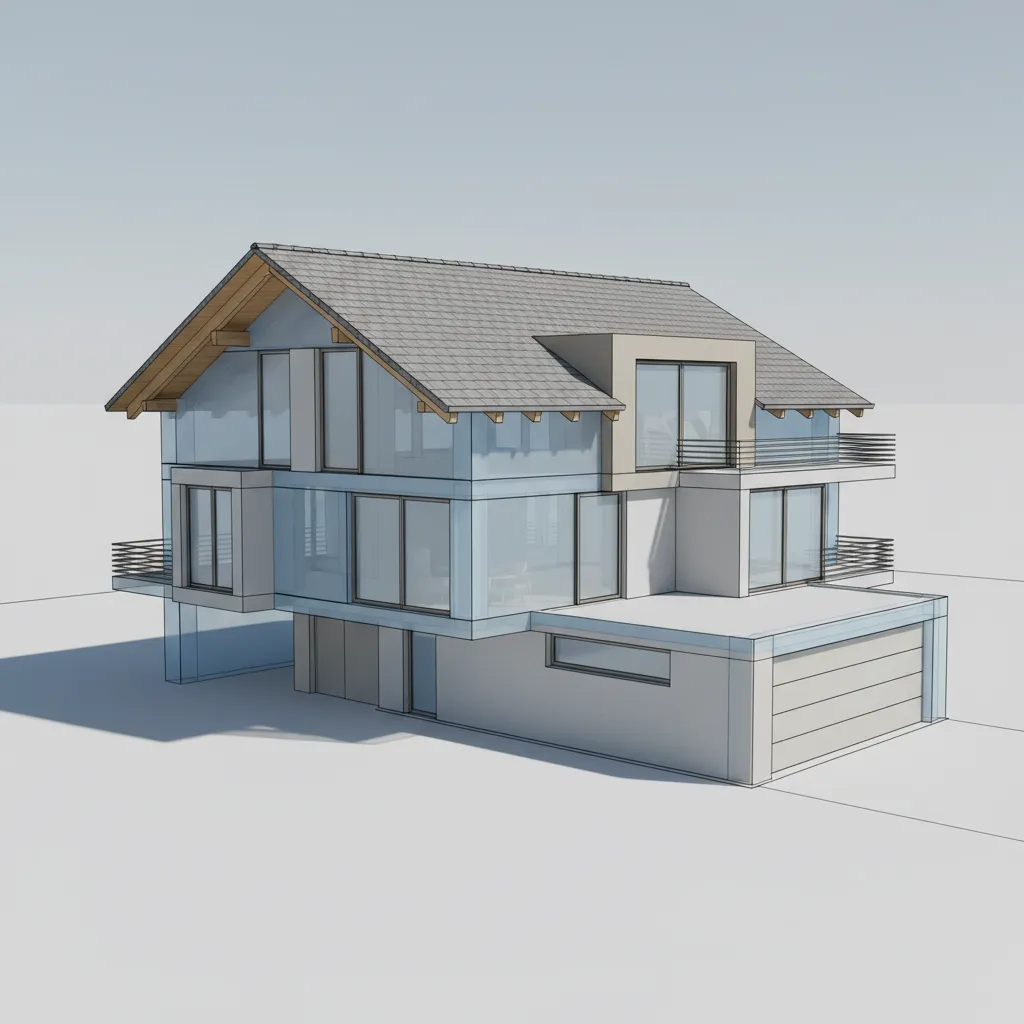

Choosing Between Manual Modeling and Extrusion

Key Insight: Extrusion saves time for structure, while manual modeling gives better control for architectural details.

Experienced modelers rarely rely on only one technique. Instead, they combine extrusion with other modeling approaches.

Typical hybrid workflow:

1. Extrude wall outlines to create the base structure.
2. Add floors and slabs using extrusion.
3. Model roofs manually or with loft tools.
4. Insert doors, windows, and architectural elements.
5. Refine details using direct modeling.

This hybrid approach balances speed and accuracy, which is why it’s commonly used in architectural visualization studios.

save pin

Decision Checklist for 2D to 3D Floor Plan Conversion

Key Insight: A short decision checklist helps determine whether extrusion is the fastest path to a usable 3D model.

Before starting your model, review the following conditions.

Extrusion is likely the right choice if:

1. The building footprint is mostly rectangular.
2. Walls have consistent heights.
3. The CAD plan is clean and layered.
4. The project is conceptual or visualization focused.

Consider alternative modeling if:

1. The building includes complex roof geometry.
2. Walls change height frequently.
3. The plan includes curves or organic forms.
4. The project requires detailed architectural fabrication modeling.

Answer Box

Extrusion is the fastest way to convert a clean 2D floor plan into a basic 3D architectural model. It works best with simple geometry, consistent wall heights, and clearly defined wall outlines.

When plans contain curves, complex roofs, or multiple height levels, combining extrusion with other modeling methods produces better results.

Final Summary

1. Extrusion is ideal for simple architectural floor plans.
2. Clean 2D drawings determine how successful extrusion will be.
3. Complex geometry usually requires hybrid modeling workflows.
4. Evaluating plan complexity prevents major modeling delays.
5. Experienced designers combine extrusion with manual techniques.

FAQ

1. When should I use extrusion in CAD modeling?

Use extrusion when your 2D floor plan contains closed wall shapes, consistent heights, and mostly straight geometry.

2. Should I extrude a floor plan in CAD for every project?

No. Extrusion works best for simple structures. Complex buildings often require additional modeling tools.

3. What is the best way to convert a 2D floor plan to 3D?

For most residential projects, extruding wall outlines from a clean CAD floor plan is the fastest starting method.

4. Why does extrusion sometimes fail in CAD?

Common causes include open polylines, overlapping lines, or gaps in wall boundaries.

5. Can extrusion create roofs and stairs?

It can create simple forms, but complex roofs and stairs usually require loft, sweep, or manual modeling tools.

6. Is extrusion good for architectural visualization?

Yes. Extrusion is widely used for conceptual architectural visualization and early design models.

7. How accurate are extrusion-based models?

They are highly accurate if the underlying 2D drawing is precise and properly structured.

8. Do professionals still use extrusion for building models?

Yes. Most professionals use extrusion as the first step in a hybrid modeling workflow.
