When to Use Frameless Windows in Architectural Design: How to decide if frameless glazing fits your project and how it changes architectural planning and floor plan drawings.

Direct Answer

Frameless windows are best used when the design goal prioritizes unobstructed views, minimal visual structure, and a strong connection between indoor and outdoor spaces. They are most appropriate in modern residential architecture, luxury renovations, and locations where structural loads can be transferred away from the glazing system. However, they require careful structural planning and clear representation in floor plans.

Quick Takeaways

1. Frameless windows work best in modern architecture that emphasizes clean lines and uninterrupted views.
2. They require stronger structural planning because glass cannot carry the same loads as framed systems.
3. Designers must coordinate structural supports, waterproofing, and installation tolerances early in the planning stage.
4. Floor plan drawings often represent frameless windows differently than standard window symbols.
5. Large frameless glazing can dramatically improve daylight but may increase cost and thermal challenges.

Introduction

Frameless windows have become one of the defining features of contemporary architecture. In the last decade of working on residential and boutique commercial projects, I've noticed that many clients ask for frameless glazing long before they understand the structural implications behind it.

At first glance, frameless windows look simple: large sheets of glass with almost invisible borders. But from an architectural perspective, they affect everything—from wall structure and insulation to how the opening is represented in construction drawings.

Design teams often underestimate how early the decision needs to be made. Once the structural layout is finalized, switching to frameless glazing can require major revisions to load paths and detailing.

If you're planning layouts or early design concepts, it helps to visualize how glass interacts with the rest of the structure. Tools that allow you to visualize full architectural spaces in realistic 3Dcan make these decisions much clearer before construction documents are finalized.

In this guide, I'll break down when frameless windows actually make sense, where they create hidden complications, and how the decision affects floor plan representation.

save pin

Design Goals Behind Frameless Window Systems

Key Insight: Frameless windows are primarily a design decision driven by visual minimalism and spatial continuity.

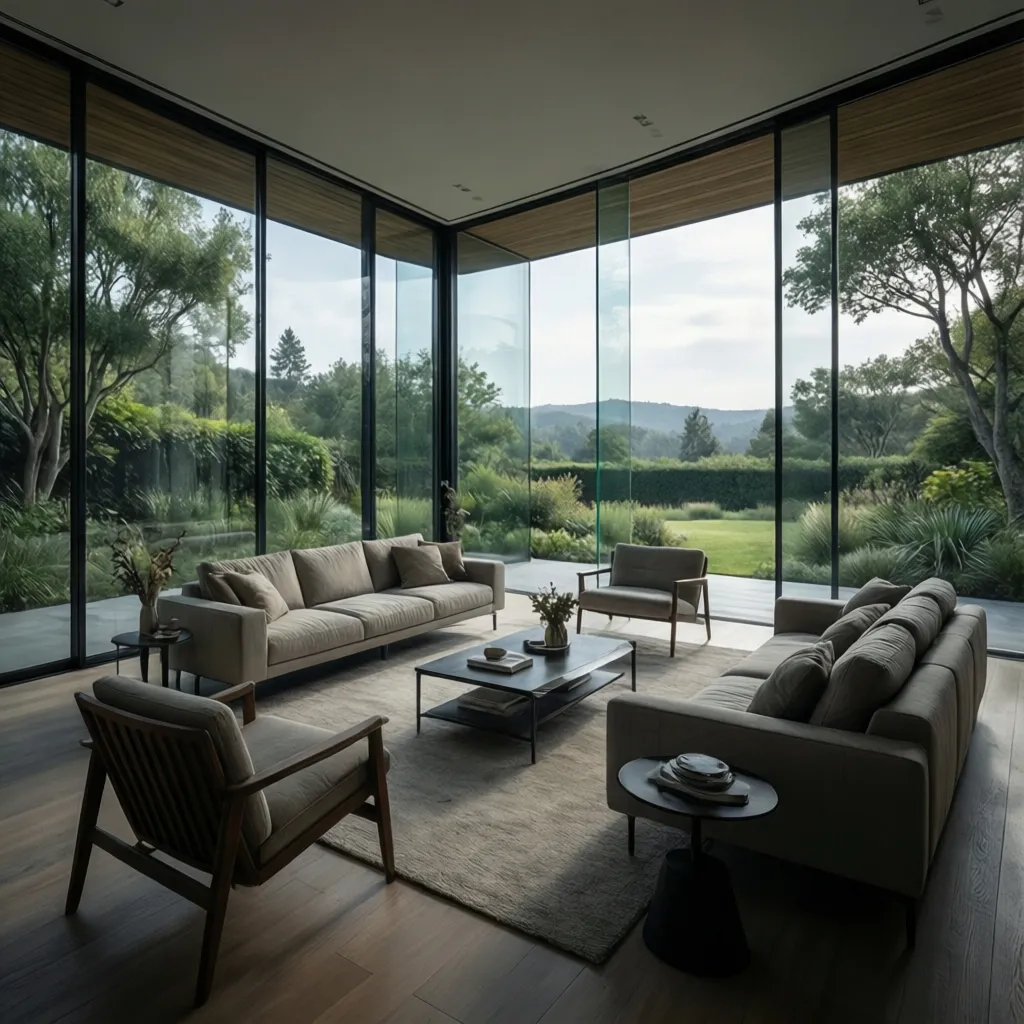

The main purpose of frameless glazing is to remove visual interruptions between the interior and exterior. In projects where landscape views, oceanfront exposure, or urban skyline perspectives are important, even thin window frames can feel intrusive.

Architects often choose frameless systems when the goal is:

1. Panoramic outdoor views
2. Seamless indoor‑outdoor transitions
3. Ultra‑minimalist architectural language
4. Maximum natural daylight

But here's something that rarely gets discussed: frameless windows are not only about aesthetics. They fundamentally change how the wall assembly works.

Instead of the frame carrying loads and sealing edges, surrounding structural elements—beams, slabs, and side walls—must absorb those responsibilities.

In several hillside homes I've worked on in California, frameless glazing only became possible because steel moment frames carried the load above the window openings.

Without that structural support, the design simply wouldn't work.

Architectural Situations Where Frameless Windows Work Best

Key Insight: Frameless windows perform best in projects where structural loads are already managed by independent systems.

Through experience, I've found frameless windows succeed in three architectural situations.

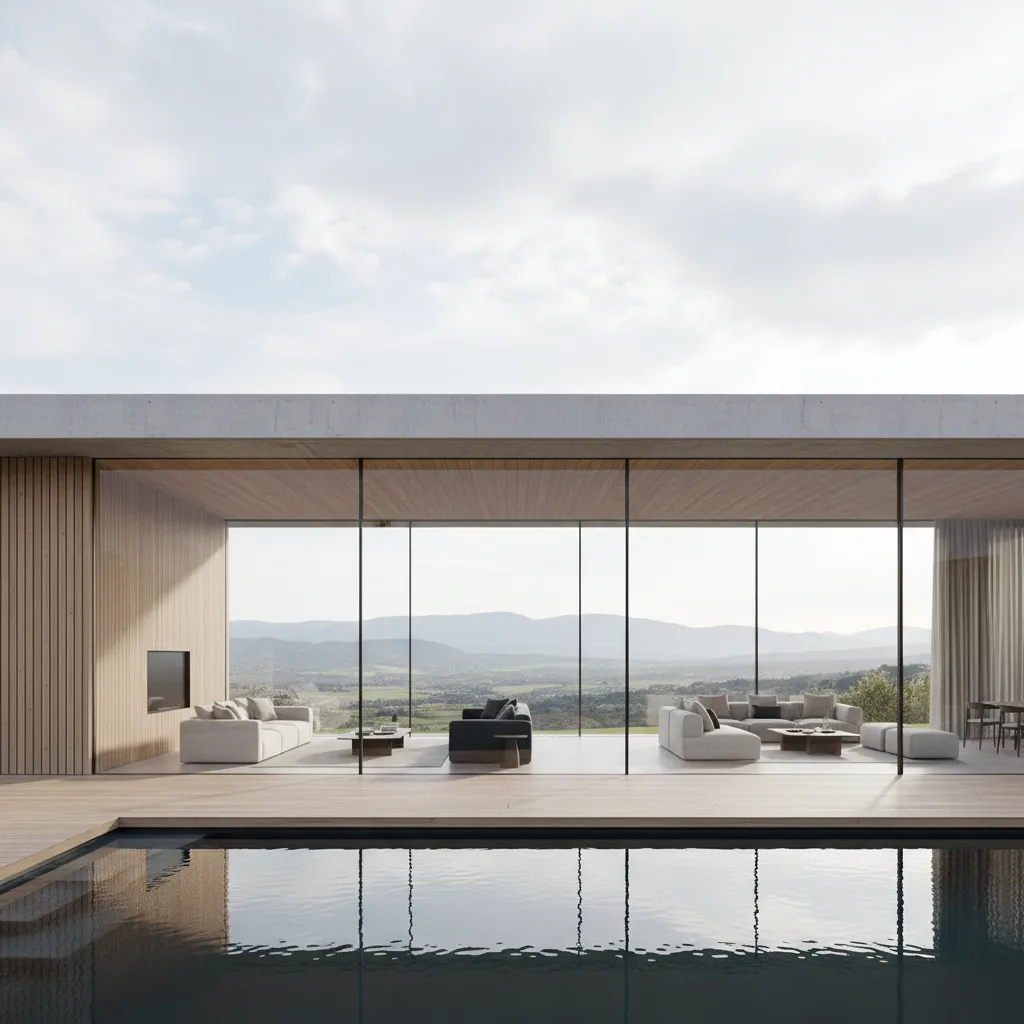

1. View‑Focused Residential Architecture

1. Oceanfront homes
2. Mountain houses
3. Urban penthouses

When the surrounding landscape becomes part of the interior experience, removing window frames dramatically improves visual flow.

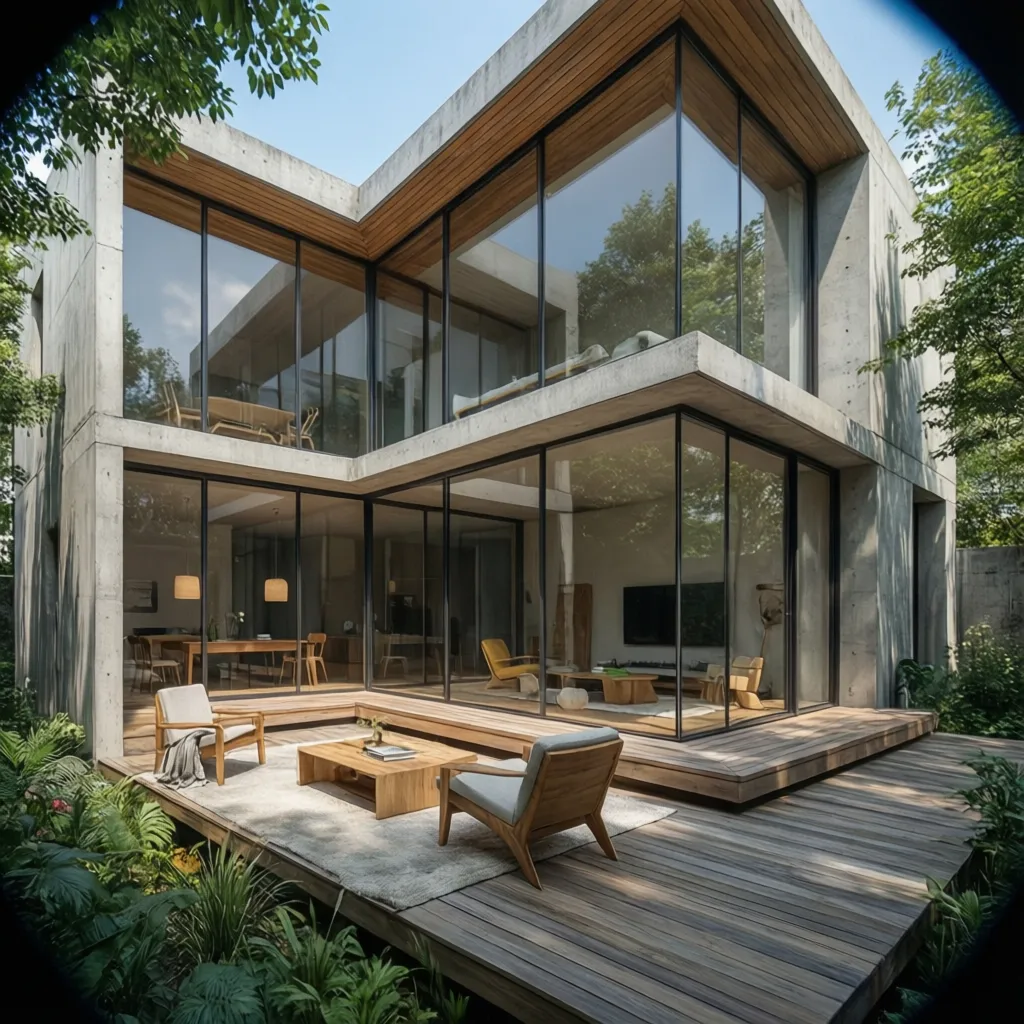

2. Courtyard and Indoor‑Outdoor Layouts

Modern homes often center around patios or internal courtyards. Frameless glazing strengthens the sense that the courtyard is an extension of the living space.

3. Minimalist Architectural Styles

1. Modernist architecture
2. Contemporary luxury homes
3. Gallery‑style interior spaces

These design languages prioritize simplicity and clean geometry, which aligns perfectly with frameless glazing.

save pin

Structural and Installation Considerations

Key Insight: The biggest mistake with frameless windows is treating them as a cosmetic upgrade rather than a structural design decision.

Glass is strong under compression but extremely sensitive to edge stress and movement. That means installation tolerances become critical.

Some major considerations include:

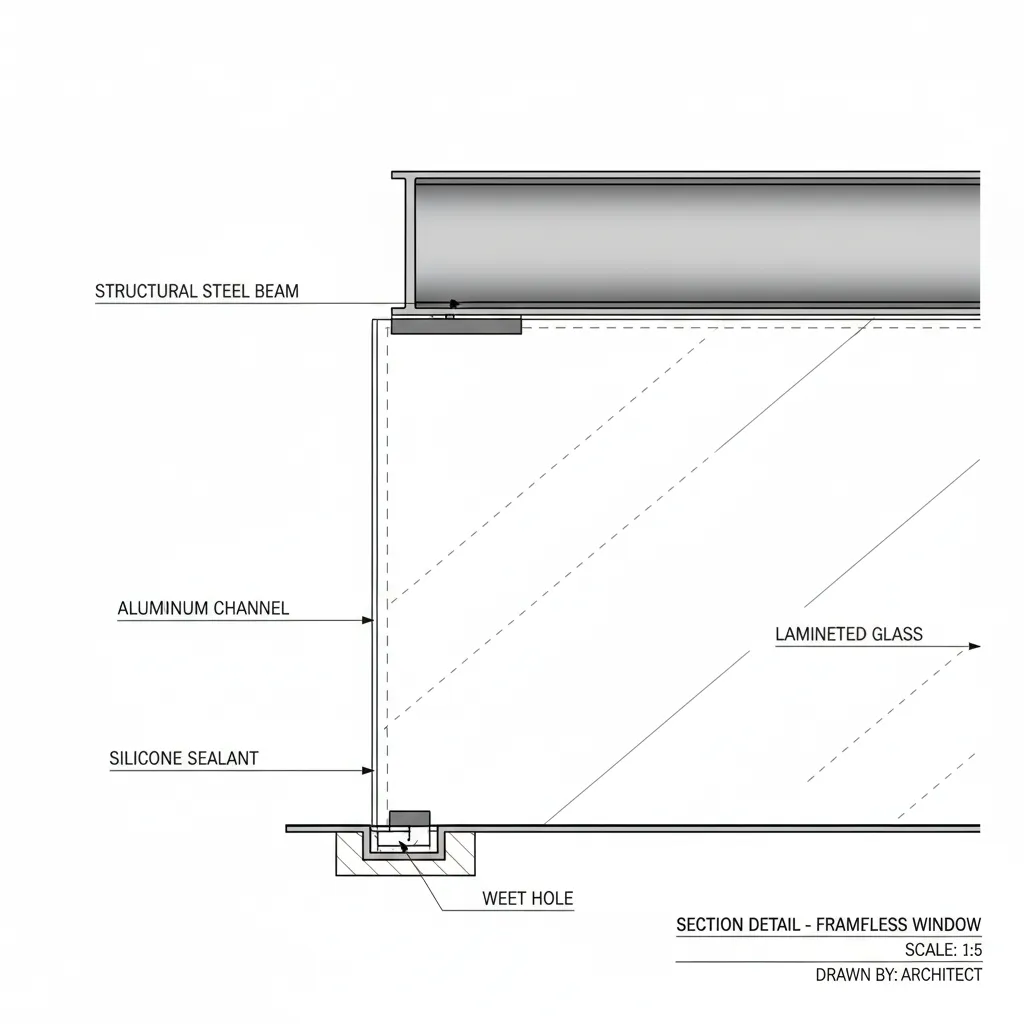

Load Distribution

1. Steel or reinforced concrete headers often carry loads above the opening.
2. Side walls must be stiff enough to prevent movement.
3. Large glass panels may require laminated structural glazing.

Thermal Expansion

Glass expands and contracts with temperature changes. Frameless systems must allow micro‑movement without cracking or seal failure.

Waterproofing Details

Traditional window frames contain built‑in drainage systems. Frameless glazing relies on precise sealants and flashing.

In my experience, poor waterproofing is the number one hidden cost in frameless window projects.

Installation Precision

Even a few millimeters of construction error can affect alignment. Many frameless systems require laser‑accurate installation.

Impact on Floor Plan Representation

Key Insight: Frameless windows change how architects communicate glazing in floor plans because standard window symbols often imply structural frames.

Most architectural floor plans show windows as openings within a wall thickness. With frameless glazing, the drawing must communicate that the glass sits flush or nearly flush with the structure.

Common drafting approaches include:

1. Thin double‑line glass symbols without heavy frames
2. Continuous glazing lines across wall openings
3. Detailed callouts referencing glazing systems

Digital planning tools help test these representations quickly. For example, designers can experiment with different floor plan layouts during early designto see how frameless glazing affects wall openings and circulation.

save pin

Balancing Aesthetics and Practical Constraints

Key Insight: The most successful frameless window projects carefully balance visual minimalism with thermal performance and cost control.

There is a trade‑off most homeowners don't realize: frameless windows often reduce insulation performance compared to high‑quality framed systems.

Here are some typical trade‑offs architects consider:

1. Visual clarity vs energy efficiency
2. Minimal detailing vs maintenance requirements
3. Luxury appearance vs installation cost

On several recent projects, we solved this by combining frameless panoramic glazing in key living areas with framed windows in bedrooms and secondary spaces.

This hybrid strategy preserves the design impact without driving up construction costs everywhere.

Answer Box

Frameless windows are best used in modern architectural projects where views, daylight, and visual minimalism are priorities. However, they require early structural planning, precise installation, and careful floor plan representation to work successfully.

save pin

Checklist for Deciding on Frameless Window Design

Key Insight: A quick design checklist can reveal whether frameless glazing is appropriate before detailed drawings begin.

Before committing to frameless windows, I usually walk clients through this decision checklist:

1. Is the project design focused on panoramic views or indoor‑outdoor connection?
2. Can structural loads be carried by beams or adjacent walls?
3. Does the budget allow for custom glazing and precise installation?
4. Will energy performance still meet local building requirements?
5. Are waterproofing and maintenance details clearly defined?

When planning early concepts, it helps to test layout ideas with an intelligent floor planning workflow before committing to structural decisions.

Final Summary

1. Frameless windows work best in modern architecture focused on views and minimalism.
2. Structural planning must support glazing without relying on traditional frames.
3. Floor plans often require specialized symbols for frameless glazing.
4. Hybrid window strategies balance design impact and energy efficiency.
5. Early planning prevents expensive structural revisions later.

FAQ

Are frameless windows structurally safe?

Yes, when properly engineered. Loads are carried by surrounding structural elements such as beams, slabs, and reinforced walls rather than the window frame.

When should architects use frameless windows in architecture?

They are most effective in view‑oriented homes, minimalist modern buildings, and projects emphasizing indoor‑outdoor connections.

Do frameless windows cost more than traditional windows?

Usually yes. Custom glass panels, specialized installation, and structural adjustments can significantly increase project cost.

Are frameless windows energy efficient?

They can be, but framed systems often provide better insulation. High‑performance glazing and careful sealing are essential.

How are frameless windows shown on architectural floor plans?

Architects often use thinner glazing lines, minimal frame symbols, or detailed callouts indicating frameless glass systems.

What are common mistakes when choosing frameless windows?

The biggest mistakes include ignoring structural load paths, underestimating waterproofing complexity, and assuming they are purely decorative.

Can frameless windows be used in small homes?

Yes, but they are usually limited to feature areas such as living rooms or corner views due to cost and insulation concerns.

What design considerations matter for frameless glass windows?

Important factors include structural support, thermal expansion, waterproofing details, glass thickness, and installation tolerances.

References

1. American Institute of Architects – Residential Design Guidelines
2. Glass Association of North America – Structural Glazing Manuals
3. Architectural Record – Contemporary Facade Design Studies
