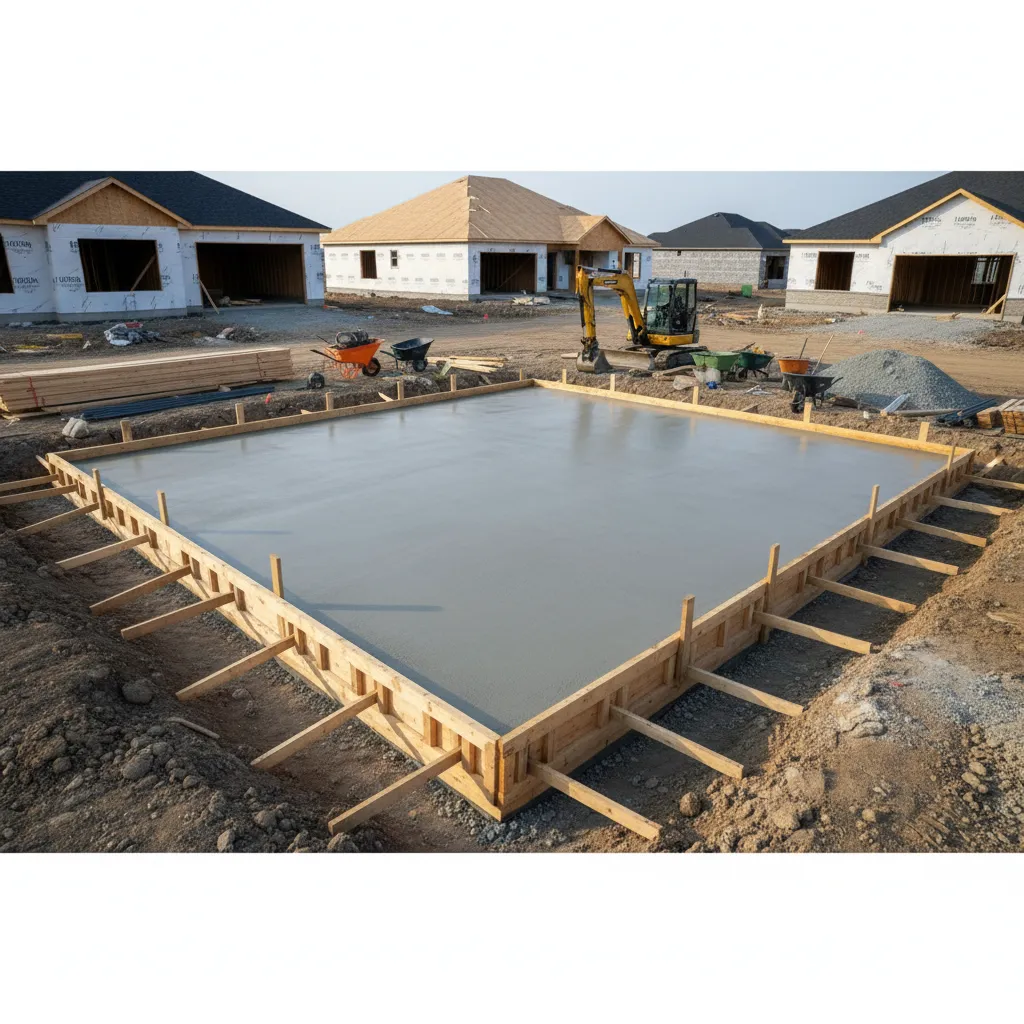

Where 2000 Square Foot Concrete Slabs Are Commonly Used: Real construction examples of projects that typically require a 2000 sq ft concrete slab foundation

Direct Answer

A 2000 square foot concrete slab is commonly used for large residential garages, small commercial buildings, workshops, storage units, and compact warehouse structures. This slab size provides enough structural footprint for medium‑scale buildings while remaining manageable in cost, material volume, and construction time.

In real construction projects, a 2000 sq ft slab often supports structures between 40×50 ft and 50×40 ft, making it a practical size for both residential expansions and light commercial facilities.

Quick Takeaways

1. A 2000 sq ft concrete slab typically supports garages, workshops, and small commercial buildings.
2. This size often corresponds to a 40×50 ft building footprint.
3. Slab thickness varies by use, usually between 4 and 6 inches.
4. Reinforcement requirements depend more on load than on slab area.
5. Planning layout early helps reduce material waste and construction delays.

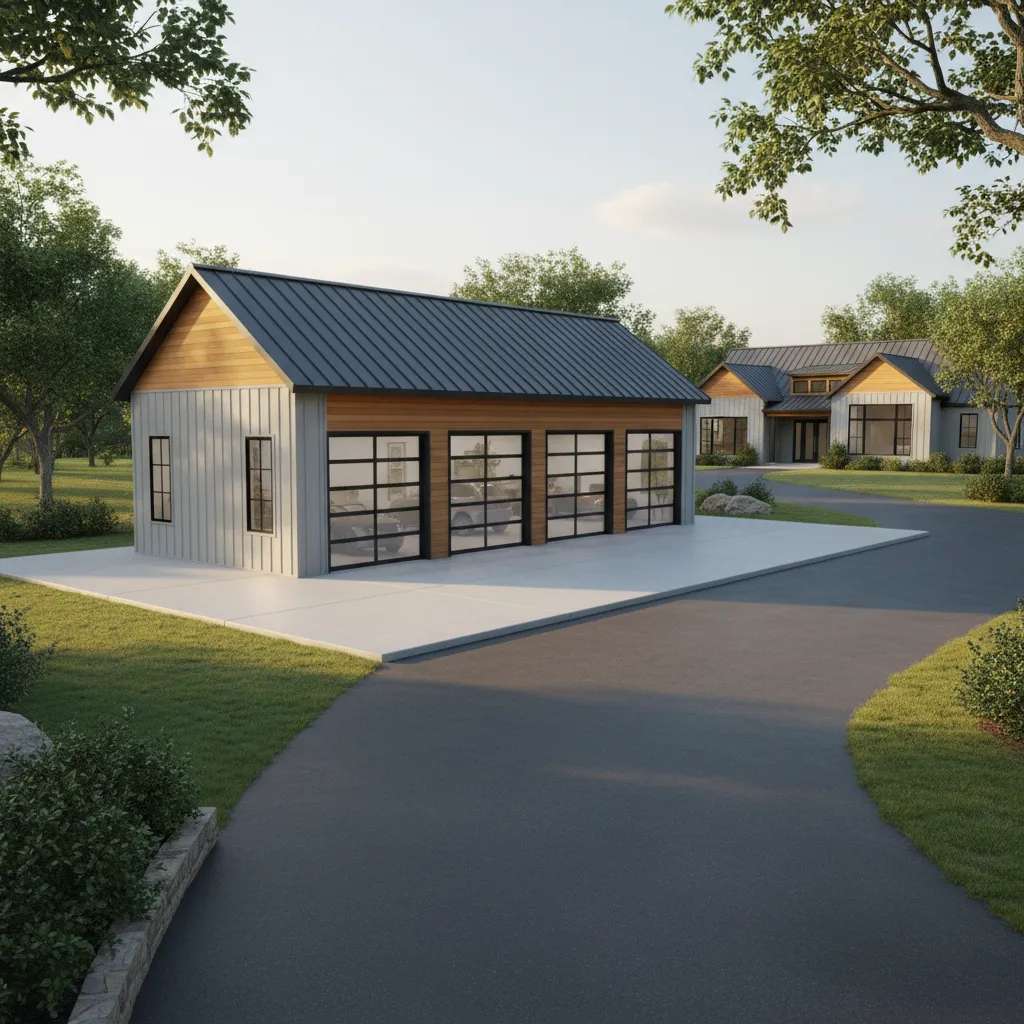

Introduction

In many real construction projects, a 2000 square foot concrete slab sits right at the sweet spot between residential and light commercial building sizes. After working on residential additions, workshops, and small commercial layouts for more than a decade, I’ve seen this footprint appear surprisingly often.

Homeowners use it for oversized garages or hobby workshops. Contractors use it for storage units or small retail shells. Developers often choose it for flexible multi‑purpose buildings that can evolve over time.

One common mistake I see during early planning is that people focus only on square footage and forget about layout efficiency. Before pouring a slab this large, it's smart to sketch different footprint options using a simple layout tool for planning a full building footprint. Even minor layout adjustments can save concrete, reinforcement, and excavation costs.

Below are the most common real‑world projects where a 2000 sq ft slab shows up—and the design considerations builders usually overlook.

save pin

Typical Residential Uses for 2000 Sq Ft Concrete Slabs

Key Insight: In residential construction, a 2000 sq ft slab most often supports large garages, accessory dwelling units, or combined garage‑workshop spaces.

In higher‑end residential builds, homeowners frequently want oversized garages that accommodate multiple vehicles, storage areas, and hobby workspaces. A 2000 sq ft slab provides enough room without entering the cost range of full warehouse construction.

Typical residential layouts include:

1. 4‑car garages with storage loft areas
2. Garage + workshop hybrid buildings
3. Detached hobby studios or maker spaces
4. Accessory dwelling units with open layouts

In several California projects I worked on, clients initially planned smaller garages but expanded to 2000 sq ft once they realized equipment storage and circulation space required more room than expected.

Hidden issue many people miss: vehicle door clearance and internal turning radius often require more space than the vehicles themselves.

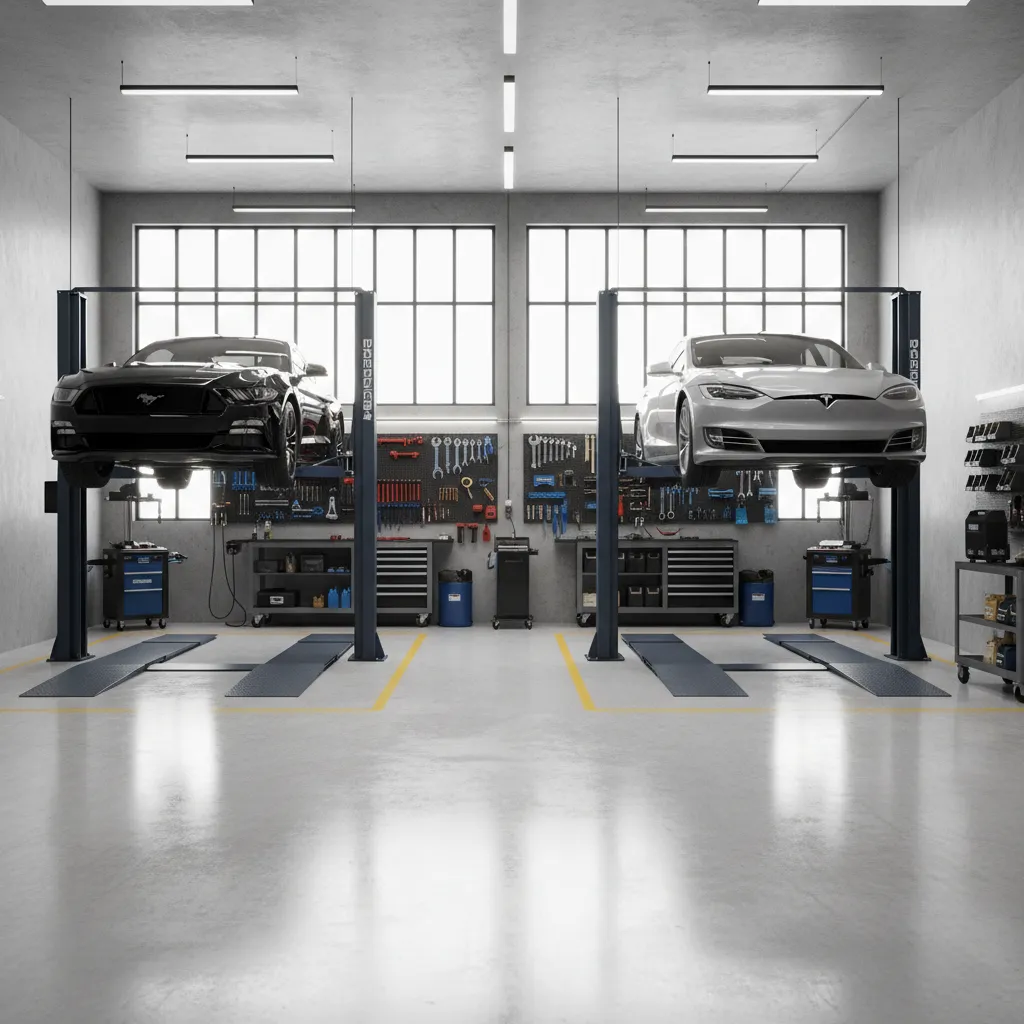

Garage and Workshop Slab Examples

Key Insight: Workshops and mechanic garages frequently use slabs around 2000 sq ft because the footprint balances tool space, vehicle access, and equipment loads.

A typical mechanic or hobby workshop layout might include:

1. Two vehicle service bays
2. Tool wall and workbench areas
3. Equipment storage
4. Open maneuvering space

Common layout examples:

1. 40 × 50 ft workshop building
2. 32 × 60 ft garage with storage zones
3. 45 × 45 ft equipment shop

For layout planning, many contractors model these spaces first with a 3D floor layout planner for garages and workshopsto check vehicle circulation and equipment spacing.

Industry guidance from the American Concrete Institute also recommends thicker reinforced slabs for spaces where vehicle lifts or heavy machinery will be installed.

save pin

Small Commercial Building Foundations

Key Insight: Many small commercial buildings—especially single‑tenant retail or office spaces—use slab foundations around 2000 sq ft.

This footprint is common for:

1. Small retail shops
2. Cafes or coffee shops
3. Medical or dental offices
4. Standalone service businesses

Developers like this size because it keeps construction budgets manageable while still supporting functional commercial layouts.

Typical building configurations:

1. 50 × 40 ft retail building
2. 48 × 42 ft office shell
3. 40 × 50 ft restaurant footprint

One planning challenge I often see is mechanical room placement. HVAC systems, storage rooms, and restrooms can easily consume 15–20% of usable space if the slab layout isn’t optimized early.

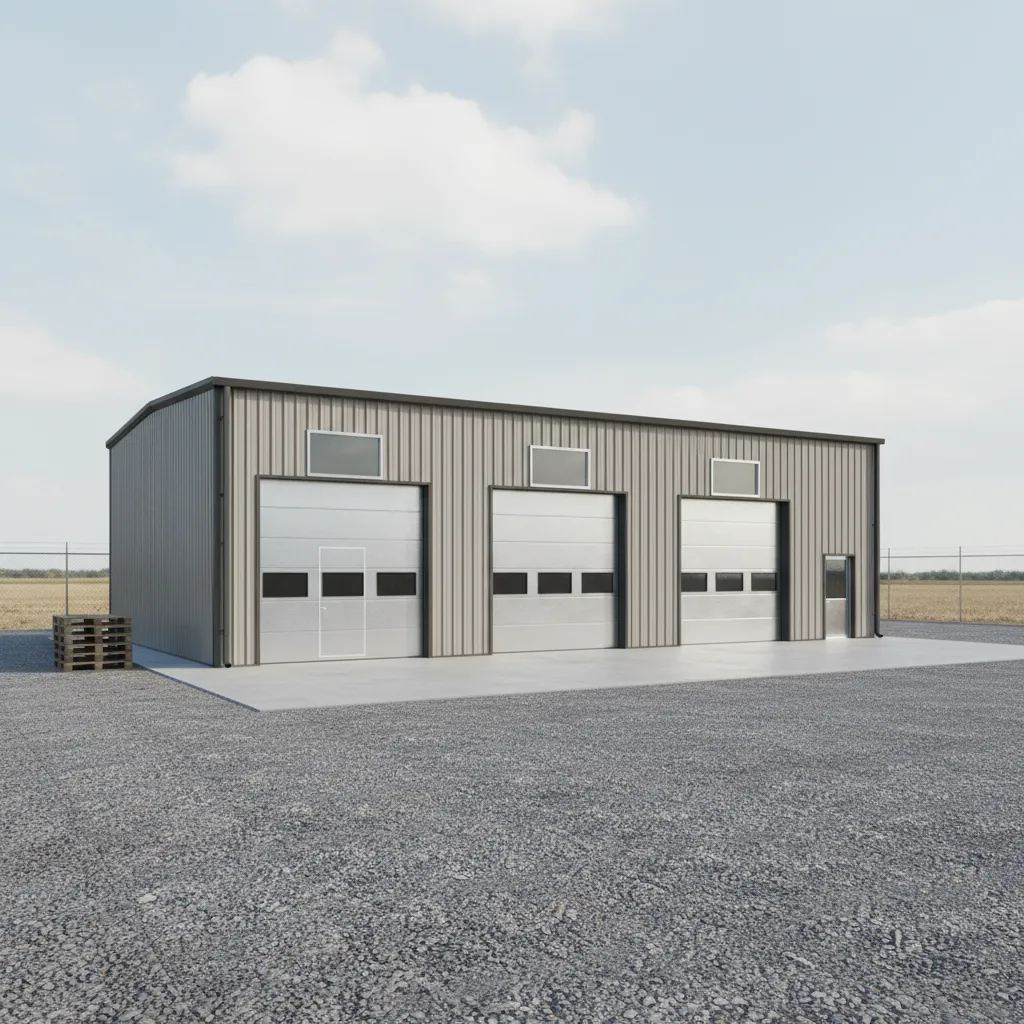

Concrete Slabs for Warehouses and Storage Units

Key Insight: Small warehouses and storage facilities often begin with slab modules around 2000 sq ft because the size scales well for phased expansion.

In light industrial development, builders sometimes pour slabs in repeatable modules rather than constructing massive foundations upfront.

Common modular uses include:

1. Self‑storage unit clusters
2. Mini warehouse buildings
3. Equipment storage facilities
4. Local distribution hubs

A 2000 sq ft slab can function as:

1. Eight 10×25 storage units
2. Four 20×25 storage bays
3. Open warehouse storage area

Design teams often test these modular layouts using AI‑assisted space planning for warehouse layoutsbefore finalizing slab dimensions.

save pin

Thickness and Reinforcement by Project Type

Key Insight: The structural performance of a 2000 sq ft slab depends far more on thickness and reinforcement than on the total square footage.

Typical slab thickness recommendations:

1. Residential garage: 4–5 inches
2. Workshop with equipment: 5–6 inches
3. Commercial building: 5–6 inches
4. Warehouse or machinery loads: 6 inches or more

Reinforcement options commonly used:

1. Rebar grid reinforcement
2. Welded wire mesh
3. Fiber‑reinforced concrete

According to guidance from the American Concrete Institute (ACI), load conditions and soil preparation play a larger role in slab durability than slab area alone.

Answer Box

A 2000 square foot concrete slab is a versatile foundation size used for large garages, workshops, small commercial buildings, and modular warehouse spaces. The most important design factors are slab thickness, reinforcement, and layout efficiency—not just square footage.

Planning Concrete Volume for Different Use Cases

Key Insight: The total concrete volume required for a 2000 sq ft slab changes significantly depending on thickness and structural requirements.

Example concrete volume estimates:

1. 4‑inch slab: about 24.7 cubic yards
2. 5‑inch slab: about 30.9 cubic yards
3. 6‑inch slab: about 37 cubic yards

However, contractors usually add 5–10% extra to account for:

1. Uneven subgrade
2. Formwork variations
3. Spillage and waste

From experience, under‑ordering concrete is one of the most common mistakes on slab pours. A short load can delay finishing work and dramatically increase costs.

Final Summary

1. 2000 sq ft slabs commonly support garages, workshops, and small commercial buildings.
2. This slab size typically equals a 40×50 ft building footprint.
3. Slab thickness usually ranges from 4 to 6 inches depending on load.
4. Layout planning early can reduce material waste and cost.
5. Structural design matters more than total slab size.

FAQ

Is 2000 square feet a large concrete slab?

A 2000 square foot concrete slab is considered medium‑large. It’s bigger than typical residential patios but common for garages, workshops, and small commercial buildings.

How many yards of concrete are needed for a 2000 sq ft slab?

It depends on thickness. A 4‑inch slab requires about 25 cubic yards, while a 6‑inch slab requires roughly 37 cubic yards.

What building size fits on a 2000 sq ft slab?

Typical building dimensions include 40×50 ft, 45×45 ft, or 32×60 ft structures.

Can a 2000 sq ft concrete slab support a warehouse?

Yes, small warehouses or storage buildings often use slabs around this size, especially in modular developments.

Is reinforcement required for a 2000 square foot concrete slab?

Most slabs include rebar, welded wire mesh, or fiber reinforcement to prevent cracking and improve structural performance.

What is the best thickness for a garage slab?

Most residential garages use 4–5 inch slabs, though heavy vehicles may require thicker concrete.

Can you build a house on a 2000 sq ft slab?

Yes. Many single‑story homes use slab‑on‑grade foundations around this size.

What projects typically need a 2000 sq ft concrete slab?

Common projects include large garages, workshops, storage facilities, small retail buildings, and compact warehouse structures.

References

American Concrete Institute (ACI) – Slab Construction Guidelines

Portland Cement Association – Concrete Slab Design Resources
