Why Your AC Cannot Cool a 500 Sq Ft Room: Common cooling failures in small apartments and the practical fixes designers and HVAC pros recommend

Direct Answer

If your AC cannot cool a 500 sq ft room, the most common causes are incorrect BTU sizing, restricted airflow, poor insulation, or simple maintenance issues like clogged filters. In many homes I’ve worked on, the unit itself isn’t broken—the system is either undersized or the room layout is fighting against the cooling capacity.

Once airflow, insulation, and maintenance issues are corrected, most properly sized units can cool a 500 sq ft space effectively.

Quick Takeaways

1. Most 500 sq ft rooms require roughly 10,000–12,000 BTU depending on sun exposure.
2. Dirty filters and blocked vents are the fastest way to reduce cooling performance.
3. Direct sunlight can increase cooling demand by 20–30 percent.
4. Poor airflow distribution often makes a working AC feel ineffective.
5. Incorrect thermostat placement can cause false temperature readings.

Introduction

I’ve worked on dozens of apartment renovations where homeowners complained their AC was running all day but the room still felt warm. In many of those cases, the problem wasn’t the machine—it was the setup around it.

The issue of an AC not cooling a 500 sq ft room usually comes down to three factors: capacity, airflow, and environmental heat load. Small apartments often look simple, but furniture layout, window placement, and insulation quality can dramatically change how air circulates.

When I help clients redesign compact living spaces, I often start by reviewing airflow and room layout using tools similar to a visual room layout planning tool for testing airflow and furniture placement. It’s surprising how often a sofa, partition, or shelf blocks the cold air path.

In this guide, I’ll walk through the real reasons cooling fails in a 500 sq ft space and the fixes that actually work.

save pin

Signs Your AC Is Undersized for a 500 Sq Ft Room

Key Insight: If your AC runs continuously but never reaches the set temperature, the unit is likely undersized.

One of the most common mistakes I see in apartments is installing a unit designed for a 250–350 sq ft bedroom in a much larger open space.

Typical warning signs include:

1. AC runs nonstop for hours
2. Room temperature drops only slightly
3. Humidity remains high
4. Compressor rarely shuts off

According to guidelines published by the U.S. Department of Energy, a typical room requires about 20 BTU per square foot. For a 500 sq ft room, that usually means roughly 10,000 BTU or more depending on sun exposure and ceiling height.

Incorrect BTU Selection and Cooling Failure

Key Insight: Choosing the wrong BTU capacity is the single most common reason an AC cannot cool a 500 sq ft room.

People often assume "bigger is better," but both undersized and oversized units cause problems.

Typical BTU guidance:

1. 300 sq ft: about 8,000 BTU
2. 400 sq ft: about 9,000–10,000 BTU
3. 500 sq ft: about 10,000–12,000 BTU

However, adjustments are necessary when:

1. The room faces west or south
2. There are large windows
3. Kitchen appliances add heat
4. Ceilings exceed 9 feet

I’ve seen 8,000 BTU window units installed in 500 sq ft studio apartments. In that situation, the unit will run constantly but never stabilize the temperature.

save pin

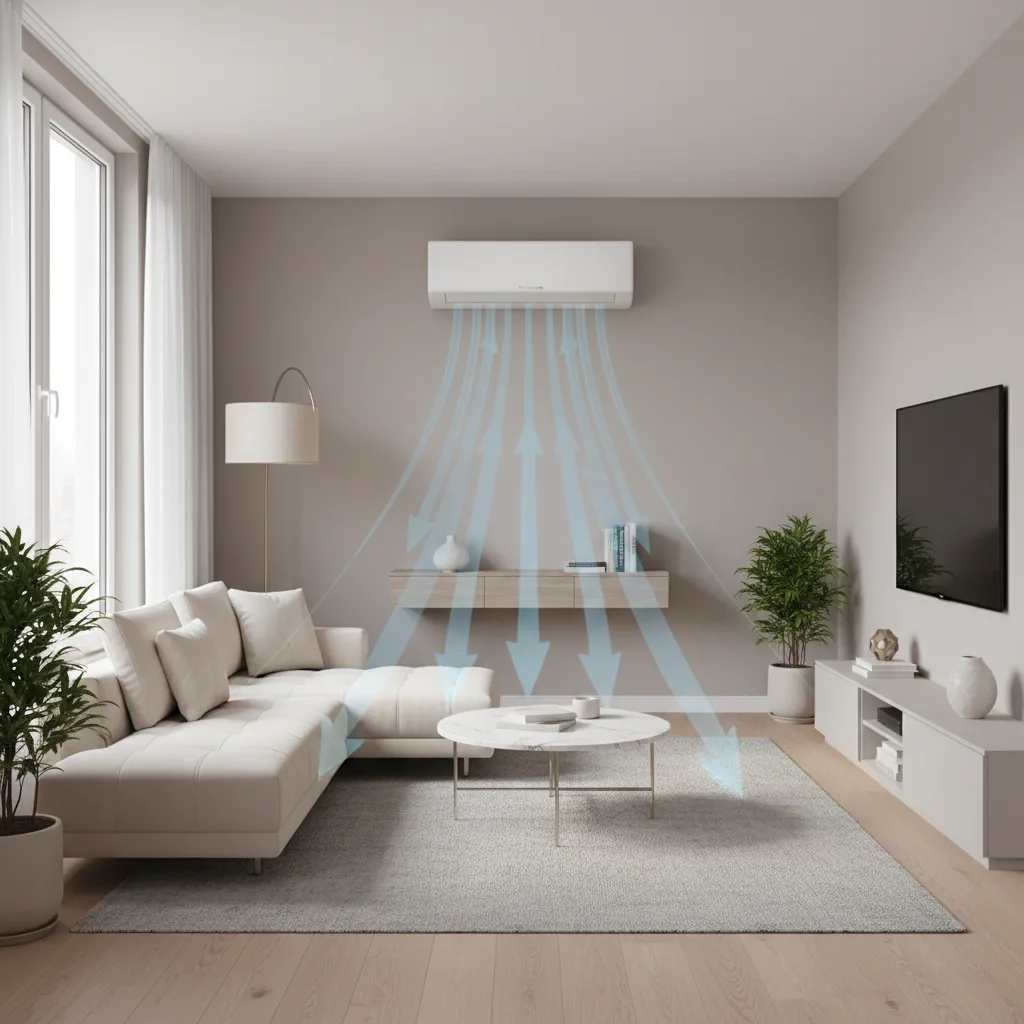

Airflow and Ventilation Problems in Small Rooms

Key Insight: Poor air circulation can make a perfectly sized AC feel ineffective.

In many interior layouts, cold air never reaches the far side of the room. Furniture placement, partitions, or even ceiling fans can disrupt airflow.

Common airflow blockers:

1. Sofas directly in front of AC vents
2. Floor‑to‑ceiling shelves
3. Closed interior doors
4. Poor return air circulation

When planning layouts, I often simulate air movement using a 3D floor layout visualization for testing furniture and airflow paths. This helps identify where cool air gets trapped.

In small apartments, sometimes simply rotating furniture or clearing a vent path solves the problem immediately.

Insulation and Sun Exposure Issues

Key Insight: Heat gain through windows can overwhelm even correctly sized air conditioners.

Many cooling complaints I’ve seen are actually caused by solar heat rather than mechanical failure.

Typical heat gain sources:

1. Large south‑facing windows
2. Single‑pane glass
3. Thin curtains
4. Poor wall insulation

Energy studies from the U.S. Department of Energy show that untreated windows can account for up to 30% of unwanted heat gain in residential spaces.

Simple fixes include:

1. Blackout curtains
2. Reflective window film
3. Exterior shades
4. Improved wall insulation

save pin

Dirty Filters and Maintenance Problems

Key Insight: A clogged air filter can reduce cooling efficiency by restricting airflow through the system.

This is one of the simplest problems—and one of the most frequently ignored.

Maintenance checklist:

1. Replace filters every 30–60 days
2. Clean condenser coils annually
3. Check evaporator coil buildup
4. Ensure drain lines are clear

The U.S. Environmental Protection Agency notes that proper HVAC maintenance significantly improves system efficiency and indoor comfort.

Electrical or Thermostat Misconfiguration

Key Insight: Incorrect thermostat settings or placement can prevent an AC from cooling a room effectively.

I’ve encountered thermostats placed near windows, kitchens, or electronics. These locations create inaccurate readings.

Common thermostat problems:

1. Installed near direct sunlight
2. Too close to appliances
3. Incorrect cooling mode
4. Fan settings preventing proper cycles

Relocating a thermostat or recalibrating it often restores normal cooling performance.

save pin

Step by Step Troubleshooting Checklist

Key Insight: Most cooling failures can be diagnosed in under 20 minutes using a structured checklist.

Start with the simplest possibilities before assuming the AC is defective.

1. Check thermostat settings and location
2. Replace or clean the air filter
3. Ensure vents and airflow paths are unobstructed
4. Measure room size and verify BTU capacity
5. Inspect window insulation and sunlight exposure
6. Check outdoor condenser for debris

If you’re redesigning the space or adjusting layout, it can help to preview cooling paths using a visual floor plan tool for testing room layouts and ventilation flow.

Answer Box

An AC that cannot cool a 500 sq ft room is usually undersized, blocked by poor airflow, or affected by heat gain from windows. Correct BTU sizing, proper airflow, and regular maintenance solve most cooling failures.

Final Summary

1. Incorrect BTU sizing is the leading cause of poor cooling.
2. Blocked airflow can make a working AC seem ineffective.
3. Sunlight and poor insulation significantly increase cooling demand.
4. Simple maintenance fixes many performance problems.
5. Room layout can strongly influence cooling efficiency.

FAQ

Why is my AC running but not cooling my 500 sq ft room?

The most common reasons are undersized BTU capacity, dirty filters, blocked airflow, or excessive heat from sunlight.

What BTU air conditioner do I need for 500 sq ft?

Most rooms around 500 sq ft require about 10,000–12,000 BTU, depending on insulation, ceiling height, and sunlight.

Can a dirty filter stop an AC from cooling properly?

Yes. Dirty filters restrict airflow, reducing cooling efficiency and forcing the unit to run longer.

Why does my AC cool some parts of the room but not others?

This usually indicates airflow imbalance caused by furniture placement or blocked vents.

Does sunlight affect AC cooling performance?

Yes. Direct sun exposure can significantly increase heat load and make the AC work harder.

How do I know if my AC is undersized?

If the unit runs constantly but never reaches the target temperature, it may be undersized.

Can furniture placement affect AC performance?

Yes. Large furniture pieces can block cold air distribution and reduce effective cooling.

How often should AC filters be replaced?

Most filters should be replaced every 30–60 days depending on usage and air quality.

References

U.S. Department of Energy – Residential Air Conditioning Guidelines

U.S. Environmental Protection Agency – HVAC Maintenance Recommendations
