Window vs Mini Split vs Central AC for 1200 Sq Ft Mobile Homes: A practical comparison of cooling systems for manufactured homes, including real installation costs, efficiency trade‑offs, and layout considerations.

Direct Answer

For most 1200 sq ft mobile homes, a mini split system is usually the most efficient and practical cooling option. Window AC units are cheaper upfront but less efficient for whole‑home cooling, while central AC only makes sense if the home already has compatible ductwork. The best choice depends on layout, insulation quality, and installation constraints.

Quick Takeaways

1. Mini split systems deliver the best balance of efficiency, comfort, and installation flexibility.
2. Window AC units are the cheapest option but struggle to cool an entire 1200 sq ft mobile home.
3. Central air works well only if existing ducts are in good condition.
4. Mobile home layouts often determine the best AC type more than square footage alone.

Introduction

Choosing the right AC system for a 1200 sq ft mobile home is rarely as simple as picking the biggest unit you can afford. After working on dozens of manufactured‑home renovations over the past decade, I’ve seen homeowners spend thousands on cooling systems that never quite solved the comfort problem.

The reason is simple: mobile homes behave differently than traditional houses. They typically have narrower layouts, thinner wall cavities, and ductwork that wasn't designed for modern HVAC loads. That changes how window AC units, mini splits, and central air actually perform.

Before choosing a system, I always recommend understanding the airflow and room distribution first. If you're mapping room layout and airflow paths, it helps to plan a better airflow layout for a small homeso you know where cooling demand will be highest.

In this guide, I’ll break down how each AC type performs in real 1200 sq ft manufactured homes, including installation realities, operating costs, and the design mistakes I see most often.

save pin

Cooling Needs of a 1200 Sq Ft Mobile Home

Key Insight: Most 1200 sq ft mobile homes need 18,000–24,000 BTU of cooling, but layout and insulation often matter more than raw capacity.

Manufactured homes distribute heat differently than traditional houses. Long hallway layouts, low attic insulation, and large window exposure can create uneven cooling zones.

In practice, the cooling demand depends on several factors:

1. Ceiling height and roof insulation
2. Number of exterior windows
3. Single‑wide vs double‑wide layout
4. Sun exposure and regional climate

The U.S. Department of Energy notes that poorly insulated homes can require significantly more cooling capacity than standard sizing estimates. In mobile homes built before the mid‑1990s, insulation gaps can increase cooling load dramatically.

This is why oversized window units often fail: they cool one room quickly but leave the rest of the home warm.

How Window Air Conditioners Perform in Mobile Homes

Key Insight: Window AC units work best as targeted cooling for specific rooms rather than whole‑home solutions.

Window air conditioners remain the most common cooling option in older mobile homes because they are inexpensive and easy to install.

However, there are several limitations I see repeatedly in real projects:

1. Airflow rarely reaches bedrooms down long hallways
2. Multiple units increase energy use and noise
3. Window framing sometimes requires reinforcement
4. Exterior condensation can damage siding

Typical performance for a 1200 sq ft mobile home:

1. One large unit cools a living area effectively
2. Two to three units are often needed for full coverage
3. Energy efficiency is lower than mini split systems

Another overlooked issue is furniture placement. Blocking airflow with couches or cabinets can dramatically reduce cooling performance. I often advise homeowners to visualize furniture placement before installing a wall unitso airflow paths remain clear.

save pin

Mini Split Systems for Manufactured Housing

Key Insight: Mini split systems are usually the most efficient and flexible cooling option for mobile homes without reliable ductwork.

Ductless mini splits have become the go‑to recommendation for many HVAC professionals working with manufactured housing.

The reason is simple: they bypass the duct limitations that many mobile homes have.

Typical advantages include:

1. High energy efficiency (often 20+ SEER)
2. No duct losses
3. Quiet indoor operation
4. Zoned temperature control

For a 1200 sq ft mobile home, a common configuration is:

1. One 18k–24k BTU single‑zone system
2. Or a multi‑zone system with two indoor heads

In my experience, the biggest mistake homeowners make is installing only one head unit at one end of the house. Long hallway layouts often require two zones for balanced cooling.

save pin

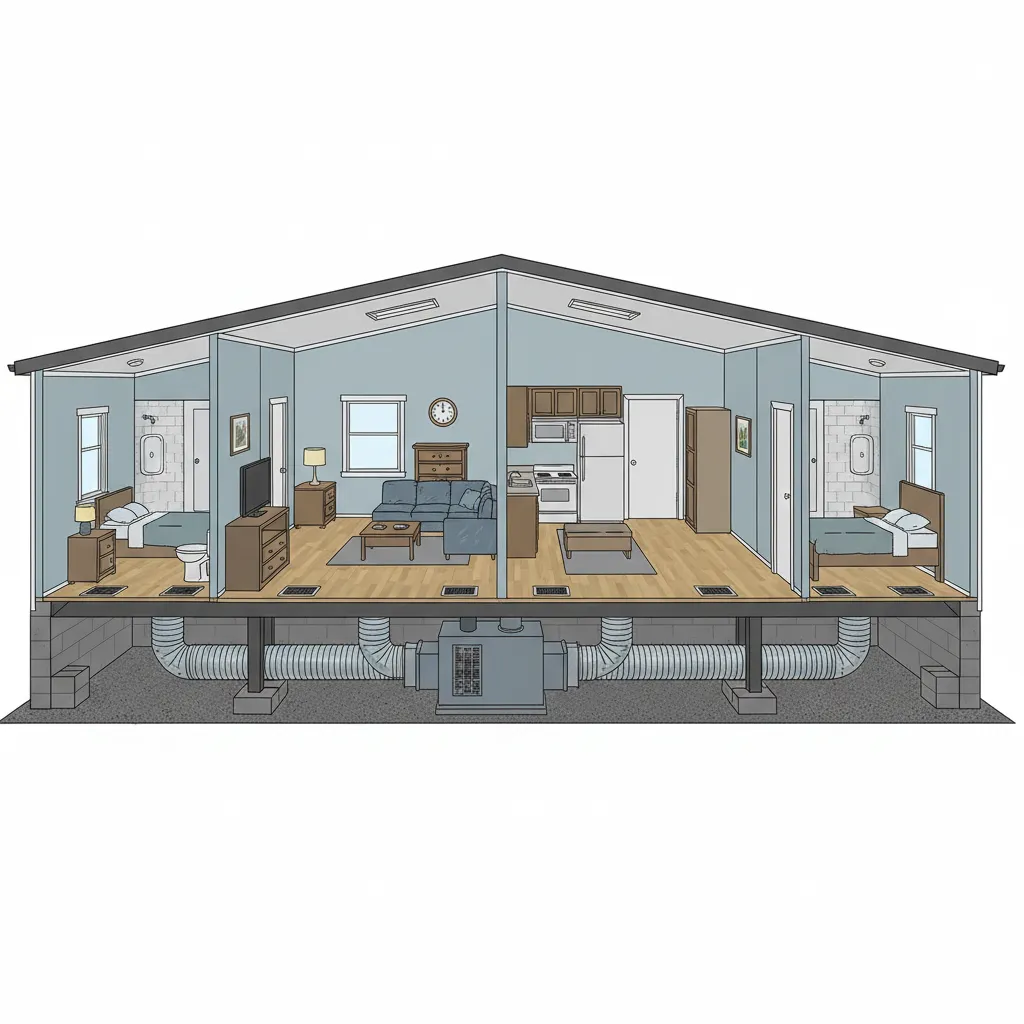

Can Central Air Work in a Mobile Home

Key Insight: Central air works well in mobile homes only when existing ductwork is properly sized and sealed.

Many manufactured homes technically include duct systems, but they were often designed for small packaged HVAC units.

Common issues include:

1. Undersized ducts
2. Air leakage under the floor
3. Poor return airflow
4. Limited access for upgrades

Central air can still work well when:

1. The duct system is sealed and insulated
2. The home is a double‑wide with balanced airflow paths
3. The system is paired with a heat pump

According to ENERGY STAR guidance, duct losses can reduce HVAC efficiency by 20% or more in poorly sealed systems. That’s one reason mini splits frequently outperform central air in manufactured housing.

Cost Comparison: Installation and Operation

Key Insight: Window units cost the least upfront, but mini splits often become cheaper over time due to higher efficiency.

Typical cost ranges for a 1200 sq ft mobile home:

1. Window AC units: $150 – $600 per unit
2. Mini split systems: $2,500 – $6,000 installed
3. Central AC installation: $5,000 – $10,000+

Operating costs depend heavily on system efficiency. Mini splits typically consume 30–40% less electricity than older window units.

Hidden costs people rarely consider include:

1. Electrical upgrades for larger systems
2. Duct repairs for central air
3. Multiple window units increasing energy bills

Answer Box

For most 1200 sq ft mobile homes, mini split systems offer the best combination of efficiency, comfort, and installation flexibility. Window AC units are best for individual rooms, while central air works only if the duct system is already well designed.

Which AC Type Is Best for Different Mobile Home Layouts

Key Insight: The layout of a mobile home often determines the best AC system more than the square footage itself.

Here’s how cooling systems typically match different floor plans:

1. Single‑wide homes: Mini split with two zones often performs best.
2. Open‑plan double‑wide: Central air or large mini split works well.
3. Older narrow layouts: Multiple window units may be the simplest solution.

Before installing any system, I recommend modeling the interior layout and airflow paths. It helps to see real examples of full-home 3D layout planningto understand how air circulates through long mobile‑home floor plans.

save pin

Final Summary

1. Mini splits are usually the best AC system for a 1200 sq ft mobile home.
2. Window AC units work best for individual rooms.
3. Central air depends heavily on duct quality.
4. Mobile home layout often determines cooling performance.
5. Energy efficiency matters more than raw BTU size.

FAQ

What size AC do I need for a 1200 sq ft mobile home?

A system providing about 18,000–24,000 BTU usually works well, but insulation, ceiling height, and sun exposure can change the requirement.

Is a mini split better than a window AC for a mobile home?

Yes. A mini split is usually more efficient, quieter, and capable of cooling multiple rooms in a mobile home.

Can you install central air in a manufactured home?

Yes, but it depends on ductwork condition. Many older mobile homes require duct upgrades for central AC to work properly.

How many window AC units are needed for 1200 sq ft?

Typically two to three units depending on layout and room size.

Do mini splits work well in mobile homes?

Yes. Mini split systems are widely considered one of the best cooling options for mobile homes because they avoid duct losses.

Is central air expensive for mobile homes?

Installation can be costly if ductwork must be repaired or replaced, which is common in older manufactured homes.

What AC system works best in mobile homes with long hallways?

A multi‑zone mini split system typically handles long hallway layouts better than a single window unit.

Are window AC units energy efficient?

Modern models can be efficient for single rooms, but cooling an entire 1200 sq ft mobile home with them often increases electricity costs.

References

1. U.S. Department of Energy – Residential Cooling Systems
2. ENERGY STAR – Air Conditioning Guidance
3. ACCA Manual J Load Calculation Principles
