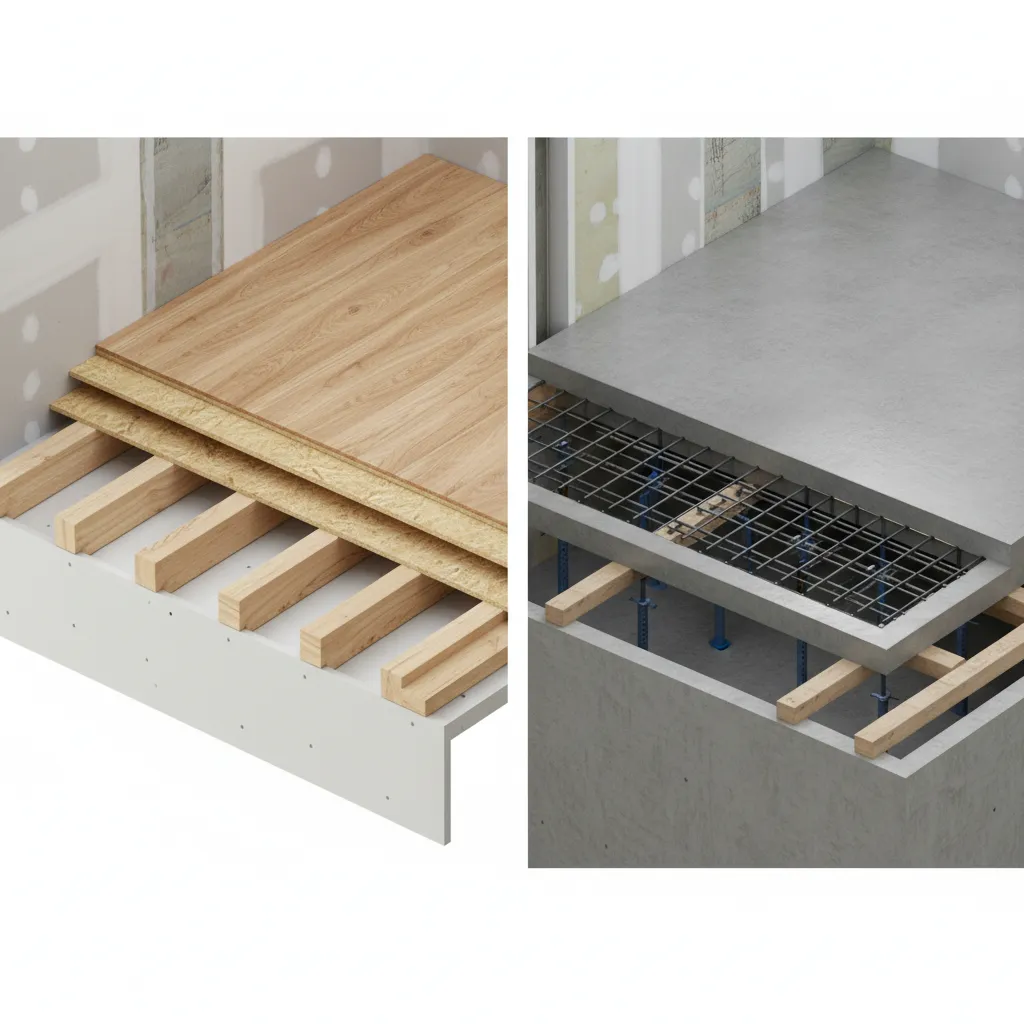

Wood Joist vs Concrete Slab: Comparing 2nd Floor Thickness Requirements: Understand how structural systems change second‑floor thickness, ceiling height, cost, and construction complexity in residential buildings.

Direct Answer

Wood joist floors are typically 10–16 inches thick, depending on joist depth and subfloor layers, while concrete slab second floors are usually 6–10 inches thick including reinforcement and finishes. Concrete systems are thinner but heavier, while wood systems are thicker yet lighter and easier to modify during construction.

Quick Takeaways

1. Wood joist second floors usually measure 10–16 inches total structural thickness.
2. Concrete slab second floors typically range from 6–10 inches depending on span and reinforcement.
3. Concrete floors are thinner but significantly heavier than wood joist systems.
4. Wood framing is easier to modify for plumbing, wiring, and renovations.
5. Material choice affects ceiling height, cost, and long‑term flexibility.

Introduction

When homeowners ask about wood joist vs concrete slab floor thickness, they’re usually trying to solve a practical problem: how thick the second floor needs to be and how that affects ceiling height, structure, and cost.

After working on dozens of residential remodels and multi‑story builds, I’ve noticed that most people assume concrete automatically means stronger and better. That’s not always true. Structural systems behave differently depending on span length, load distribution, and construction methods.

For example, a wood joist floor might look thicker on paper, but it often allows easier routing for HVAC ducts, electrical runs, and plumbing. Concrete slabs, while thinner, can create expensive challenges later if modifications are needed.

If you're planning layouts or evaluating structural options, visualizing the floor system inside a full house model helps a lot. A tool that lets you experiment with multi‑story floor layouts in 3Dmakes it easier to understand how structural thickness affects overall building proportions.

Let’s break down how wood joist and concrete slab systems actually compare in second‑floor construction.

save pin

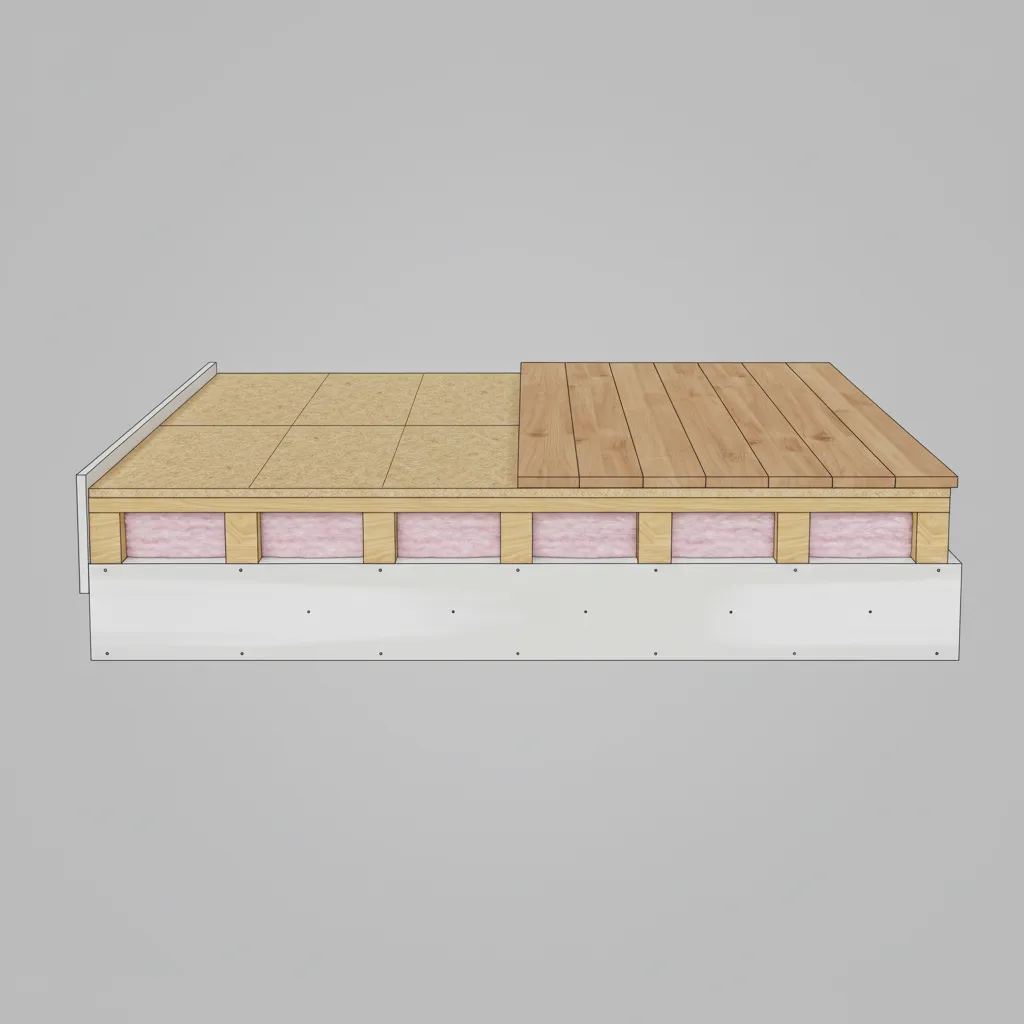

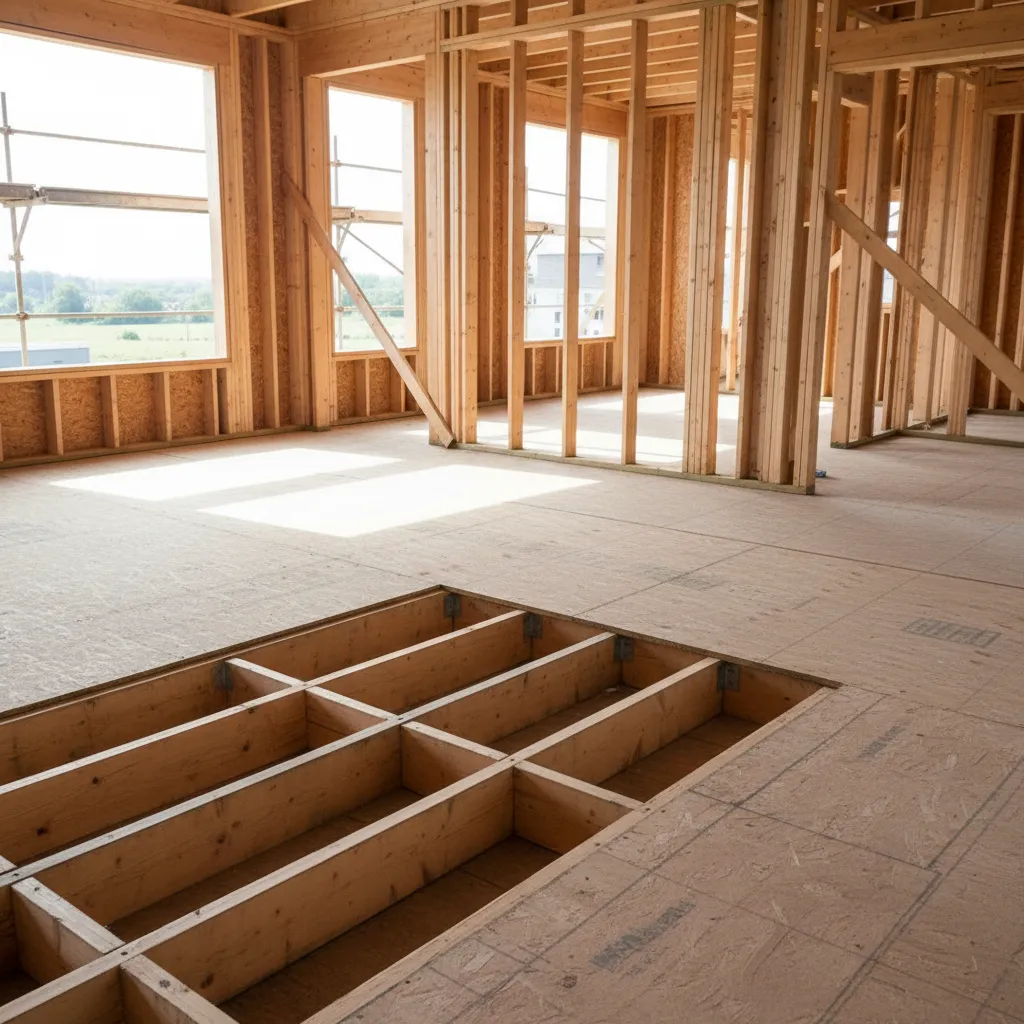

Typical Thickness of Wood Joist Second Floors

Key Insight: Most residential wood joist second floors measure between 10 and 16 inches thick depending on span length and structural load.

Wood framing dominates residential construction in North America because it balances structural strength, cost efficiency, and flexibility. But its thickness varies based on joist size and spacing.

A typical wood floor assembly includes several layers:

1. 2×8 to 2×12 joists (7.25–11.25 inches)
2. Subfloor sheathing (typically 0.75 inches)
3. Floor finish layers (0.5–1 inch)
4. Ceiling drywall below (0.5 inch)

Common total thickness examples:

1. 2×8 joists: about 10–11 inches total
2. 2×10 joists: about 12–13 inches total
3. 2×12 joists: about 14–16 inches total

Hidden mistake many homeowners make:choosing joist sizes only based on span tables without considering vibration performance. In practice, deeper joists often create noticeably more comfortable floors with less bounce.

According to the American Wood Council span tables, longer spans quickly require deeper joists, which is why open‑plan homes often end up with thicker second‑floor assemblies.

save pin

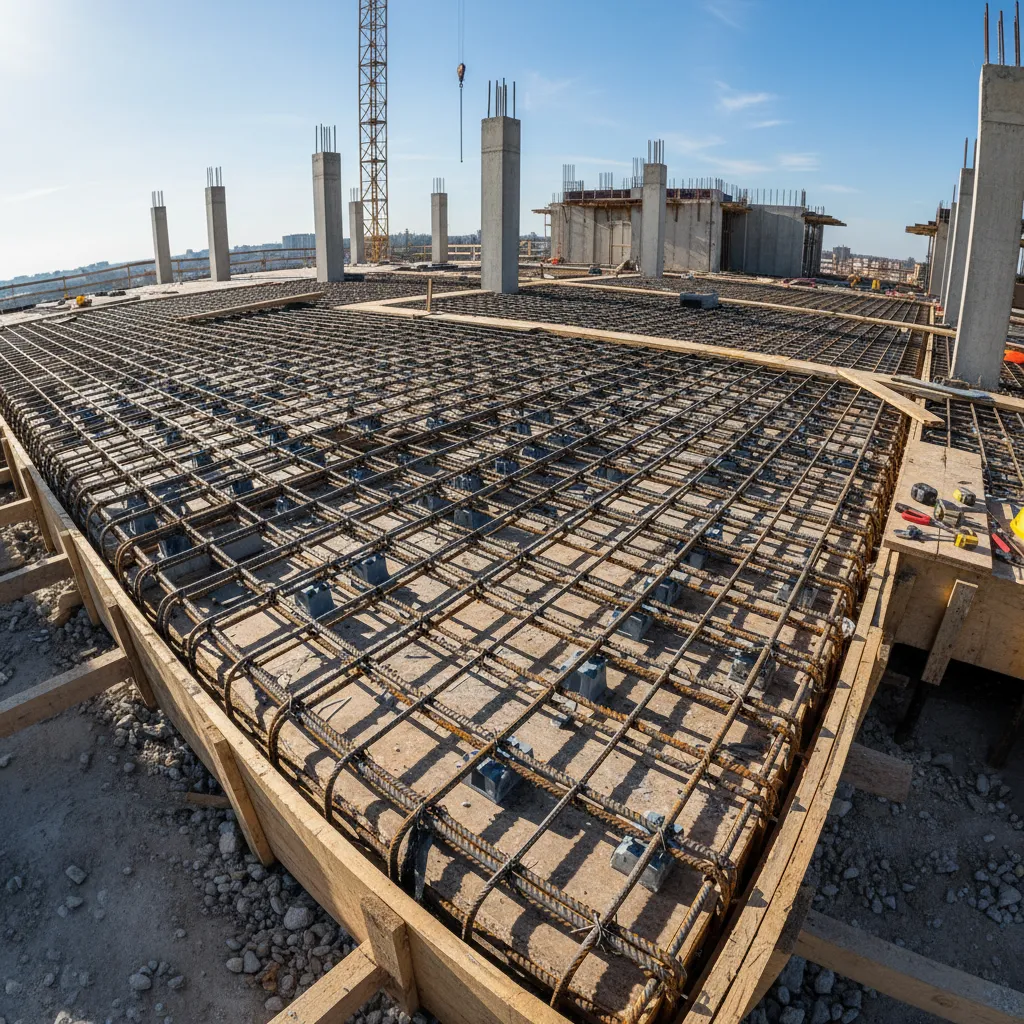

Typical Thickness of Concrete Slab Second Floors

Key Insight: Reinforced concrete slabs for second floors usually range from 6 to 10 inches thick, depending on span and structural design.

Concrete floors are common in high‑rise buildings and some modern homes because they provide strong load capacity and excellent sound insulation.

Typical components include:

1. Reinforced concrete slab (5–8 inches)
2. Leveling or screed layer (1–2 inches)
3. Floor finish (tile, wood, or stone)

Typical total thickness ranges:

1. Light residential slab: 6–7 inches
2. Standard reinforced slab: 7–9 inches
3. Long‑span structural slab: 9–10 inches

On paper, this looks thinner than wood joist floors. But here’s the trade‑off many articles skip: concrete slabs require deeper beams or structural support elsewhere in the building. That extra structure can offset the thickness savings.

Structural Strength and Load Capacity Differences

Key Insight: Concrete handles compression loads better, while wood joist systems distribute loads efficiently across multiple framing members.

Both systems are structurally sound when engineered correctly, but they behave very differently.

Wood joist system characteristics:

1. Lightweight structural framing
2. Flexible load distribution
3. Easier retrofits and repairs
4. Slightly more vibration in long spans

Concrete slab characteristics:

1. Extremely high compressive strength
2. Better acoustic insulation
3. Higher structural weight
4. Difficult to modify after construction

Structural engineers typically design residential floors for about 40 pounds per square foot live load (per International Residential Code). Both systems easily meet this requirement when properly designed.

Answer Box

Wood joist second floors are usually thicker but lighter and easier to modify. Concrete slabs are thinner yet heavier and harder to alter after construction. The best option depends on span length, building height constraints, and renovation flexibility.

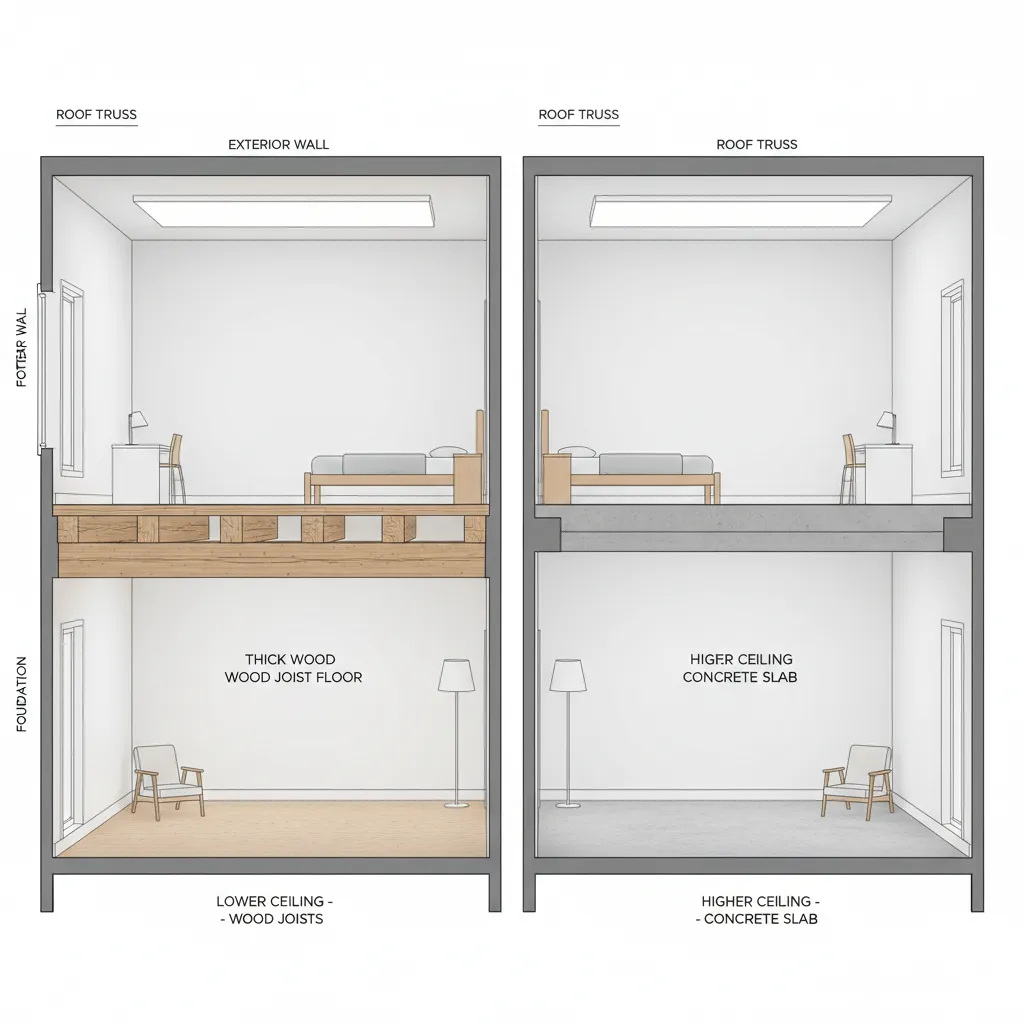

Impact on Building Height and Ceiling Clearance

Key Insight: Structural floor thickness directly affects ceiling height and total building height in multi‑story homes.

In urban areas with strict height limits, every inch matters.

Here’s a simple example:

1. Wood joist floor: ~13 inches thick
2. Concrete slab floor: ~8 inches thick

That 5‑inch difference across multiple stories can significantly affect:

1. Maximum ceiling height
2. Roofline proportions
3. Exterior façade design
4. Staircase geometry

However, the real-world difference is often smaller because concrete structures frequently require deeper beams, drop panels, or mechanical zones.

When planning a multi‑story layout, many designers model different structural systems first using a simple floor plan tool for testing structural layouts. Seeing ceiling heights and floor thickness in context prevents costly design revisions later.

save pin

Cost and Construction Complexity Comparison

Key Insight: Wood joist systems are usually faster and cheaper for residential construction, while concrete slabs require more labor and structural planning.

Typical construction differences:

Wood framing advantages

1. Lower material cost
2. Faster installation
3. Simpler tools and labor
4. Easier mechanical integration

Concrete slab advantages

1. Better fire resistance
2. Superior sound isolation
3. Greater structural rigidity

Hidden cost many homeowners overlook: drilling or modifying a concrete slab later for plumbing or wiring can be extremely expensive compared with adjusting wood framing.

This is one of the biggest reasons wood framing still dominates low‑rise housing construction across the United States.

Which Floor System Is Best for Residential Projects

Key Insight: Wood joist floors remain the most practical choice for most houses, while concrete slabs work better in high‑density or luxury construction.

In my experience designing residential interiors, the best structural system usually depends on three factors:

1. Span length and structural layout
2. Budget and construction speed
3. Future renovation flexibility

General guidance:

1. Single‑family homes → wood joist floors
2. Luxury concrete homes → slab systems
3. Urban multi‑story buildings → reinforced concrete

If you're comparing layout possibilities or exploring structural variations, it helps to visualize the complete home design with realistic interior rendersso you can see how floor thickness influences ceiling height and room proportions.

save pin

Final Summary

1. Wood joist second floors typically measure 10–16 inches thick.
2. Concrete slab second floors usually range from 6–10 inches.
3. Concrete is thinner but significantly heavier.
4. Wood framing offers easier modifications and faster construction.
5. Structural choice affects ceiling height, cost, and renovation flexibility.

FAQ

Is a concrete second floor stronger than a wood joist floor?

Concrete has higher compressive strength, but properly engineered wood joist floors meet residential load requirements and perform well in most houses.

What is the typical slab thickness for a second floor?

The typical slab thickness for second floor construction is 6–10 inches depending on span length and reinforcement design.

How deep are wood floor joists in a second story?

Common joist depths range from 2×8 to 2×12 lumber, producing total floor thickness between 10 and 16 inches.

Which system reduces building height the most?

Concrete slabs are generally thinner than wood joist systems, which can help reduce total building height.

Are wood joist floors cheaper than concrete slabs?

Yes. Wood framing typically costs less due to faster installation and lower labor requirements.

Can you run plumbing inside a concrete slab second floor?

It’s possible but difficult. Changes often require drilling or cutting concrete, which increases renovation costs.

Does floor thickness affect ceiling height?

Yes. Structural thickness directly impacts ceiling clearance and overall building height.

Which option is better for sound insulation?

Concrete slabs usually provide better sound isolation than wood joist floors.

References

1. International Residential Code (IRC) structural load requirements
2. American Wood Council Span Tables
3. Portland Cement Association structural slab guidelines
