酷家乐棚拍拥有海量精选影棚,即日起支持对这些影棚的场景进行编辑
工具功能体验入口:https://www.coohom.com/pub/saas/kooshot/workbenchall
支持对户型中的墙、结构、门窗进行编辑调整
支持直接点击对应的墙面、地面、顶面进入对应的设计界面,对墙顶地做个性化设计
a. 快速设计一级、多级吊顶造型;支持铝扣板、蜂窝大板自由铺贴设计
b. 支持设计墙面复杂造型;岩板定制、图案喷绘、墙漆涂料功能应有尽有
支持行业库中各个设计工具,譬如全屋硬装工具、全屋家具定制等
Coohom棚拍合作用户
(1)封面图上标记了「场景编辑」的公棚
(2)手动导入的酷家乐方案

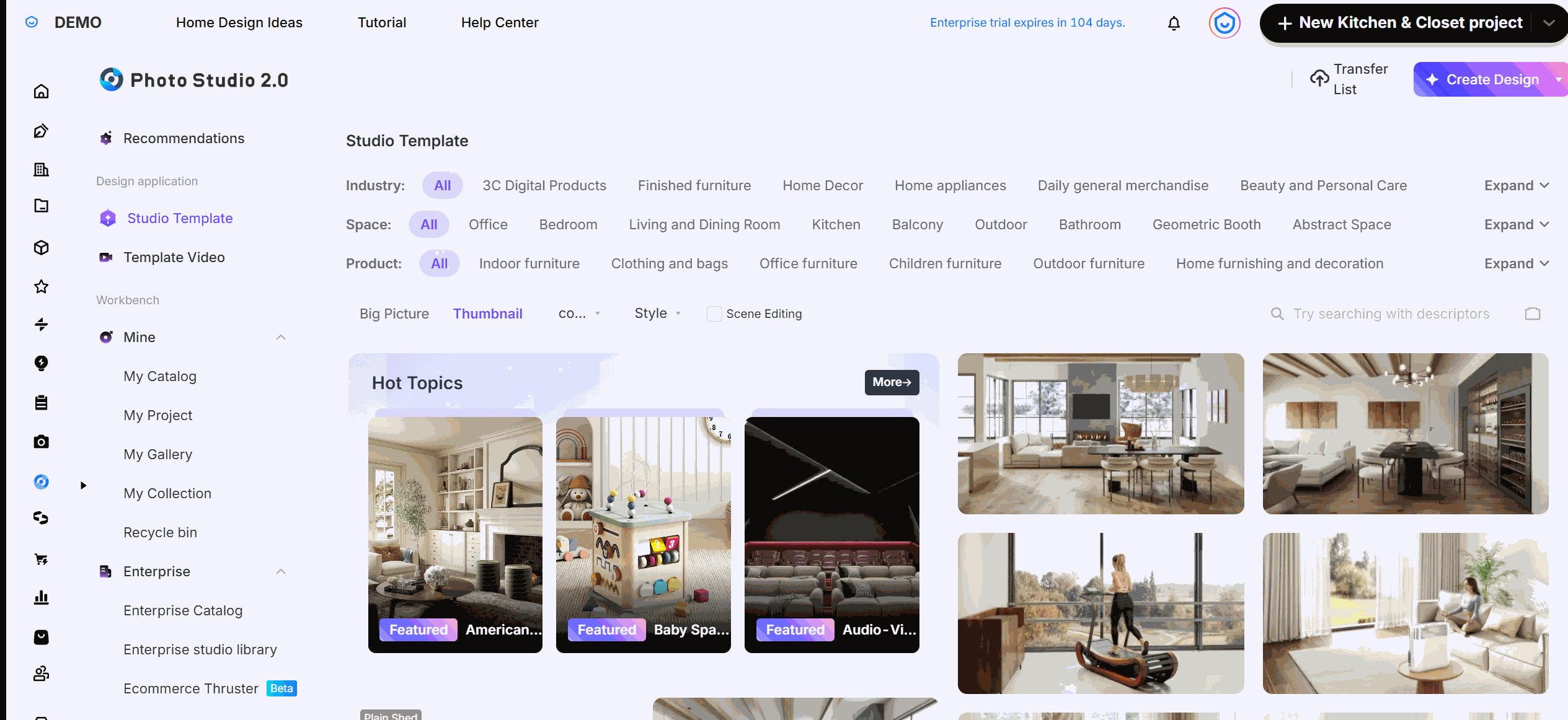

在“3D棚拍”选棚界面勾选上“场景编辑”即可,如下图

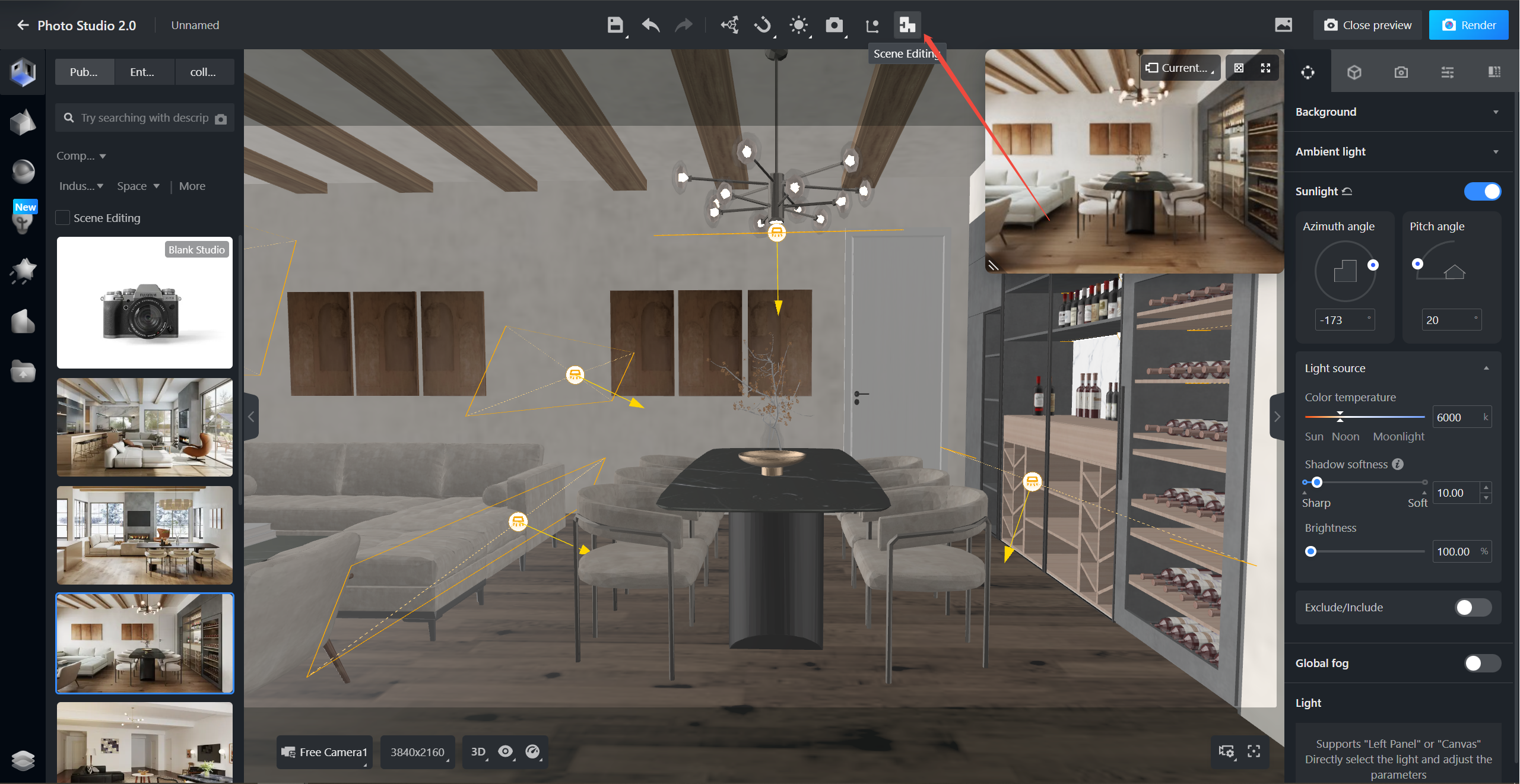

选择左上角有"场景编辑"的影棚进入之后,点击方案顶部的"场景编辑"按钮即可
操作建议:建议先完成场景户型及硬装模块的编辑之后,再调整方案内软装,防止冲突

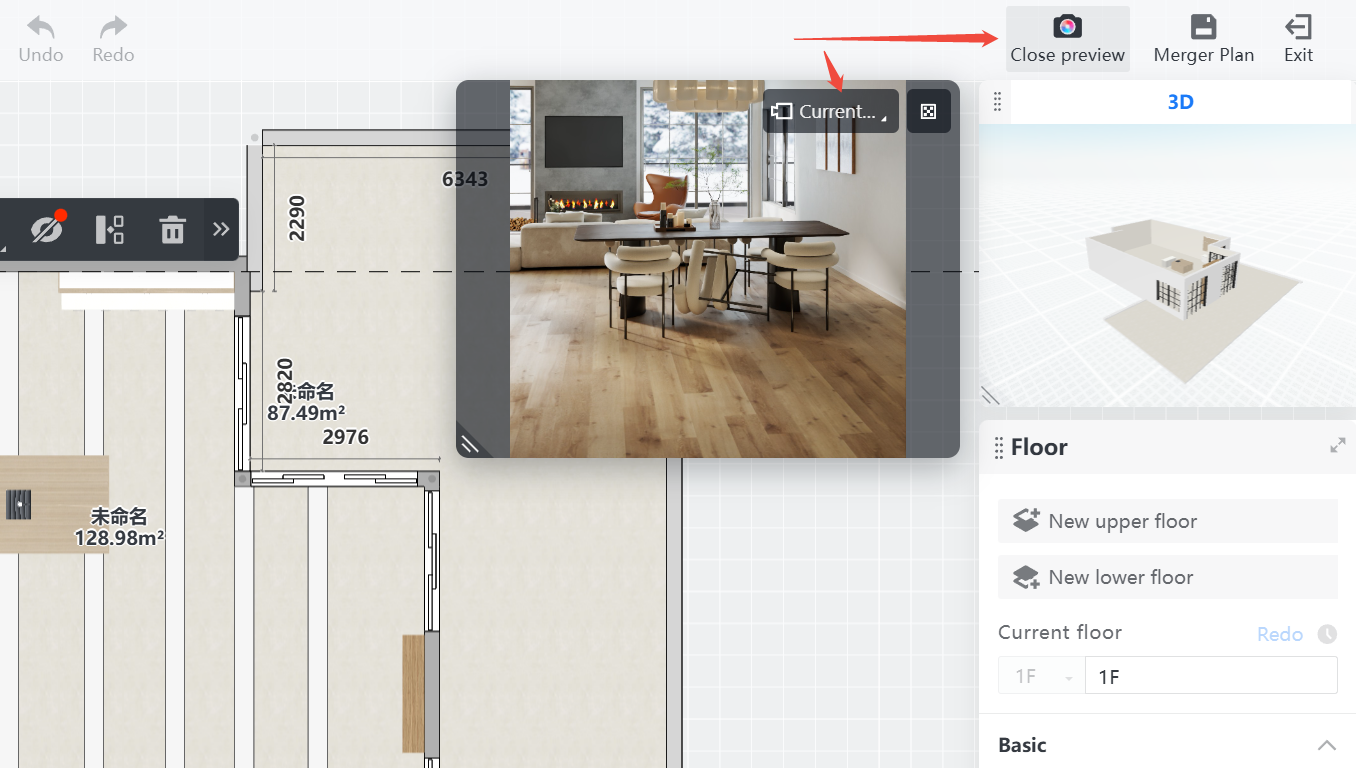

(1)进入场景编辑界面之后,初始化界面如下图,建议将实时预览弹窗切换为固定相机视角或者关闭实时预览

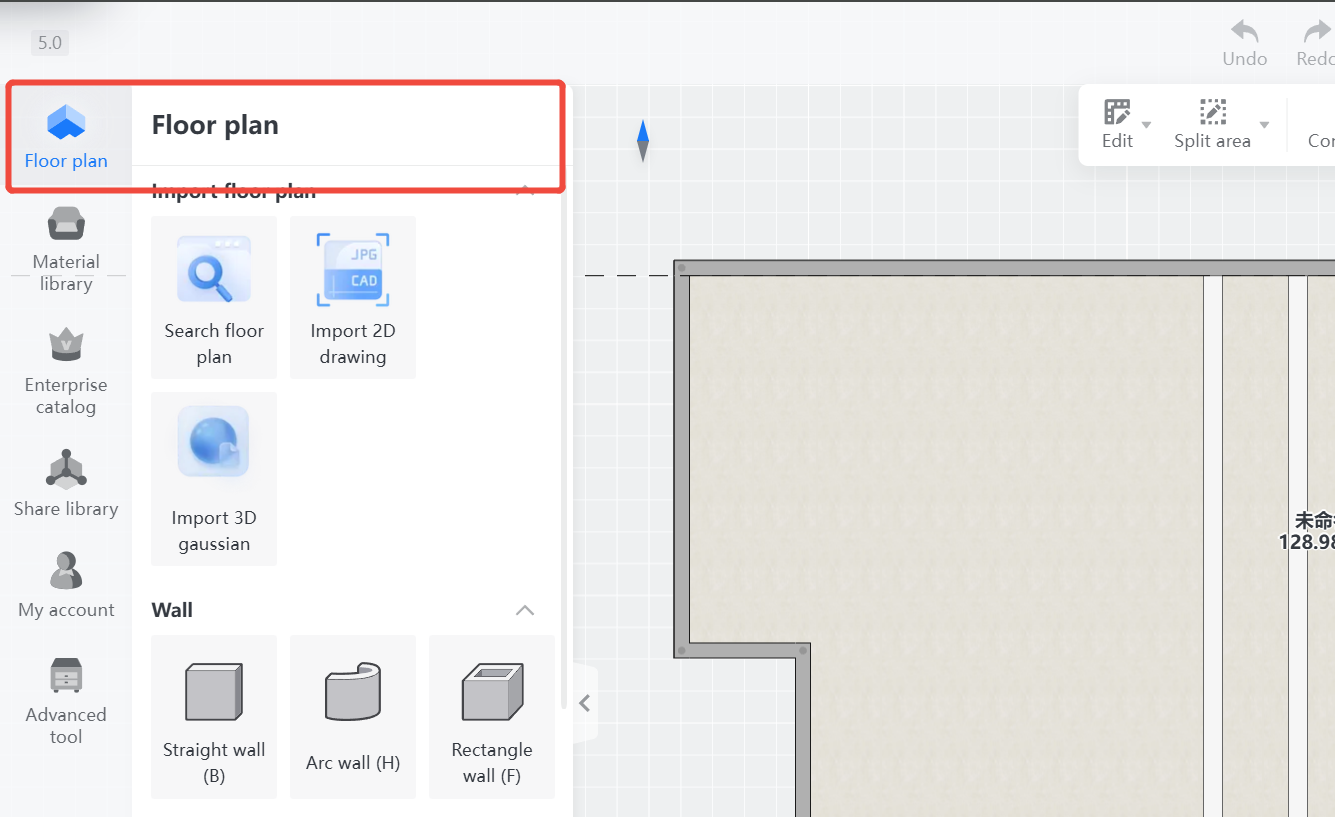

(2)若需要修改影棚的户型结构,可以在场景编辑左侧tab栏切换到【户型】操作界面(如下图),可以在户型界面下调整空间的大小、结构

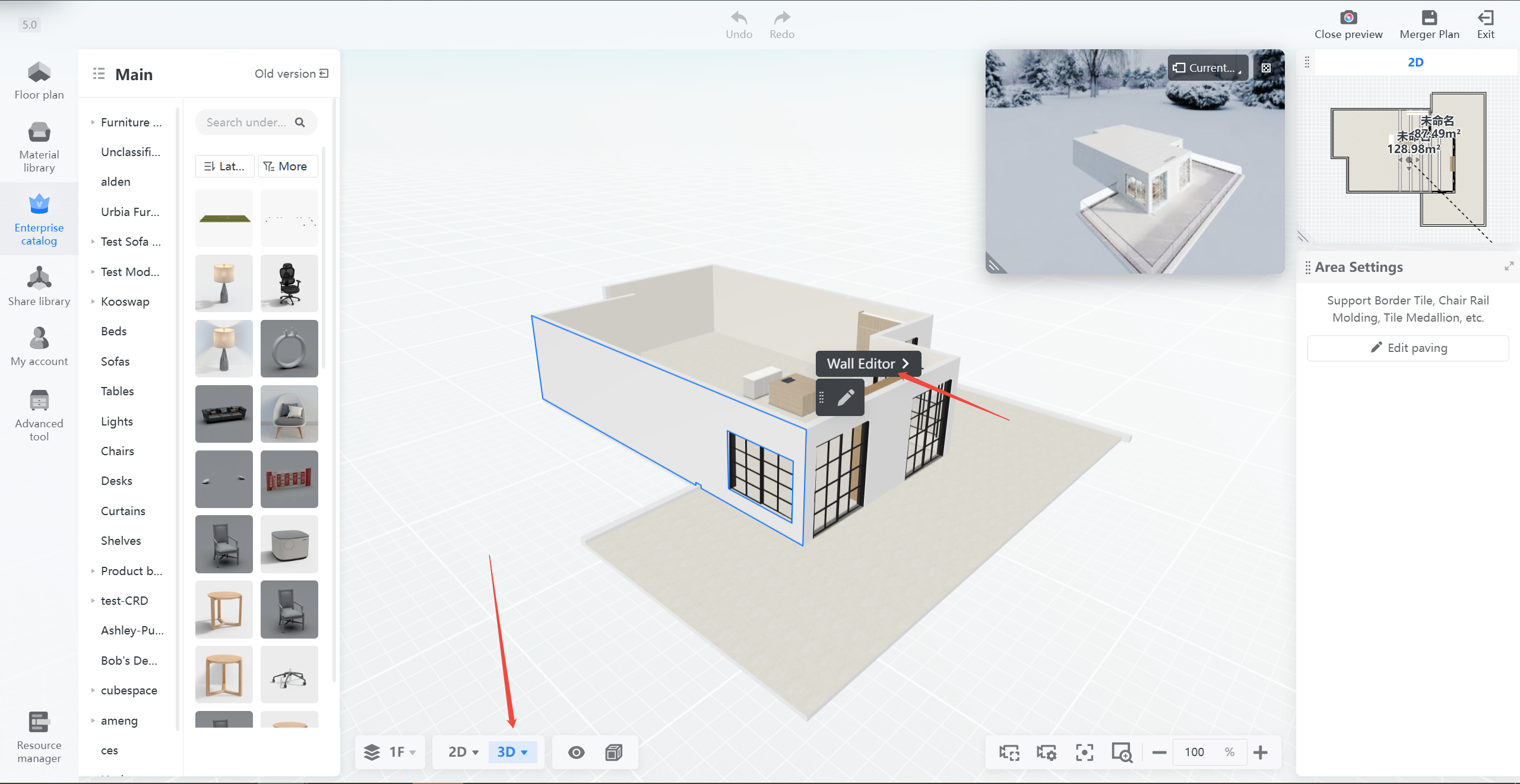

(3)若需要编辑场景的墙、顶、地,则要主视窗先切换到3D界面,然后选择对应的模块(墙/顶/地),即会出现对应的背景墙设计、吊顶设计、地台设计

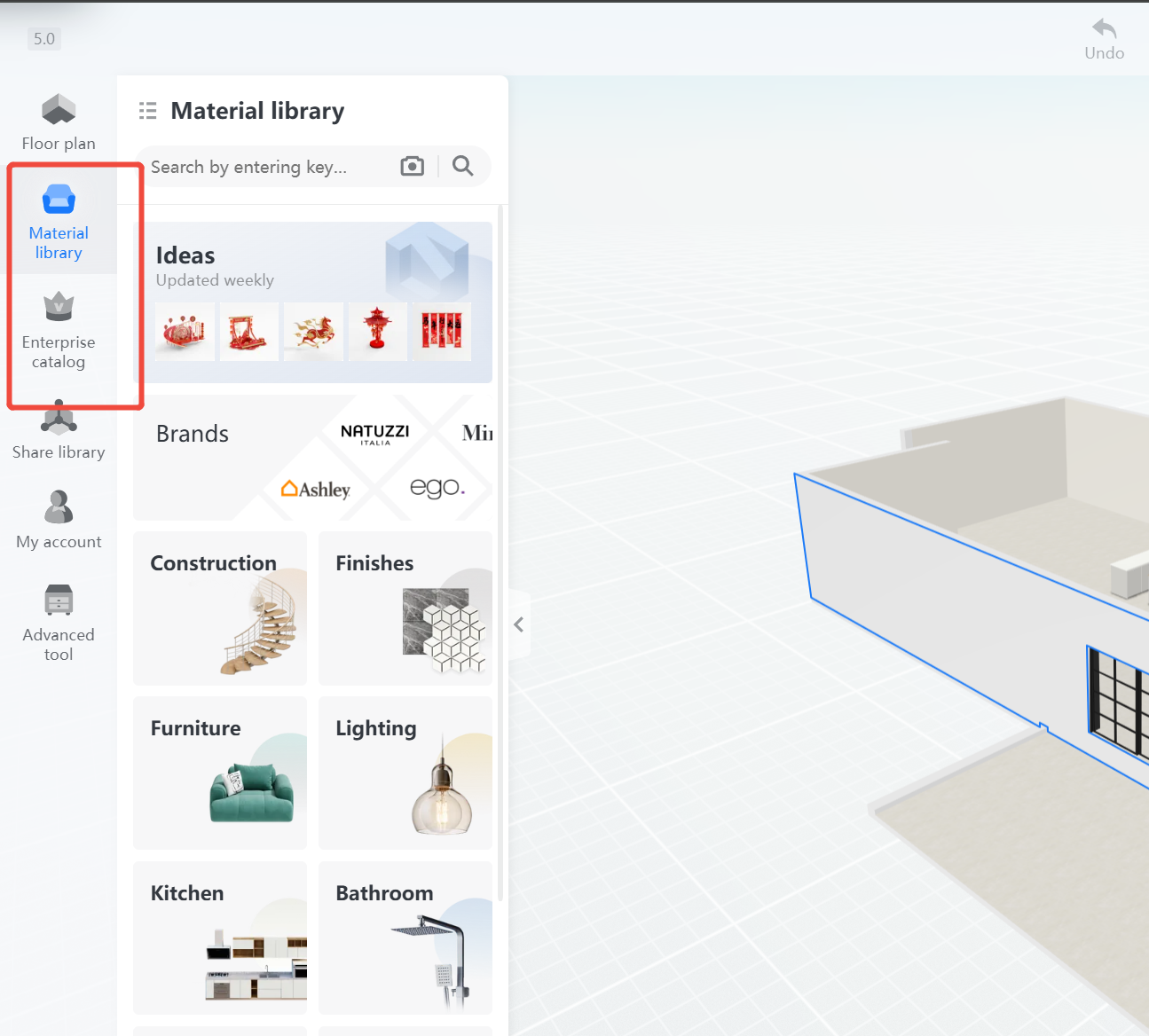

(4)若需要增加一些配饰模型,可以在左侧栏找到素材库/企业库进行选择,拖拽进场景即可

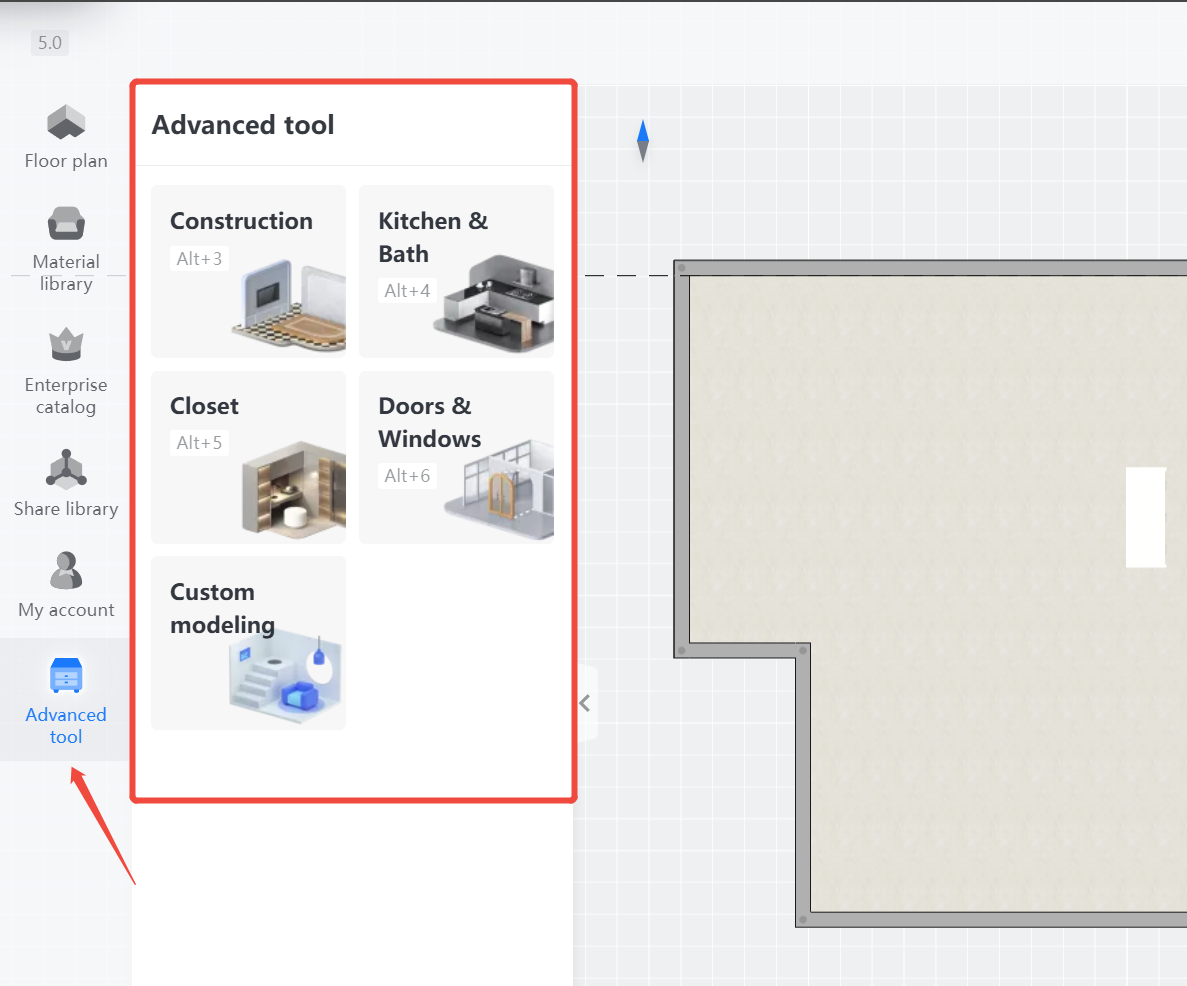

(5)若需要对场景做一些进阶/定制化操作,可以进入行业库对应的全屋硬装工具、全局家具定制工具等进行深度设计

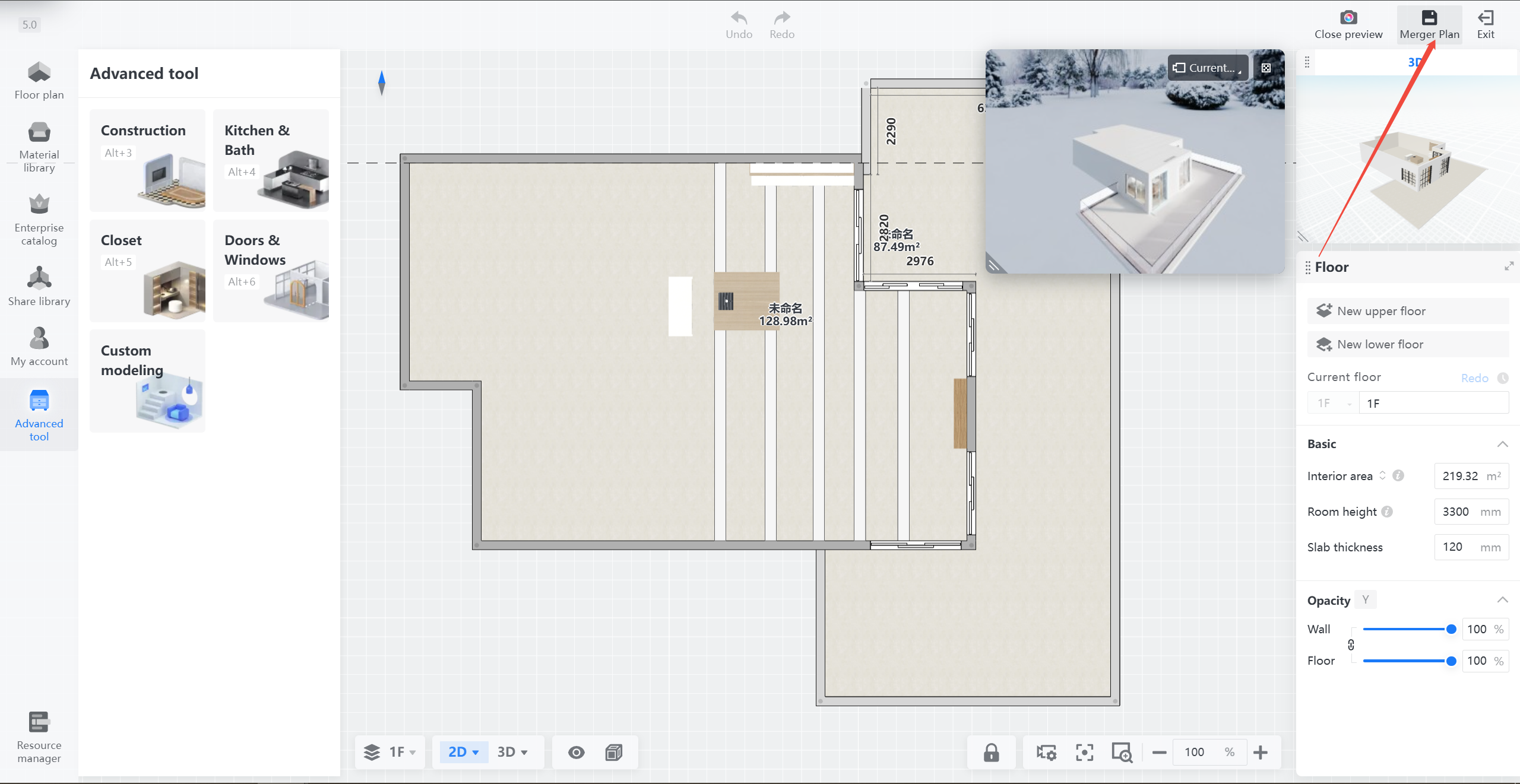

(6)编辑完场景,想要及时看到编辑后的效果,可以点击顶部的【合并方案】按钮,通过实时预览弹窗可看到编辑后的方案效果
(7)场景编辑完成之后,点击"退出"即可继续回到3D棚拍界面继续操作
