【Beginner Guide】Face Panel Modeling

Reading time of this article:0 minuteUpdated 2024-12-10

Contents

I.Function Entry

II.Parameter Configuration

III.Insertion of Flat Panel Modeling

IV.Model Testing, Saving, and Initializing

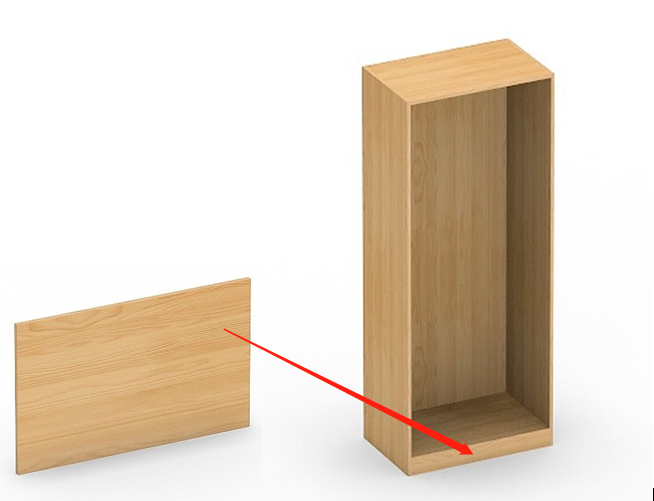

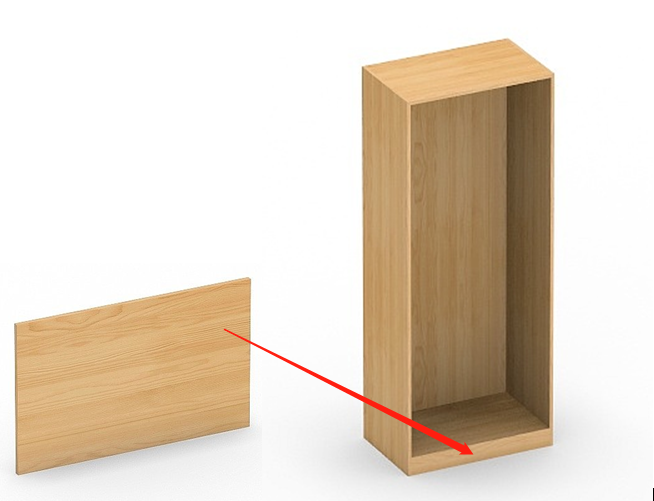

Definition: Face Panel is one of the basic panels that make up the cabinet model.

Function Entry

Function Entry

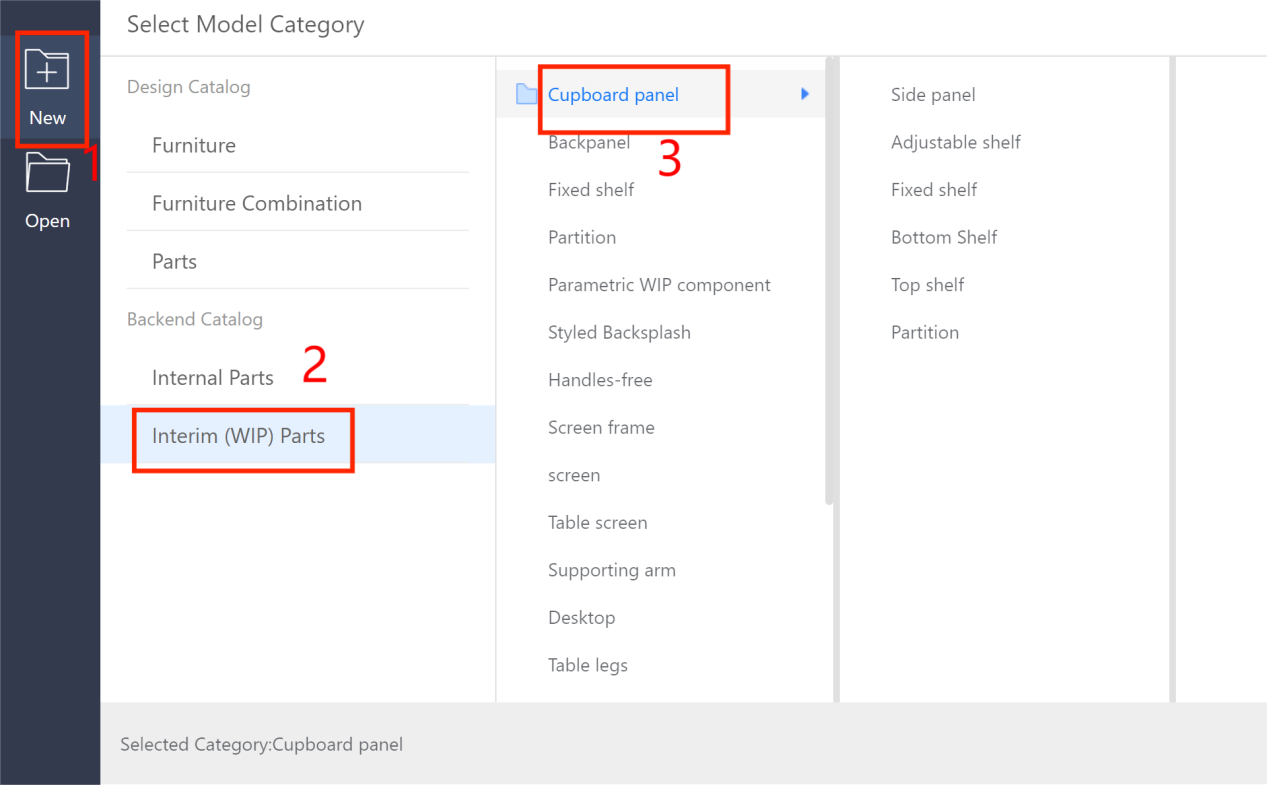

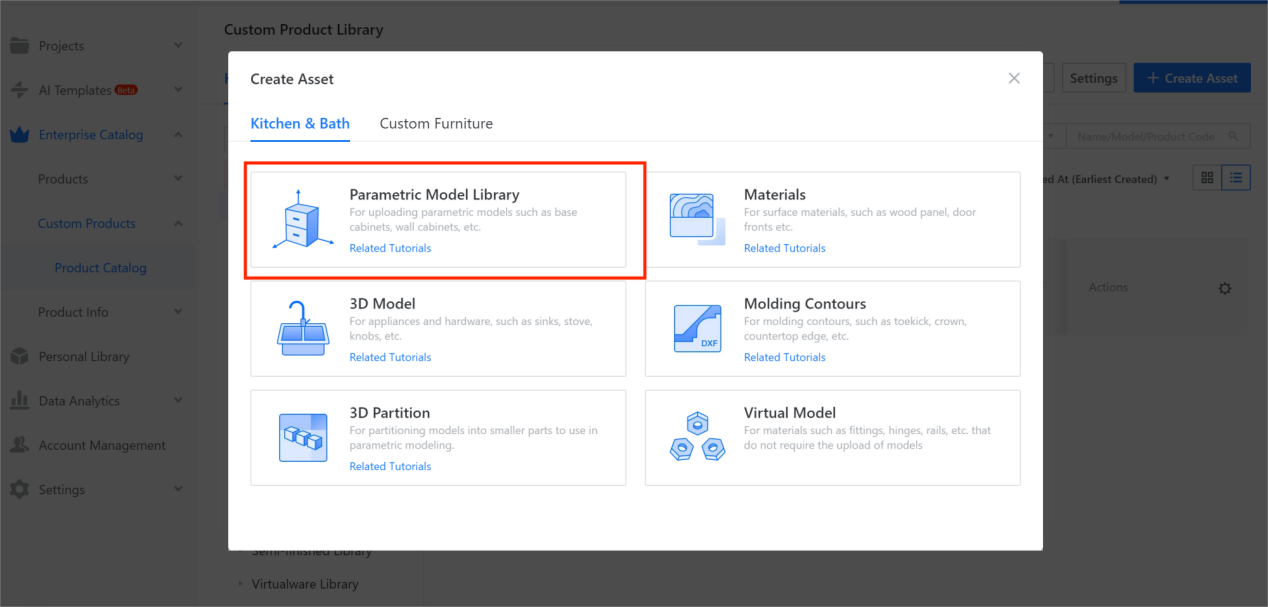

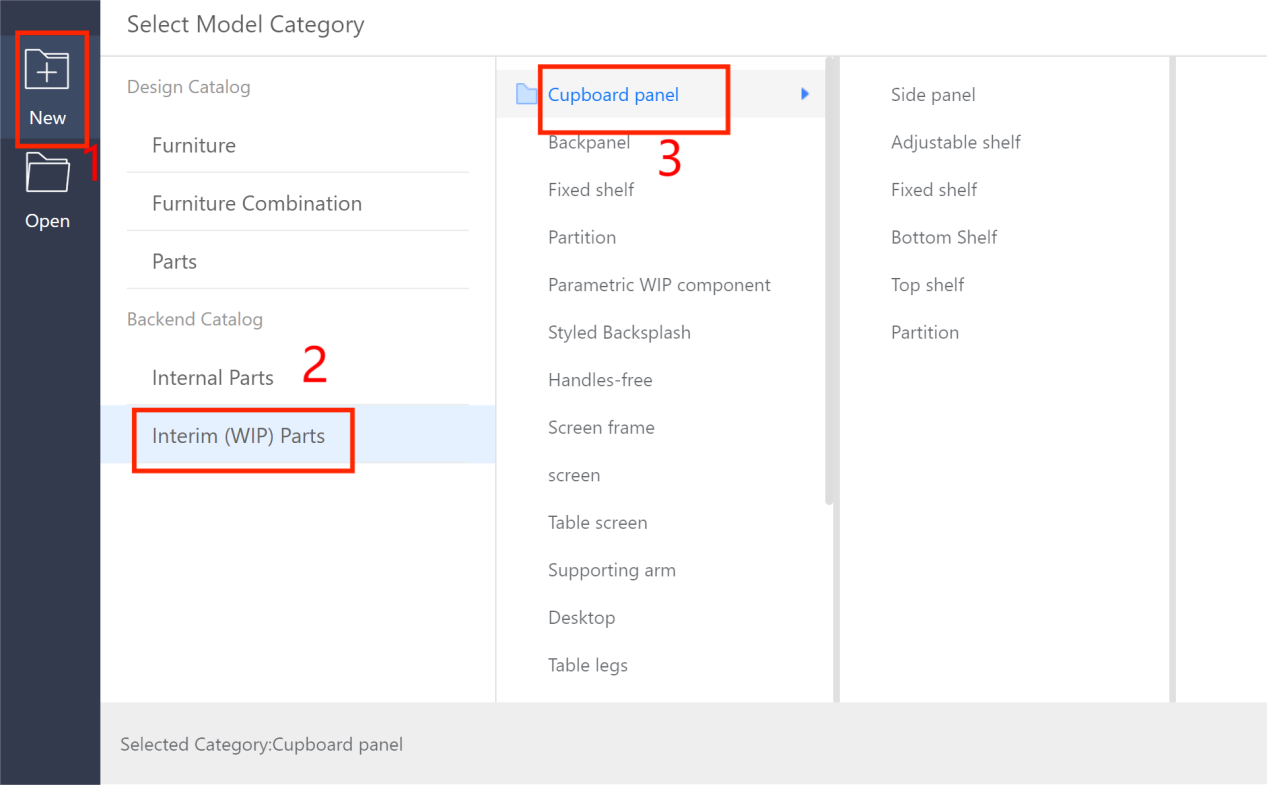

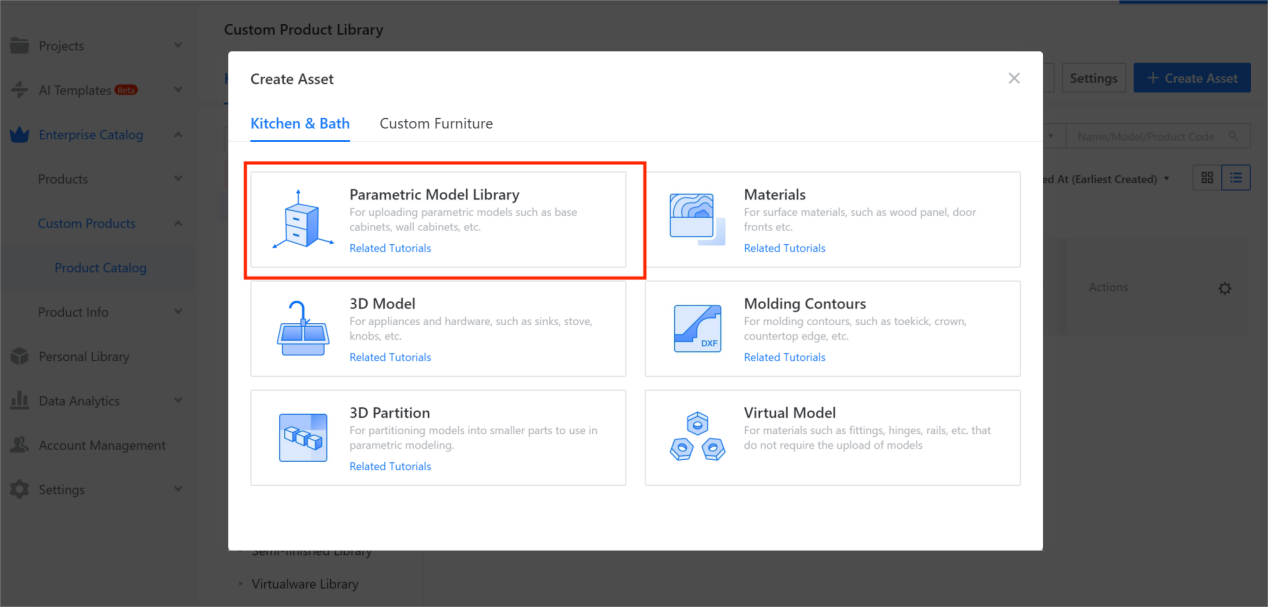

Enterprise Catalog-Custom Products-Product Catalog- Kitchen&Bath, Custom Furniture-Create Asset- Click “Parametric Model Library”- New- Interim Parts- Cupboard panel

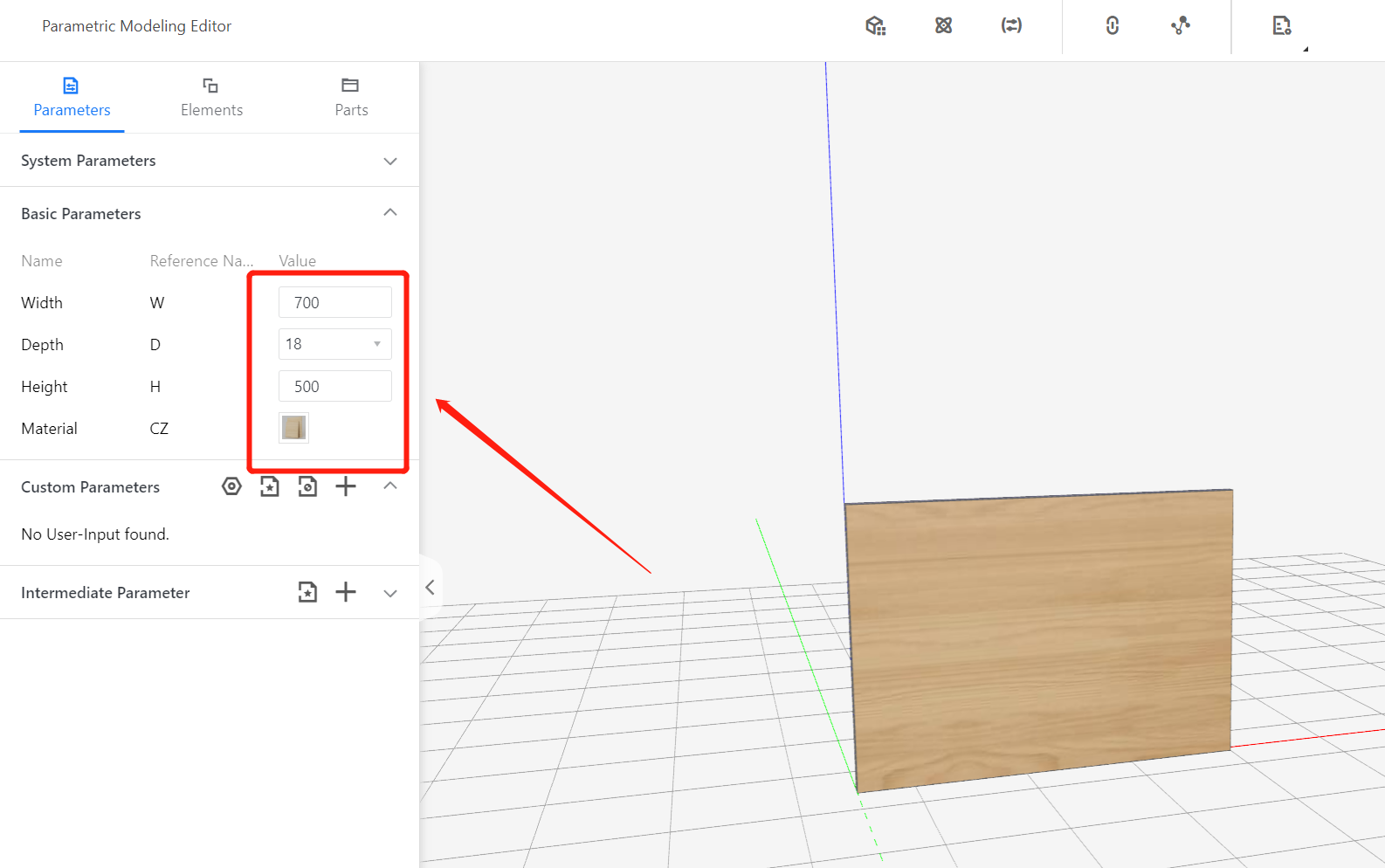

II.Parameter Configuration

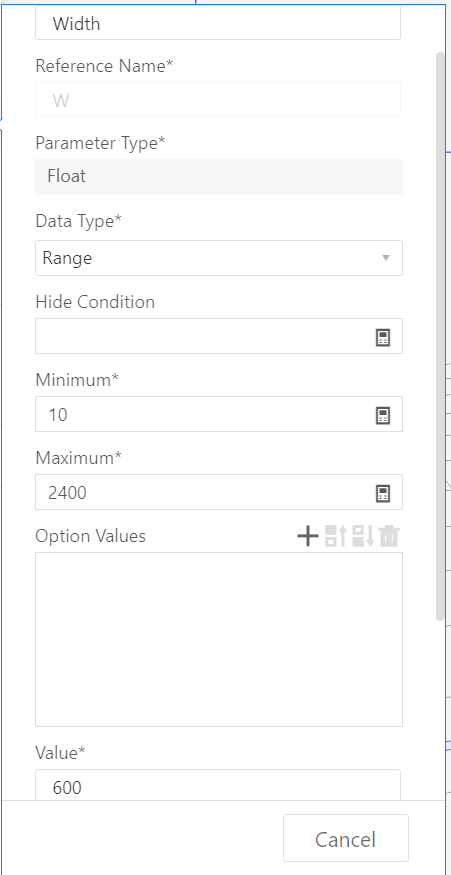

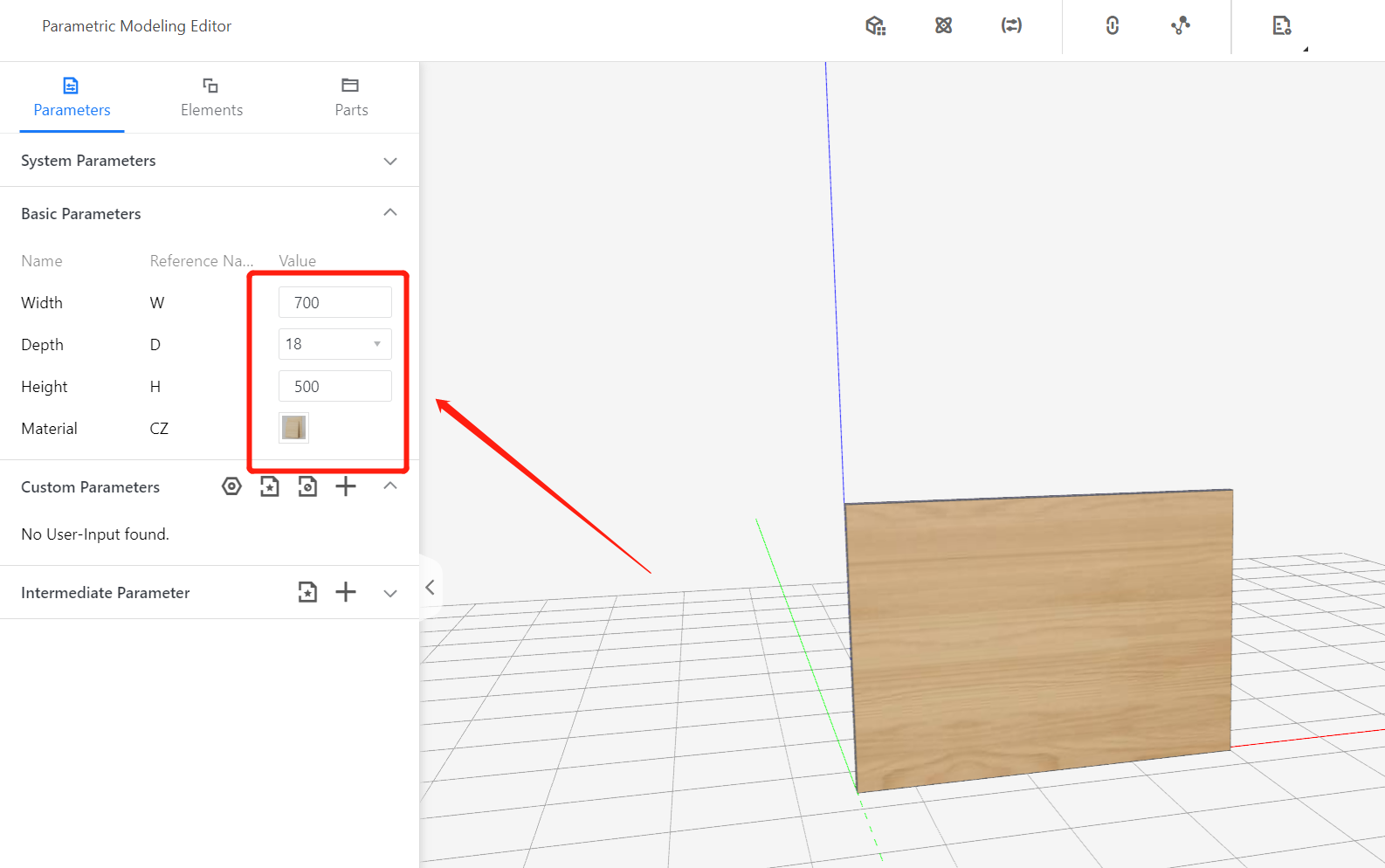

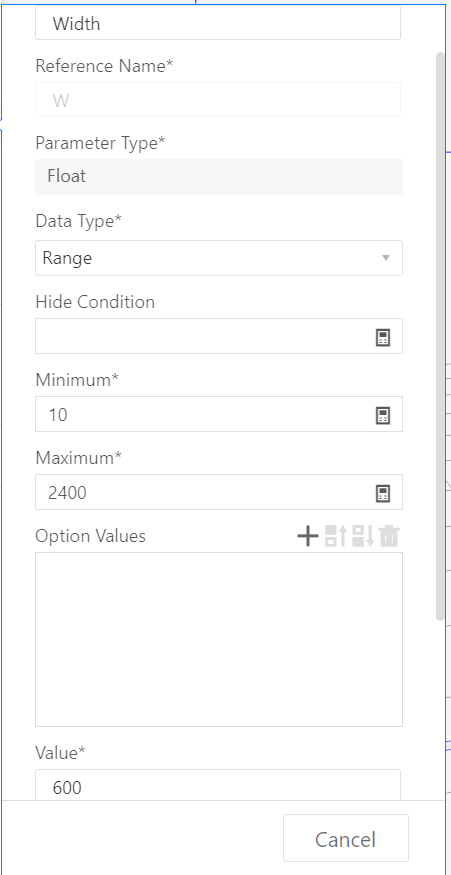

Width W - represents the dimension in the X-axis direction, and the value type is usually set as a range (example: range of 10-2400, current value: 600).

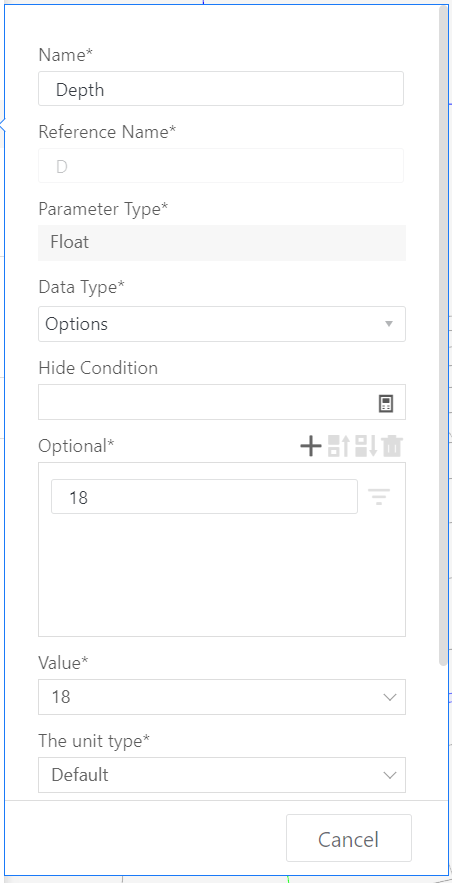

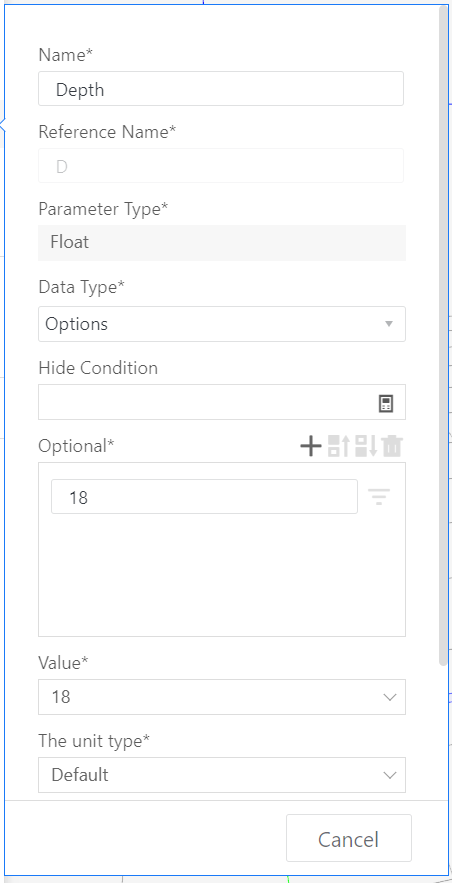

Depth D - represents the dimension in the Y-axis direction, and the value type can be set as a range or optional. The optional values can be single or multiple (example: single optional value of 18, current value: 18).

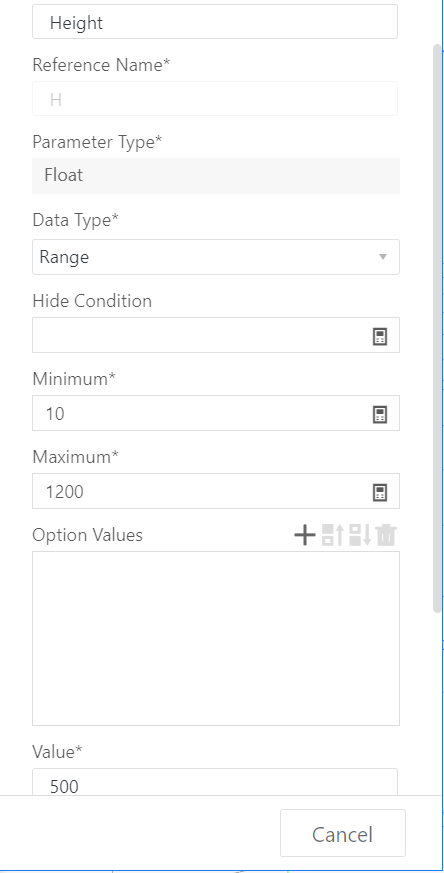

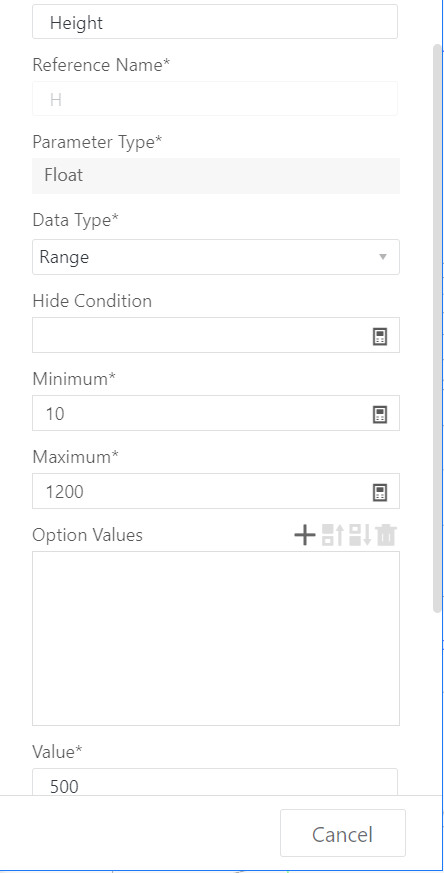

Height H - represents the dimension in the Z-axis direction, and the value type is usually a range (example: range of 10-1200, current value: 500).

Keep the material default, or modify it according to actual needs.

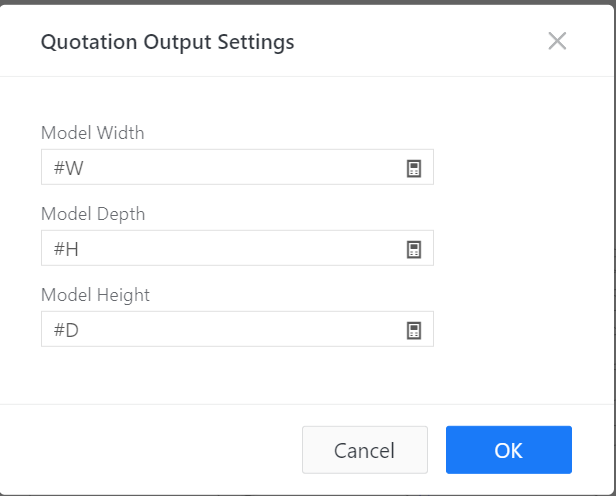

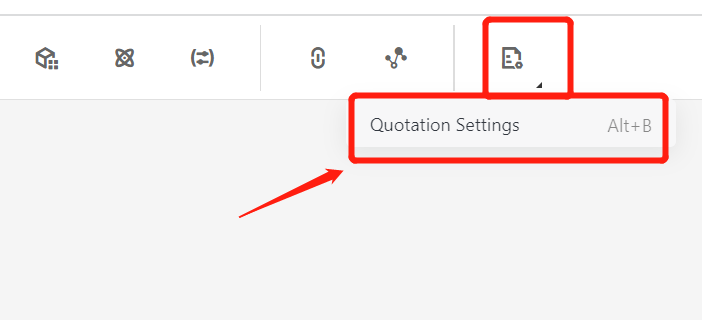

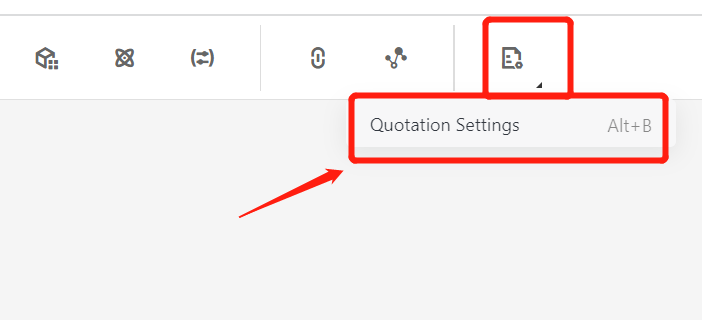

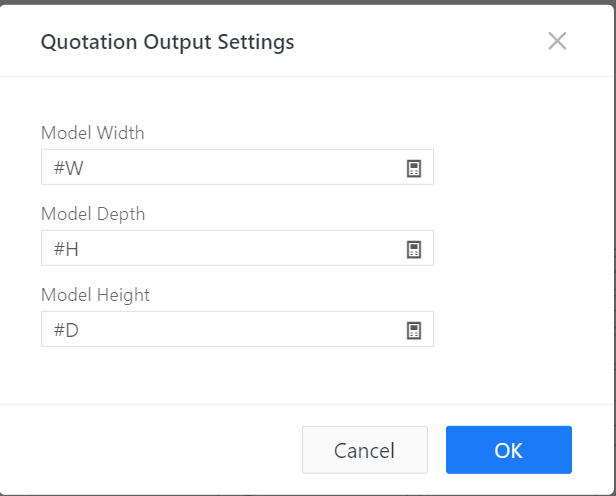

Set output dimensions:

In the bill of materials, the dimensions required for the vertical panel are #W*#H*#D (e.g., 70050018). Therefore, the output dimensions should be set as follows: Output width: #W, Output depth: #H, Output height: #D.

III.Insertion of Flat Panel Modeling

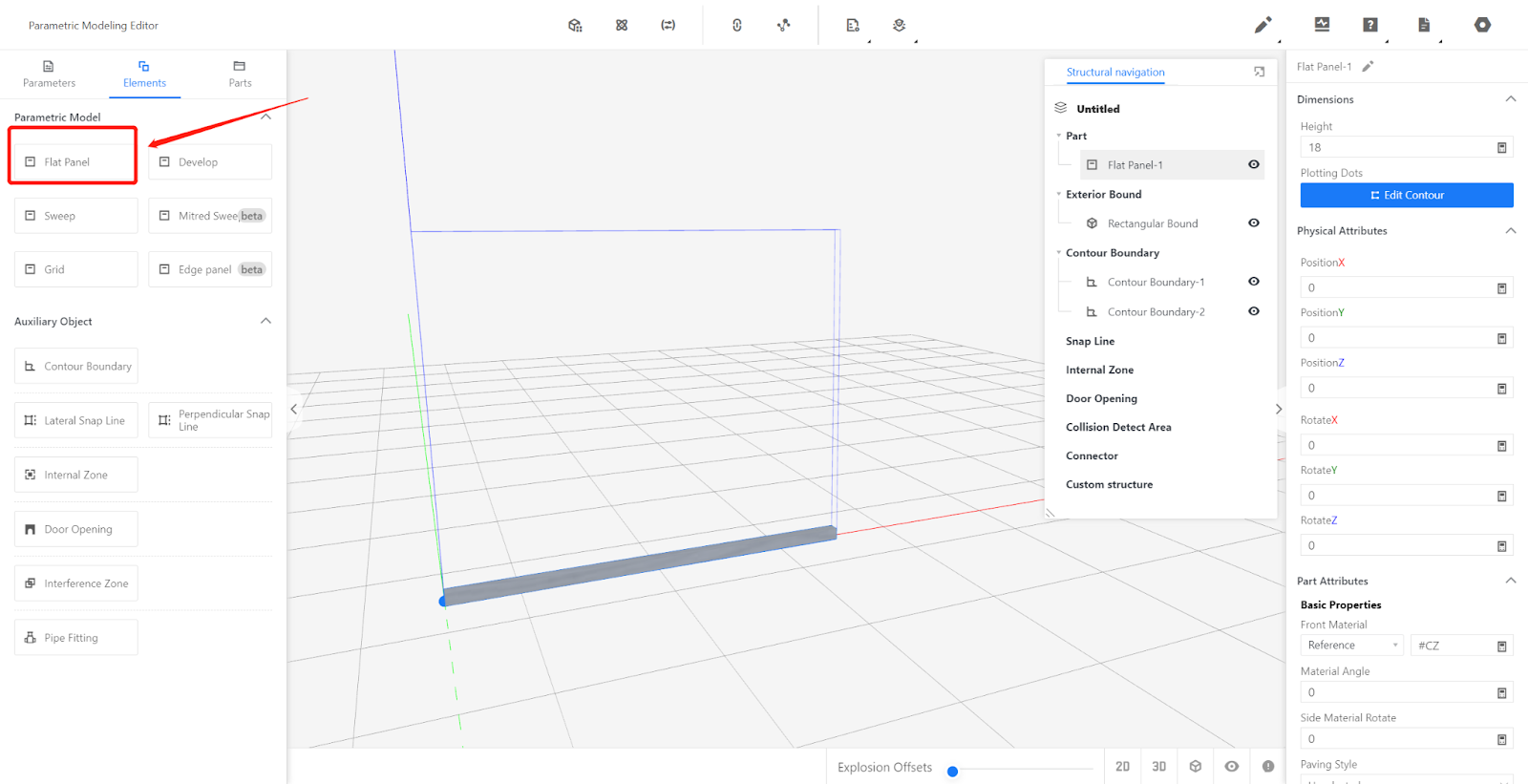

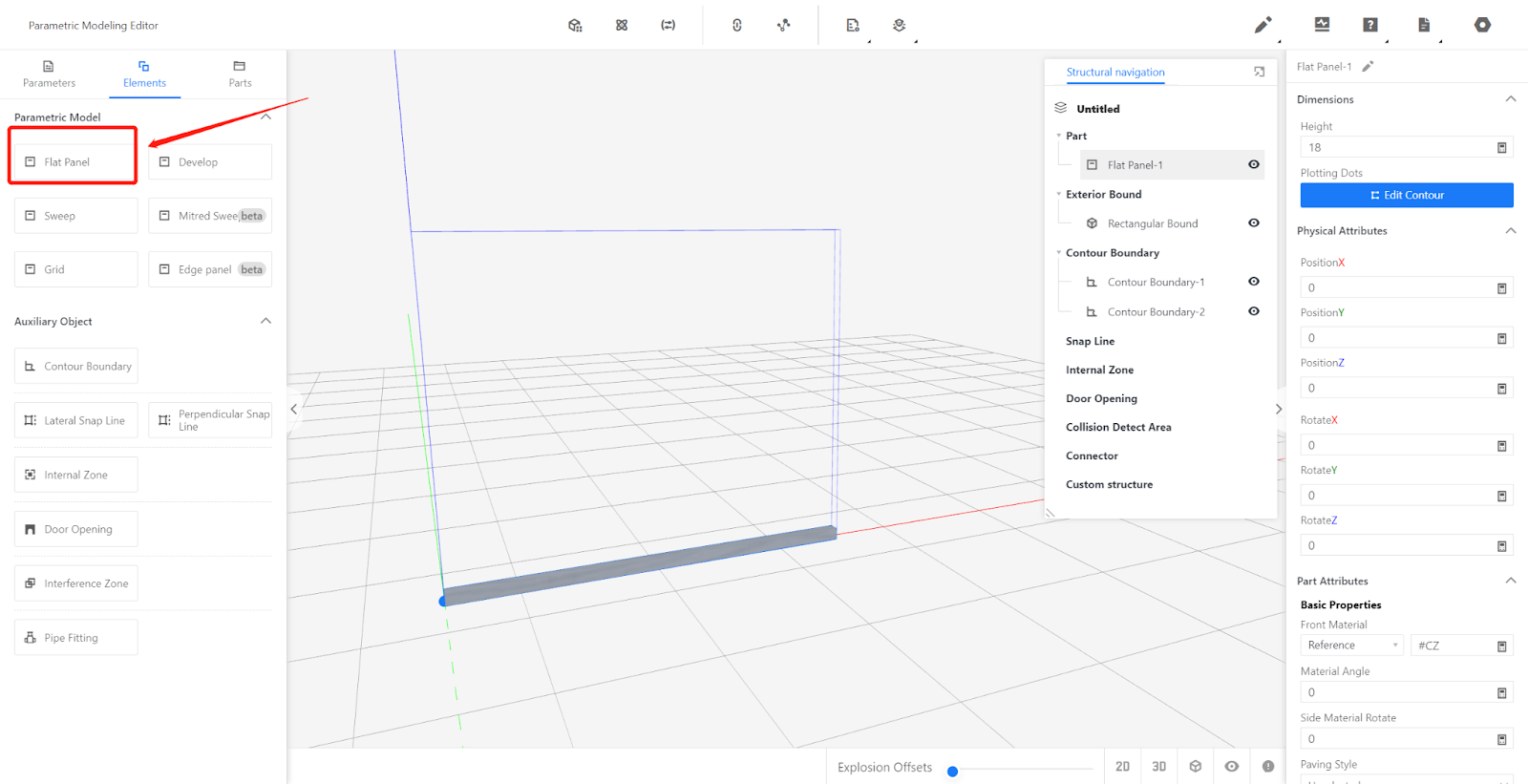

Insert the flat panel from the Elements.

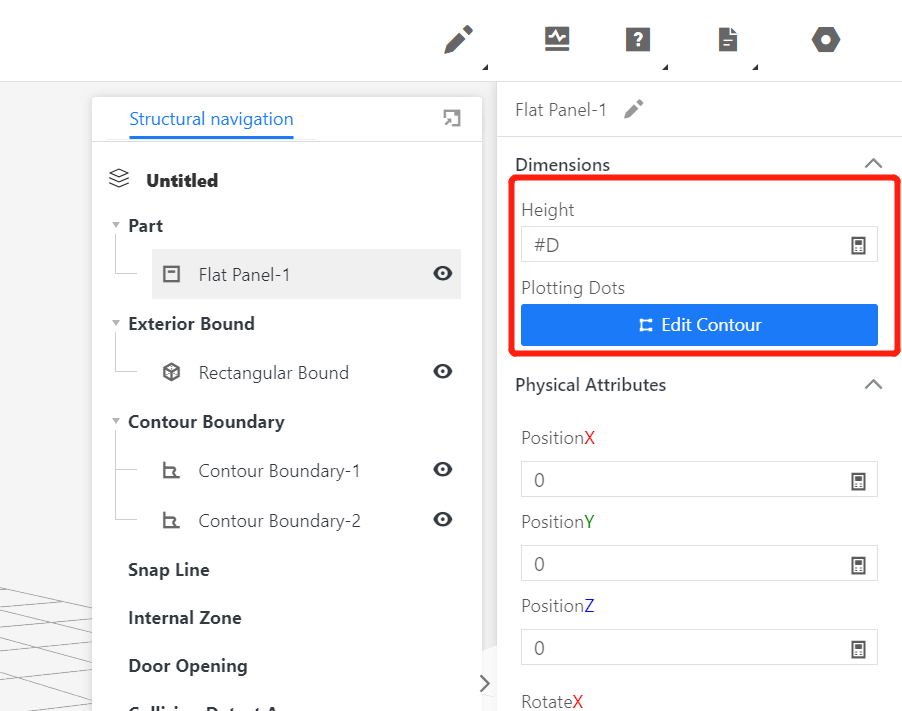

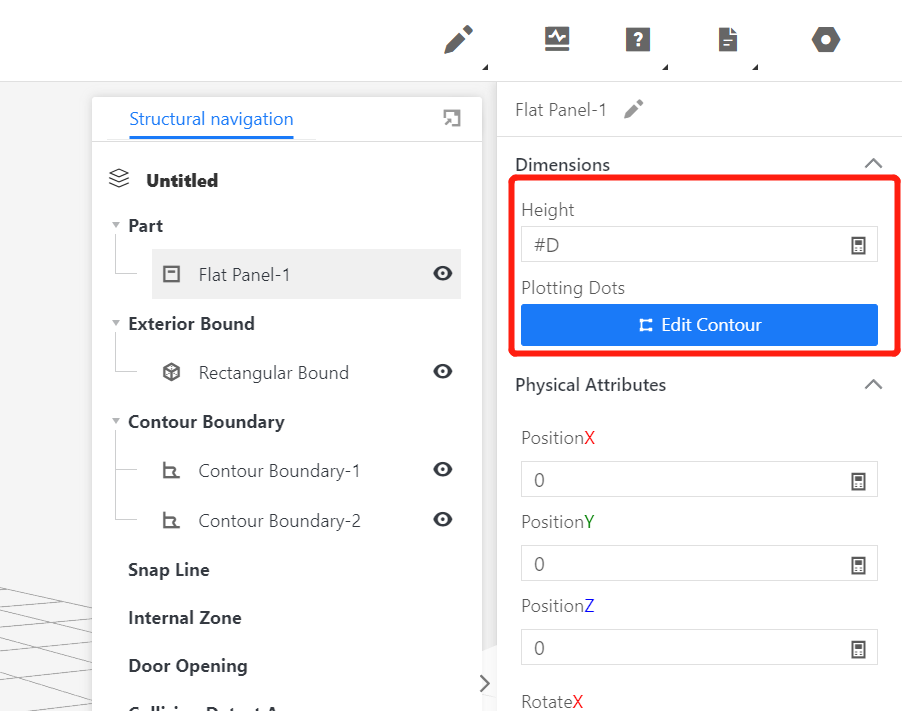

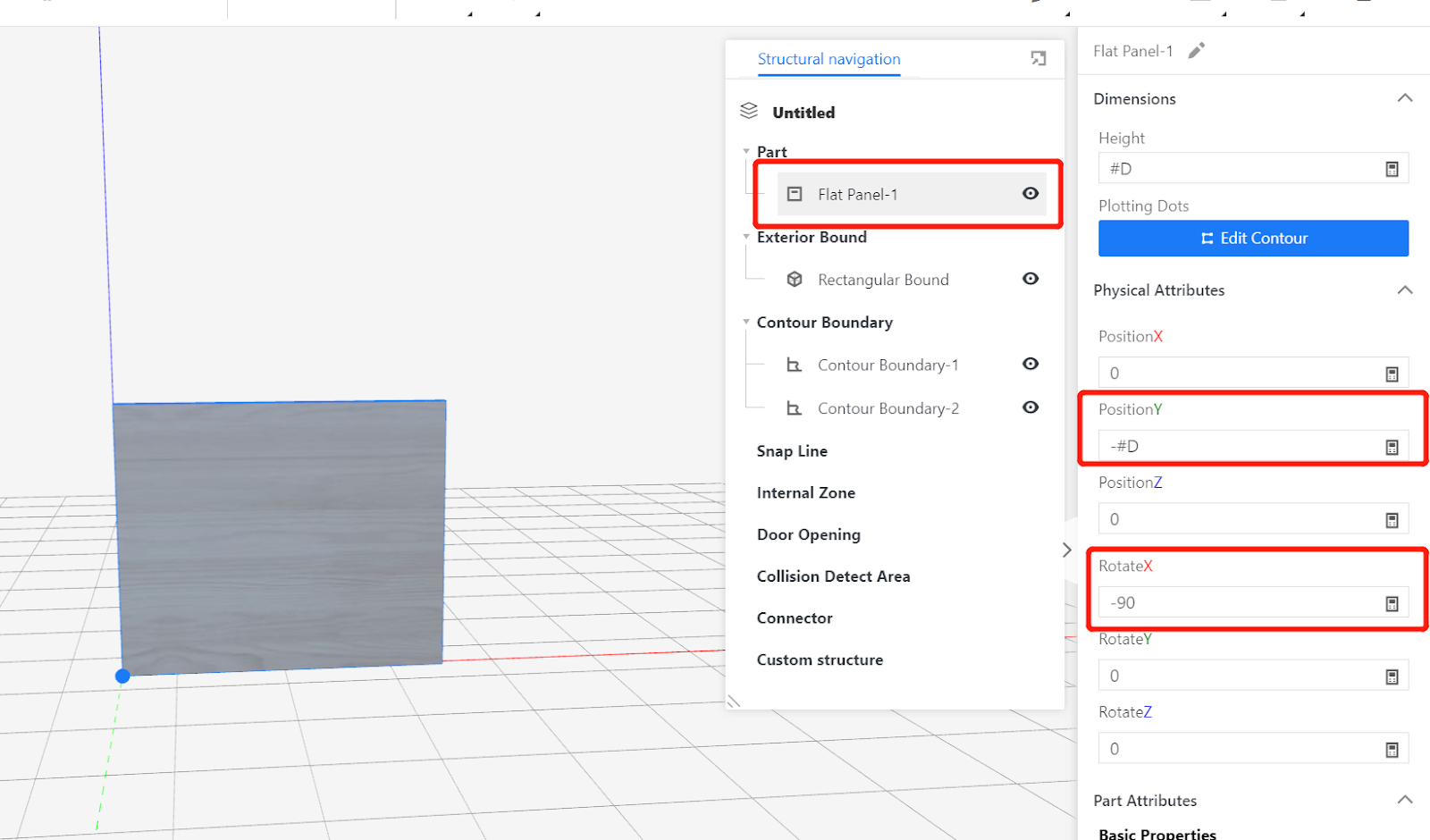

In the right-side size attributes column, set the height as: #D, and click [Edit Contour].

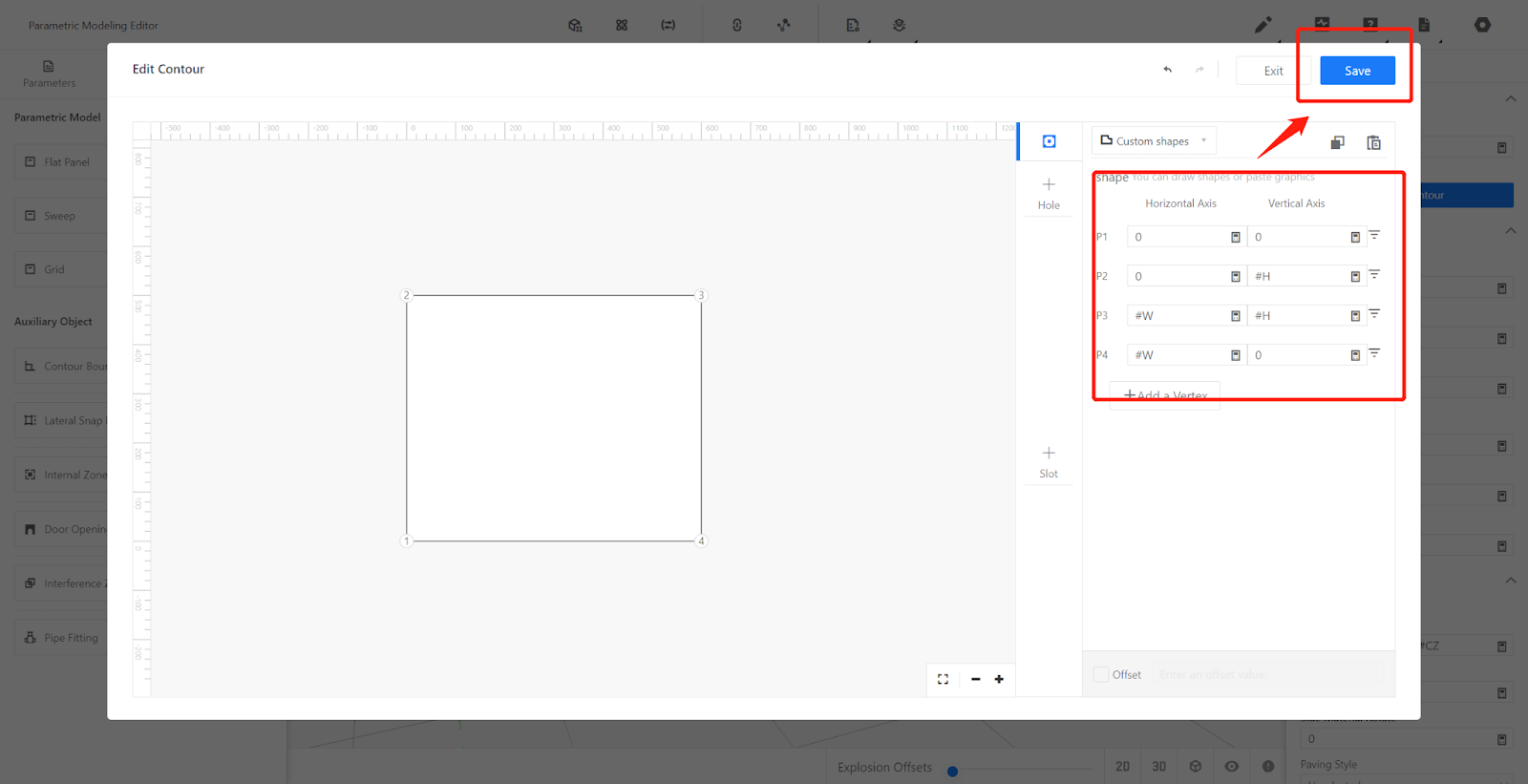

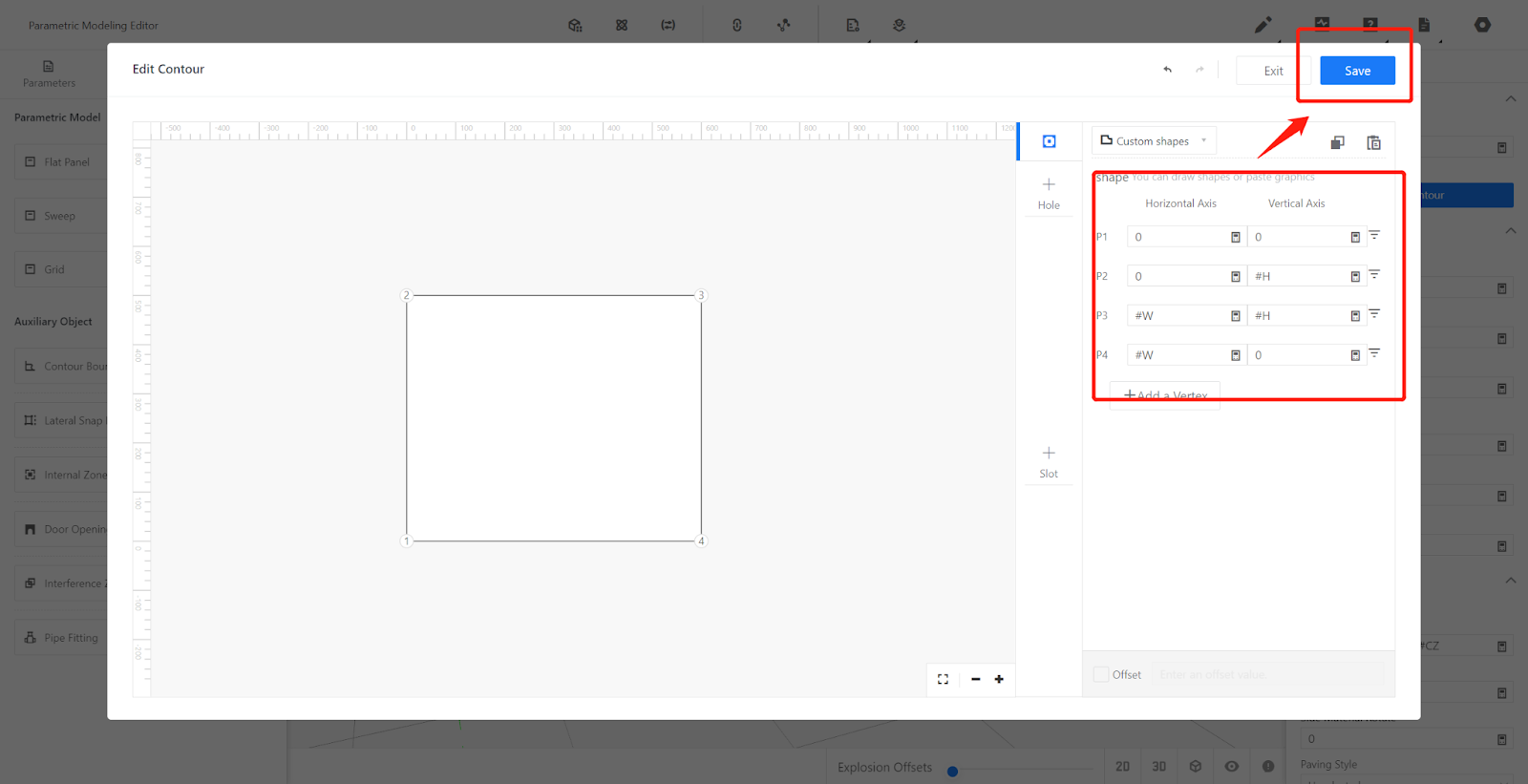

Delete the default four points, redraw the points, and then [Save].

Point 1: 0,0; Point 2: 0,#H; Point 3: #W,#H; Point 4: #W,0.

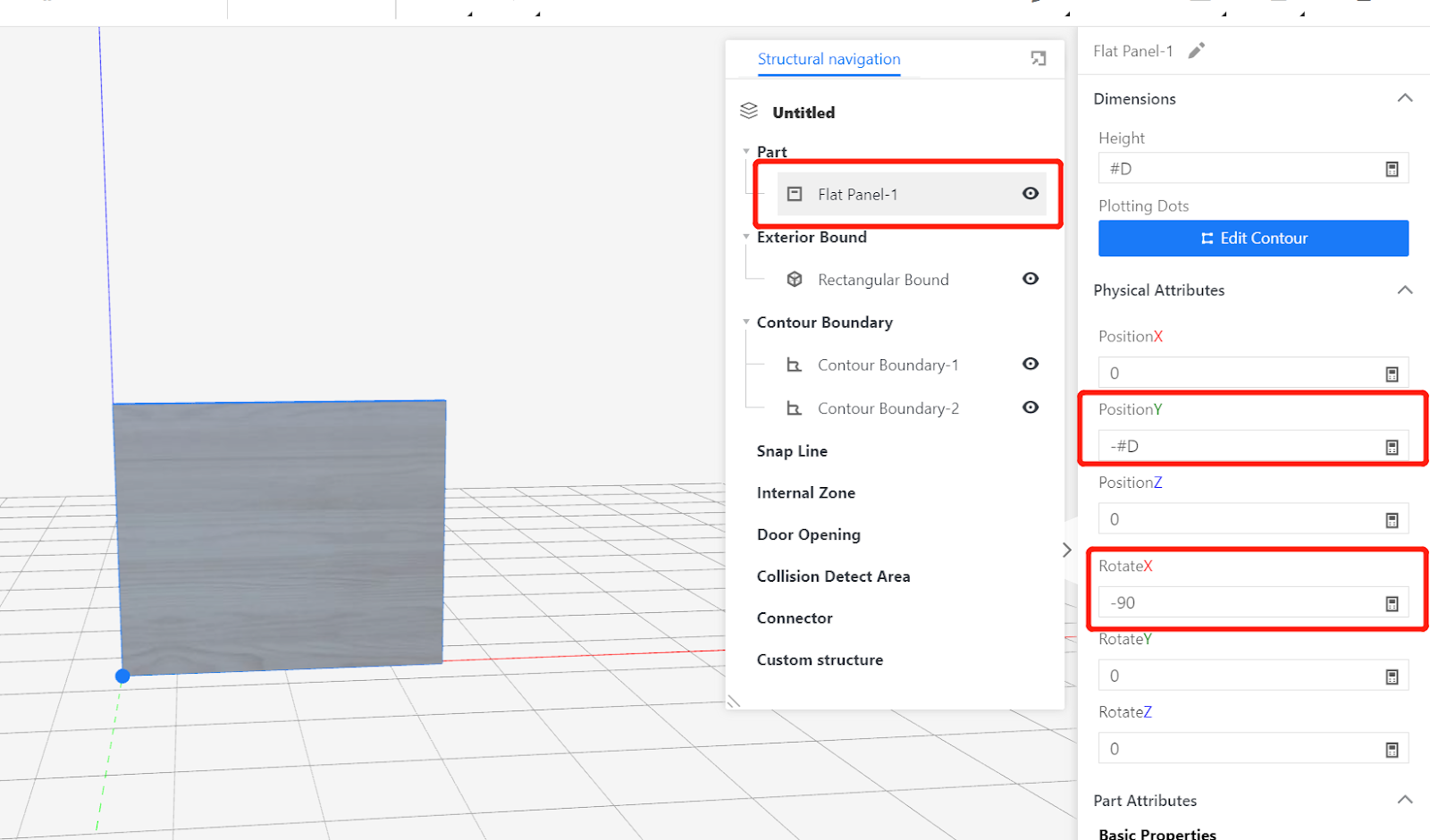

Modify physical attributes:

Rotate X: 90, Position Y: -#D.

IV.Model Testing, Saving, and Initializing

Testing: Change the current values of model parameters #W, #D, #H, #CZ, and observe if the model changes correctly. Once confirmed, proceed to save.

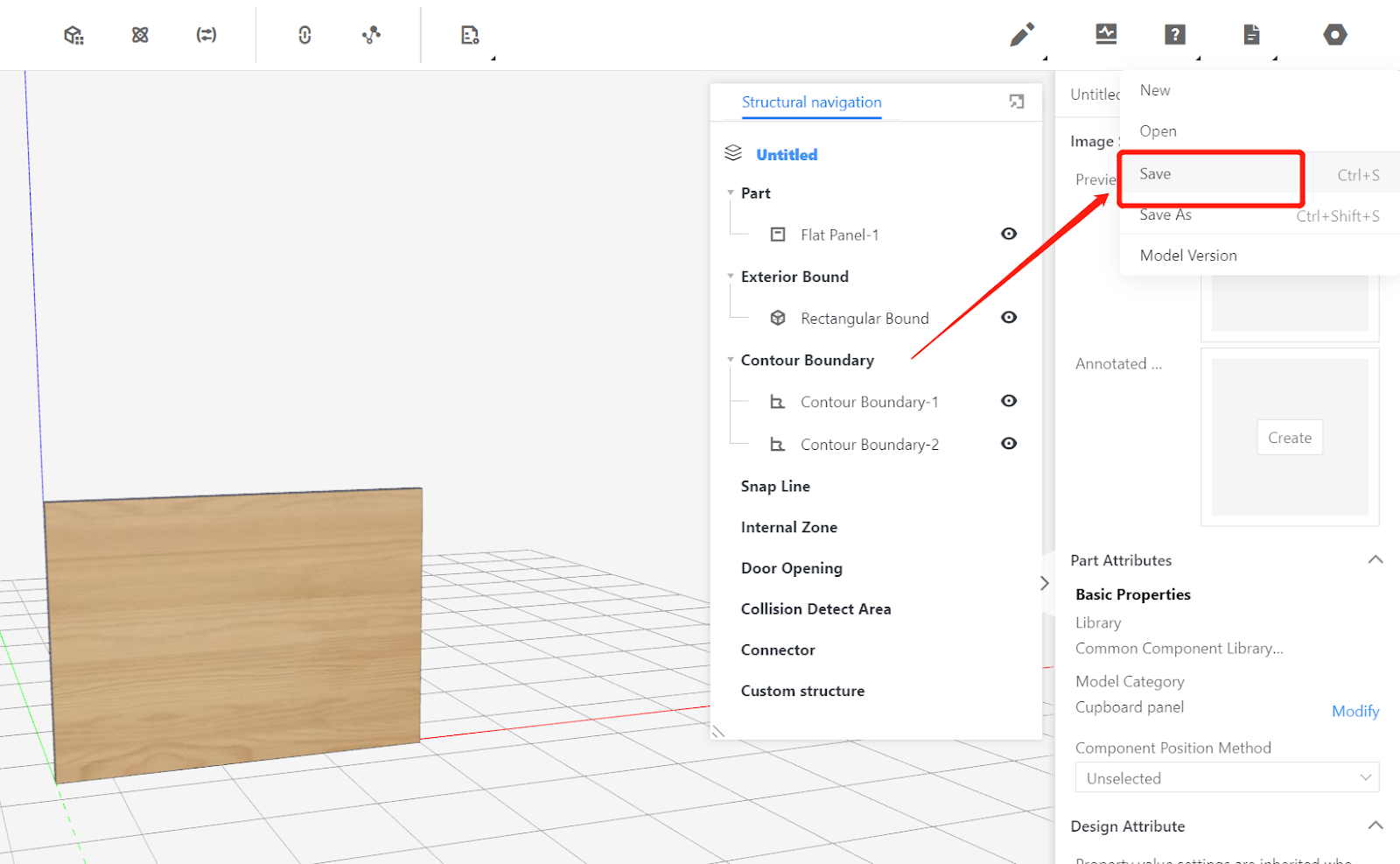

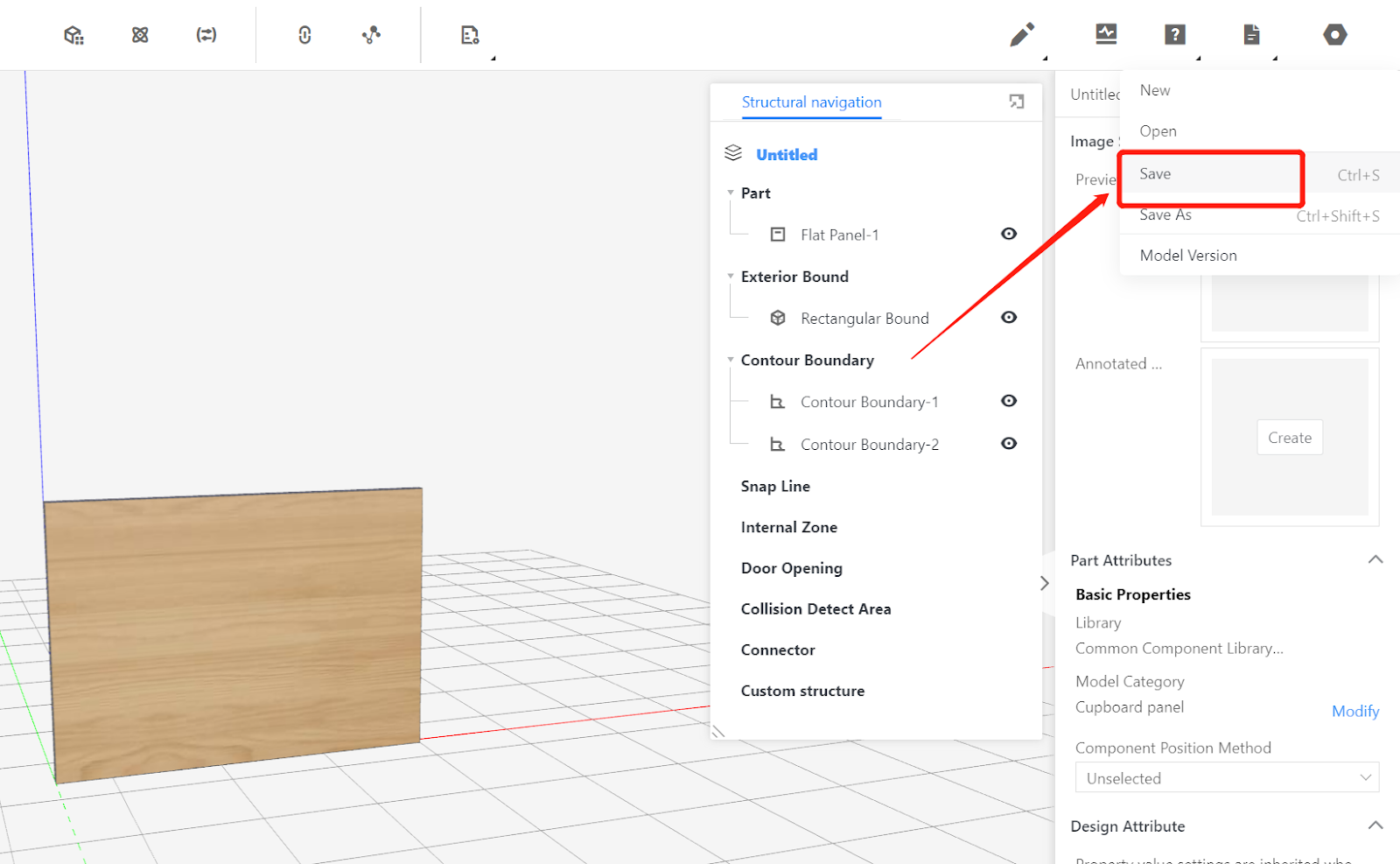

Saving: Move the mouse to the corresponding position in the upper right corner of the page, select Save, choose the subdirectory for saving, give it a name, and click Save.

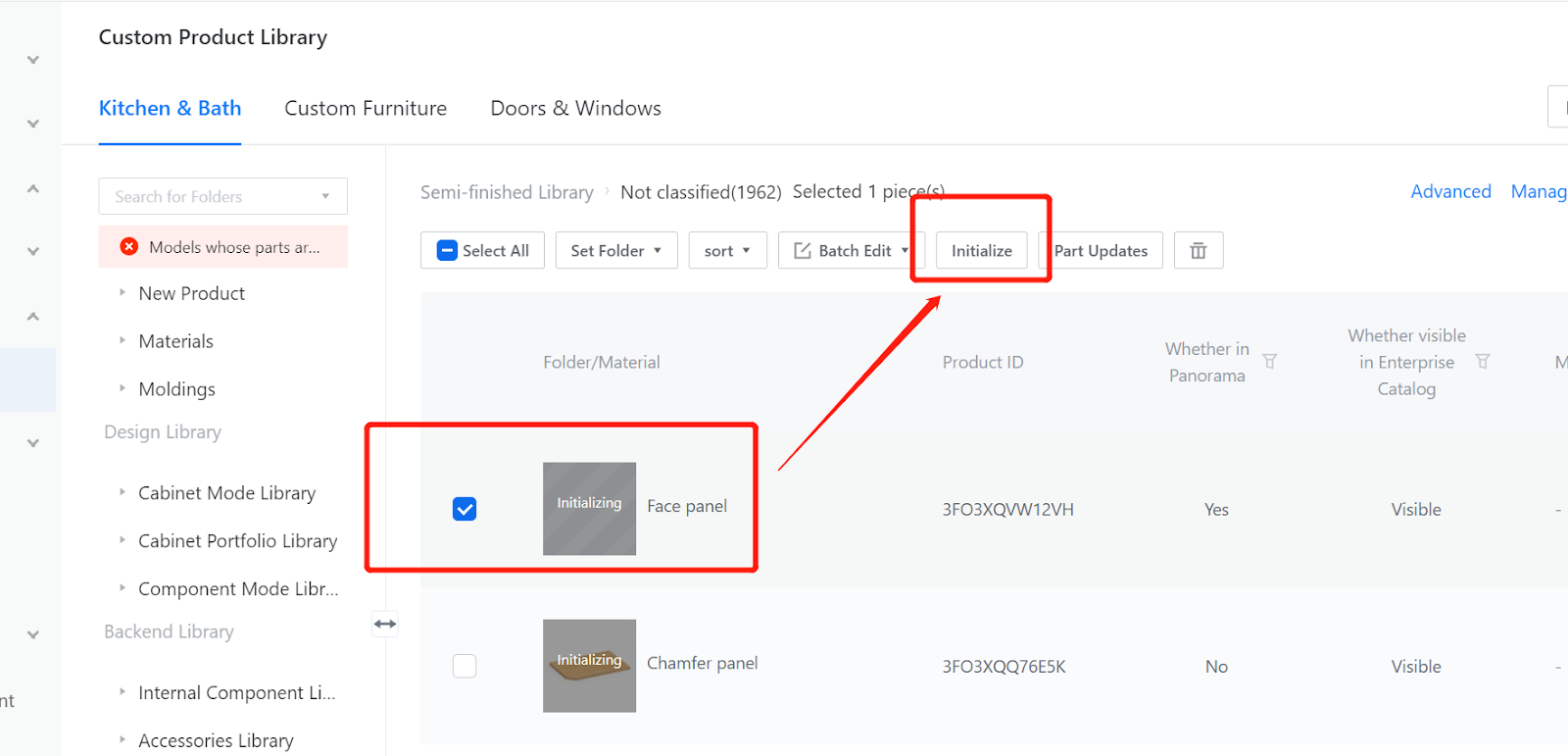

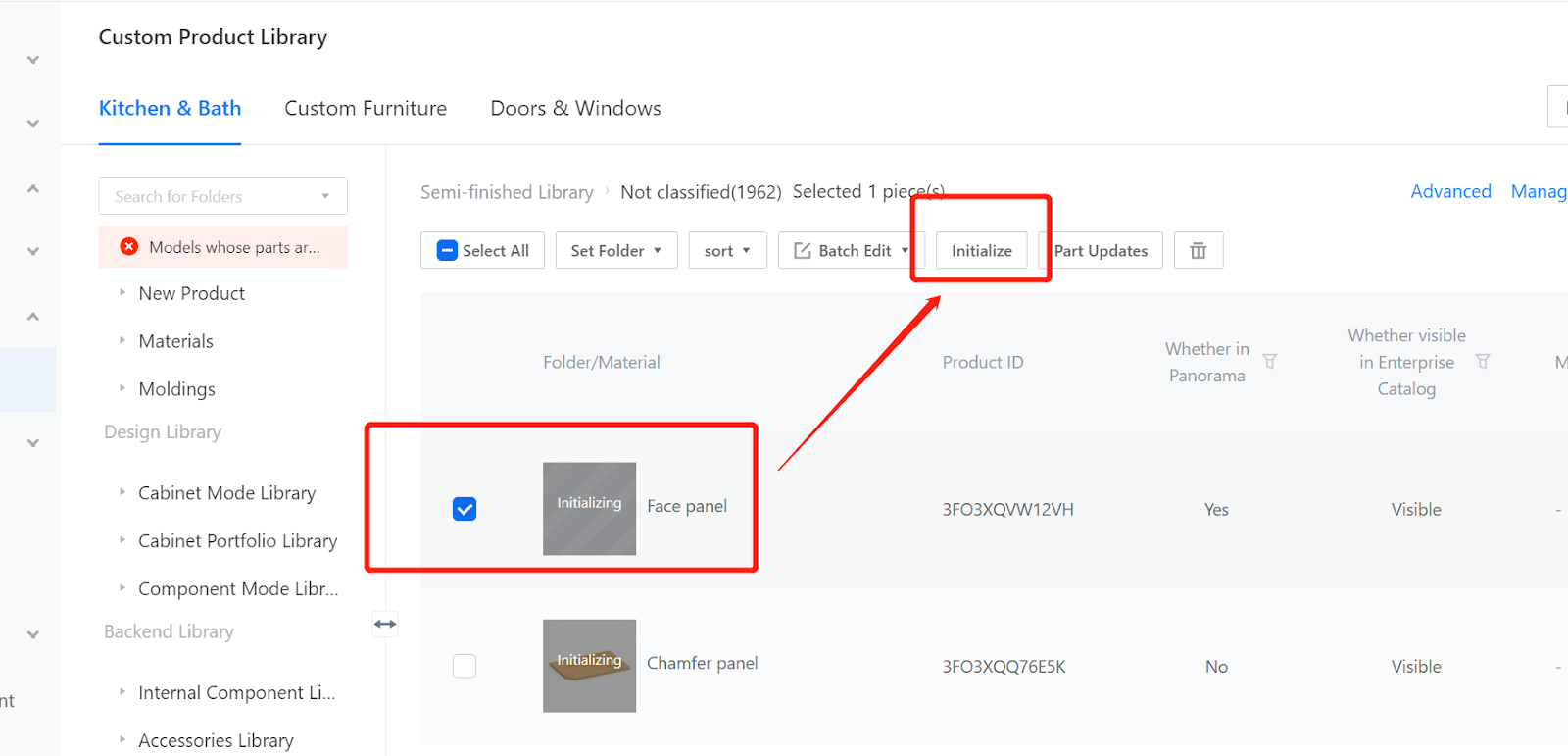

In the backend page, find the model, select the model, and choose to initialize it.
