[Wall Design] Multi-material Wall Design Guide

Reading time of this article:0 minuteUpdated 2026-06-01

In the wall editor tool, you can quickly complete a background wall composed of grille panel, marble, and light strip by using tools such as add guides zoning, shape drawing, material mapping, and array, effectively enhancing the spatial texture.

⭐Before reading the article, it's recommended to watch the video tutorial first to get started quickly~

For Users

All users

Entrance

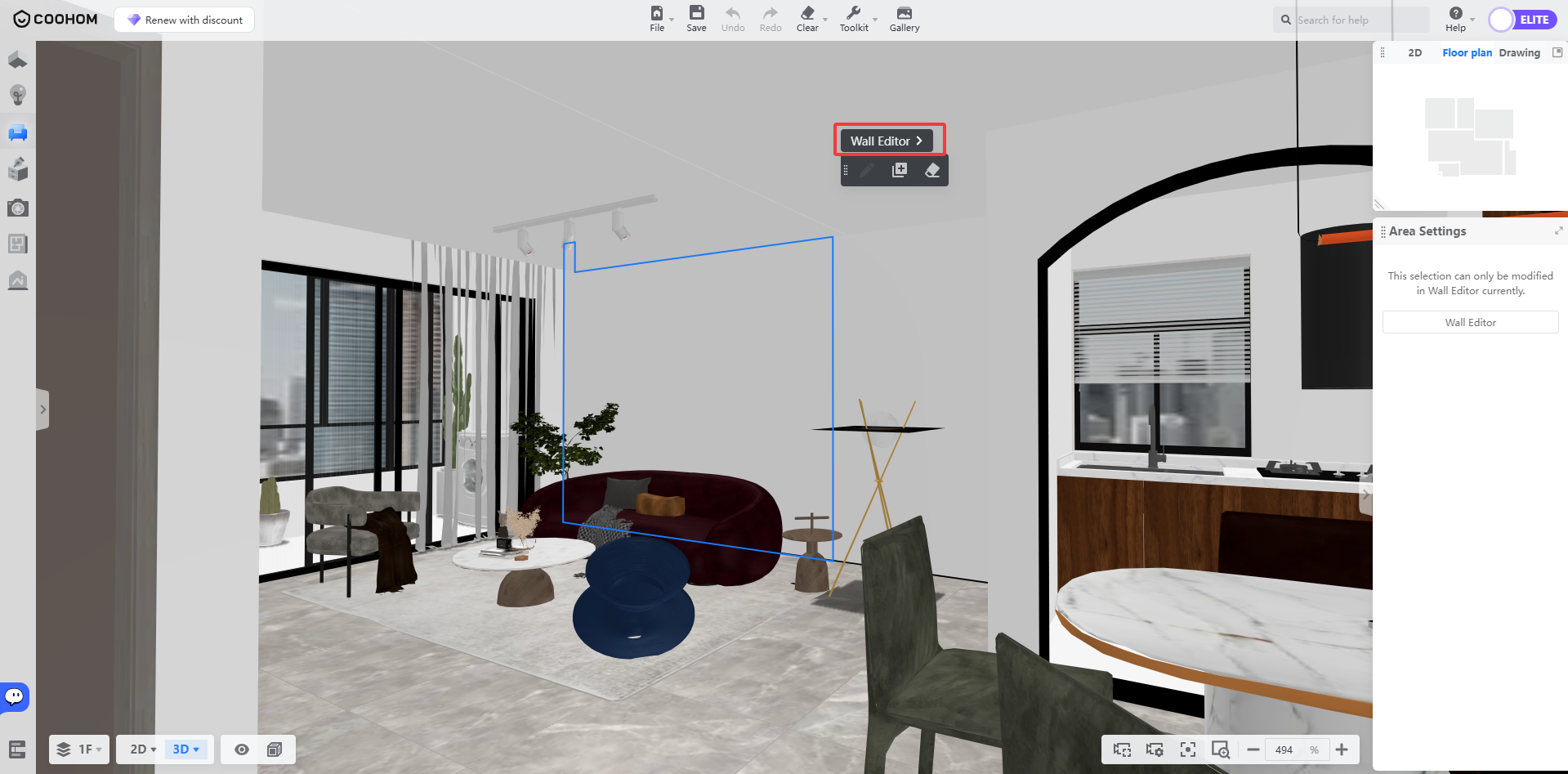

Select the wall surface, then click to enter Wall Editor.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-29-34.png

Multi-material Wall Design

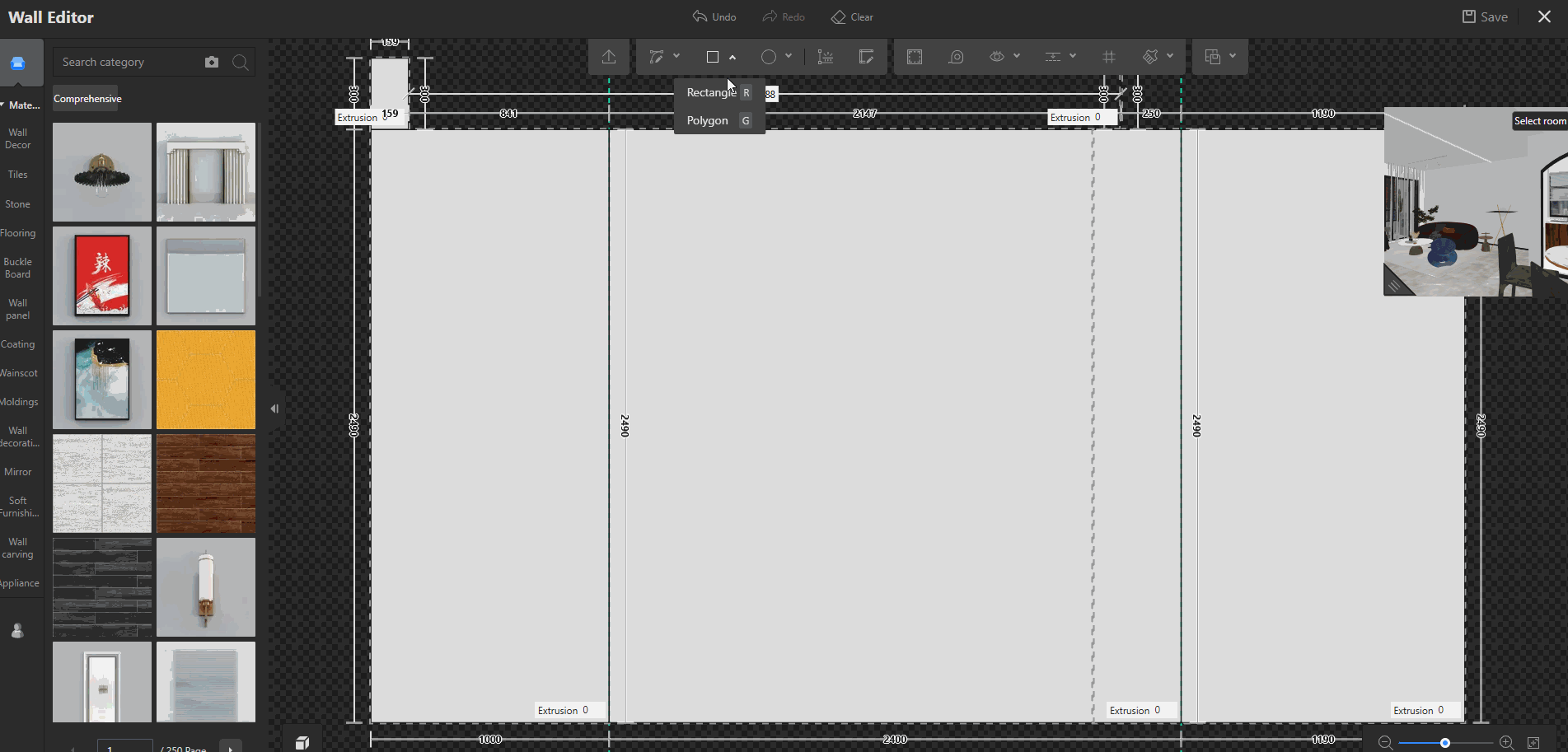

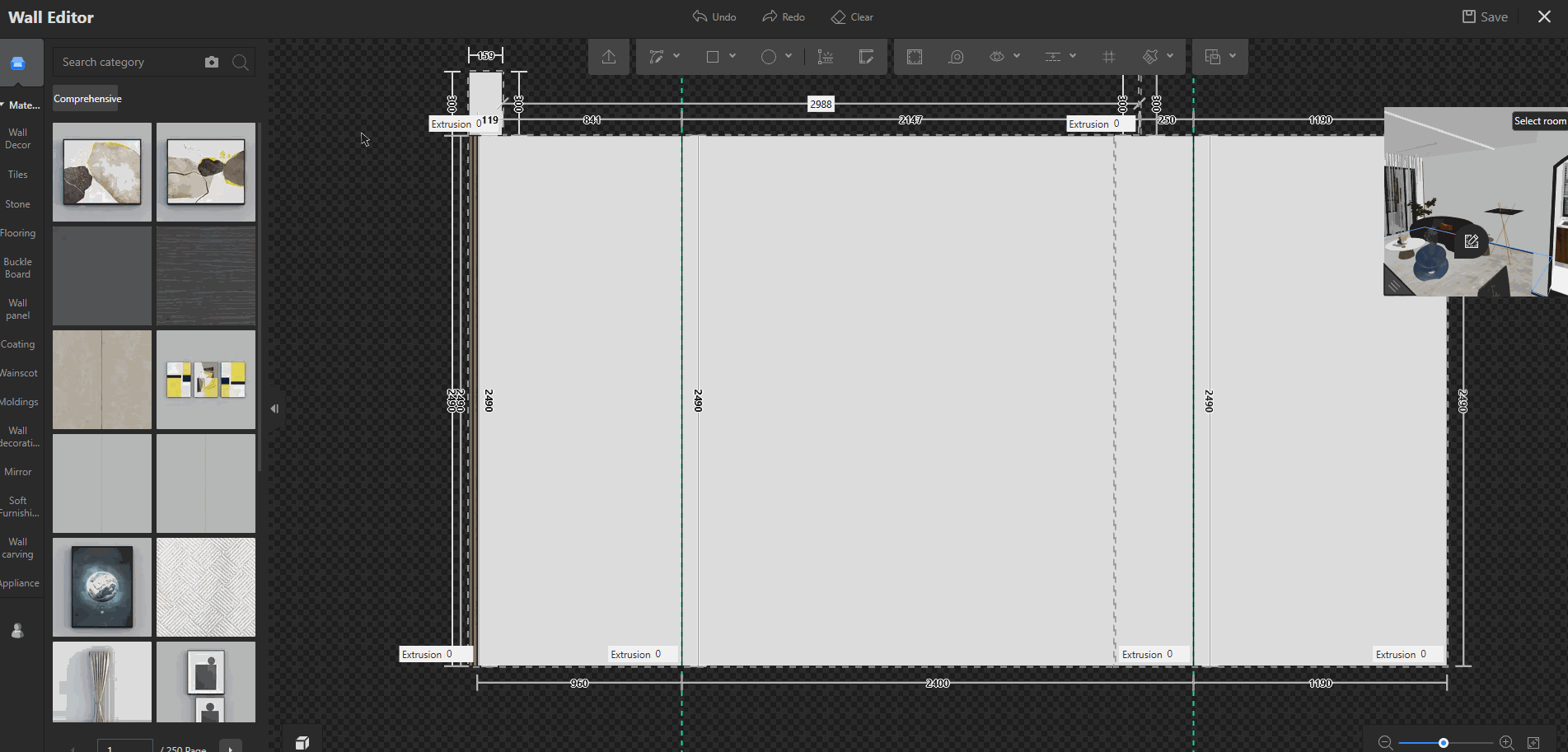

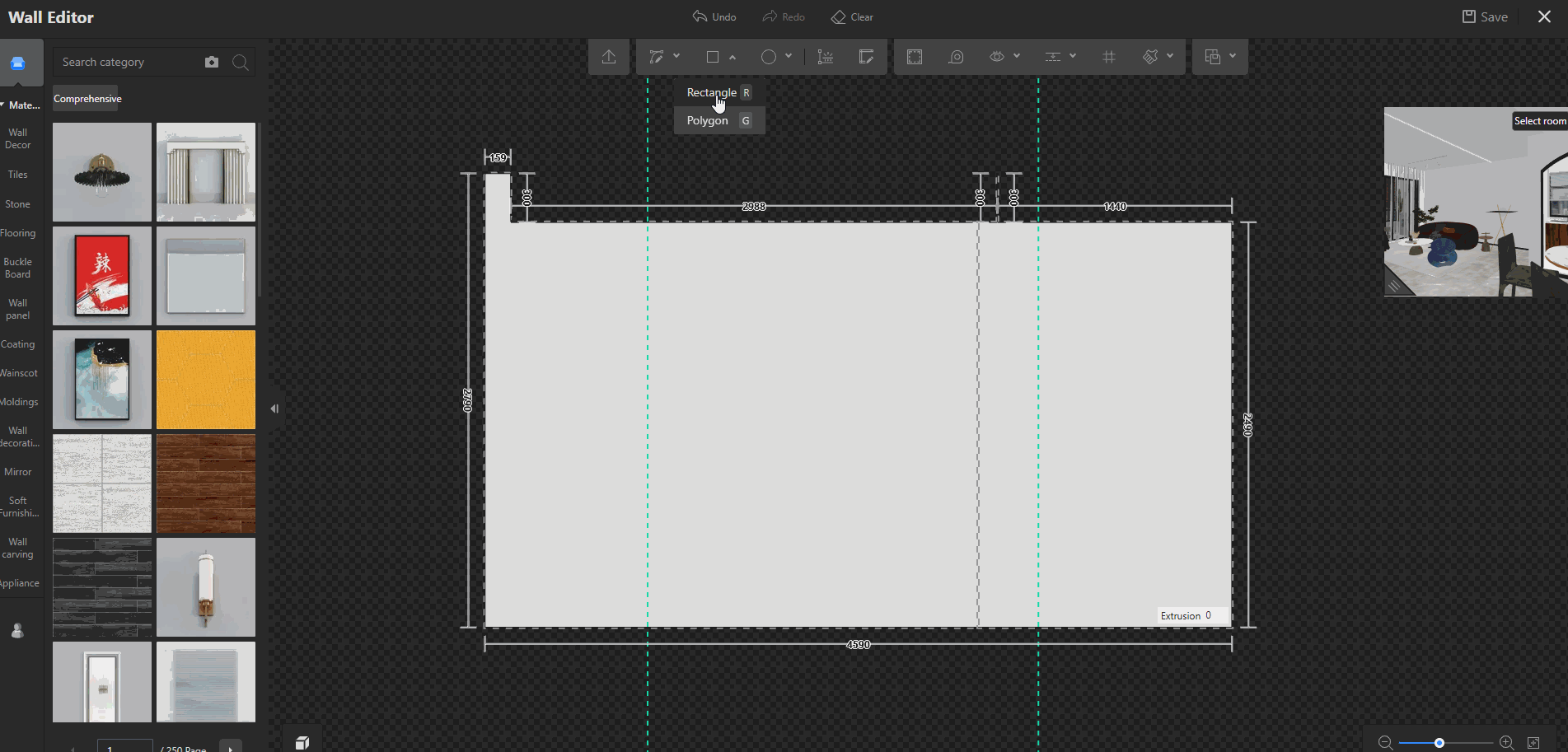

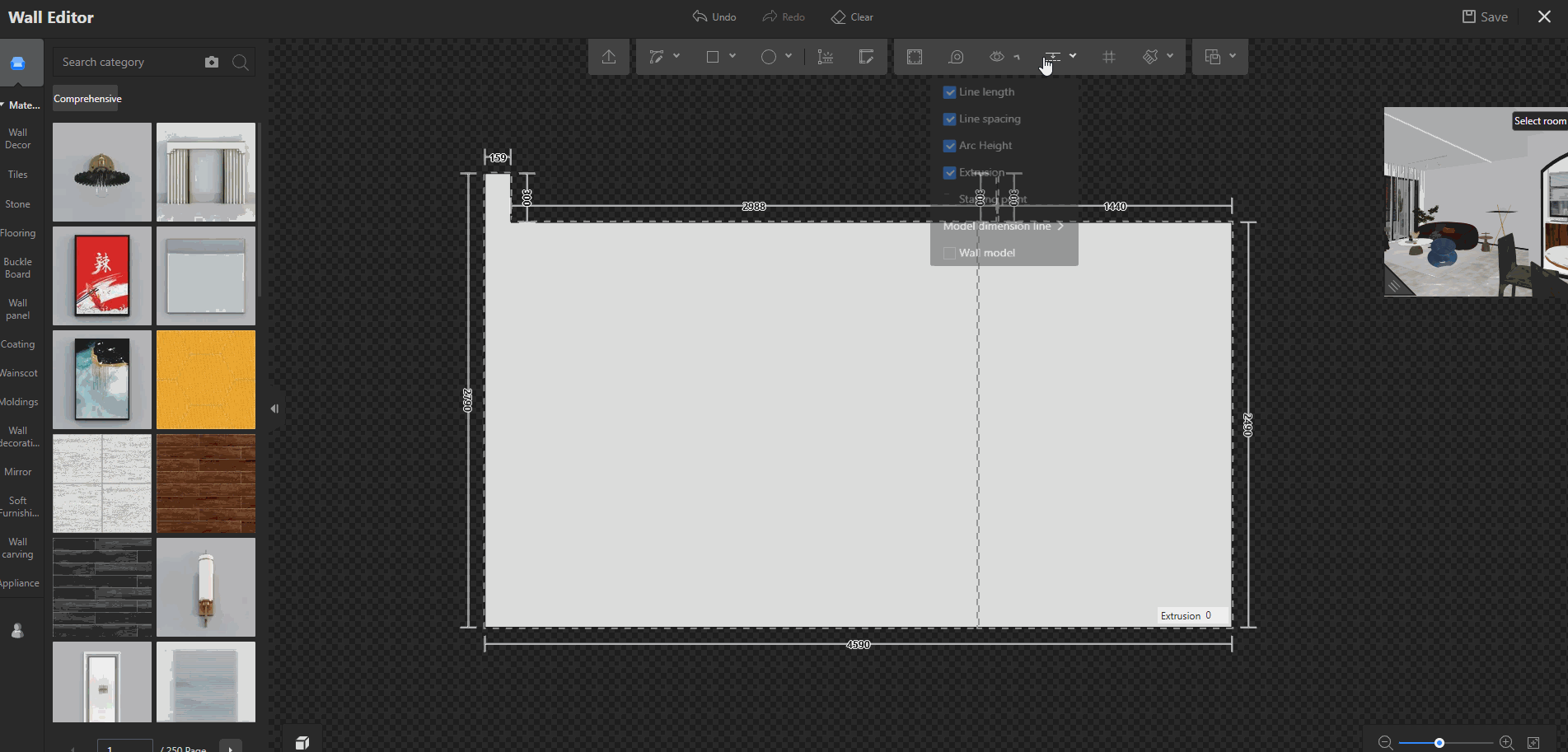

1. Enter the Wall Editor page, and use the Guides tool from the top toolbar to add auxiliary lines as needed. Then, choose the Rectangle tool from the top to divide the wall into three separate regions.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-29-48.png

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-29-58.png

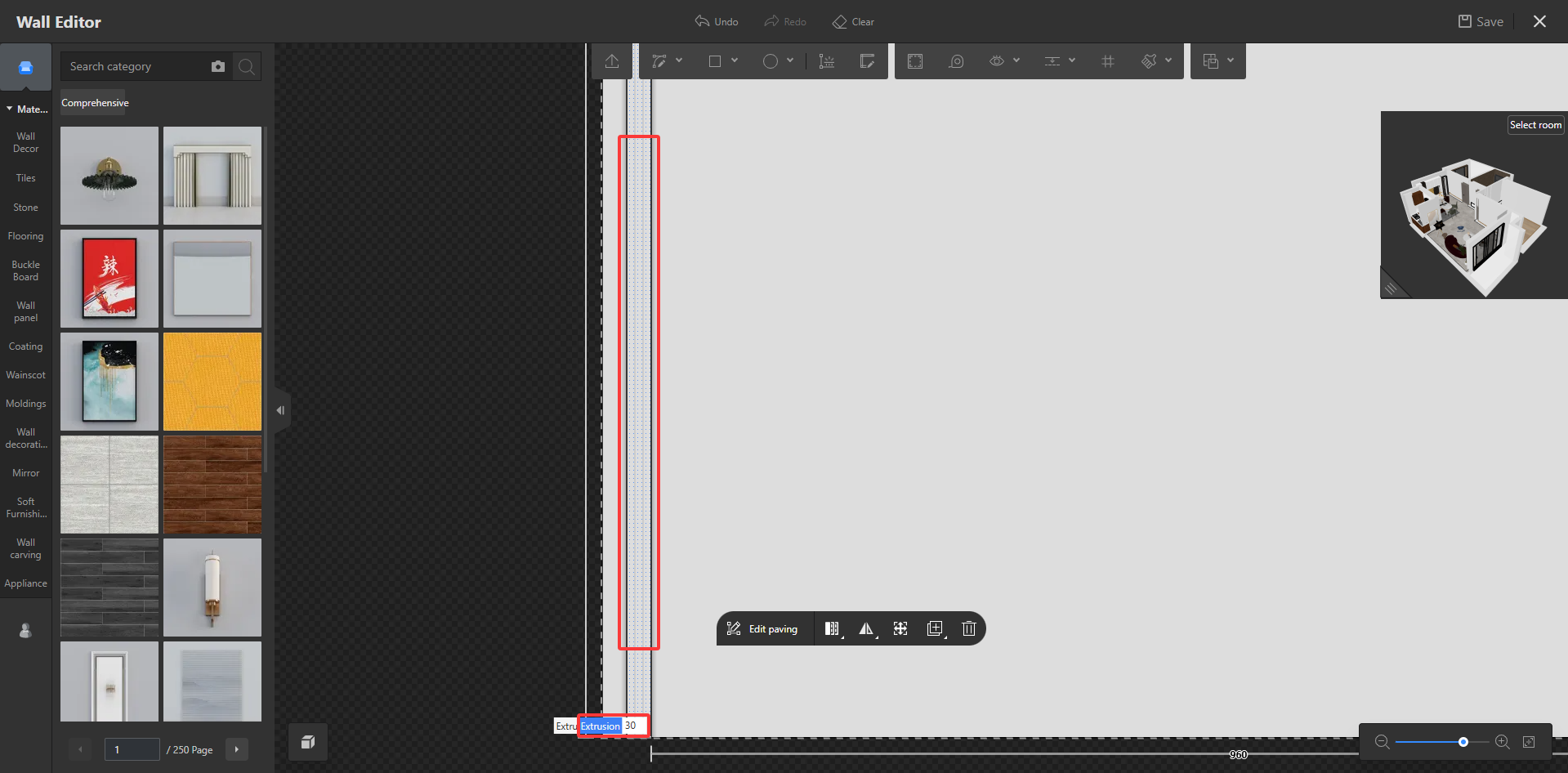

2. Next, use the Rectangle tool to draw the grille outline in the left region. After drawing, select the target area and set the Extrusion value.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-30-57.png

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_14-48-4.png

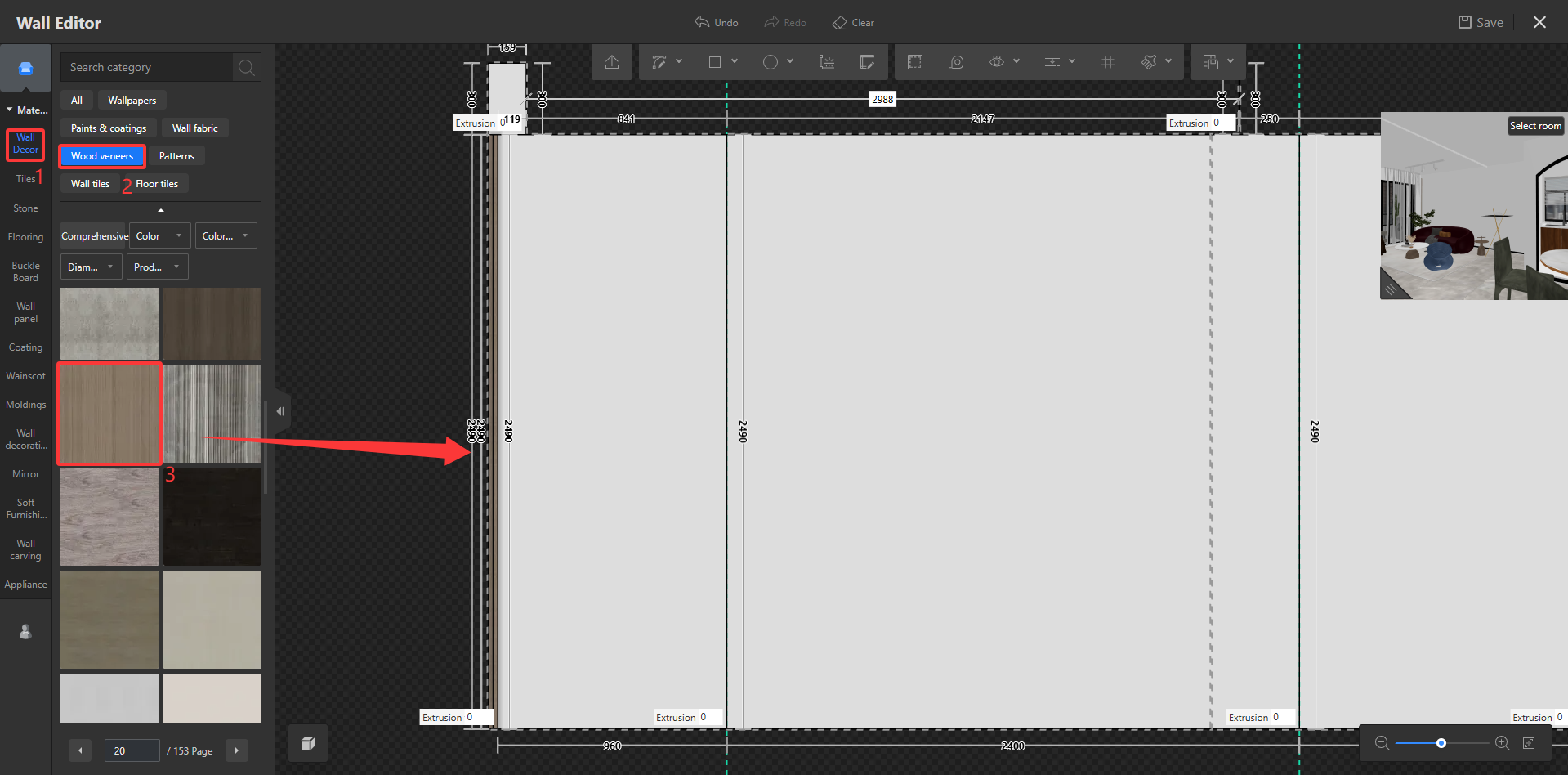

3. Click on Wall Decor from the left sidebar. At the top, select Wood Veneers, then choose a suitable material and place it in the left target area.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-31-23.png

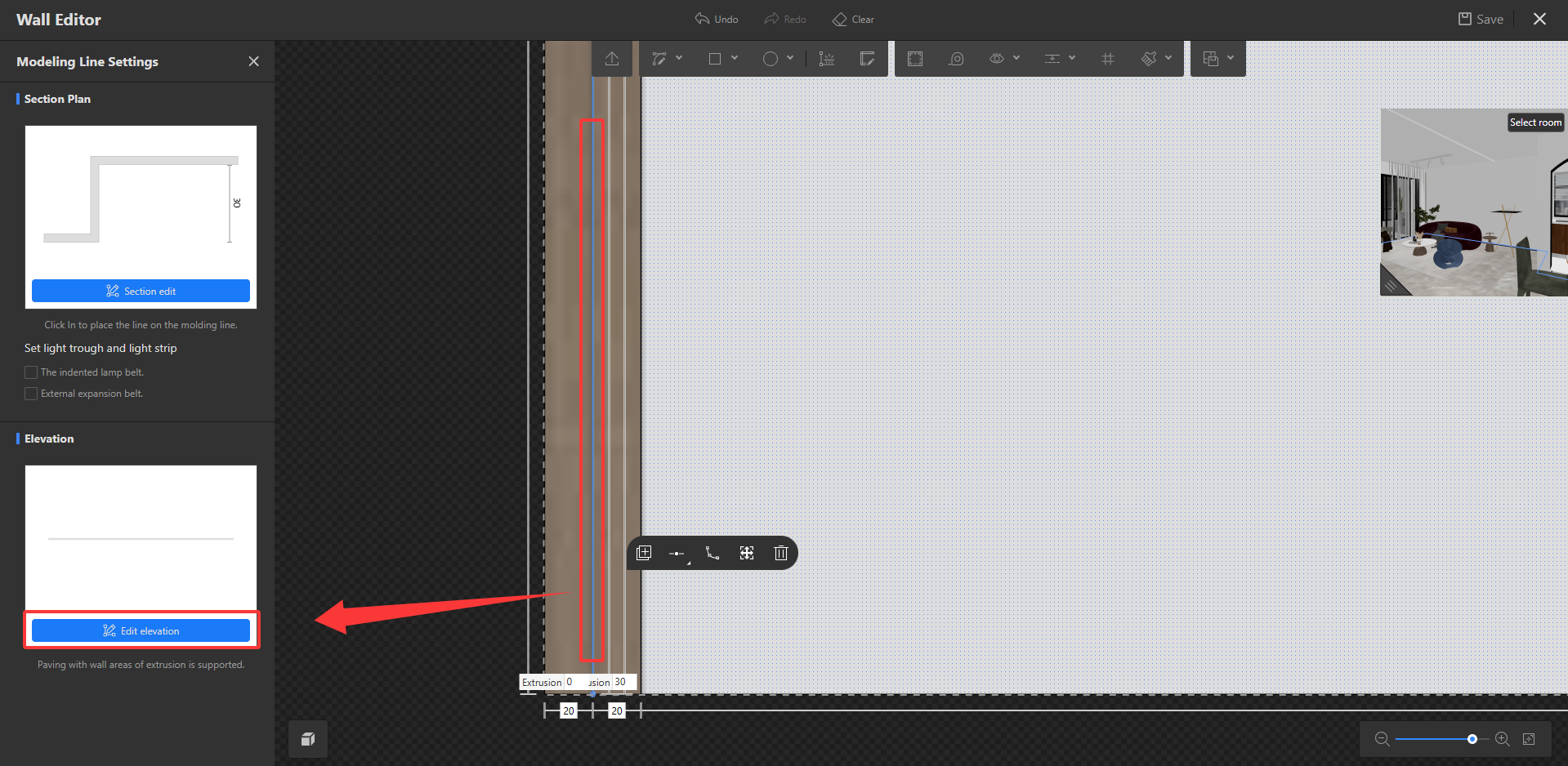

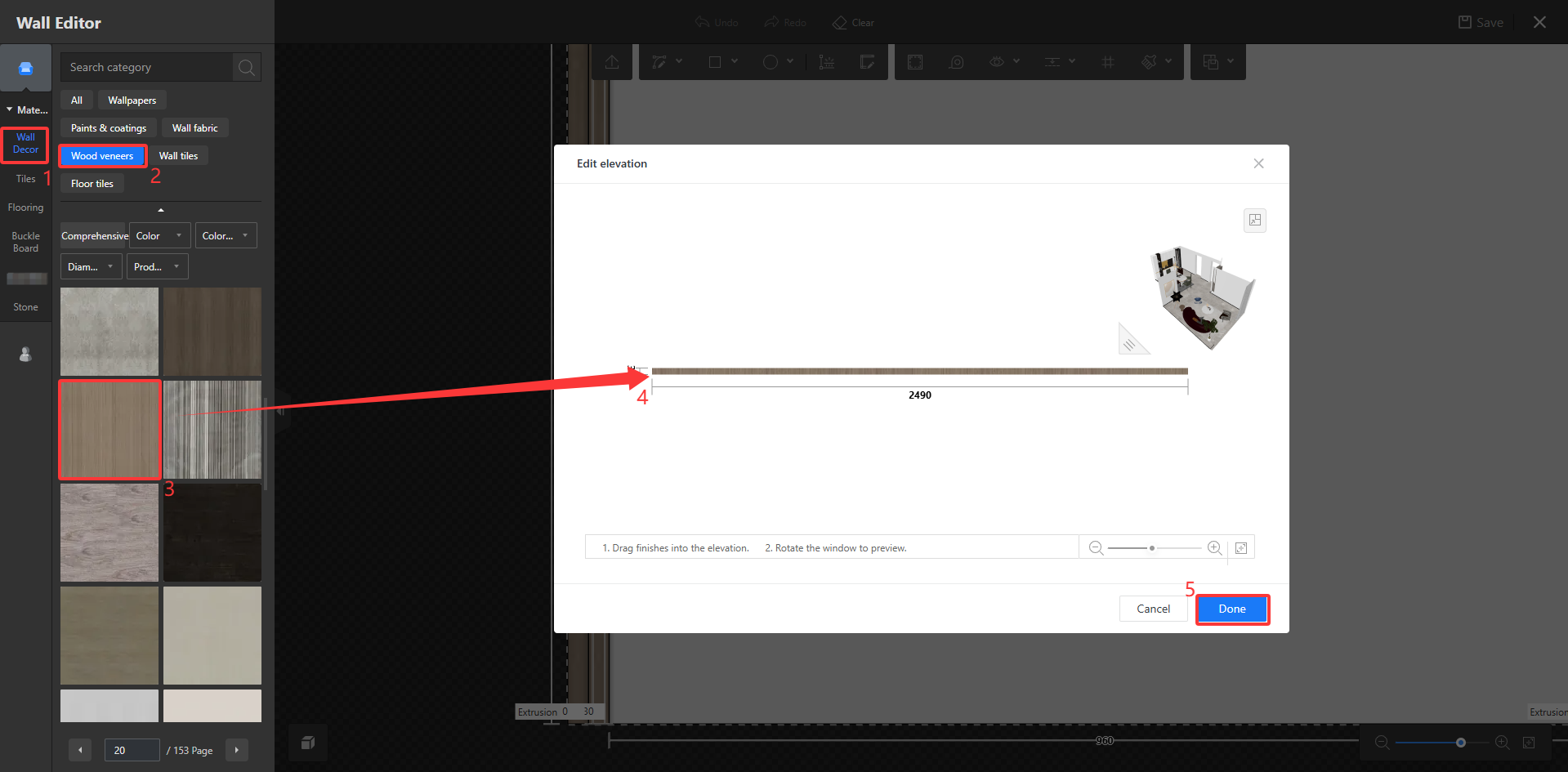

4. Select the modeling line, click to enter Edit Elevation, and choose the desired material to place on the facade. Then, click Done.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_14-46-24.png

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_14-45-8.png

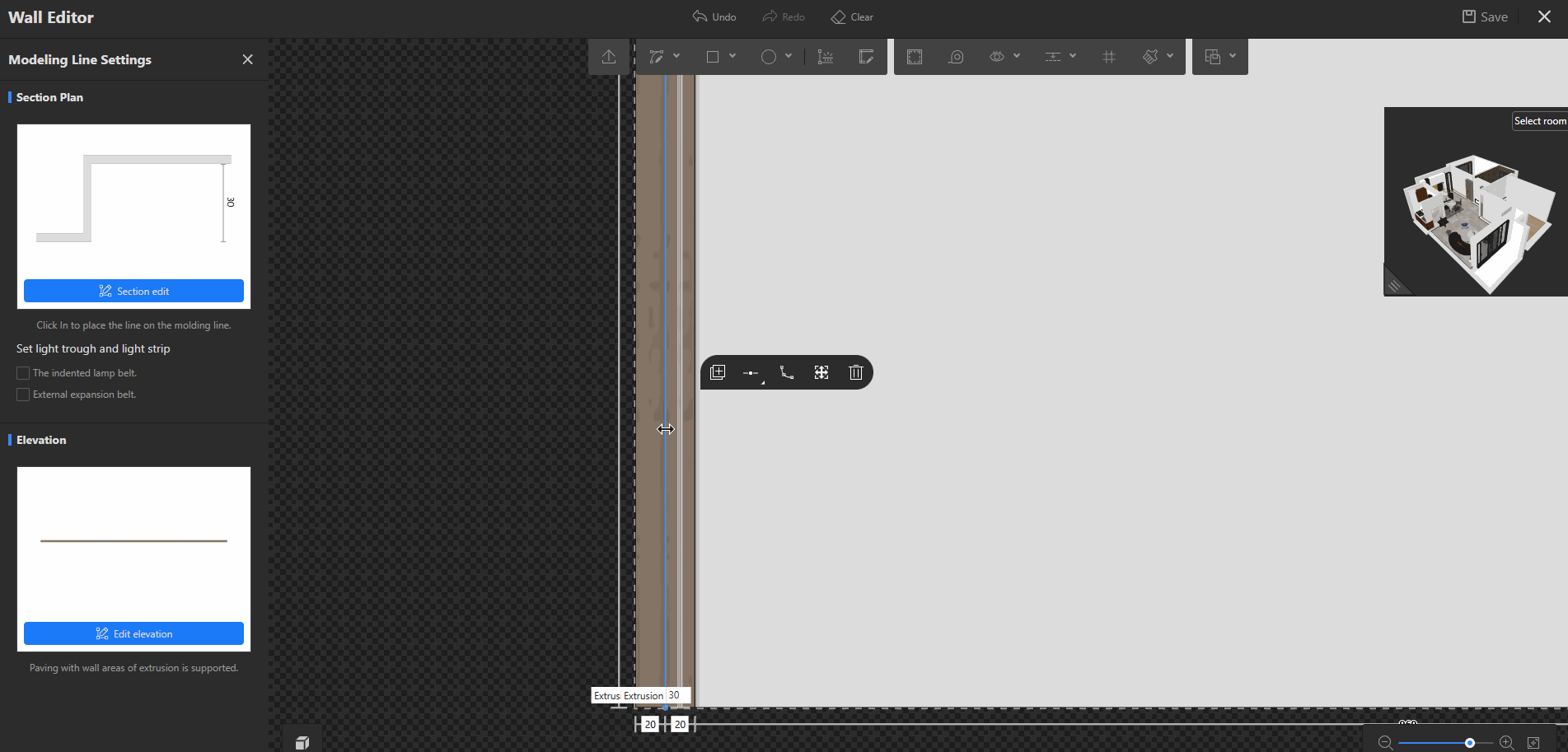

5. Next, select the configured modeling line, click Duplicate from the floating window, and then Paste into Current Styling Area.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_14-50-10.png

6. Hold the Shift key to frame-select the configured grille design. Click Array from the floating window, select Rectangular Array, and then move the mouse to the target location. Click the left mouse button to confirm.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-32-45.png

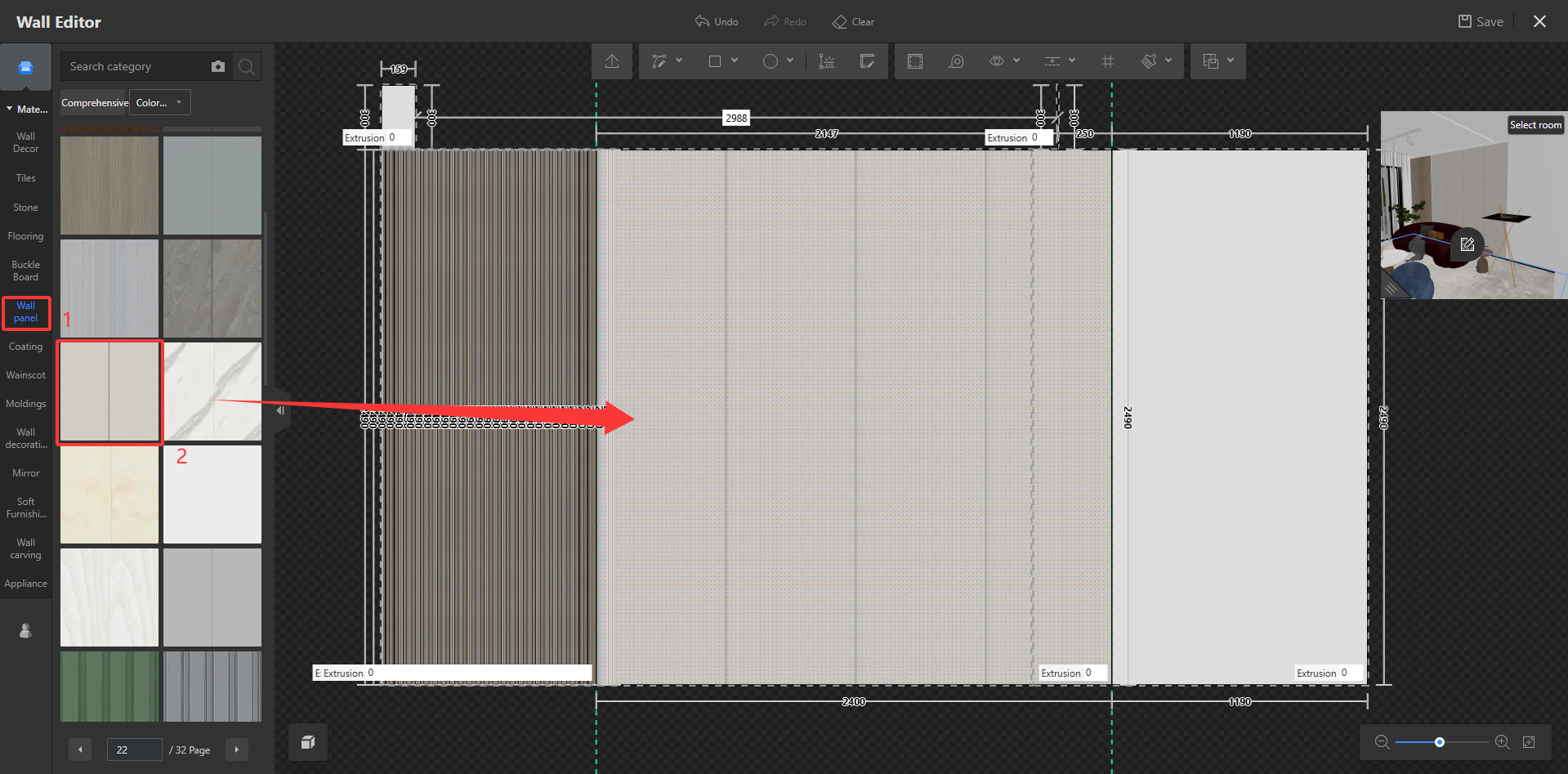

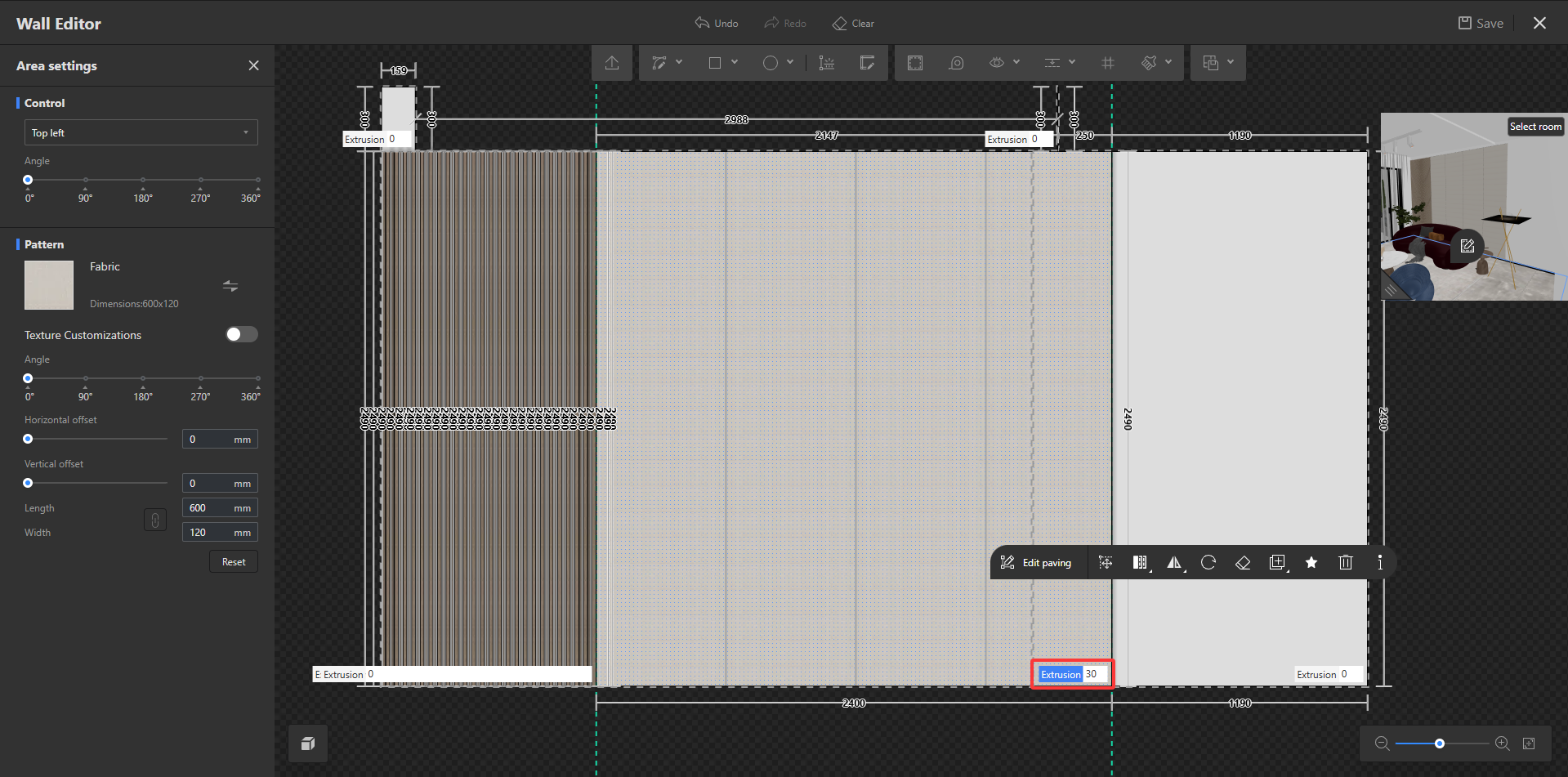

7. Click on Wall Panel from the left sidebar, select a suitable material for the middle region, and set its Extrusion value.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-33-6.png

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-33-18.png

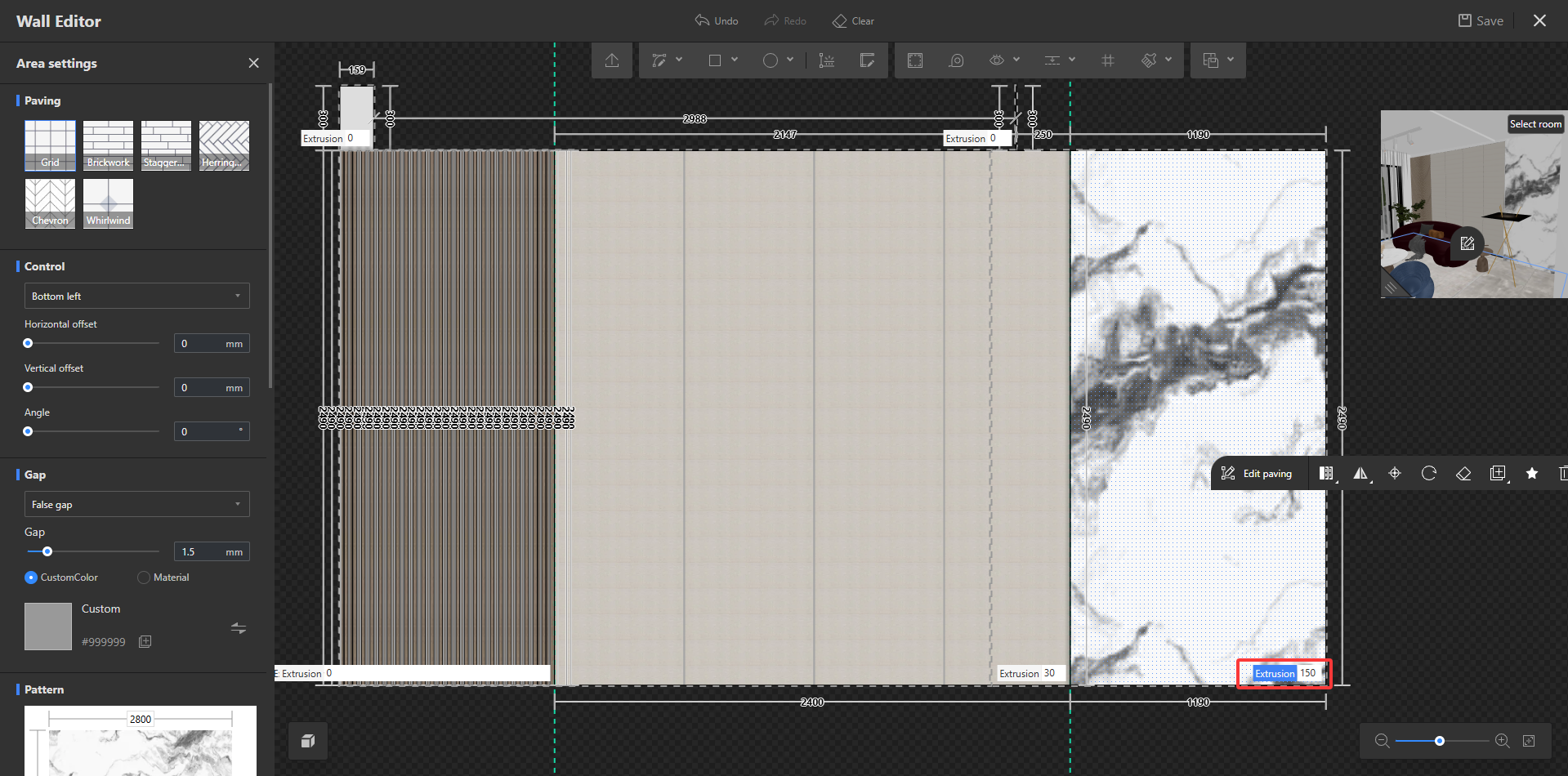

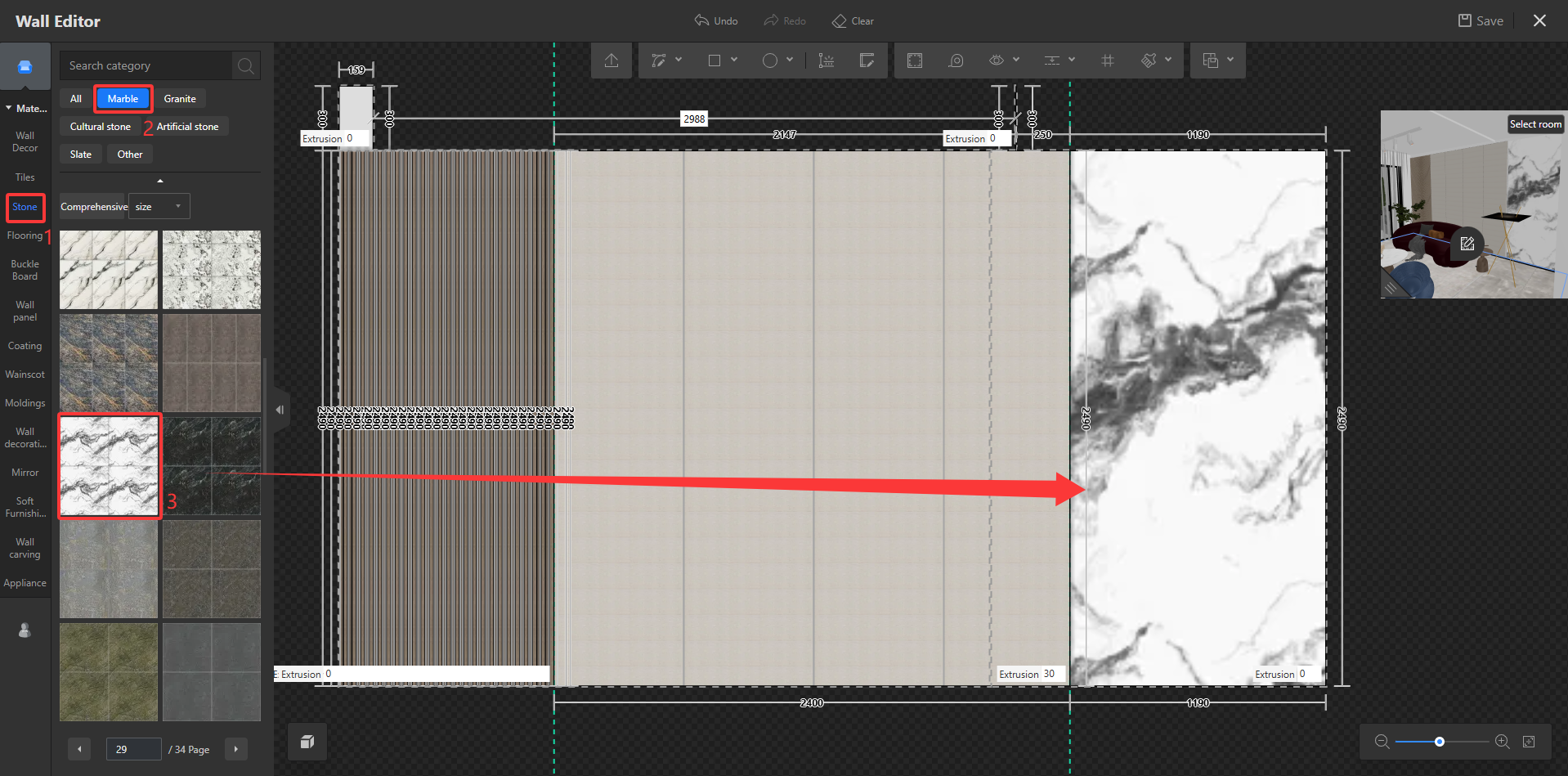

8. Click Stone from the left sidebar, select Marble from the top, then choose a suitable material for the right region and set its Extrusion value.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-33-39.png

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-33-51.png

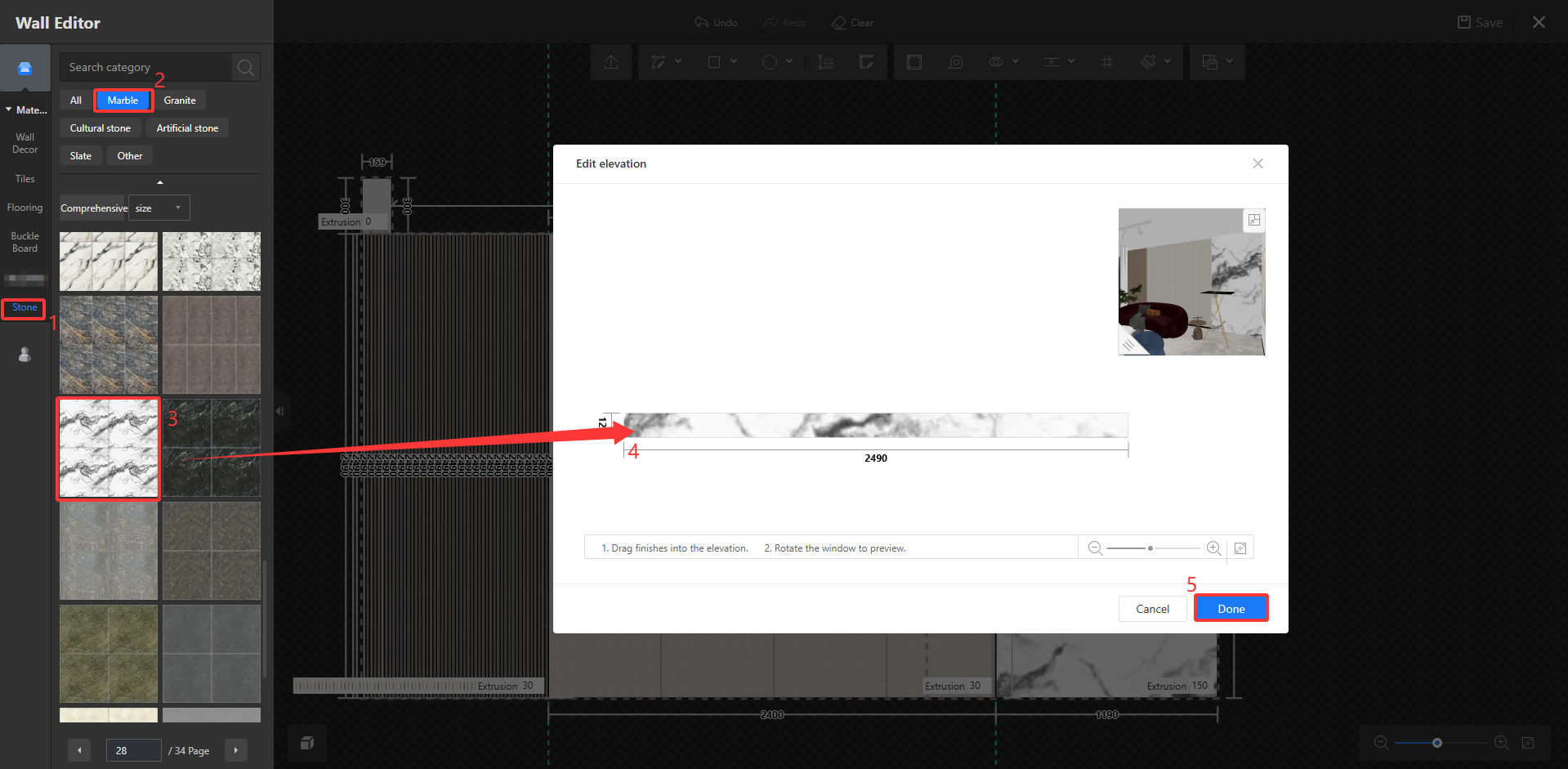

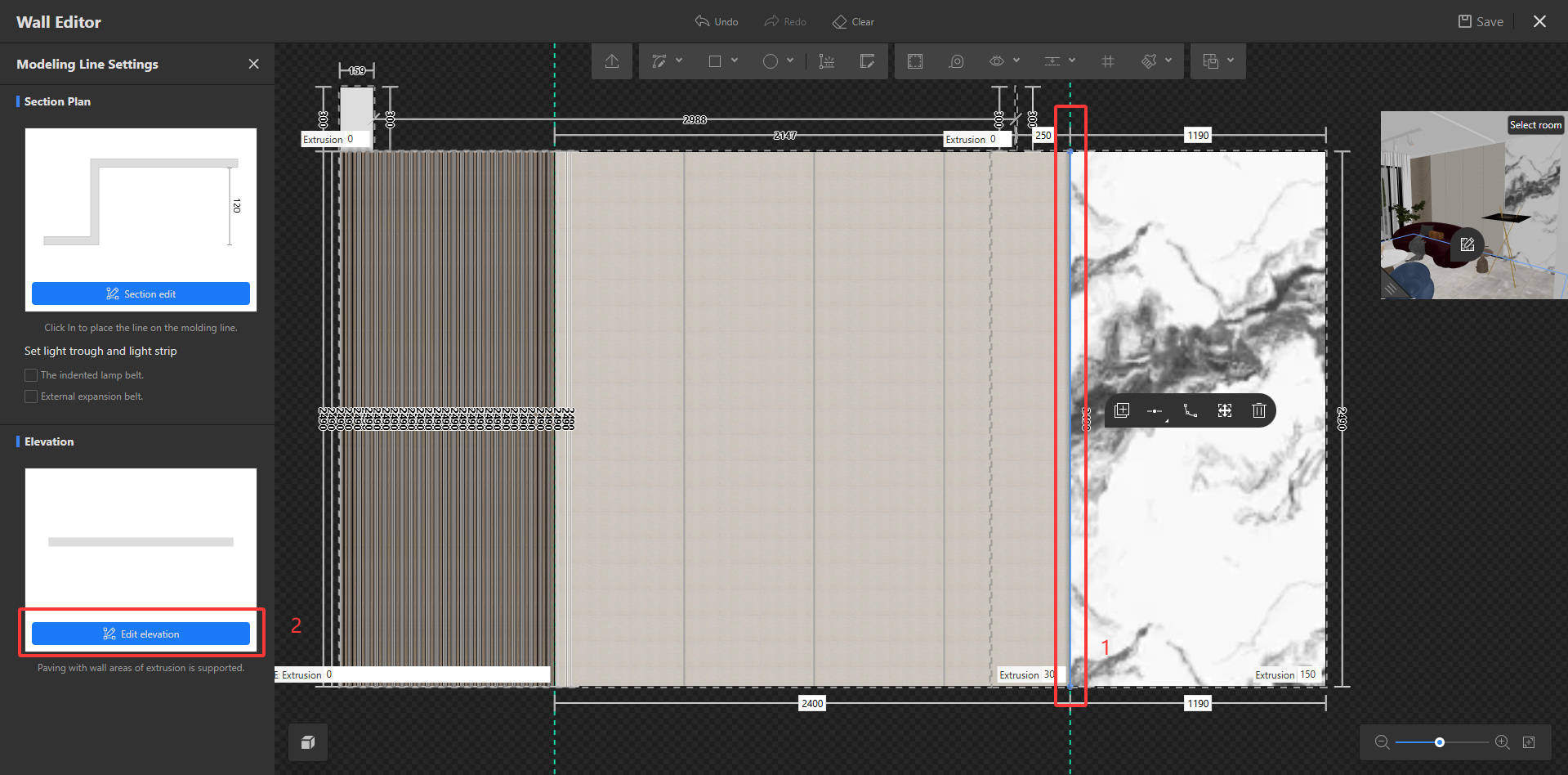

9. Select the modeling line of the marble region, enter Edit Elevation, choose the desired material to place on the facade, then click Done.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-34-4.png

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_14-55-28.png

10. Select the configured modeling line, click Duplicate from the floating window, and then Paste into Current Styling Area.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-34-27.png

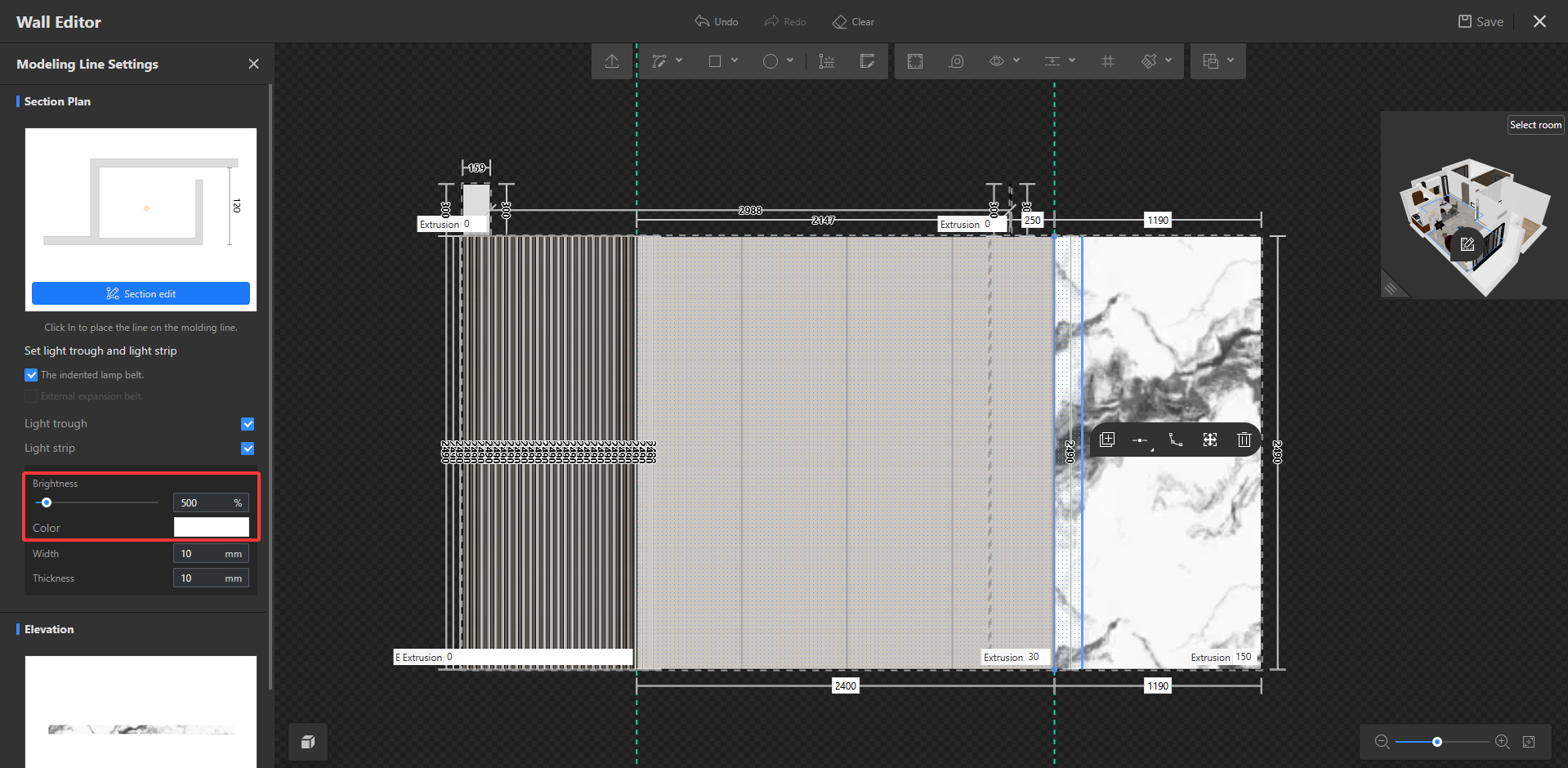

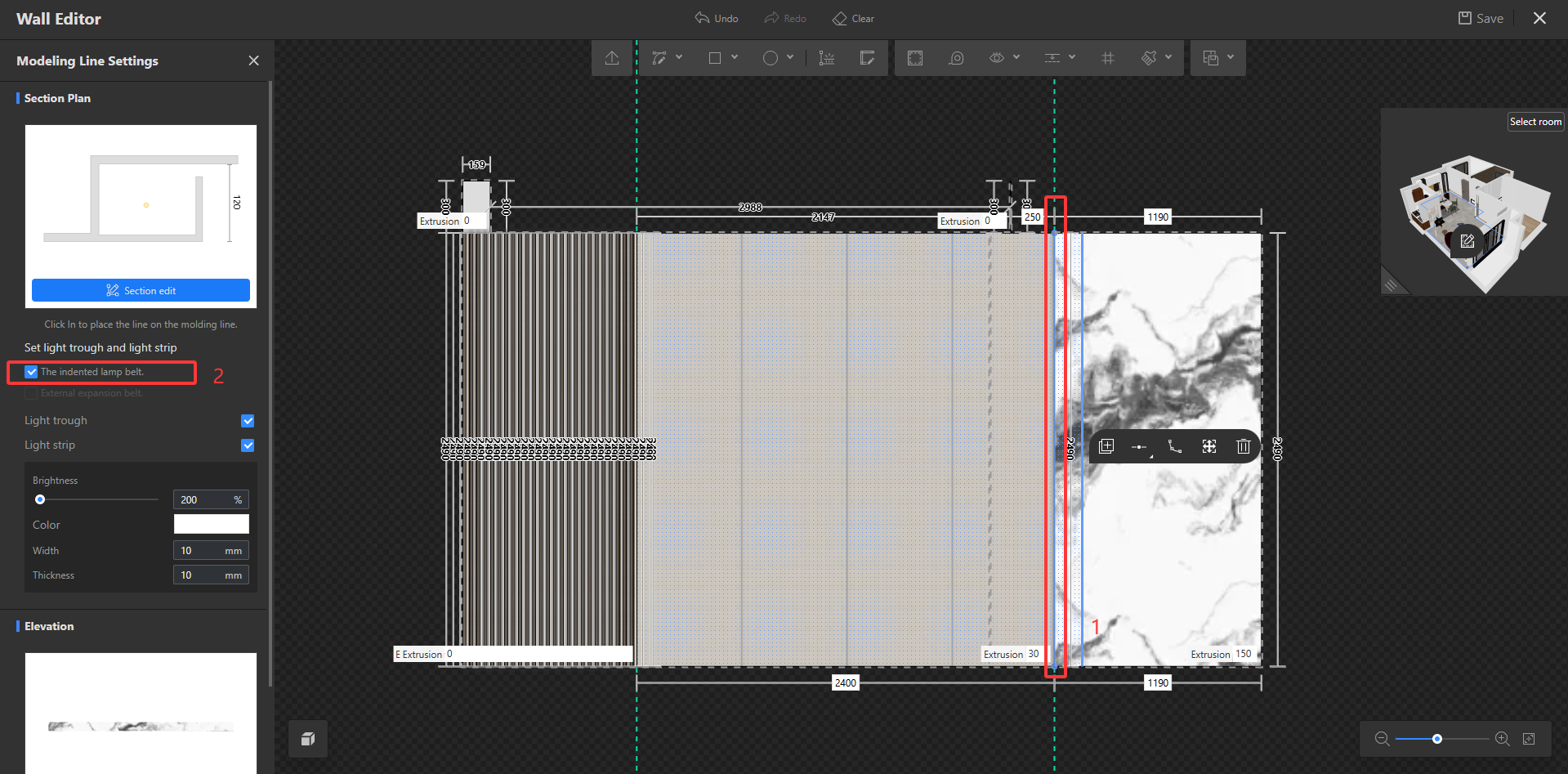

11. Next, select the modeling line where the light strip needs to be added. Check The Indented Lamp Belt in the panel on the left, then set the Brightness and Color of the light strip according to the design requirements.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-34-45.png

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-34-53.png

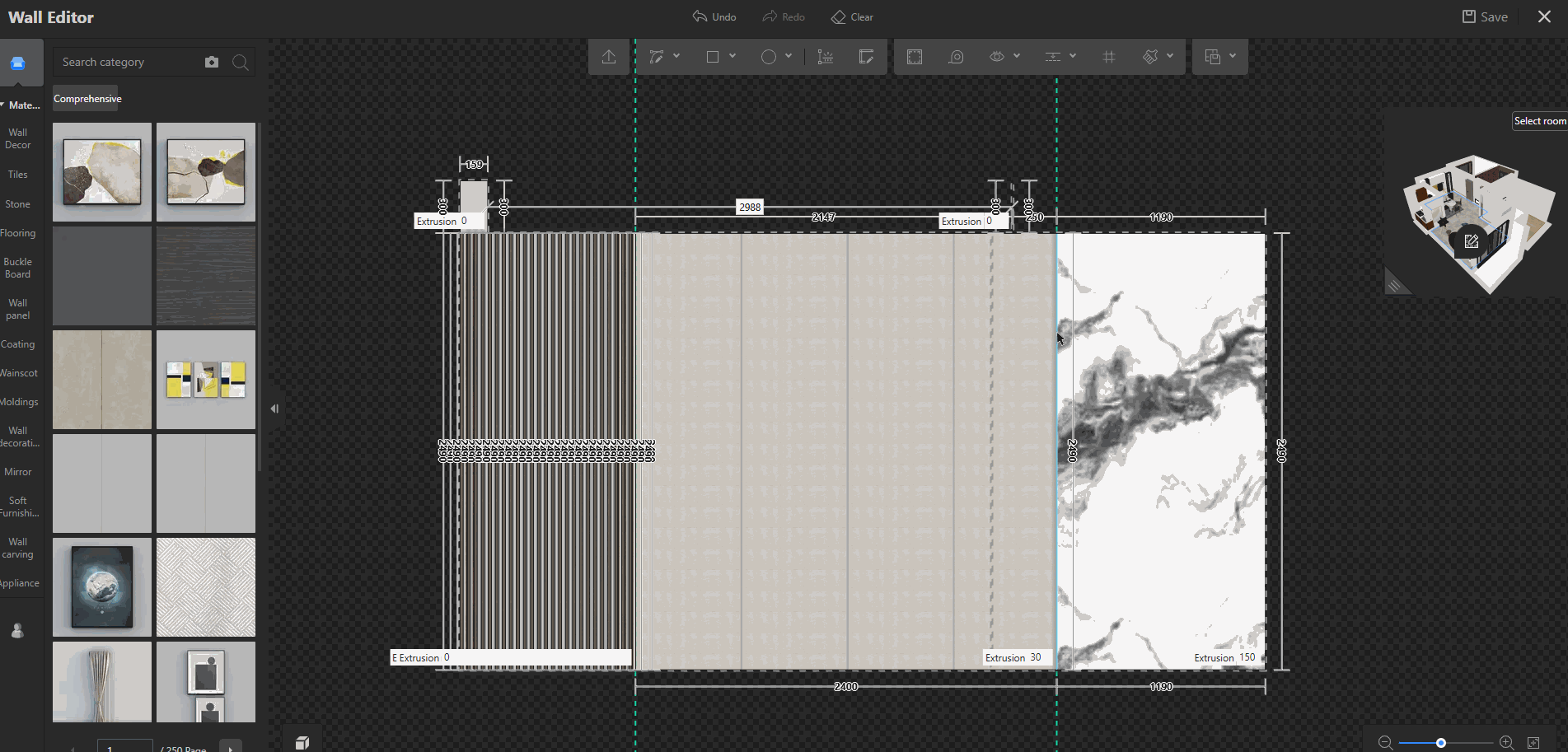

12. After finishing the setup, you can drag and enlarge the view window in the upper right corner to check the effect and confirm whether adjustments are required.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-35-7.png

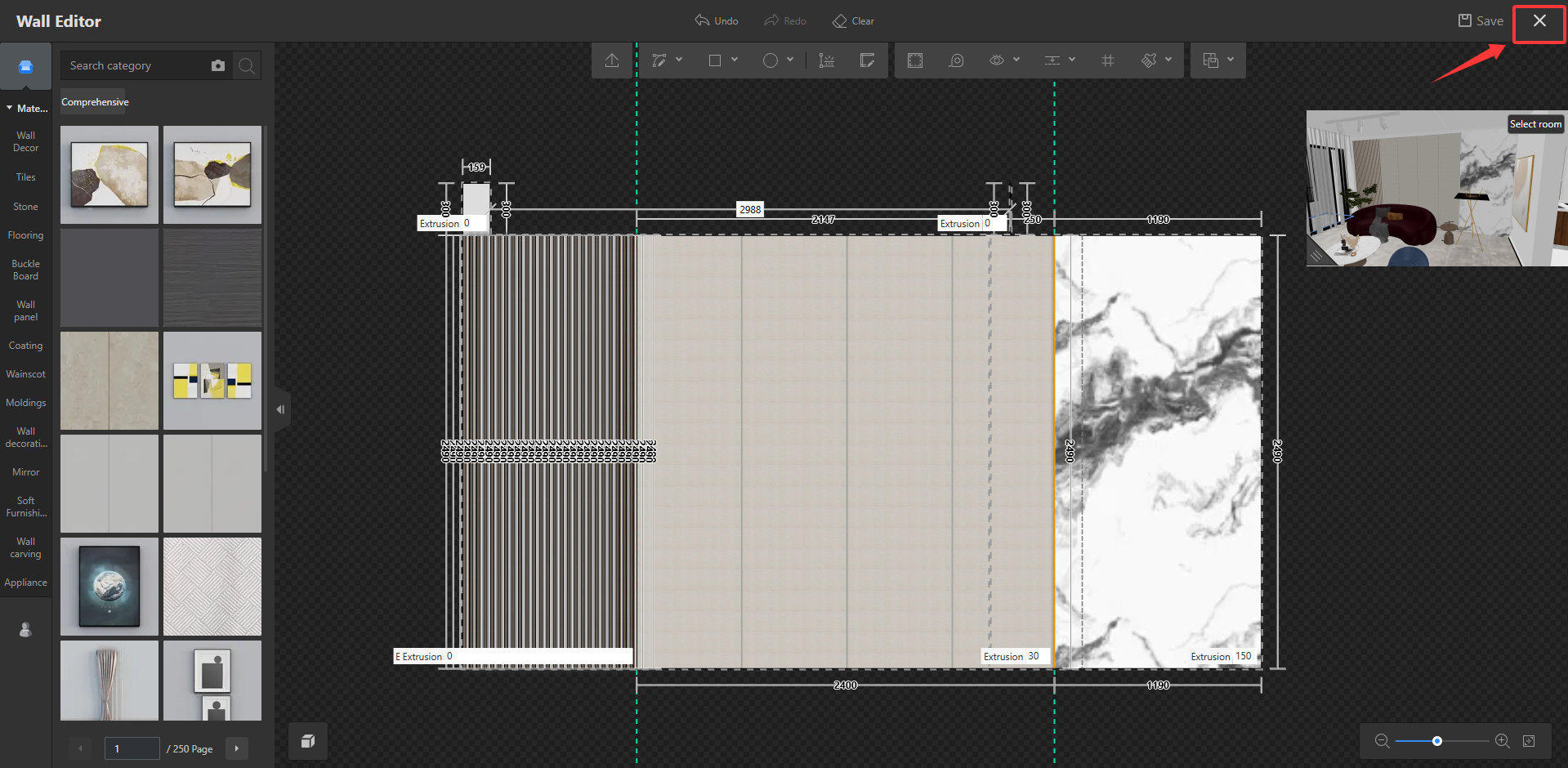

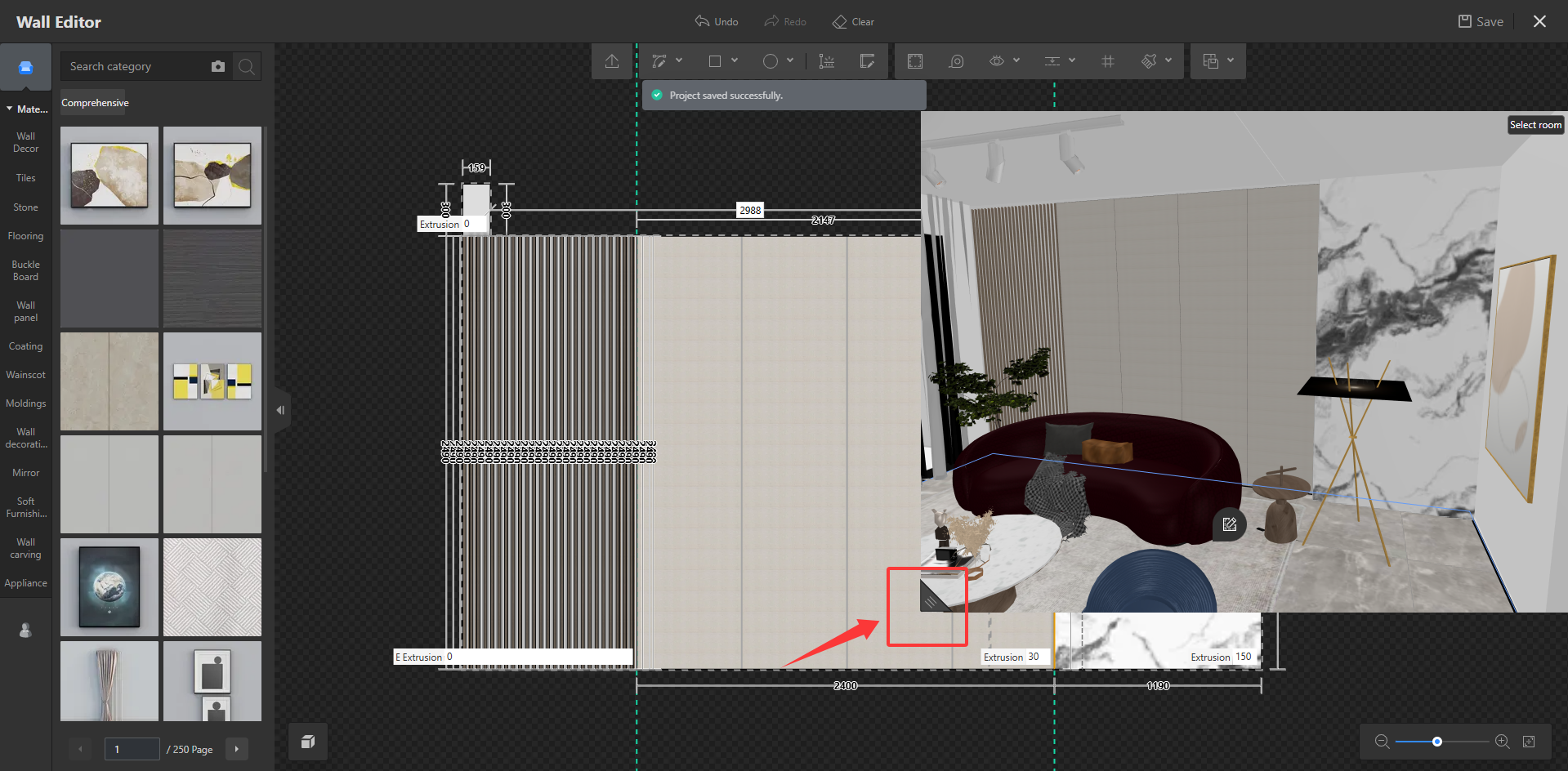

13. If no adjustments are needed, you can click Exit with Save in the upper right corner. After rendering, you will get a satisfactory effect image.

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-20_11-35-16.png

The final effect is as follows:

Help Center Document Preparation Area > XXXXXX/[Wall Design] Wood Grille + Marble + Light Strip Background Wall Design > image2026-4-17_11-40-59.png
