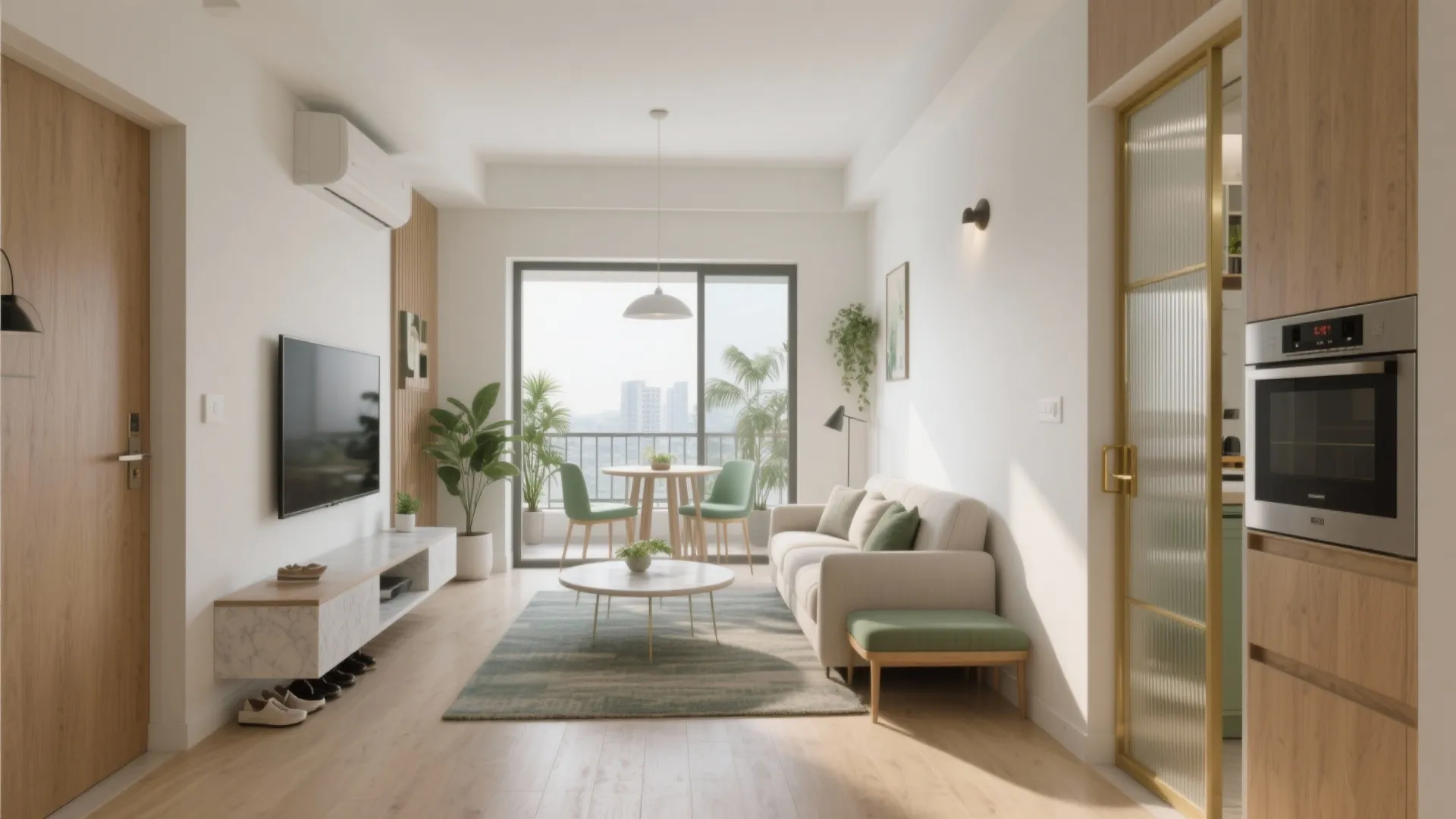

3 BHK Drawing Plan: 5 Proven Layout Ideas: A senior interior designer’s field-tested playbook to shape a functional, airy, and future-proof 3 BHK drawing plan—without adding a single square foot

[Section: 引言]

I’ve spent the last decade massaging tight footprints into homes that feel generous, and the 3 BHK drawing plan is one of my favorite puzzles. This year’s interior trends—multi-use rooms, softer zoning, biophilic elements—fit 3 BHKs beautifully. I always begin by sketching a balanced circulation between rooms, because small space isn’t a limitation—it’s an invitation to design smarter.

Small spaces force clarity. When every doorway, wardrobe, and balcony line matters, ideas sharpen. In this guide, I’ll share 5 design inspirations for a well-resolved 3 BHK drawing plan, blending my own case experiences with expert-backed data so you can make confident choices.

Whether you’re renovating or starting from scratch, I’ll walk you through the decisions that have consistently worked: how to shape a calm entry, where to prioritize sunlight, and the tricks that let a third bedroom do double-duty without chaos. Let’s get into the five ideas.

[Section: 灵感列表]

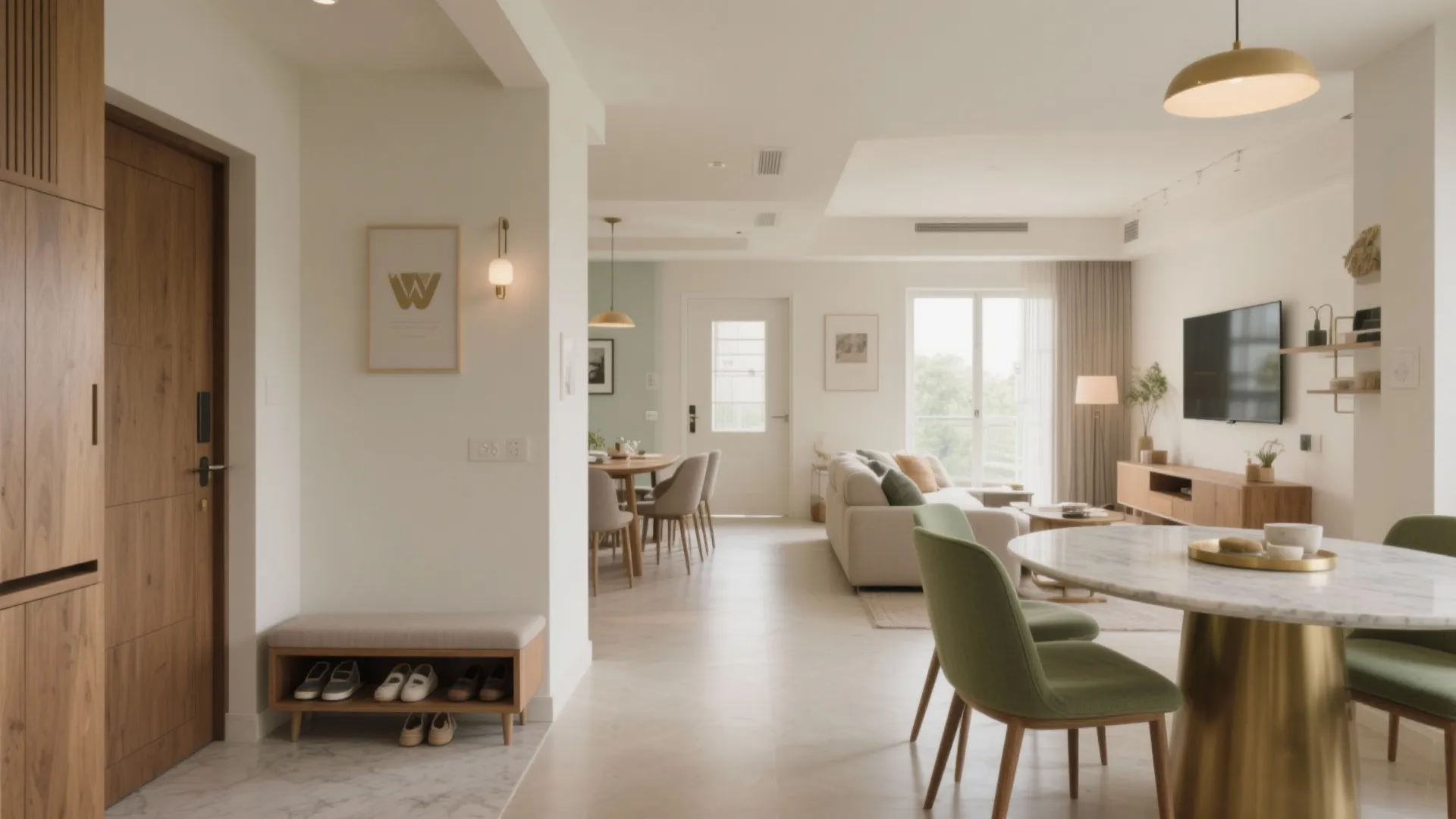

1) Open-plan living core with a calm foyer

My Take — In one 1,050 sq ft project, we trimmed the corridor and borrowed a sliver from the oversized living room to form a micro-foyer. It created a psychological “pause” before the home opens up to a living-dining core, and guests stopped walking straight into the sofa zone. The space felt intentional, not accidental.

Pros — A small foyer softens sightlines and improves first impressions in an open plan 3 BHK drawing plan. By right-sizing the living-dining rectangle, you get better furniture placement and a clearer TV wall for a small 3 BHK living dining layout. The result is a more social, flexible hub that still feels composed.

Cons — A foyer costs square footage; if your total area is under ~900 sq ft, you’ll feel the squeeze. Open living means sound travels, and cooking aromas may drift unless the kitchen boundary is thought through. I usually tell clients: we’re trading a touch of privacy for everyday flow.

Tips / Cost — Keep foyer depth 3’–4’ (900–1200 mm) so it’s useful, not a bottleneck. In tight living rooms, maintain at least 36” (900 mm) circulation behind dining chairs; if you can’t, pick a bench or a round table to free up corners. A slim shoe-storage bench or a floating console stabilizes the entry without eating volume.

save pin

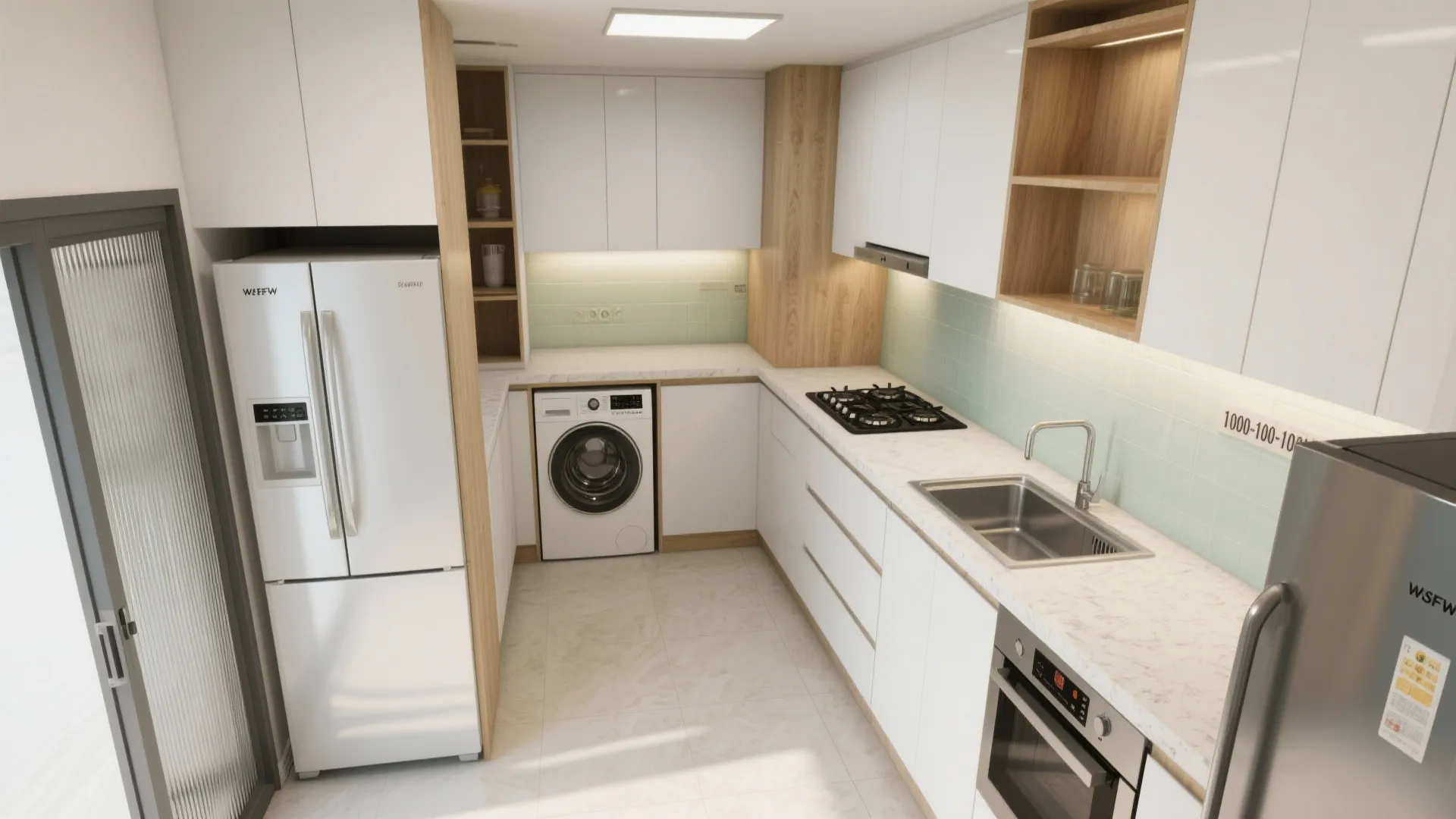

2) The kitchen triangle and a tidy utility spine

My Take — Kitchens in 3 BHKs often get squeezed by bedrooms. I’ve had the best luck shifting from a cramped U to a lean L with a parallel utility spine: fridge and tall pantry on one side; sink, hob, and prep on the other. It reduced steps and gave us a clean spot to tuck the washer-dryer and a tall broom closet.

Pros — A clear work triangle in a 3 BHK kitchen layout with utility improves ergonomics and daily speed. Standards from the National Kitchen & Bath Association recommend each leg of the triangle be 4’–9’ with a total of 13’–26’ to avoid wasted motion (NKBA Kitchen Planning Guidelines). In compact apartments, that guidance keeps a galley or L-shaped kitchen efficient and safer.

Cons — A parallel setup needs at least 39”–42” (1000–1050 mm) between runs; if your shell is narrower, it’ll feel tight. Utilities can get noisy; place the washer-dryer away from bedrooms if walls are light. In older buildings, moving gas or water lines may add cost and permits.

Tips / Case — I favor an 18–24” (450–600 mm) pull-out pantry for small 3 BHK apartment design; it’s a space hero. If smells are a concern, add a pocket door of fluted glass so light still flows. Vent cooking directly outdoors and seal gaps; it’s not glamorous, but your sofa will thank you.

save pin

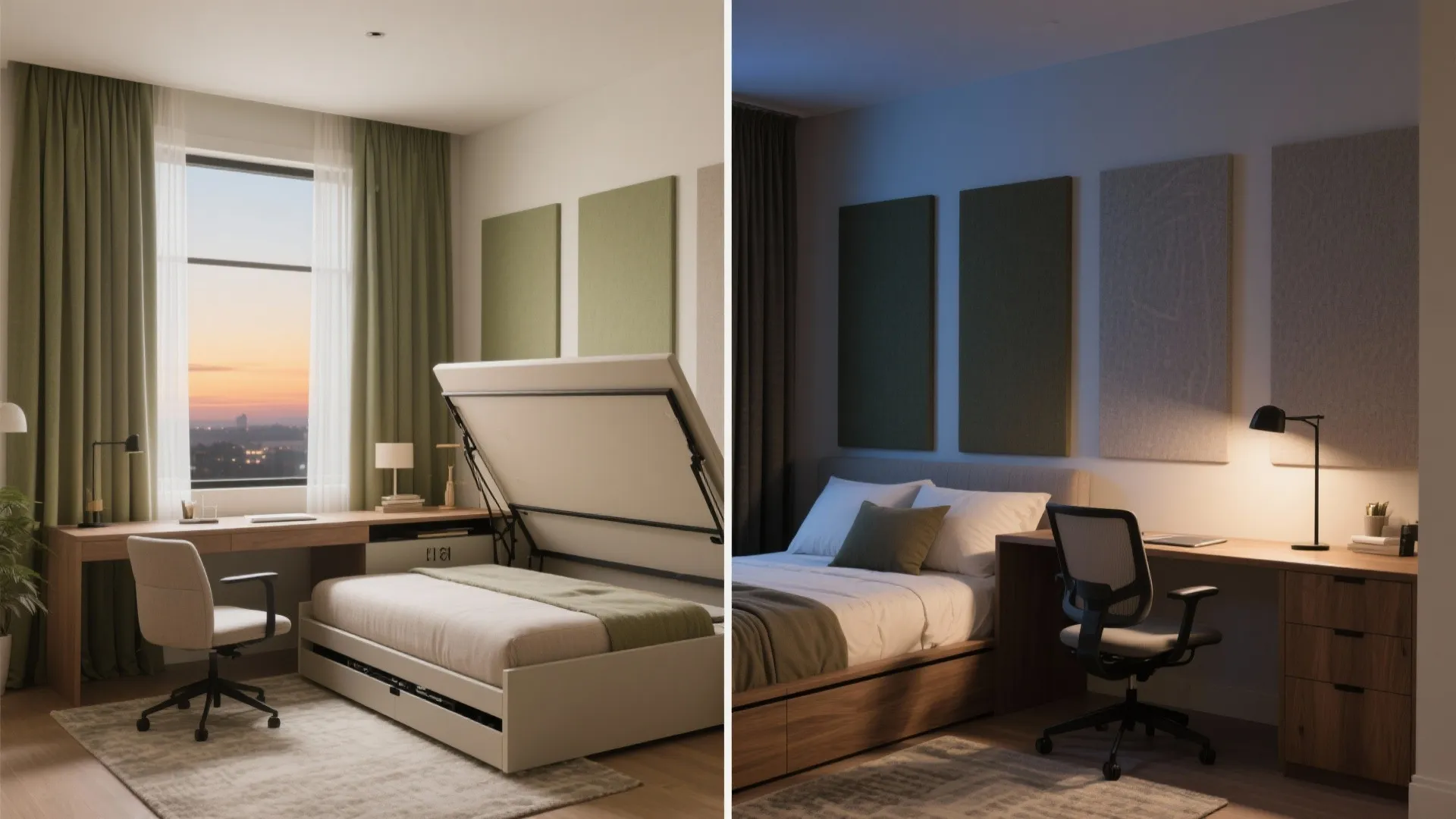

3) The flexible third bedroom: study, guest, or media

My Take — I once designed a third bedroom that worked as a study by day and a guest room at night: a wall bed, a slim desk, and double-layer curtains for quick “room mode” switching. The family called it their “transformer room,” and it really was—especially during exam season and holiday visits.

Pros — Turning the spare room into a convertible guest-study lets a 3 BHK plan with study adapt to life changes without hunting for more square footage. Sliding partitions and fold-away furniture keep the sightlines long and the mess contained. This is a budget-friendly way to future-proof a flexible 3 bedroom layout.

Cons — Multi-use spaces require discipline; it’s easy to let the desk swallow the bed or vice versa. Acoustics can be tricky if the room sits on the living side—consider soft panels or a bookcase as a baffle. Compromise is inevitable: a full wall of wardrobes may not coexist with a wall bed.

Tips / Cost — Prioritize one wall for a 10–12” (250–300 mm) deep desk with concealed cable troughs, then choose a vertical Murphy bed or a premium sofa bed. Keep a 24” (600 mm) pull clearance at the foot of the bed. If your long-term plan is hybrid work, a small operable window and ambient task lighting will do more heavy lifting than fancy decor—invest there. For planning ideas that visualize multi-mode rooms, I often test a convertible guest-study in concept schemes before we commit to millwork.

save pin

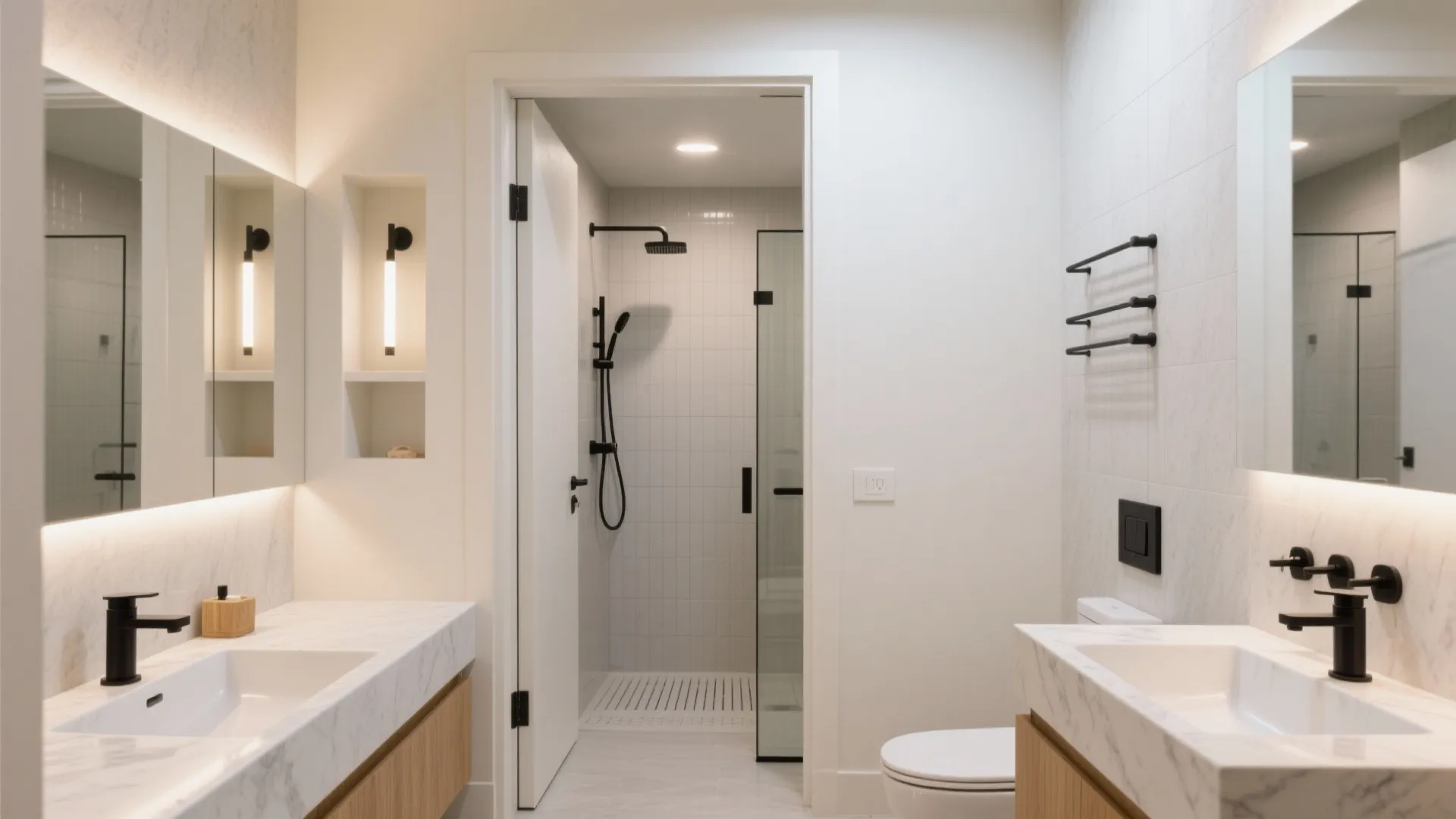

4) Two bathrooms with wet-dry separation and privacy stacking

My Take — In many 3 BHKs, you’ll get one ensuite and one shared bath near the living room. I try to stack wet zones (showers, WCs) against a shared plumbing wall and then carve a dry vanity zone just outside the door. Morning routines get faster, and floors stay safer.

Pros — Wet-dry bathroom zoning in a 3 BHK drawing plan keeps the vanity accessible while someone showers, a big win for families. A shared shaft simplifies maintenance and reduces long-term leaks. Venting properly is critical; the U.S. EPA stresses that bathroom exhaust should vent outdoors, not into attics, to limit moisture and mold (EPA: Bathroom Ventilation & Mold).

Cons — A separate dry vanity requires a touch more corridor width and lighting finesse; otherwise it looks like a hallway sink. Pocket doors are great, but they need proper framing and can be noisy. If you’re tight on wall length, towel and tissue placements become a game of inches.

Tips / Case — Aim for a 36” (900 mm) wide dry zone for comfort; use a shallow 16” (400 mm) vanity if space is tight. A floor-to-ceiling tiled wet zone with a linear drain prevents splash outside. Keep shower glass simple and go for high-CRI vanity lighting so grooming is accurate without harsh shadows.

save pin

5) Light, storage, and edges: balconies, bay windows, and niches

My Take — I’m an evangelist for the edges. Balconies, bay windows, and wall niches transform the perceived size of a home. In one 3 BHK, a continuous low bench under a bay window became reading nooks, plant shelves, and extra seating for parties—all while hiding seasonal storage.

Pros — Prioritizing daylight in a 3 BHK drawing plan with balcony access boosts mood and visual comfort. The WELL Building Standard’s Light concept highlights the link between daylight, circadian health, and overall well-being (WELL v2, Light). Built-in niches, headboard cubbies, and lofts above corridors add concealed capacity without shrinking rooms. When I mock up sunlight paths and shadow lines, I create daylight-first design mockups to guide glazing and shade choices before we lock layouts.

Cons — Deep balconies can steal light if not detailed with pale ceilings and reflective floors. Overhead lofts risk making rooms feel heavy—use them sparingly and keep doors flush. Built-ins are semi-permanent, so future furniture swaps may be constrained.

Tips / Dimensions — Target 600 mm depth for wardrobes and 350–400 mm for living room shelves; anything shallower won’t work for most items. Add operable windows on opposite sides for cross ventilation when possible. Use light, matte finishes around windows to bounce daylight and align curtain tracks to ceiling to elongate height visually.

[Section: 总结]

A great 3 BHK drawing plan isn’t about cramming more; it’s about orchestrating better—clear circulation, strong light, and flexible rooms. Smaller homes reward thoughtful decisions: where walls pause, how edges store, and which corners do double-duty. I’ve seen families unlock calmer mornings and cozier evenings just by fine-tuning these five levers. Which of these design inspirations are you most excited to try in your own 3 BHK?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is a good size for a 3 BHK drawing plan?

Many 3 BHKs range from about 900–1500 sq ft (85–140 sqm). Even at the smaller end, a smart layout—clear circulation, a compact foyer, and a flexible third bedroom—can feel generous.

2) How do I improve circulation in a compact 3 BHK?

Minimize dead-end corridors and align doorways so paths are intuitive. Keep 36” (900 mm) clear walkways and avoid placing large furniture in travel lines between living, kitchen, and bedrooms.

3) Is an open kitchen suitable for a 3 BHK?

Yes, if you plan ventilation and sightlines. Consider a half-height partition or fluted-glass slider to contain cooking while maintaining openness in an open plan 3 bedroom layout.

4) What’s the best way to use the third bedroom?

Design it as a convertible guest-study with a wall bed and a slim desk. Acoustic panels and blackout curtains help it switch between focus work and restful sleeping.

5) How should I place bathrooms in a 3 BHK?

Stack wet areas along a shared plumbing wall, and carve a dry vanity zone if possible. Vent each bathroom outdoors; the U.S. EPA recommends proper exhaust to reduce moisture and mold risk (EPA Bathroom Ventilation Guidance).

6) Any rules of thumb for the kitchen triangle?

Keep each leg roughly 4’–9’ with a total of 13’–26’ for efficient movement. These NKBA guidelines help streamline meal prep in a small 3 BHK kitchen layout with utility.

7) How do I maximize storage without crowding rooms?

Use wall niches, floor-to-ceiling wardrobes, and under-bench storage near windows. Keep door finishes matte and flush so built-ins visually recede into the architecture.

8) What finishes make a 3 BHK feel larger?

Light, warm neutrals, soft sheens, and continuous flooring between living-dining expand perceived space. Ceiling-height curtains and low-profile furniture keep sightlines long and calming.
