5 3d bathroom design ideas for small spaces: An interior designer’s playbook for visualizing, planning, and building a smarter small bath

3d bathroom design has quietly become the backstage hero of small-space makeovers. Over the last few years, I’ve watched clients fall in love with spa-like details—calming wood tones, matte stone textures, and softly diffused lighting—while relying on 3D visuals to make confident choices before a single tile is purchased. If you’re working with a compact footprint, you’re exactly where the most inventive ideas tend to happen.

I’ve spent more than a decade remodeling tight bathrooms in city apartments and older homes. Small spaces ignite big creativity, and they reward precise planning. In this guide, I’ll share five design inspirations I return to again and again—each grounded in real projects, clear pros and cons, and a few expert data points where it matters.

We’ll look at storage that floats, showers that open the room, lighting that flatters, tile strategies that scale well in 3D, and ventilation-plus-zoning that make everyday life smoother. I’ll weave in practical numbers and decisions I’ve made on real jobs, so you can bring your own 3d bathroom design ideas to life with less risk and more joy.

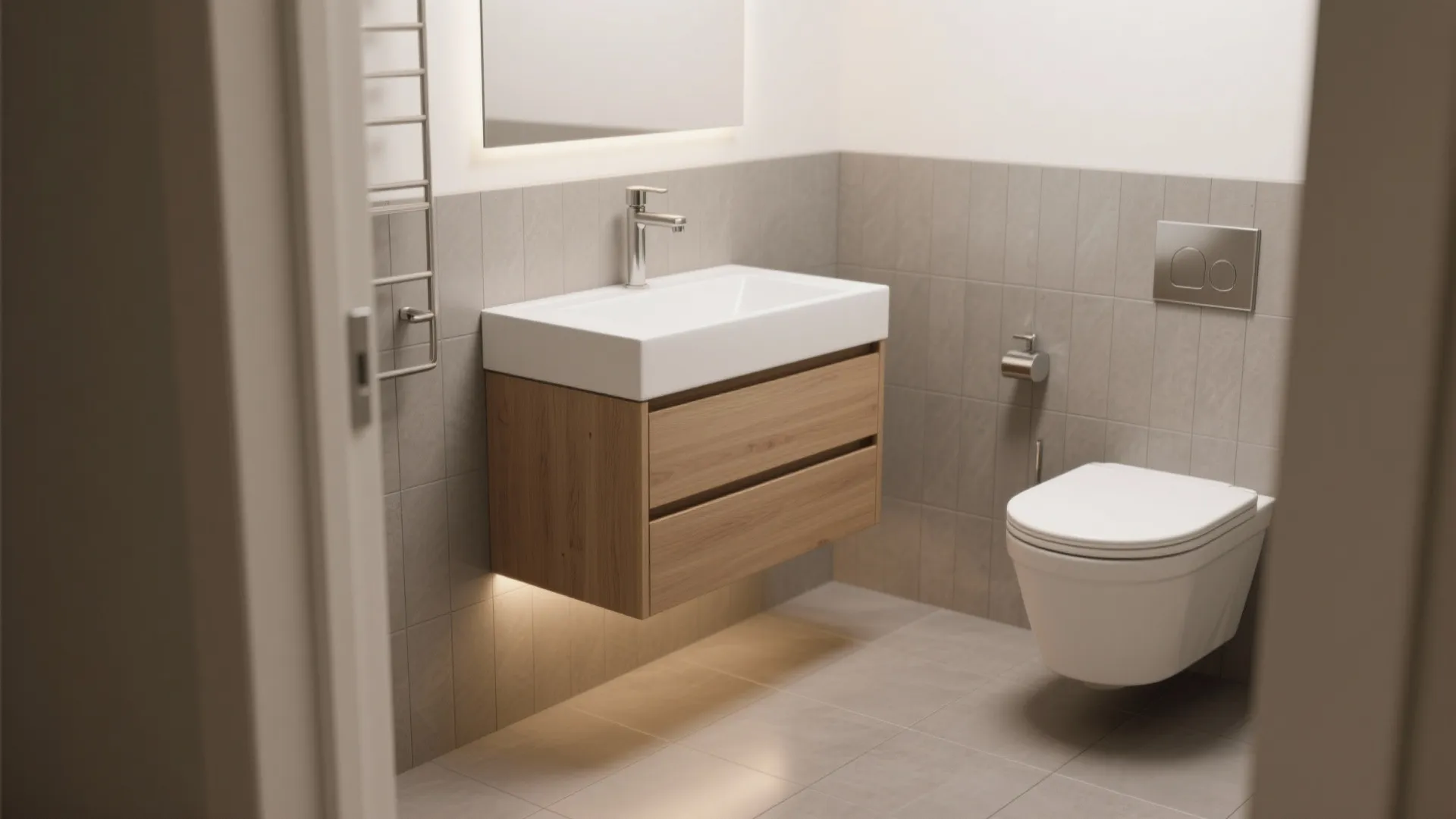

Float the vanity, lift the room

My Take: In a 38 sq ft bath I remodeled last spring, mounting the vanity and toilet on the wall instantly made the floor look larger. In 3D, I could confirm toe-kick heights, drawer clearances, and the way the floor tile continued under the cabinet. It’s still my favorite small-bath illusion because it works from the doorway and in photos.

Pros: A wall-hung vanity visually expands the floor and makes cleaning simpler—great for small bathroom 3d layout comparisons. You also gain options for underglow lighting and easy access to radiant floor heat if you have it. Pairing a shallow-depth sink with a floating vanity storage solution preserves usable circulation without giving up countertop space.

Cons: You need solid blocking and in-wall plumbing, so it’s harder to retrofit in older buildings with fussy studs. Wall-hung fixtures can cost more up front, and a virtual bathroom remodel may not expose hidden pipes or odd joist directions until demolition. I’ve learned to keep a healthy contingency for surprises behind plaster walls.

Tips/Case/Cost: Plan 2x6 blocking at the correct height for brackets and carriers; I set the vanity top around 34–35 inches for most adults. Budget roughly $250–$800 extra for wall-hung hardware versus a freestanding cabinet, plus patching. In your first concept sketch, try this: a floating vanity makes the floor look bigger—then adjust widths and drawer fronts in 3D until the proportions feel calm and cohesive. a floating vanity makes the floor look bigger

save pin

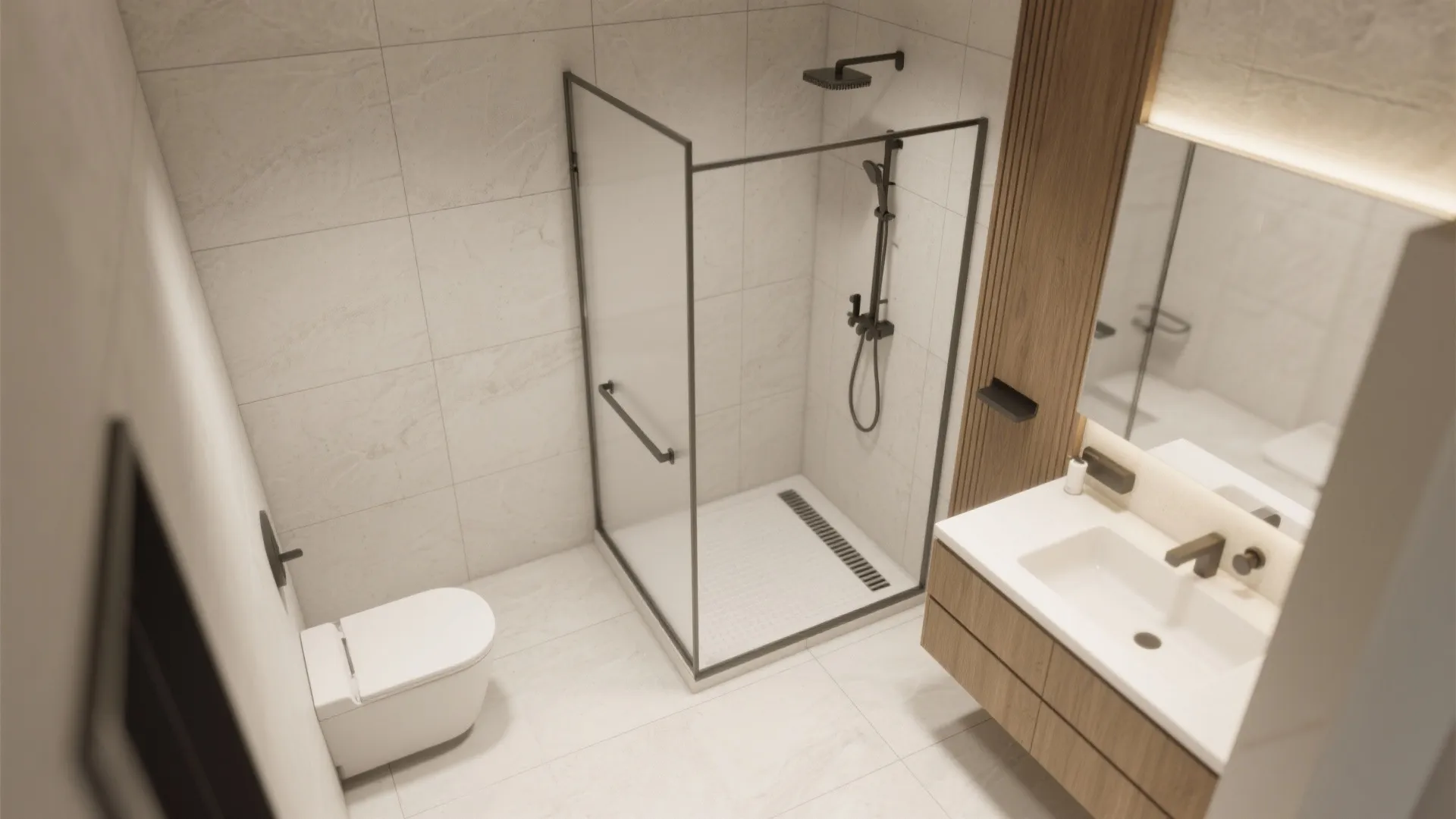

Go curbless with frameless glass

My Take: The most transformative upgrade for a small bathroom is a curbless shower with a linear drain and a single pane of frameless glass. In one 5' x 7' bath, removing the curb erased visual clutter; slope and tile joints were modeled in 3D so we knew the grout lines would track perfectly.

Pros: Curbless shower design improves accessibility and futureproofs the space without shouting “accessible.” It also keeps the eye moving across a continuous floor, which matters in compact 3d bathroom design ideas. For sizing, I often follow National Kitchen & Bath Association guidance—codes allow a 30" x 30" minimum shower, but NKBA recommends 36" x 36" for comfort (NKBA Bathroom Planning Guidelines).

Cons: Waterproofing must be meticulous, and some slabs won’t allow recessing for slope—especially in condos. Glass placement takes finesse; a pane that’s too short can cause splash outside the wet zone. I still laugh about the time a client’s very enthusiastic showerhead turned the vanity into a “water feature.”

Tips/Case/Cost: Use large-format, matte porcelain with a slip-resistant rating (look for R10/R11) on the shower floor, and maintain a consistent 1/4" per foot slope to the drain. When possible, run the same floor tile into the shower for visual continuity, then use a simple silicone sweep at the glass edge to control spray. Expect linear drains to add $300–$900 over a point drain, plus labor.

save pin

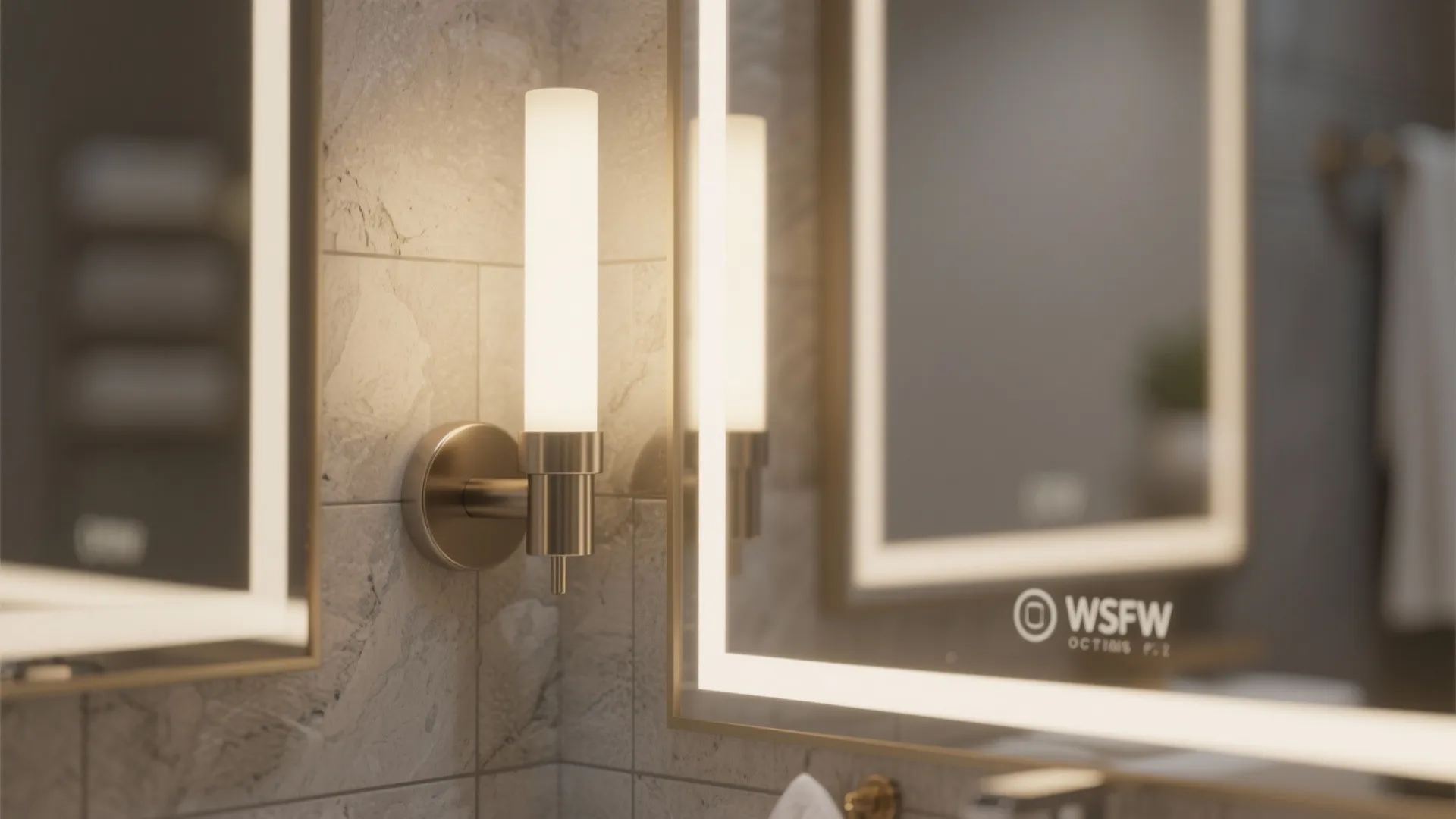

Layer light the way you live

My Take: Great bathrooms have three layers: task, ambient, and glow. I often run light studies in 3D to compare 2700K, 3000K, and 4000K scenes; one client who does detailed makeup found 3000K with 90+ CRI at face height beside the mirror to be her sweet spot, while a dim 2700K ceiling layer kept evening baths serene.

Pros: A thoughtful bathroom lighting plan minimizes shadows by placing vertical lighting at eye level and spreading soft ambient light across walls and ceiling. Smart mirrors with tunable white and a dimmer can adapt from morning precision to a spa mood at night. In 3D, it’s easy to test beam spreads and glare control before you buy fixtures.

Cons: Over-reliance on downlights can raccoon your eyes and flatten textures—the exact opposite of what you want in a small bath. Controls can become confusing if every zone has a separate switch; I prefer one main dimmer and a simple scene control. And yes, if the anti-fog feature isn’t sized right, even a fancy mirror can mist up on a cold morning.

Tips/Case/Cost: As a rule, I center vertical sconces 60–66 inches above the floor and 28–36 inches apart, depending on mirror width. Keep fixtures at least IP44 near the wet zone and look for 90+ CRI. Before ordering, I like to review mood-accurate visualizations for lighting scenes to validate brightness and color harmony. mood‑accurate visualizations for lighting scenes

save pin

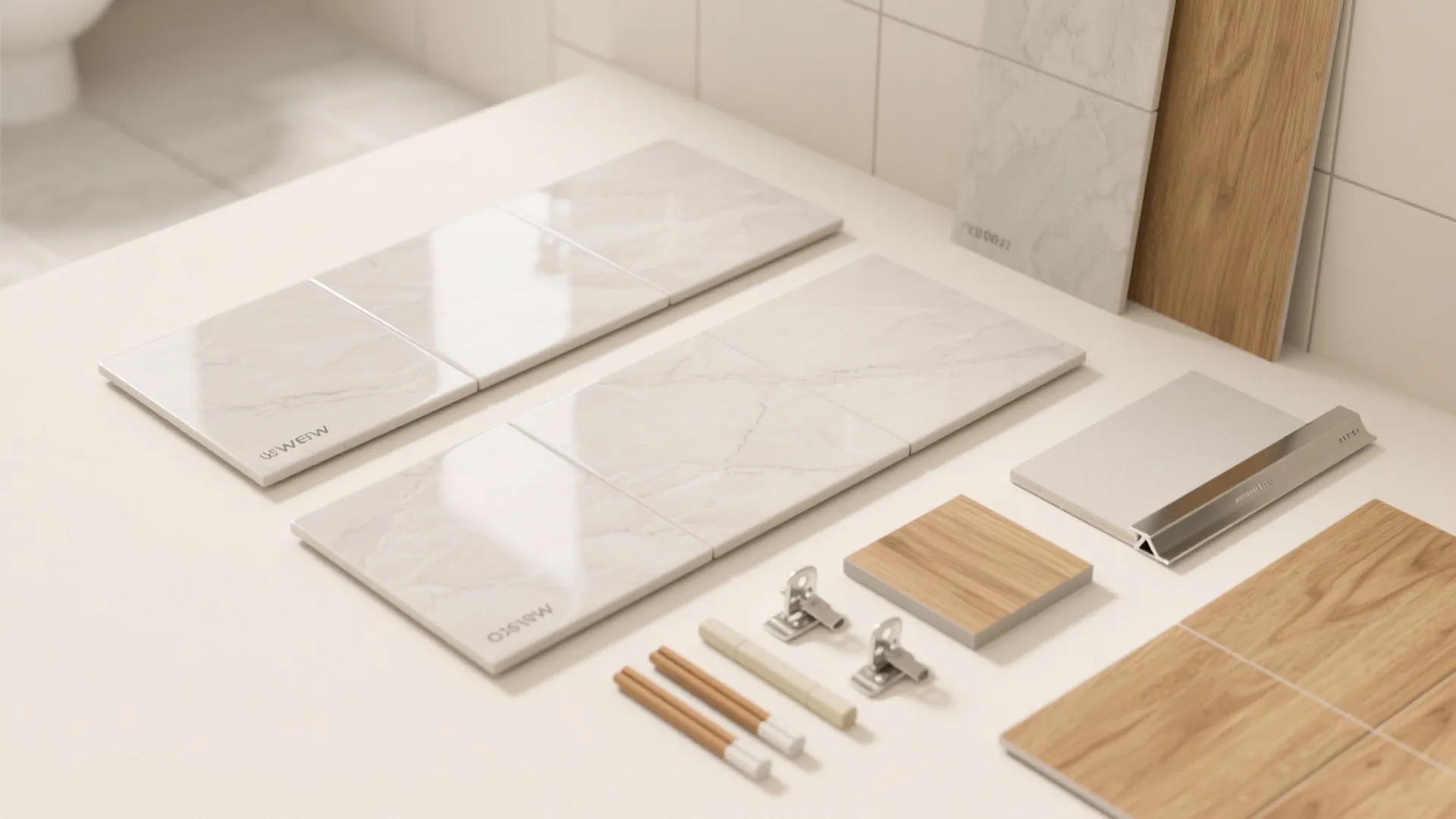

Tile smarter: scale, pattern, and grout strategy

My Take: When space is tight, tile is your canvas. I’ve had the best results with large-format floor tiles (24" x 24" or 24" x 48") and a stacked vertical pattern on walls to “stretch” the height. In 3D, I can match slab veining across cuts and verify that lines align from the niche to the bench and down to the floor.

Pros: Fewer grout lines mean easier cleaning and a calmer look—especially with color-matched grout and rectified edges. A 3d tile layout helps you preview lippage risk, cut lines, and pattern direction so you buy the right number of boxes and reduce waste. Glossy wall tiles bounce light, while matte floors keep you sure-footed.

Cons: Large-format tiles demand a flatter substrate and skilled installers; otherwise, lippage will drive you nuts. Small mosaics conform to slope but require more grout maintenance over time. And no matter how beautiful the slab, remember: too many competing patterns can make a small room feel busy fast.

Tips/Case/Cost: Order 10–15% overage (more if you’re doing book-matched slabs or complex cuts). Use a leveling system for large tiles and plan trim: I default to clean metal profiles when bullnose isn’t available. For niches, I model shelf heights to fit favorite bottles, then choose either large-format tile returns or a balancing accent mosaic so the niche looks intentional, not like an afterthought.

save pin

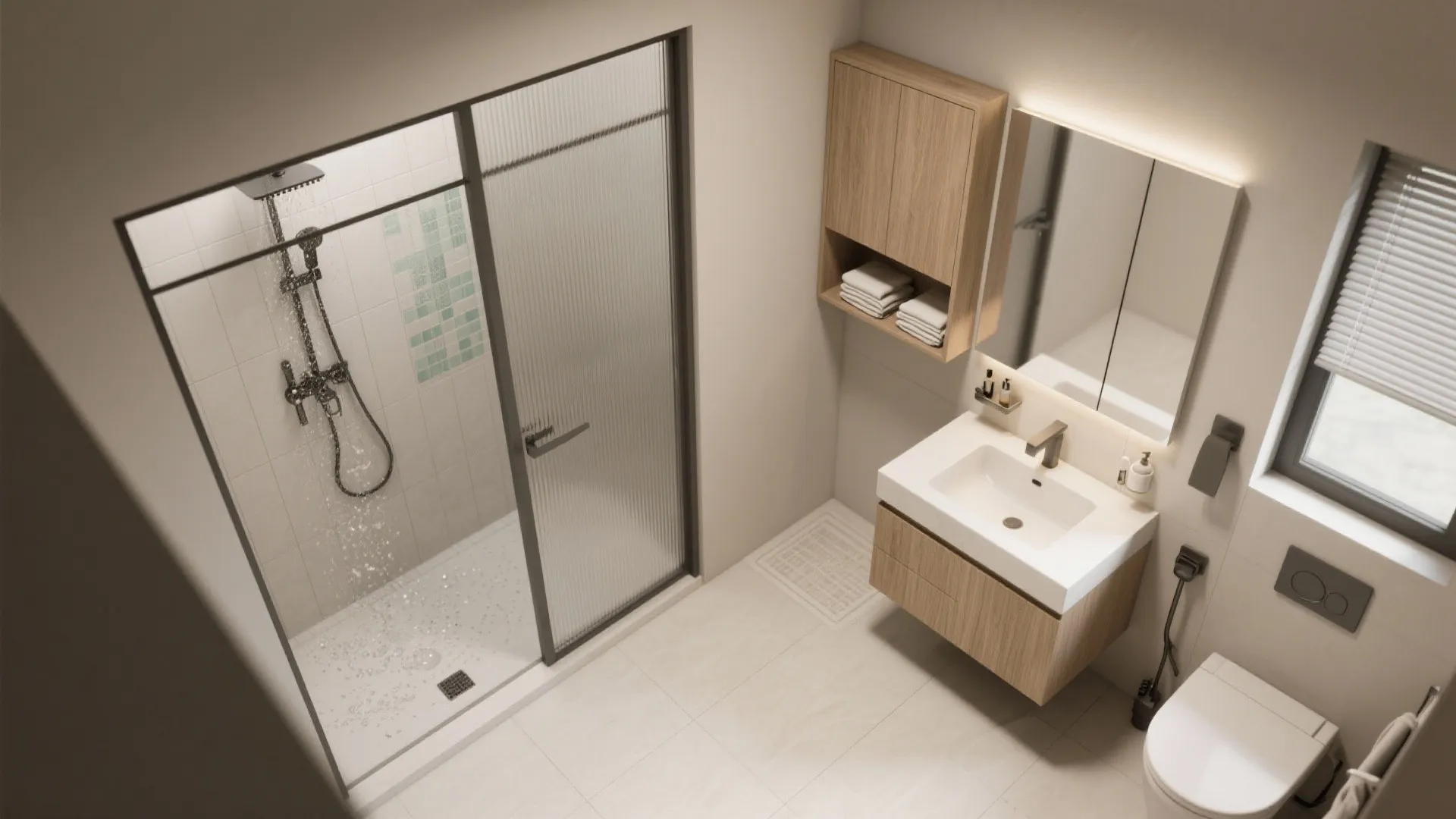

Ventilate, zone, and stash like a pro

My Take: The “wet/dry” split is my quiet superpower in small baths: keep the shower and splashy tasks on one side, and make the other side feel like a calm dressing zone. I often pair a pocket door with a recessed medicine cabinet and a shallow linen niche so storage feels built-in, not tacked on.

Pros: Good ventilation protects finishes and mirrors, and it’s essential for durable, healthy spaces. As a baseline, ENERGY STAR/ASHRAE guidance targets at least 50 CFM intermittent or 20 CFM continuous mechanical exhaust for bathrooms; quieter fans (≤1.5 sones) get used more, meaning less humidity and fewer mold worries (ENERGY STAR Ventilation Fans). A clear small bathroom 3d layout makes wet/dry zoning and storage placements easier to coordinate with trades.

Cons: Pocket doors trade a bit of acoustic privacy and require careful planning for switches and pipes inside the cavity. Fans sized too small (or too noisy) won’t be used; nothing ruins a beautiful bath like persistent fog. And yes, running new ductwork through an old brick wall can turn into a weekend you won’t soon forget.

Tips/Case/Cost: I measure from the centerline of the toilet to side walls—15 inches is a common code minimum, but I aim for 18 inches for comfort, and I like 30 inches clear in front of the vanity when possible (NKBA suggests 30" recommended front clearance for lavatories). Choose a recessed cabinet that’s wider than you think you need, and line a shallow linen niche with wood-look porcelain or sealed oak for texture. When you’re testing layouts in 3D, lean on AI‑assisted layout suggestions to iterate faster and avoid dead corners. AI‑assisted layout suggestions

Wrapping up: a small bath isn’t a limitation—it’s an invitation to design smarter. With 3d bathroom design, you can validate clearances, light quality, and tile alignments before you commit, and you’ll catch expensive mistakes on screen instead of on site. The net effect is a room that feels larger, functions better, and lasts longer—because the decisions behind it were tested, not guessed.

For code and comfort dimensions, I routinely reference NKBA Bathroom Planning Guidelines and ENERGY STAR fan criteria—both practical anchors for decisions you’ll actually live with. Which of these five ideas are you most excited to try first?

save pin

FAQ

1) What is 3d bathroom design, and why use it for a small bath?

It’s a virtual modeling process that lets you test layouts, finishes, and lighting before you spend on materials. For compact rooms, seeing sightlines and storage in 3D helps prevent crowding and wasted purchases.

2) How accurate are 3D renders compared to real life?

Modern tools can simulate scale, textures, and even light direction very well if you input accurate dimensions and realistic materials. I still bring samples on site to confirm color and sheen under your actual lighting.

3) What’s the best tile size for a small bathroom using 3D planning?

Large-format tiles (like 24" x 24") reduce grout lines and visually calm the floor, while mosaics fit complex slopes in showers. In a 3D preview, check lippage risk, cut lines, and how patterns align at niches and corners.

4) Is a curbless shower realistic in an apartment?

Often yes, but you’ll need to confirm if the floor can be recessed or if a low-profile pan is allowed. Waterproofing and slope are critical; I typically model the drain detail in 3D and verify it on site with the contractor.

5) How much space do I need in front of the toilet and vanity?

Many codes allow 21 inches clear in front, but the NKBA recommends 30 inches for comfort and accessibility. I aim for those recommended numbers when the footprint allows (NKBA Bathroom Planning Guidelines).

6) What color temperature should bathroom lights be?

For grooming, I like 3000K with 90+ CRI at face height to avoid shadows; for relaxation, 2700K dimmed is soothing. In 3D, try both scenes to see how paint and tile shift under different light.

7) How strong should my bathroom exhaust fan be?

A practical target is 50 CFM intermittent or 20 CFM continuous, per ENERGY STAR/ASHRAE guidance, and low noise (≤1.5 sones) so you’ll actually use it. Run it during and for 20 minutes after showers to clear humidity (ENERGY STAR).

8) How can I control budget with 3d bathroom design?

Decide a priority list in 3D—layout, tile, and lighting first—then assign “save” and “splurge” items. Lock the major decisions early so you can shop sales and avoid costly mid-project changes.
