5 Bathroom Drain Design Ideas from a Pro: Small bathrooms, smarter drainage: my go-to layouts, code notes, and tricks for dry, beautiful floors

[Section: 引言]

Trends like curbless showers, large-format tile, and wet-room layouts are reshaping bathroom drain design—and I’m here for it. I’ve led dozens of small-bath remodels where the drain layout quietly determined whether the room felt effortless or frustrating.

Small spaces ignite big creativity. When every square inch matters, the right drain strategy can unlock a truly seamless layout, better accessibility, and easier cleaning.

In this guide, I’ll share 5 bathroom drain design ideas I rely on, blending my project notes with code-backed details. You’ll get real pros and cons, a few quick cost flags, and the little tweaks that make a huge difference.

[Section: 灵感列表]

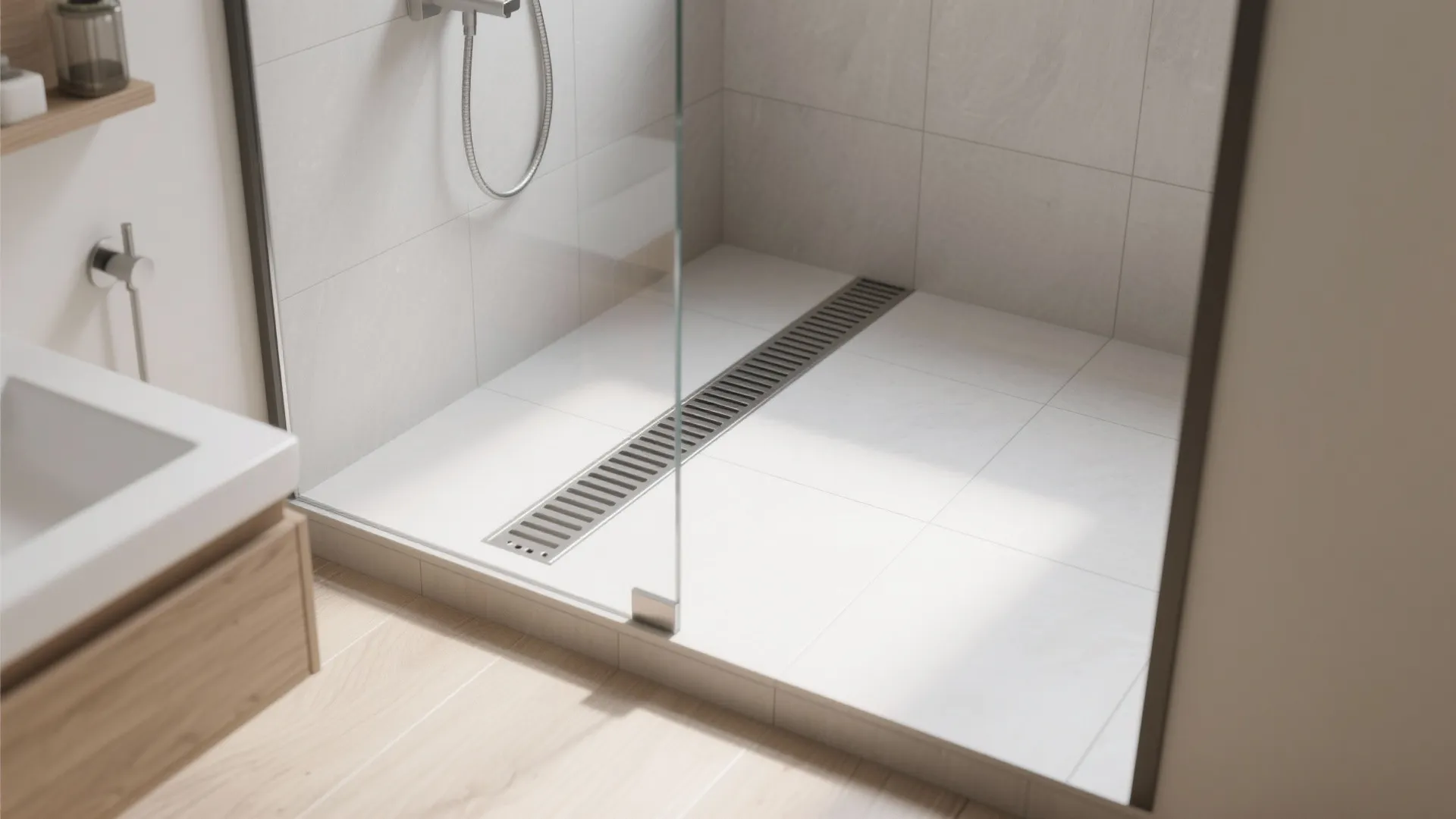

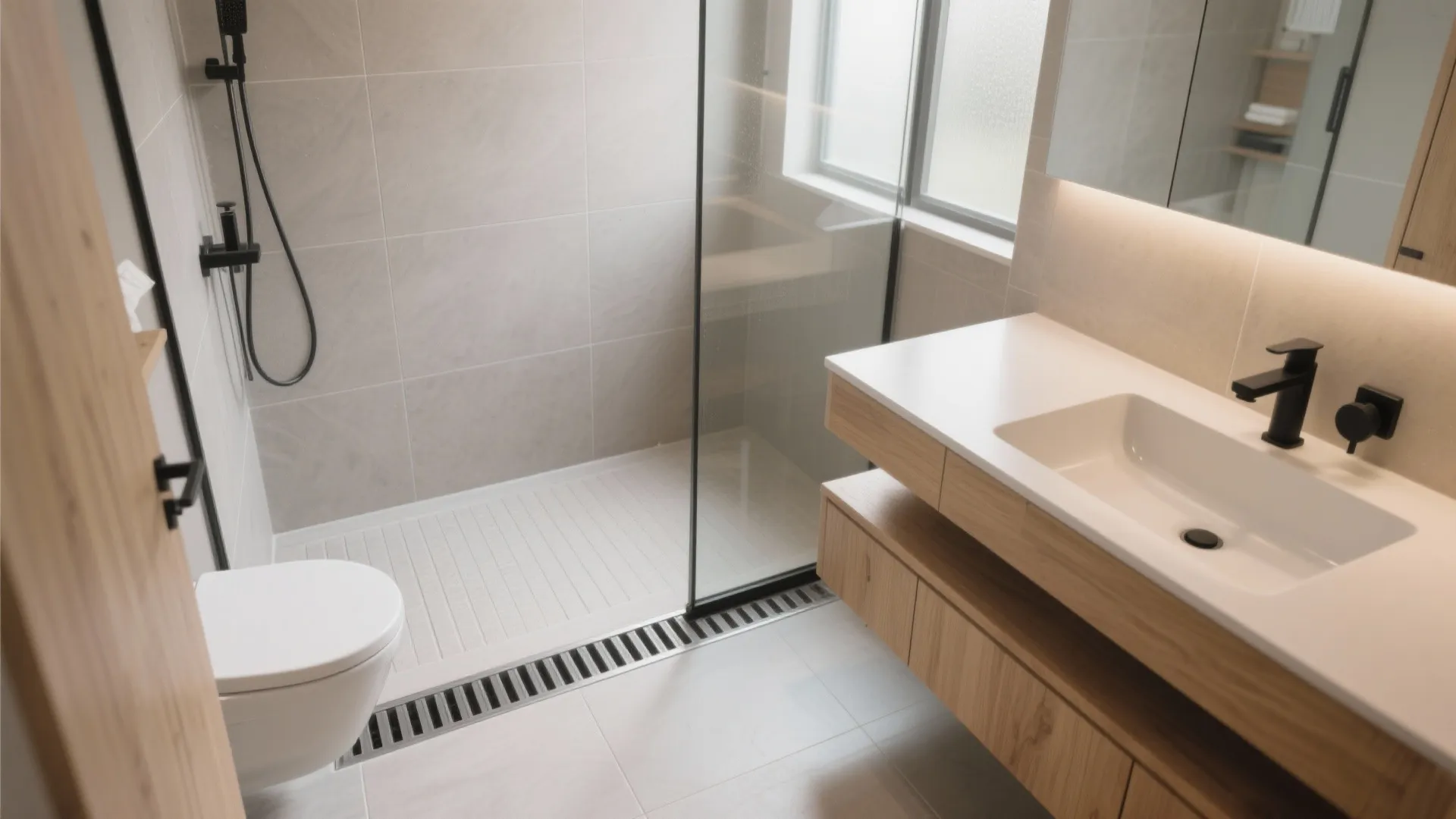

Linear drain for a single-plane, curbless shower

My Take — My favorite small-bath win was a 45 m² studio where we tucked a linear drain along the back wall and ran the entire shower floor on a single slope. The space felt bigger, the tile lines were calm, and my client could roll a laundry cart right in. It’s now my default for compact, modern baths.

Pros — A curbless shower linear drain lets you use large-format tiles with fewer cuts and a gentler visual field. The single-plane slope is easier to understand during prep, and it’s compatible with accessible entries. Code-wise, you still need pitch to the drain (not less than 1/4 inch per foot), which keeps water flowing correctly (IRC 2021 P2709.3; IPC 2021 §417.5.2).

Pros — It’s also flexible for small-space bathroom drain design because you can run the grate near the wall, freeing the rest of the floor for a clean, open feel. Clients often notice how “quiet” the room looks—no pinwheel slopes or awkward cuts.

Cons — Linears cost more upfront than a simple center drain, and the waterproofing details (end caps, corners, and transitions) demand a careful installer. If the slope is too shallow or the grate sits proud, you’ll feel it underfoot and see water linger.

Cons — Cleaning is different. Hair collects along the channel, so plan for a removable hair catcher and a quick rinse routine. The good news: when specified right, maintenance is quick and predictable.

Tips / Case / Cost — I like placing the drain tight to the back wall with a recessed, full-length channel. Budget-wise, expect the drain itself to be pricier than a point drain, with labor slightly higher due to precise prep. My prototyping trick is sketching a curbless shower slope layout early so the tile and drain details align on paper before demo.

save pin

Center point drain with a mosaic field

My Take — When the budget is tight or the subfloor is fussy, I still love a classic center drain paired with 2x2 mosaics. It’s forgiving on the compound slope and makes it easy to hit the required pitch without weird lippage.

Pros — With a center point drain, the floor slopes evenly from all sides, which works well for small showers and standard pans. Using a mosaic tile field naturally handles the contouring—super helpful for precise bathroom drain design in tight spaces.

Pros — Parts are easy to source, and you can choose a square grate to align with tile lines for a cleaner look. If you’re dealing with an older building or less-than-perfect framing, this layout is often the most practical way to achieve the required pitch.

Cons — A center drain can create more visible “pie-slice” tile lines, especially with larger tiles, which some clients find busy. Large-format tiles typically need many cuts or risky feathering—best to avoid them right at the drain and use mosaics inset.

Cons — Placement matters; if the drain sits too close to a wall, the four-way slope can look awkward. Cleaning around the grate can also be fiddly unless you specify a lift-out cover with a built-in hair catcher.

Tips / Case / Cost — I prefer a square, tileable grate to camouflage the center and keep lines neat. For a fast refresh, replacing a dated round grate with a modern square cover can be a subtle but high-impact update.

save pin

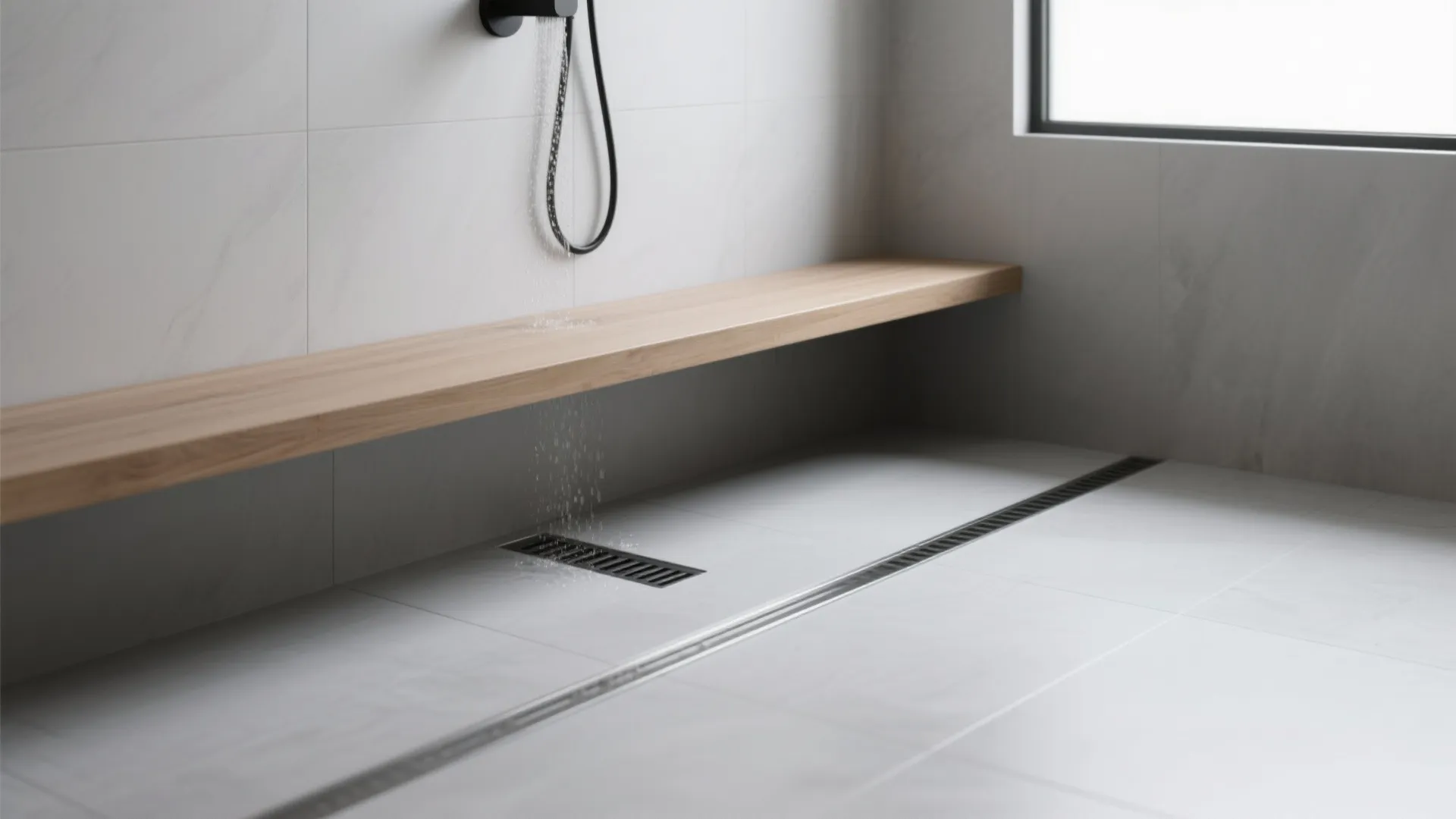

Wall slot drain for an ultra-minimal look

My Take — On a recent loft, we integrated a wall slot drain under a floating bench. The result was so invisible that guests kept asking how the water disappeared. It’s the cleanest look you can get without sacrificing performance.

Pros — A wall slot drain (sometimes called a recessed channel) lets you slope one direction and hide the grate within or just below the wall plane. For minimalist bathroom drain design, it removes visual clutter and keeps the shower floor pristine.

Pros — Single-plane slope simplifies large-format tile layouts and reduces grout lines, making cleaning easier. It also works beautifully with long, plank-style porcelain that mimics stone or wood.

Cons — Coordination is critical. Penetrations at the wall-floor junction are higher risk for leaks, so membranes, backer details, and the drain body need to be specified as a tested system. It’s not a great DIY candidate.

Cons — Access for cleaning can be trickier than with an exposed linear channel. Make sure the design includes removable covers or an accessible slot so hair doesn’t accumulate where you can’t reach it.

Tips / Case / Cost — I spec 316 stainless in coastal or high-humidity environments to prevent tea-staining and corrosion. To align the slopes and bench height, I like to test a sectional slope diagram for linear drains before committing to the tile layout—saves a ton of rework later.

save pin

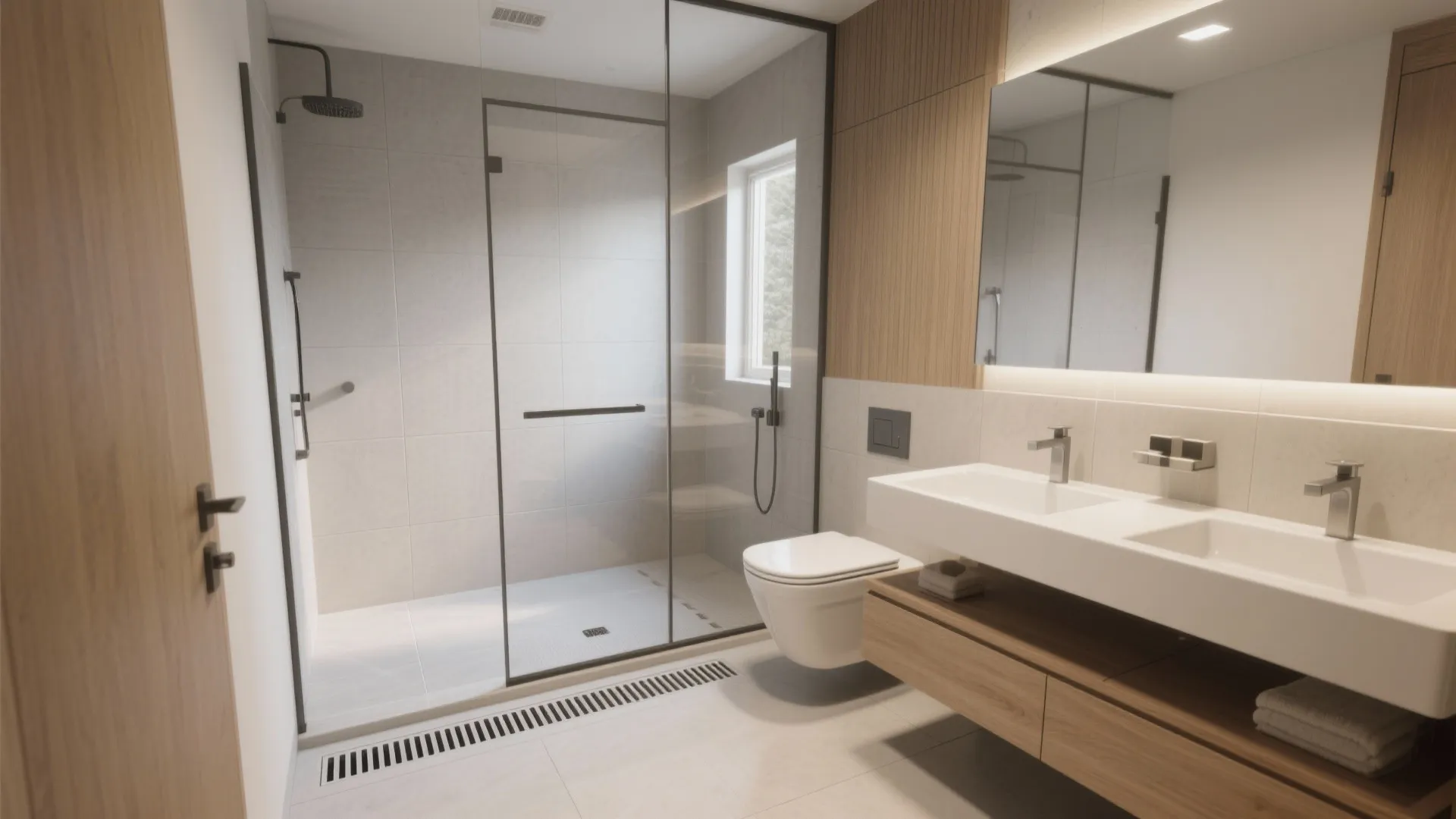

Wet room layout with zoned drainage

My Take — For a family with a tiny bath, we converted the entire room into a wet zone with a gently sloped field and a glass screen. Bath time went from chaos to breezy clean-up, and they gained the visual space of a much larger room.

Pros — A wet room allows the entire floor to shed water toward the drain, so even overspray or kids’ splashes are safely handled. It’s one of the most flexible approaches to bathroom drain design for small spaces because you can keep the threshold low and the sightlines open.

Pros — You can pair a linear drain along the back wall with a single-plane slope, which plays nicely with large-format tile. With fewer transitions and fewer grout joints, the bathroom reads more like a spa and less like a patchwork of zones.

Cons — Waterproofing must be rock-solid from floor to walls, including any niches and penetrations. Expect a bit more material and labor cost for membranes, banding, and edges, plus time for flood-testing before tile.

Cons — Humidity control is critical. Even with perfect drainage, a wet room needs a properly sized exhaust fan and enough air changes; otherwise, mirrors and finishes will suffer. Plan for a quiet fan and a timed control to keep moisture in check.

Tips / Case / Cost — I like a 1.5–2% floor slope for comfortable footing, with a gentle trough near the shower zone. If the room doubles as a laundry area, a small secondary floor drain outside the shower can be a lifesaver for accidental leaks.

save pin

Odor control, trap seals, and maintenance access

My Take — One of my earliest “mystery smell” calls turned out to be a shallow floor drain trap that kept evaporating. We replaced it with a deeper-seal unit, added a discreet primer, and the problem vanished. That project taught me: performance lives in the details.

Pros — Odor-free bathrooms rely on correct trap seal depth and venting. Codes require a 2–4 inch water seal (IPC 2021 §1002.4), and certain floor drains in evaporation-prone areas need trap seal protection like primers or mechanical trap seals (IPC 2021 §1002.4.1). Specify these once and forget about the funk.

Pros — Maintenance access matters. Choose drains with lift-out grates and a removable basket so hair and soap scum don’t sit in the trap. For clients who like long hair or use heavy conditioners, I spec a “shower drain with hair catcher” and put cleaning on a monthly calendar.

Cons — More parts mean more coordination: primer lines, access hatches, and compatible drain bodies. If you skip the primer in a hot, dry climate or leave a floor drain dry for months, the trap can still evaporate and let sewer gases in.

Cons — Some anti-odor devices add slight flow resistance, which can be noticeable if the shower head is high-flow. Make sure the drain’s rated capacity meets the fixture flow rate, and consider a low-profile trap only if the slope and outlet size support it.

Tips / Case / Cost — For tight joist bays, a low-profile, deep-seal trap can save the day, but confirm the outlet size matches your system. If space allows, I like a cleanout nearby so routine snaking doesn’t disturb tile. I also tend to position a recessed shower channel against the back wall when sightlines are sensitive, then backstop odor protection with a primer to keep everything fresh during long trips.

[Section: 总结]

Great bathroom drain design turns small square footage into a smarter, more delightful room—not a compromised one. Whether you choose a linear, center, or wall slot approach, getting the slope, waterproofing, and trap details right pays off daily.

If you remember nothing else: protect the trap seal, honor your slope, and plan your tile around the drain—not the other way around. Which of these five ideas are you most excited to try first?

[Section: FAQ 常见问题]

save pin

FAQ

1) What slope should I use for a shower floor in bathroom drain design?

Most codes call for a minimum 1/4 inch per foot (2%) slope to the drain so water clears effectively. See IRC 2021 P2709.3 and IPC 2021 §417.5.2 for the core requirement, and confirm with your local AHJ.

2) Is a linear drain better than a center drain for small bathrooms?

It depends on your goals. A linear drain supports large-format tile and a seamless, curbless entry—great for a visually larger space—while a center point drain is cost-effective and forgiving with mosaics. Both can excel with good bathroom drain design.

3) Can I do a curbless shower on a wood-framed floor?

Yes, but you may need to recess the subfloor or use a prefabricated pan to hit slope without raising finished floors. Coordinate early with your contractor so structure, waterproofing, and tile meet the plan.

4) How do I prevent sewer smells from my bathroom drain?

Maintain the trap seal, ensure proper venting, and consider trap seal protection if a floor drain might evaporate. Codes specify a 2–4 inch trap seal depth (IPC 2021 §1002.4) and allow primers or mechanical seals where needed (IPC 2021 §1002.4.1).

5) Are large-format tiles compatible with a center drain?

They can be, but you’ll usually need a mosaic inset near the drain to accommodate the compound slope. If you want uninterrupted large tiles, a linear drain with a single-plane slope is more forgiving.

6) What grate styles work best for modern bathroom drain design?

Tile-in grates and minimal slotted stainless covers blend into contemporary spaces. I align square grates with tile lines for a neat grid, especially in center-drain layouts.

7) Do I need a trap primer?

If a floor drain can sit unused (guest bath, laundry, or utility zone), a primer helps prevent evaporation and odors. Your local code or inspector may require trap seal protection in those conditions—ask early so you can rough it in.

8) How much does a linear drain setup cost compared with a point drain?

The drain body itself is typically more expensive, and prep is more exacting, so labor can tick up. I usually advise clients to invest here because daily ease of use, accessibility, and tile continuity yield long-term value.
