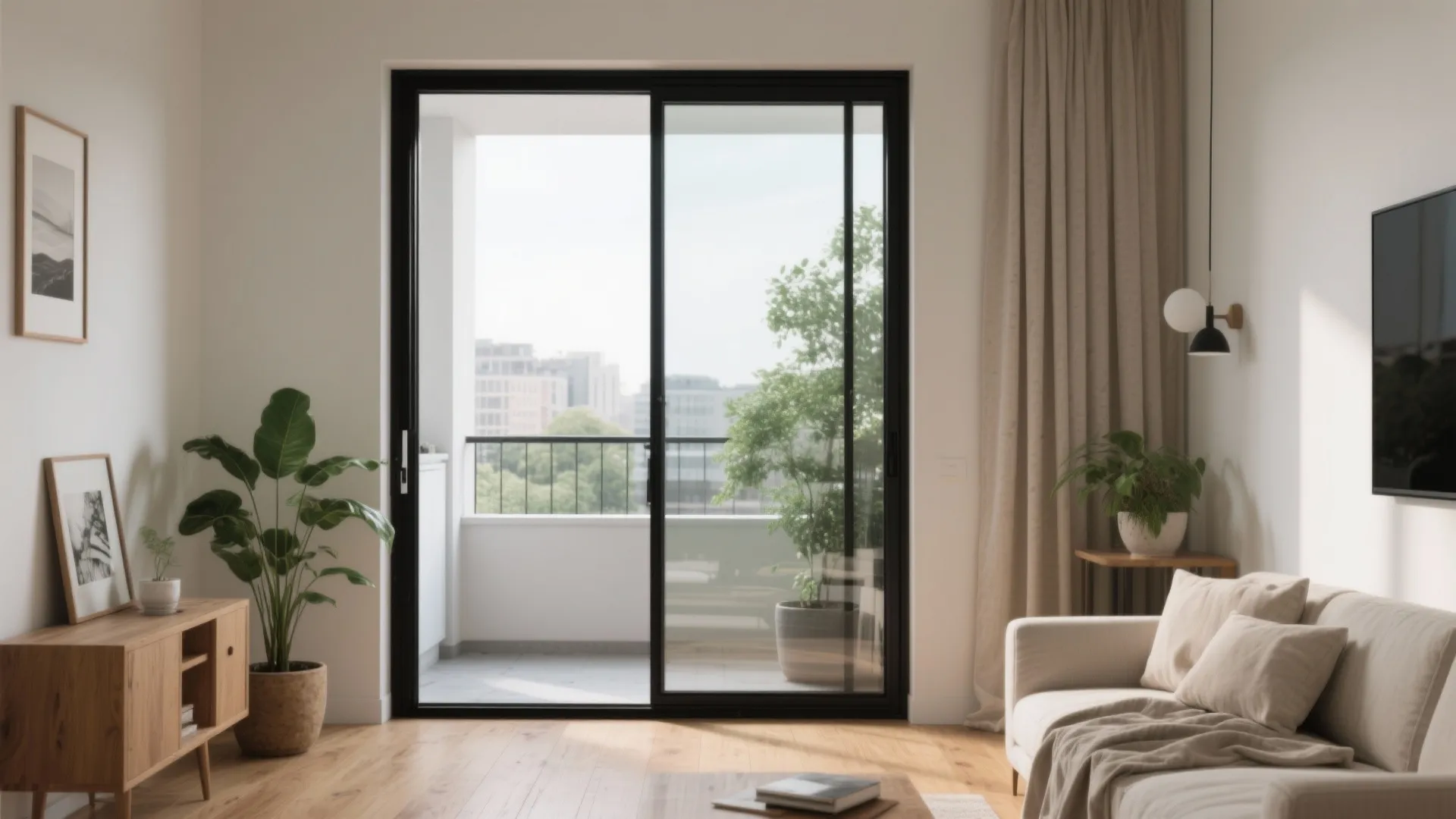

5 Balcony Window Door Design Ideas That Work: Light, airflow, privacy, and waterproofing—all in a compact balcony window door design that actually fits real life.

[Section: 引言]

I’ve spent over a decade squeezing big comfort out of small footprints, and balcony window door design is one of those areas where tiny choices make huge differences. Right now, homeowners are chasing more daylight, thinner frames, and smarter ventilation—without giving up thermal performance or privacy. Small spaces really do spark the biggest creativity, and balconies are a perfect example.

In this guide, I’ll share 5 design inspirations that I use in real projects, not just mood boards. I’ll mix personal wins (and missteps) with data I trust, so you get ideas you can actually build. Let’s make balcony window door design work for you, not against you.

[Section: 灵感列表]

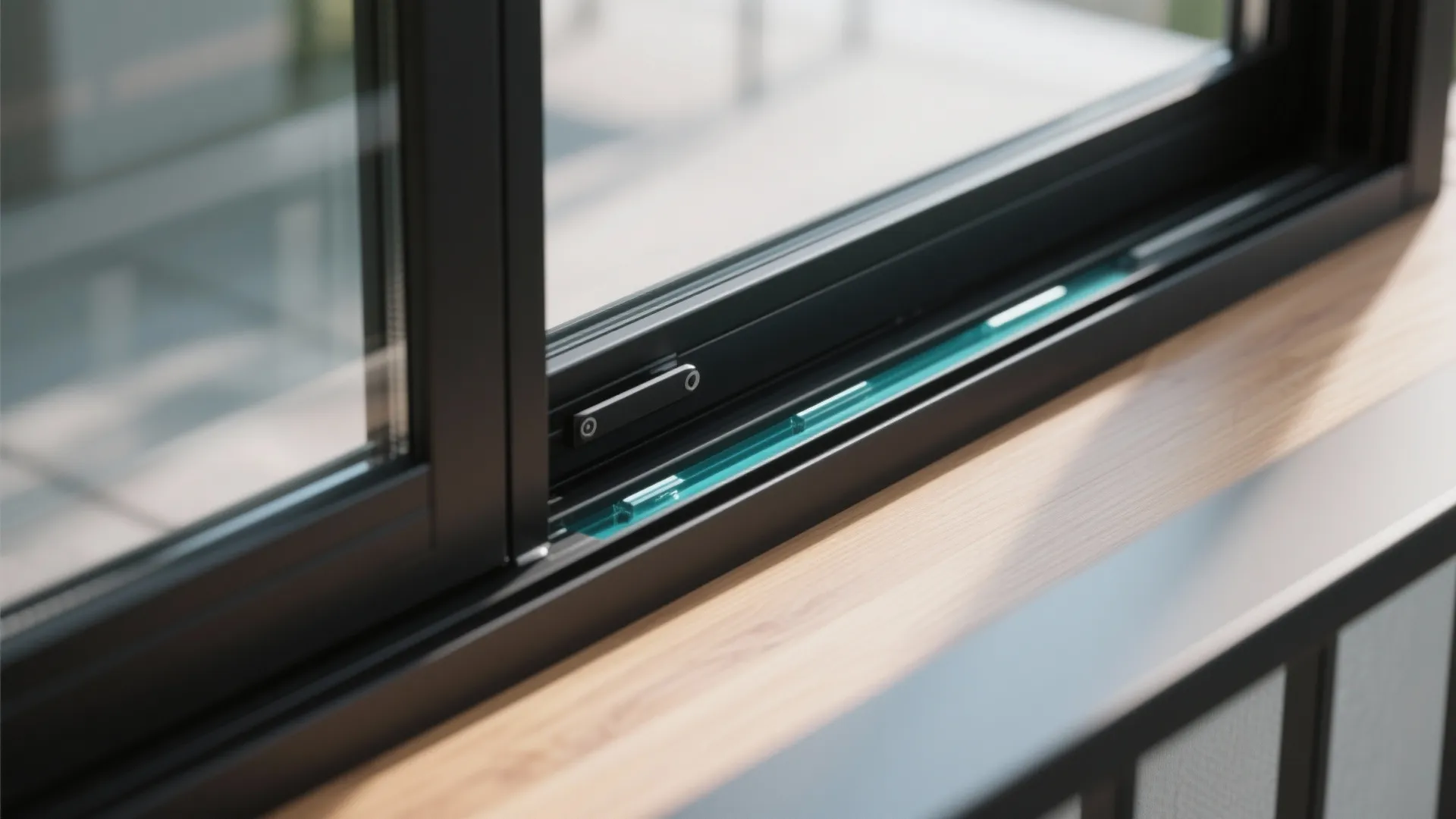

Slim-Frame Glazing and Low-E Glass for Balcony Doors

My Take

On a compact city balcony, I swapped a chunky uPVC unit for a slim thermal-break aluminum frame with low‑E double glazing. The space immediately felt a size larger, and plants stopped baking in the afternoon sun. It was one of those upgrades where everyone thinks you knocked down a wall.

Pros

Slim frames increase visible glass area, which boosts daylight and view without changing the opening size. With low‑E double glazing for balcony doors and a sensible SHGC rating, you get brightness with far less heat gain. Energy Star’s Residential Windows and Doors criteria emphasize U‑factor and SHGC—two numbers worth prioritizing if you want year‑round comfort and lower bills (source: ENERGY STAR, Residential Windows, Doors, and Skylights Program Specifications, latest revision).

Cons

Thermal-break aluminum and low‑iron glass cost more than basic units, and lead times can be longer. Super-slim profiles show fingerprints and dust; you’ll notice grime faster because the view is so clean. In high-wind zones, you may need beefier hardware that slightly increases sightlines.

Tips / Case / Cost

Ask for U‑factor and SHGC samples suited to your orientation; west and south elevations typically need lower SHGC. Expect a premium of 15–35% over standard double-glazed uPVC, depending on coatings and frame system. When I mocked up ultra-slim balcony glazing before ordering, clients instantly understood why the investment was worth it—renderings helped right-size expectations and finish choices.

save pin

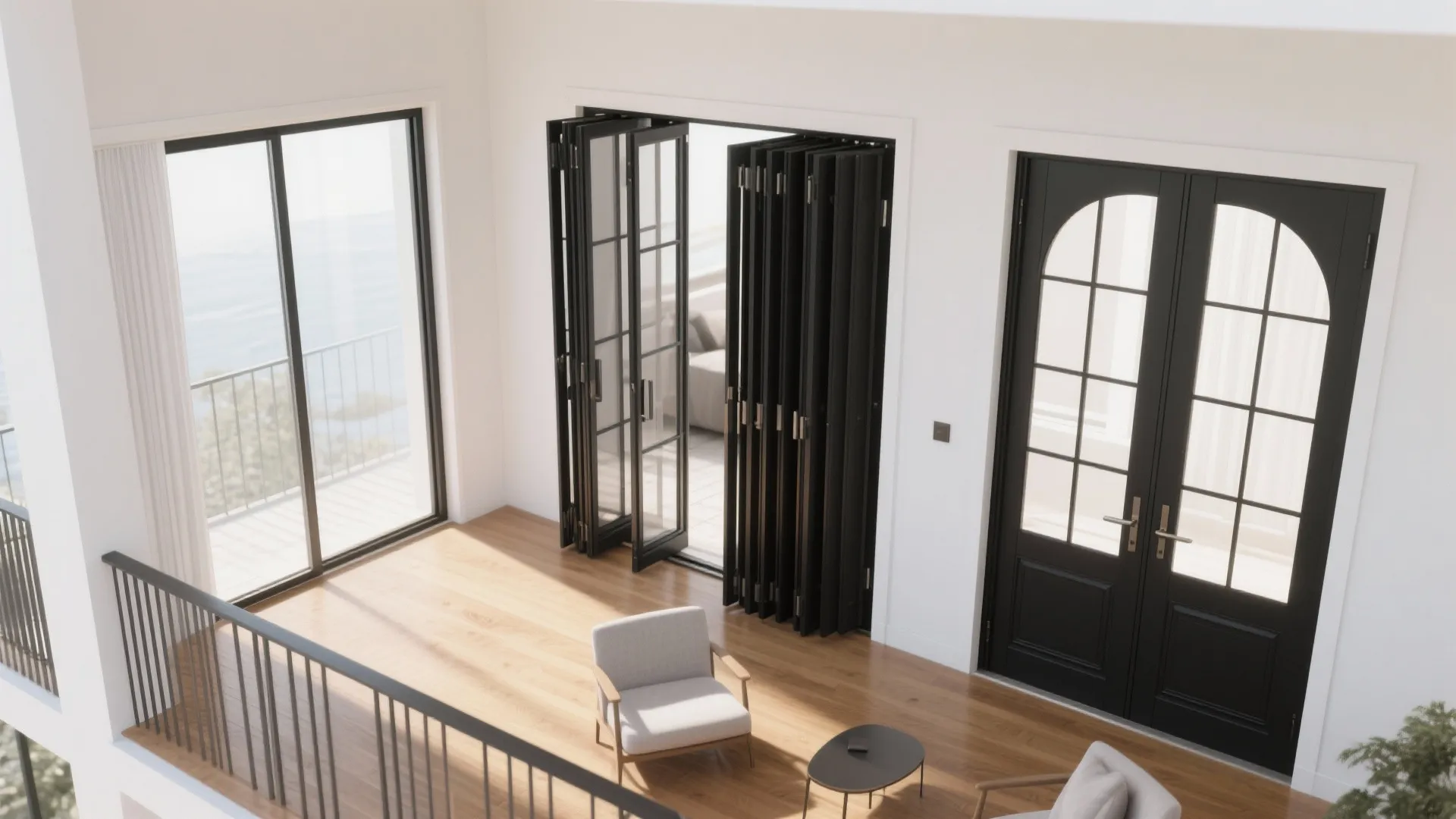

Sliding, Bi‑fold, or French: Choosing the Right Balcony Door

My Take

In tight apartments, I often default to sliding balcony doors because they don’t swing into precious living space. But when the opening is wide and the budget allows, a bi‑fold stack creates a true indoor‑outdoor moment. French doors still shine in classic interiors when you have the clearance.

Pros

Space-saving sliding balcony doors are ideal for narrow rooms and furniture-heavy layouts. Bi‑fold balcony doors give a near wall-to-wall opening in good weather, perfect for cross‑breezes and party flow. French doors pair beautifully with traditional trim and allow a centered view axis that suits formal plans.

Cons

Sliding tracks collect debris and need occasional vacuuming and lubrication; coastal grit is the enemy. Bi‑folds can be pricier, and large panels may require top-hung hardware and structural reinforcement. French doors need swing clearance and may challenge tiny living rooms or tight balcony rail distances.

Tips / Case / Cost

Set thresholds early in the build: top‑hung sliders feel smoother but require a stout header, while bottom-rolling systems are easier to retrofit. For a clean look, specify narrow stiles on French leaves and aligned sightlines across fixed and operable panels. Budget-wise, allow a 20–40% jump when upgrading from a standard slider to a multi-panel bi‑fold with quality seals.

save pin

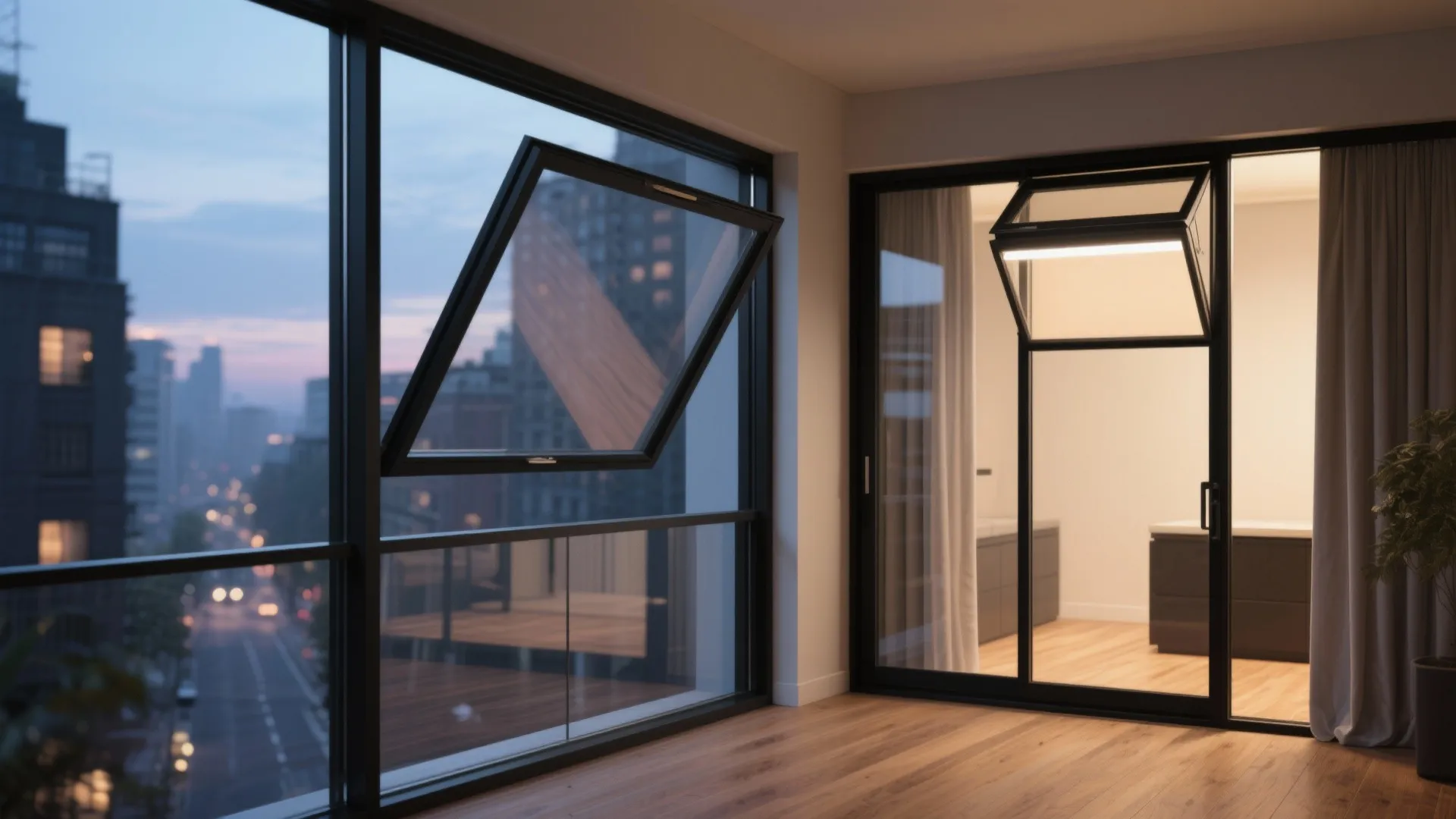

Tilt‑and‑Turn Windows for Airflow and Quiet

My Take

On one balcony facing a busy street, I paired a tilt‑and‑turn side light with a slider. We gained gentle top‑ventilation at night and drastically reduced traffic noise with an acoustic laminated pane. The client called it the first peaceful summer in years.

Pros

Tilt‑and‑turn balcony windows enable secure trickle ventilation without opening the main door. An acoustic laminated glass (think STC 35+ for busy roads) can turn a harsh facade into a calm retreat, especially when combined with a soundproof balcony sliding door assembly. When planned well, cross‑ventilation lowers reliance on mechanical cooling and keeps indoor air fresher.

Cons

Hardware is more complex and pricier than standard casements, and larger sashes can be heavy. In small openings, the tilt position slightly reduces clear daylight, which may matter for plant lovers. If you have curious pets, consider restrictors to keep the tilt gap safe.

Tips / Case / Cost

Think in sections: one fixed light for view, one tilt‑and‑turn for night vent, and a primary slider or hinged door for daily use. I often sketch a cross-ventilation balcony layout to place intakes and exhaust paths, then size trickle vents to suit. For city noise, a 6.4 mm laminated inner pane plus an insulated frame is a solid value sweet spot without going full triple glazing.

save pin

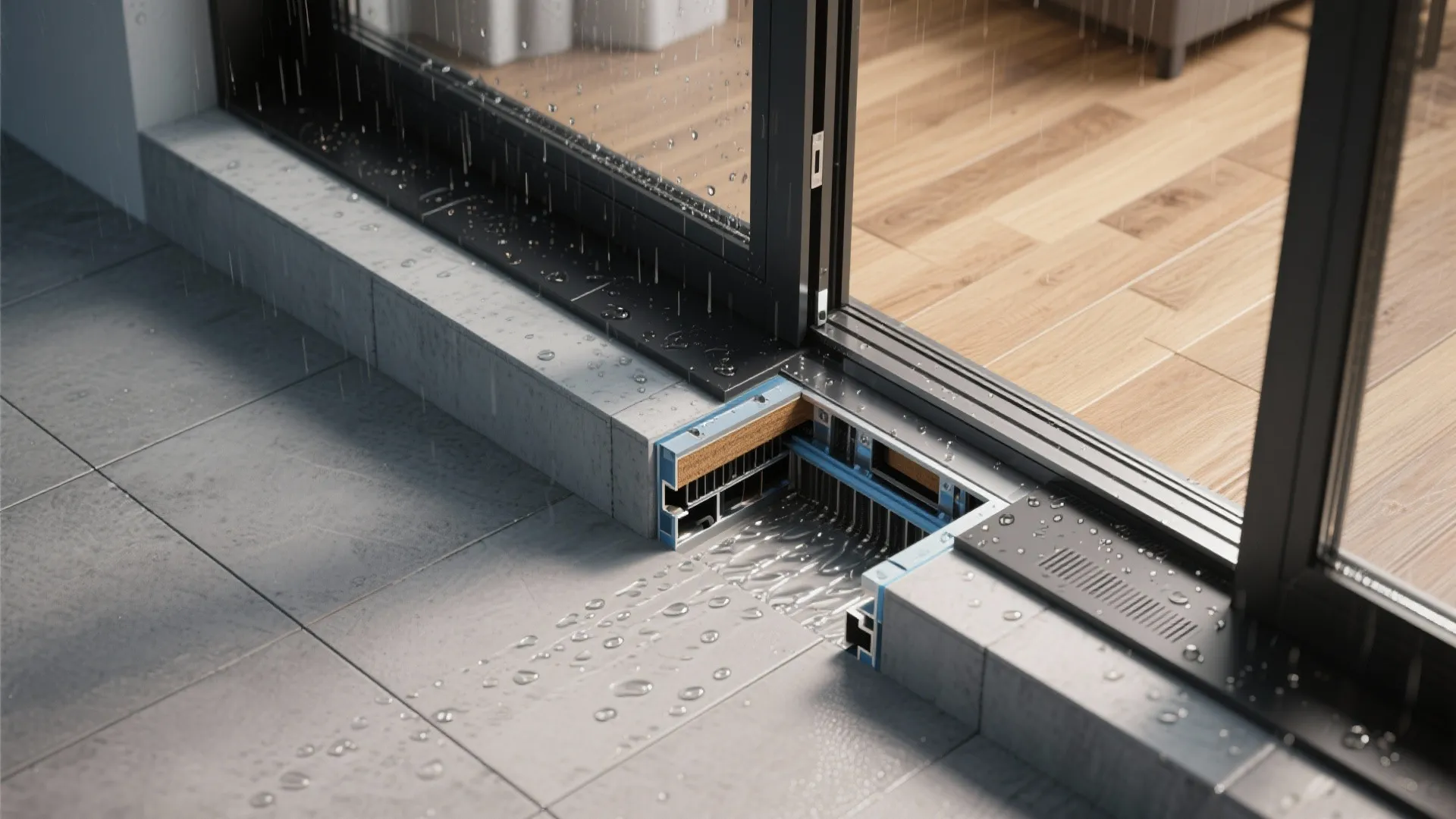

Thresholds, Drainage, and Waterproof Details That Save You Later

My Take

My most humbling call-back was a beautiful living room where wind-driven rain crept under a nearly flush threshold. We replaced the sill pan, added a sloped sub-sill, and tightened the weatherstrip. The client forgave me because we were transparent—and because the fix worked.

Pros

Balcony door threshold waterproofing is your insurance policy: a sloped pan, end dams, and correctly aligned weep paths make leaks far less likely. A thermal-break sill reduces condensation risk inside during winter. Proper exterior slope (1–2%) keeps water moving away from the door and flooring.

Cons

Zero-step looks are chic but unforgiving; even a small clog can cause backflow in heavy storms. Sill pans, sealants, and flashing tapes add upfront cost and careful labor. Retrofits may require raising adjacent floor levels to maintain proper slopes.

Tips / Case / Cost

Follow recognized installation practices; ASTM E2112 (Standard Practice for Installation of Exterior Windows, Doors, and Skylights) details sill pan and flashing sequencing—worth every minute of reading. In accessible homes, I detail a gentle interior ramp and slightly raised exterior to keep water out while minimizing trip hazards. If you’re planning a continuous interior surface, model a barrier-free balcony threshold detail early so finishes, drainage, and door clearance align without surprises.

save pin

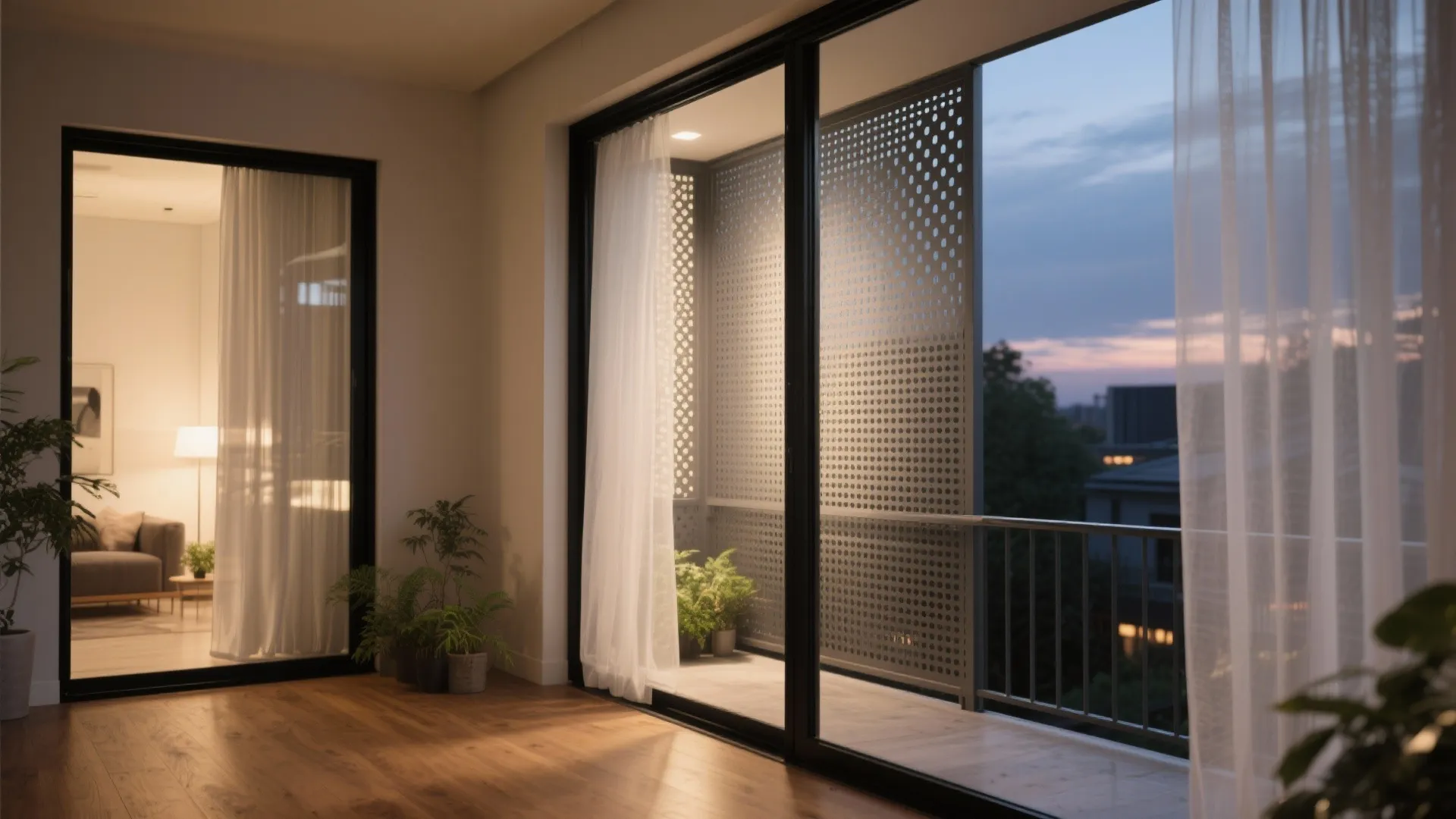

Style, Privacy, and Material Pairings for a Cohesive Balcony Look

My Take

One of my favorite small-space upgrades was layering a light-filtering fabric panel inside and a powder‑coated aluminum screen outside. By day it felt breezy and bright; by night the screen gave privacy without closing the room in. The client told me they finally used the balcony for breakfast.

Pros

Sheer drapery softens glare and catches the breeze, while exterior louvers or a perforated screen handle privacy and solar control. Frosted PVB interlayers in balcony doors provide obscurity without the maintenance of aftermarket films. Wood‑aluminum cladding warms up the look and resists weathering long term.

Cons

Any privacy layer reduces view clarity, so balance opacity against outlook. Exterior screens collect dust and may require seasonal cleaning. Mixing too many finishes (e.g., black frames, warm woods, shiny steel) can feel busy; editing is your friend.

Tips / Case / Cost

Set a palette: one frame color, one wood tone, and one accent metal keeps things calm. For renters, tension rods and clip-on blinds protect deposits while solving glare. If code requires a guard at a “Juliet” door, keep the rail minimal and aligned with mullions for a clean sightline.

[Section: 总结]

Balcony window door design isn’t about squeezing yourself into a corner—it’s about making the envelope work smarter. Small balconies demand clever glazing, right-sized hardware, and thoughtful waterproofing, not compromises. As Energy Star and good installation standards remind us, performance is measurable, and design can make it beautiful.

Which of these five ideas are you most excited to try on your own balcony—more light, quieter nights, or a cleaner threshold detail?

[Section: FAQ 常见问题]

save pin

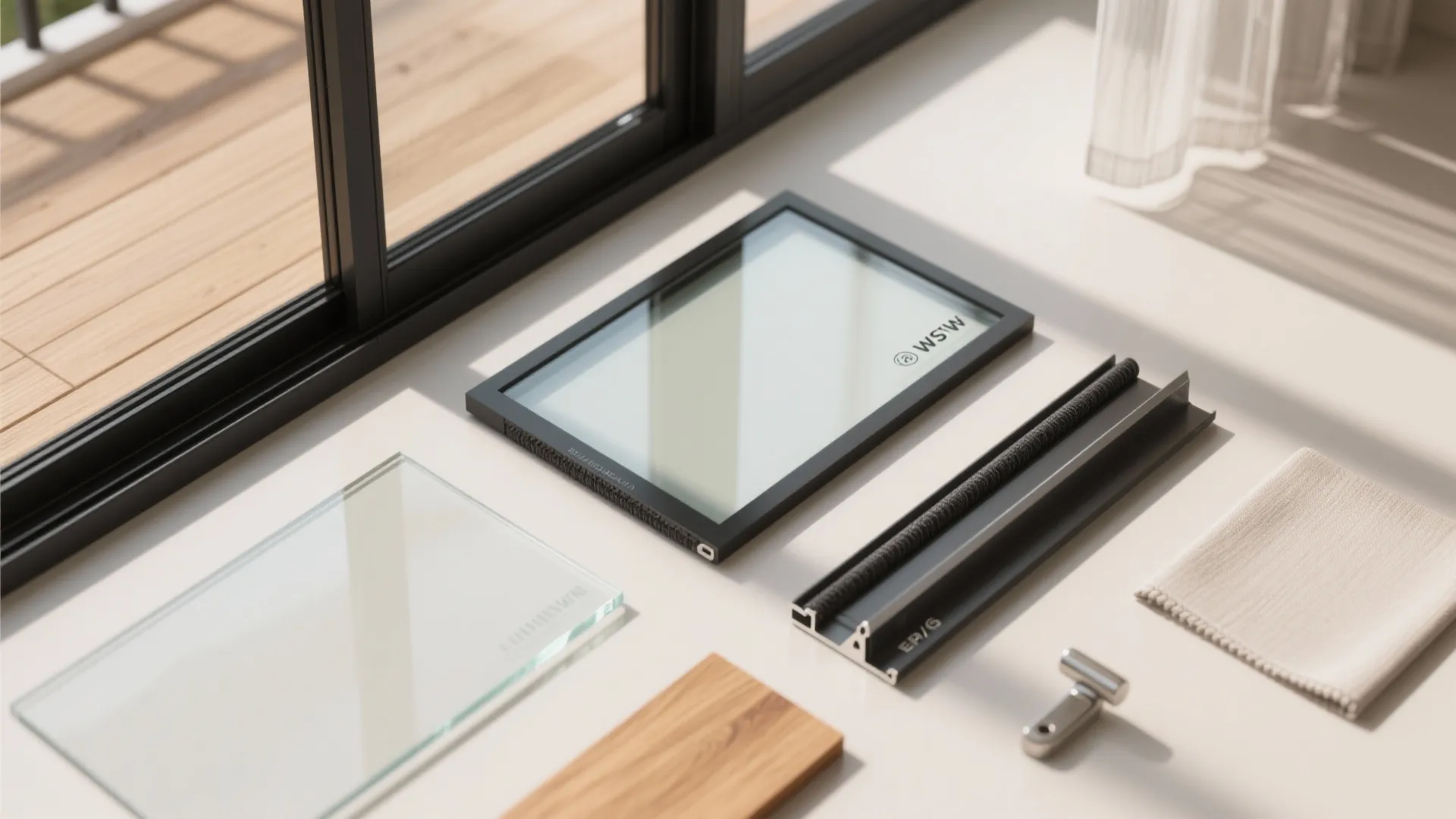

FAQ

1) What is the best glass for balcony window door design?

For most homes, low‑E double glazing with a suitable SHGC for your climate is the sweet spot. If you’re on a noisy street, upgrade to an acoustic laminated pane on the interior side.

2) Are sliding or bi‑fold doors better for small balconies?

Sliding doors usually win in tight rooms because they don’t need swing space. Bi‑folds are great for wide openings and entertaining, but cost and structure often go up.

3) How do I stop water from entering under the balcony door?

Detail a sloped sill pan with end dams, proper flashing, and exterior slope away from the door. Follow best practices like those outlined in ASTM E2112 for installation sequencing.

4) What U‑factor and SHGC should I target?

It varies by climate, but lower U‑factor generally means better insulation, and SHGC should be tuned to sun exposure. ENERGY STAR’s residential program offers climate-based targets you can discuss with your supplier.

5) Can I get better ventilation without losing security?

Yes—pair a tilt‑and‑turn window for night venting with secure hardware and restrictors. Trickle vents and smart window sensors add airflow while keeping peace of mind.

6) Do I need tempered glass for balcony doors and nearby windows?

Most building codes require safety glazing at doors and within certain distances of the floor or door edge. Check your local code or consult a licensed professional to confirm exact locations.

7) How can I improve privacy without blocking all the light?

Combine sheer curtains inside with exterior louvers or a perforated metal screen. Frosted interlayers are another option that softens views while keeping daylight.

8) What’s a realistic budget range for upgrading a balcony door and side windows?

For a quality aluminum system with low‑E double glazing, plan roughly 15–35% more than a basic uPVC set. Hardware, acoustic glass, and waterproof detailing add cost, but they pay back in comfort and durability.
