Bathroom drainage system design has become a quiet star in current interior trends. With more clients asking for wet rooms and curbless showers, I’ve learned that small spaces spark big creativity. In this guide, I’ll share 5 design inspirations—grounded in my projects and expert data—starting with a curbless shower drainage plan that simplifies decisions early.

I’ve led several compact-bath remodels where the smartest drainage choices saved budget and headaches. Expect a blend of aesthetic tricks, code-minded details, and maintenance steps to keep your bathroom dry, quiet, and odor-free. Let’s dive into five inspirations that balance looks and performance.

[Section: Inspirations]

Linear drains and smart slope geometry

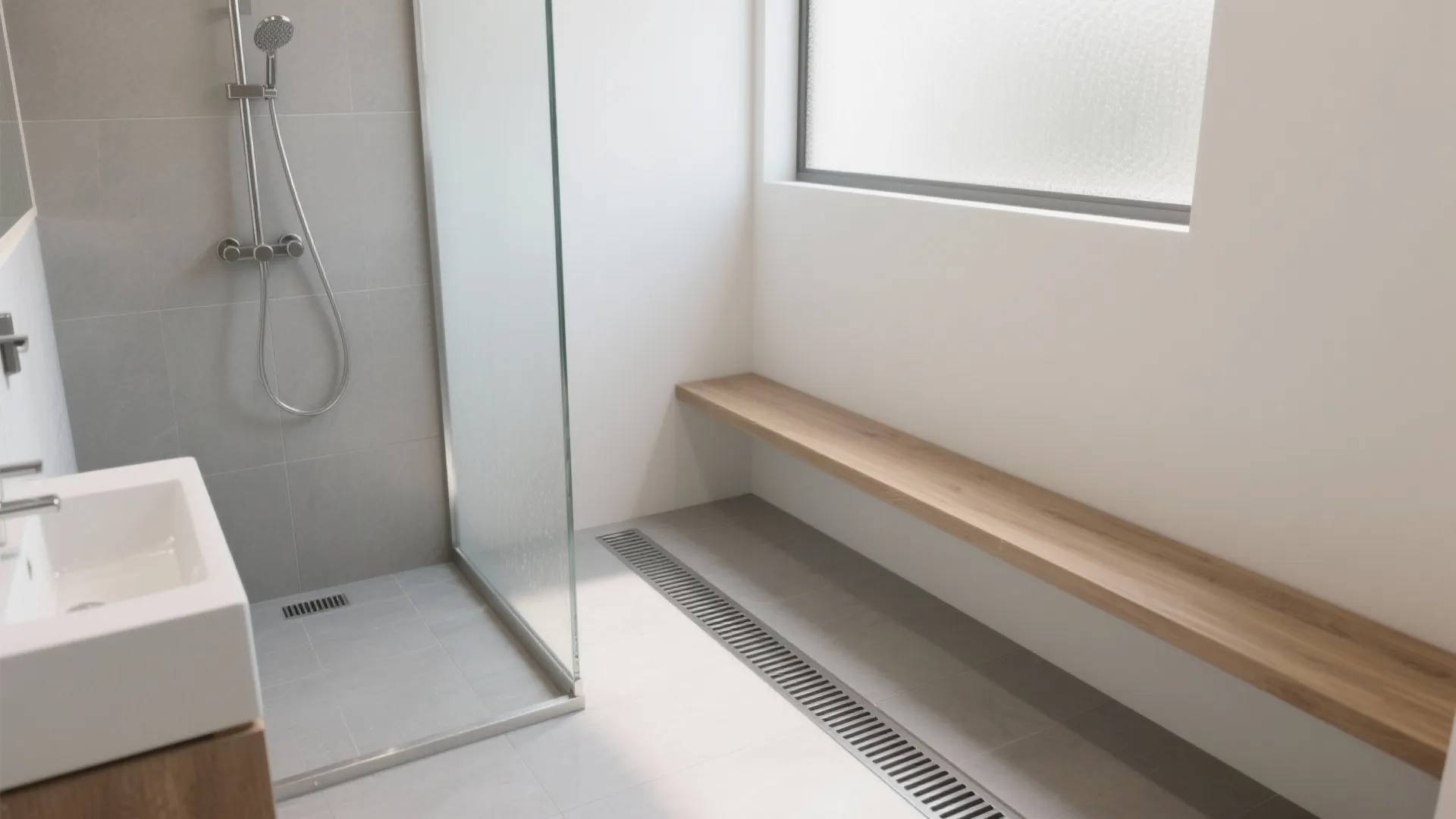

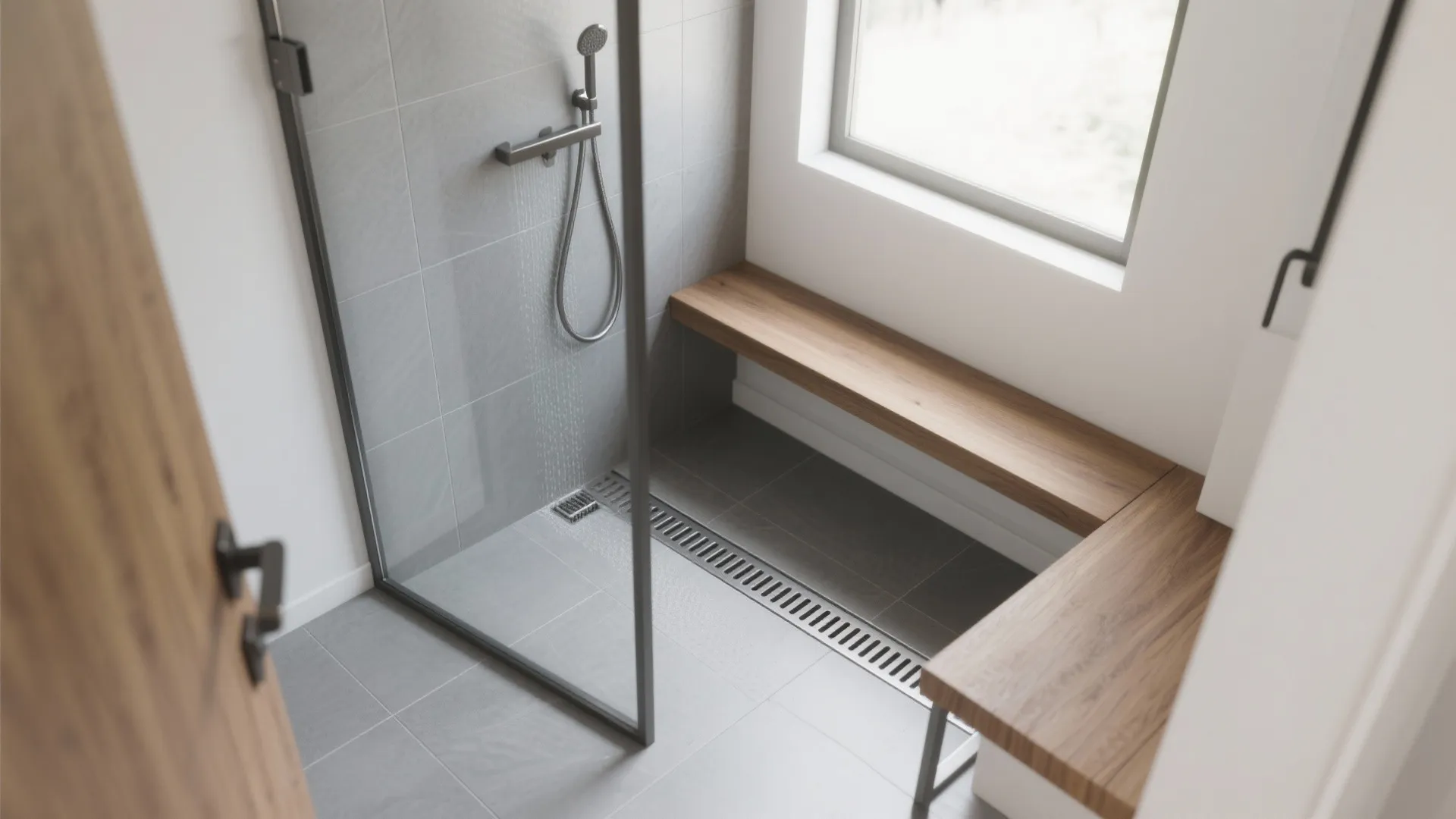

My Take: The first time I swapped a center drain for a linear one under a slim shower bench, the client thanked me for weeks. Large-format tiles looked seamless, and the single-direction slope felt intuitive underfoot.

Pros: A linear shower drain lets you use big tiles without complicated four-way “pie” cuts, and the slope-to-drain is more predictable for small bathrooms. Code-wise, the International Plumbing Code (IPC 2021) calls for minimum slopes of 1/4 in. per foot on 2.5-in. or smaller drains (Section 704.1), which pairs perfectly with a single-direction fall. It’s ideal when you want a flush, curbless shower slope that doesn’t telegraph busy grout lines.

Cons: Linear drains can cost more than basic round drains, and you’ll need accurate rough-in to align with benches or walls. If the slab or subfloor isn’t level, the “smart slope” becomes a “smart headache” fast—so plan for shimming or correction.

Tips / Case / Cost: Place the drain along the wall farthest from the entry to keep splashes contained. Expect a moderate budget bump for the drain body and membrane integration; it’s worth it for long-term performance and cleaner lines.

save pin

Curbless wet rooms with continuous waterproofing

My Take: I used to fear wet rooms in tiny apartments—until I learned to treat the entire floor as a shower pan. Once we mastered continuous waterproofing, clients enjoyed spa-like spaces without tight thresholds.

Pros: A fully waterproofed wet room is safer and more accessible, and it simplifies the curbless shower slope to drain. The Tile Council of North America (TCNA Handbook, e.g., methods B415/B422) emphasizes continuous waterproofing, proper membranes, and pre-slopes to move water efficiently to the drain—all essential for small bathrooms. Visually, a single-floor finish makes the room feel larger.

Cons: Waterproofing the whole floor takes time and skill, and poor detailing can lead to leaks at doorways or wall-floor junctions. If you like bath mats, know they can interfere with drainage in an all-wet space.

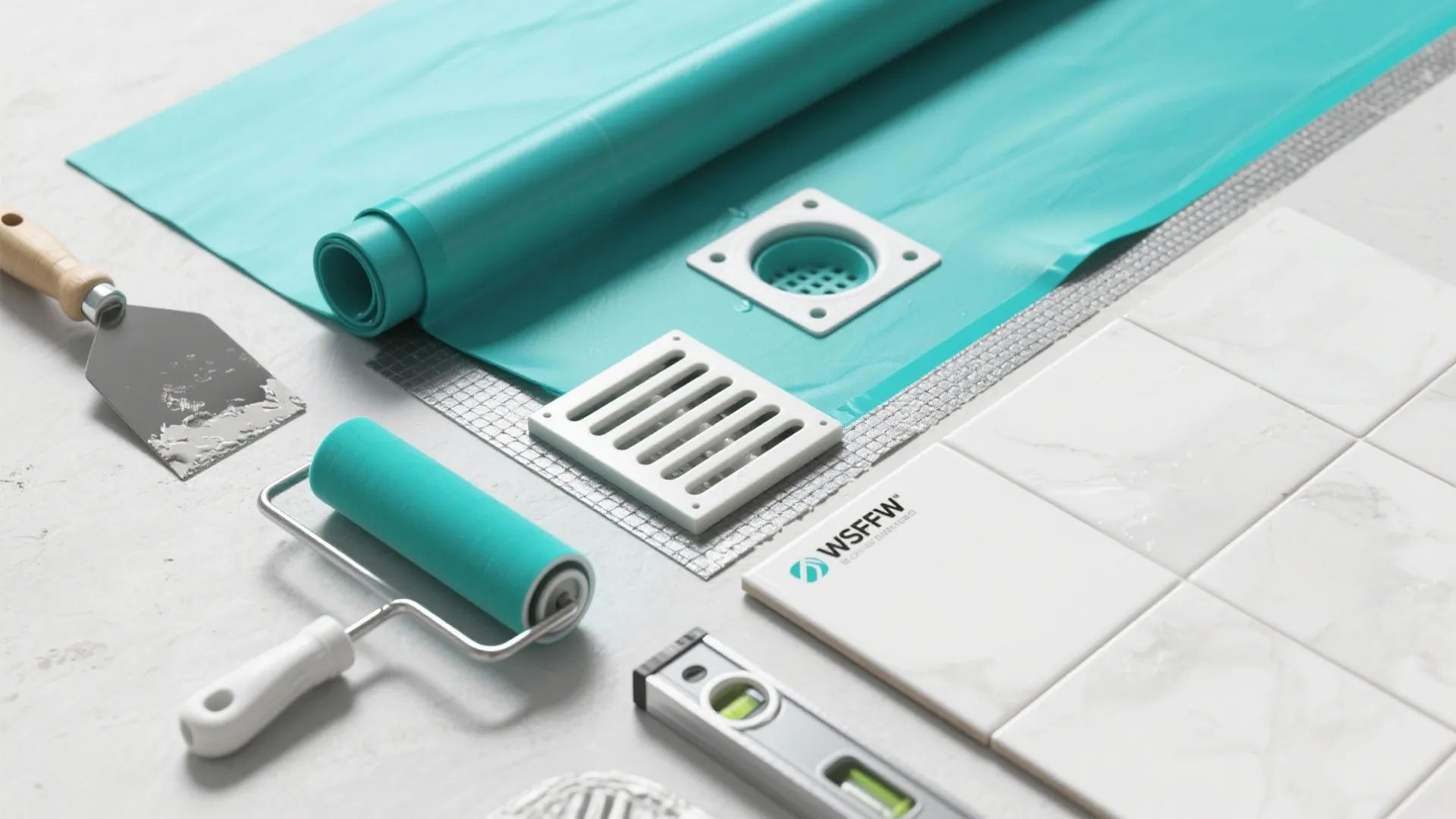

Tips / Case / Cost: Elevate the membrane 2–3 inches above the drain flange around the room and integrate a compatible drain body. Budget more for membranes and flood testing; the peace of mind is priceless in multi-family buildings.

save pin

Venting strategy for compact bathrooms

My Take: The most beautiful drainage plan fails if venting is ignored. In a narrow loft bath, a properly sized vent stack and revent lines stopped the occasional sulfur smell and slow drains for good.

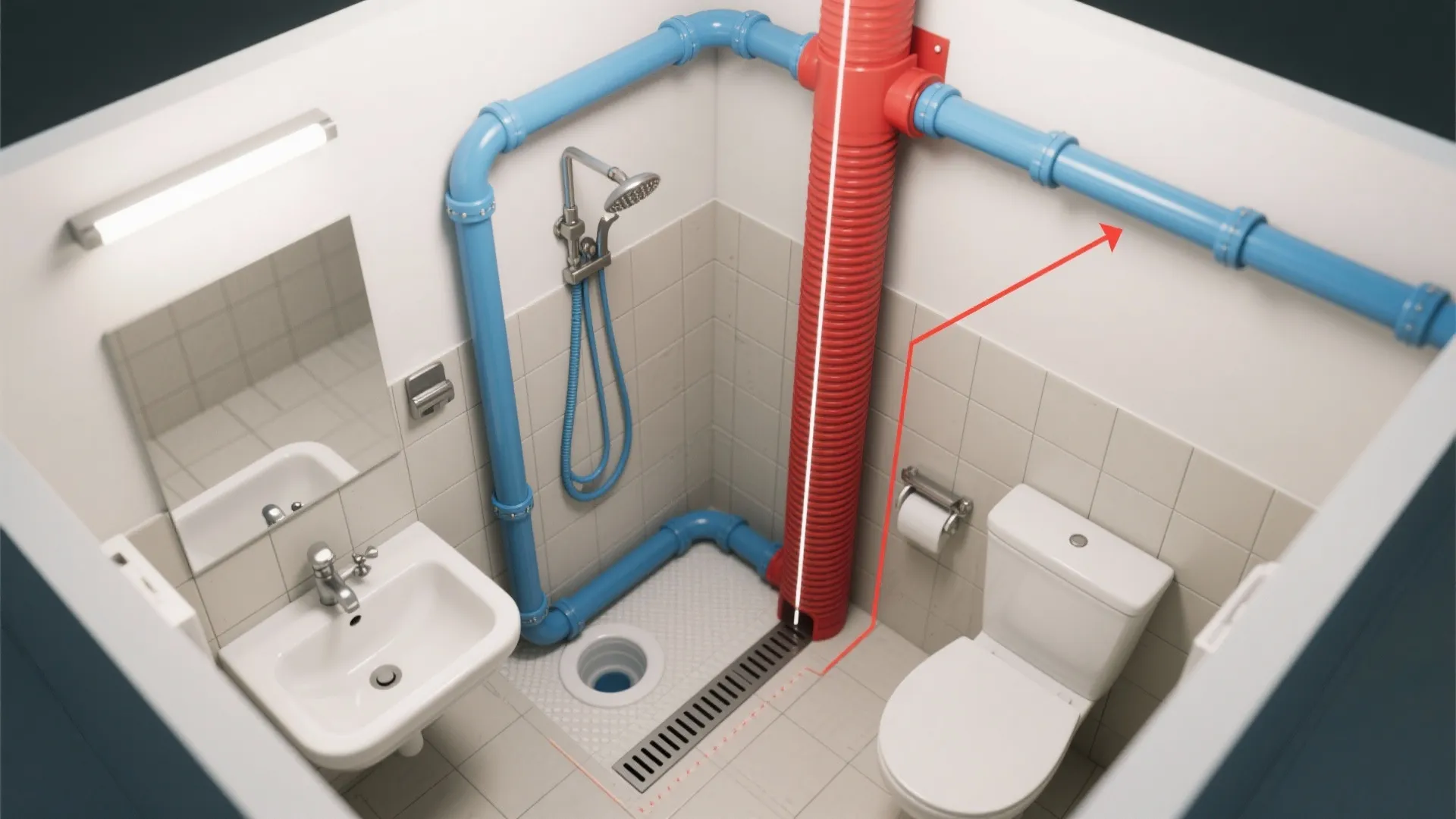

Pros: Correct vent stack sizing keeps traps from siphoning, ensuring the P-trap remains sealed and odor-free. For small bathroom plumbing layout, a thoughtful revent or AAV (air admittance valve, where allowed by local code) can resolve distance and height limitations. If you’re coordinating with other fixtures, venting makes multi-fixture flow far more consistent.

Cons: Venting can be the least glamorous detail to allocate budget to, and local code variance means you can’t “copy and paste” a solution. In older buildings, finding a path for vents through joists or walls might force compromises elsewhere.

Tips / Case / Cost: Partner early with a plumber who knows IPC or UPC local amendments. For stacked apartments, vent alignment between floors avoids messy offsets. To visualize options and check clash with finishes, I sometimes request photo-realistic 3D bathroom renderings during the design phase—helps everyone see the consequences of routing changes.

save pin

Cleanouts, access panels, and maintainability

My Take: I learned my lesson from a minimalist bath where an invisible trap led to a very visible service call. Since then, I design with cleanouts and discreet access points that look intentional.

Pros: Planned cleanouts keep drain maintenance fast and low-disruption, especially in tight condos. Access doors behind vanities or in adjacent closets maintain the modern look while enabling future trap and valve service without demolition.

Cons: No matter how carefully you hide them, access panels can be a style challenge. Some clients hesitate at any visible break in an otherwise monolithic wall finish.

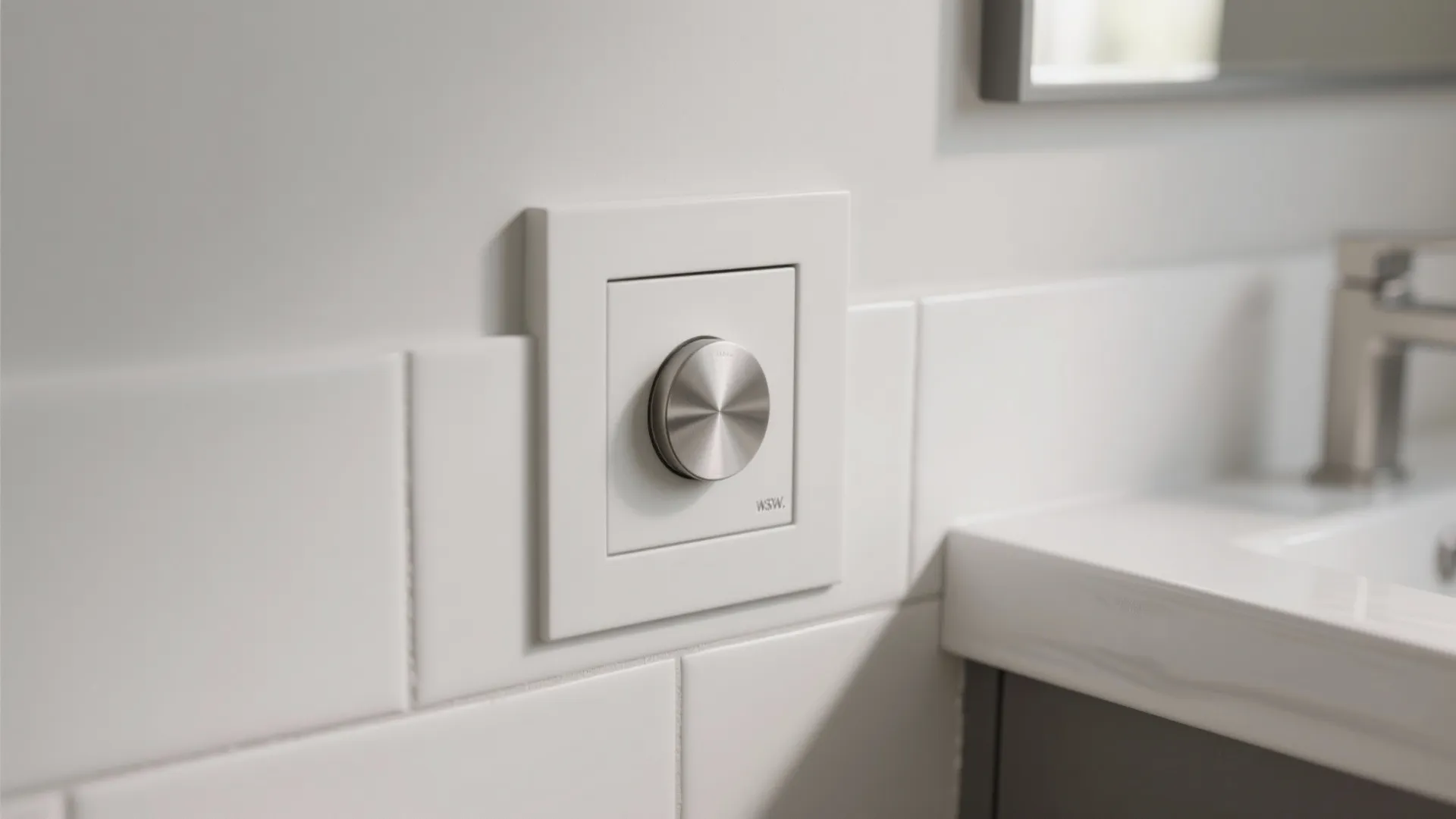

Tips / Case / Cost: Use magnetic, paintable panels aligned with tile joints or wainscot lines for near-invisible doors. For curbless shower slope-to-drain details, an installer-friendly access strategy saves labor later—smart up-front planning avoids premium emergency fees. Tools can help with layout experimentation; when clients want algorithmic checks for conflicts, I’ll explore an AI-assisted drain layout to test alternatives before construction.

save pin

Pipe sizing, noise control, and flow optimization

My Take: One client’s new baby finally pushed us to tackle pipe noise—nothing like late-night whooshing to motivate a better drainage plan. A small change in pipe materials and insulation transformed their sleep.

Pros: Upsizing horizontal branches where allowed can reduce velocity and gurgle, improving flow performance in a compact bath. Acoustic insulation around stacks and isolation clips at wall studs cut structure-borne noise without thick walls. Combined with trap and vent design, you get smoother drainage and fewer audible “events.”

Cons: Acoustic upgrades add cost and require coordination with framers and plumbers. In tiny bathrooms, every millimeter counts; insulation and clips can nibble away at precious cavity space.

Tips / Case / Cost: Consider cast iron for key vertical runs if budget allows; it’s naturally quieter than some plastics. If your building uses plastic stacks, targeted acoustic wraps can be a cost-effective compromise. In the long run, this is about quality of life—silence is part of good design.

[Section: Summary]

Smart bathroom drainage system design turns small bathrooms into high-performing, spa-like retreats. The truth is, a tiny footprint isn’t a limitation—it’s an invitation to design more intelligently with slopes, drains, vents, and maintenance built in. As IPC guidance on slope and trap integrity reminds us, fundamentals unlock the aesthetics; get them right, and the beautiful finishes will actually stay beautiful.

Which of these five ideas would you try first in your own bath remodel?

[Section: FAQ]

save pin

FAQ

1) What is the biggest mistake in bathroom drainage system design?

Neglecting proper slope-to-drain and venting. Even a gorgeous shower fails if the slope is too flat or traps get siphoned; aim for code-compliant slopes and a well-planned vent stack.

2) How steep should my shower floor slope be?

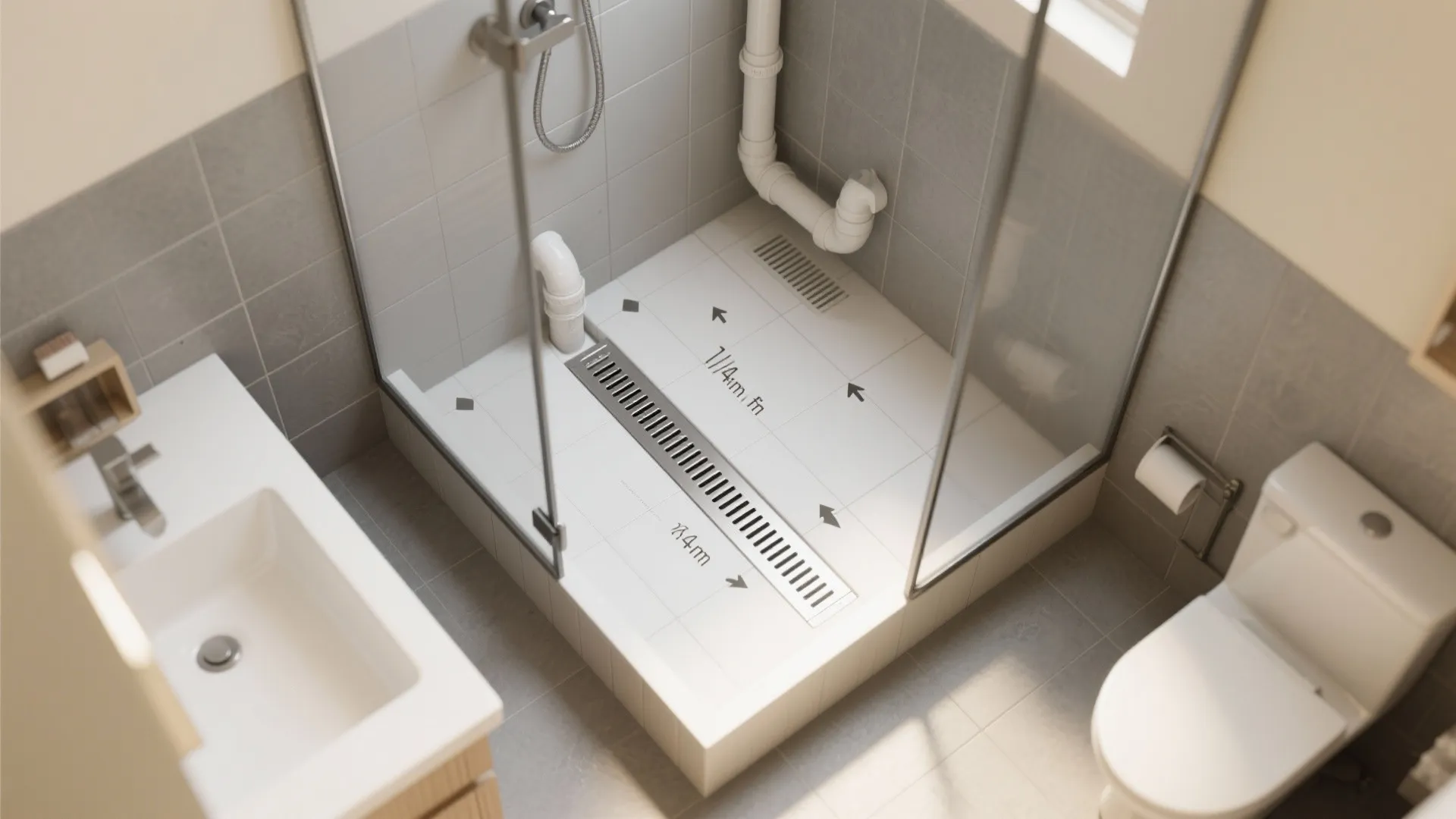

In most cases, follow 1/4 inch per foot for small-diameter drains, as outlined by the IPC (2021, Section 704.1). This helps water move efficiently and minimizes ponding on large-format tiles.
