5 Bathroom Roof Design Ideas for Small Spaces: Real-world ways I use skylights, vent-safe assemblies, vaulted lines, tiled canopies, and warm timber + lighting to transform compact baths.

[Section: Introduction]

Bathroom roof design has become a quiet star in current interior trends, especially as we chase more daylight, better ventilation, and serene spa vibes in small homes. Small spaces spark big creativity for me—on tight jobs, the roof plane is where I unlock light and height without stealing floor area. In this guide, I’ll share five ideas grounded in my real projects and supported by expert data, starting with a favorite move: a Glass skylight adds airy openness that changes the mood before you add a single tile.

I’ve redesigned dozens of compact bathrooms over the past decade, and the roof is always my leverage point. From vapor-safe insulation to vaulted ceilings and lighting tucked into soffits, each detail turns a “boxy” bath into a comfort-forward retreat. Below are five bathroom roof design inspirations, with pros, cons, stories, and budget notes you can use right away.

[Section: Inspiration List]

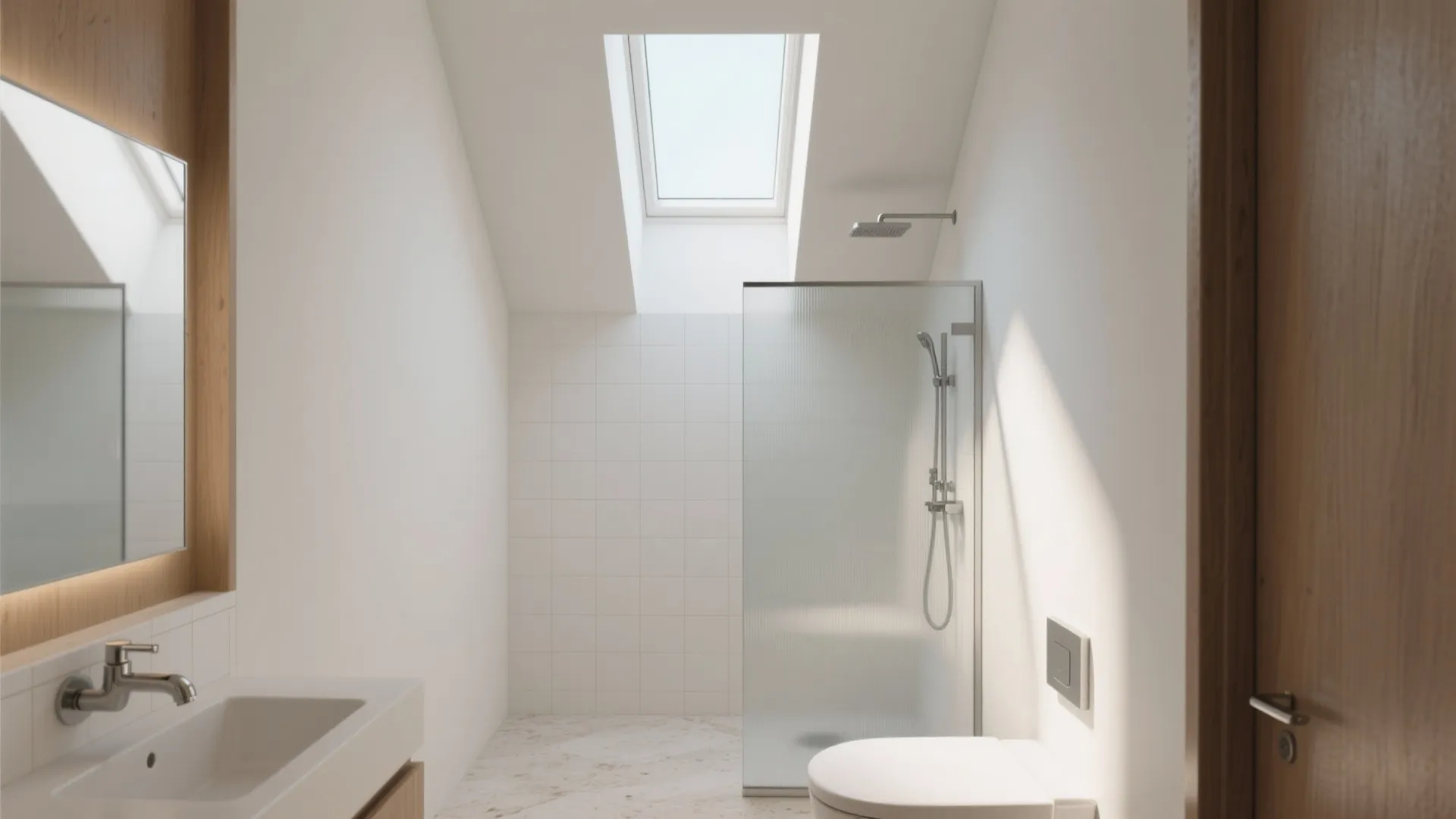

Skylights and Clerestory Glow for the Bath

My Take — When a client fears their small bath will feel cave-like, I reach for skylights or a slim clerestory to pull in daylight from above. In one micro-renovation, a narrow shaft skylight washed the shower wall with soft light, and we never needed to flip a switch during daytime. The trick is balancing light with privacy and waterproofing so the joy lasts beyond the first week.

Pros — Skylight bathroom design brings balanced, glare-soft daylight that can boost perceived space without increasing floor area. In small bathroom ceiling ideas, a roof aperture turns upper void into luminous volume, making mirrors and pale tiles feel richer. For homes with tight lot lines, clerestories can skirt privacy issues while still delivering that uplifting roof glow.

Cons — Roof penetrations add cost and detailing complexity, and cheap units can whistle or leak in storms. If your bath faces a neighbor’s second story, skylights may need frosted glazing, which slightly dims the effect. In very hot climates, poorly specified glazing can introduce solar heat gain you’ll feel during a midday shower.

Tips / Case / Cost — I spec low-E, laminated glass with integral flashing kits, and add a slight interior well flare to bounce light deeper, not just down. For privacy, a clerestory placed above eye level (usually 6'6"–7') with translucent glazing keeps silhouettes discreet. Budget-wise, expect $1,200–$3,500 installed for a quality unit; tubular skylights may come in under $1,000 in straightforward roofs.

save pin

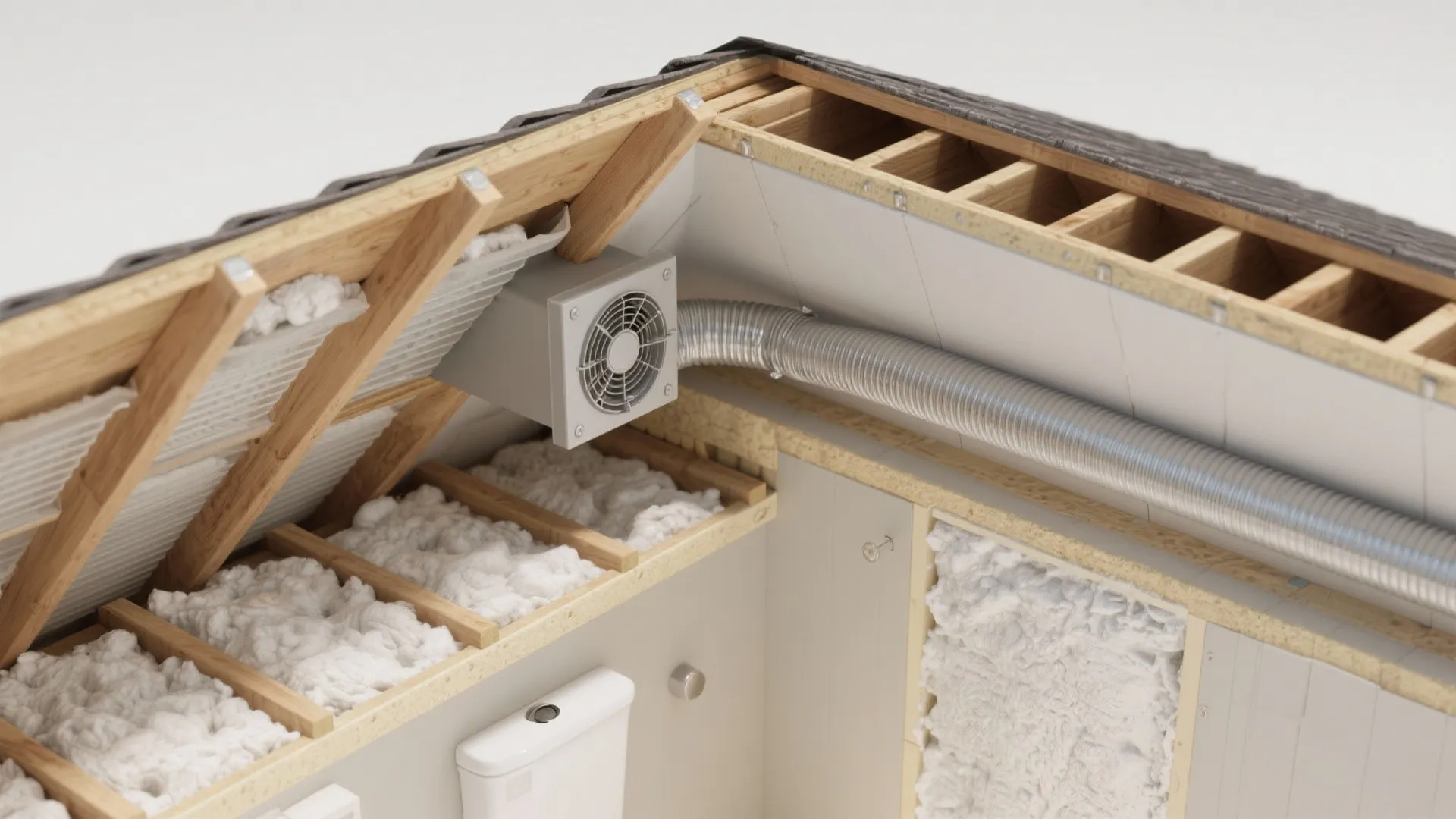

Vapor-Safe Insulation & Smart Venting in the Roof

My Take — I once renovated a century-old bath where winter showers fogged the mirror for an hour; the real culprit wasn’t the fan, it was a leaky, under-insulated roof assembly. Upgrading to a vented bathroom roof assembly with proper air sealing transformed both comfort and mold risk. For low-slope roofs, I’ll pivot to unvented, closed-cell spray foam to keep vapor in check.

Pros — A well-detailed bathroom roof design for small spaces starts with air sealing the ceiling plane, then adding insulation that hits local code R-values. With a vented assembly, baffles maintain airflow above insulation; with unvented approaches, closed-cell spray foam creates an airtight, vapor-resistant layer. According to ASHRAE 62.2, bathrooms should exhaust at 50 cfm intermittent or 20 cfm continuous, which pairs beautifully with airtight roof planes to control humidity.

Cons — Unvented assemblies cost more upfront and require careful moisture management with the right foam thickness and continuous exterior insulation if needed. Vented assemblies demand clear air channels; sloppy installation can choke ventilation and worsen condensation. Overpowering your fan without proper duct runs can be noisy and still underperform.

Tips / Case / Cost — I run exhaust ducts short and straight, with a backdraft damper and a timer or humidity stat so the fan keeps pulling after steamy showers. In cold zones, I lean on the U.S. Department of Energy regional R-value guidance to right-size insulation thickness; in hot-humid zones, I prioritize air sealing and rigid ducting to fight moisture. Budget varies: air sealing plus blown-in insulation might be $1,000–$2,500; unvented foam assemblies can hit $3,000–$6,000 depending on area.

save pin

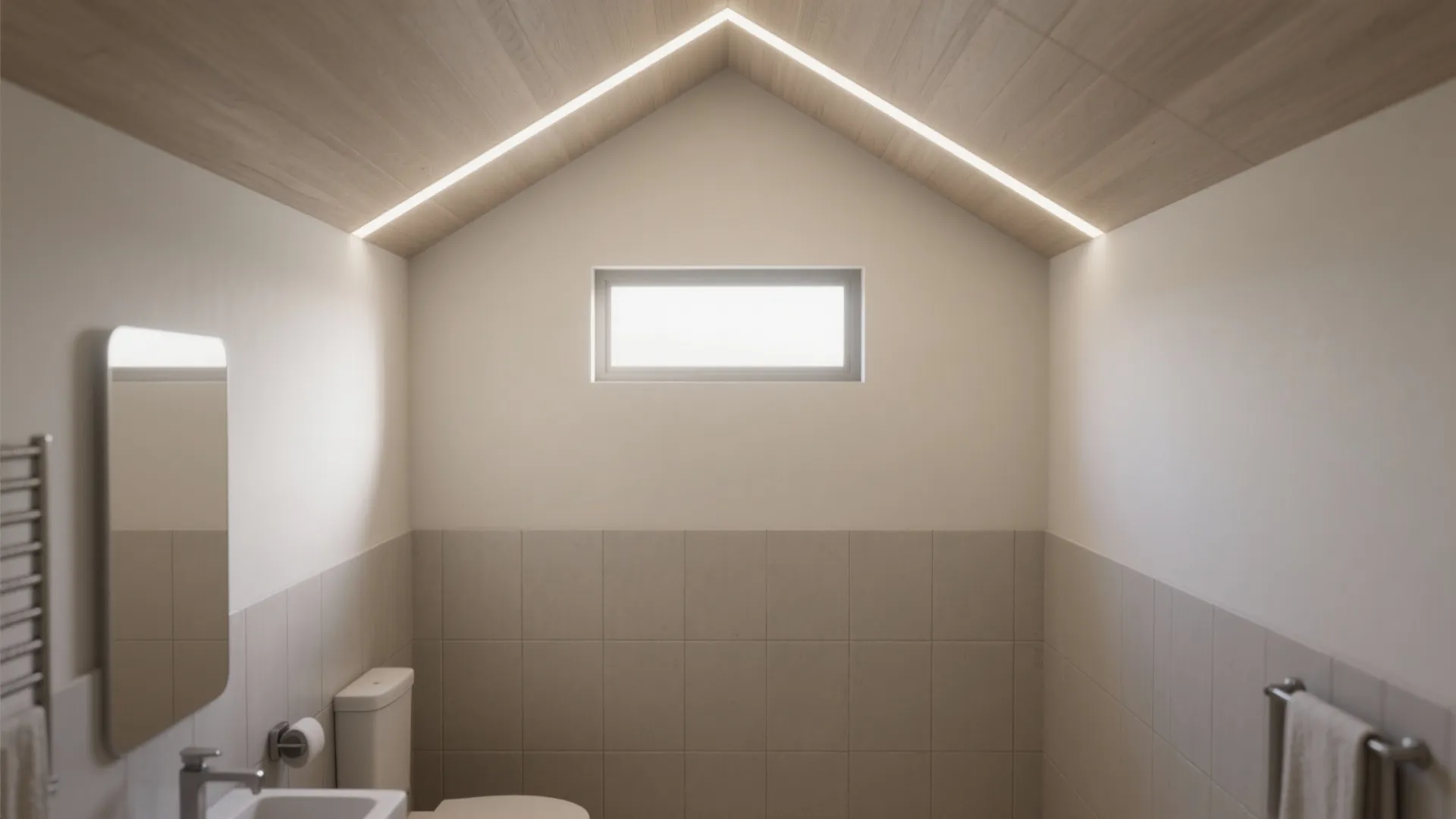

Compact Vaulted Ceilings to Stretch Space

My Take — Raising the roof line—sometimes just a subtle pitch—can make a tiny bath read twice its size. In a 5' x 8' remodel, we vaulted one bay and painted the upper plane in a whisper-light tint; the room felt taller, not louder. It’s my favorite trick when floor expansion is off the table.

Pros — A vaulted bathroom ceiling draws the eye upward, expanding vertical volume without touching the footprint. Compared with flat ceilings, a small pitch adds a dynamic shadow play that enhances tile textures and mirrors. In small bathroom ceiling ideas, this vertical move lets you place a transom or clerestory at the high end for light and breeze.

Cons — Vaulting sometimes exposes messy rafters or makes lighting layout more complex. If you over-vault in a narrow room, the height can feel top-heavy or echo-prone. Structural constraints—like collar ties—can limit how much you gain without engineering and added cost.

Tips / Case / Cost — I’ll trim the peak with a slim beam and tuck a linear fixture along the ridge to wash light down both sides. Keep paint finishes matte to reduce glare on the high plane. For planning, sketch your peak and window heights; I often use a Vaulted roof expands vertical space scenario to visualize fixtures and storage in 3D. Expect $1,500–$4,000 if framing changes are minimal; more with structural reinforcements.

save pin

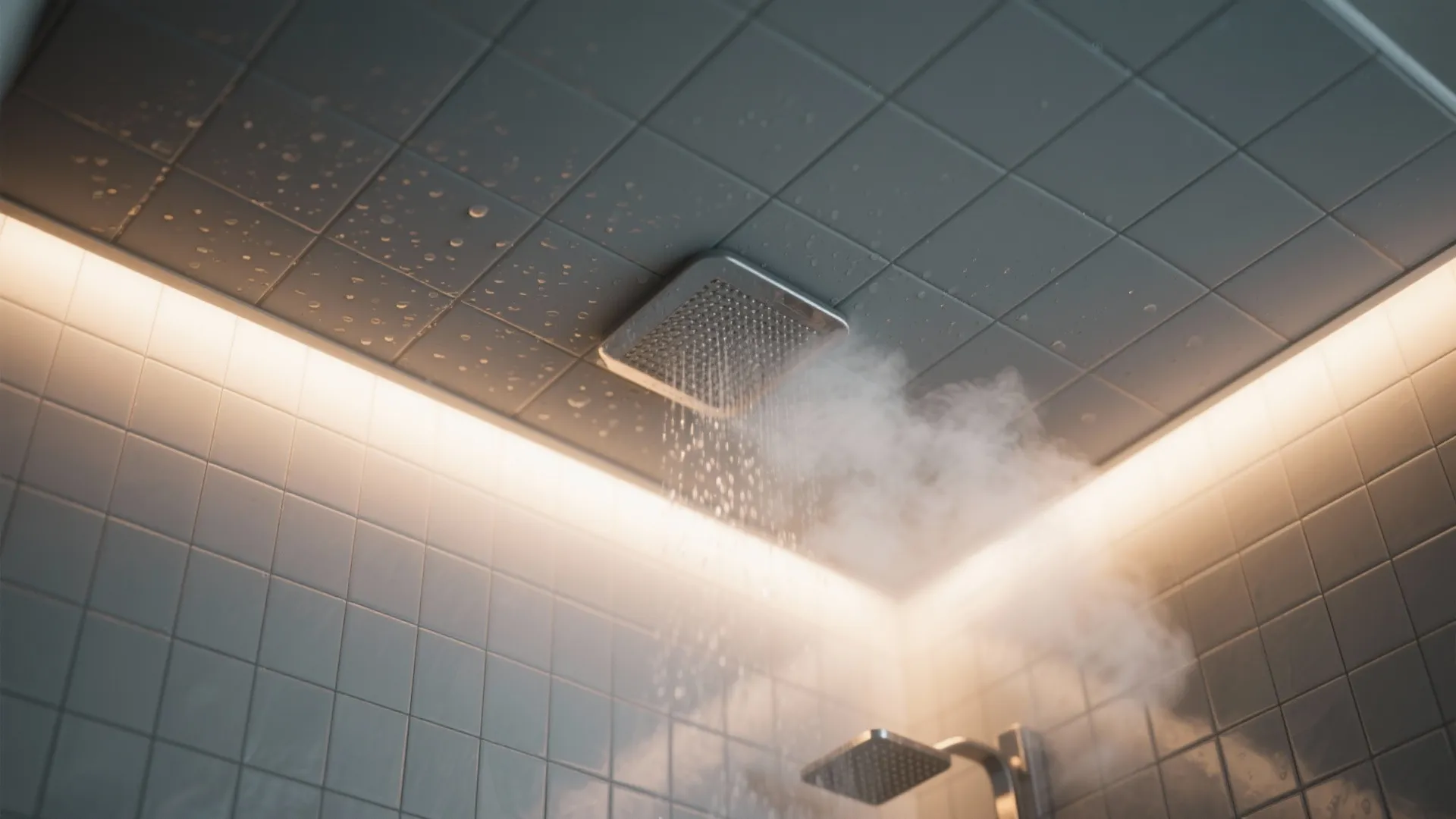

Tiled Canopies for Steam Showers and Wet Zones

My Take — In steam showers, a ceiling canopy is a design and performance piece. I slope it so condensation rolls off toward the walls, and tile it in a finish that’s durable yet calming. Clients love how this “roof within a room” creates a cocoon for wellness.

Pros — A tiled canopy controls drips and focuses warmth, a critical detail in steam shower ceiling tile design. In multifunction baths, it creates a wet zone with visual intent while leaving the rest of the ceiling lighter and brighter. The canopy also gives you a defined place for task lighting and a steam head without cluttering the whole roof plane.

Cons — Canopies add weight and require robust waterproofing; sloppy slopes can cause water to hang overhead and eventually stain. A fully tiled ceiling can feel heavy if the rest of the bath isn’t balanced with soft finishes. Maintenance is real—grout on ceilings needs sealing and the right cleaner to keep it fresh.

Tips / Case / Cost — I slope the canopy 1–2 inches per foot to discourage drips, and spec porcelain or large-format ceramic to reduce grout lines. Keep fixtures simple: one steam head, a linear drain, and vapor-tight lighting rated for wet locations. Costs vary widely; a compact steam canopy may add $2,000–$5,000 depending on framing and tile, plus the steam generator hardware.

save pin

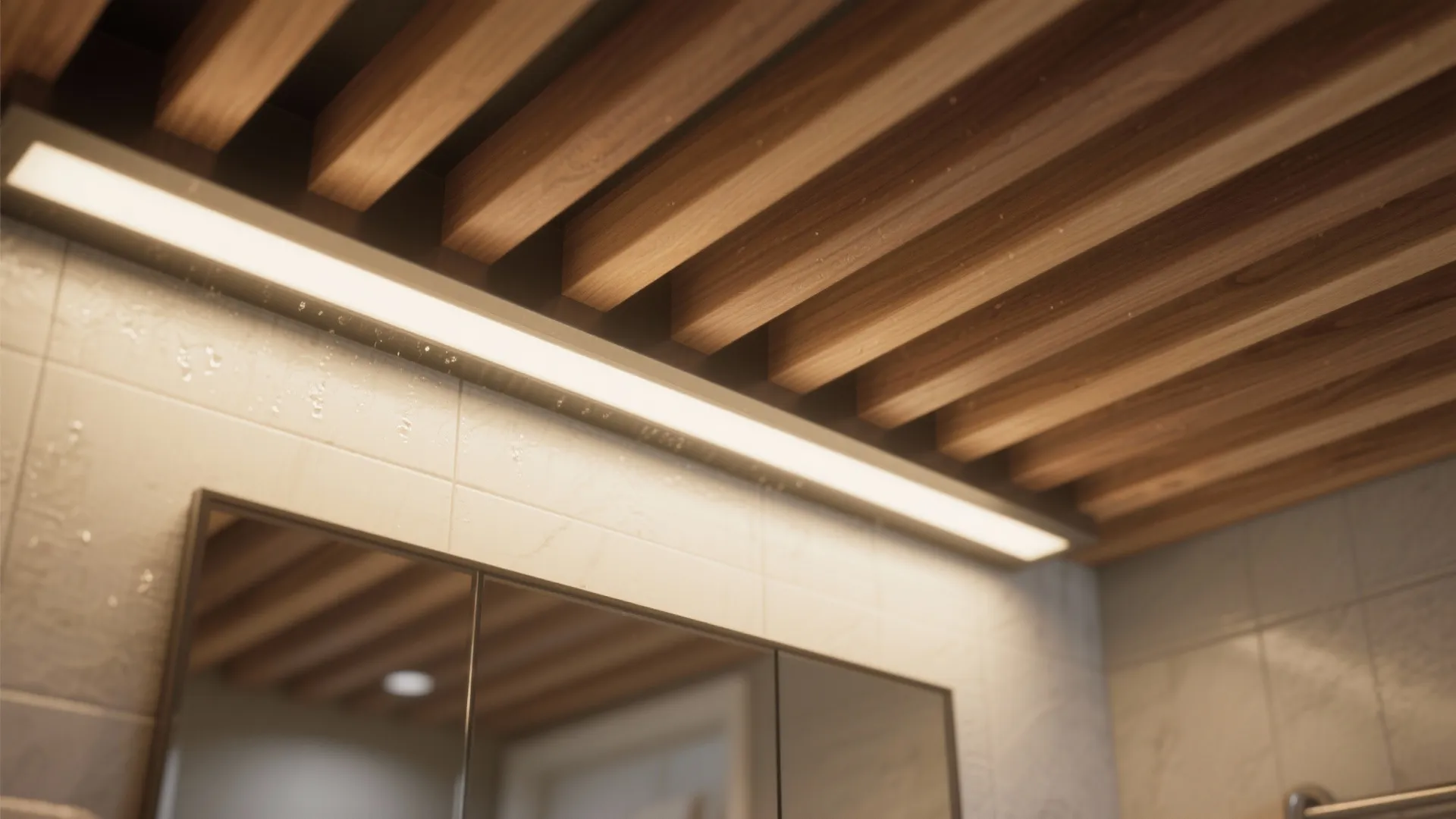

Timber Accents and Integrated Linear Lighting in the Roof Plane

My Take — Wood in a bathroom? Absolutely—used thoughtfully. I’ll treat a roof bay with sealed timber slats and a hidden linear fixture, creating warm rhythm above a cool tile palette. In small baths, this upper warmth is the mood-maker you notice first.

Pros — Warm timber ceiling accents bring spa serenity while integrated linear lighting delivers shadow-free illumination. For bathroom roof design in small spaces, this combo adds character without consuming storage or circulation space. When paired with neutral tiles, it humanizes the room and makes morning routines calmer.

Cons — Timber needs proper sealing and humidity management, especially near showers. Go too dark and the ceiling can feel lower, which is tough in already small rooms. Linear fixtures demand smart dimming; at full blast, they can feel clinical.

Tips / Case / Cost — I use moisture-resistant species (like cedar or thermally modified ash) with a matte marine-grade finish, and keep timber away from direct spray. Mount linear lights behind a diffuser channel for a soft wash; choose 2700–3000K for a flattering tone. To visualize combinations, I’ll reference a Warm timber ceiling brings spa serenity mockup long before we select final fixtures. Pricing ranges: $800–$2,000 for timber accents and $300–$1,200 for quality linear lighting with dimming.

[Section: Summary]

A small bathroom doesn’t limit you—it invites smarter bathroom roof design that works harder with light, ventilation, and texture. Whether you go for a skylight, a vent-safe assembly, a gentle vault, a tiled canopy, or timber + light, the roof plane can be your secret “sixth wall.” If you need the confidence of standards, remember ASHRAE 62.2’s simple exhaust targets to keep humidity in check while your roof details do their best visual work. Which of these five ideas are you most excited to try?

[Section: FAQ]

save pin

FAQ

1) What’s the best starting point for bathroom roof design in a tiny bath?

Begin with airtightness and insulation so humidity is controlled, then assess daylight opportunities like a small skylight or clerestory. Once the envelope is stable, layer lighting and finishes for mood.

2) Do I need a vented or unvented roof assembly over my bathroom?

It depends on your climate, roof pitch, and construction. Vented assemblies work well with baffles and continuous airflow; unvented assemblies with closed-cell foam can be safer in hot-humid zones or low-slope roofs.

3) How much bathroom ventilation is recommended?

ASHRAE 62.2 recommends 50 cfm intermittent or 20 cfm continuous exhaust for bathrooms; meeting this helps reduce condensation and mold risk. Pair this with short, smooth duct runs and a backdraft damper.

4) Will a skylight overheat my bathroom?

With low-E glazing, proper orientation, and shading, you can minimize heat gain. Consider tubular skylights in hot climates; they deliver glow with less solar load than large units.

5) What ceiling slope should I use for a steam shower canopy?

A practical range is 1–2 inches per foot to encourage condensation to slide off instead of drip. Use vapor-tight light fixtures and robust waterproofing behind the tile.

6) Are wood ceilings viable in bathrooms?

Yes, when you choose moisture-resistant species, seal them well, and keep them out of direct spray. Balance timber with ventilation and stable humidity to extend longevity.

7) How do I light a vaulted bathroom ceiling without glare?

Use indirect linear lighting along beams or ridges and soft-diffused fixtures near mirrors. Keep color temperature warm (2700–3000K) and add dimming for flexibility.

8) What’s a budget-friendly way to improve a flat bathroom ceiling?

Paint it matte in a light tone, add a compact fan with a timer, and install a simple cove or linear light. A tubular skylight is a mid-cost upgrade that brings daylit charm without heavy framing.
