I’ve spent over a decade designing compact homes, and combined bathroom and toilet designs are where small-space constraints spark big creativity. Trends like wet rooms, glass partitions, and multifunctional storage are reshaping how we think about privacy and flow in tight footprints. In this guide, I’ll share 5 design inspirations—rooted in my project experience and expert data—that can transform a small combined bath into a calm, efficient retreat.

Right up front, in a recent remodel, “minimalist kitchen storage” taught me a cross-room lesson: edited lines and concealed systems make tight zones feel larger—an insight I later used for a compact bath. Check how “Minimalist kitchen storage design” solved clutter spillover and inspired cleaner bath lines: minimalist kitchen storage design.

[Section: 灵感列表]

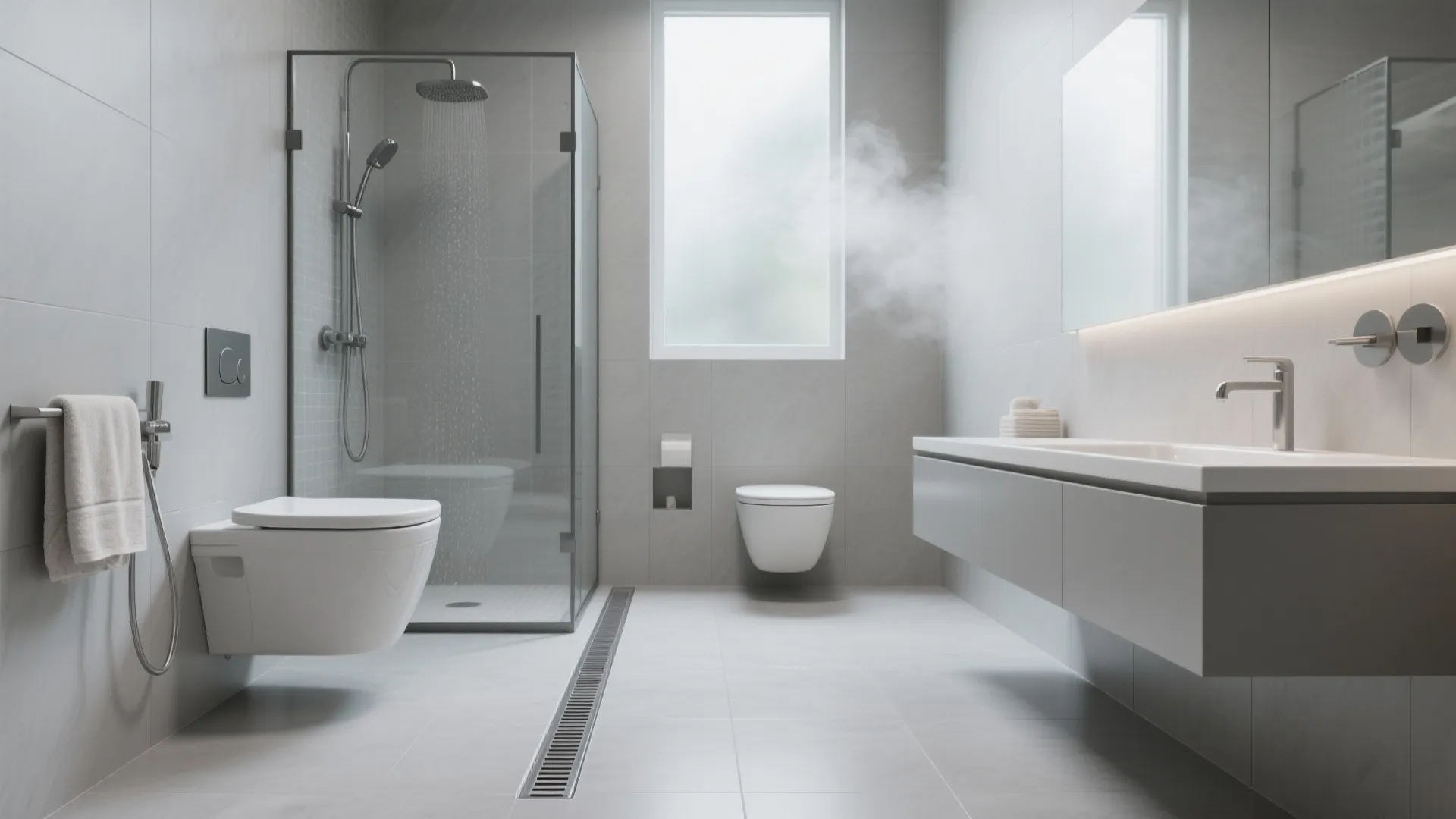

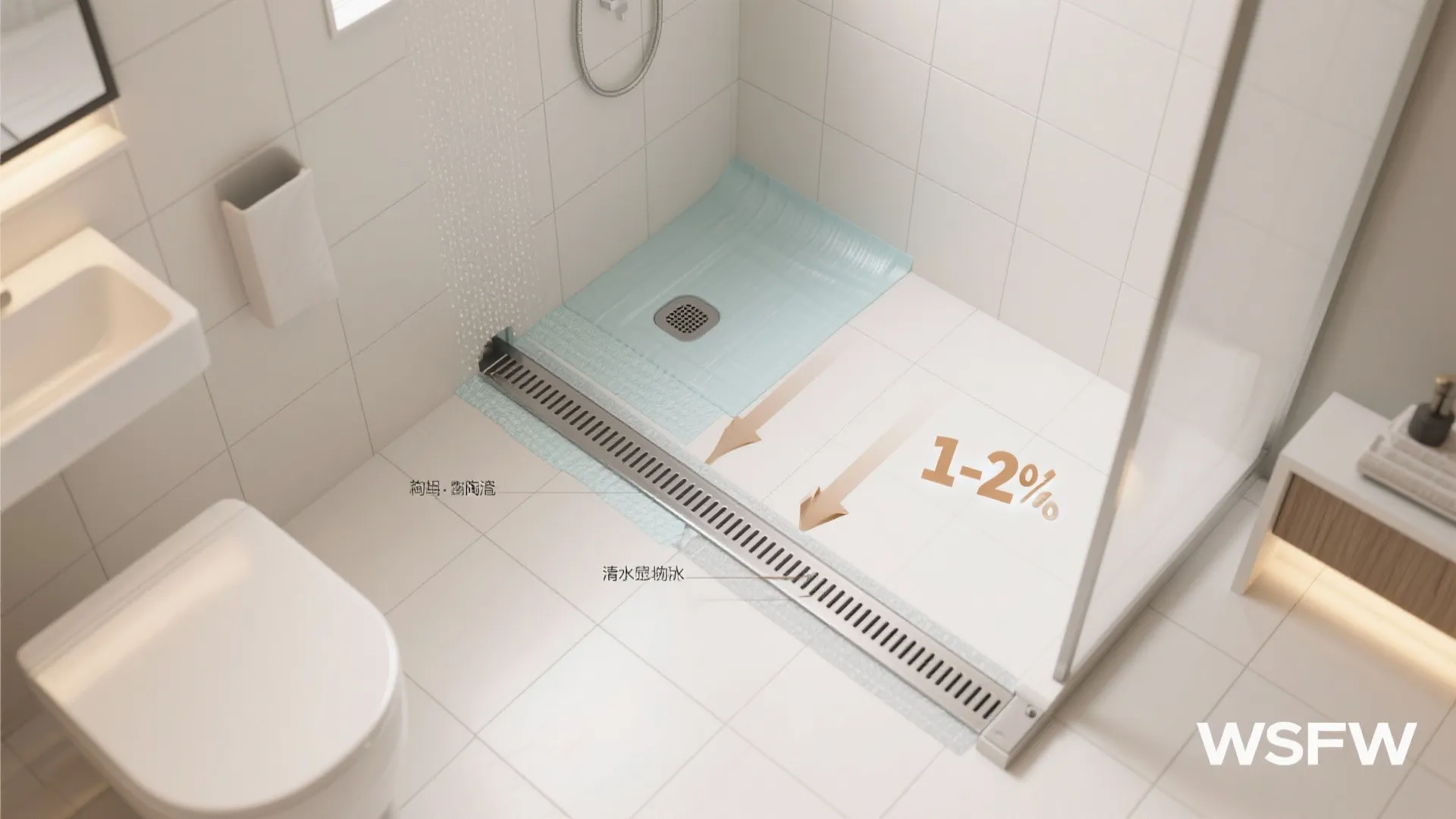

Wet room zoning with smart drainage

My Take: My first wet room was a 3.8 m² city flat where the shower, toilet, and vanity shared a continuous floor. A linear drain and a slight gradient controlled water perfectly, and the space felt larger without thresholds cutting it up. I learned to treat the entire room as a single, waterproof envelope.

Pros: Wet rooms maximize usable area by removing bulky shower trays and doors—great for small bathroom layout planning and universal access. Continuous flooring reads visually wider, boosting the perception of space. The CDC emphasizes the importance of proper ventilation and moisture control to reduce mold risk in wet environments, which pairs well with wet room systems (CDC Mold FAQ, cdc.gov).

Cons: Poor drainage or insufficient slope can lead to persistent puddles—ask me about the time I squeegeed twice a day. More waterproofing layers mean higher upfront costs and careful installation, especially in older buildings.

Tips / Cost: Budget for a quality membrane and a 1–2% floor gradient toward a linear drain; expect costs to be 10–20% higher than a standard shower area. Consider slip-resistant porcelain with a 0.42+ DCOF for safety.

save pin

save pin

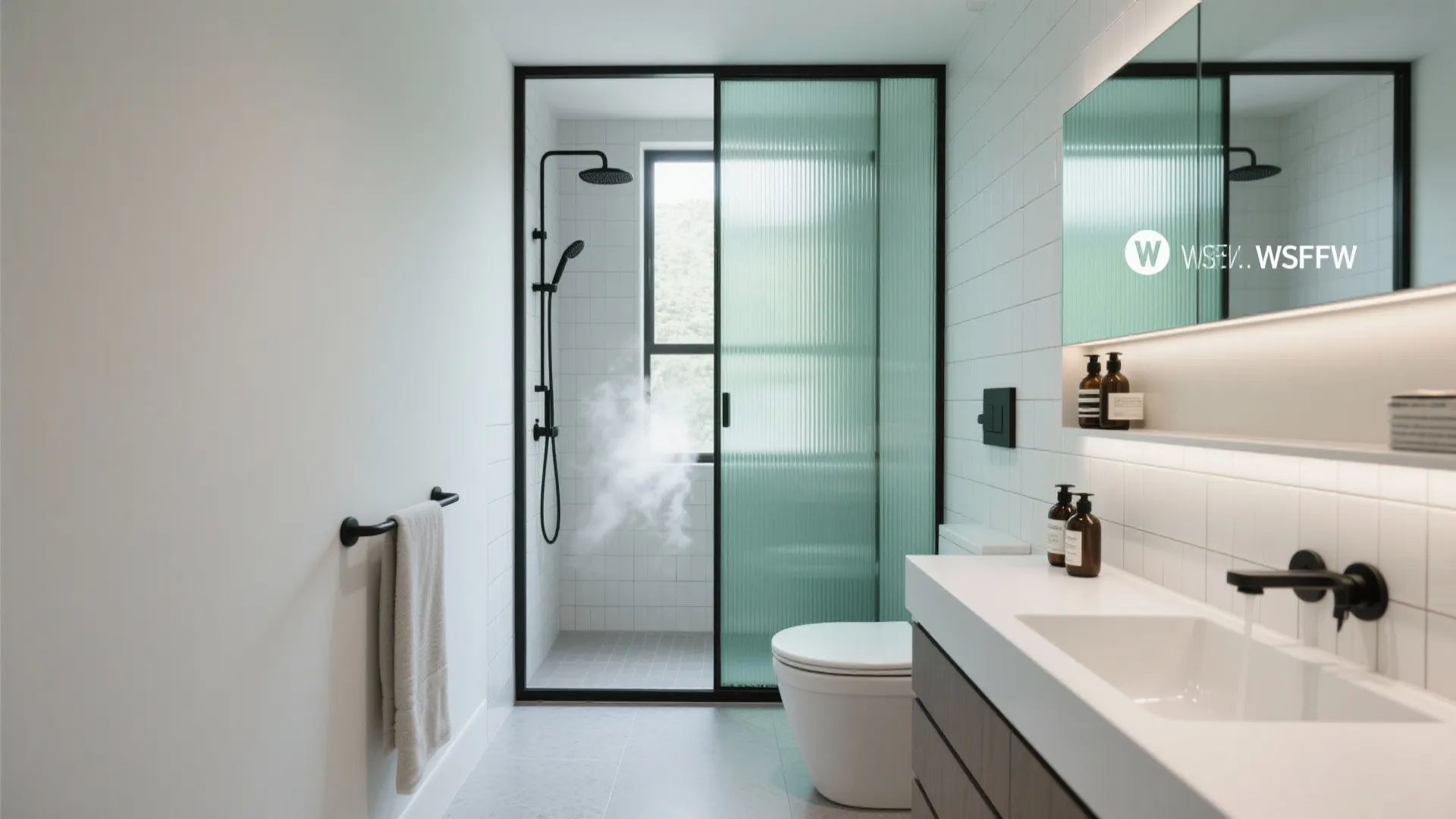

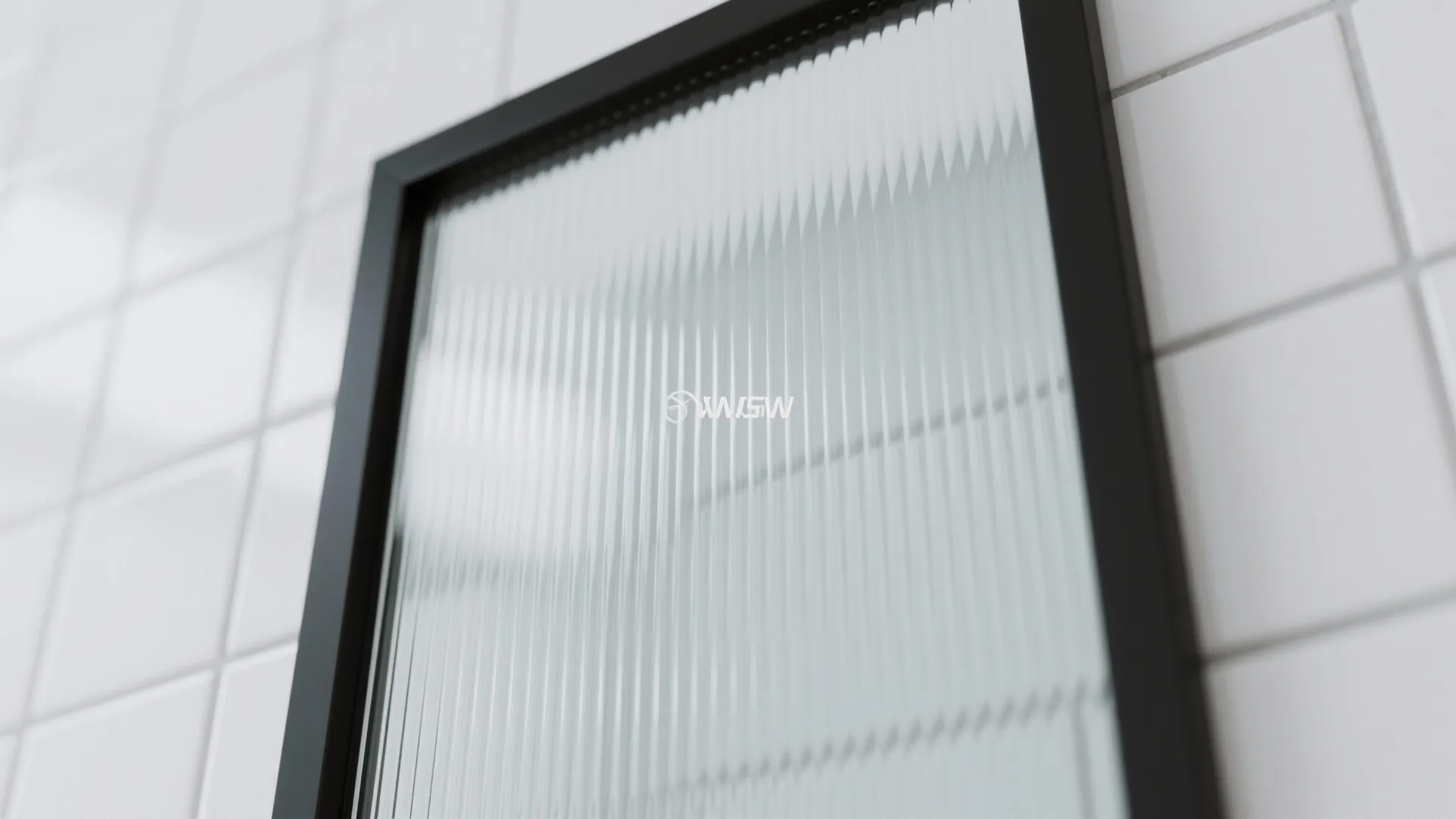

Glass partition clarity for privacy and light

My Take: In a narrow bath, I added a fixed reeded-glass panel to separate the toilet from the shower line—privacy improved without sacrificing daylight. The room felt calmer; steam stayed put, and cleaning became faster.

Pros: Glass partitions keep sightlines open while providing zoning—perfect for combined bathroom and toilet designs that crave natural light. Reeded or frosted finishes balance privacy with brightness, and slim black frames add contemporary character. Glass is easy to sanitize, aligning with hygiene-forward small space renovation.

Cons: Clear glass can reveal clutter—if your shampoo lineup looks like a convenience store aisle, you’ll notice. Frameless panels require precise installation; misalignments make doors bind and seals underperform.

Tips / Case: Aim for 190–210 cm height for splash control and consider a pivot hinge over sliders in tight rooms. I’ve specified low-iron glass to reduce green tint near white tiles. Explore how “Glass backsplash for a brighter kitchen” inspired similar materials thinking: glass backsplash for a brighter kitchen.

save pin

save pin

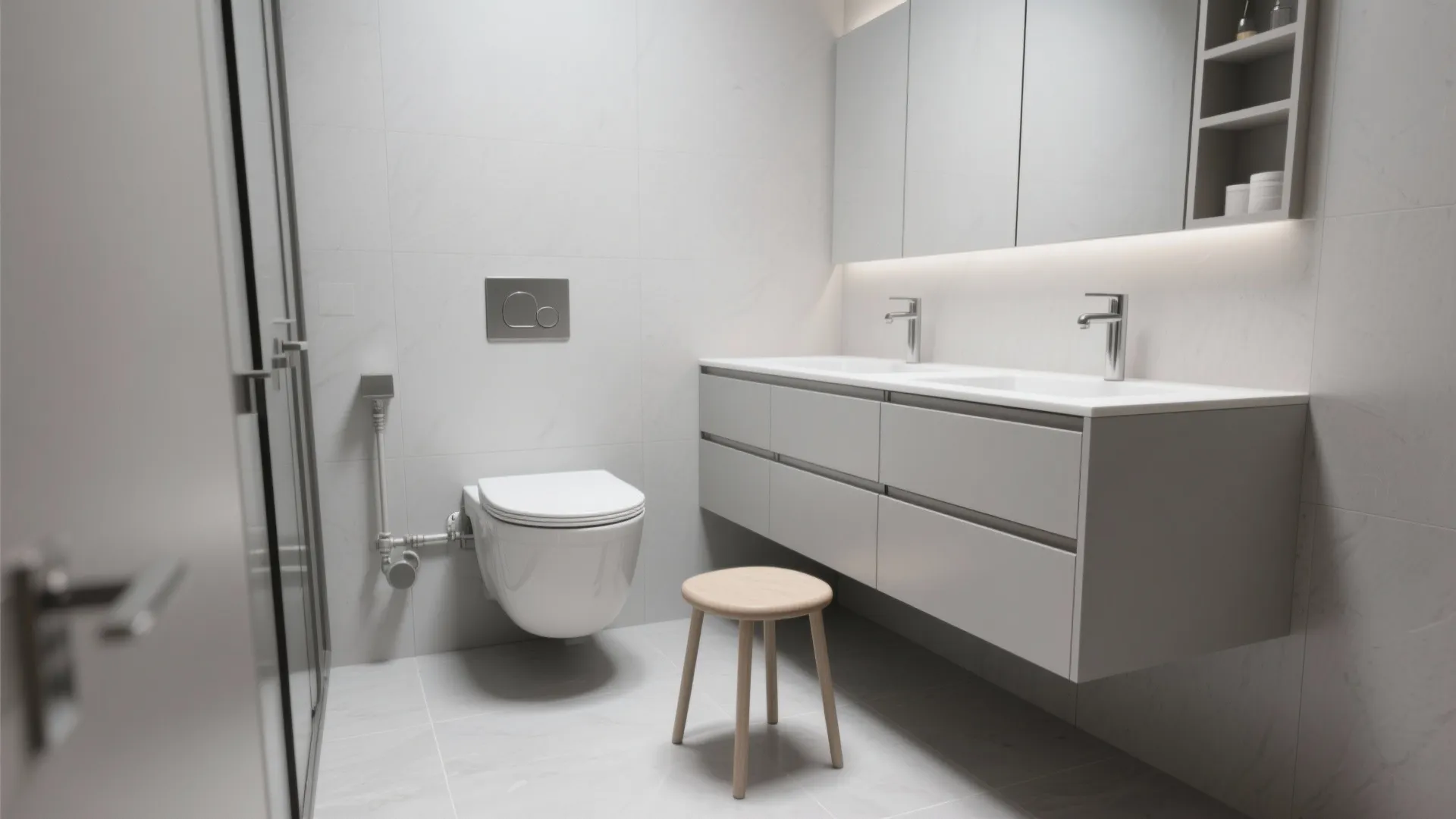

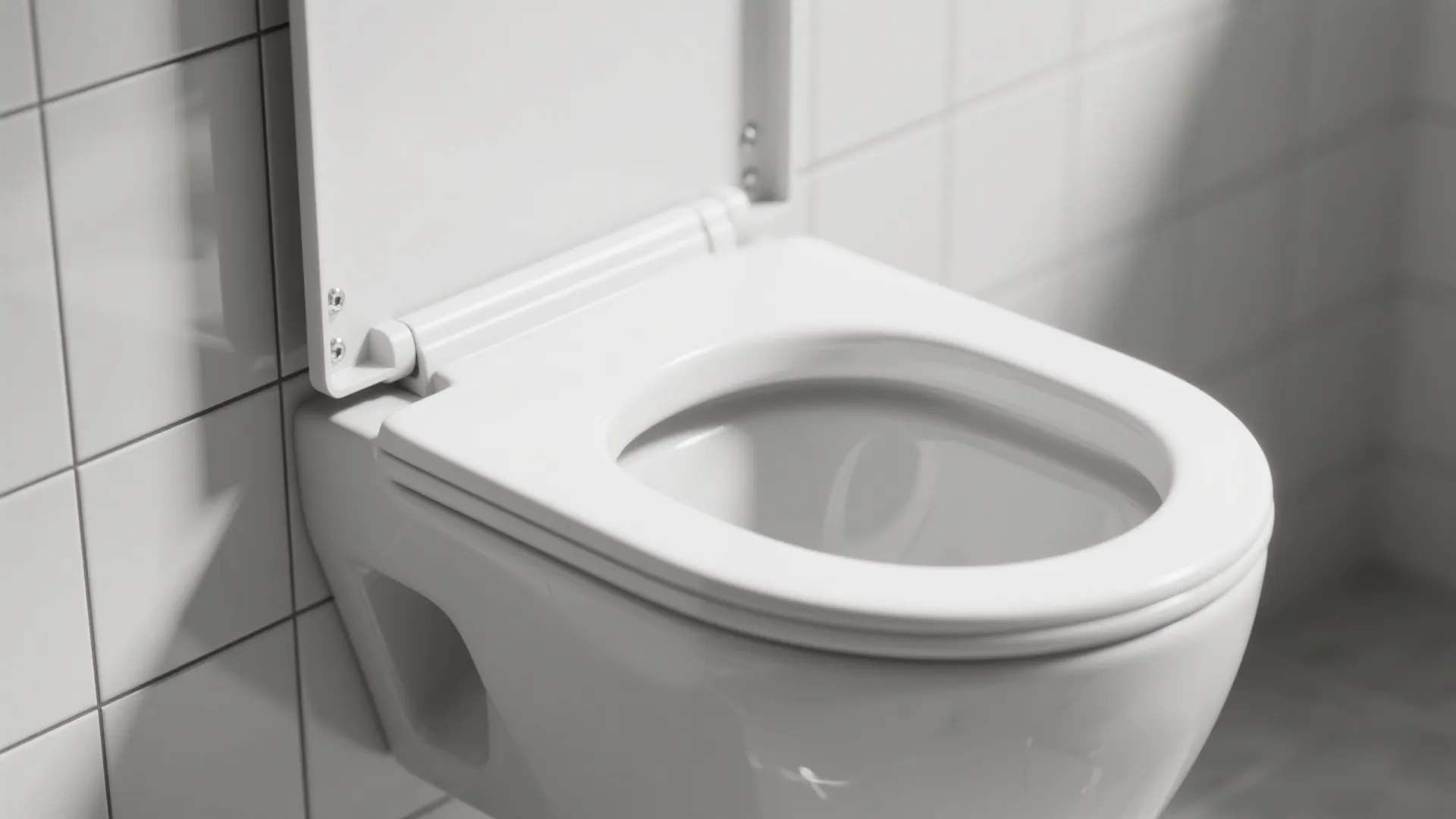

Wall-hung fixtures to free floor space

My Take: Switching to a wall-hung toilet and vanity in a 4 m² apartment bath reclaimed 15–20 cm of visual depth. The floating effect makes cleaning a breeze and turns the floor into a continuous plane—an instant spaciousness trick.

Pros: Concealed cisterns and wall-hung fixtures reduce visual weight, ideal for narrow bathroom ideas and minimalist aesthetics. Raised bases improve airflow, deter moisture pockets, and simplify mopping. In compact bathroom storage planning, floating vanities allow baskets or a stool to tuck beneath.

Cons: Structural walls might limit in-wall tank placement; stud reinforcements add complexity and cost. The plumbing rough-in needs precision—my first attempt demanded an emergency weekend drywall patch.

Tips / Cost: Confirm wall load capacity and plan a 180–200 kg support frame for wall-hung toilets. Choose drawers over doors for small footprints—full-extension hardware prevents back-of-cabinet blind spots.

save pin

save pin

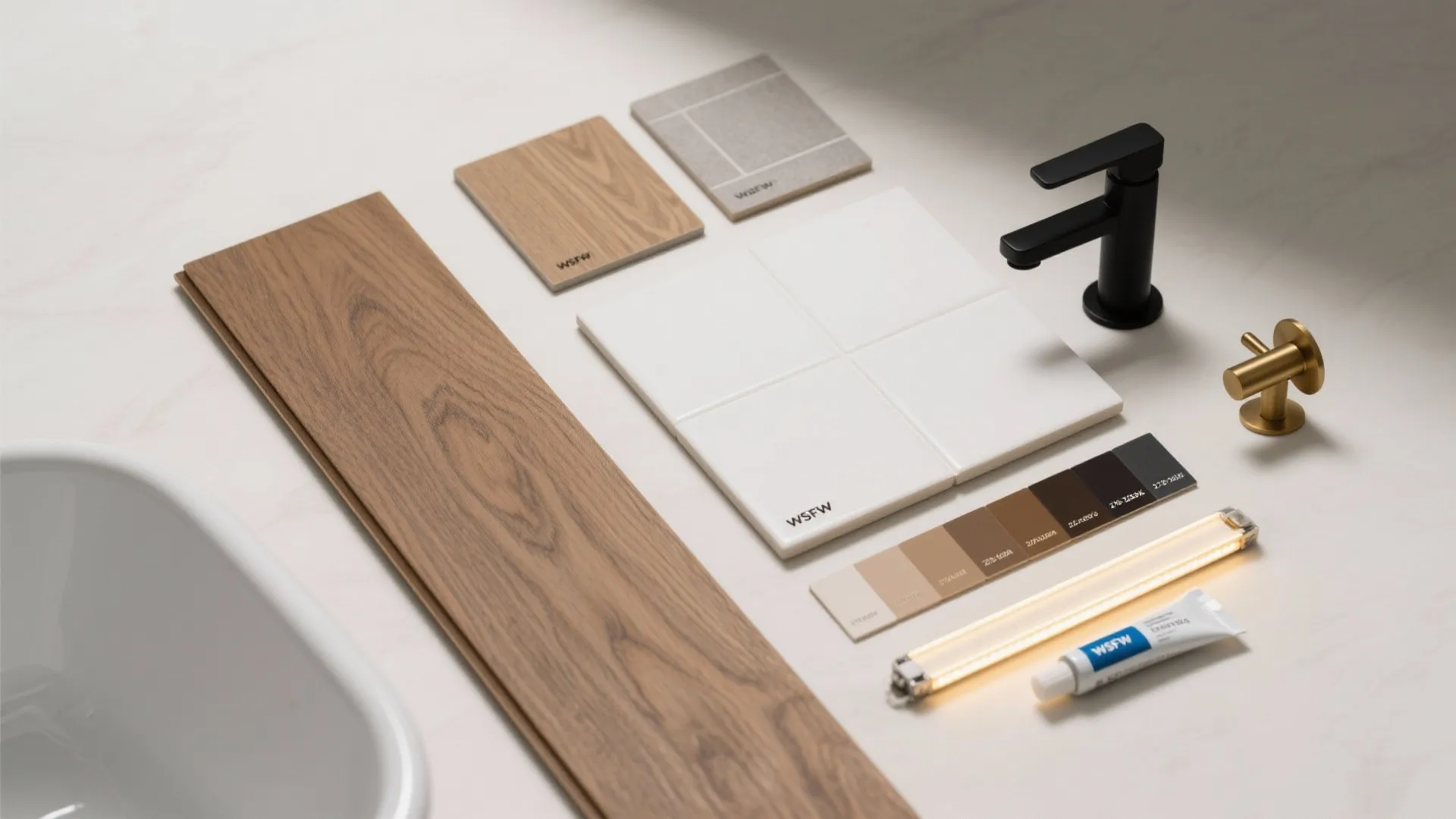

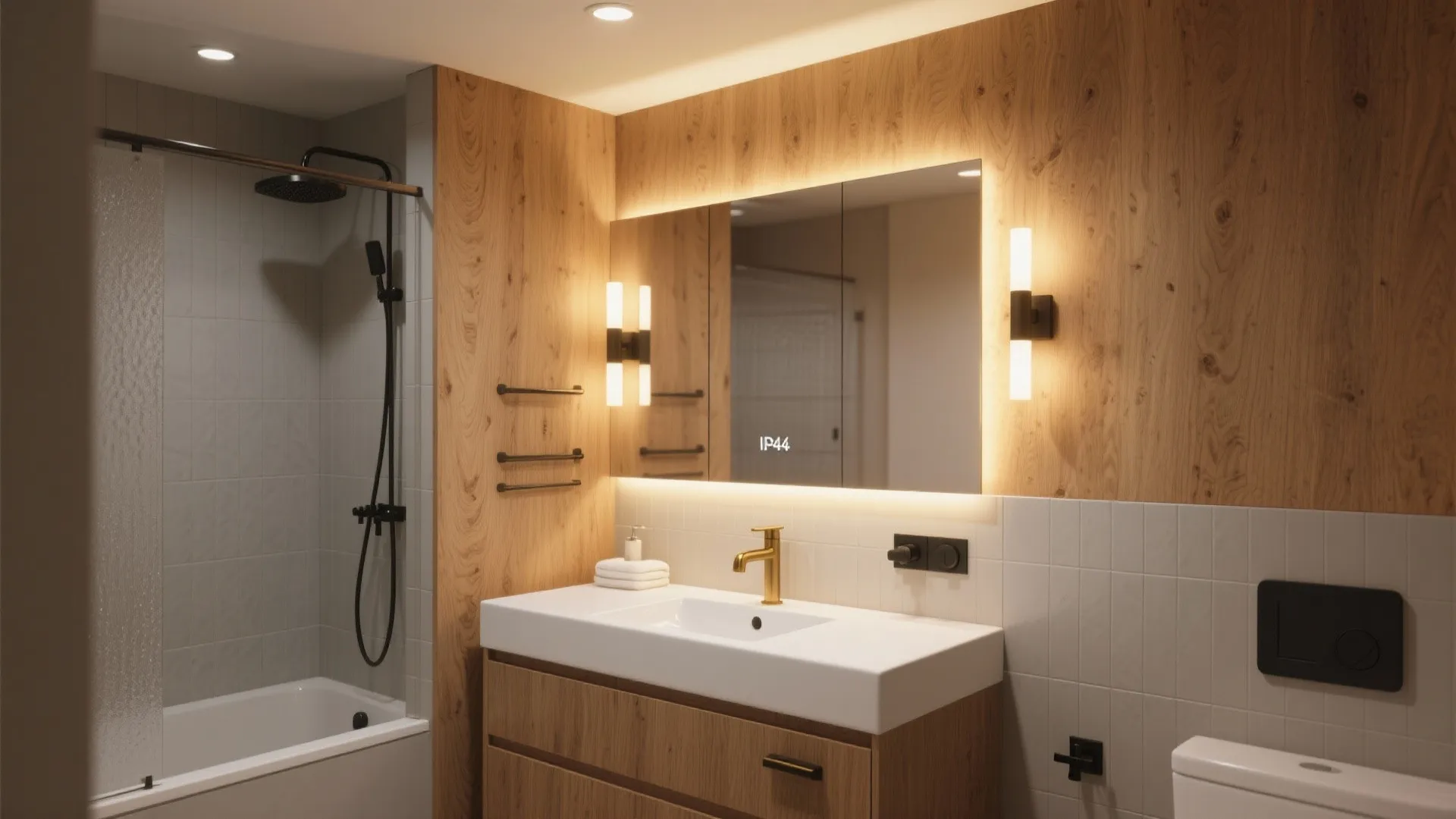

Warm materials and layered lighting for comfort

My Take: A tiny, all-white bath felt sterile until we introduced warm wood accents and layered lighting—backlit mirrors, dimmable sconces, and a soft overhead wash. The toilet area no longer looked “utility-only”; it became part of a cohesive sanctuary.

Pros: Wood-look porcelain or sealed oak adds warmth while remaining moisture-resistant, supporting small space renovation goals. Layered lighting—task + ambient + accent—enhances usability and mood, especially in combined bathroom and toilet designs where functions overlap. Energy-efficient LED at 2700–3000K keeps tones flattering.

Cons: Real wood needs diligent sealing and maintenance—steam can be unforgiving. Too many fixtures and temperatures can feel like a showroom; keep a consistent color temperature to avoid visual chaos.

Tips / Case: Use IP44-rated fixtures near wet zones; backlit mirrors reduce glare and shadowing. See how “wood tones for cozy atmosphere” guided finish palettes in another compact project: wood tones for cozy atmosphere.

save pin

save pin

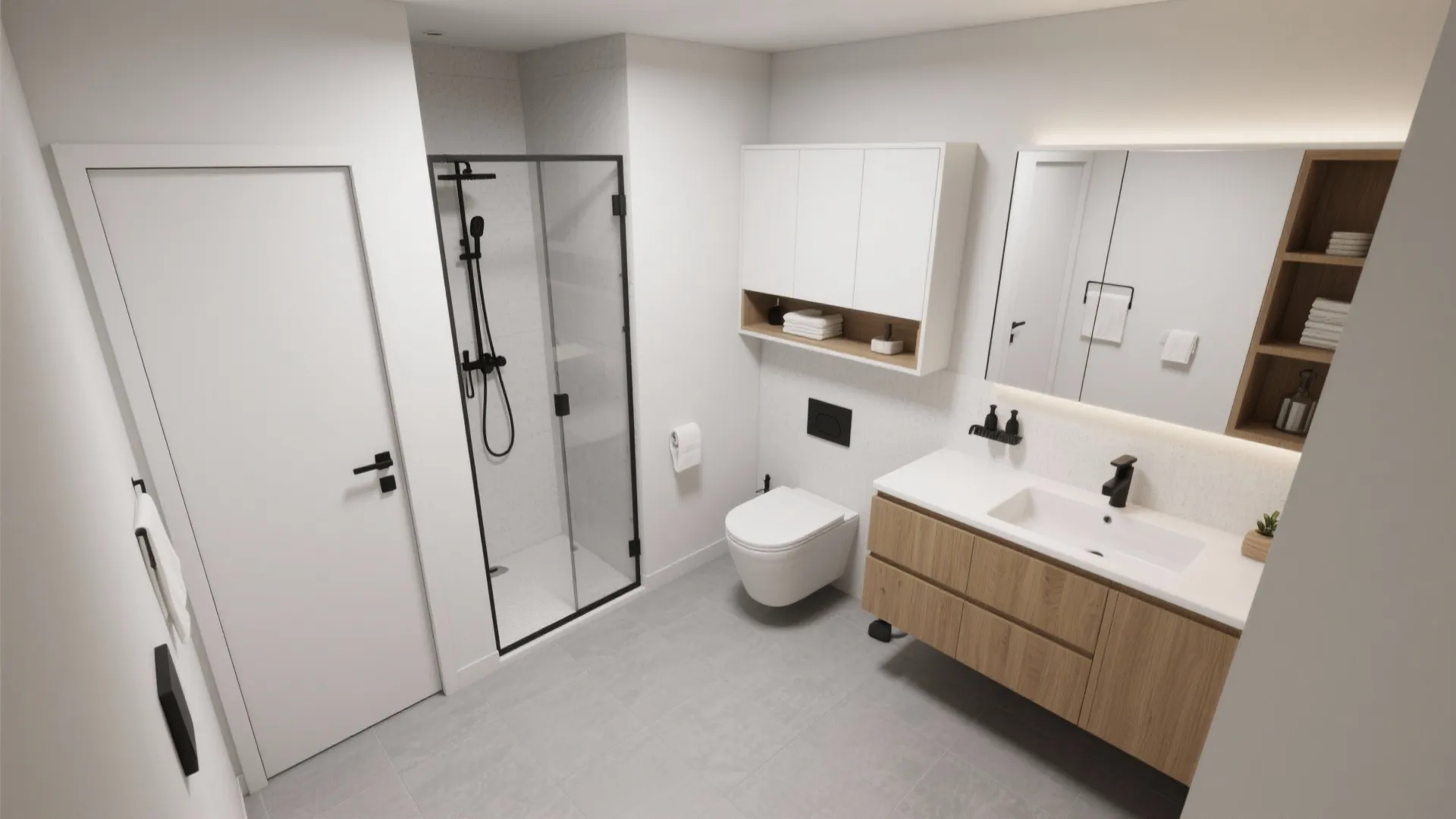

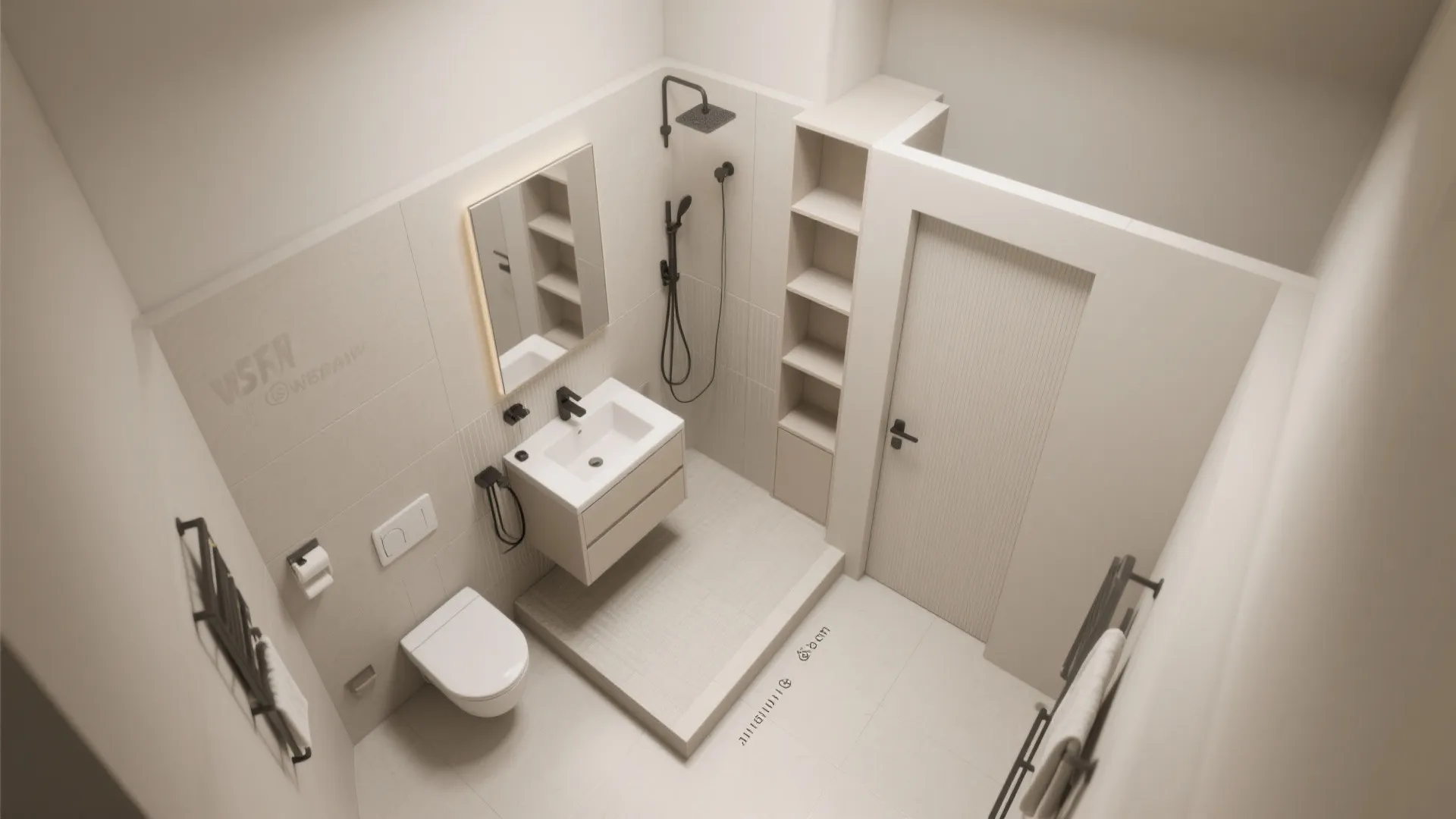

L-shaped layouts with storage-first thinking

My Take: When plumbing locations are fixed, I lean on L-shaped layouts: stacking shower along one wall and wrapping the vanity and toilet around a corner. In a 3.5 m² remodel, this approach protected circulation and opened a clear dry zone for the vanity.

Pros: L-shaped planning releases more counter and wall space for compact bathroom storage, while maintaining clear sightlines. It simplifies zoning—wet corner vs. dry corner—which is crucial in small bathroom layout strategies. The National Kitchen & Bath Association (NKBA) recommends thoughtful clearances and ventilation in tight baths, supporting this organized approach (NKBA Bath Planning Guidelines).

Cons: Corner crowding can occur if door swings aren’t considered; I’ve head-butted more than one medicine cabinet. L-shapes may limit tub options—showers fit better than alcove tubs in very small footprints.

Tips / Cost: Consider a 90 cm minimum clear walkway; pocket doors or outward-swing doors preserve space. Corner mirrors and shallow cabinets (10–15 cm deep) add storage without stealing elbow room.

[Section: 总结]

In the end, combined bathroom and toilet designs aren’t a constraint—they’re a nudge toward smarter, more intentional planning. Wet rooms, glass partitions, wall-hung fixtures, warm finishes, and L-shaped layouts each solve for function and calm, especially in small spaces. The NKBA’s emphasis on clearances and ventilation reminds us that good planning beats square meters. Which idea are you most excited to try in your own small bath?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What is a combined bathroom and toilet design?

It’s a layout where the toilet, vanity, and shower (or tub) share one room, commonly used in apartments or small homes. Done well, it improves flow and reduces duplicated fixtures.

2) Are wet rooms safe and practical in small homes?

Yes—proper waterproofing, a floor gradient (1–2%), and good ventilation make wet rooms safe and low-maintenance. They also simplify cleaning and accessibility.

3) How do I maintain privacy in a combined bathroom?

Use reeded or frosted glass partitions, half-height walls, or curtains with ceiling tracks. Place the toilet away from the primary sightline, ideally behind a panel.

4) What’s the best lighting for combined bathroom and toilet designs?

Layered lighting helps: overhead ambient, task lighting at mirrors, and accent lighting for niches. Keep LEDs at 2700–3000K for warm, flattering tones.

5) Can I install wall-hung fixtures in any bathroom?

Most can, but you’ll need solid wall support or reinforcement for concealed cisterns. A trained plumber should verify load and rough-in positions.

6) How do I prevent mold in a wet room?

Ventilation is crucial—use an appropriately sized exhaust fan and run it after showers. The CDC highlights moisture management as key to mold prevention (CDC Mold FAQ, cdc.gov).

7) What layout works best for very narrow bathrooms?

Linear or L-shaped layouts keep circulation clear. Consider pocket doors and compact fixtures to avoid door conflicts and pinch points.

8) How much does converting to a combined bathroom cost?

Costs vary by waterproofing, fixtures, and labor; wet rooms can be 10–20% higher than standard showers due to membranes and drainage. Plan a contingency for hidden plumbing issues.
