Bathroom Pipe Design: 5 Ideas That Actually Work: How I optimize bathroom pipe design in small spaces—5 field-tested ideas, pros & cons, and budget pointers

[Section: Meta 信息] Meta Title and Description are provided in the meta field below. [Section: 引言] As a residential designer, I’ve learned that bathroom pipe design can make or break a remodel—especially in tiny apartments. Small spaces spark big creativity because every vent stack, trap, and riser must multitask with the layout, storage, and waterproofing. In this guide, I’ll share 5 bathroom pipe design ideas that I’ve tested on real projects, blending personal lessons with expert data you can trust. In my practice, thoughtful routing of drains and vents often frees up space for a bigger shower or a deeper vanity. It’s not glamorous, but it’s the backbone of a durable, code‑compliant bathroom. Below are five practical inspirations—with pros, cons, cost hints, and how I make the most of tight chases and old structures. [Section: 灵感列表]

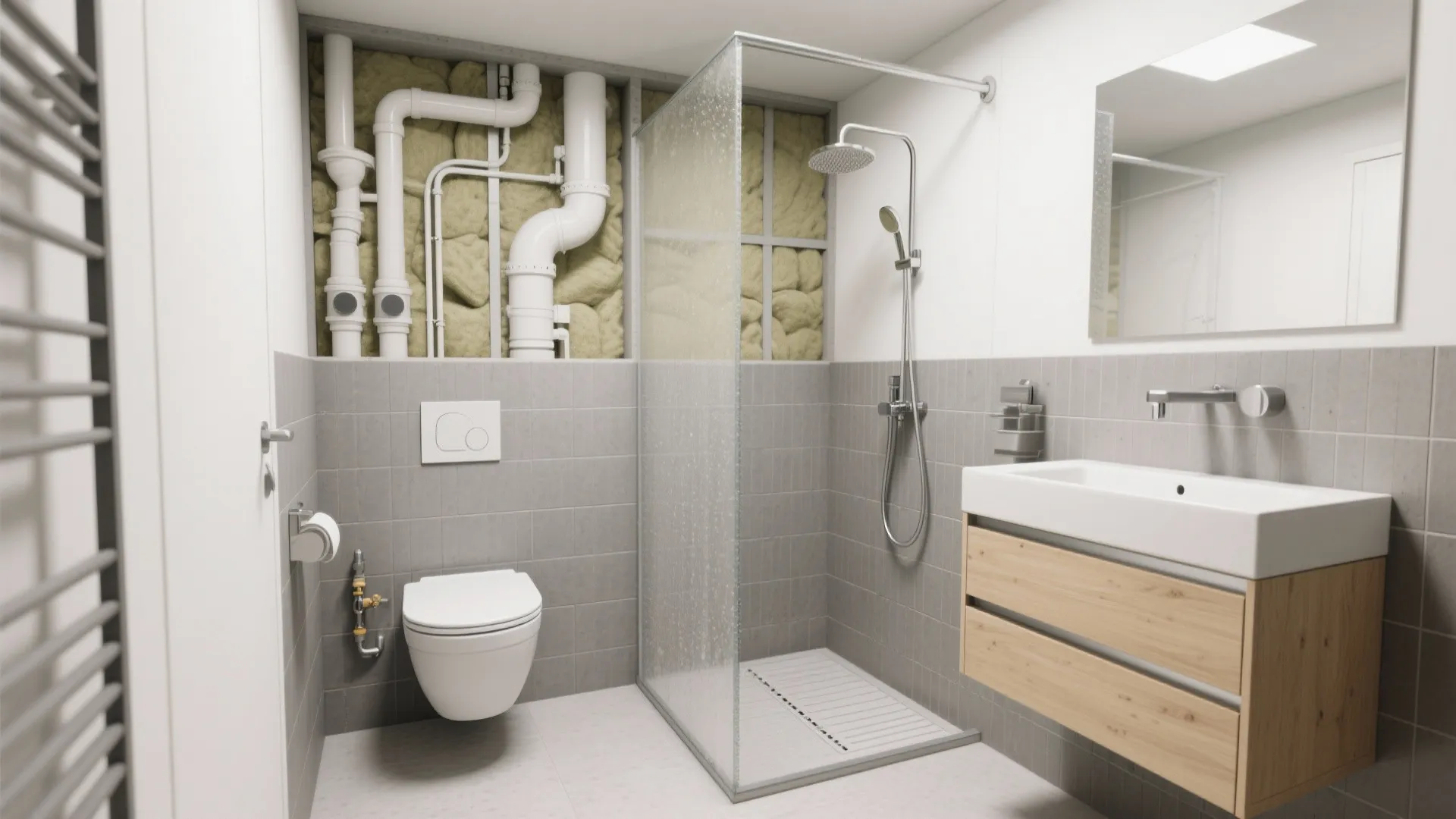

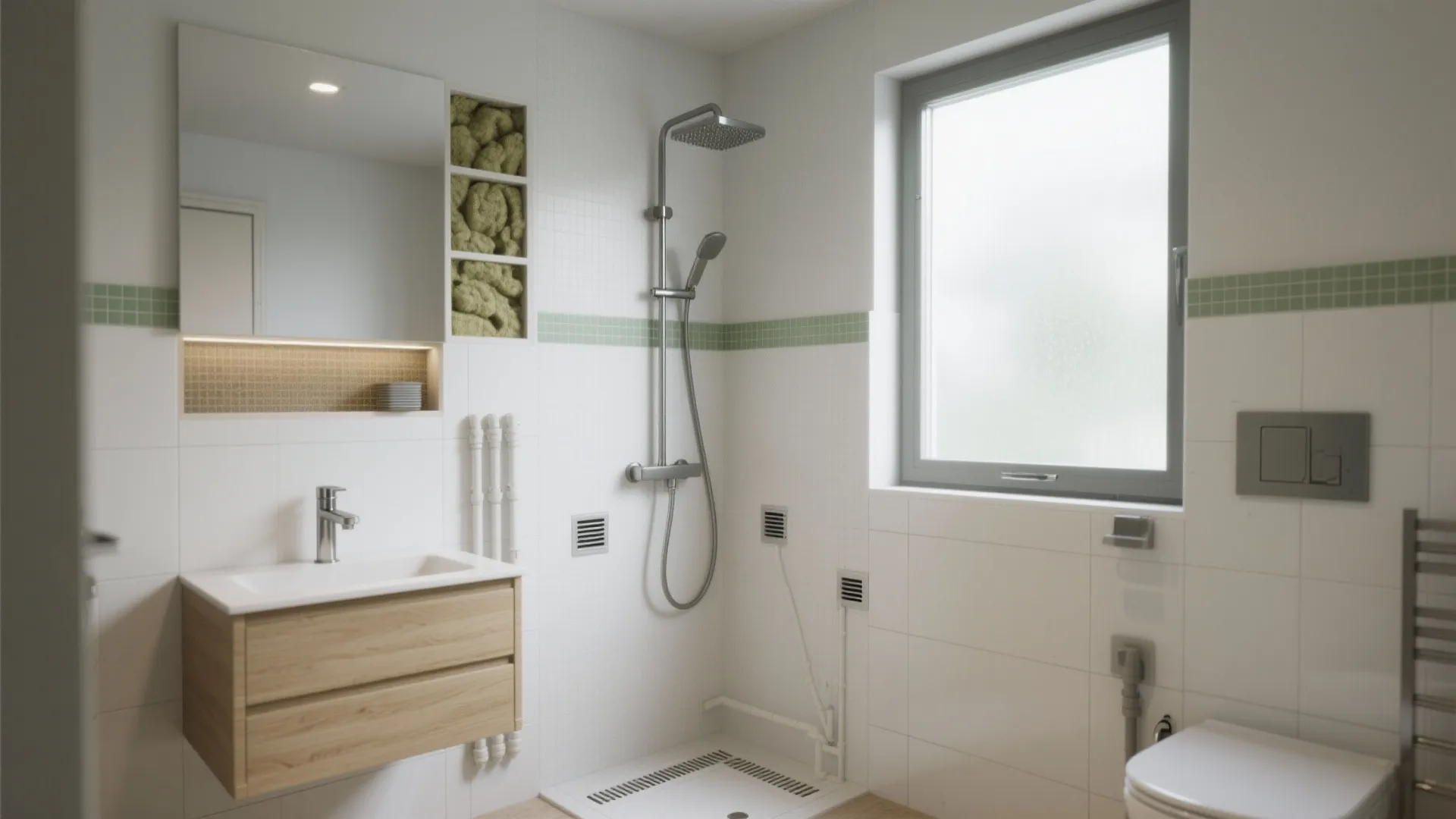

1) Vertical wet walls: stack drains and vents on one spine

My Take I love using a single vertical wet wall to concentrate supply lines, waste pipes, and venting. On a recent micro‑bath, consolidating the stack let me shift the toilet 150 mm and gain a wall‑hung vanity—huge win in a 2.2 m x 1.6 m room. Pros - A centralized wet wall streamlines rough‑in, shortens branch drain lengths, and improves maintenance. This approach aligns with long‑tail needs like small bathroom pipe layout and “bathroom vent stack design principles.” - Better sound control—one insulated chase instead of pipes scattered across walls. With proper venting, fixture performance stays consistent. - Keeps waterproofing continuous on other walls, making tiling simpler and more reliable over time. Cons - You’ll need adequate wall depth; older buildings with thin partitions may require furring out 50–75 mm. - Relocating fixtures outside that spine can be limited, which may constrain bold layout shifts. - Penetrations concentrate in one area, so firestopping and acoustic treatment must be meticulous. Tips / Cost - Use mineral wool around the wet wall for sound; it’s cost‑effective and easy to retrofit. - If you plan an L‑shaped shower, align the drain with the wet wall to minimize slope transitions and reduce floor buildup. First Inline Link (around 20%) In compact remodels, I often pair a wet wall with an efficient layout tool to test clearances and heights—see how an “L 型布局释放更多台面空间” inspired mock‑ups in English like “L-shaped layout frees more counter space” in related kitchen planning workflows: L-shaped layout frees more counter space.

save pin

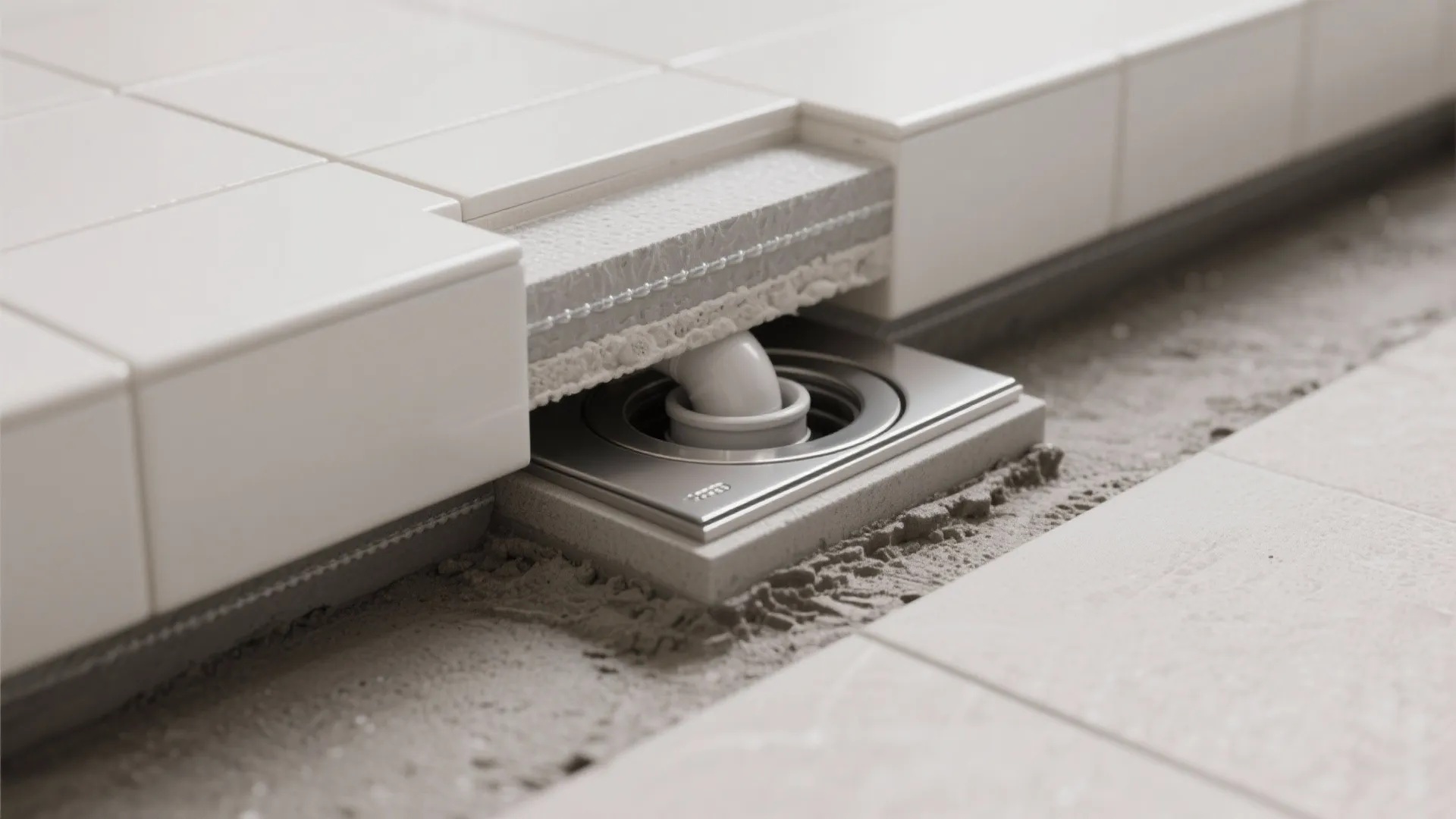

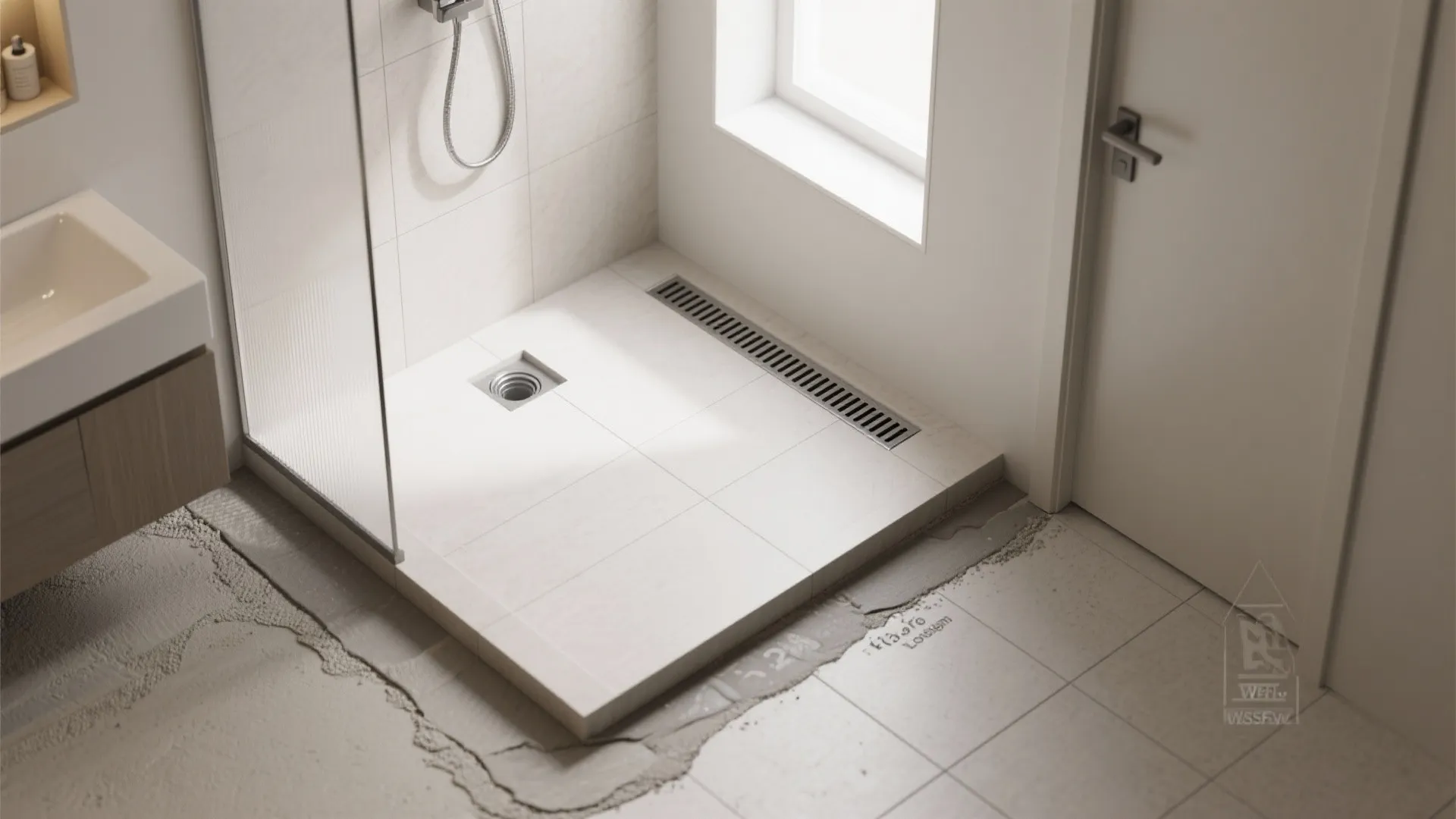

2) Low‑profile traps and raised floors: gain slope without losing headroom

My Take When joists run the wrong way or slab cores won’t allow new penetrations, I use a slim trap plus a micro‑raise (20–40 mm) under the shower. That tiny platform often creates the 1–2% fall needed for reliable drainage without a clunky step. Pros - Low‑profile traps help satisfy long‑tail queries like low profile shower trap for small bathrooms while maintaining proper seal depth. - A gentle floor raise allows continuous falls to the stack, reducing risk of standing water and odors. - Works well with linear drains, which need a consistent gradient and simplify tile layout. Cons - Even a slight platform can be a trip hazard if edge details aren’t chamfered or highlighted. - In apartments, you must confirm added build‑up doesn’t interfere with door swing or threshold heights. - Some slim traps have stricter cleaning schedules; choose models with easy access covers. Tips / Cost - Budget an extra 8–12% for waterproofing layers when raising floors; you’ll need compatible membranes and transition trims. - For linear drains near the wall, allow 40–60 mm set‑back to avoid wall tile cracking during maintenance.

save pin

save pin

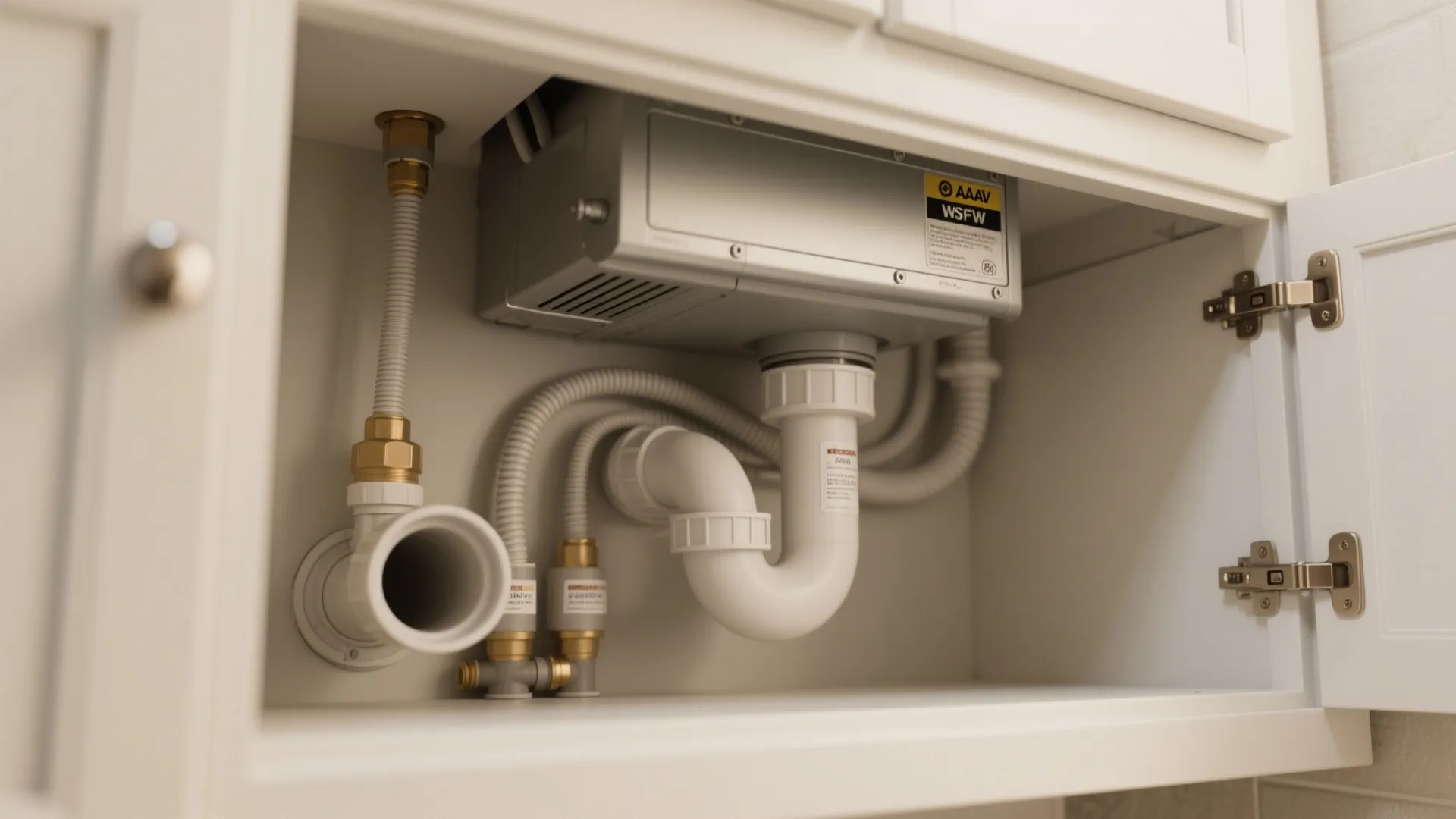

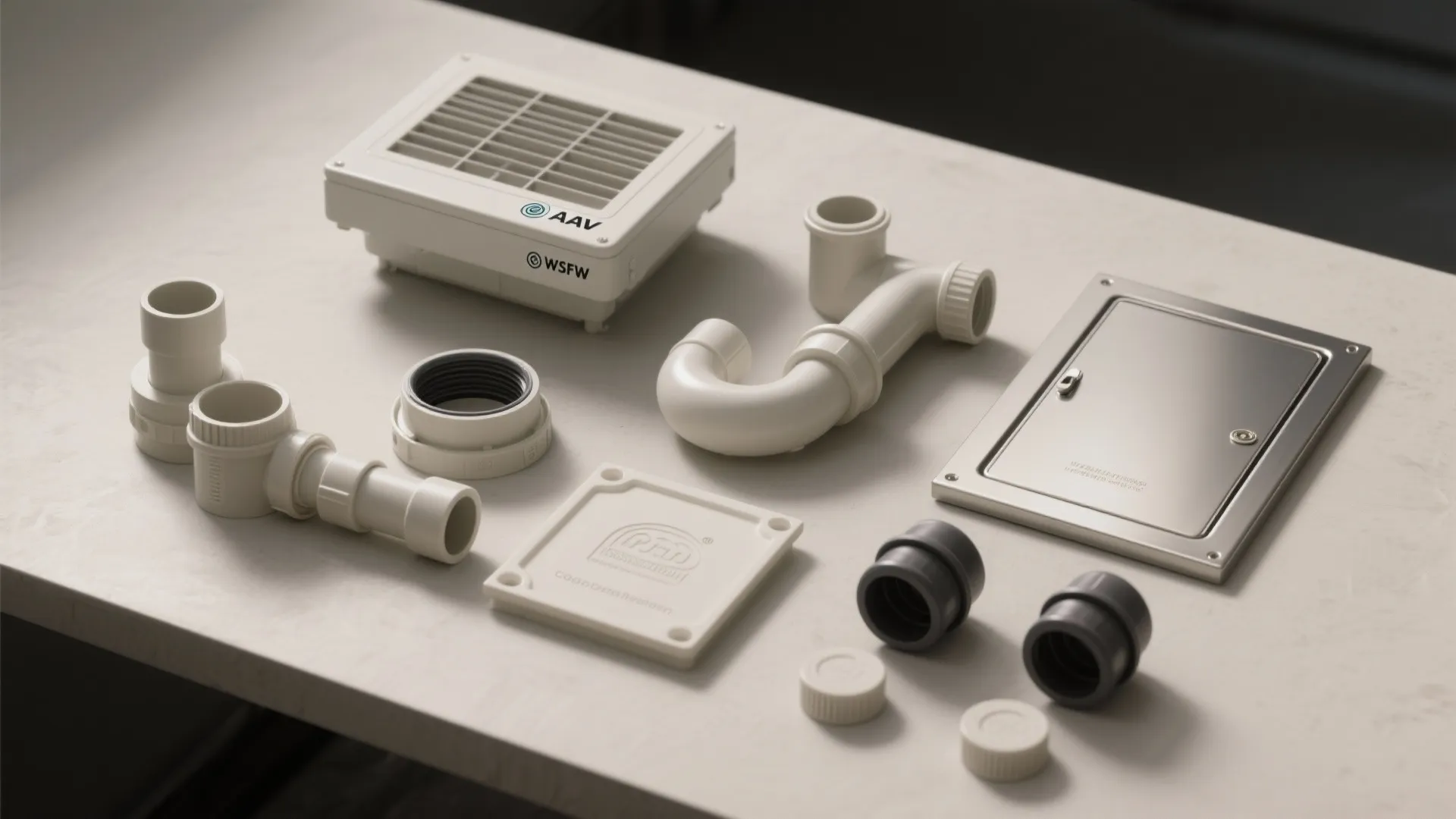

3) Air admittance valves (AAVs) as smart venting backups

My Take On a 1960s retrofit where tying to the main vent was impossible without structural surgery, I used code‑approved AAVs inside a vanity and a laundry closet. They eliminated gurgling and kept traps sealed—quietly. Pros - AAVs can stabilize negative pressure and reduce long vent runs—ideal for phrases like bathroom venting without roof penetration and small bathroom vent solutions. - They’re great in renovations where roof penetrations are restricted or where distance to the vent stack would exceed code limits. - Can speed up timelines by avoiding complex roof work. Cons - They are not a universal substitute. Many jurisdictions limit their use or require specific access and placement; always check local code first. - AAVs have moving parts and a lifespan; plan for future replacement and keep an access panel. - In very cold or humid cavities, performance can be inconsistent without proper enclosure. Evidence - The International Association of Plumbing and Mechanical Officials (IAPMO) and the International Plumbing Code recognize AAVs with conditions; always verify the model listing and local amendments. Second Inline Link (around 50%) When I’m testing vanity depths and service clearances for hidden AAVs, I visualize the chase in 3D so I don’t clash with drawers or siphons—similar to how I iterate full layouts in tools showcased here: 3D layout visualization for tight chases.

save pin

save pin

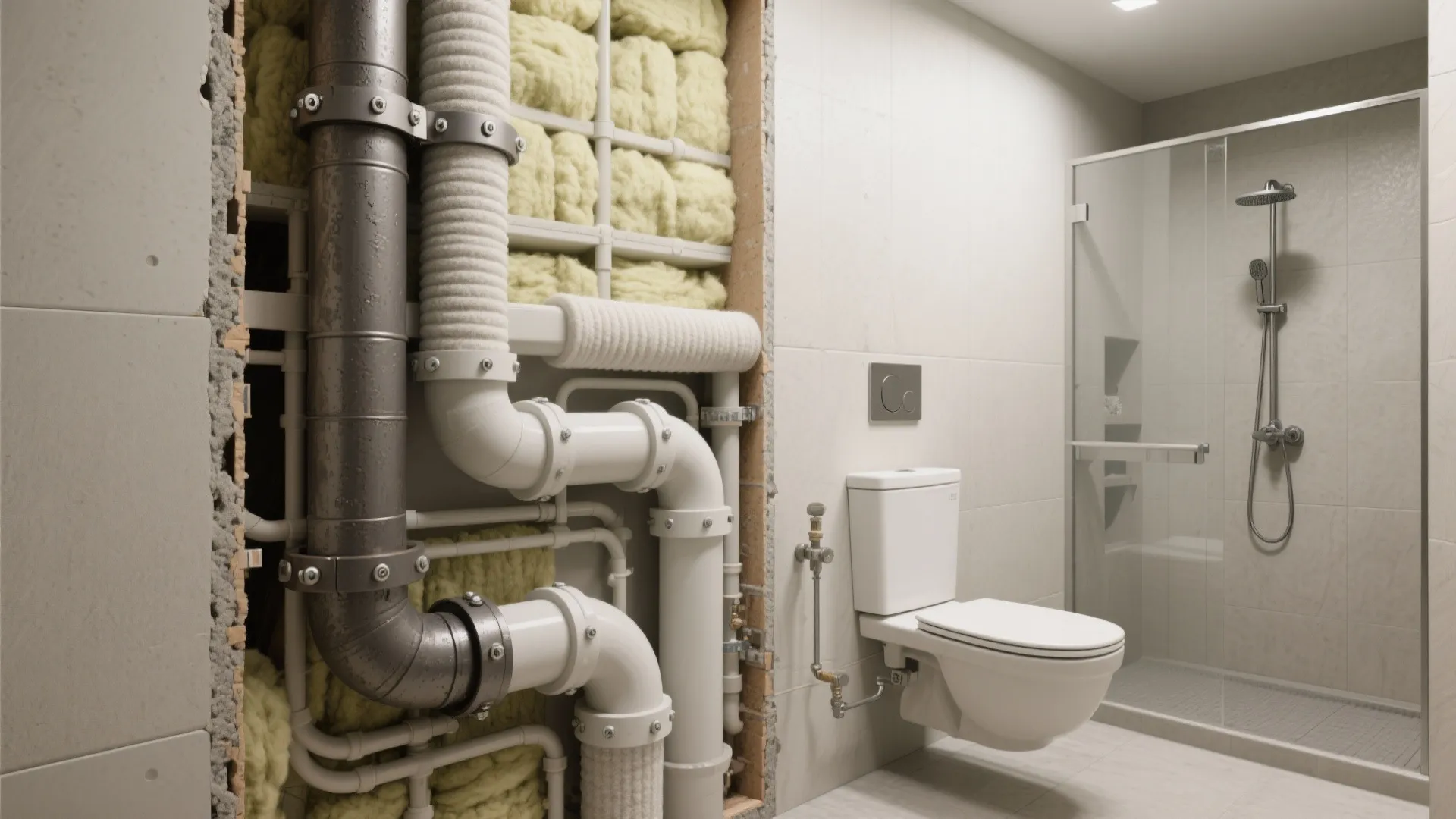

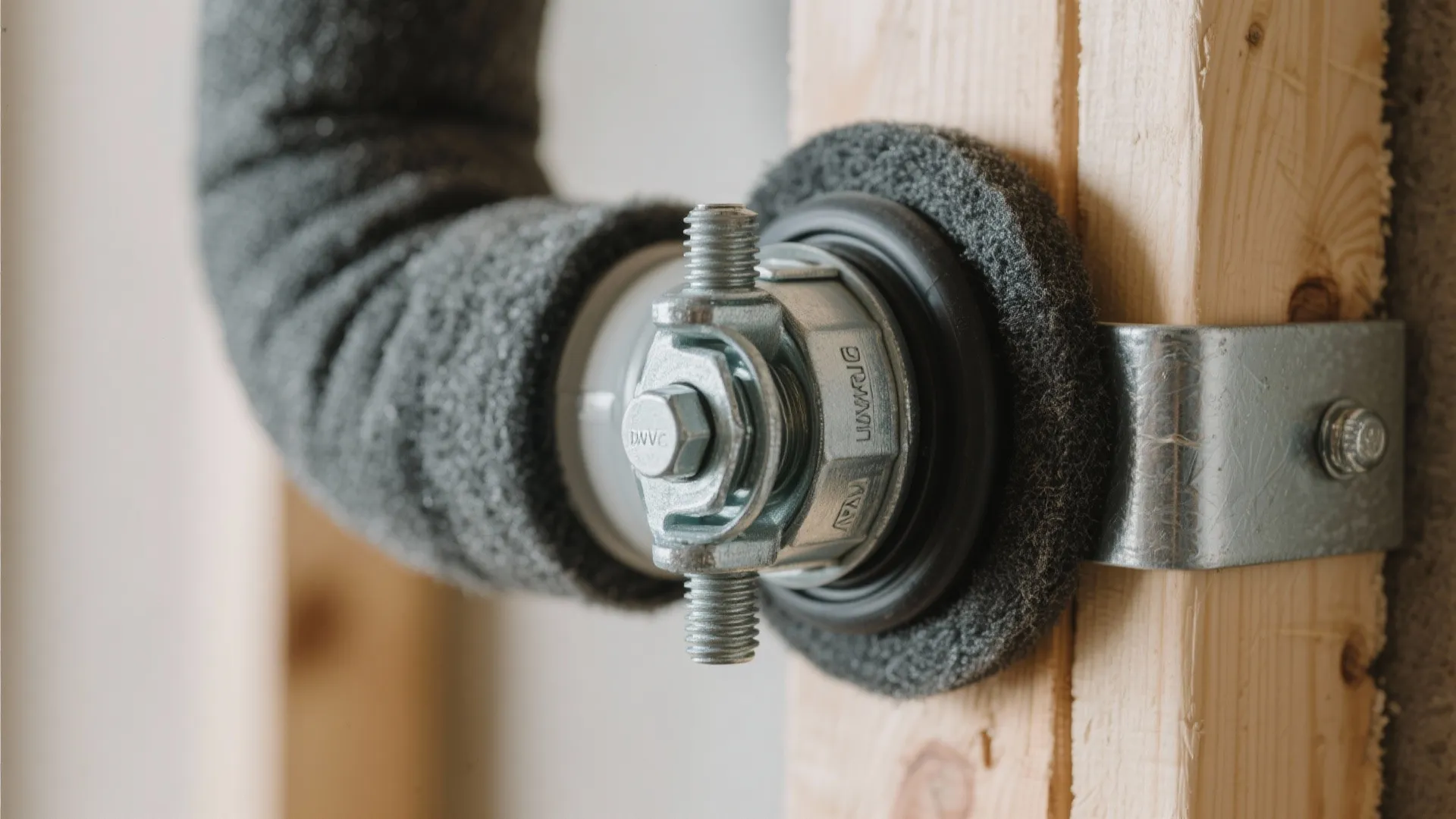

4) Quiet plumbing: pipe sizing, offsets, and acoustic wraps

My Take Clients often tell me, “I just don’t want to hear the flush at night.” I’ve learned that correct pipe sizing, long‑sweep fittings, and acoustic wraps in the wet wall are the trifecta for serenity. Pros - Upsizing vertical DWV slightly and using long‑sweep 90s smooths flow, reducing turbulence noise—searchers for quiet bathroom plumbing design will appreciate this. - Resilient clips, isolation grommets, and mineral wool add noticeable sound attenuation without huge cost. - Keeping the toilet branch short and direct to the stack minimizes pressure spikes at other traps. Cons - Acoustic wraps add thickness; in ultra‑tight shafts every millimeter matters. - Specialty fittings and isolation hardware raise material costs by 5–10%. - If only one fixture is treated, noise may travel through untreated branches—holistic planning is key. Tips / Cost - Use a double layer of mineral wool plus a 12.5 mm cement board face inside showers for extra mass where space allows. - For wall‑hung toilets, confirm the carrier’s in‑wall tank doesn’t compete with your acoustic plan; some models have integrated sound pads. Evidence - Data from manufacturer acoustic tests (e.g., cast iron vs. PVC) consistently shows lower dB ratings for cast iron stacks; where weight is acceptable, cast iron on the main riser can be a worthwhile upgrade.

save pin

save pin

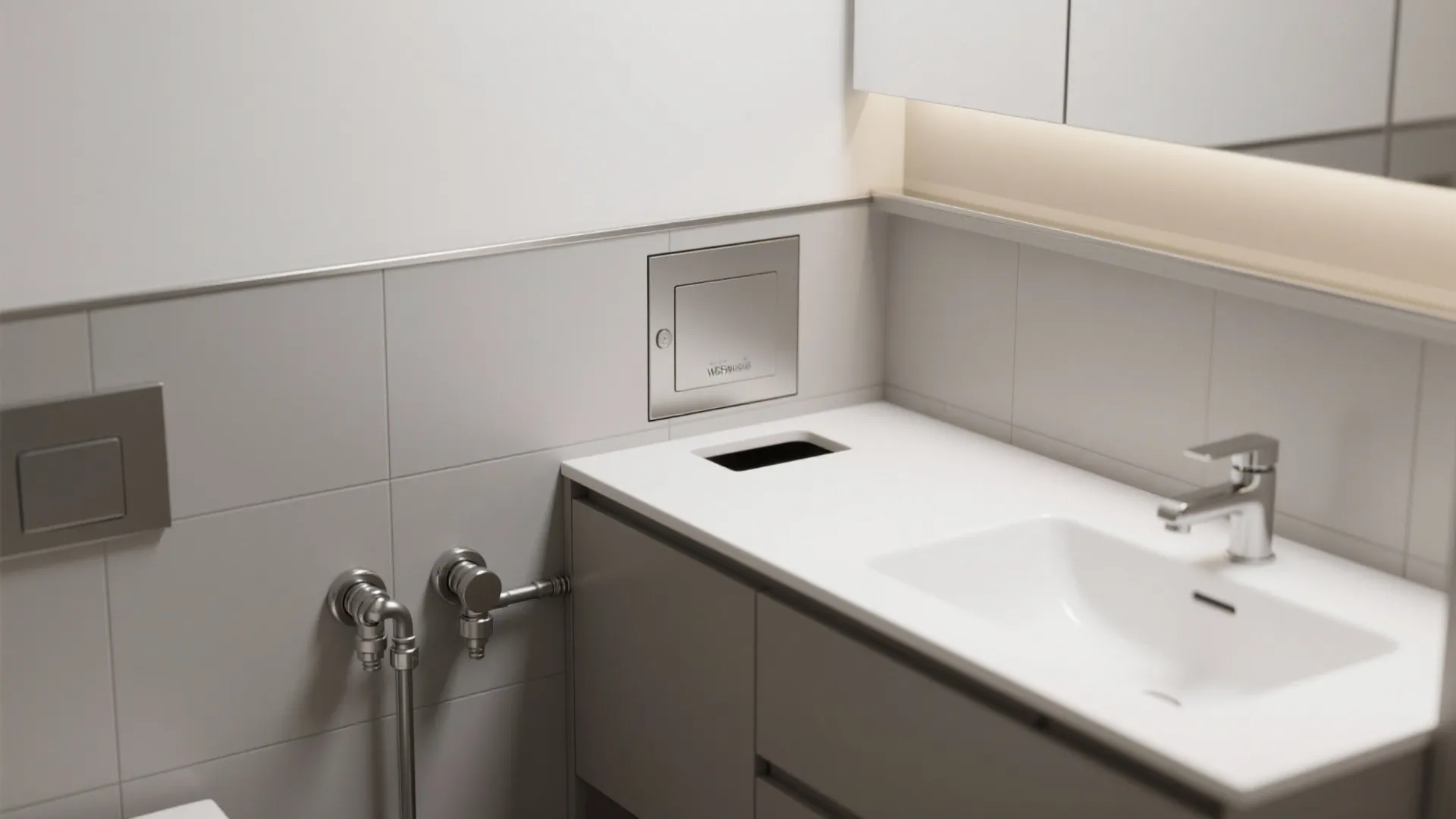

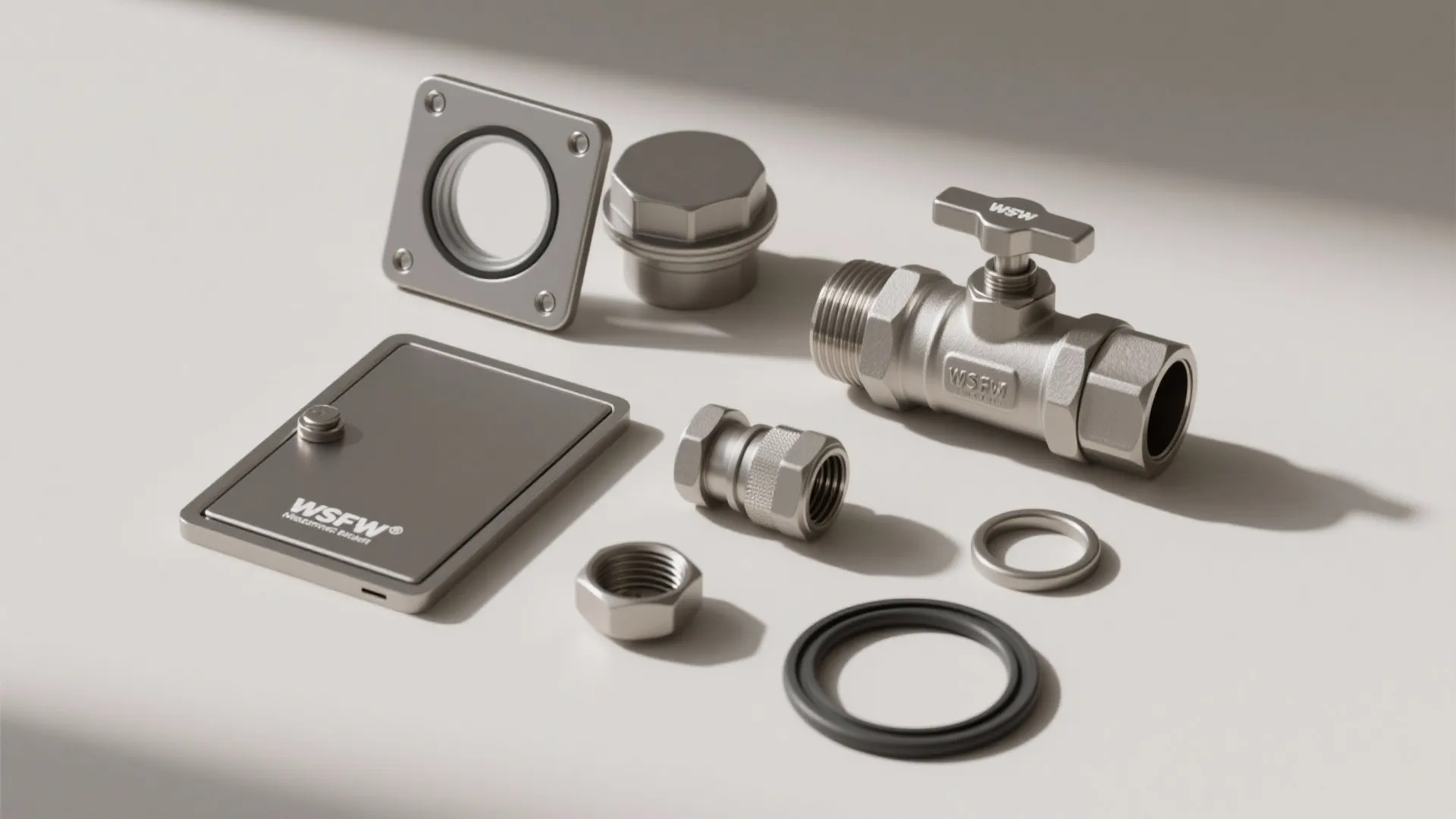

5) Future‑proof routing: access panels, unions, and cleanouts in smart places

My Take Nothing beats the relief of opening a discrete panel to clear a blockage in minutes. I place cleanouts where you can actually use them: behind the vanity toe‑kick or in a closet, not hidden behind a fixed mirror. Pros - Strategic cleanout placement and quarter‑turn valves make maintenance faster—perfect for long‑tail needs like bathroom cleanout location and serviceable plumbing for small bathrooms. - Access panels behind mixers and AAVs reduce wall demolition for future repairs. - Unions on exposed supplies (for wall‑mounted faucets) let you replace trim without disturbing tile. Cons - Panels must be detailed nicely; a cheap cover can spoil a premium finish. - More fittings mean more potential joints; specify quality components and torque correctly. - Some historic homes limit where you can add panels—coordinate with the preservation plan. Tips / Cost - I prefer magnetic, paintable access doors that sit flush with the wall; they disappear after painting. - Mark cleanouts and shutoffs on the as‑built plan and leave a printed copy in the vanity—future you (or your plumber) will thank you. Third Inline Link (around 80%) For compact bathrooms where every centimeter counts, I prototype fixture spacing and pipe corridors just like I would in a micro‑kitchen study—here’s a similar case approach: micro‑space planning in 2D before rough‑in. [Section: 总结] Good bathroom pipe design isn’t about restrictions—it’s about smarter routing, better venting, and serviceable details that make small rooms feel bigger and work harder. Small spaces don’t limit creativity; they demand it, and the result is a quieter, cleaner, easier‑to‑maintain bathroom. As codes evolve and materials improve, we get more tools to do it right—per IAPMO and IPC guidance, planning early pays off. Which of these five ideas are you most excited to try in your next remodel? [Section: FAQ 常见问题] 1) What is the core principle of bathroom pipe design in small spaces? Keep drains short and direct to a central wet wall, ensure proper venting, and plan clear access to critical components. This reduces noise, clogs, and maintenance time. 2) How much slope do I need on bathroom drains? Most codes require 1/4 inch per foot (about 2%) for pipes 2 inches and smaller, and 1/8 inch per foot (about 1%) for larger lines. Always verify your local code amendments. 3) Are air admittance valves legal in bathroom renovations? Often yes, but rules vary. The International Plumbing Code permits AAVs when installed per listing and access requirements; check with your local authority for final approval. 4) How can I make bathroom plumbing quieter? Upsize key vertical runs, use long‑sweep fittings, isolate pipe clamps, and add acoustic wraps and mineral wool inside wet walls. Cast iron stacks can further reduce noise. 5) What’s the best way to hide access panels without compromising design? Use paintable, flush‑mount magnetic panels aligned with tile or wall reveals. Keep them large enough for tool access and mark their location on your as‑built plan. 6) Can I relocate the toilet easily in a small bathroom? It depends on the stack location and joist direction. Moving within the same wet wall is simpler; moving across joists or away from the stack may require more structure and cost. 7) Do linear drains help with small bathroom layouts? Yes. They allow a single‑direction slope, which can reduce floor buildup and create a barrier‑free look. Pair them with low‑profile traps for tight floor assemblies. 8) What tools help me plan bathroom pipe design before demolition? I test fixture spacing, pipe corridors, and access panels in 2D and 3D planning environments. For tiny spaces, early visualization prevents clashes; you can explore similar methods here: AI‑aided space testing.
