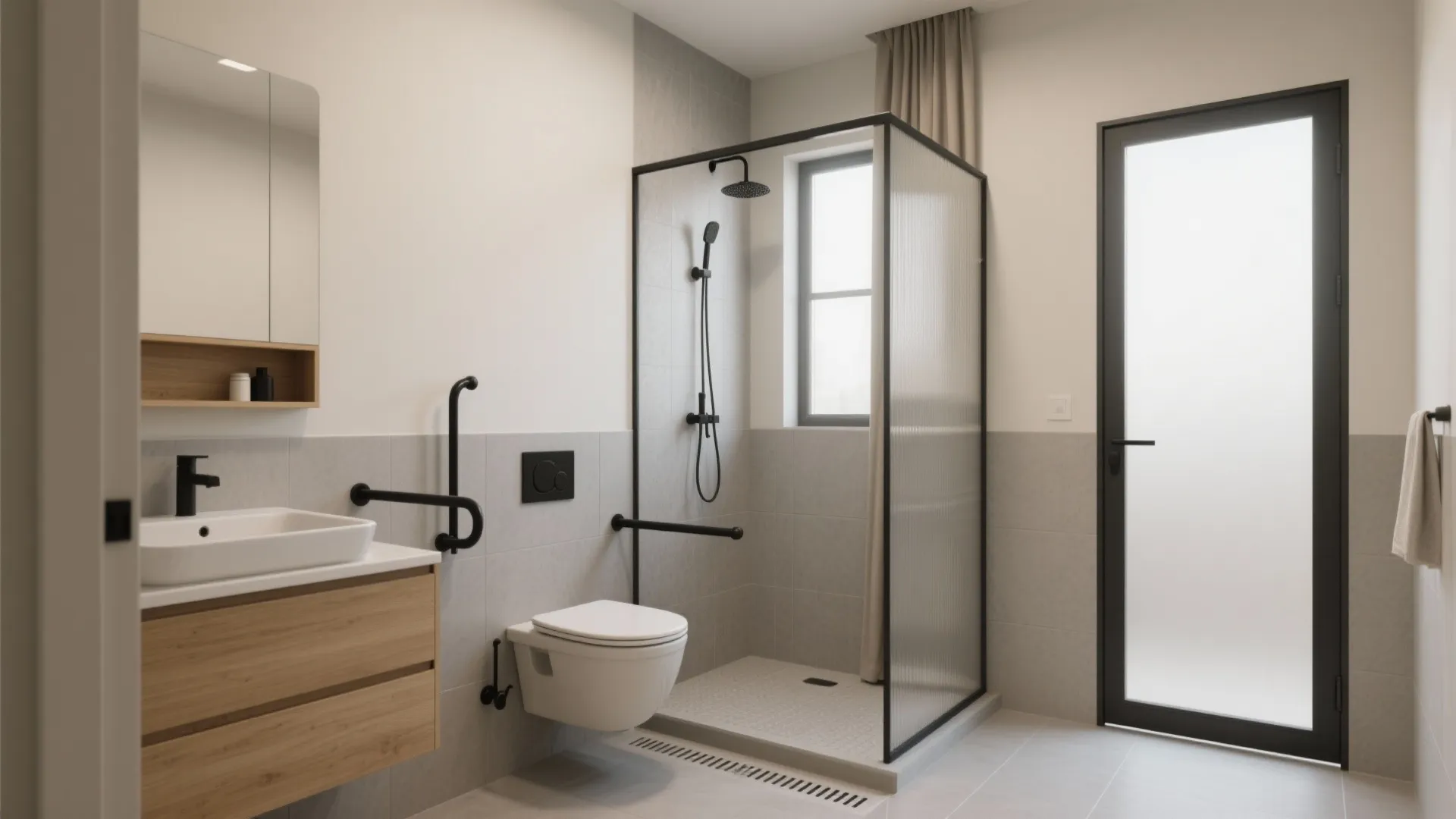

5 Small Wet Room Ideas for Disabled (Designer’s Guide): Practical, safe, and stylish solutions I use in compact accessible bathrooms

[Section: Introduction]

As a designer who’s spent 10+ years reshaping tiny homes and micro-apartments, I’ve watched universal design move from niche to mainstream—especially in wet rooms. In my projects, a simple curbless shower entry can be the difference between daily struggle and pure independence. Small spaces absolutely spark big creativity, and a compact wet room is where that magic shows.

In this guide, I’ll walk you through 5 small wet room ideas for disabled users that I’ve tested on real jobs. I’ll share my on-site lessons, a few expert-backed measurements, and straightforward cost/installation notes. By the end, you’ll have a clear, confidence-boosting plan—no generic fluff, just what works.

[Section: Inspiration List]

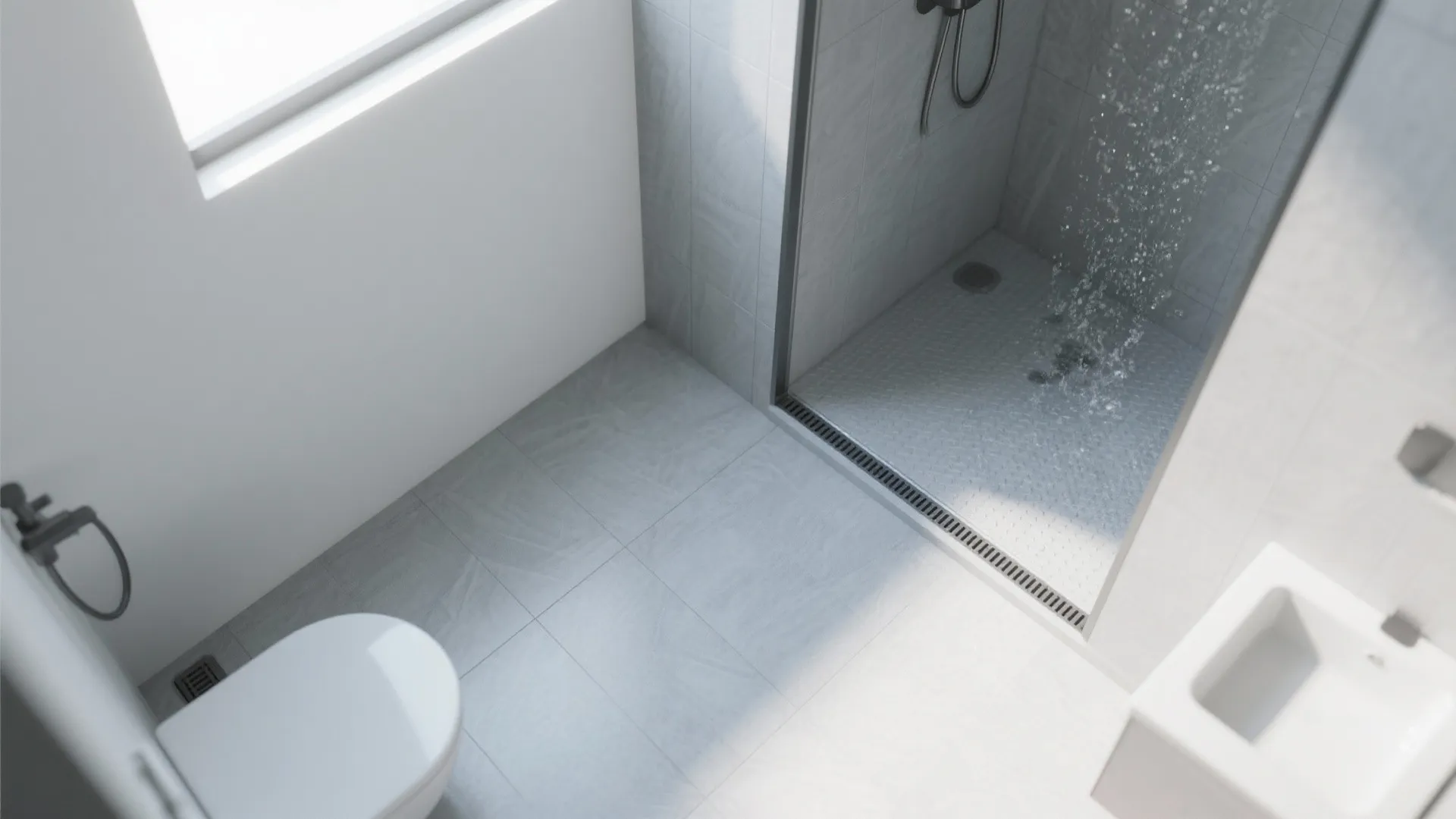

Curbless Entry + Linear Drain

My Take: I still remember a 2.9 m² remodel for a power-chair user where we made the whole floor flush, sloped it gently, and tucked a linear drain along the back wall. The first shower after handover? He sent me a video beaming—no threshold, no fear of tipping, just smooth rolling.

Pros: A level-access shower reduces trip points and makes transfers safer—exactly the kind of small wet room ideas for disabled users that change daily life. With a linear drain, you only slope in one direction, which simplifies tile layout in an accessible wet room design. Aiming for a fall of about 1:50–1:60 keeps water moving without feeling like a ramp; this approach aligns with guidance in ADA 2010 Standards for Accessible Design (see §§ 604–608 for related fixture clearances), and UK Approved Document M’s spirit of level access.

Cons: Structure matters—curbless means recessing or raising the floor, and on wood joists that can get tricky. If the gradient is off by even a hair, you’ll herd puddles like a cat—frustrating and unsafe. Linear drains cost more up front than a center drain, and if waterproofing is sloppy, you’ll pay for it twice.

Tips/Case/Cost: I use a bonded waterproof membrane kit and pre-formed slope panels to keep gradients consistent. Expect a linear drain to run $250–$600, plus $8–$12 per sq ft for waterproofing materials (labor varies widely). When in doubt, push the drain to the furthest wet wall—fewer splashes where you roll in.

save pin

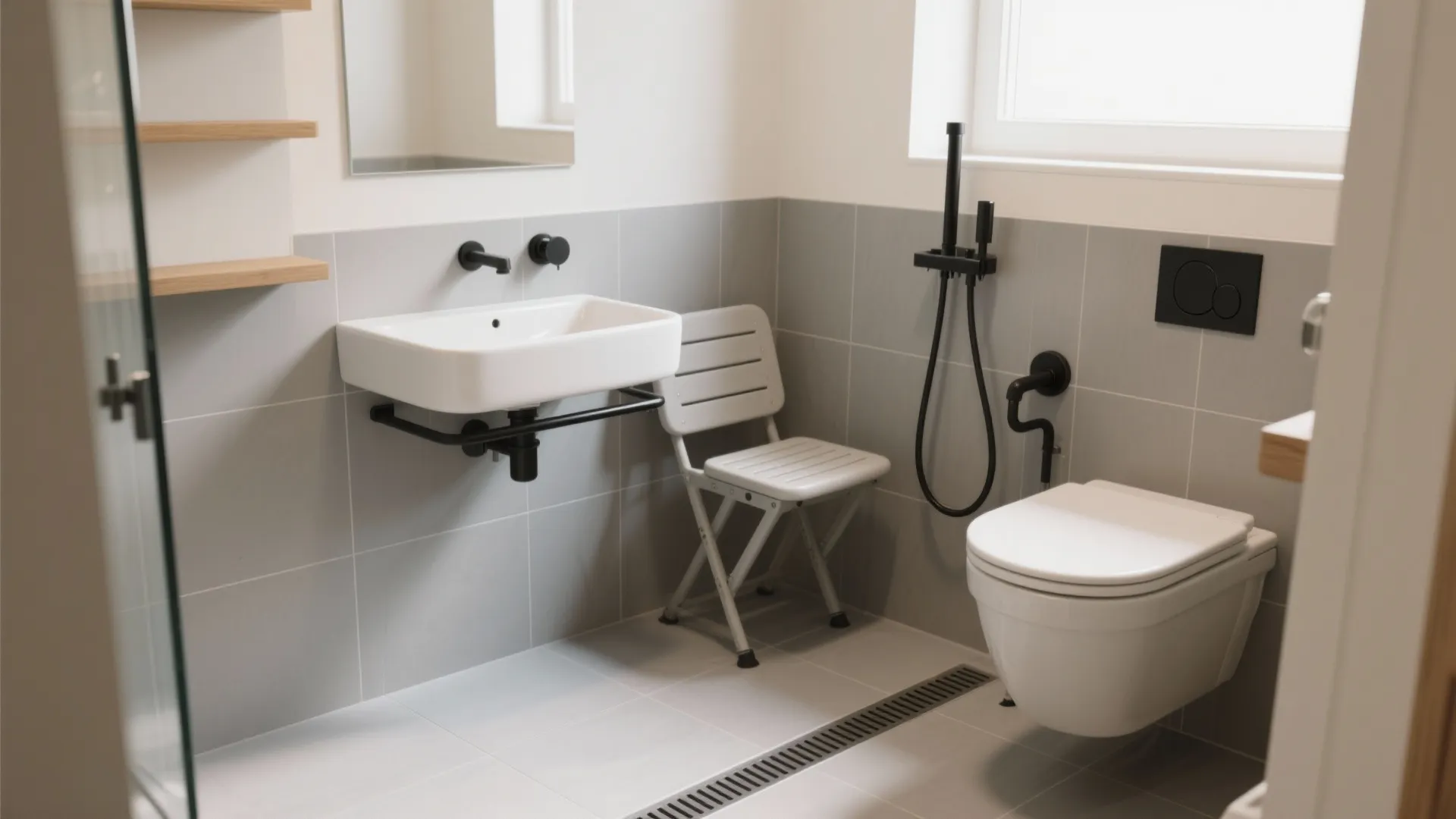

Wall-Hung Basin, Toilet, and Fold-Down Seat

My Take: In a 3.3 m² remodel for a client with MS, we went wall-hung for the basin and WC, and added a fold-down seat in the shower. The open floor improved maneuvering and made cleaning so much easier that her caregiver thanked us—twice.

Pros: Wall-hung fixtures free floor space, which is gold in a small wet room. You can set seat height to the user—targeting 17–19 inches for the WC and a comfortable shower seat height personalized to transfers. A slim, wall-hung basin with knee clearance supports frontal access and leaves more room for a wheelchair turning radius.

Cons: You’ll need adequate wall reinforcement (studs or a steel frame) and a service panel for maintenance with in-wall cisterns. Bracket positioning is critical—miss by a centimeter and you’ll feel it every single day. Budget-wise, the frames and carriers add cost compared to floor-mounted options.

Tips/Case/Cost: Add 18 mm plywood or a metal carrier behind tile where the basin, WC, and seat attach—future-proofing for weight and grab bars. A quality fold-down seat runs $150–$500; in-wall carriers are typically $300–$700 each. If the user’s needs change, you’ll be grateful you built in robust backing from day one.

save pin

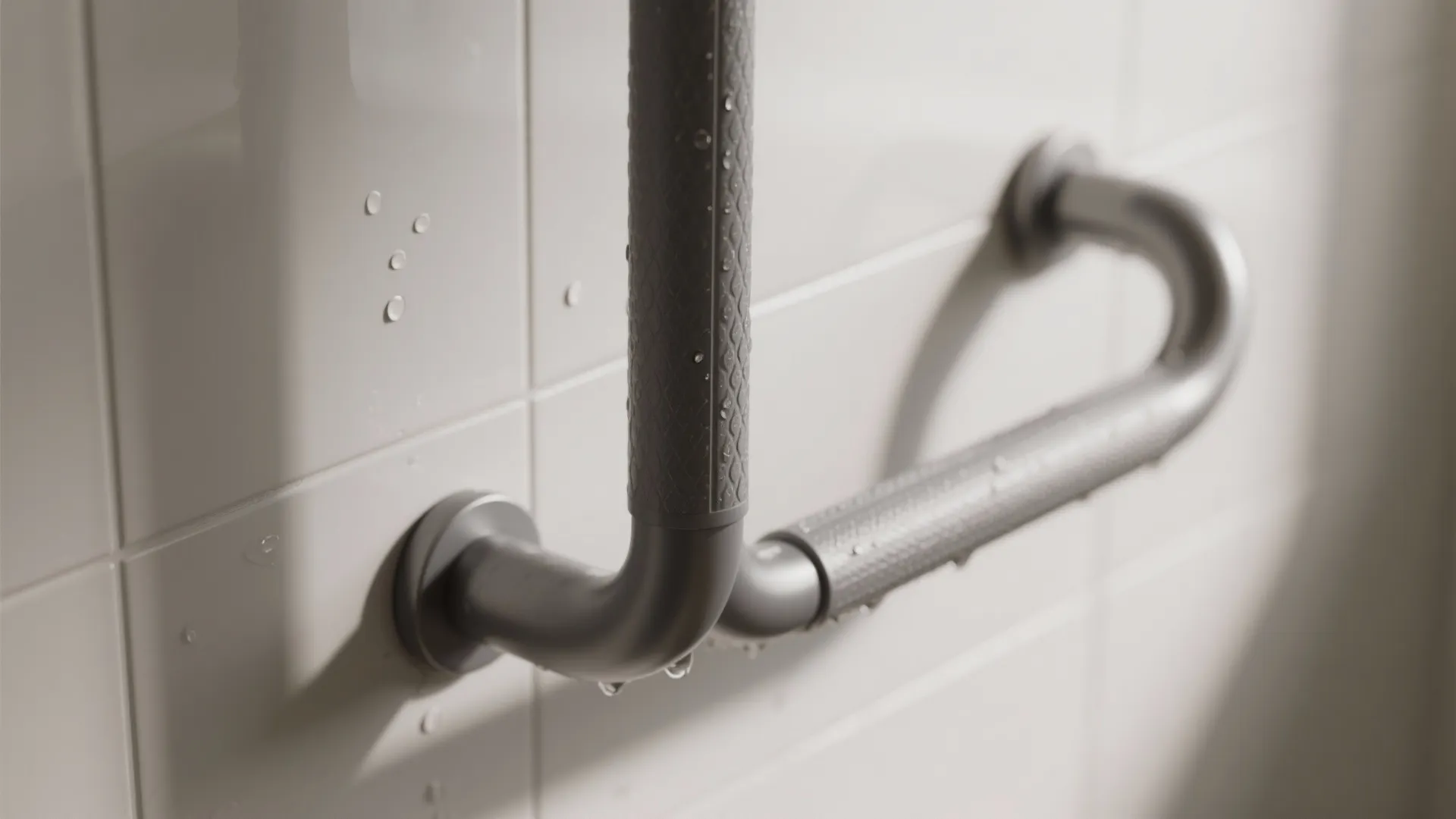

Grab Bars, Clearances, and Contrast Cues

My Take: My father-in-law’s wet room taught me humility. We sketched a beautiful layout, then re-sketched it around his real-world transfers. That meant grab bars exactly where his hands reach naturally, and a clear 1.5 m turning circle for the chair.

Pros: Right-sized clearances and well-placed grab bars stabilize transfers and reduce falls—essential for small wet room ideas for disabled users. Long vertical plus 45-degree bars near the seat cover both standing and seated moves, while high-contrast edges (tile vs. floor, seat vs. wall) help low-vision navigation. If you’re unsure, you can even visualize grab bar placement in 3D before drilling a single hole.

Cons: Bars can look clinical if you choose the wrong finish. Cold stainless in winter isn’t exactly friendly; powder-coated or warm-tone finishes help. And if you place bars without testing real transfer motions, you’ll end up with “decorative rails” that do nothing.

Tips/Case/Cost: I prototype with painter’s tape at 33–36 inches from finished floor for horizontal bars and test with the user—no guesswork. For contrast, aim for a Light Reflectance Value (LRV) difference of 30+ points between key features and the wall. Good-quality bars cost $40–$120 each; anti-slip textures add a bit but are worth every penny.

save pin

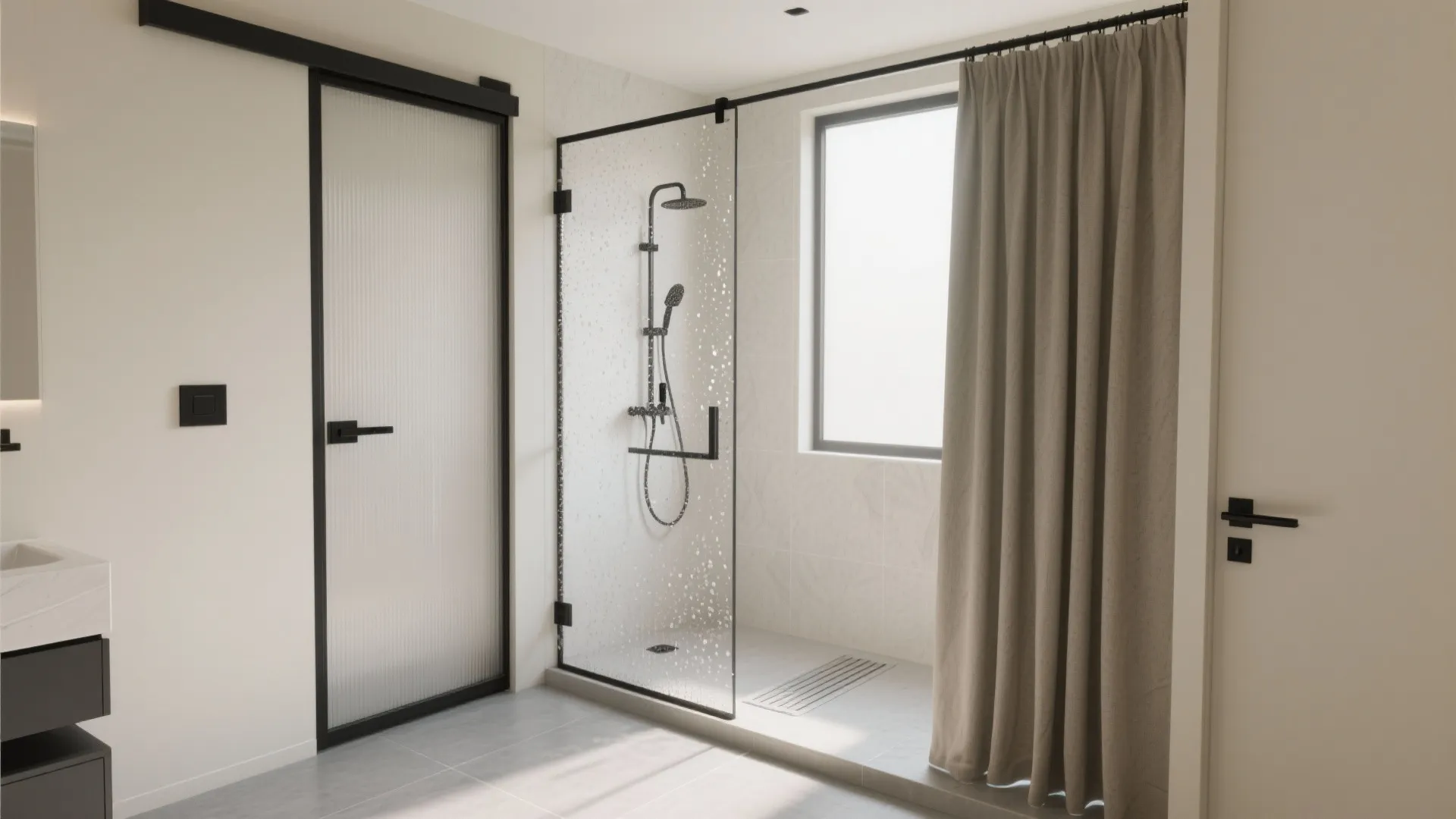

Sliding Door, Half-Height Screen, and Splash Strategy

My Take: For one wheelchair user who bathes with caregiver support, we used a half-height screen and a weighted curtain—caregiver stayed drier, and the user kept privacy. A pocket sliding door freed precious corridor space and achieved the clear opening we needed.

Pros: Sliding or outward-swing doors reduce the risk of a blocked inward swing in an emergency and maximize usable floor area in a small wet room. A half-height screen plus curtain controls splash while allowing caregiver access; it’s a practical layout choice for accessible wet room design when space is tight. With no raised threshold, a good splash strategy (screen + drain + slope) keeps the dry zone truly dry.

Cons: Sliding door tracks can collect hair and soap if you don’t choose top-hung or sealed-bottom designs. Half-height screens add corners to clean and need a thoughtful sweep to avoid leaks. Get the slope wrong and you’ll be mopping more than showering.

Tips/Case/Cost: Use a top-hung sliding system with soft close to reduce maintenance and noise. If a full screen eats space, a wider curtain on a curved rod often gives just enough dry-zone protection. Budget roughly $600–$1,500 for a solid sliding door solution; curtains and rails are far less.

save pin

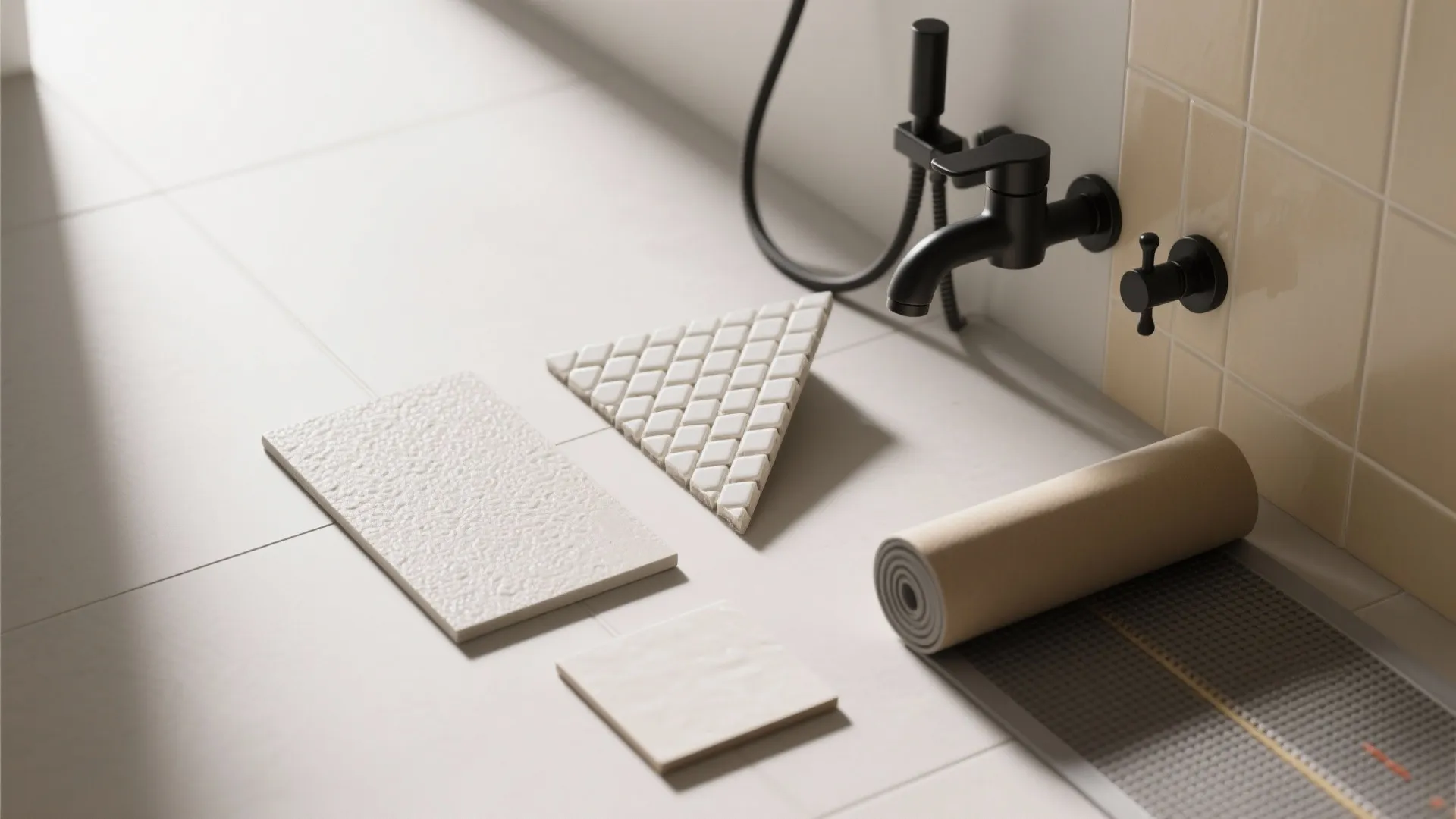

Non-Slip Surfaces, Heat, and Easy-Clean Finishes

My Take: Texture is the unsung hero. I like matte, non-slip porcelain on the floor, larger format on walls to reduce grout, and underfloor heat to help the surface dry faster. A thermostatic mixer is non-negotiable for scald protection—especially for neuropathy or reduced sensation.

Pros: Non-slip tiles (think R11 or a good wet-barefoot rating) are foundational for small wet room ideas for disabled users. Underfloor heating shortens drying time, which reduces slip risk and mildew; matte finishes cut glare for low-vision comfort. A thermostatic mixer keeps water temps stable—safer for everyone, kinder to caregivers.

Cons: Deep textures can trap soap scum—choose a balance between grip and maintenance. Electric underfloor heat adds upfront cost and a few millimeters of build-up in the floor stack. Some “anti-slip” sealers need reapplication—read the fine print.

Tips/Case/Cost: I use larger tiles (e.g., 600 × 600 mm) on walls and smaller mosaic or cut tiles on slopes for better grip and easier gradients. Expect electric underfloor heat at roughly $10–$20 per sq ft installed. For visibility and personality, consider patterned slip-resistant tiles that create contrast without glare.

[Section: Summary]

Small wet rooms don’t limit you; they demand smarter choices. With the right slopes, clearances, and finishes, these five small wet room ideas for disabled users can deliver independence, comfort, and style. As a safety note, falls remain a leading cause of injury in older adults, which is why non-slip surfaces and grab bars are must-haves (see CDC Falls Prevention resources). Which idea would you try first in your space?

save pin

FAQ

[Section: FAQ]

1) What’s the minimum size for a small wet room for disabled users?

In practice, I aim for a 1.5 m turning circle if a wheelchair is used, plus clear access to fixtures. If you can’t hit that, prioritize direct rolling access, a curbless threshold, and well-placed grab bars to make the most of your footprint.

2) How do I waterproof a level-access wet room?

Use a continuous waterproof membrane on floor and walls (at least to the shower height), seal all junctions, and include a pre-formed slope to the drain. I prefer a bonded membrane kit—it’s reliable and keeps thickness down in small spaces.

3) Which tiles are best for slip resistance?

Look for wet-barefoot-rated porcelain or an R11 (or equivalent) finish for the floor, and keep walls matte to reduce glare. Smaller formats or mosaics on slopes improve grip and make gradients easier to achieve.

4) Where should grab bars go in a compact accessible wet room?

Start with horizontal bars at about 33–36 inches from finished floor and add vertical/45-degree bars where transfers occur—then test with the actual user. Keep a comfortable reach from seat to mixer and a stable bar within an arm’s length at every transition.

5) Can I fit a wheelchair-friendly wet room into 3 m²?

Yes, but it requires ruthless planning: curbless entry, a linear drain, and wall-hung fixtures to free floor space. A sliding door and a tight splash strategy (screen + curtain + slope) help squeeze maximum function from minimal area.

6) Do I need a thermostatic mixer for safety?

Highly recommended. It prevents scalding by keeping water temperature stable—a key detail for accessible wet room design when sensation or reaction time is reduced.

7) What do accessible wet room costs look like?

Expect a premium for waterproofing, linear drains, and structural prep. Rough ballparks I see: $8–$12 per sq ft for waterproofing materials, $250–$600 for a linear drain, $300–$700 for in-wall carriers, excluding labor.

8) Are there regulations I should reference?

Yes—ADA 2010 Standards for Accessible Design (notably §§ 604–608) outline fixture clearances and support features, and UK’s Approved Document M covers accessible sanitary layouts. Always verify local codes and get permits as required.
