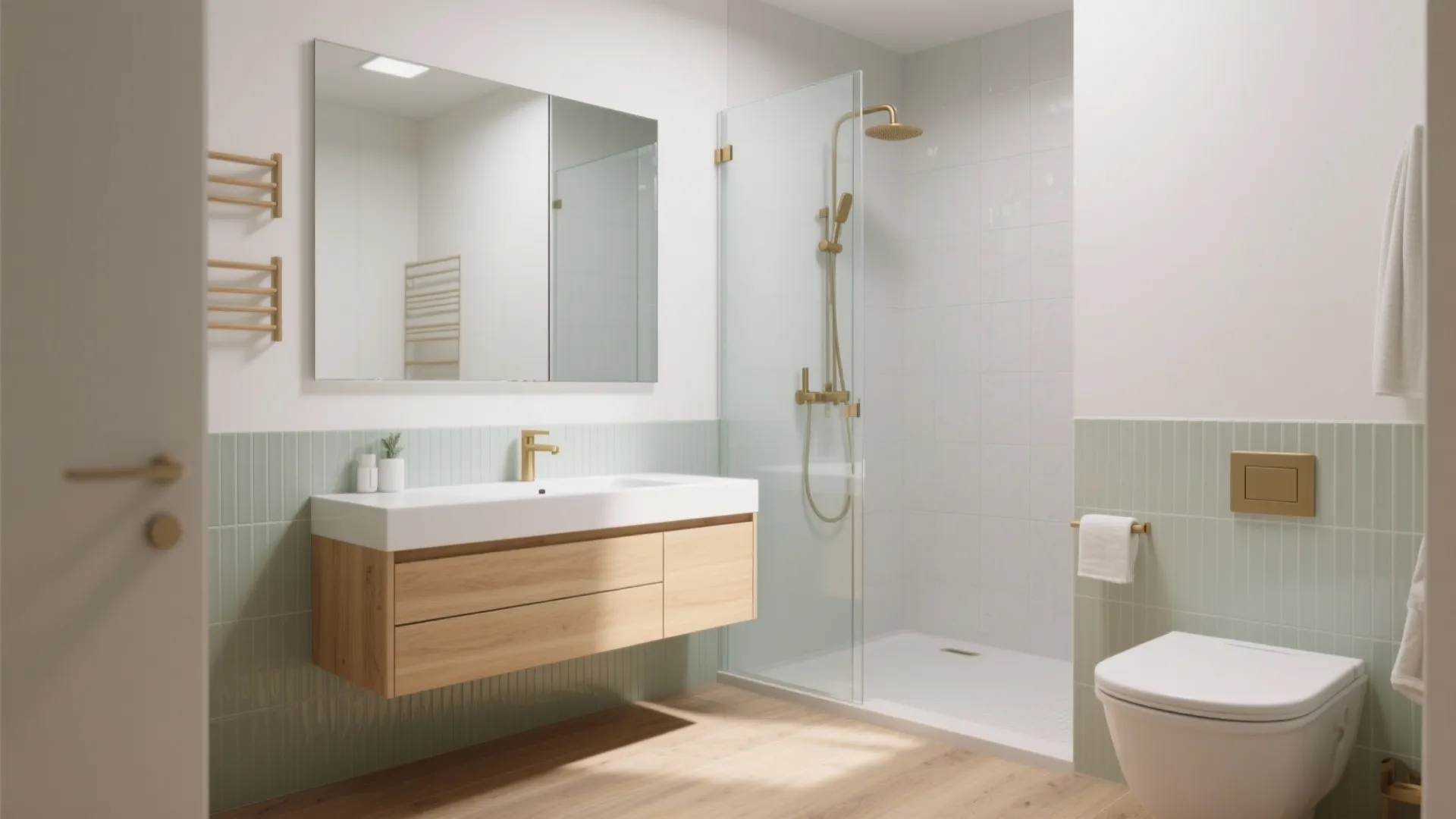

5 Smart 3D Bathroom Design Ideas: How I plan small, beautiful bathrooms with 3D bathroom design—clear steps, real trade-offs, and pro tips

Over the past few years, I’ve watched 3D bathroom design shift from a nice-to-have to the way most clients want to plan. From fluted tiles and softened edges to warm minimalism and light, airy palettes, current interior design trends are all about feeling calm and clutter-free. And nothing tests those ideas better than a compact bath.

Small spaces ignite big creativity. I’ve redesigned dozens of micro-baths in city apartments and compact homes, and 3D has become my best decision-making tool. In this guide, I’ll share 5 design inspirations rooted in real projects, with my candid pros and cons and a sprinkle of expert data I lean on when I plan.

Whether you’re squeezing a shower into a tight corner or debating a vanity size, these ideas will help you visualize before you commit—and avoid costly do-overs.

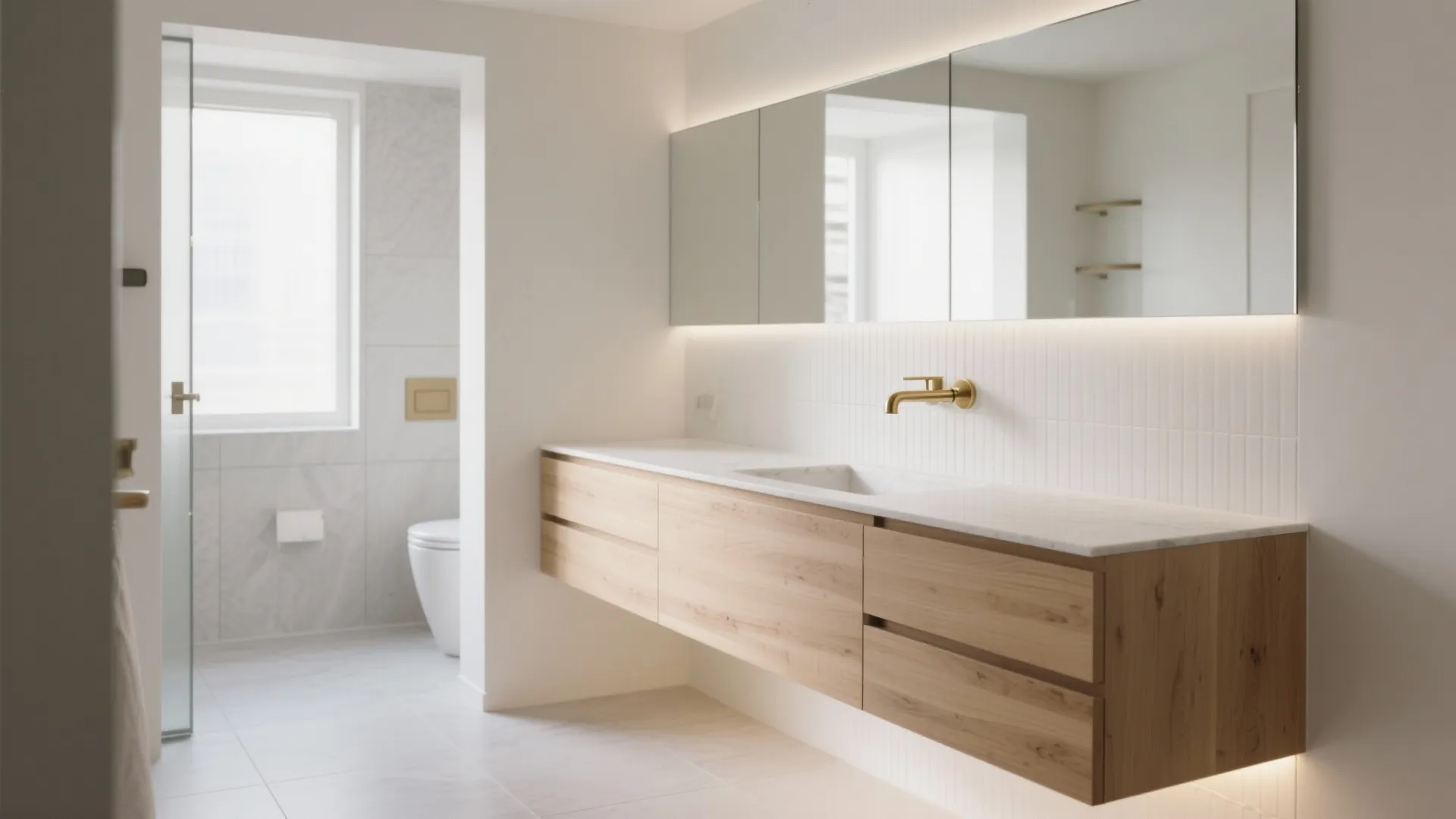

Minimal, floating vanity storage that breathes

My Take

When a client’s 1.5 m-wide bath felt boxed in by a bulky cabinet, I switched to a slim floating vanity. Seeing it in 3D instantly opened up the floor plane and made circulation obvious. I even set a camera at standing height and mocked up a 3D bathroom layout with a floating vanity to test sightlines and toe clearance before we bought anything.

Pros

- Visual lightness. Elevating the vanity creates a continuous floor surface, which reads bigger in a small bathroom 3D layout—especially with large-format tile. In 3D, I tweak cabinet depth to balance storage and walk space.

- Smarter storage. A floating drawer bank can hide traps and still fit organizers. Using a 3D vanity planner, I model drawers around plumbing, so we maximize usable volume.

- Better ergonomics. Slightly shallower vanities (e.g., 18–19 inches deep) reduce crowding at the door arc. 3D bathroom design for small spaces makes these trade-offs easy to visualize.

Cons

- Plumbing dance. Wall-mount vanities may require moving supply and drain lines higher; retrofits can add cost if studs are dense or lines are mismatched. Expect a bit of drywall surgery.

- Cleaning the shadow line. That elegant gap can collect dust. I often plan a 6–8 inch clearance so a slim mop fits—something I always double-check with a tape on site.

- Countertop limits. You’ll have less landing area for big styling tools unless you choose a wider top. In 3D I test hairdryer and brush “parking spots” to be sure.

Tips / Cost

- Use a P-trap with cleanout and an offset drain to reduce drawer cutouts. MDF is a no-go in splash zones; pick marine-grade plywood or moisture-resistant particleboard with a robust finish.

- Budget: $450–$1,200 for a ready-made floating vanity; $2,000–$4,000 custom with integrated top. Add $300–$1,000 for plumbing relocation depending on wall conditions.

save pin

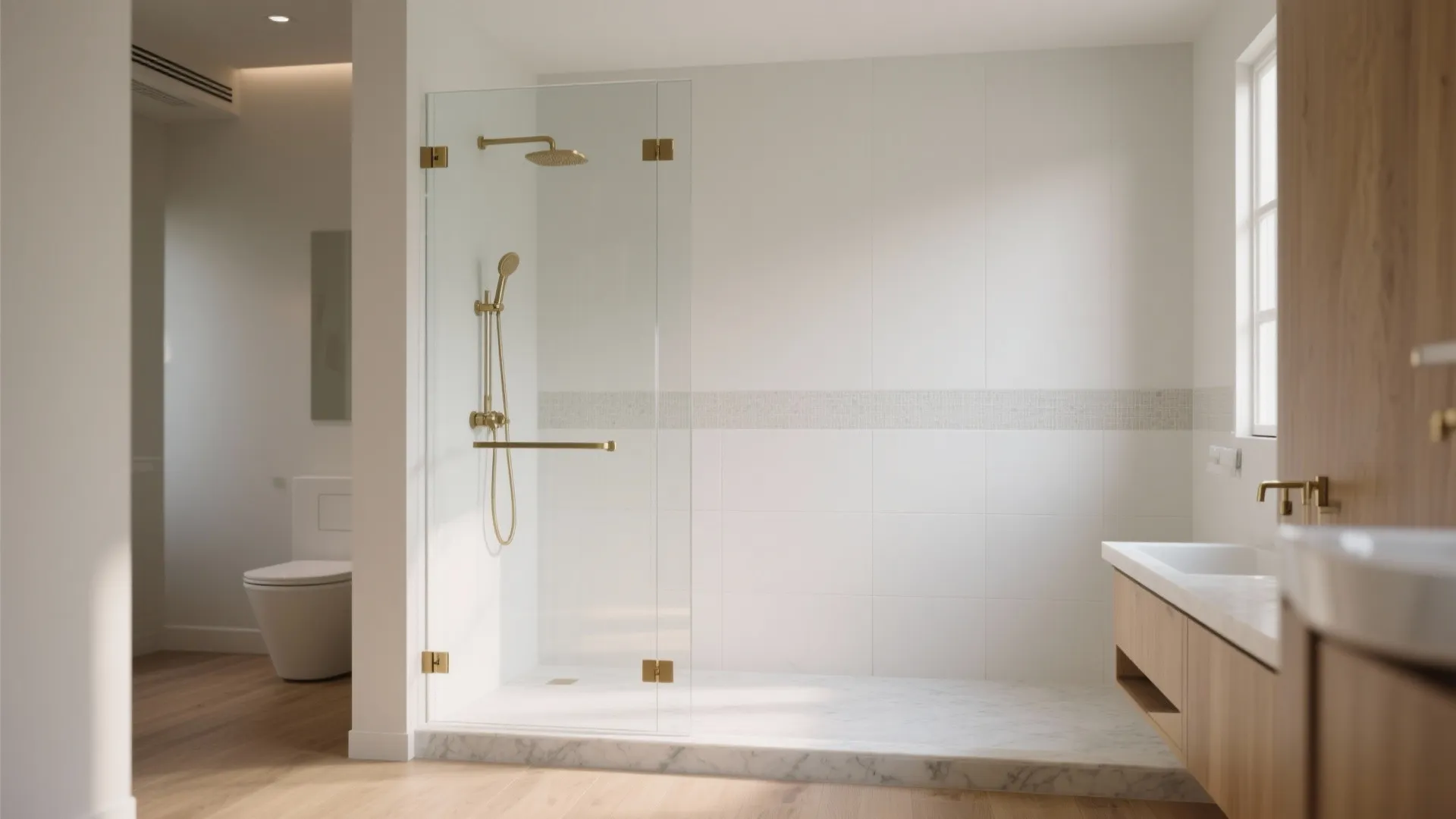

Glass enclosure and half-walls for airy zones

My Take

One of my favorite moves in tiny baths is swapping a heavy shower curtain for a fixed glass panel or a half-height wall topped with glass. In 3D, I simulate light bounce to make sure the mirror still gets that crucial glow and the toilet doesn’t feel trapped behind opaque massing.

Pros

- Light and sightlines. A clear pane keeps the room visually continuous, and 3D shower enclosure planning lets me test heights (72–78 inches) to contain spray without feeling boxed in.

- Safer, smarter detailing. Per IRC/IBC safety rules, glazing around tubs and showers should be tempered; seeing the panel edges in 3D helps me coordinate anchoring and avoid clashing with tile patterns. I also check curb height and threshold slope virtually before spec.

- Cleaning strategy. A single fixed panel (no door) can minimize hardware and nooks. In 3D tile visualization, I align grout lines with panel clips so squeegeeing is easy.

Cons

- Water spotting. Softened water helps, but glass wants regular care. Matte glass hides prints yet can diffuse light more than you expect—test it in renderings.

- Privacy trade-offs. In shared households, full openness isn’t always ideal. I’ve used low-iron glass with a frosted band at eye level to balance modesty and daylight.

- Cost creep. Custom panels aren’t cheap. If the bathroom walls are out of plumb, expect templating fees and a longer lead time.

Tips / Cost

- Consider a 36-inch fixed panel with a floor-to-ceiling half-wall in tight footprints. Check the door swing zone in 3D; a no-door walk-in (curbless if possible) simplifies circulation.

- Budget: $500–$1,200 for stock panels; $1,600–$3,500 for custom tempered glass and hardware. Curbless details require careful substrate prep and waterproofing.

Author note: The International Residential Code (IRC R308.4) requires safety glazing in hazardous locations such as shower enclosures. Always verify local code.

save pin

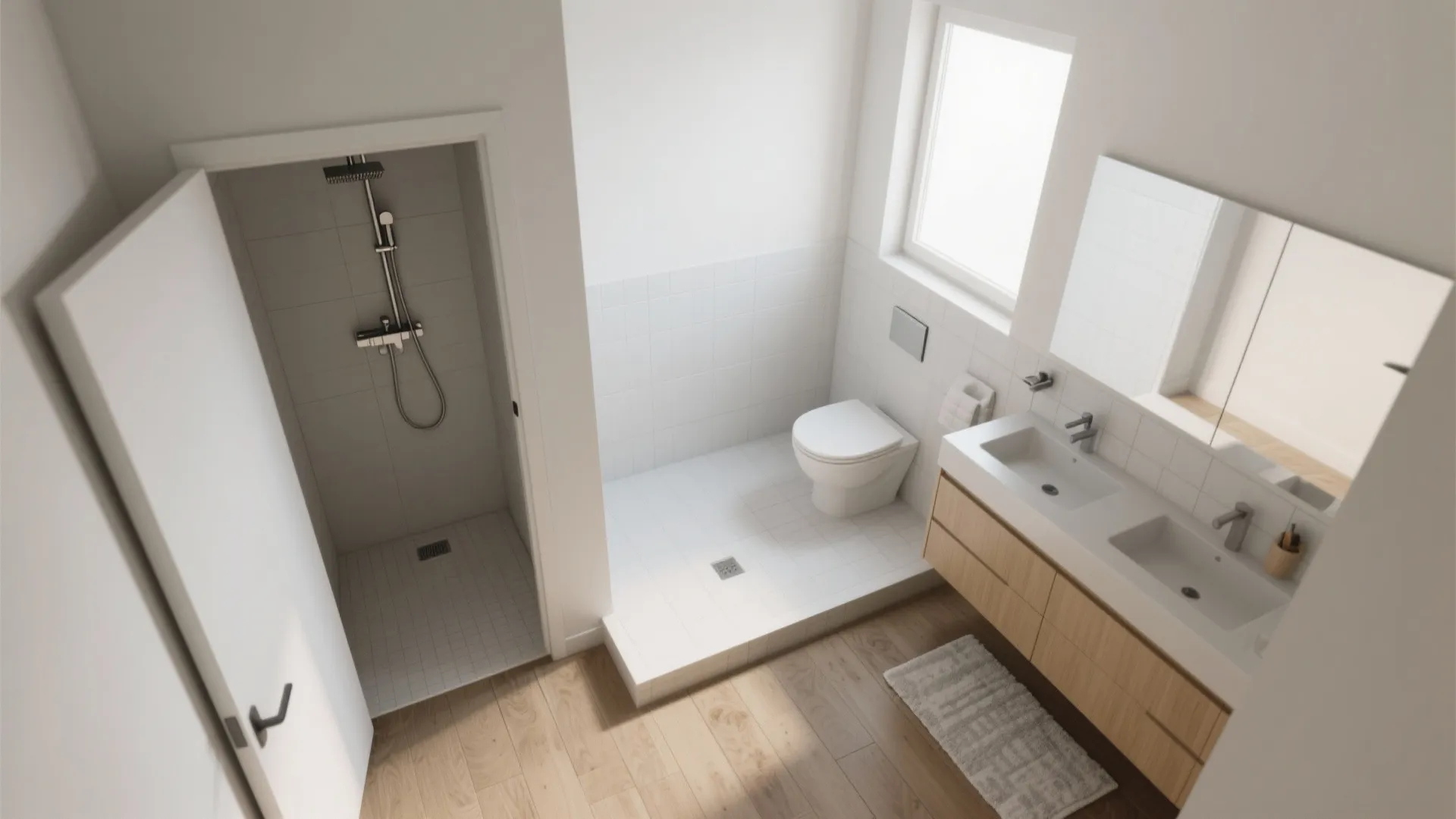

L-shaped micro-bath layouts that flow

My Take

I love an L-shaped plan in a tiny bath because it gives you a natural “service” side and a “quiet” side. In one 3 m² remodel, we tucked the shower behind a short return wall and aligned the toilet and vanity on the long leg. In 3D, clients see how the movement path becomes obvious and calm.

Pros

- Clear zones. An L-shape naturally separates wet and dry areas. I use 3D bathroom design to rotate doors, swap swing for pocket, and optimize clearances and door swings without guesswork.

- Code-friendly planning. NKBA recommends at least 30 inches of clear floor in front of fixtures (with code minimums often 21 inches). In 3D, I overlay those boxes so clients can feel the difference in a compact 3D bath footprint.

- Smarter storage nooks. The inside corner can hide a tall cabinet or a niche. I model full-height towers to verify that they don’t crowd headroom or block towel bars.

Cons

- Corner complexities. Inside corners can be splash-prone and tile-intensive. If you skip a curb, ensure slope to drain is dead-on or you’ll chase puddles.

- Fixture juggling. Moving stacks to suit your perfect “L” can be expensive in concrete slabs or historic buildings. Sometimes I keep the toilet put and rotate other pieces around it.

- Mirror symmetry. You might lose the centered mirror moment if the vanity shifts off-axis. I solve this with a wide, edge-lit mirror that visually re-centers the wall.

Tips / Cost

- Use a 24–30 inch pocket door to free floor space. In 3D, set camera views at 5'6" eye level to judge sightlines realistically.

- Budget: Layout-level changes typically add $1,000–$4,000 for plumbing and framing in small baths; pocket doors are $400–$1,200 including hardware and carpentry.

Authority note: NKBA Kitchen & Bath Planning Guidelines (2023) outline recommended clearances; many jurisdictions adopt the 21-inch code minimum in front of fixtures, but 30 inches feels dramatically better in practice.

save pin

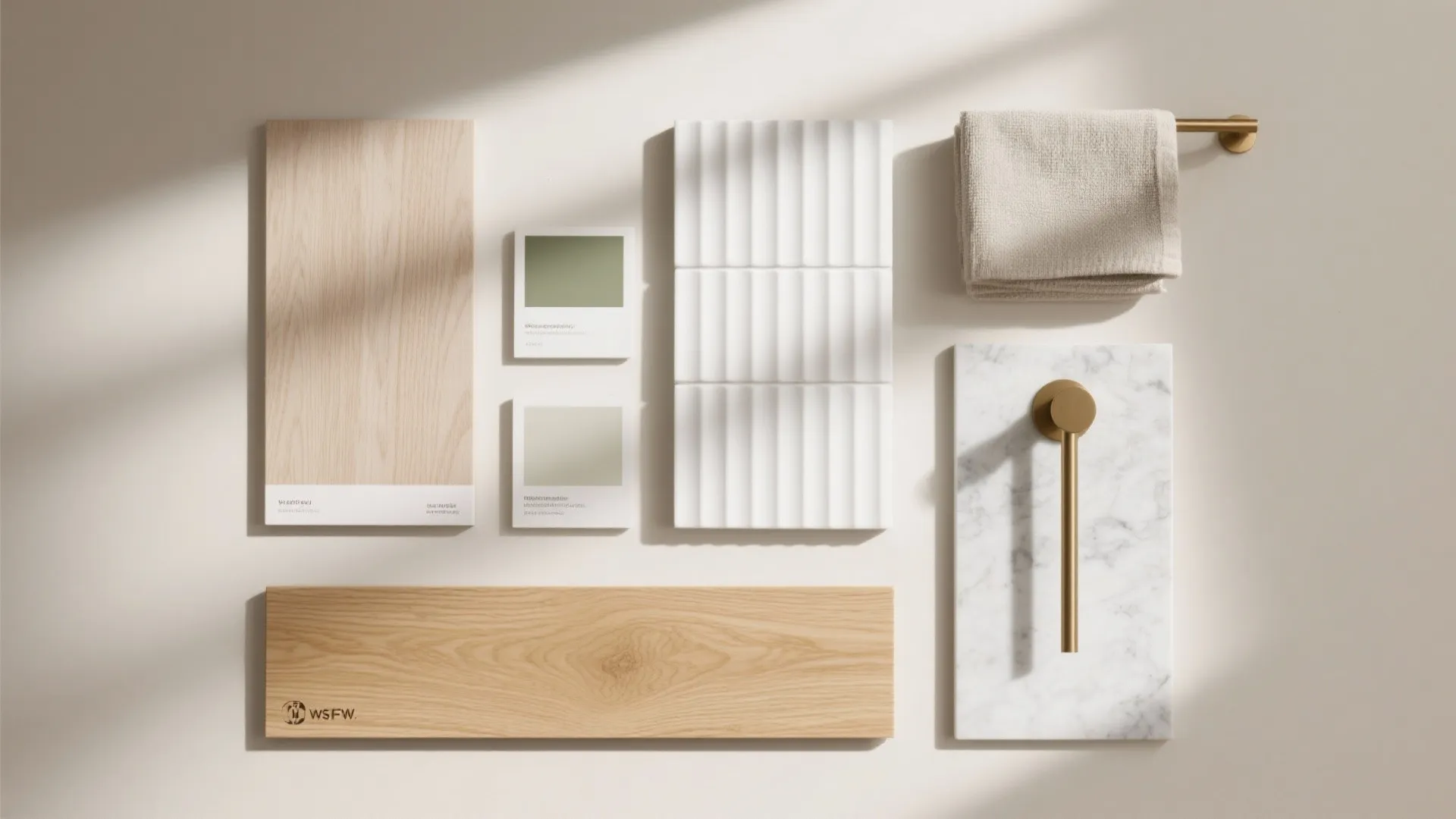

Warm wood and textured finishes without the worry

My Take

Clients often ask if real wood belongs in a bath. My answer: yes—strategically. I use 3D tile visualization to test wood-look porcelain on floors with real timber on a dry wall or as a vanity face. It’s the warmth that makes small spaces feel welcoming instead of utilitarian.

Pros

- Biophilic comfort. Natural textures reduce the “clinical” vibe. The WELL Building Standard (v2) encourages material palettes that connect people with nature, which I translate in small bathrooms as wood tones balanced with light, matte ceramics.

- Maintenance-smart. Wood-look porcelain gives you the grain without swelling; in 3D, I rotate planks to minimize short cuts and align with the bath’s longest run.

- Light balance. Soft oak, beech, or maple tones bounce light better than deep walnut in tiny rooms. I dial in the render exposure to see exactly how colors read with 2700–3000K bulbs.

Cons

- Real wood care. Even sealed hardwood wants airflow and distance from splashes. I keep solid wood out of steam zones and use marine varnish on veneers.

- Color matching. Mixed wood species can “fight.” In 3D, if I can’t harmonize tones, I switch one element to painted matte and keep only one wood hero.

- Texture overload. Fluted tiles, veined stone, and heavy-grain wood can overwhelm. I cap it at two texture “stories” max in a small bathroom 3D layout.

Tips / Cost

- If you crave real wood, choose teak, cedar, or thermally modified ash for better moisture tolerance. Seal edges meticulously and leave a breathing gap above floors.

- Budget: Wood-look porcelain is $3–$10/sq ft; real wood cladding $8–$18/sq ft plus sealing. Edge-lit mirrors that pair nicely with warm wood start around $150–$600.

save pin

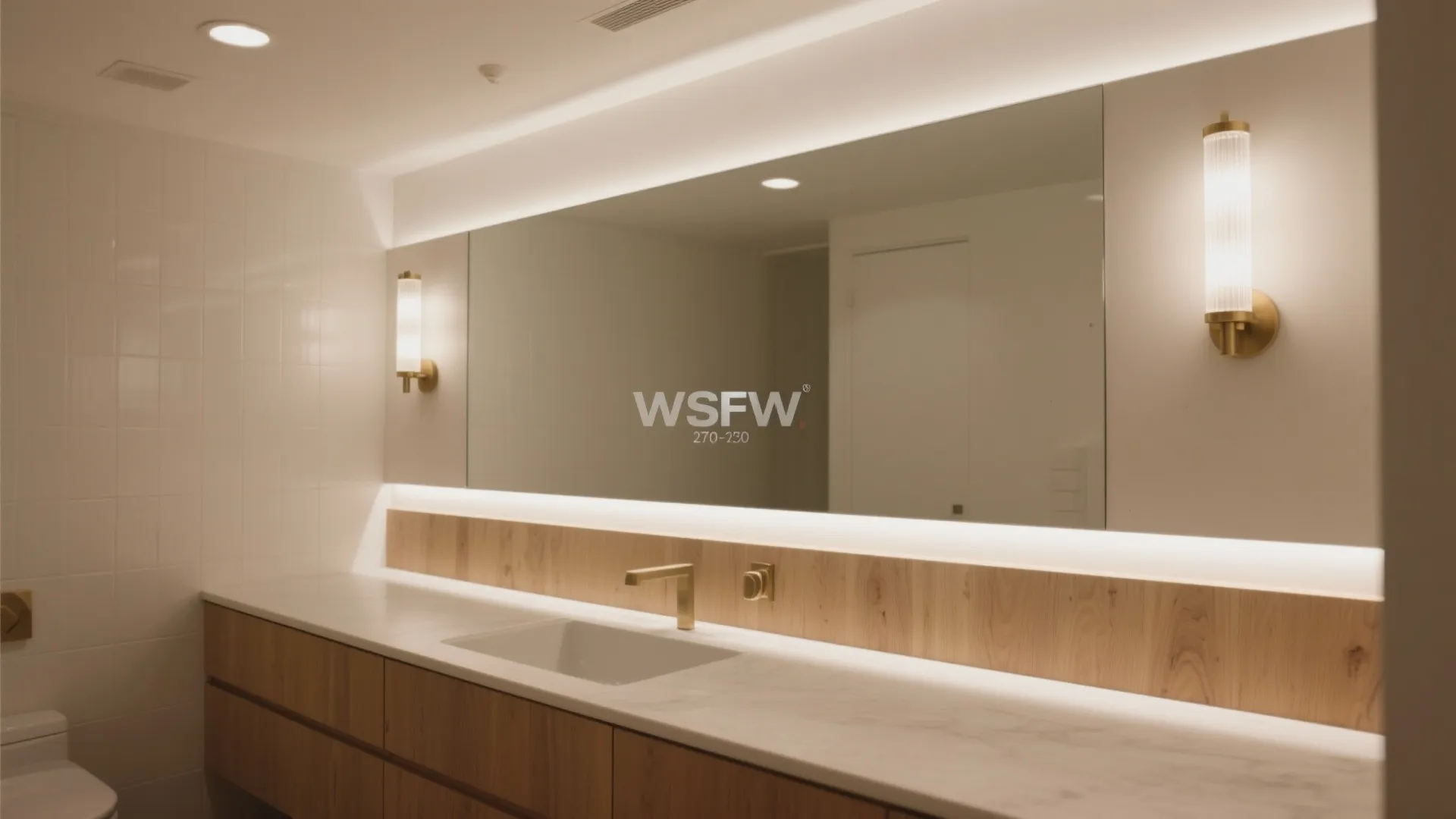

Layered lighting and mirror magic

My Take

Lighting can make or break a compact bath. I build three layers in 3D: vertical face lighting at the mirror, soft ambient ceiling light, and a warm, low-level accent (like a toe-kick glow). With mirrors, I maximize height and width to widen sightlines without adding square footage.

Pros

- Grooming-ready light. The Illuminating Engineering Society (IES) recommends strong vertical illuminance at the face for grooming; I aim for roughly 150–300 lux on the face with CRI 90+ sources. 3D lighting simulation for bathrooms helps me balance that with flattering warmth.

- Spatial tricks. A full-width mirror behind a floating vanity doubles the sense of depth. In small bathroom 3D layout tests, I ensure the mirror edges clear sconces and outlets cleanly.

- Safety and mood. A dimmable accent (toe-kick or under-vanity strip) serves as a night light. With a render, clients can sign off on the glow pattern before we wire.

Cons

- Too bright, too flat. Overhead-only lighting creates shadows. Clients sometimes want a single recessed can; I show in 3D how it can cast raccoon eyes at the sink.

- Controls complexity. Multiple circuits and dimmers add cost and wall clutter. I combine loads on a scene controller when budgets allow.

- Reflections everywhere. Highly polished tiles can mirror hotspots. I drop sheen levels in the materials palette until the glare calms down.

Tips / Cost

- Target 2700–3000K for warmth, IP-rated fixtures in splash zones, and layered switching. Mount vertical sconces 60–66 inches above the floor and 28–36 inches apart depending on mirror width.

- If you’re undecided on finishes, compare a daylight and evening render side by side. A realistic 3D render of tile and lighting will tell you the truth faster than debating swatches.

- Budget: Quality vanity lights $120–$400 each; recessed lights $60–$150 per opening including trim; dimmers $40–$150.

Authority note: IES Lighting Handbook guidance supports vertical illumination at the face for grooming tasks; coordinate with a licensed electrician for code-compliant locations and GFCI protection.

save pin

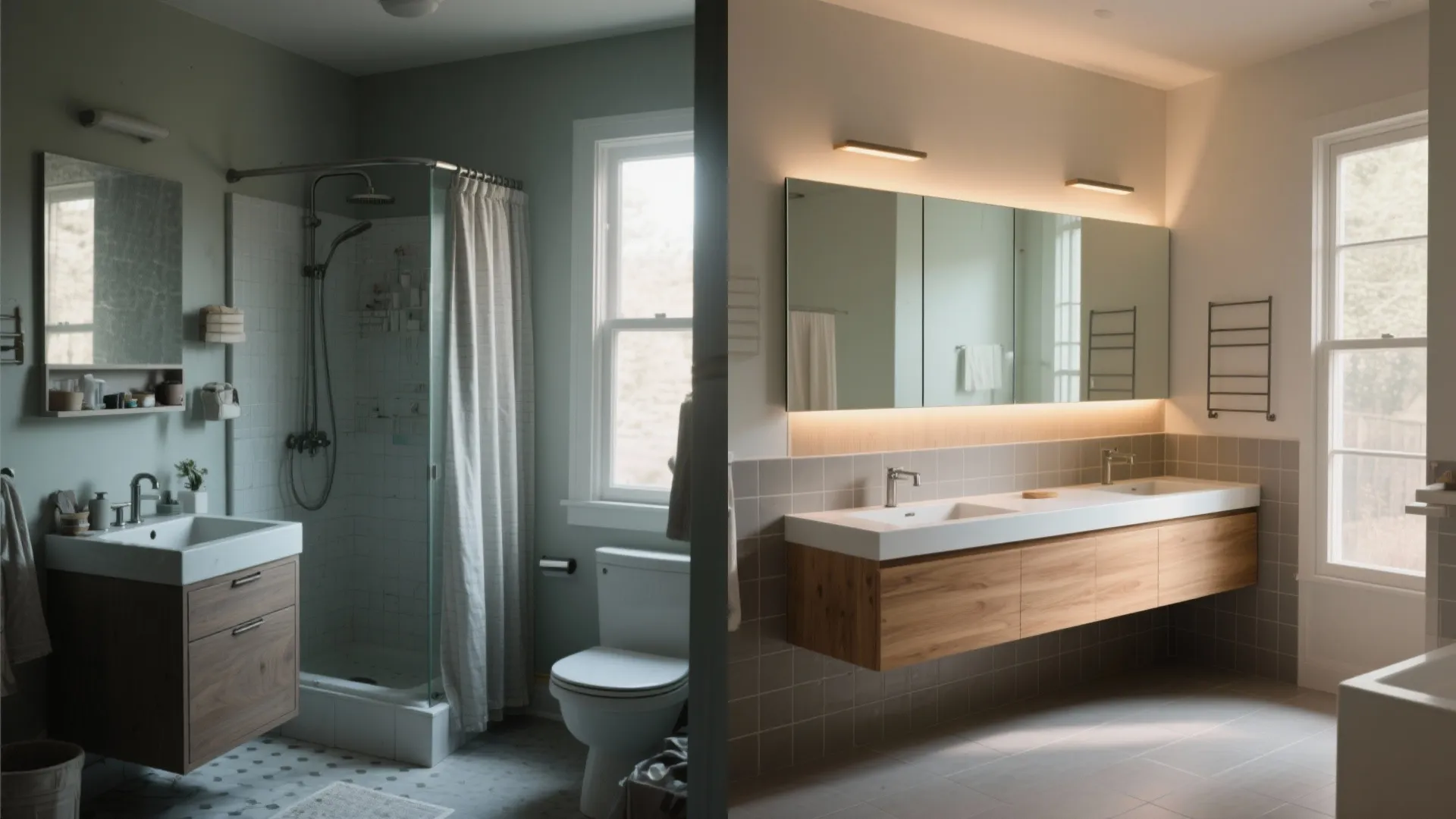

Summary

A small bathroom isn’t a limitation—it’s an invitation to design smarter. With 3D bathroom design, you can test clearances, visualize light, and make confident choices before the first tile is set. Between NKBA-recommended clearances, IRC safety glazing rules, and IES lighting guidance, there’s a solid backbone for creative decisions that look good and work hard.

Which of these five ideas are you most excited to try in your own bath?

save pin

FAQ

1) What is 3D bathroom design, and why use it?

3D bathroom design lets you model your space to scale, place fixtures, and preview materials and lighting before you build. It reduces guesswork, exposes clearance issues early, and aligns expectations with contractors.

2) How accurate are 3D layouts for small bathrooms?

Very accurate if you measure correctly. I input framing-to-framing dimensions, door swings, and ceiling heights, then verify fixture specs. NKBA guideline clearances mapped in 3D make it easier to avoid “pinch points.”

3) What clearances should I check in 3D before ordering fixtures?

Start with front clearances (NKBA recommends 30 inches in front of fixtures; many codes allow 21 inches), toilet side-to-side spacing (15 inches from centerline to each side), and shower entry width (~24 inches minimum). Add door swing arcs and towel reach.

4) Can 3D help me choose tile and grout sizes?

Yes. I use 3D tile visualization to see lippage risk with large-format tiles, align grout with niches, and test slip-resistant finishes. For wet zones, specify surfaces that meet recognized slip standards and check with your installer.

5) Will 3D help with lighting decisions?

Absolutely. I simulate vertical face lighting for grooming, ambient levels, and accent glow. Referencing IES guidance, I target roughly 150–300 lux at face height with CRI 90+ for accurate skin tones.

6) How do I make a tiny bathroom feel larger in 3D?

Model a floating vanity, extend a large mirror, keep the floor plane continuous, and consider a frameless fixed glass panel. In renderings, lighter matte finishes and continuous grout lines read calmer and more spacious.

7) What about water efficiency choices?

Use EPA WaterSense-labeled showerheads and faucets that save at least 20% more water than standard models. In 3D, I confirm spray reach and stall size so comfort isn’t compromised by a lower flow rate.

8) How much budget should I expect for a small-bath redo planned in 3D?

For fixtures, finishes, and moderate layout tweaks, many of my clients spend $8,000–$20,000. Custom glass, curbless showers, and plumbing moves add costs; 3D helps prioritize what’s worth doing before demolition starts.
