Bathroom Roof Design: 5 Smart, Space‑Savvy Ideas: My pro-tested bathroom roof design playbook: 5 ideas that boost light, ventilation, waterproofing, and storage—tailored for compact spaces and grounded in real-world jobs and code-savvy details.

I’ve spent the last decade designing tight, hardworking homes, and bathroom roof design has quietly become a star of the show. Between wellness-driven trends, biophilic light, and tactile finishes, the ceiling and roof plane now do far more than “cap” a room.

Small spaces spark big creativity. In bathrooms, your roof can shape daylight, control humidity, add volume, and even hide smarter storage. Done right, it changes how the room feels and functions every single day.

In this guide, I’ll share 5 bathroom roof design ideas I return to again and again—complete with stories from site, pros and cons, practical cost notes, and a few code-minded tips. These are not one-size-fits-all; pick and layer what fits your layout, climate, and budget.

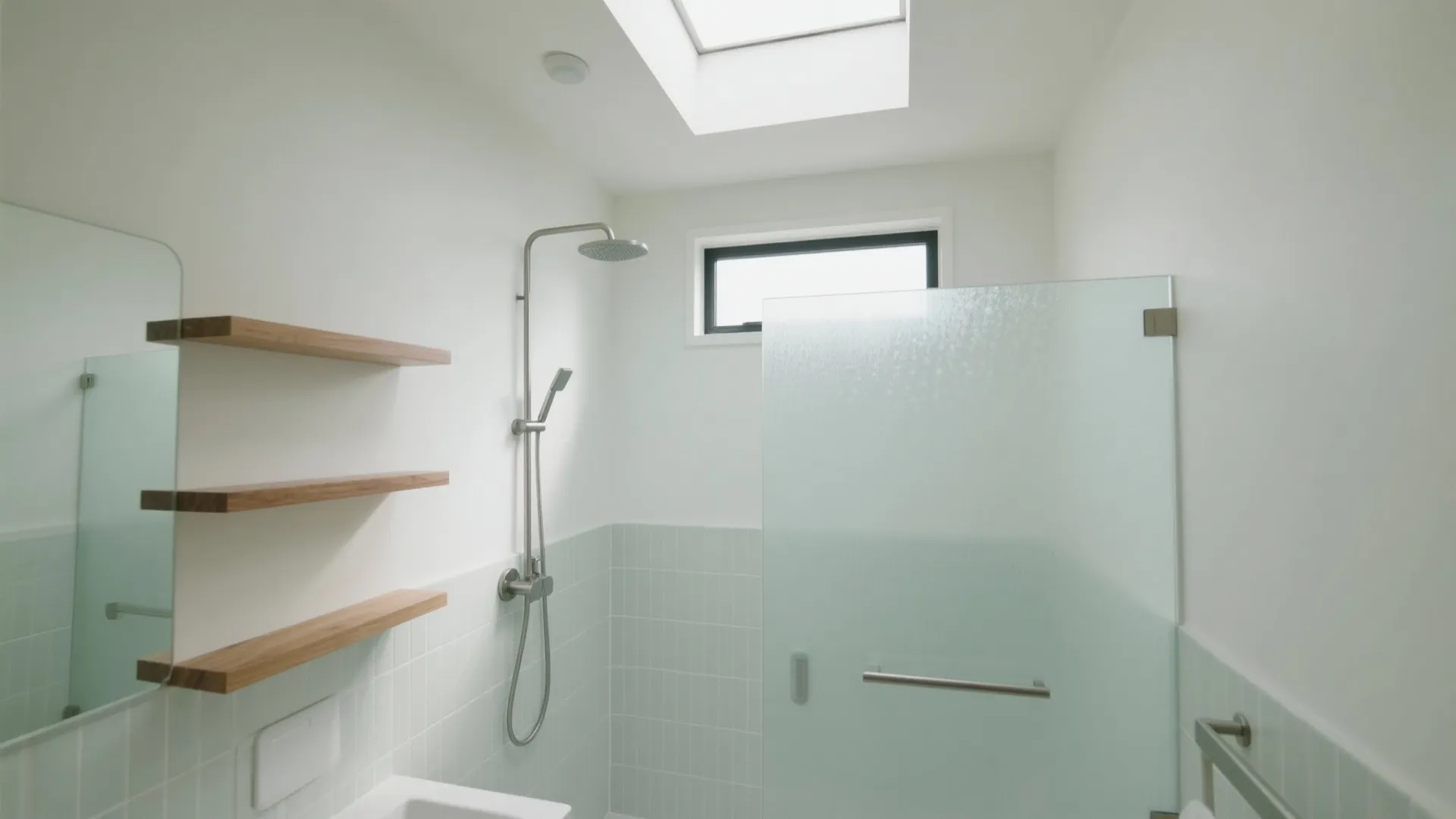

Daylighting with Skylights and Clerestories

My Take: A client once thought their windowless bath would always feel cave-like. We added a diffused skylight above the shower and the whole room softened—no glare, just gentle, even light. Privacy stayed intact, and morning routines felt calmer.

diffused skylight above the shower

Pros: A skylight for bathroom layouts brings balanced daylight deep into the plan, reducing the need for daytime artificial light. With a high clerestory, you get privacy plus sky views, and the roof plane becomes an active design element. Look for NFRC-rated units with a low U-factor and appropriate SHGC to manage heat loss and gain, especially in hot or cold climates.

Cons: Every roof penetration needs meticulous detailing, or you risk leaks. Curb-mounted units and proper flashing are non-negotiable, especially in climates with snow loads or driving rain. You’ll also want to address potential heat gain; in hot zones, a low-SHGC glazing or interior shade helps.

Tips / Cost: On asphalt shingle roofs, curb-mount skylights with step flashing tend to be the most forgiving detail. I use laminated, frosted glazing for bathrooms to soften shadows. Budget roughly $900–$2,400 installed for a standard unit, more for custom sizes or structural reframing. The NRCA Roofing Manual emphasizes correctly layered flashing and counterflashing—worth planning time up front.

save pin

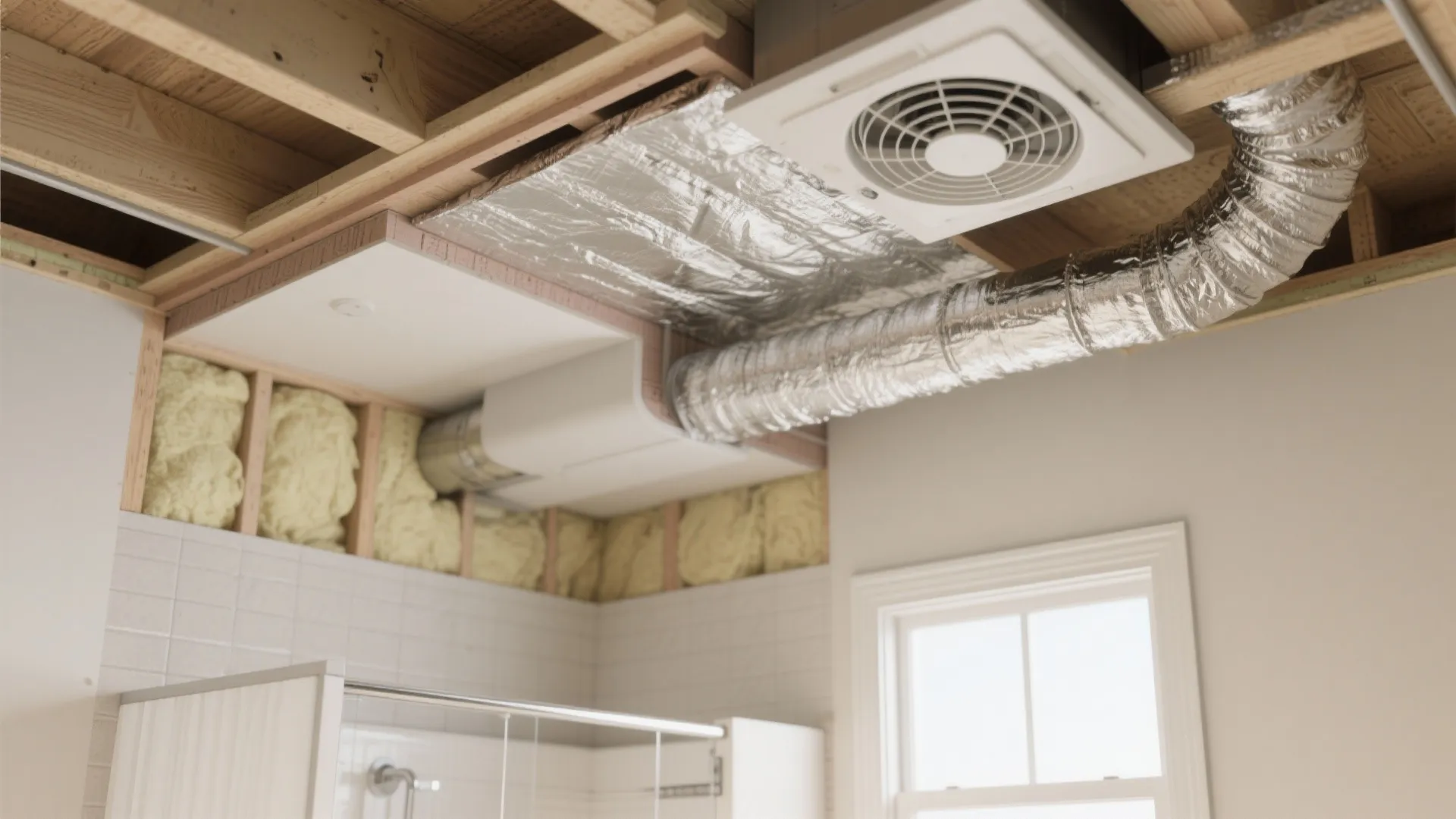

Venting Strategy: Roof Exhausts and Passive Stack Assist

My Take: Humidity is the silent wrecking ball. I’ve walked into “renovated” baths where steam had nowhere structured to go, and mildew followed. The fix is almost always the same: a right-sized fan exhausting to the roof with short, insulated duct runs.

Pros: A bathroom exhaust to roof approach keeps moist air from lingering in the attic, reducing mold risk and protecting insulation. I size fans using continuous or intermittent rates and specify a timer or humidity sensor so the fan actually runs long enough post-shower. ASHRAE 62.2 and the International Residential Code (IRC M1507) call for effective ventilation rates; in practice, I double-check fan sone ratings and static pressure performance to ensure real-world airflow.

Cons: Poorly placed roof caps can let wind backdrafts push humid air right back down the duct. Long duct runs with multiple elbows kill airflow; you might need a higher-performance fan if the layout can’t be simplified. Noise matters too—if it sounds like a jet engine, no one will use it.

Tips / Cost: Keep duct runs short and straight, upsize to 6-inch where possible, and insulate ducts in unconditioned spaces. In cold climates, add a backdraft damper and slope ducts slightly to the exterior to prevent condensation from draining back. Expect $250–$900 for a quality fan and roof penetration, depending on access and finishes.

save pin

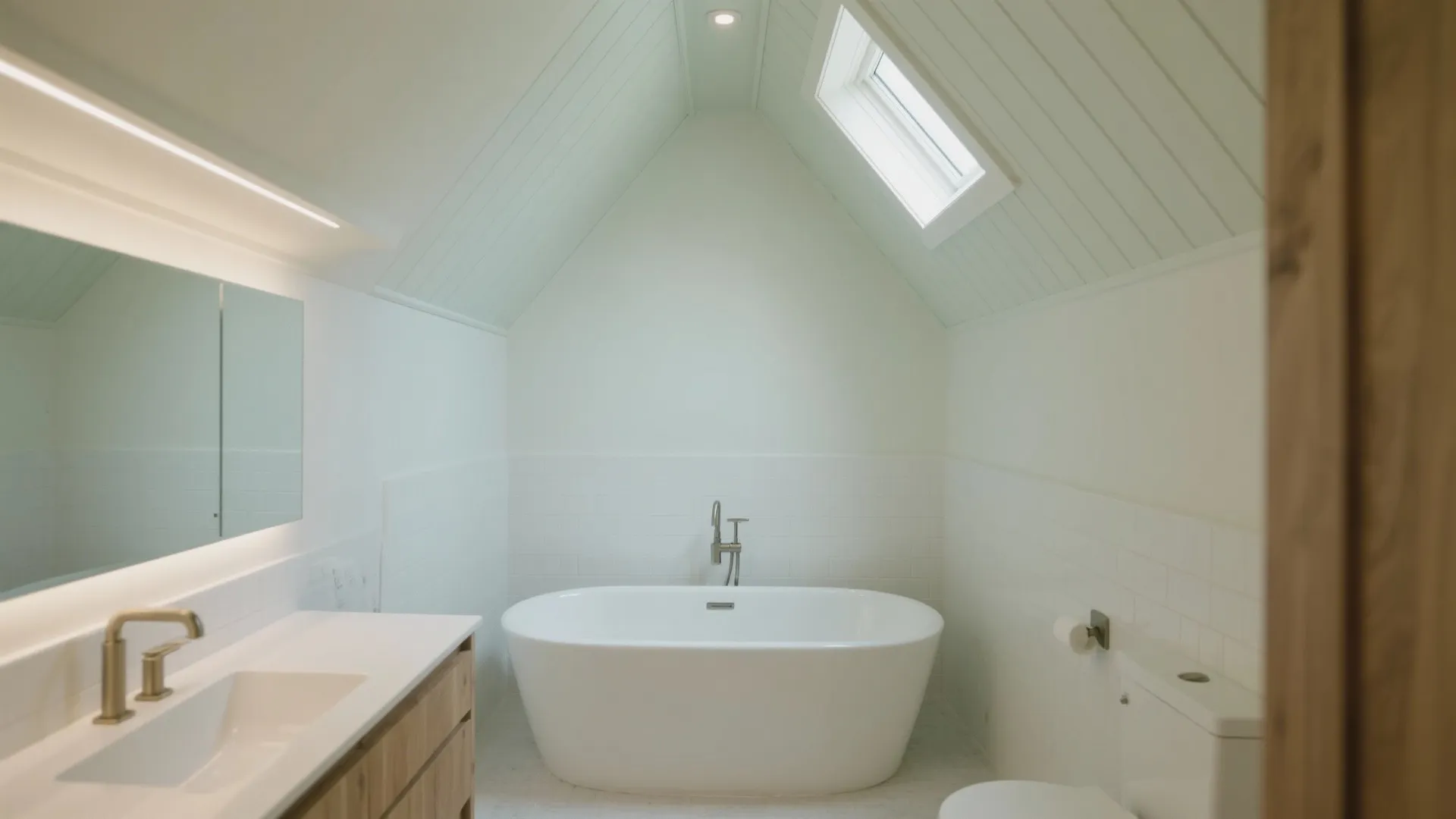

Vaulted and Sloped Ceilings to Boost Volume

My Take: In small baths with a gable or shed roof above, I’ll pop the lid and follow the roofline. A shallow vault instantly adds “air space” without changing the footprint, and it’s incredible how a sloped ceiling bathroom changes posture—you breathe easier.

vaulted ceiling with a clean ridge line

Pros: A vaulted bathroom ceiling expands sightlines, helps daylight bounce deeper, and can frame a focal point like a tub or vanity. It’s a great partner to a skylight for bathroom designs because the reflected light washes the walls, not just the floor. You can also hide wiring for cove and task lights along the slopes.

Cons: More volume can mean more surface area for condensation if ventilation is poor. Sound can ping around; I’ve used discreet acoustic treatments and softer finishes to tame echo. Structural constraints apply—sometimes collar ties, rafter sizing, or mechanical lines limit how far you can vault.

Tips / Cost: I like a subtle, 2:12 to 4:12 interior slope for compact rooms—it reads airy but not cathedral. Add a flat “plateau” over the vanity to carry mirrors and sconces, then let the rest rise. Costs vary widely—simple vaults can be a few thousand dollars if framing is straightforward; deeper vaults with reframing and insulation upgrades can stretch to $8,000+.

save pin

Waterproof and Mold‑Resistant Roof/Ceiling Finishes

My Take: I’ve tested everything from tongue-and-groove PVC to fine-textured mineral panels. The sweet spot for most bathrooms is a layered system: moisture-resistant backer, sealed penetrations, and a durable, cleanable finish that plays nicely with steam.

Pros: Choosing waterproof ceiling materials above wet zones extends longevity and keeps maintenance low. Mold-resistant paint for bathrooms (with high-quality primers) resists staining and peels less under cyclic humidity. Cement board or fiber-reinforced panels in shower ceilings handle sustained moisture better than standard gypsum.

Cons: Some plastics can look “flat” or yellow over time if you skimp on quality. Ultra-smooth, glossy coatings show every ripple and patch. And while moisture-resistant drywall (greenboard) is helpful, it’s not a substitute for proper tile backer or cement board directly over showers.

Tips / Cost: I specify a high-performance acrylic enamel or two-part epoxy in shower ceilings, with careful caulking at light trims. Where budget allows, use closed-cell foam or rigid insulation above for thermal stability—it helps prevent condensation at the finish layer. The U.S. EPA notes that keeping indoor RH around 30–50% helps prevent mold growth; ventilation plus materials is the winning combo.

save pin

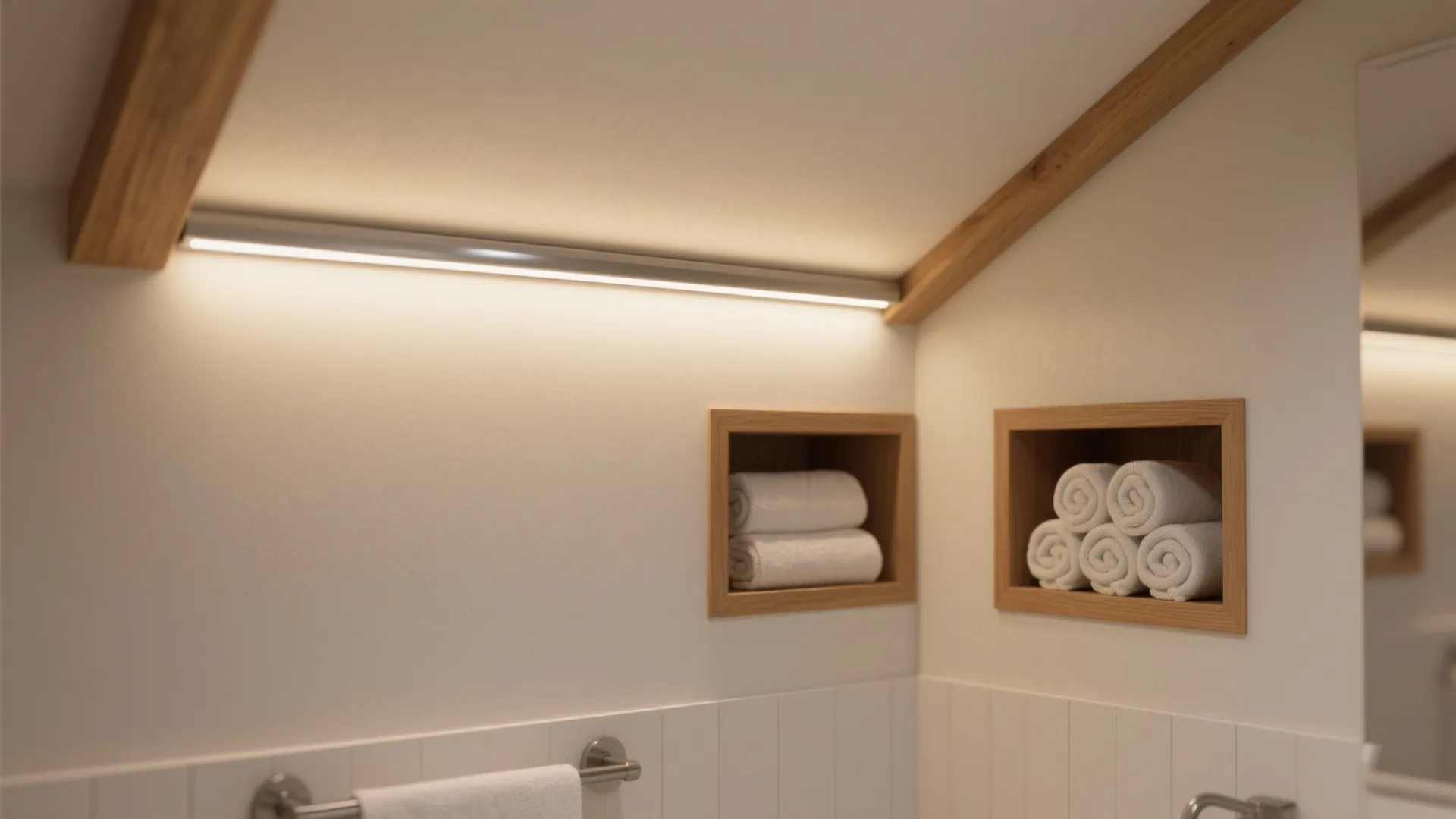

Integrated Lighting and Storage in the Roof Plane

My Take: The ceiling can carry more than you think. Between rafters, I’ve tucked shallow niches for extra tissue rolls and added low-glare LED coves that make the room look taller and calmer.

Pros: Recessed linear light near the wall line uplights the ceiling slope, creating a soft halo that flat ceilings can’t match. Pair that with mirrored medicine cabinets tucked into a bulkhead, and your storage “disappears.” Recessed channels for LED strip lighting also keep trims minimal and clean.

recessed channels for LED strip lighting

Cons: You’ll need careful coordination to avoid puncturing vapor control layers or insulation with too many penetrations. LED drivers need access; burying them without service paths is a future headache. And if you over-recess everything, the room can feel sterile—balance is key.

Tips / Cost: I use continuous diffusers with 2700–3000K LEDs for warm, spa-like light, dimmable to 1% for evening baths. Plan access panels for drivers and use IC-rated, air-sealed fixtures. Expect $600–$2,000 for integrated lighting per small bath, depending on the complexity and fixture quality.

save pin

Summary

A great bathroom roof design isn’t about constraints—it’s about smarter choices that amplify light, control humidity, and make a compact room feel generous. From skylights to vaulted ceiling lines and waterproof finishes, small moves stack up to big comfort. ASHRAE and IRC guidance give you the performance guardrails; design transforms them into daily delight.

Which of these five ideas would you try first in your own home?

save pin

FAQ

1) What’s the best bathroom roof design for a small space?

For compact rooms, I like a light-diffusing skylight or clerestory plus a gentle interior slope to lift the eye. Combine that with integrated cove lighting and a right-sized roof exhaust fan for a balanced, bright, and dry space.

2) Should a bathroom exhaust fan vent through the roof or the wall?

Either can work, but venting directly to the exterior is non-negotiable. The IRC (M1507) and ASHRAE 62.2 require effective venting rates and disallow dumping into attics; roof venting is common when the bath is not on an exterior wall.

3) Are skylights a good idea for bathrooms?

Yes, if detailed correctly. Choose laminated, low-SHGC glazing in hot climates, and use curb-mounted units with proper flashing to minimize leaks. Frosted glazing keeps privacy while maintaining sky-lit brightness.

4) How do I prevent condensation on a vaulted bathroom ceiling?

Improve ventilation (run the fan 20–30 minutes post-shower), add insulation continuity at the roof, and reduce thermal bridges. A smart humidity sensor helps keep indoor RH near the EPA’s recommended 30–50% range.

5) What materials work best above a shower?

Cement board with tile, or high-quality mineral or fiber-reinforced panels, stand up to steam. For paint-grade ceilings, use moisture-resistant substrates and a premium acrylic enamel or epoxy with sealed penetrations.

6) How much does a bathroom roof design upgrade cost?

Simple ventilation upgrades start around a few hundred dollars. Skylights or vaulting can range from $900 to $8,000+, depending on structure, finishes, and access. Integrated lighting and storage typically sit in the $600–$2,000 band for a small bath.

7) Can I add a roof window to a flat-roof bathroom?

Yes—use a curb-mounted, flat-roof-compatible skylight with proper tapered insulation and waterproof membrane detailing. Work with a roofer who follows recognized best practices for flashing to keep the assembly watertight.

8) What insulation do I need above a bathroom?

Match or exceed local code R-values and ensure a continuous air barrier. In vented assemblies, maintain clear soffit-to-ridge airflow; in unvented roofs, closed-cell foam or adequately thick rigid insulation prevents condensation at the interior finish.
