5 Smart Ideas for Interior Design Kitchen 2D Drawings: My field-tested ways to plan a small kitchen with clear, build-ready 2D drawings

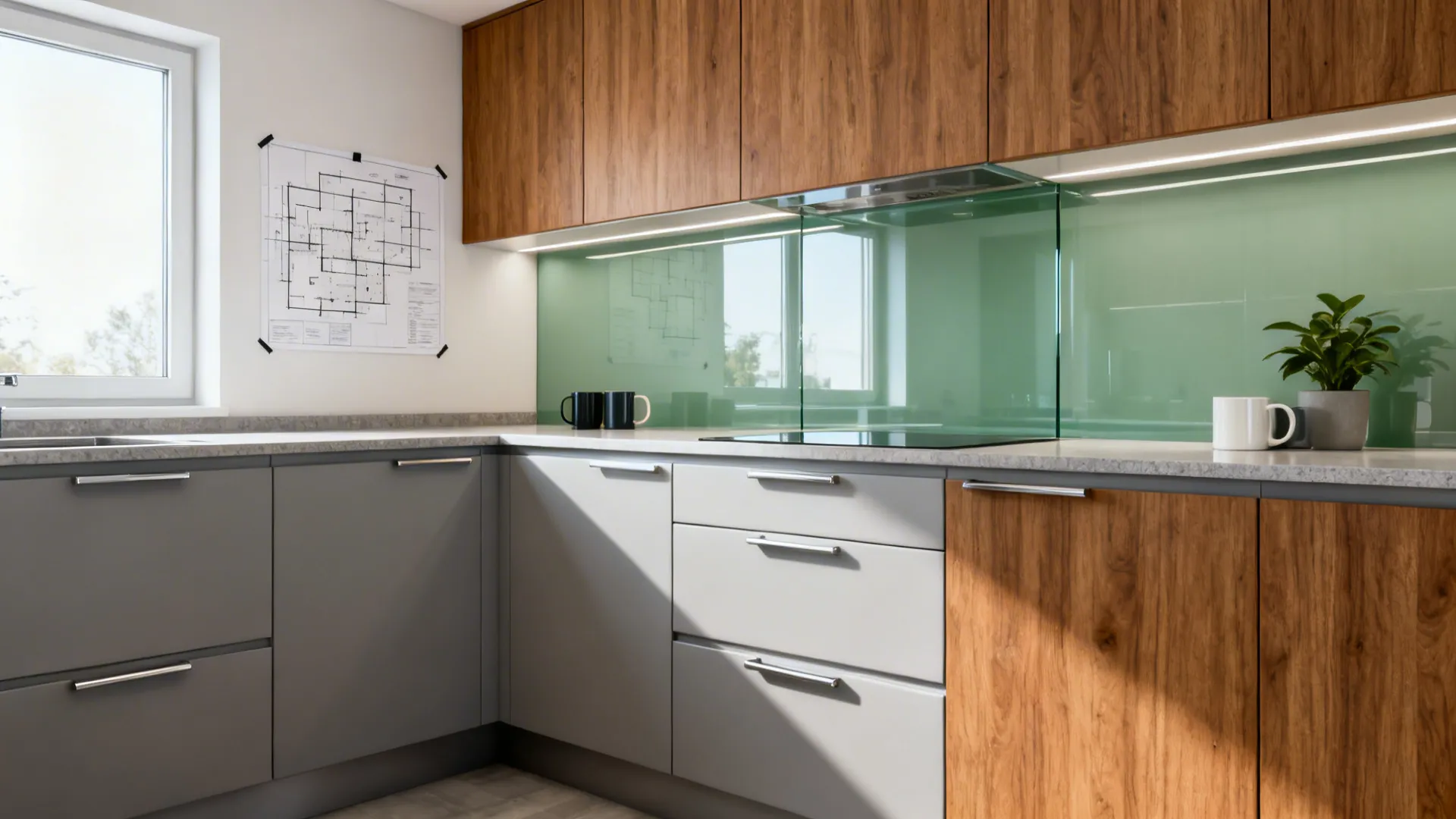

As an interior designer who lives and breathes small-space kitchens, I’ve seen how interior design kitchen 2D drawings can turn tight footprints into efficient, beautiful rooms. Small spaces unlock big creativity, and clear plans make every centimeter work. In this guide, I’ll share 5 design inspirations—blending my hands-on projects with expert data—to help you plan smarter, build faster, and cook happier.

On one recent remodel, a compact city kitchen went from chaotic to calm once we refined the 2D plan: cabinet depths changed, the sink shifted 20 cm, and suddenly the workflow clicked. If you’re mapping your own layout, start with function, then layer materials. And if you want a look at layout options, this case study on L shaped layout for more counter space shows how a simple turn can unlock prep room without adding square footage.

Minimalist storage that’s actually livable

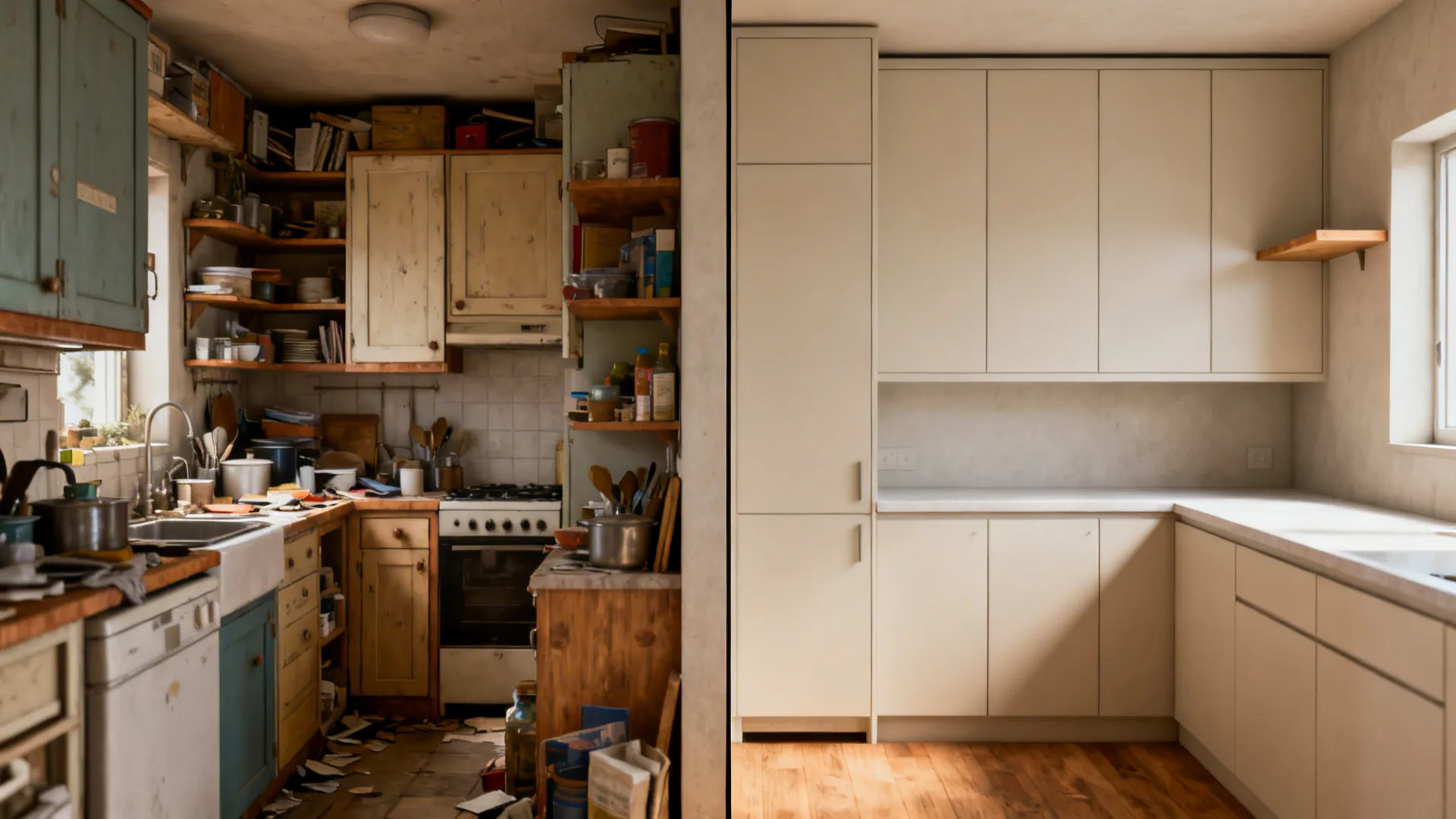

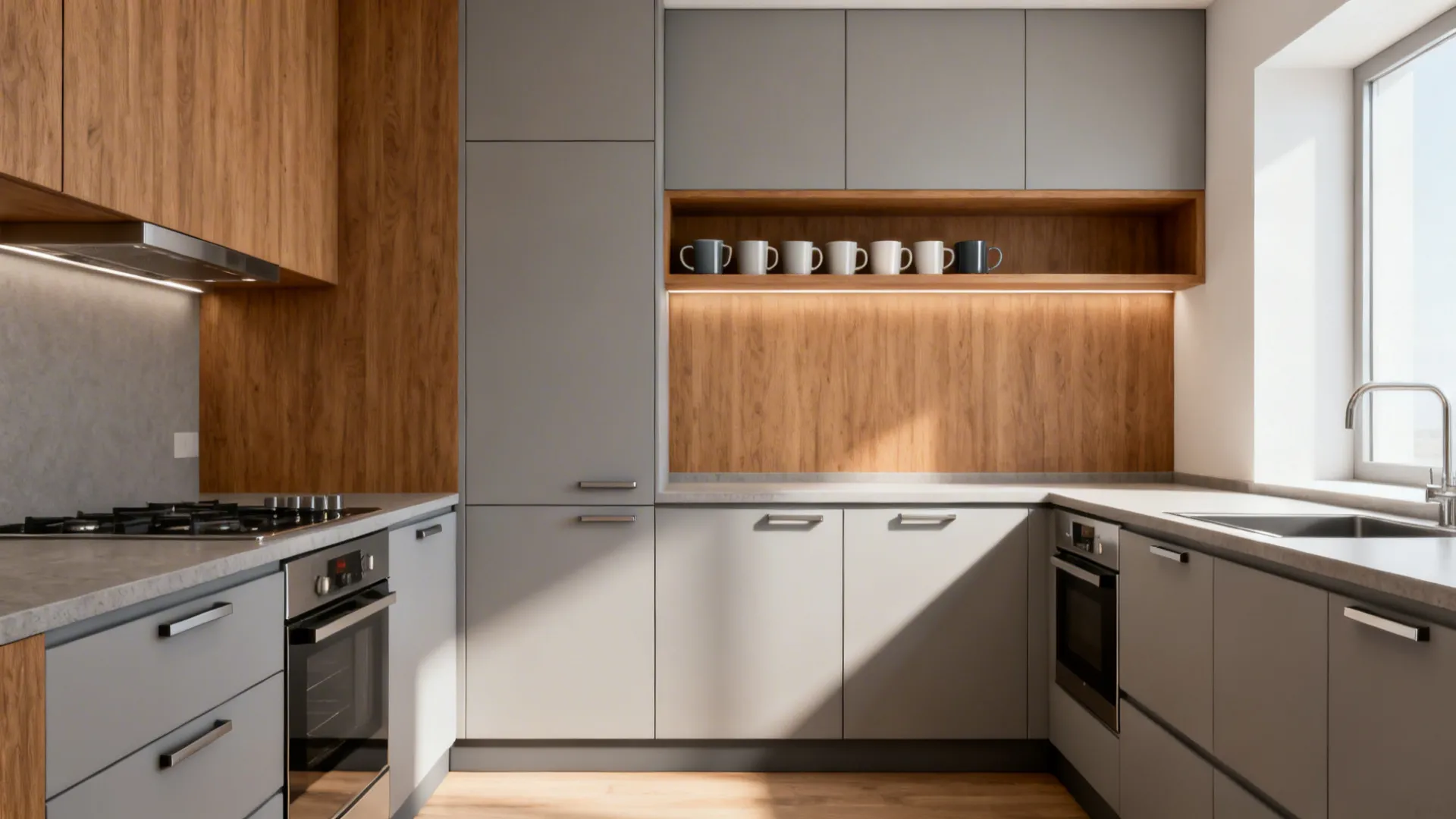

My Take: I once redesigned a micro-kitchen for a client who owned more mugs than cabinets. We trimmed the visual noise: flat-panel doors, full-height pantry, and a single open shelf for daily items. The 2D elevations showed exactly where each mug would live—no guesswork on site.

Pros: Minimal fronts and integrated pulls reduce visual clutter, which can make a 2D kitchen plan feel larger on paper and in reality. With a tight appliance triangle, your interior design kitchen 2D drawings translate to fewer steps and clearer traffic lines. According to the NKBA Storage Guidelines, full-height pantry columns dramatically increase accessible storage within small footprints (NKBA Kitchen Planning Guidelines, 2023).

Cons: Minimal doesn’t mean sparse—under-plan and you’ll be storing cereal in the bedroom. Handleless fronts can smudge easily; in busy households, you’ll wipe fingerprints more than you’d like. If the 2D elevations don’t include interior fittings, installers may default to basic shelves that waste space.

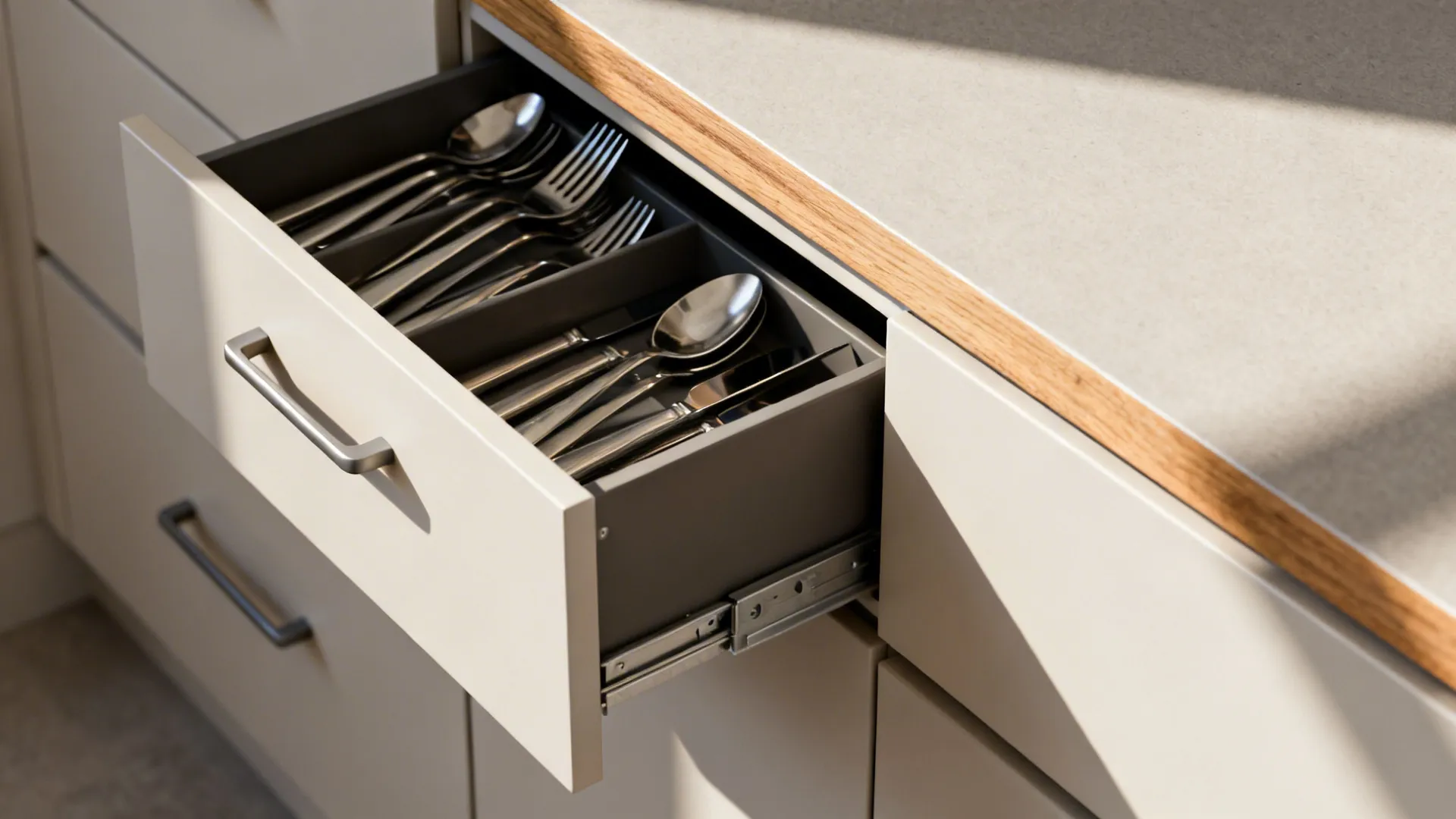

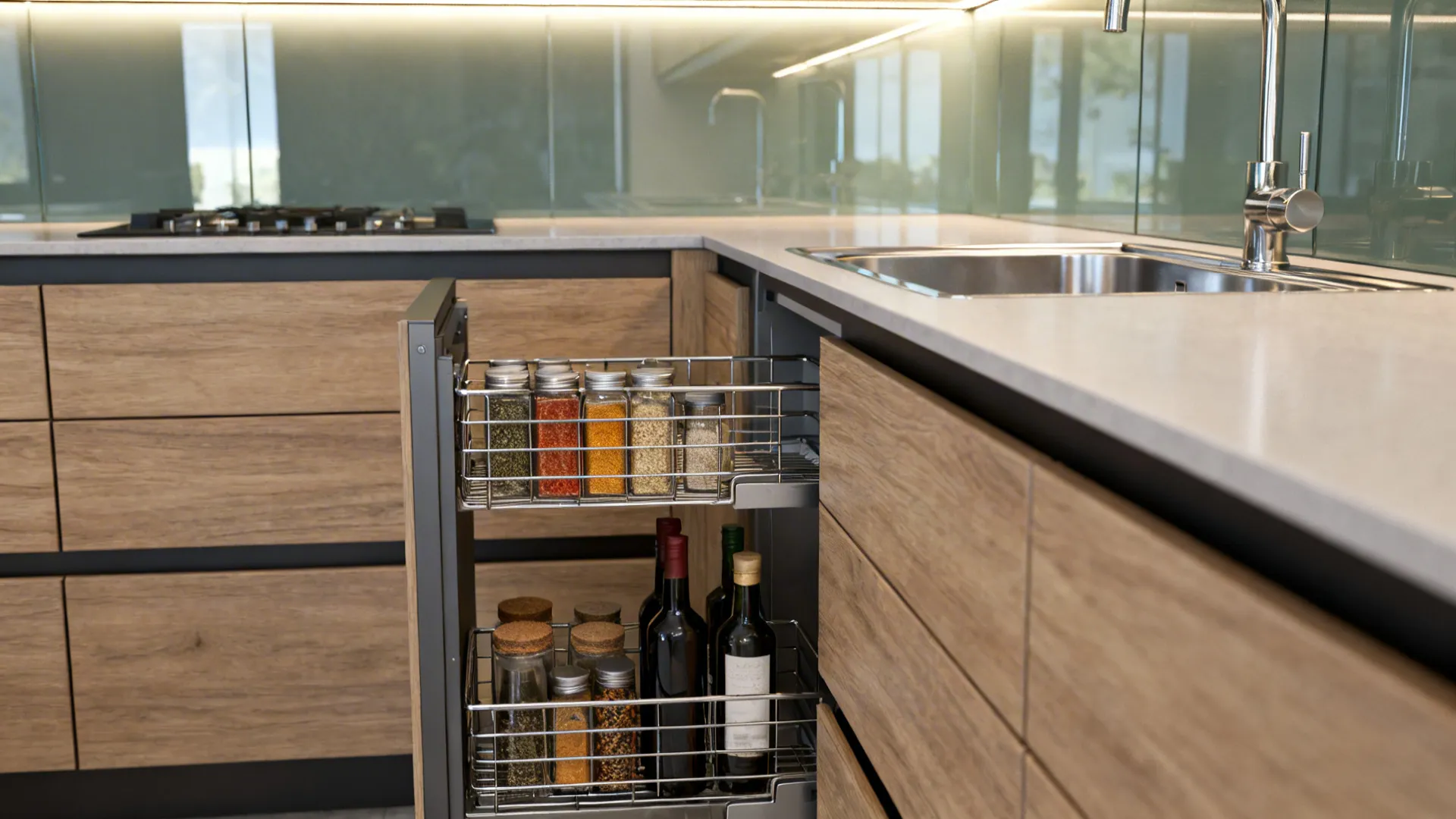

Tip/Cost: In your 2D elevations, annotate interior hardware: pull-out pantry baskets at 150–200 mm increments, and a 600 mm drawer stack with cutlery, utensils, and deep pots. Budget roughly 10–15% of cabinetry cost for internal organizers; they deliver outsized daily value.

save pin

save pin

save pin

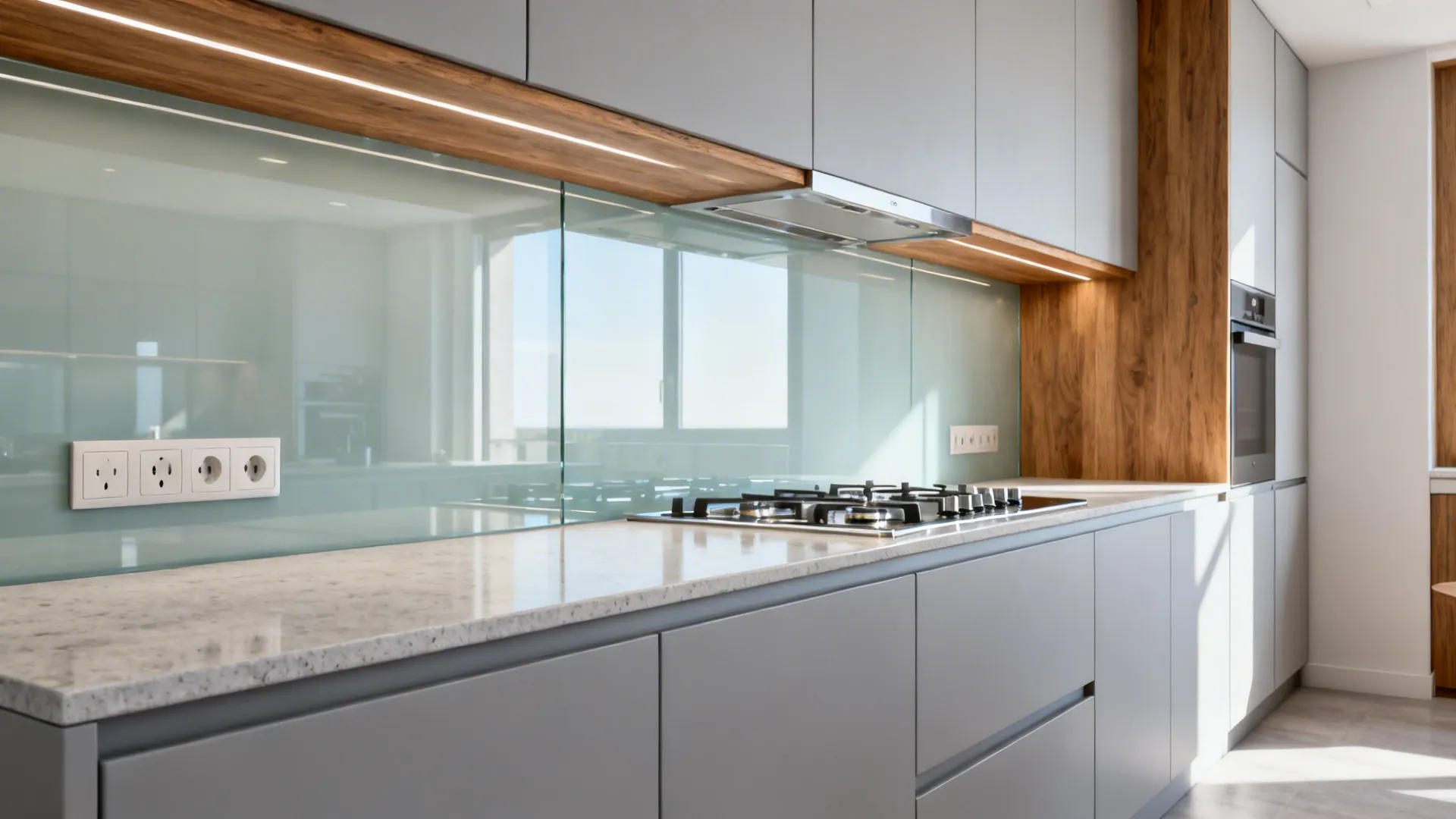

Glass backsplashes for light and depth

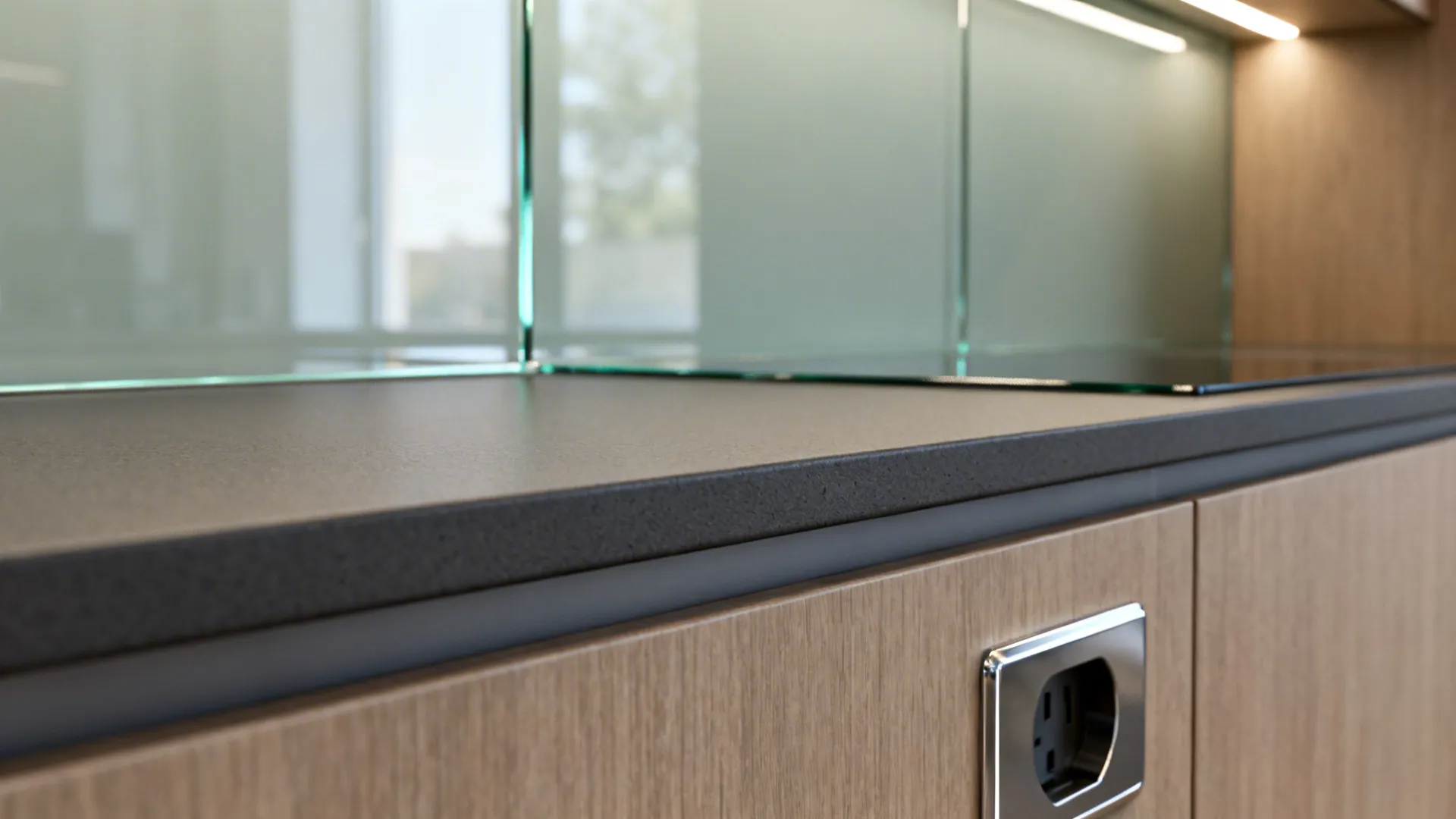

My Take: I’ve used low-iron glass backsplashes in narrow galleys to bounce light onto the worktop. When we drafted the wall elevations in 2D, we set socket heights precisely so the electrician wouldn’t punch through the glass later—tiny details that save headaches.

Pros: A continuous glass surface boosts reflective light, making compact kitchens feel open; this pairs beautifully with clean-lined 2D kitchen elevations. Tempered, low-iron glass keeps colors true and resists heat behind hobs (check local code for clearances). The U.S. Department of Energy notes that high-reflectance finishes can reduce reliance on artificial lighting in task zones (DOE, Lighting Facts, 2022).

Cons: Fingerprints and splashes show—daily wipe-downs are the trade-off for that sheen. Cutouts for sockets must be precisely dimensioned in 2D; a 3 mm error can crack the panel on install. Repairs are pricier than tile swaps, so plan once, plan right.

Tip/Case: Specify socket centerlines in your 2D drawings, including vertical height from finished floor and lateral distance from units. For cooktop zones, confirm the glass manufacturer’s max panel size to avoid mid-panel seams.

save pin

save pin

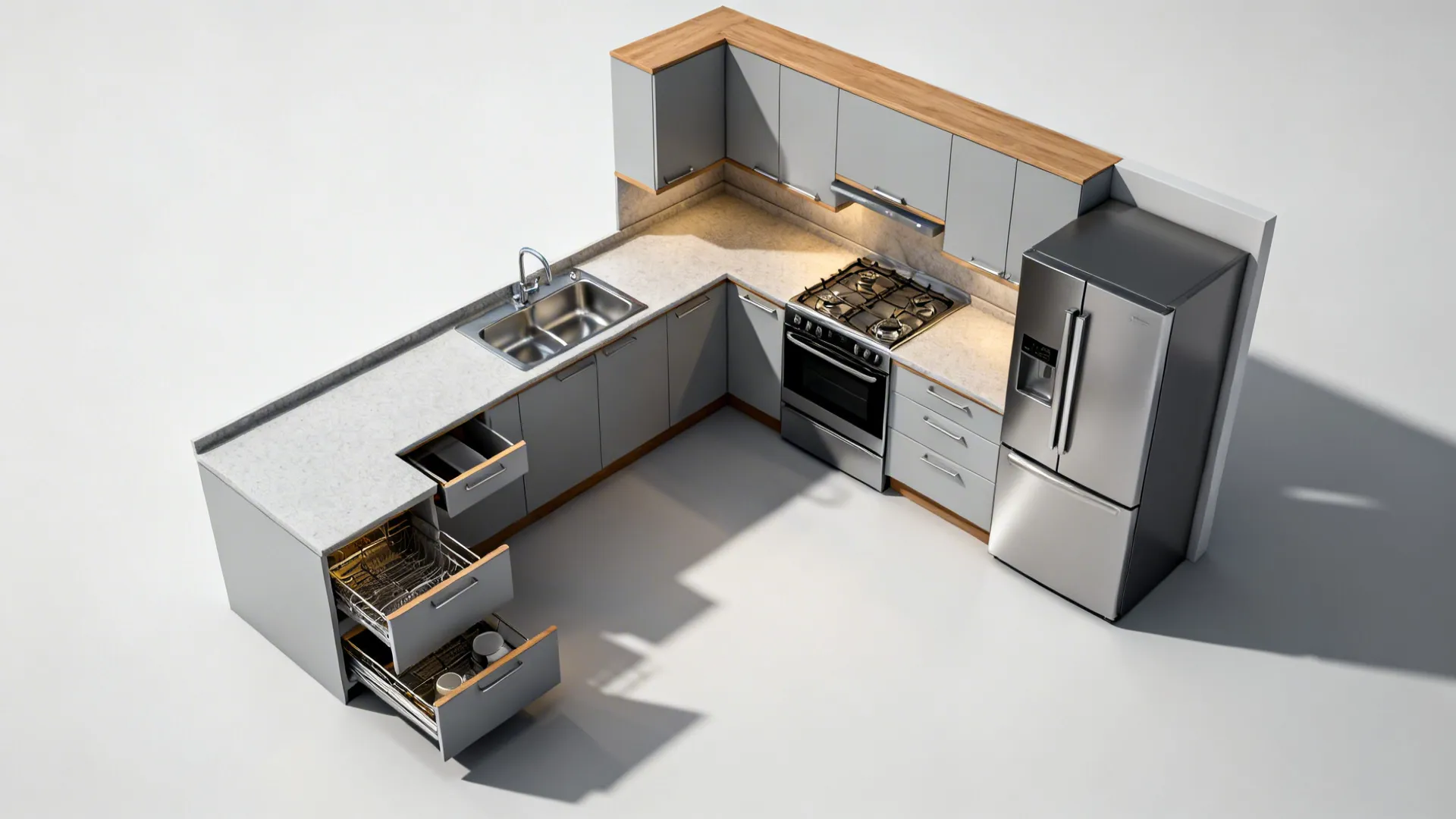

L-shaped layouts that prioritize counter length

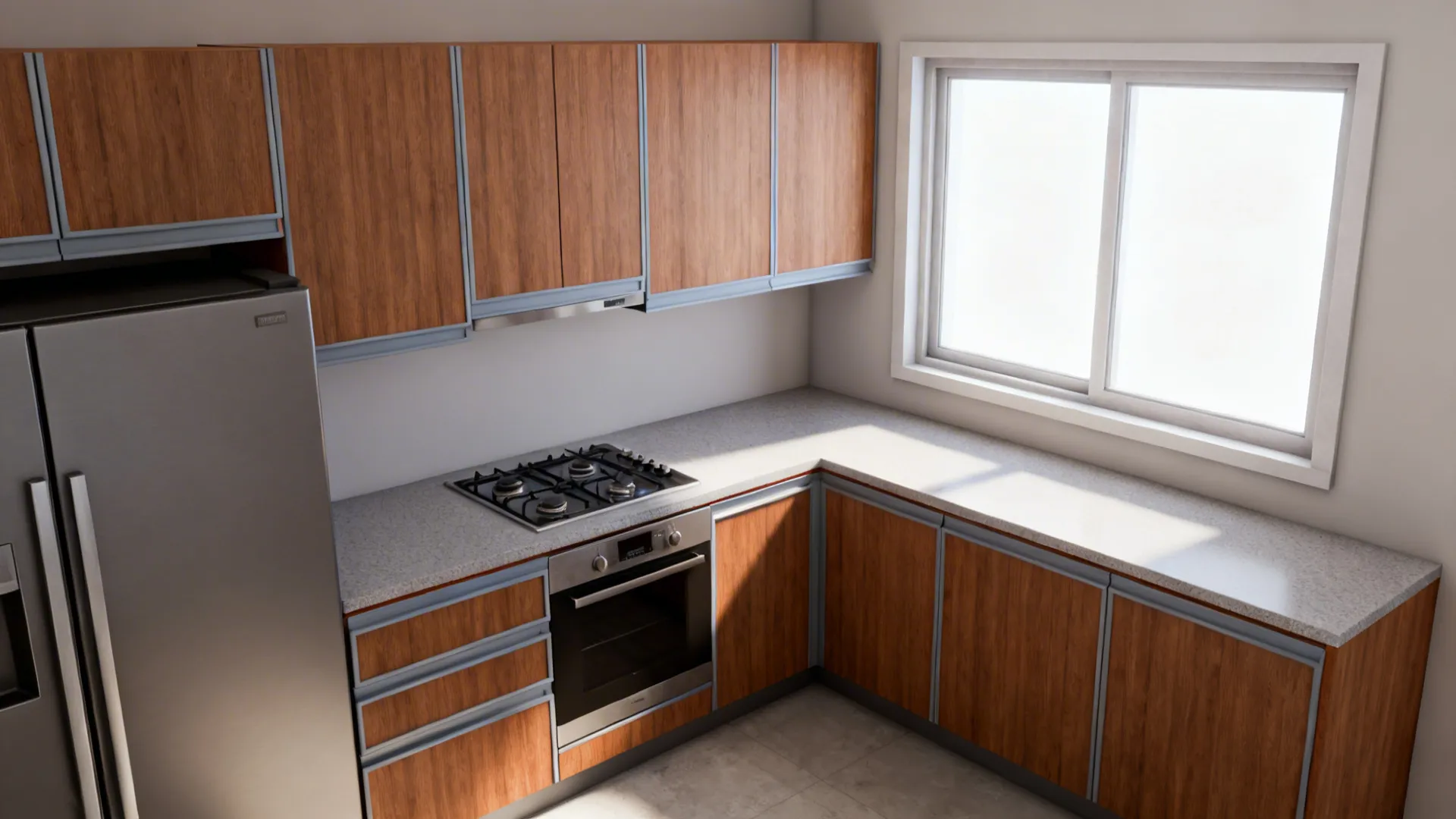

My Take: When clients beg for more prep space, I look to an L before an island. In one 7 m² retrofit, rotating the fridge to the short leg and tightening the corner gave us a continuous 2.4 m run beside the hob—night-and-day for cooking flow.

Pros: The L configuration creates a natural work triangle with fewer crossing paths, and 2D drawings make appliance clearances explicit. You typically gain uninterrupted counter length—great for small kitchen planning and clear dimensioning. The NKBA recommends 400–600 mm landing areas around key appliances; an L can often deliver these zones even in tight rooms (NKBA, 2023).

Cons: Corners can become black holes; if your 2D plan doesn’t spec a corner solution (LeMans, diagonal, or drawers), storage suffers. In ultra-narrow rooms, an L may pinch circulation at the inner elbow—watch door swing arcs.

Tip/Cost: In 2D, flag corner cabinet type and swing radius. If budget is tight, a simple 90° shelf with a top-access hatch can beat overpriced hardware, as long as you index contents that aren’t daily use.

Halfway through your plan, it helps to compare professional examples; this reference on glass backsplash for a brighter galley illustrates how reflective surfaces uplift narrow runs when coordinated with accurate elevations.

save pin

save pin

Warmth with wood without the upkeep

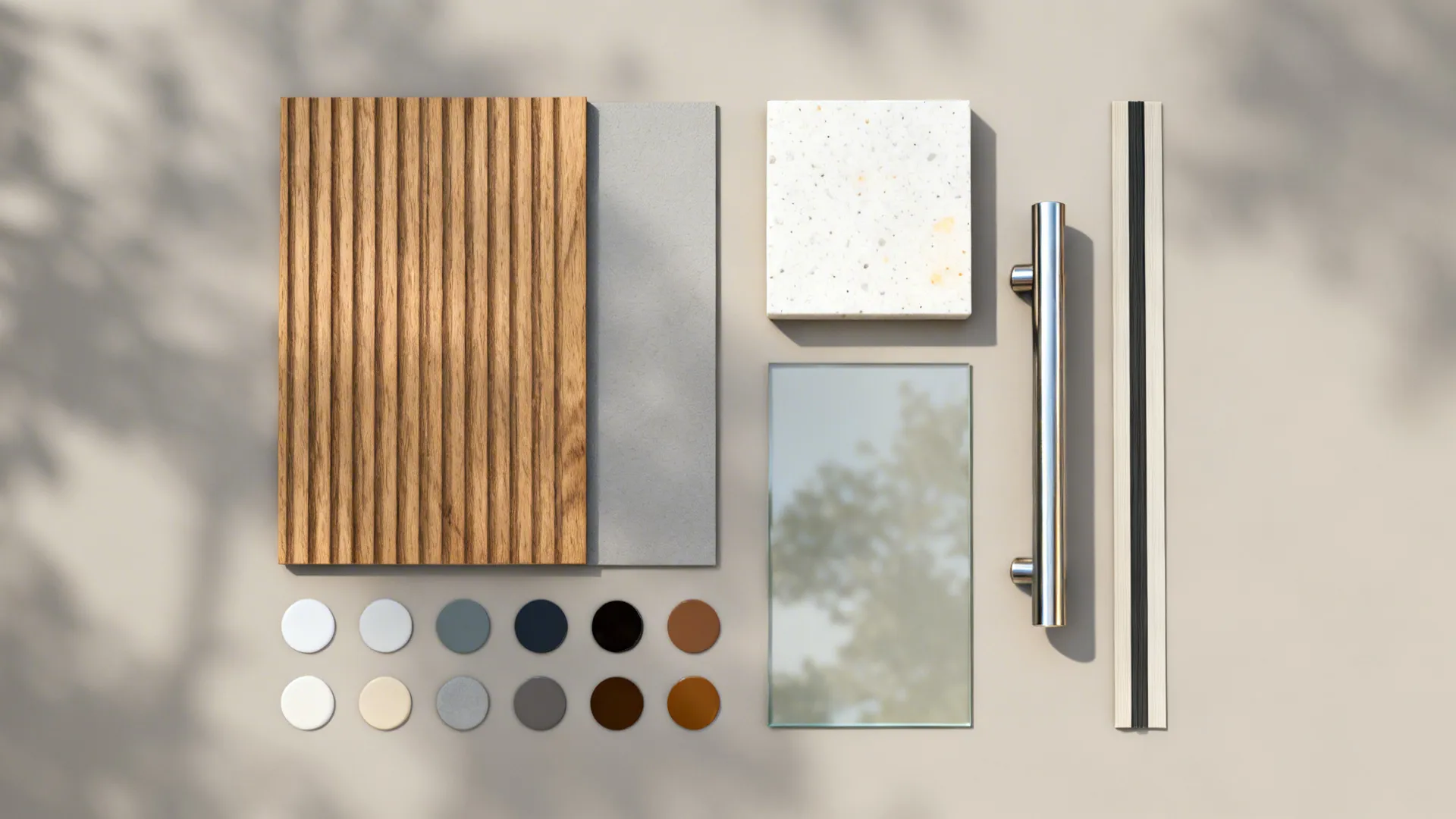

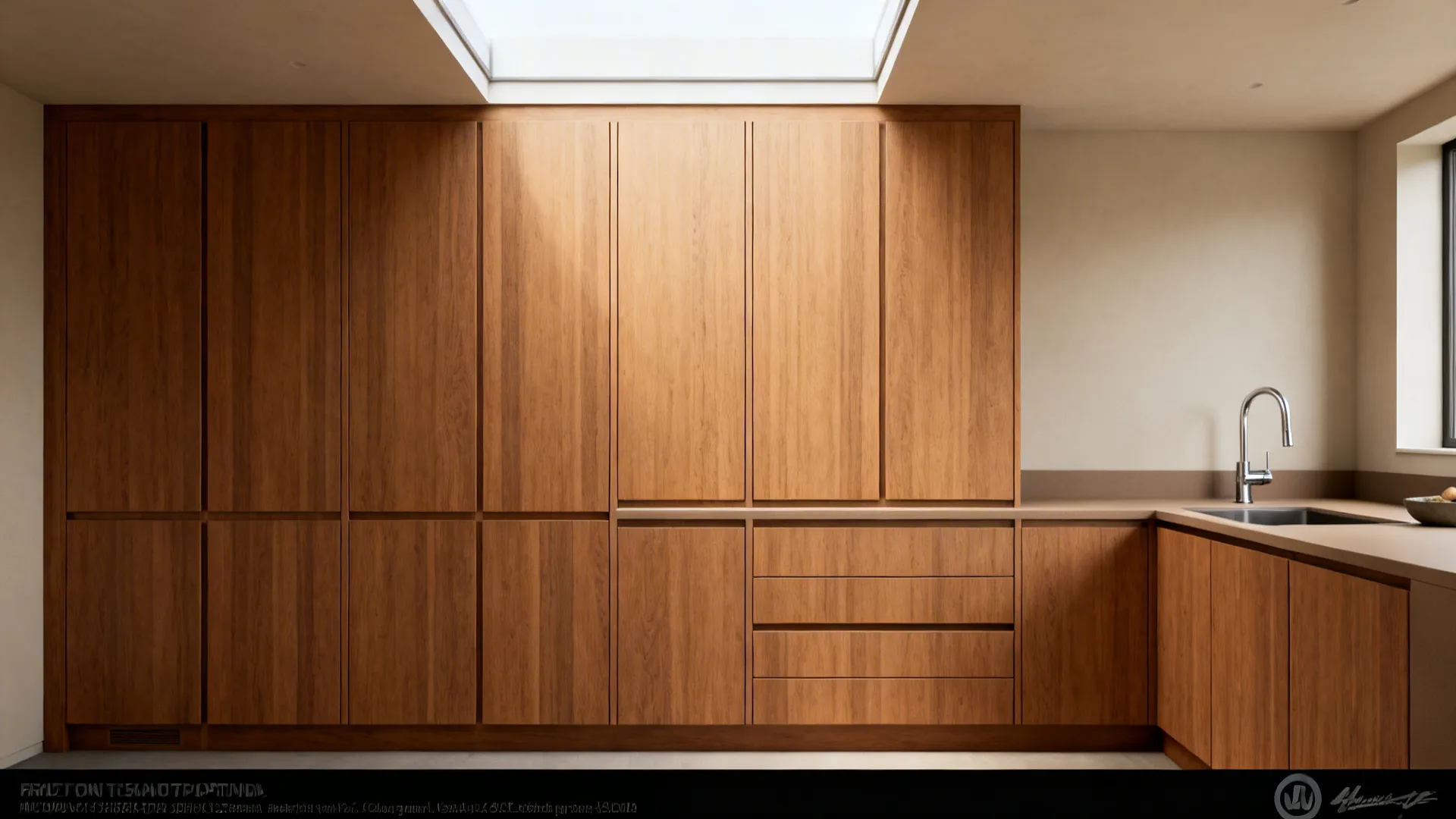

My Take: I love the calm a timber note brings. For a rental remodel, we drew 2D fronts in warm oak veneer, but made the countertop a durable composite. The plan labeled grain direction and panel breaks so the shop could match the look precisely.

Pros: Wood accents soften hard kitchen lines and, in 2D drawings, help communicate rhythm—door sizes, symmetry, and vertical breaks. Using engineered veneer or laminate on carcasses gives the wood look with better stability and budget flexibility. Low-sheen finishes hide micro-scratches, which your interior design kitchen 2D drawings can note as a finish key.

Cons: Natural wood near sinks can swell if the edge protection isn’t detailed; your 2D sections must call out edge banding and sealants. Matching real-wood tones to artificial lighting can be tricky—order samples and test under your actual fixtures.

Tip/Case: Add a keyed legend in your 2D set: F1 = veneer vertical grain, F2 = laminate horizontal grain, C1 = composite worktop matte. This avoids shop-floor guesswork and costly re-makes.

save pin

save pin

Micro-zoning: prep, cook, clean in a footprint

My Take: On a 2.1 m straight run, we still carved three zones. Sink offset left with a slim 300 mm pull-out, hob centered with 600 mm landing to the right, and a 450 mm dishwasher at the end. It looks modest on paper but feels surprisingly fluid in use.

Pros: Breaking the plan into micro-zones clarifies where each task lives; in your 2D kitchen plan, you can dimension landing pads and drawer types per zone. This approach makes small kitchens feel “bigger” because decisions are pre-made by the drawing. CIBSE lighting guidance emphasizes task illumination aligned to zones to reduce shadows and increase safety (CIBSE LG7, 2021).

Cons: Over-zoning can crowd the run with too many line breaks—keep fronts visually consistent. If you forget bin placement in the clean-up zone in your 2D drawings, you’ll regret it on day one.

Tip/Cost: In 2D, label drawers by function (cutlery, utensils, pans) and confirm appliance service clearances. Expect to allocate 8–12% of budget to lighting and electrical—task strips and accurate switching make zones work.

As your plan solidifies, consider a case study that maps 2D to 3D renders—this example on minimalist kitchen storage planning shows how early decisions in plan view translate to clean, build-ready details.

save pin

save pin

FAQ

Q1: What are the must-have dimensions in interior design kitchen 2D drawings?

Include clear room dimensions, unit widths, appliance sizes, door swings, worktop depths, toe-kick heights, and landing areas. The NKBA suggests 900 mm clear aisle for one cook and 1200 mm for two where possible; annotate these in plan.

Q2: How do I choose between an L-shaped or galley layout?

Use your 2D plan to test circulation: if one wall is underutilized, an L can unlock longer counters; if both walls are parallel and narrow, a galley may flow better. Prioritize uninterrupted runs and landing zones near the hob and sink.

Q3: What scale should I draw at?

For residential kitchens, 1:20 or 1:25 for elevations and sections gives detail clarity; 1:50 for overall plans. Consistent scale markers in your title block help contractors verify measurements on site.

Q4: How do I show electrical and lighting in 2D?

Layer a reflected ceiling plan with task lights over prep and cook zones, and mark outlet centerlines on wall elevations. CIBSE recommends task lighting to achieve adequate lux levels over counters (CIBSE LG7, 2021).

Q5: Are glass backsplashes durable near cooking?

Yes, tempered glass handles heat and cleans easily. In 2D elevations, detail clearances behind gas burners and specify low-iron glass for accurate color; always follow manufacturer guidelines.

Q6: How do I detail corner cabinets?

Choose hardware in plan: diagonal corners, blind corners with pull-outs, or corner drawers. Draw plan swing arcs and interior basket sizes so installers can set hinge positions correctly.

Q7: What’s the best way to annotate materials in 2D?

Use a keyed legend: codes for fronts, carcasses, worktops, splashbacks, and flooring. Call out finish, sheen, and edge treatments; this reduces miscommunication and controls budget.

Q8: How can I test an interior design kitchen 2D drawing before building?

Print at scale and do a “cardboard walk-through,” checking reach and clearance. Cross-check with guidelines like the NKBA Kitchen Planning Guide and iterate your plan until landing zones and aisles feel right.

Summary: Small kitchens aren’t limits—they’re invitations to think sharper. With accurate interior design kitchen 2D drawings, every decision is visible before a single screw goes in. As the NKBA notes, clear planning standards improve usability and safety; I’ve seen it pay off in every tight kitchen I’ve built. Which of these five design ideas are you most excited to try?
