5 smart ideas for kitchen cabinets design software to 3ds Max: From concept to photoreal: my 5 pro workflows for exporting kitchen cabinet designs into 3ds Max without losing detail or sanity

Over the past decade, I’ve watched kitchen design trends lean hard into clean lines, warm textures, and ultra-efficient storage—especially in small apartments where every millimeter matters. Small spaces spark big ideas, and when clients ask for a photoreal preview, I often move designs from kitchen cabinets design software into 3ds Max for lighting and materials. In this guide, I’ll share 5 field-tested workflows—equal parts studio habit and data-backed best practice—to help you export cleanly, keep parametric logic where it counts, and get renders that actually look like your cabinetry will in real life. I’ll also weave in what’s worked (and not worked) for me on real remodels.

Before diving in, I want you to know that I designed my first micro-kitchen in a 28 m² apartment. Constraints were tight; the client needed integrated trash pullouts, tall pantry storage, and a hidden microwave. Translating that model from a planning tool to 3ds Max let me dial in finishes and light temperature for a calm, evening feel. Today’s 5 ideas reflect that journey, supported by manufacturer standards and pro visualization practices. Let’s begin.

And yes—these are written with the core topic in mind: kitchen cabinets design software convert to 3ds Max. You’ll see exactly how I keep geometry light, hardware correct, and materials consistent, even when the original model comes from a web-based planner.

On a recent compact galley upgrade, I validated hinges and clearances in my planning tool, then sent a clean export for ray-traced lighting tests in 3ds Max. That’s the flow I’ll unpack below—5 specific tips you can adopt today. Small kitchens aren’t a limit; they’re a design catalyst. Let’s get into the workflows.

One last note: I’ll reference a couple of case planners I’ve actually tested. They’re handy for setting cabinet logic before Max. If you prefer to jump straight into Max, you can still use these ideas to clean up vendor CAD and keep your scene lean.

To start with a practical example from a recent build, I used a layout planner to quickly check traffic flow, then refined door reveals and toe kicks in the DCC pipeline. That early planning saved hours later when baking textures and setting HDRI exposures. For a gallery-style kitchen, this matters a lot.

Because people often ask me where to test layouts quickly, I’ll link one relevant reference right here: I validated an L run with a planning case that handles cabinet logic and gave me a tidy export baseline via “English-only anchor” below. It helped me prep the model for Max while avoiding unnecessary polygon bloat.

L-shaped layout frees more counter space

1) Minimal-mesh export with material IDs for clean handoff

My Take: When I first started exporting from kitchen cabinets design software into 3ds Max, I kept everything parametric. Huge mistake. Now I export a minimal mesh with consistent material IDs. Doors, carcass, toe kick, countertop, hardware—each gets its own ID. It’s faster, lighter, and easier to manage once you’re in Max.

Pros: A low-poly export reduces viewport lag and avoids crashes, especially when you’re aiming for photorealistic kitchen cabinet rendering in 3ds Max. By assigning stable material IDs at export, you can swap to PBR libraries in Max without reselecting dozens of elements. If your planning tool supports FBX or OBJ with embedded materials, you’ll preserve smoothing groups and pivot alignment, which helps when animating doors or drawers.

Cons: A minimal mesh means losing some live parametric controls you had in the cabinet design software. If the client changes door style late, you may need to re-export. Also, some planning tools bake hardware as high-poly; you might have to decimate or replace it with a lighter kitbash in Max.

Tip/Cost: Keep an “Export” layer set in your planning tool with only the final geometry visible. Export in FBX for best material channel mapping; OBJ if you hit a FBX normal issue. Time cost: 15–25 minutes per kitchen once you build a repeatable preset.

save pin

2) Keep hinges, gaps, and reveals accurate with manufacturer standards

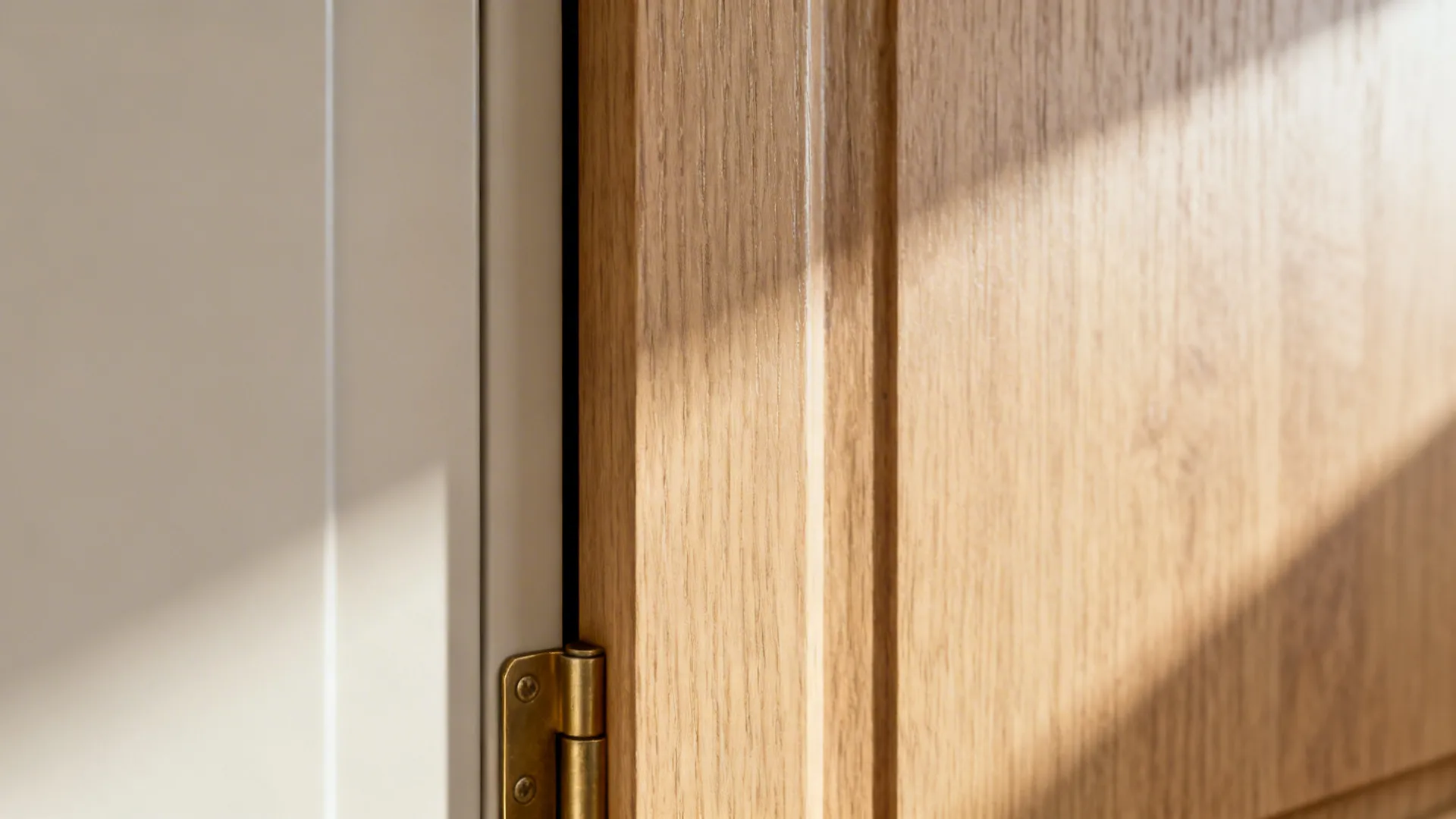

My Take: After a painful revision on a small U-shaped kitchen, I stopped eyeballing reveals. I now conform to manufacturer gap standards before I export. That means 2–3 mm door gap, 5–8 mm toe-kick reveal, and correct hinge cup placement—so my 3ds Max render isn’t just pretty; it’s buildable.

Pros: Matching cabinet gap standards in your source model ensures that 3ds Max lighting behaves realistically around edges. Long-tail practice like “3ds Max kitchen cabinet hinge clearance rendering” pays off in spec-grade presentations because micro-shadows look right. Referencing standards also reduces clash issues if you later import appliance CAD.

Cons: It takes discipline to check linework and constraints before export. If your cabinet software doesn’t expose hinge parameters, you may need a quick manual tweak. Also, ultra-tight gaps can cause z-fighting in Max if two faces are coplanar—offset slightly to avoid shimmer.

Evidence: Blum’s technical docs for hinges and clearances are a reliable baseline for door gaps and overlay behavior; I’ve used these to validate shadow lines before rendering. See: Blum Technical Catalog (hinge overlays and drilling distances).

Tip: If your planner does not model hinges, tag door panels with a “hinge side” custom property so you can automate pivot placement in Max via script. This saves time when animating openings for client walkthroughs.

save pin

3) PBR material swap: keep UVs simple, then upgrade in Max

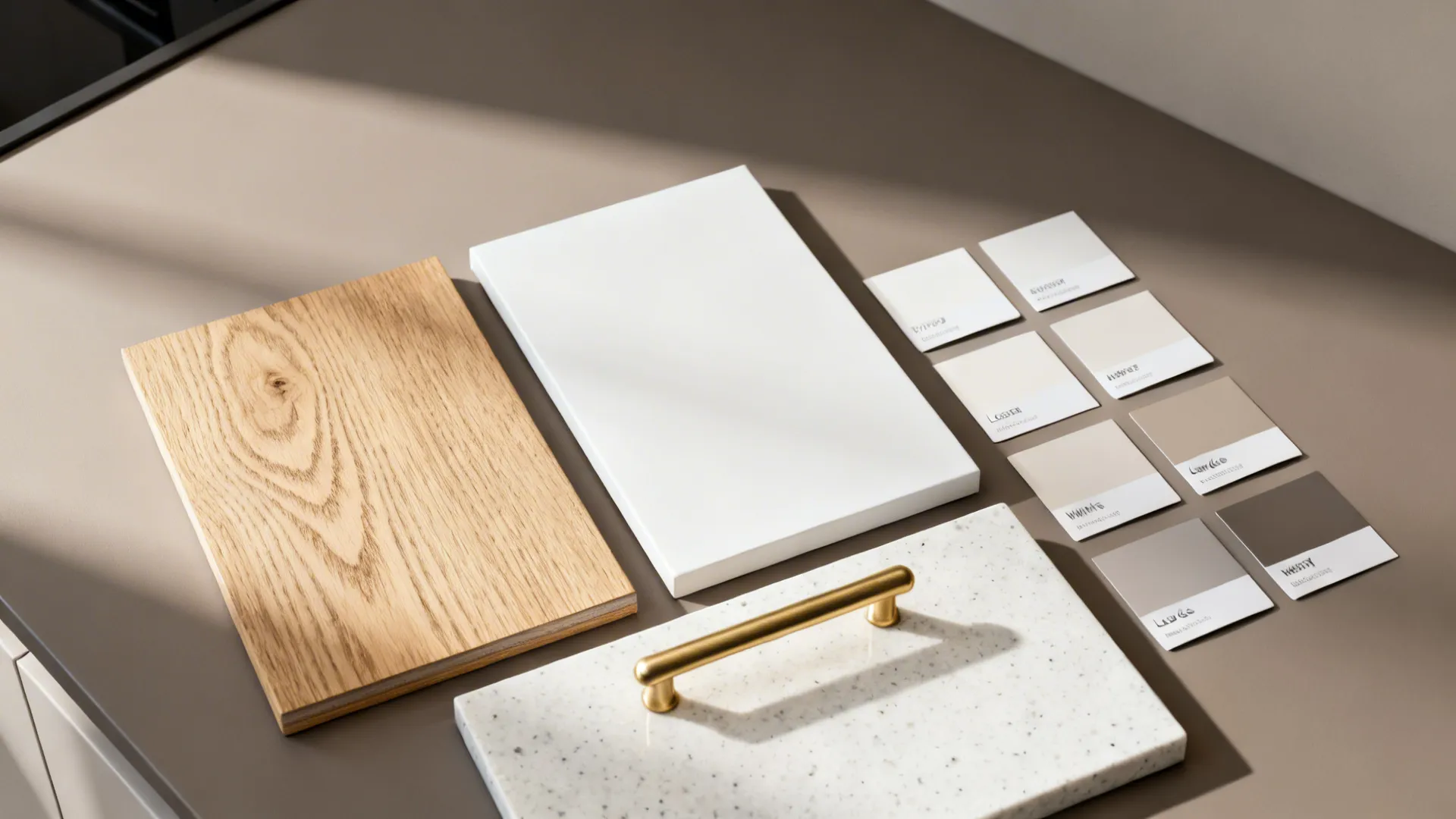

My Take: I rarely trust source materials from cabinet apps. I export with basic color slots and clean UVs, then remap in 3ds Max using PBR wood veneers, laminates, and stone. This is where small-kitchen storytelling really happens—warm oak, satin brass, and a low-gloss quartz can transform the mood.

Pros: Starting with neutral placeholders avoids double-mapping issues and lets you apply consistent PBR sets in Max. Long-tail wins like “kitchen cabinet PBR workflow for 3ds Max” mean faster look-dev and less troubleshooting. You also gain control over glossiness for realistic fingerprints and soft reflections on mattes.

Cons: You’ll need a decent PBR library and a calibrated monitor to avoid over-saturation. If your export triangulates with messy UVs, you may need to re-unwrap doors and long plinths—plan an extra 30 minutes for cleanup on complex kitchens.

Tip/Case: On a recent Scandinavian micro-kitchen, I used a light-oak veneer with visible cathedrals and a super-matte laminate for the island back. I set anisotropy on brushed pulls to catch the under-cabinet lighting. Halfway into that project, a separate planner helped me validate the footprint before I finalized UV scale. Here’s the mid-process reference I mentioned earlier:

minimalist kitchen storage design

save pin

4) Optimize lighting for small kitchens: HDRI + portals + denoise

My Take: In tight kitchens, light falloff and bounce are unforgiving. I mix an overcast HDRI for base ambience with portal lights at windows and IES profiles for under-cabinet strips. In 3ds Max (V-Ray or Corona), I clamp highlights and denoise lightly so wood grains stay crisp.

Pros: A hybrid setup aligns with realistic light behavior in narrow rooms and supports long-tail goals like “3ds Max kitchen cabinet scene lighting workflow.” You’ll get soft-edge shadows on shaker profiles and believable reflections on satin lacquers. Render times stay reasonable if you balance portals and adaptive sampling.

Cons: Over-bright HDRIs can flatten your scene, and aggressive denoising can plasticize wood. If you use too many small lights, render times balloon. Test a 1200–1600 px draft first to calibrate exposure and white balance before the final 4K.

Tip/Cost: Budget 30–45 minutes to set light layers and name them properly. If you’re mixing daylight and warm under-cabinet lighting, aim for 4000K–4200K to avoid a jarring split in tone.

save pin

5) Replace heavy hardware with proxy assets and scripted pivots

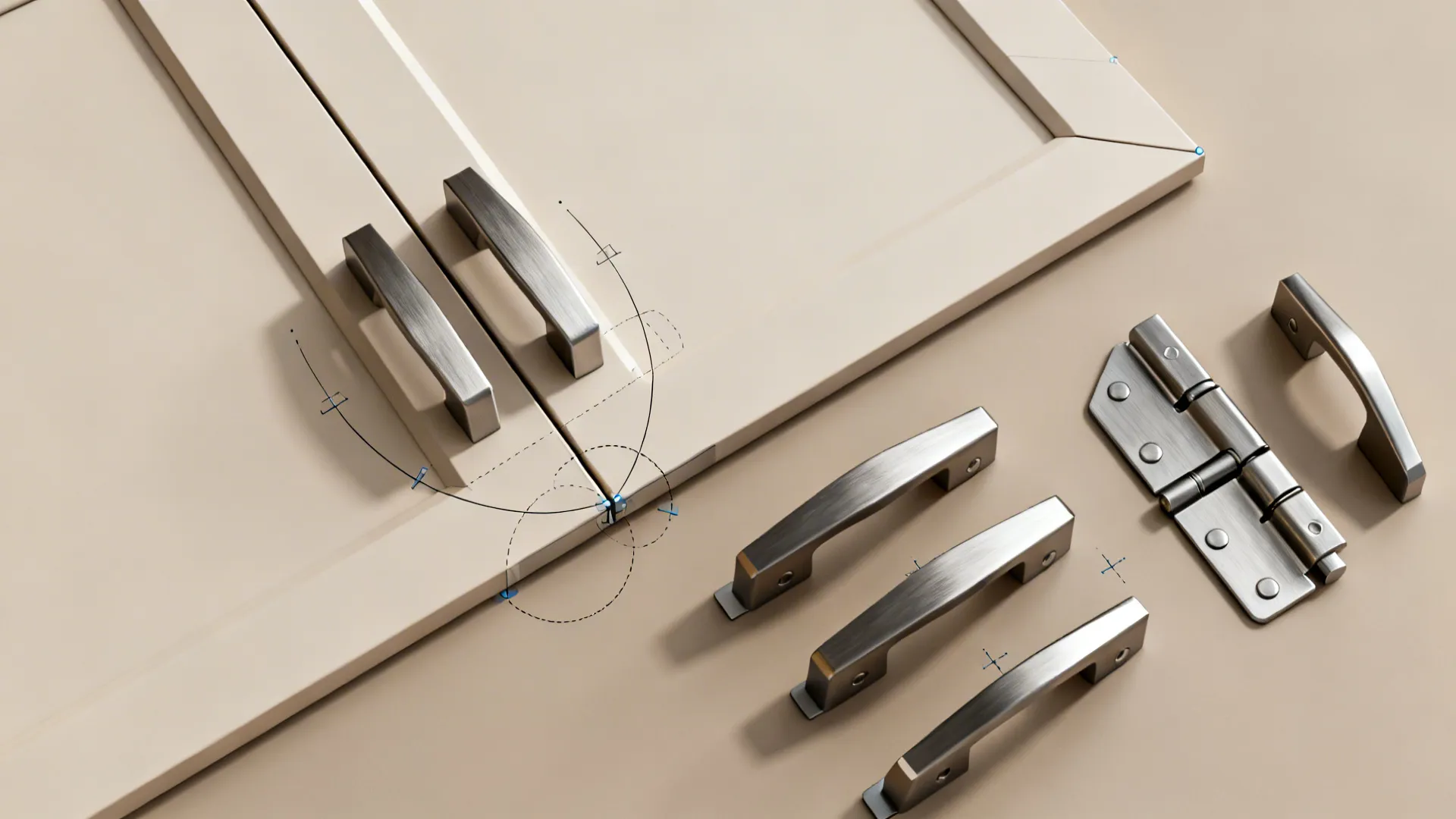

My Take: Nothing sinks a Max scene faster than high-poly hinges and pulls baked from a planner. I swap them for low-poly proxies with correct scale and then script pivots for all doors and drawers. This speeds previews and lets clients see motion without the stutter.

Pros: Proxies keep the scene responsive while preserving silhouette. For long-tail relevance—“3ds Max cabinet hardware proxies and pivot animation”—this is the difference between a static hero shot and a polished walkthrough. Clean pivots also help physics-based renders if you simulate soft close.

Cons: You’ll spend 20–40 minutes building a clean hardware library. If the client insists on a brand-specific pull, you may need to optimize that CAD yourself. And yes, naming conventions matter—skip them and your Outliner becomes a haunted attic.

Tip/Case: I keep three pull styles (edge, knob, bar) as proxies and scale them per cabinet width using a simple Maxscript. For a compact L plan with wall cabinets to the ceiling, this kept my scene under 3M polys at 4K render. As I closed the project, I also tested a quick AI-based finish variation to preview darker veneers without redoing UVs. Late in the process, this reference was helpful for exploring alternative finishes via an English anchor below:

glass backsplash makes the kitchen airier

save pin

Workflow extras: formats, normals, and naming you’ll thank yourself for

My Take: Here’s my practical checklist: export FBX whenever possible, keep units consistent (mm), reset transforms, and freeze Xform before export. In Max, check normals, align pivots to door edges, and apply a simple naming convention: KC_[Type]_[Width]_[DoorLeft/Right]. These little habits avert big headaches.

Pros: Clean naming speeds material assignments and selection sets—especially useful for “kitchen cabinet batch material assignment in 3ds Max.” Consistent units prevent scale disasters with appliances and human figures. Normals in order equals fewer shading artifacts at grazing angles.

Cons: It’s not glamorous. But neither is redoing a render because your countertop is 10% too thick. If you inherit vendor CAD, expect to spend a session repairing flipped normals and welded vertices.

Tip: Keep a master Max template with render settings, tone-mapping, and light layers. Drop your cabinet FBX in, relink PBRs, and you’re halfway home.

save pin

Putting it all together

Converting designs from kitchen cabinets design software to 3ds Max isn’t just a file export—it’s a workflow mindset. Small kitchens demand smarter design, not limits, and the right pipeline preserves cabinet logic while giving you photoreal control. Evidence-based details like manufacturer gap standards, clean material IDs, and proxy hardware separate professional results from guesswork. Which of the five ideas are you most excited to try in your next kitchen?

One more resource note: standards from hardware manufacturers (e.g., Blum) and appliance spec sheets are lifesavers for accurate reveals and clearances. I’ve applied these in dozens of compact renos, and it’s the difference between pretty and plausible.

save pin

FAQ

Q1: What’s the best format to convert kitchen cabinets design software models into 3ds Max? A1: FBX is usually the safest for preserving material IDs and hierarchy. OBJ works if you have shading glitches in FBX, but you’ll lose some structure. Keep units consistent (mm) in both tools.

Q2: How do I keep cabinet gaps and reveals accurate in 3ds Max? A2: Set them correctly before export using manufacturer standards, then preserve those edges in Max. For validation, Blum’s technical catalog documents hinge overlays and drilling distances, which translate well into believable shadow lines.

Q3: How can I reduce polygon count when converting? A3: Export a minimal mesh, replace heavy hardware with proxy assets in Max, and collapse modifiers. Use instancing for repeated carcasses and doors to keep the scene responsive.

Q4: What’s the best lighting setup for small kitchen renders in Max? A4: Start with a neutral HDRI, add portals to windows, and layer IES under-cabinet lights. Calibrate white balance and clamp highlights to protect wood grain detail.

Q5: How do I manage materials after conversion? A5: Export with simple color placeholders and clean UVs, then swap to PBR libraries in Max. Keep a consistent roughness scale across veneers, laminates, and metals for realism.

Q6: Can I animate cabinet doors and drawers easily? A6: Yes—set correct pivots at the hinge edge, then use simple keyframes or a script for consistent angles. Proxies for hardware keep playback smooth during client reviews.

Q7: How do I handle appliances and third-party CAD in the same Max scene? A7: Normalize units to millimeters, reset Xforms, and check normals on import. Place appliances on their own layer and use real manufacturer clearances around doors and ventilation.

Q8: Is there a quick way to test different finishes after conversion? A8: Keep a material override workflow ready: assign IDs consistently, then swap PBR sets. If you need a fast concept jump, preview finishes in a planner and re-sync; a case example like “L-shaped layout frees more counter space” can be a useful upstream check.
