Kitchen Design CAD: 5 Detail Standards I Rely On: My field-tested CAD standards for small kitchens: clear layers, smart dimensions, health codes, and buildable details—backed by pro data and real projects

I’ve redesigned dozens of compact kitchens, and the latest interior design trend I’m loving is precision-led minimalism—clean lines outside, rigorous CAD detail inside. Small spaces spark big creativity, but only if our drawings are crystal clear. In this guide, I’ll share 5 kitchen design CAD detail standards I use daily—rooted in real-world projects and supported by expert sources—to help you build smarter and avoid costly on-site surprises.

For context, I’ll focus on residential kitchens, especially small footprints, where clarity in dimensions, layers, and code notes makes or breaks the install. You’ll also see how each standard ties to buildability and coordination with trades—because a beautiful rendering still needs bulletproof CAD.

Below are my five go-to CAD detail standards for kitchen design. I’ll weave in personal stories, pros and cons with long-tail keywords, and a few quick tips on time and cost. Small kitchen, big precision.

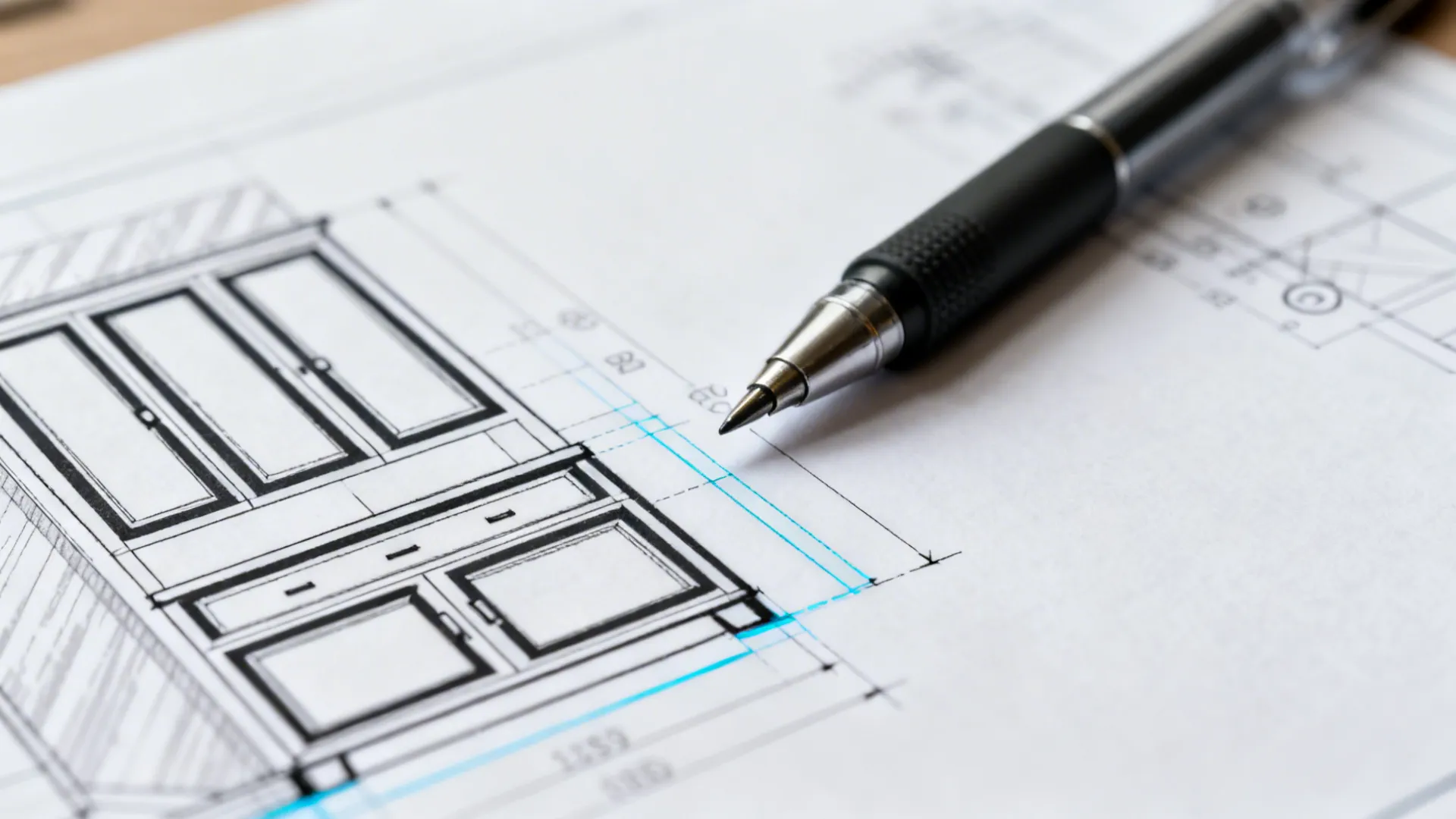

Standard 1: Layered Annotation & Lineweight Discipline

My Take: Early in my career I over-annotated a tiny galley kitchen and the contractor missed a critical GFCI note buried in the noise. Since then, my rule is disciplined layers and lineweights: what’s built gets bold, what’s referenced gets light. It sounds simple, but it saves budgets and weekends.

Pros: Clear layer naming (e.g., A-KIT-CAB, A-KIT-CT, E-RECEPT) and consistent lineweights improve small kitchen cabinet detailing and reduce RFIs. Long-tail benefits include faster coordination for appliance rough-in dimensions and fewer conflicts in tight L-shaped layouts. According to the U.S. National CAD Standard (NCS), consistent layer conventions accelerate trade interpretation in multi-discipline sets.

Cons: Strict layering adds upfront drafting time and a learning curve for junior staff. On legacy projects, migrating old drawings to a clean standard can feel like dental work. If you’re a solo designer, the temptation to “just get it out” is real—I’ve been there.

Tips / Case / Cost: Build a template file with locked lineweight styles and plot styles; you’ll earn back the setup time by the third project. In one 60 sq ft makeover, we shaved a full day off electrical coordination just by isolating appliance notes on a dedicated annotation layer.

For visualizing compact layouts before detailing, I sometimes sketch concepts and test proportions with L shaped layout frees up more countertop—then I codify the final scheme in CAD for construction.

save pin

save pin

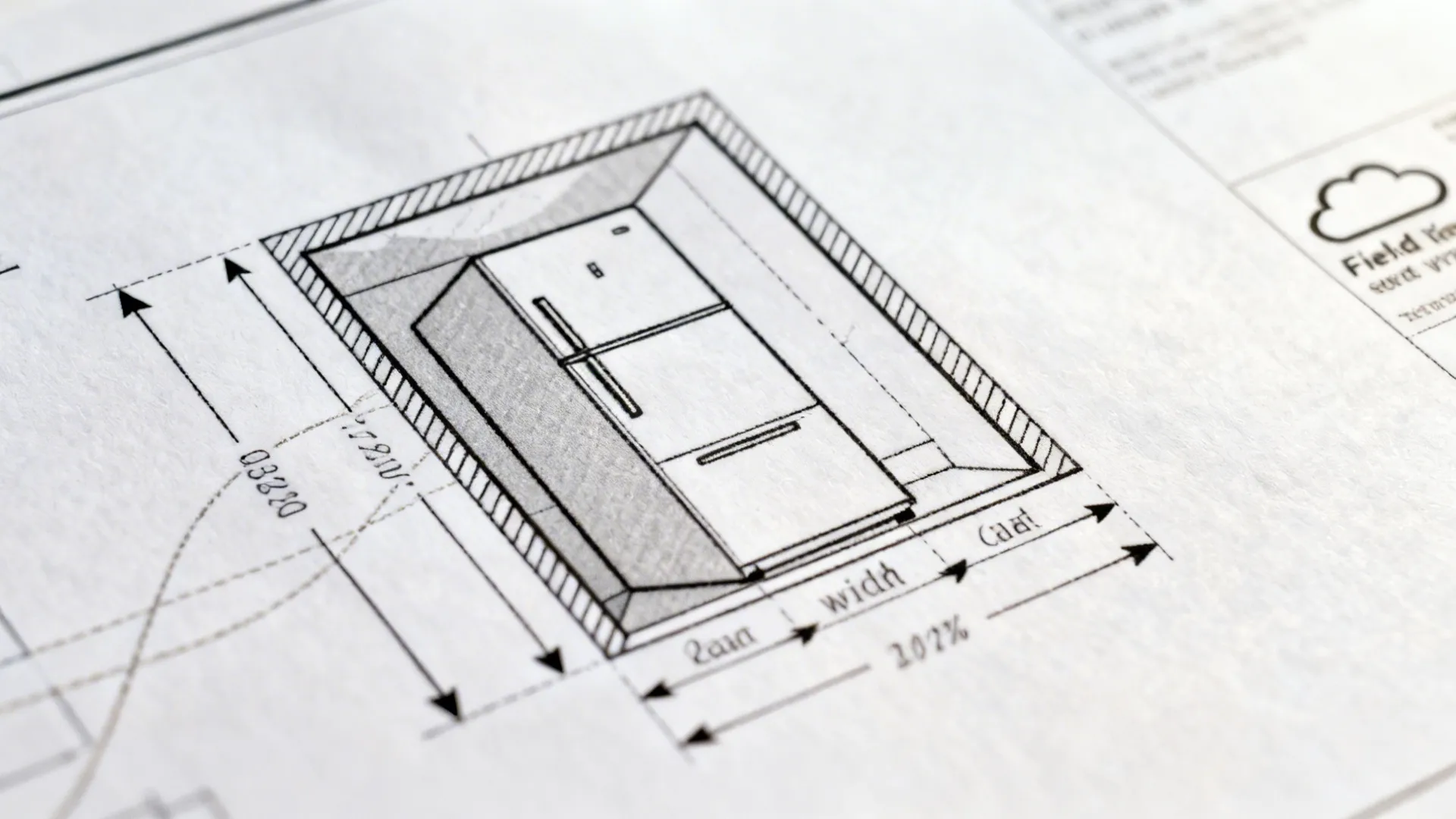

Standard 2: Dimensioning Rules for Tight Clearances

My Take: In small kitchens, one inch is the difference between a smooth install and a stuck fridge. I dimension to faces, centerlines, and critical clearances with a fixed order: overall, run, component, then appliance service space. My installers can recite it now.

Pros: Using explicit appliance rough-in dimensions, aisle widths (36 in minimum; 42 in for multiple cooks), and door swing arcs improves kitchen appliance layout accuracy and avoids field rework. The NKBA recommends minimum clearances—like 15 in landing space on the latch side of a refrigerator—which I note directly on plans for build clarity (Source: NKBA Kitchen Planning Guidelines).

Cons: Over-dimensioning can clutter drawings and confuse priorities. Owners sometimes panic at tolerance notes (“1/4 in shim allowable”) even though it protects them. And yes, you’ll get a call when a cabinet line reads 24 15/16 in.

Tips / Case / Cost: Put critical dimension strings on their own layer and fade secondary strings in viewports. For renovation projects with imperfect walls, I add a “field-verify” cloud at the refrigerator niche and sink centerline—it’s saved two countertop recuts in the past year. When I trial unusual work triangles, I preview proportions with glass backsplash improves perceived depth before locking in CAD dims.

save pin

save pin

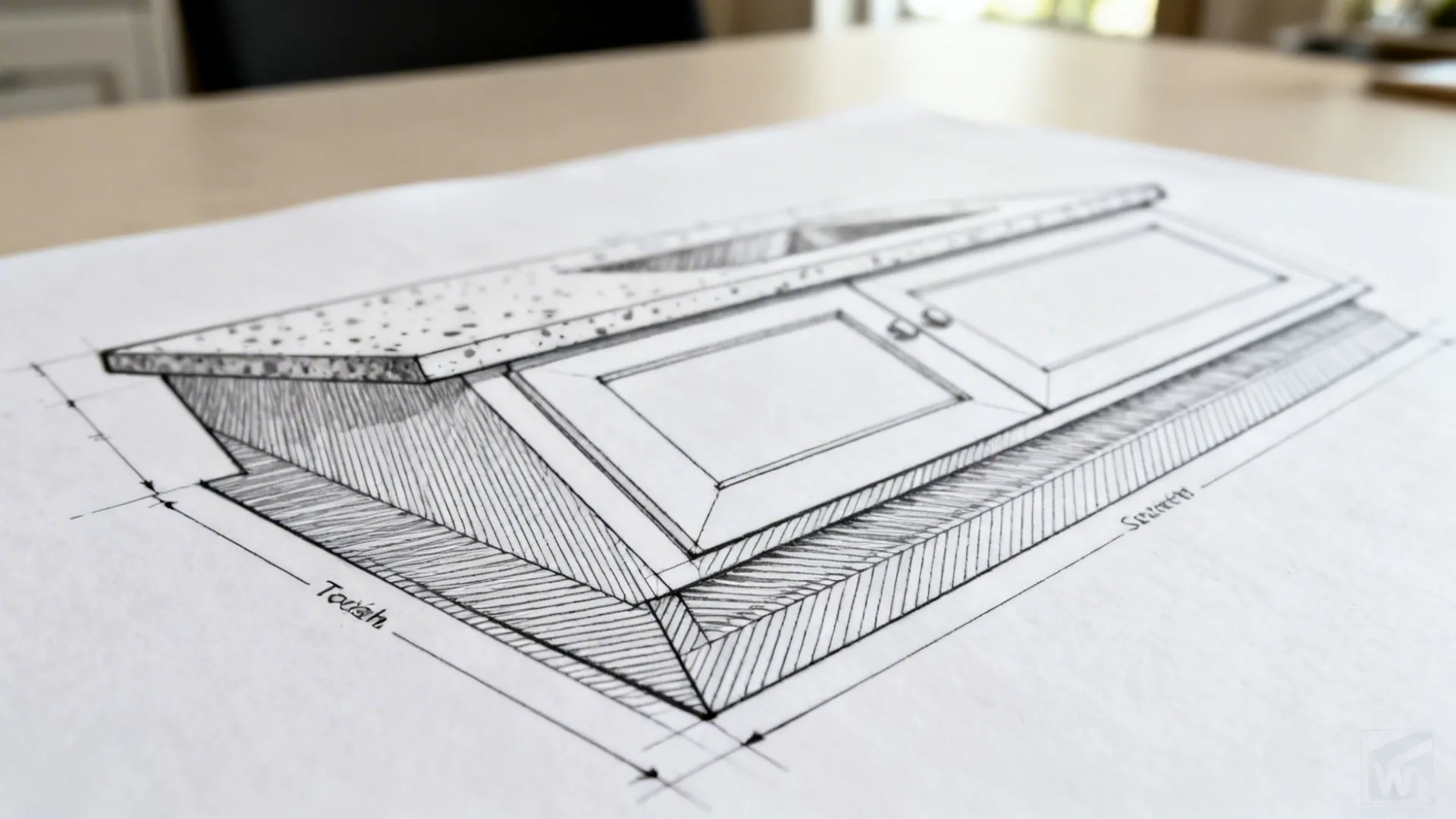

Standard 3: Section Cuts That Actually Build Cabinets

My Take: If a section can’t guide a carpenter’s saw, it’s just art. I cut sections at every sink, range, and corner cabinet, showing toe-kick height, scribe, filler, and wall shims. A 9-minute section detail once prevented a 3-day delay on a quartz waterfall.

Pros: Detailed cabinet sections with hardware callouts (hinge overlay, pull style, slide type) and countertop build-up thickness ensure accurate custom cabinet fabrication. Including long-tail details like undermount sink reveal options and plywood substrate thickness improves shop drawings and bids. The Architectural Woodwork Institute (AWI) standards reinforce documenting tolerances and finished ends to reduce field adjustments (Source: AWI Premium Grade casework guidelines).

Cons: More sections mean more sheets—and fees. Clients don’t always “see” the value until something goes wrong. Also, your plotter will choose the worst day to run out of toner when you’re printing 12 cabinet sections.

Tips / Case / Cost: Standardize 3–4 parametric section blocks and swap dimensions as needed; you’ll halve drafting time. I include a micro “cabinet installation note box” on each section: reveal, scribe, shim, fasteners. For novices, a quick 3D check helps confirm tricky corners—think warm wood accents to soften minimal lines visualized, then translated to precise section cuts.

save pin

save pin

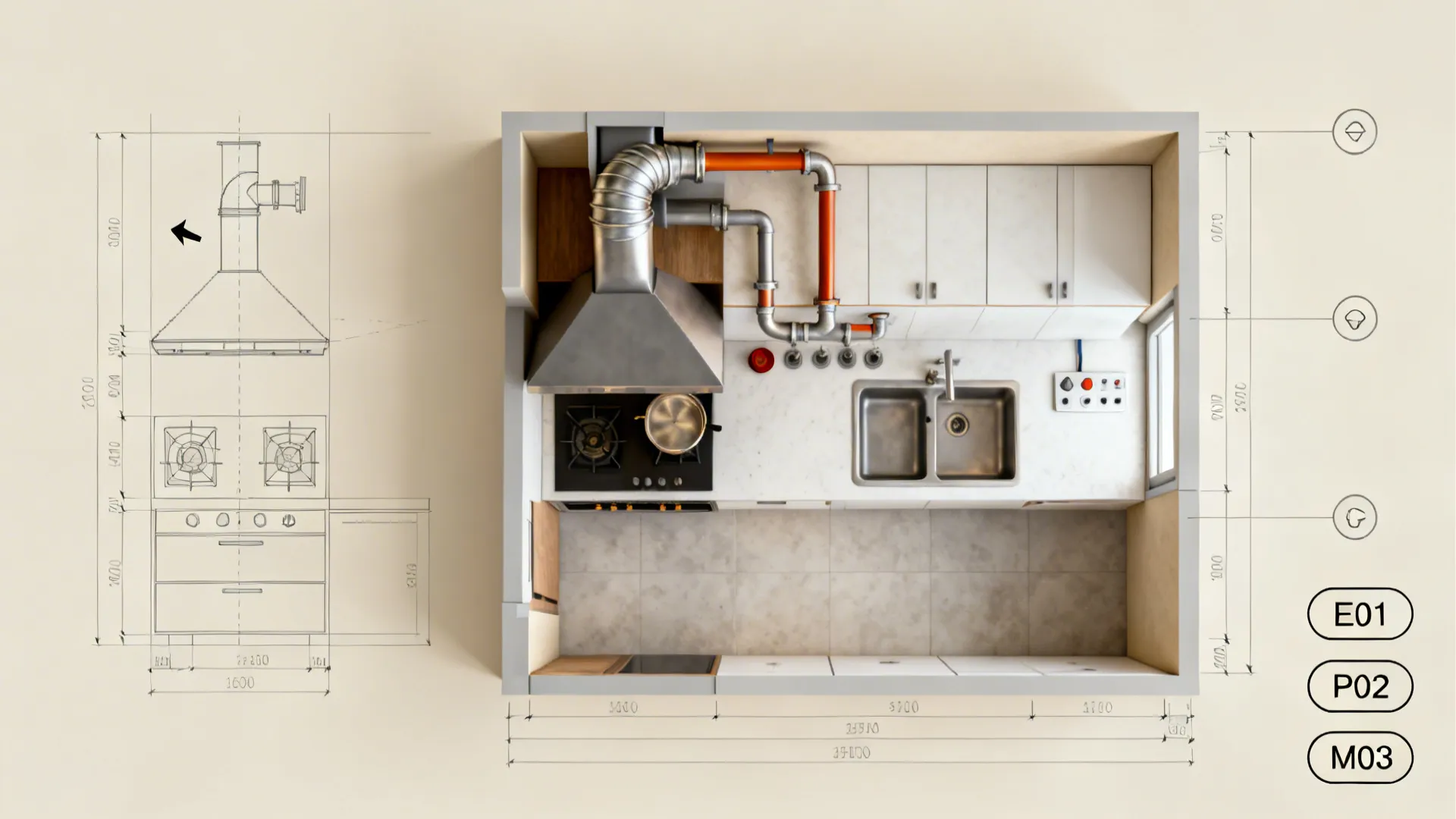

Standard 4: MEP Coordination Notes & Code Callouts

My Take: My most stressful call came from a site where a range hood duct hit a joist. Now I map every duct, trap, and shutoff in plan and elevation, with code notes. If mechanicals are the kitchen’s arteries, your CAD is the angiogram.

Pros: Clear MEP coordination reduces change orders in small kitchen remodels—callouts for GFCI locations, dedicated circuits for dishwashers, and vent clearance to combustibles keep inspectors happy. Long-tail clarity like P-trap centerline heights and supply stub-out spacings lets plumbers rough in without guesswork. The International Residential Code (IRC) and manufacturer installation manuals are my go-to sources for clearance data (e.g., range hood duct sizes per spec).

Cons: Codes vary by jurisdiction, and keeping notes updated can be a part-time job. Too many callouts can overwhelm the main drawing; I’ve learned to park them in keyed legends. Also, inspectors sometimes have preferences beyond the book—relationships matter.

Tips / Case / Cost: Create a kitchen MEP legend with keyed tags (E01: GFCI, M03: 6 in duct min per spec). Always cite manufacturer cut sheets on the sheet itself; it speeds approvals. For condos, coordinate shutoff valve access panels early to avoid reopening walls.

save pin

save pin

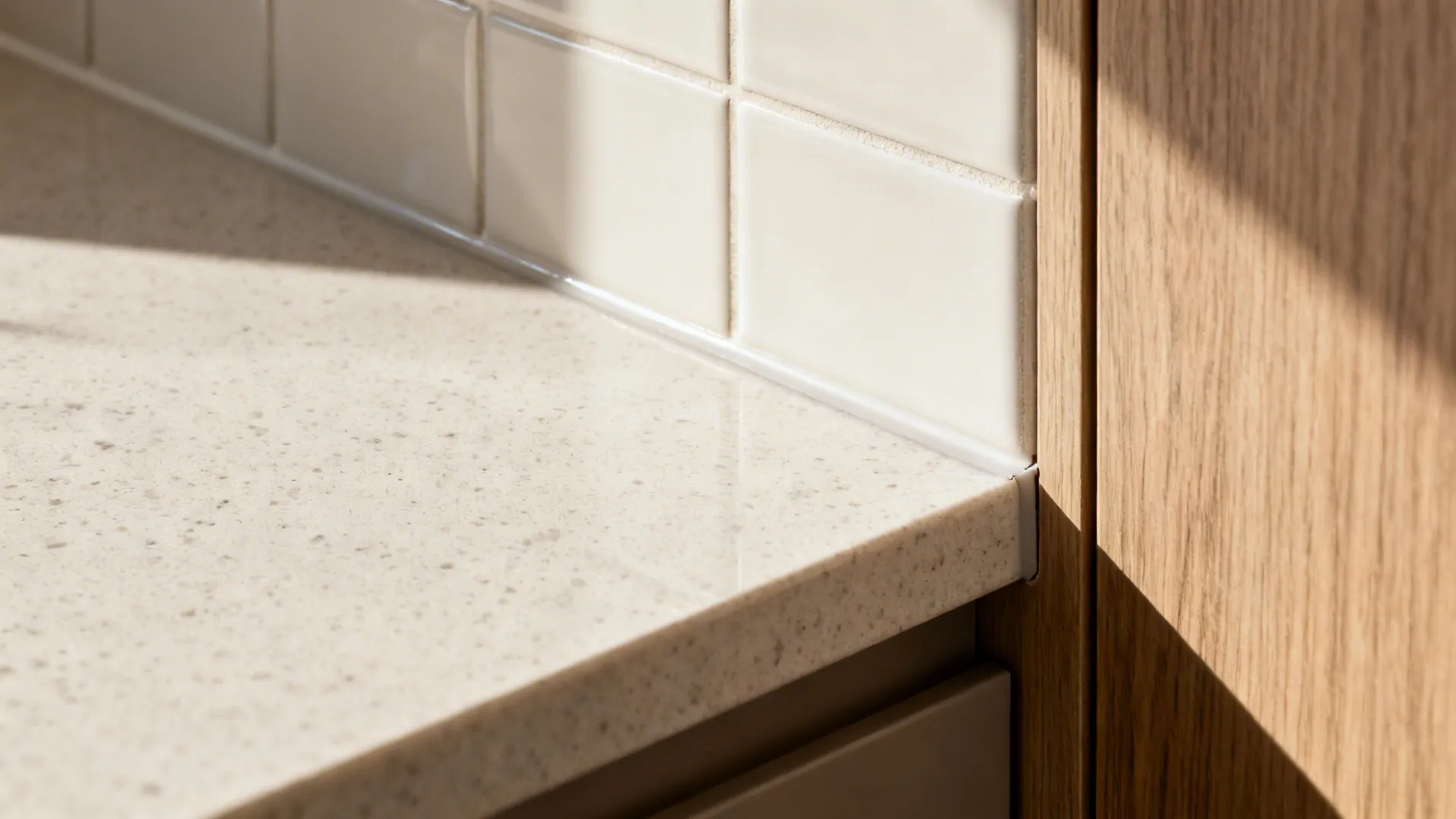

Standard 5: Material Interfaces, Tolerances, and Field-Verify Notes

My Take: The cleanest kitchens I’ve delivered share one trait: honest tolerances. I detail every joint—counter to splash, splash to upper, panel to floor—with explicit gaps and sealants. It’s less glamorous than mood boards, but it’s what gets you magazine photos.

Pros: Documenting long-tail details like silicone color at backsplash joints, quartz overhang tolerances, and scribe panel widths prevents chipped edges and misaligned reveals. Clear “F.V.” (field verify) notes at uneven walls reduce risk in small kitchen renovations where existing conditions are unpredictable. The Tile Council of North America (TCNA) Handbook supports specifying movement joints at perimeters to avoid cracking—critical behind ranges (Source: TCNA EJ171).

Cons: Too many tolerance notes can spook clients who expect perfection. Some fabricators prefer their own standards, leading to markup overlaps—coordinate early. And yes, you will debate 1/16 in reveals longer than you’d like.

Tips / Case / Cost: I standardize a material interface legend (MI-01 quartz to tile, MI-02 tile to cabinet) with joint sizes and sealants. On fast-track jobs, I hold a 15-minute “tolerance walk-through” with trades using the sheet set—it’s saved more money than any premium pull.

save pin

save pin

FAQ

1) What are the core kitchen design CAD detail standards I should follow?

Use disciplined layers and lineweights, a consistent dimension hierarchy, buildable cabinet sections, explicit MEP/code callouts, and documented tolerances with field-verify notes. These five standards minimize rework and clarify intent for small kitchens.

2) How do I dimension compact kitchens without clutter?

Start with overall dimensions, then cabinet runs, components, and finally appliance clearances. Put secondary strings on a lighter layer, and keep critical dimensions tied to fixed references. This improves appliance rough-in accuracy in tight layouts.

3) Which codes matter most for kitchen CAD details?

Focus on local adoptions of the IRC/IBC, electrical GFCI requirements, range hood clearances, and manufacturer specs. NKBA planning guidelines also help set recommended minimums for aisles and landings (Source: NKBA Kitchen Planning Guidelines).

4) How detailed should cabinet sections be?

Show toe-kick, reveal, scribe, substrate thickness, counter build-up, and hardware. Include sink reveal type and backsplash thickness—it avoids misaligned faucet centers and uneven edges. Buildable sections reduce RFIs during fabrication.

5) What’s the best way to coordinate MEP in CAD?

Use keyed legends (E, P, M), note centerlines and heights, and reference cut sheets right on the drawing. Provide dedicated circuits and clearance notes to manufacturers’ requirements. It keeps inspectors and trades aligned.

6) How do I handle existing walls that aren’t square?

Add field-verify notes at critical zones (range niche, sink centerline) and specify scribe panels and allowable shims. Document tolerances in your material interface legend so fabricators can plan for real-world variation.

7) Are there authoritative standards for cabinetry?

The Architectural Woodwork Institute (AWI) provides grading and fabrication guidance that translates well to residential cabinetry details. Using AWI conventions for tolerances and finishes helps align expectations between designer and shop (Source: AWI Standards).

8) What tools help me check proportions before I draft?

Quick 3D tests can validate aisle widths, door swings, and backsplash terminations before you lock in CAD. For early massing and visualization, a simple room model can reveal conflicts that your 2D plan might miss.
